Smeg LQVS862-1 Technical sheet

LQVS862-1

Sink, Universale, Welded sink, Standard, No. of bowls: 2, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 2 • EAN code:

8017709138455

AESTHETICS

Aesthetics: Universale • Serie: Quadra • Color: Stainless steel • Finishing: Brushed • Glass Type: Tempered • Type of steel:

AISI304 • Building in type: Standard

TECHNICAL FEATURES

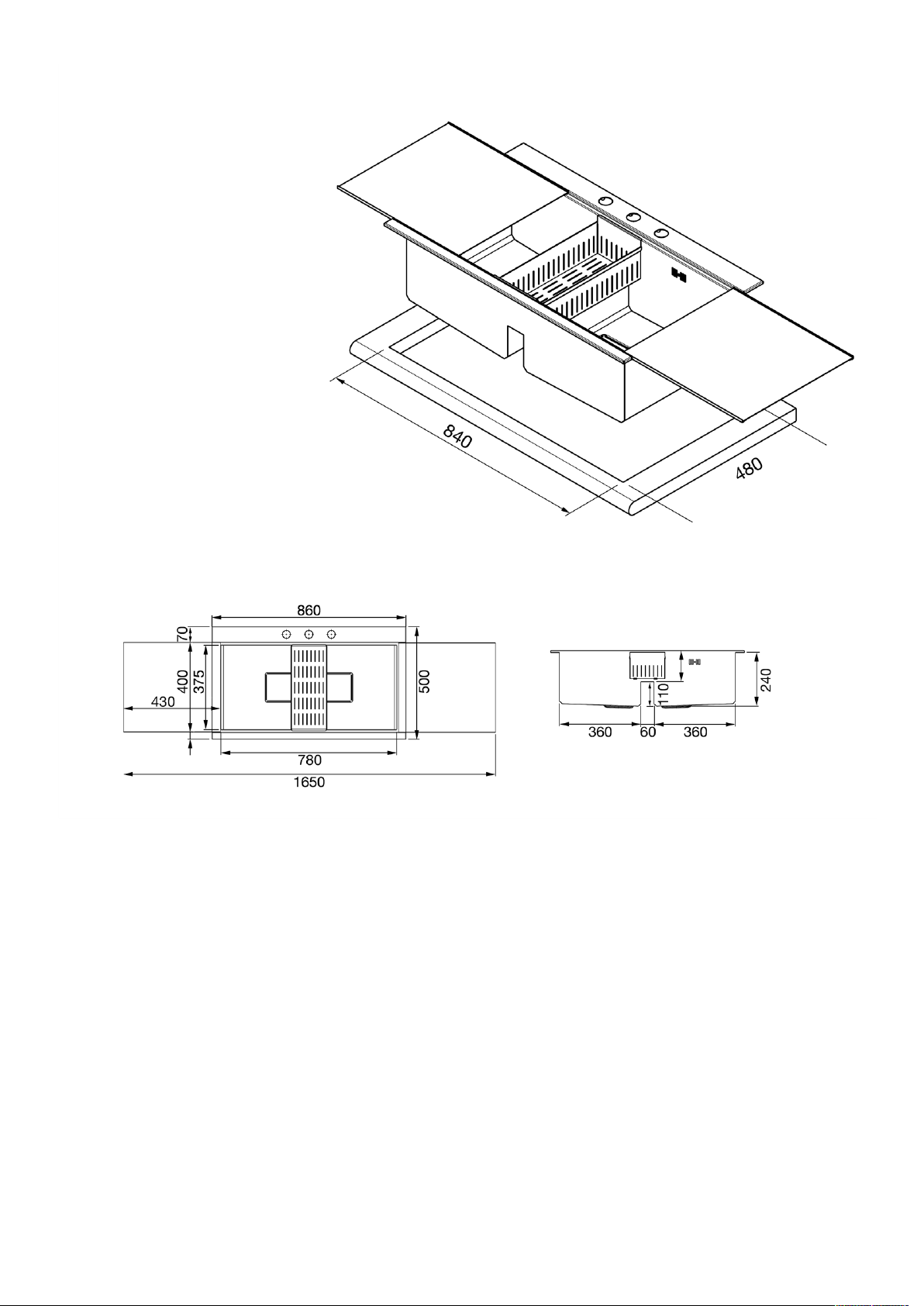

Width (mm): 1170 mm • Base unit size: 90 cm • Frame thickness: 1 mm • Glass thickness: 4 mm • Height from kitchen top: 8

mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 1 • Popup command: Yes, double • Popup command type:

Squared • Dividing wall width: 60 mm • Gasket type: Sealing paste • No. of clips: 14 • Type of clips: Standard

RH BOWL

Bowl type RH: Squared • Bowl dimensions, WxDxH (mm): 360 x 375 x 245 mm • Bowl thickness (mm): 1 mm • Bowl depth

(mm): 245 mm • Strainer position: Side bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Squared • Bowl dimensions LH, WxDxA (mm): 360 x 375 x 245 mm • Bowl thickness LH (mm): 1 mm • LH Bowl

depth (mm): 245 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension LH bowl:

3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 220x1170x510 mm

NO LONGER IN USE

Glass finish: Stopsol Super Silver

ACCESSORIES INCLUDED

Colander: YesGlass board: 2Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing

clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksSTABMIX: Stabiliser, Sinks
