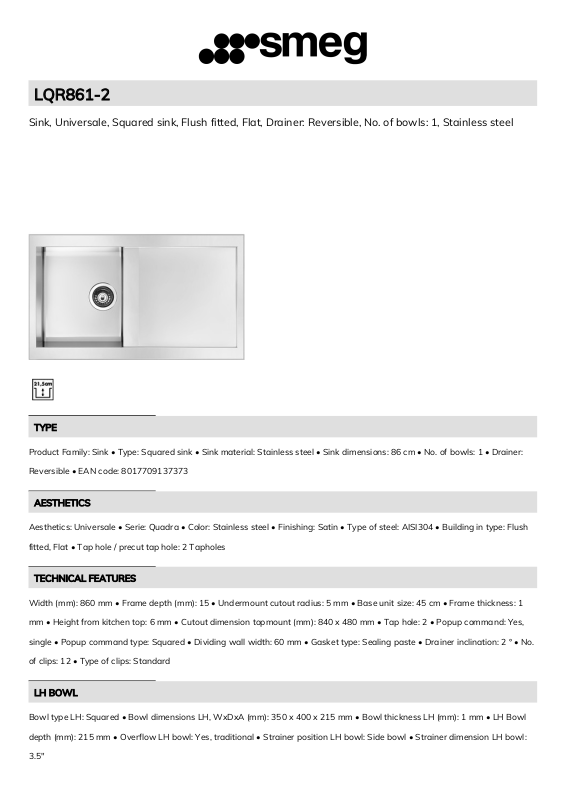

Smeg LQR861-2 Technical sheet

LQR861-2

Sink, Universale, Squared sink, Flush fitted, Flat, Drainer: Reversible, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Squared sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:

Reversible • EAN code: 8017709137373

AESTHETICS

Aesthetics: Universale • Serie: Quadra • Color: Stainless steel • Finishing: Satin • Type of steel: AISI304 • Building in type: Flush

fitted, Flat • Tap hole / precut tap hole: 2 Tapholes

TECHNICAL FEATURES

Width (mm): 860 mm • Frame depth (mm): 15 • Undermount cutout radius: 5 mm • Base unit size: 45 cm • Frame thickness: 1

mm • Height from kitchen top: 6 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 2 • Popup command: Yes,

single • Popup command type: Squared • Dividing wall width: 60 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No.

of clips: 12 • Type of clips: Standard

LH BOWL

Bowl type LH: Squared • Bowl dimensions LH, WxDxA (mm): 350 x 400 x 215 mm • Bowl thickness LH (mm): 1 mm • LH Bowl

depth (mm): 215 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension LH bowl:

3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 215x860x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket, Automatic pop -

up with roudn rotary control

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksTTQ40: Chopping board,

SinksVSH40Q: Colander, SinksSTABMIX: Stabiliser, Sinks
