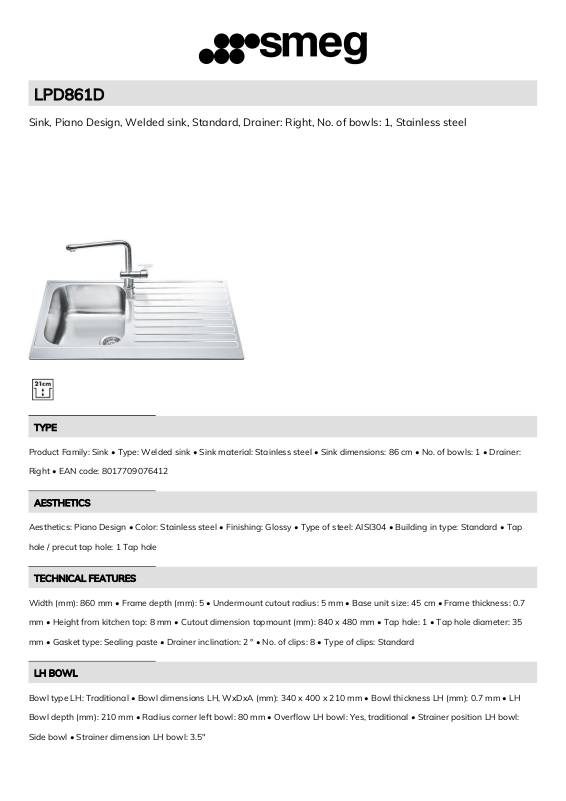

Smeg LPD861D Technical sheet

LPD861D

Sink, Piano Design, Welded sink, Standard, Drainer: Right, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:

Right • EAN code: 8017709076412

AESTHETICS

Aesthetics: Piano Design • Color: Stainless steel • Finishing: Glossy • Type of steel: AISI304 • Building in type: Standard • Tap

hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 860 mm • Frame depth (mm): 5 • Undermount cutout radius: 5 mm • Base unit size: 45 cm • Frame thickness: 0.7

mm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 1 • Tap hole diameter: 35

mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 8 • Type of clips: Standard

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 210 mm • Bowl thickness LH (mm): 0.7 mm • LH

Bowl depth (mm): 210 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 215x860x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCB34: Chopping board,

SinksCOLPTX: Drainer, SinksDB34: Basket, SinksSTABMIX: Stabiliser, Sinks
