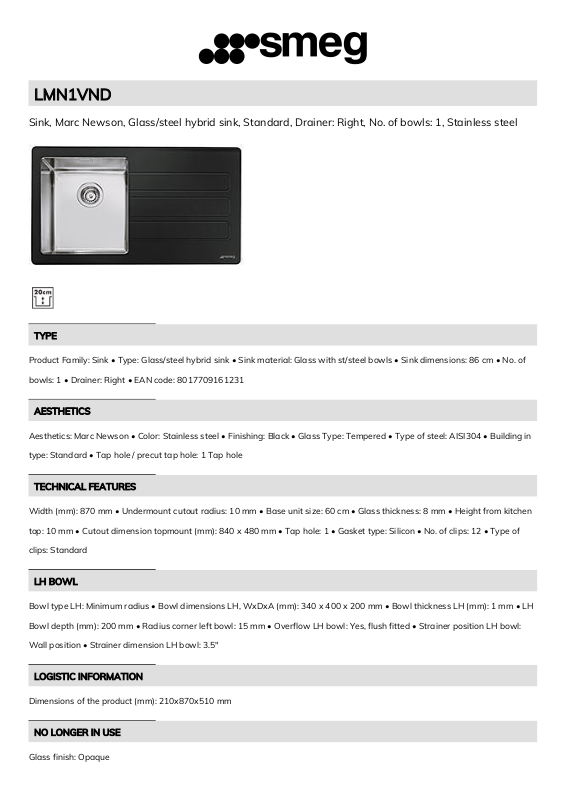

Smeg LMN1VND Technical sheet

LMN1VND

Sink, Marc Newson, Glass/steel hybrid sink, Standard, Drainer: Right, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Glass/steel hybrid sink • Sink material: Glass with st/steel bowls • Sink dimensions: 86 cm • No. of

bowls: 1 • Drainer: Right • EAN code: 8017709161231

AESTHETICS

Aesthetics: Marc Newson • Color: Stainless steel • Finishing: Black • Glass Type: Tempered • Type of steel: AISI304 • Building in

type: Standard • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

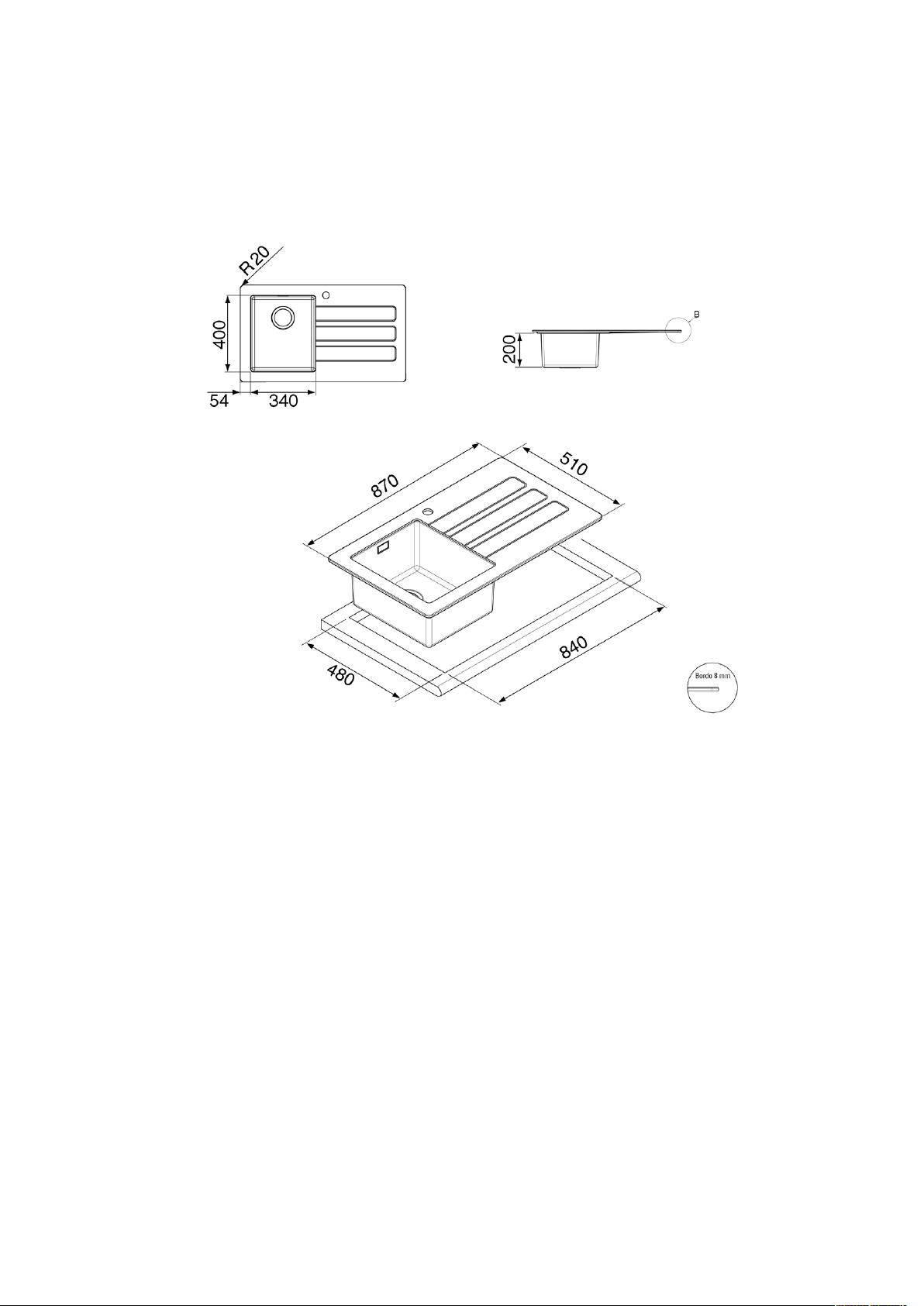

Width (mm): 870 mm • Undermount cutout radius: 10 mm • Base unit size: 60 cm • Glass thickness: 8 mm • Height from kitchen

top: 10 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 1 • Gasket type: Silicon • No. of clips: 12 • Type of

clips: Standard

LH BOWL

Bowl type LH: Minimum radius • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 200 mm • Bowl thickness LH (mm): 1 mm • LH

Bowl depth (mm): 200 mm • Radius corner left bowl: 15 mm • Overflow LH bowl: Yes, flush fitted • Strainer position LH bowl:

Wall position • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 210x870x510 mm

NO LONGER IN USE

Glass finish: Opaque

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksDB34: Basket, Sinks
