-EN- LM40/DS -
19390291702-LM40-DS_EN
1
Rev. 02 – 20/07/2012
Read the safety warnings and instructions for the thermodisinfectors in which the rack is used with
care, together with the safety instructions of the producer of the glassware and any other item placed on the
rack. Badly positioned items or glass which shatters during washing may cause dangerous injuries. If
necessary, washing results must be checked and subjected to non-visual inspections.
Qt.y
PART
NUMBER
DESCRIPTION
Qt.y
PART
NUMBER
DESCRIPTION
1
TC40
LM40 central pipe (only
without DS version).
5
U6240
stainless steel nozzle
D=6 H=240 (mm)
5
U390
Stainless steel nozzle
D=3 H=90 (mm)
5
U6260
stainless steel nozzle
D=6 H=260 (mm)
5
U3110
stainless steel nozzle
D=3 H=110 (mm)
1 - Curved nozzle
5
U4140
stainless steel nozzle
D=4 H=140 (mm)
1 - Nozzle spanner
5
U4160
stainless steel nozzle
D= 4 H=160 (mm)
1
TC40DS
LM40DS central pipe
(only for DS version)
5
U4180
stainless steel nozzle
D=4 H=180 (mm)
5
U6220
stainless steel nozzle
D=6 H=220 (mm)
NOZZLE
(E.g. U390 means
Stainless steel nozzle with D=
3mm and H= 90mm)
CURVED
NOZZLE

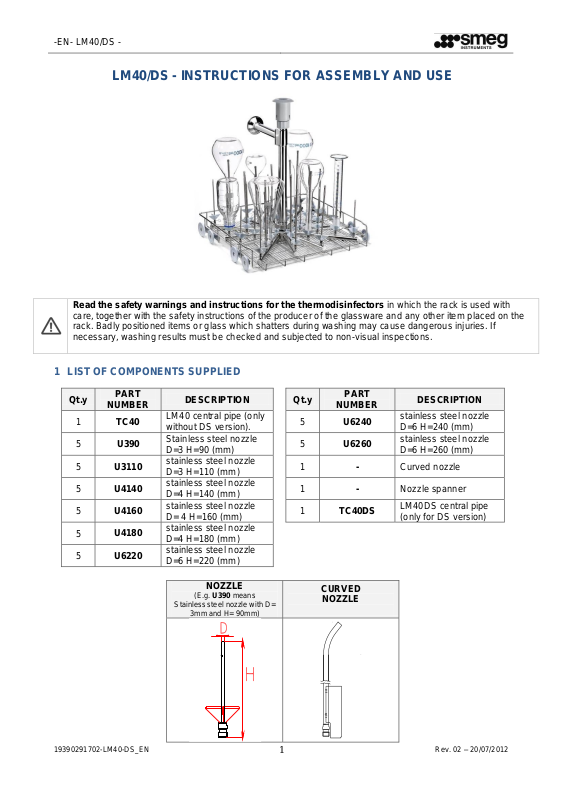

LM40/DS - INSTRUCTIONS FOR ASSEMBLY AND USE
1 LIST OF COMPONENTS SUPPLIED
-EN- LM40/DS -
19390291702-LM40-DS_EN
2
Rev. 02 – 20/07/2012
2 BLOW-UP DIAGRAM
The blow-up diagram below is guideline; request up-to-date information on spare parts from your Smeg
contact, with reference to www.smegtech.com.
-EN- LM40/DS -
19390291702-LM40-DS_EN
3
Rev. 02 – 20/07/2012
POSITION
DESCRIPTION
1
U390
2
U3110
3
U4140
4
U4160
5
U4180
6
U6220
7
U6240
8
U6260
9
CURVED NOZZLE
5
1 2 1 2 1
2 1 2 1 2
3
3
3 3 3 4 4 4 4 4 7 7 7 7 7 8 8 8 8 8 5 5 5 5 6 6 6
6
6
9

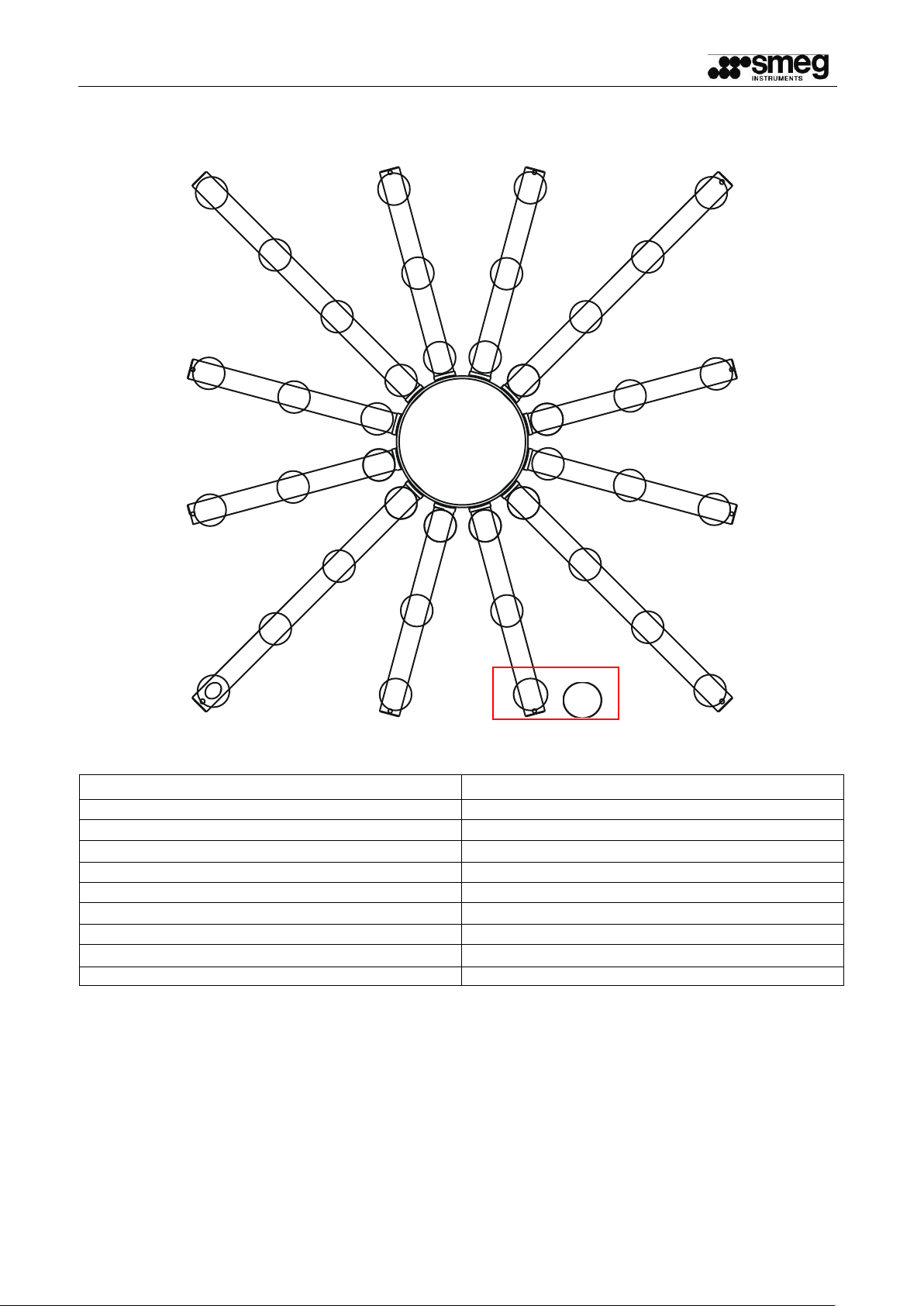

3 NOZZLE ASSEMBLY
rear
Front
-EN- LM40/DS -
19390291702-LM40-DS_EN
4
Rev. 02 – 20/07/2012
ILLUSTRATION
PROCEDURE

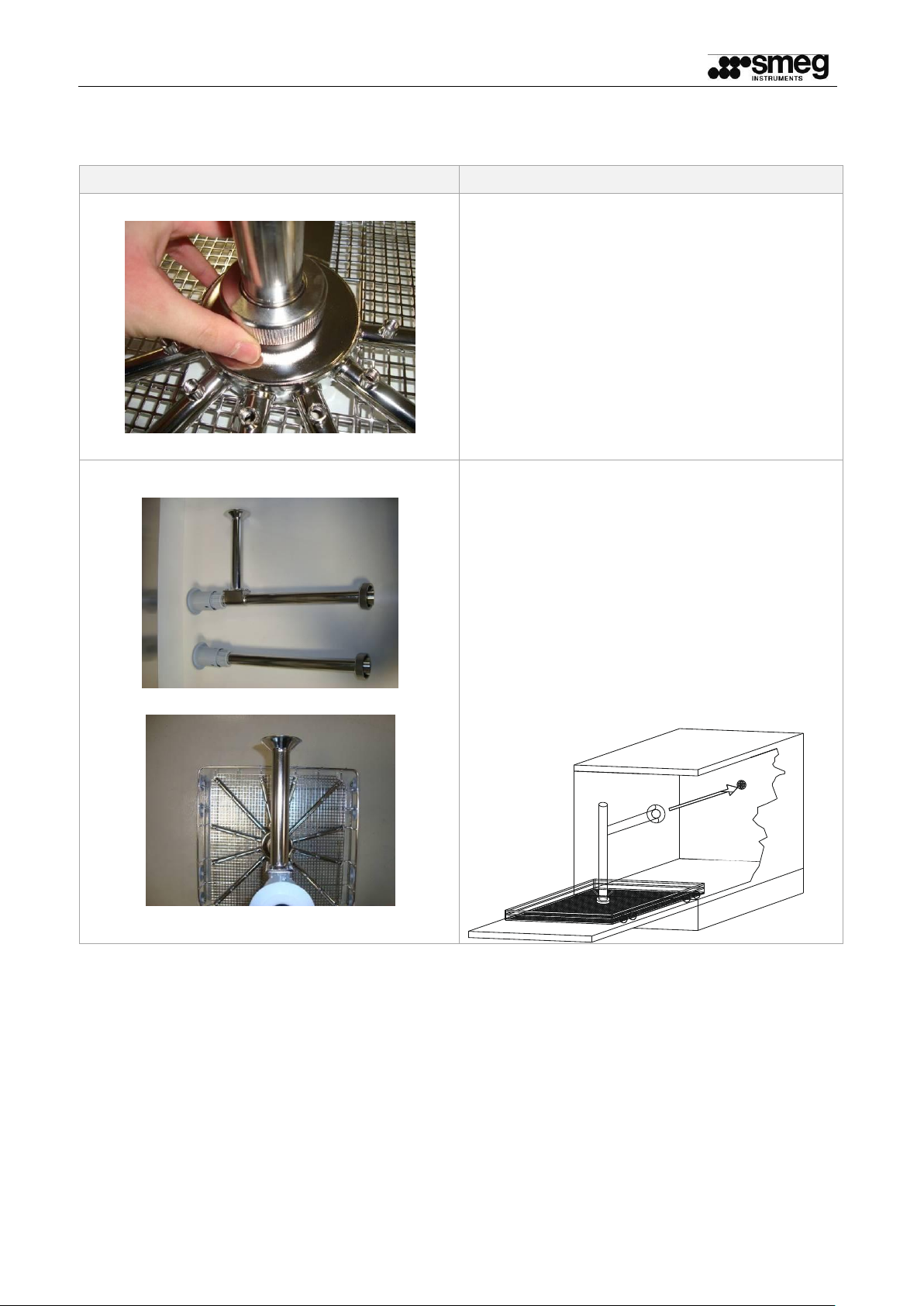

Fig.1
Insert the central pipe into place and tighten
the ring-nut to fix all parts.
Fig. 2
Fig.3
If your product is equipped with the DS device,
the pack contains pipe (B) instead of the ordinary
pipe (A), in which case the pipe B must be fitted
as shown in figure 3, i.e. with the projecting pipe
towards the rear of the rack, so that once it is
inside the disinfector it will be aligned with the
connection (illustration below).
4 ASSEMBLY SEQUENCE
-EN- LM40/DS -
19390291702-LM40-DS_EN
5
Rev. 02 – 20/07/2012
ILLUSTRATION
PROCEDURE

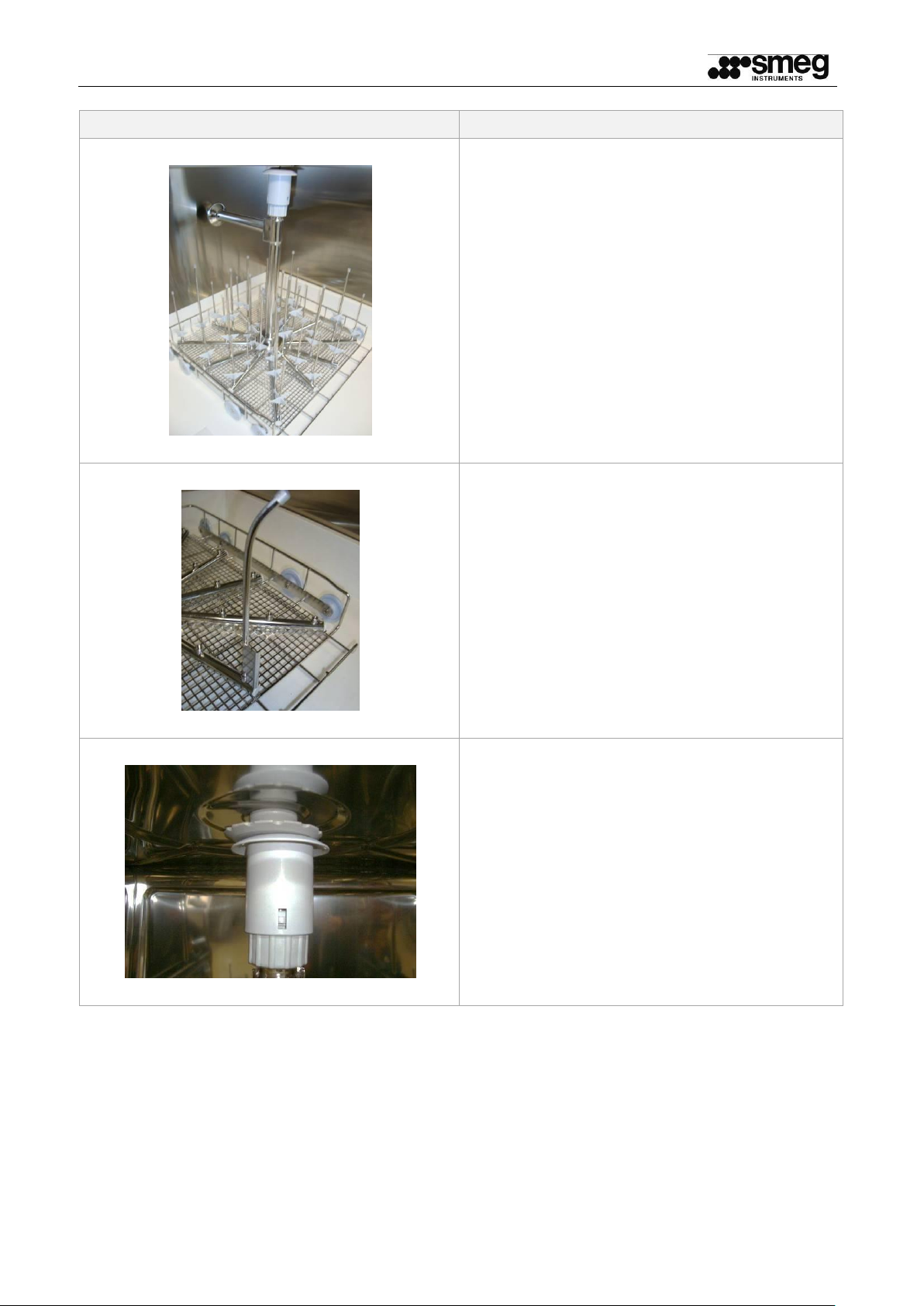

Fig. 4
Fit the different types of nozzles in the
positions shown in the nozzle assembly
diagram.
Tighten the nozzles with the spanner provided.
Fig. 5
If the door is fitted with the detergent distributor,
the curved nozzle must be fitted in such a way
that once it has been fitted in the disinfector, this
distributor will be washed (see nozzle mounting
diagram for position).
Also remember that this nozzle is intended only
to wash the tank, so it must never be covered
with pieces for washing. Fit the nozzle and fix it
to the rack with the screw at the bottom.
Fig.6
When inserting the rack in the disinfector, the
greatest care must be taken to ensure that the
tapered connection on the rack is aligned with
the one on the machine.
-EN- LM40/DS -
19390291702-LM40-DS_EN
6
Rev. 02 – 20/07/2012

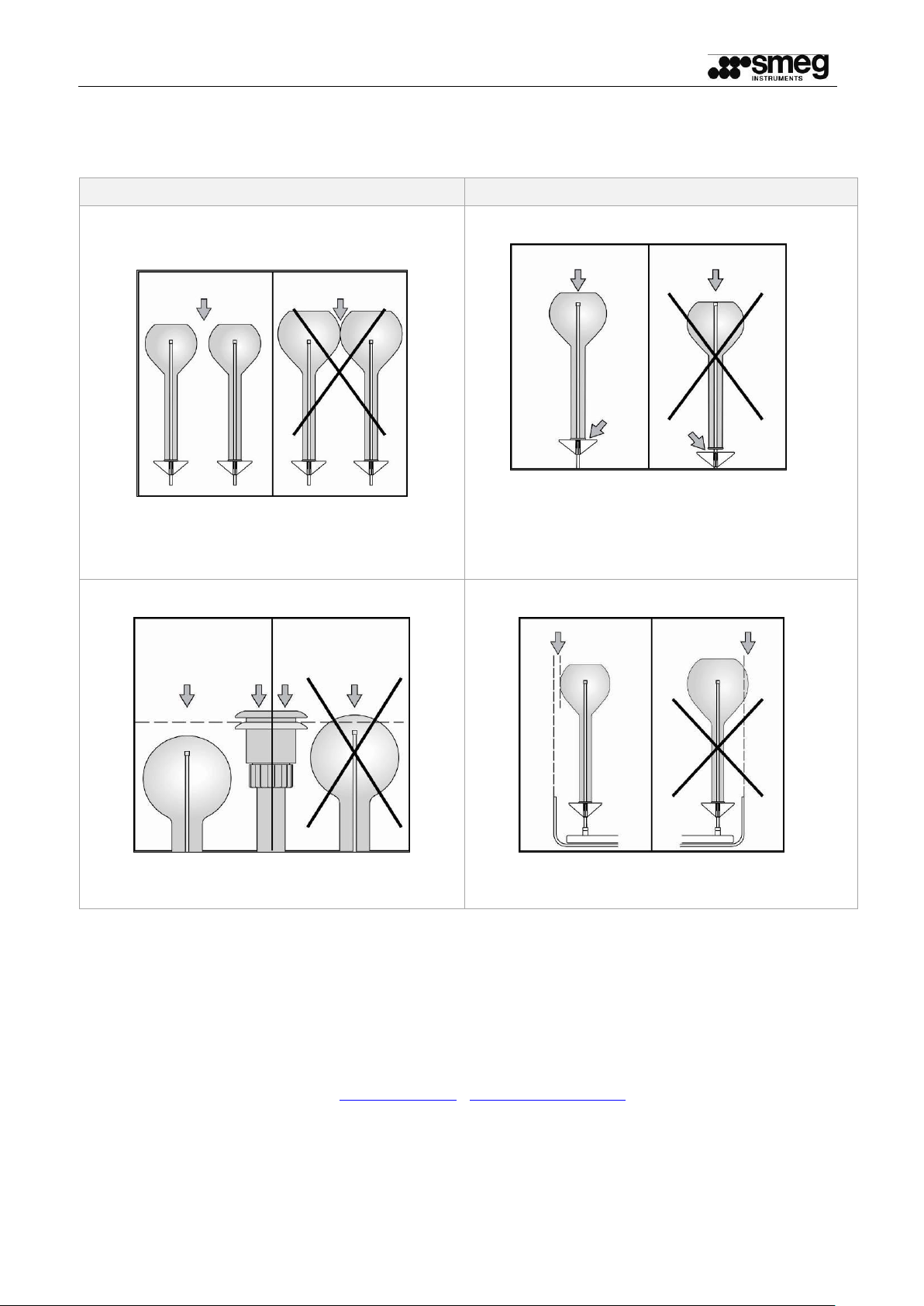

PROCEDURE
PROCEDURE
Take care not to place pieces of glassware
touching each other.
Glass must not rest on the nozzle; it must
stand on the base support, allowing the
water to come out of the nozzle freely.
Move the spring underneath the support to
prevent it from descending.
Ensure that no glassware or any other item
for washing projects above the water intake.
Ensure that no item for washing projects from
the rack after loading.
5 USE, PRECAUTIONS
Smeg S.p.A.
Via Leonardo da Vinci, 4 – 42016 Guastalla (RE) Italy
E-Mail: instruments@smeg.it – www.smeg-instruments.com
Instruments Division
Tel. +39 0522 8211 - Fax + 0522 821 592
