Smeg LFTG861S Technical sheet

LFTG861S

Sink, Universale, Welded sink, Flush fitted, Flat, Drainer: Left, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:

Left • EAN code: 8017709282417

AESTHETICS

Aesthetics: Universale • Serie: Mira • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type: Flush

fitted, Flat • Tap hole / precut tap hole: 2 Tapholes

TECHNICAL FEATURES

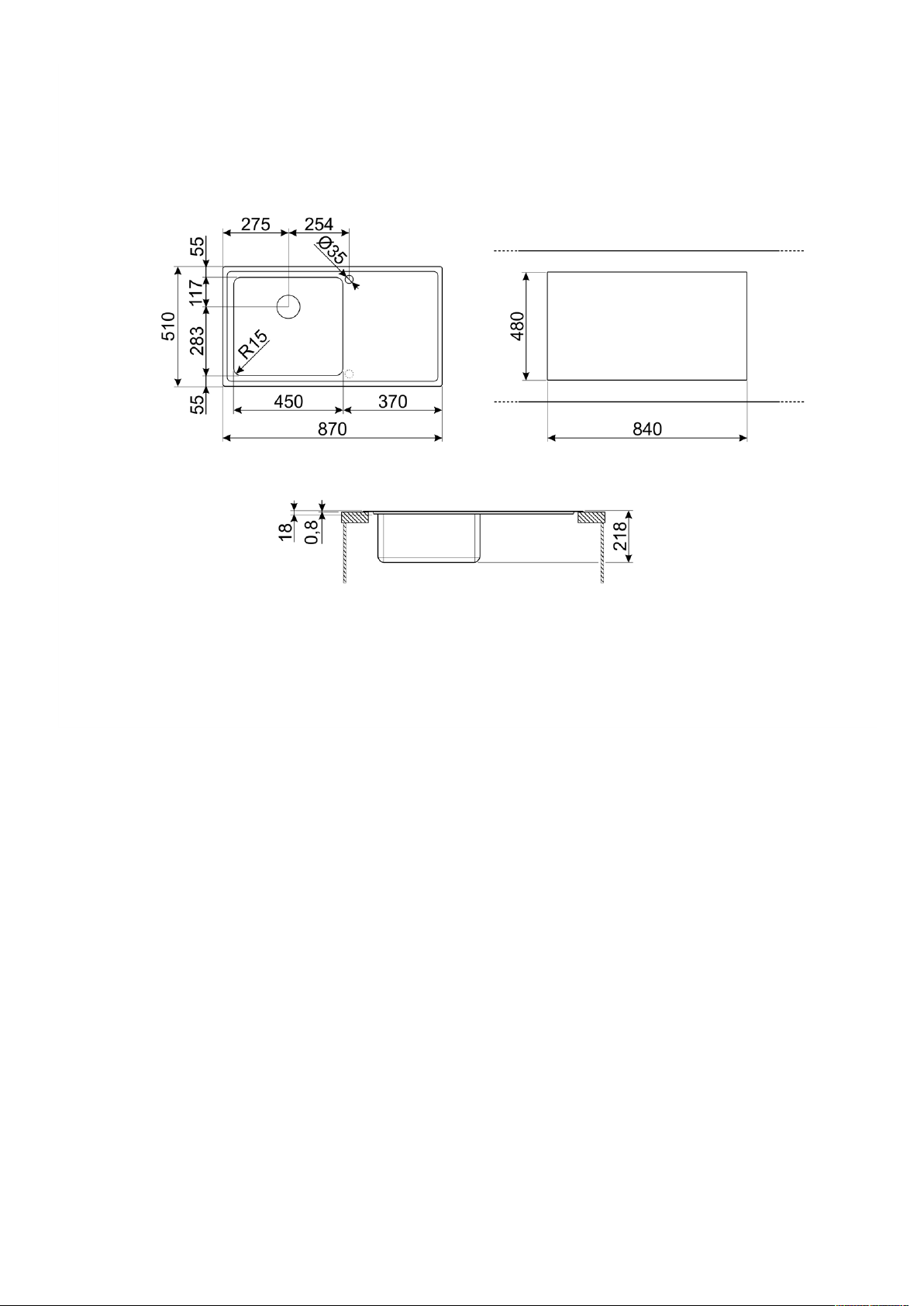

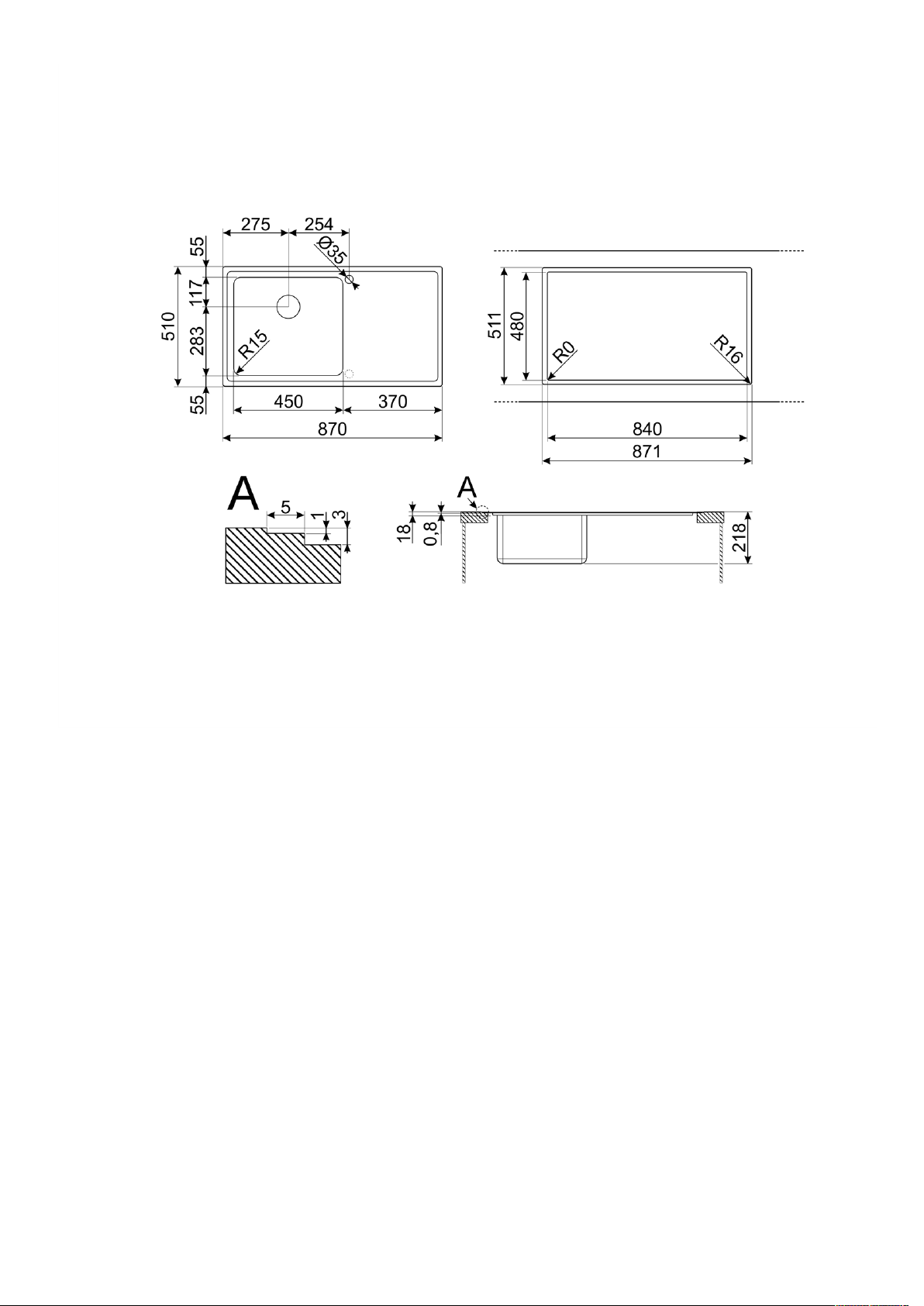

Width (mm): 870 mm • Frame depth (mm): 18 • Undermount cutout radius: 5 mm • Base unit size: 45 cm • Frame thickness: 0.7

mm • Height from kitchen top: 1 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 2 • Tap hole diameter: 35

mm • Popup command: Yes, single • Popup command type: Squared • Gasket type: Sealing paste • Drainer inclination: 2 ° • No.

of clips: 10 • Type of clips: Standard

RH BOWL

Bowl type RH: Minimum radius • Bowl dimensions, WxDxH (mm): 450 x 400 x 200 mm • Bowl thickness (mm): 1 mm • Bowl

depth (mm): 200 mm • Radius corner right bowl (mm): 15 mm • Overflow: Yes, flush fitted • Strainer position: Wall position •

Strainer dimension: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 218x870x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket, Automatic pop -

up with roudn rotary control

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3712:

Siphon, SinksDB34: Basket, SinksSTABMIX: Stabiliser, Sinks
