Smeg LFT862 Technical sheet

LFT862

Sink, Universale, Welded sink, Flush fitted, Flat, No. of bowls: 2, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 2 • EAN code:

8017709210434

AESTHETICS

Aesthetics: Universale • Serie: Mira • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type: Flush

fitted, Flat • Tap hole / precut tap hole: 2 Tapholes

TECHNICAL FEATURES

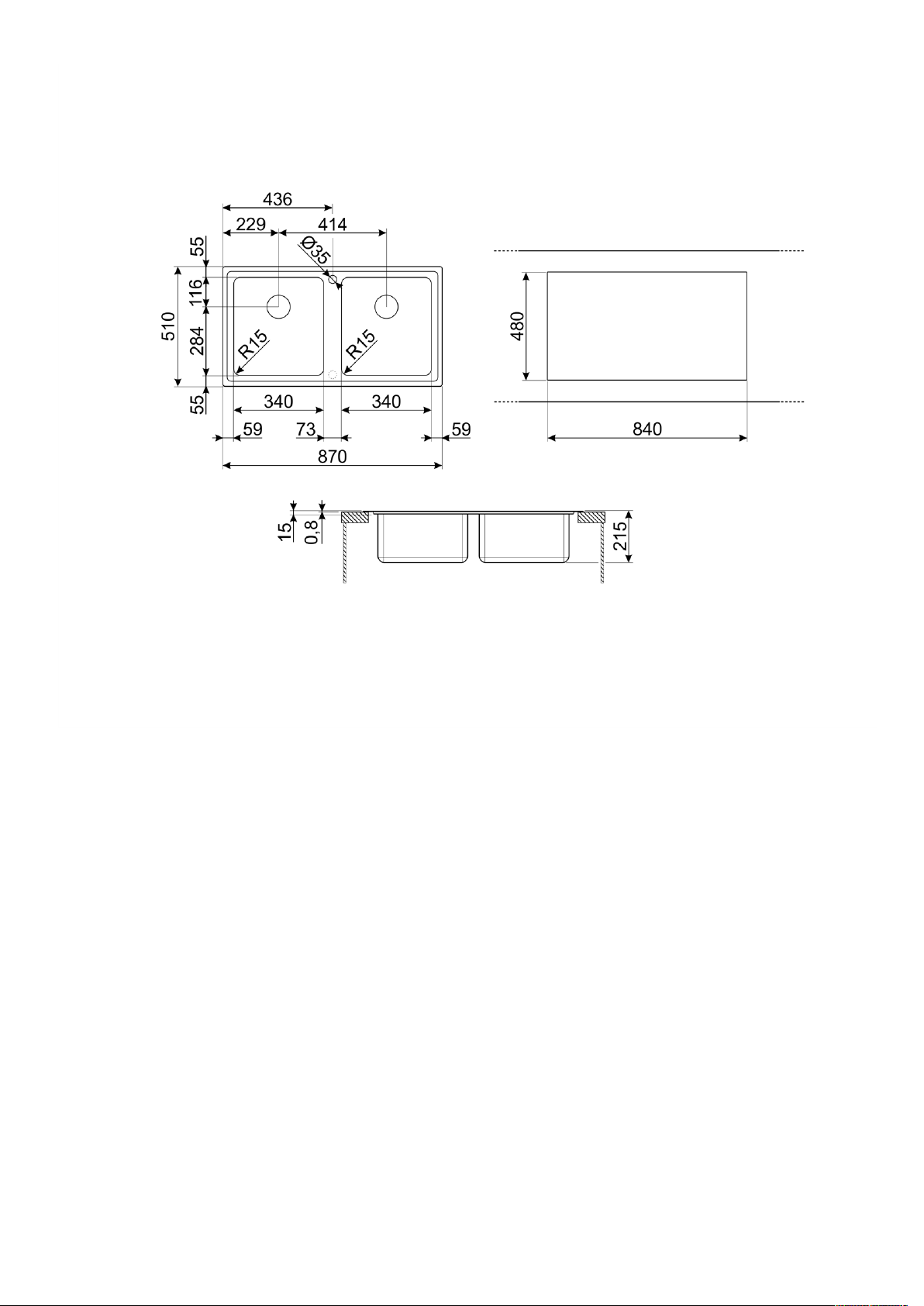

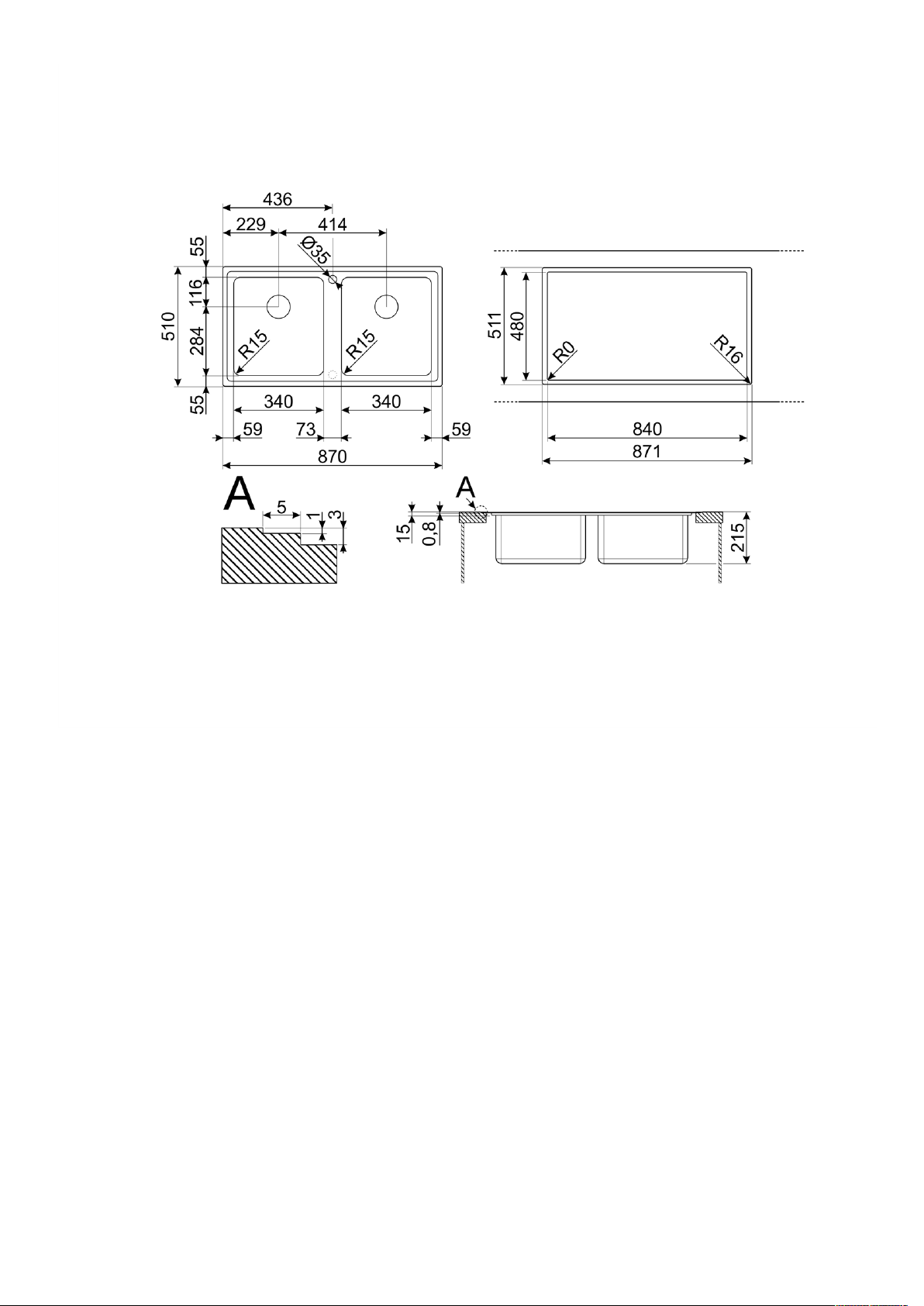

Width (mm): 870 mm • Frame depth (mm): 15 • Undermount cutout radius: 5 mm • Base unit size: 90 cm • Frame thickness: 0.7

mm • Height from kitchen top: 1 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 2 • Tap hole diameter: 35

mm • Popup command: Yes, double • Popup command type: Squared • Dividing wall width: 75 mm • Gasket type: Sealing paste

• No. of clips: 12 • Type of clips: Standard

RH BOWL

Bowl type RH: Minimum radius • Bowl dimensions, WxDxH (mm): 340 x 400 x 200 mm • Bowl thickness (mm): 1 mm • Bowl

depth (mm): 200 mm • Radius corner right bowl (mm): 15 mm • Overflow: Yes, flush fitted • Strainer position: Wall position •

Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Minimum radius • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 200 mm • Bowl thickness LH (mm): 1 mm • LH

Bowl depth (mm): 200 mm • Radius corner left bowl: 15 mm • Strainer position LH bowl: Wall position • Strainer dimension LH

bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 215x870x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket, Automatic pop -

up with roudn rotary control

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3713:

Siphon, SinksDB34: Basket, SinksMATROL: Drainer, SinksSTABMIX: Stabiliser, Sinks
