Washing machine
LBS 86
LBS 106
12
Contents
Specifications of your Washing Machine
Warnings
Installation
Preparation
Program Selection and Operating Your Machine

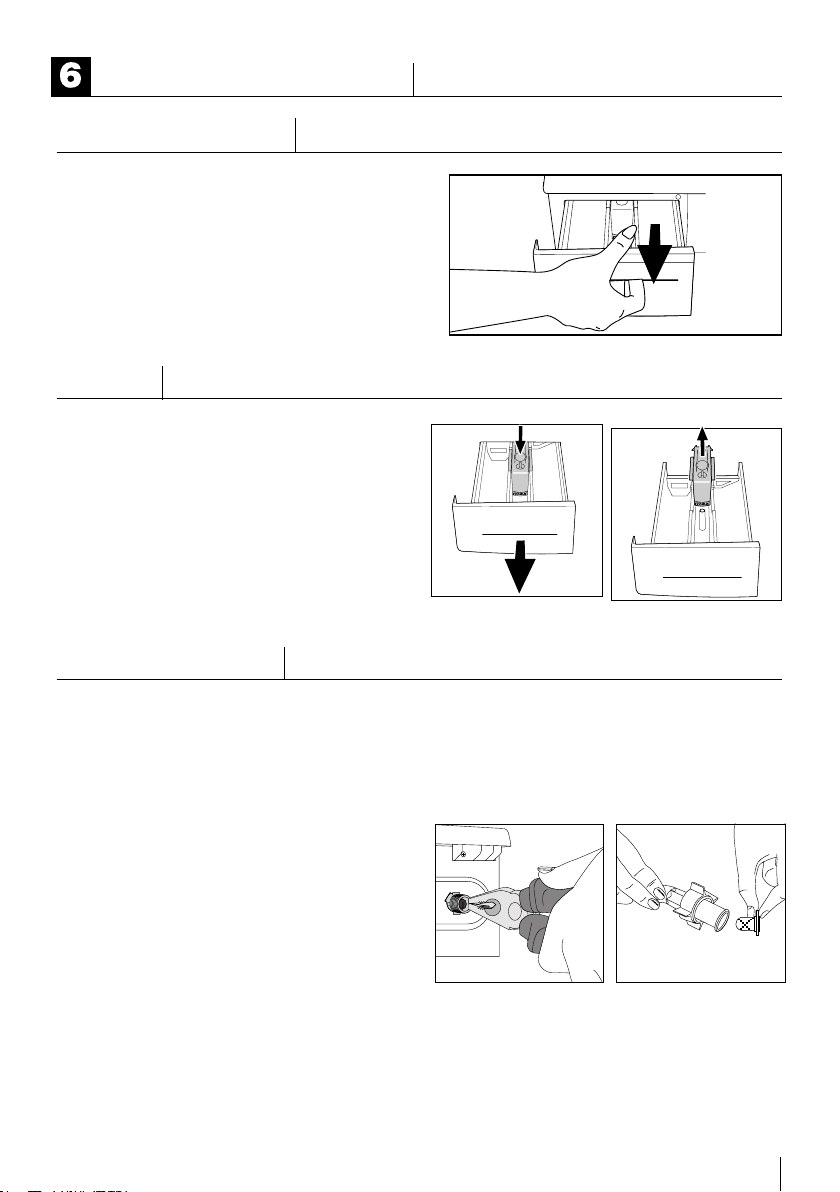

Maintenance and Cleaning
> 4
> 5
> 6
> 8
> 9
> 13
2
23
Your Washing Machine
Detergent Drawer
Control panel
Tabletop
Adjustable feet
Front door
Filter cover
3
34
In order to improve the product quality, modifications can be made in the specifications
without prior notice.
The illustrations in this guide are schematic and may not exactly match with your
product.
The values that are declared in the markings on your product or in the printed
documents accompanying are obtained in a laboratory environment according to the
related standards. These values may vary according to the usage of the product and
environmental conditions.
Specifications of your Washing Machine
Models
LBS 86 LBS 106
Maximum dry laundry capacity (kg.) 6 6
Height (cm.) 85 85
Width (cm.) 60 60
Depth (cm.) 54 54
Net Weight (kg.) 71 71
Electricity (V/Hz.) 230/50 230/50
Total Current (A) 10 10
Total Power (W) 2350 2350
Washing -rinsing cycle (cyc/min) 52 52
Spinning cycle (max cyc/min) 800 1000
4
45
Warnings
• This product is designed for home use.
• Your washing machine is adjusted to
230V.
• If the fuse in your house is less than
16A than have a certified electrician
deploy an 16A fuse.
• In case of transformer or non-transformer use, grounding installation must
be performed with a licensed electrician. Any use before grounding is not
our responsibility.
• Never place your machine over a carpet covered floor. Otherwise electrical
parts of your machine may overheat.
This may cause malfunction of your
machine.
• Make sure hot and cold taps are
connected correctly. Otherwise your
laundry may come out hot and torn .
• Please call certified service for a failure
of electric plug / cable.
• Be careful about your water hoses are
not old. Do not use old / torn water
hoses. This may cause stain in your
laundry .
• At first use, washing must be performed at Cotton 90°C program
without loading with laundry for getting
your machine ready for washing.
• Performance of your washing machine
depends on the quality of water and
hygiene compound used. If low quality
and unfitting cleaning material is used
the stains will be fixed. Before washing your laundry with stain keep your
attention on cleaning the laundry as
explained in following pages.
• This is period of keeping spare parts
for your machine to operate. Because
of quality control procedures there
might be little amount of water in your
machine. This does not have any damage to your machine.
• Your machine is programmed for
starting operation again when electricity is off and on afterwards. You can
not press On / Off button to cancel
program. Machine will go on program
when electricity is on. To CANCEL the
program press >Start/Pause/Cancel<
button for three seconds. (See. Cancelling a program)
If “Door” led on program progress dis-
play is blinking program selection knob
is middle position. In this case turn the
knob and adjust it again. If the warning
continues call authorized service.
• After your machine starts operation, if
Start/Pause/Cancel key starts blinking than door is not locked. Open and
close the door again begin washing
program again.
• If the “washing” led on the program
progress display is blinking either there
is no water or tap is off. Check your
taps. Turn your machine off and on.
If the problem persists unplug your
machine, turn off tap water and call
authorized service.
• If program is started and program
selection can not be performed your
machine might be in protection mode
due to infrastructure problem (voltage,
water pressure, etc.) Press and hold
the > Start/Pause/Cancel < button for
3 seconds in order to switch machine
to factory settings.
• Most of the warnings resulting in calling an authorized service are due to
infrastructure problems. For this reason
applying to an Authorized Service is
recommended.
5
66
Installation
1. Removing the packaging reinforcements
Your machine must stand level and
balanced on its feet in order to operate
more silent and vibration-free.
First loosed the plastic counter nut on the
adjustable feet of your machine.
After maintaining the balance by
adjusting the feet, tighten the plastic
counter nut upwards.
2. Removing the transportation safety bolts
Before operating the machine, the
transportation safety bolts must definitely
be removed. For this,
1. Loosen the “C” bolts thoroughly by
turning them anticlockwise with the help of
a suitable wrench.
2. Pull off the transportation safety bolts.
3. Insert the “P” plastic caps in the
direction of arrow into the holes from where
the transportation safety bolts are removed.
Please note! Keep the transportation safety
bolts in a safe place in order to reuse them
for any other transportation.
Transport your washing machine with the
transportation safety blots installed.
3. Adjusting the feet
To remove the packaging reinforcement lean
the machine backward, take the
reinforcement by pulling from the braid.
7 7
a) Water inlet hose
The specific hoses that come with the
machine are connected to the water inlet
valves on the machine. Red labeled hose is
for hot water inlet and blue labeled hose is
for cold water inlet.
In order to prevent the water leakages that
may occur on the connection points, rubber
seals are placed on the hose or in the
package (4 pieces for the models with
double water inlets and 2 pieces for other
models). These gaskets should be used
for connections in both sides of the hose.
Gaskets on the machine side should fit in
the hose filter channel.
Since the connection points are under water
pressure, turn on the taps to the maximum
after the connection. Check if there is any
water leakage at the connection points. In
order to prevent the water leakages and the
damages they may cause, keep the taps
closed when you are not using the machine.
Minimum 1 bar and maximum 10 bars of
water flow from the tap is enough for your
machine to operate efficiently. (In practice,
1 bar means that more than 8 liters of water
per minute flows from a full open tap.)
Install the elbowed end of the hose to your
machine. Hand-tighten the nuts of the hose,
do not use a spanner
Models with double water inlets can be used
as a model with a single water inlet by using
a plug. Plug should be installed to the hot
water valve. A rubber gasket should be used
in order to prevent water leakage from the
connection point.
Do not connect the product with single
water inlet to the hot water tap. The product
may switch to the protection mode if the
temperature of the water connected to a
product with double water inlet through a Y
part and single water inlet is above 40°C.
a) Water drainage hose
Water drainage hose can be attached to the
side wall of a sink or bathtub. Hose should
not be bend. When the drainage hose is
hanged on a sink or bathtub, it can be
secured with a hose bracket so that it will
not fall.
The end of drainage hose can be
connected directly to the waste water
drainage hole or to the specific end that is
installed to the outlet elbow of the sink.
The hose should be installed to a height of
40 cm minimum and 100 cm maximum.
Water connections
88
Electrical Connection
Plug in the grounded plug at the end of the
power cable of the washing machine to a
grounded wall outlet which is fed with
suitable voltage and current.
Preparation
• Please note the followings before start
ing to wash your laundry:
- Have you plugged the machine?
- Have you connected the drainage hose
as necessary?
- Have you closed the front door?
- Have you opened the tap?
• If you are installing your machine by yourself, please read the “Installation” section
first.
• Separation of the laundries to be
washed:
Please separate the laundries according to
their types (cotton, linen, synthetic, woolen,
etc.), dirtiness levels and washing temperature. Do not wash the white clothes along
with the colored ones.
Remove solid objects such as belts, cuff
links and curtain rods from the laundries or
put them into a washing bag.
Empty the pockets. Zip and button up. It
is recommended to place the very small
laundries such as baby clothes into the big
laundries such as pillowcases or put into a
special
washing filet in order to prevent them from
sticking between the bellows or slipping into
the cauldron, pump filter, hose and etc.
For stained laundries, see the Practical and
useful information section. Your machine can
wash the woolen clothes with a “Machine
Washable” or “Unfeltable” label in the special
woolen program without damaging them.
Sensitive clothes with a “Do not wash in the
machine” or “Hand-wash” (silk, pure wool,
cashmere and etc.) label can be washed in
the hand-wash program which is designed
specifically.
• To open the front door, grab the handle
and pull it. For your safety, the front door of
your machine can only be opened when the
machine is not operating. If the “door” LED
is on, the door can be opened.
• Loading the laundry into the machine:
Place the laundries by spreading and
without compaction. Place your hand woven
clothes into the machine by turning inside
out. When closing the door, make sure that
no laundry is in between the door and the
rubber bellows.
Push the front door to close it. If the front
door is not closed correctly, washing does
not start.
• The selection of detergent and
softener:The detergent amount depends
on the hardness of water, the amount of
laundry and the dirtiness level of the laundry.
Recommended amounts are written on the
detergent package. If your laundries are not
very dirty and/or your water has a low
hardness, use less detergent as
recommended in the detergent packages.
Otherwise you may encounter excessive
foam.
You should use detergents that are
developed especially for automatic
washing machines. Avoid using bleachers
that contain chlorine or sulfur.
9 9
Put the powder detergent and softener
into the appropriate compartments in the
detergent drawer and close the detergent
drawer.
Pour the softener as recommended in
the package (generally <100ml; i.e. 1 tea
cup) Never exceed the “MAX” marking. If
you put more, it will mix into the washing
water via siphon (III) and it will be wasted.
In this case, it may be necessary to refill
the softener. If the softener is condensed
over time, it may be necessary to dilute
with some water. Otherwise, condensed
softener clog the siphon and block the
flow.
Program Selection and Operating Your Machine
Control Panel
I. Compartment I, the powder detergent
compartment for prewash.
II. Compartment II, the powder detergent
compartment for main washing.
III.Siphon
The softener compartment.
Pressing “On/Off”
Program selection knob
Start/Pause/Cancel button
Auxiliary function buttons
On / Off button
Program follow-up indicator
By pressing “On/Off” button you can make
your machine ready for selecting program.
When “On/Off” key is pressed “door” led
will light on meaning “door can open”.
Press “On/Off” key again for turning your
machine off.
Pressing “On/Off” does not mean program
started operation. You must press “Start/
Pause/Cancel” for starting the program.
1
4
2
5
3
6
90
°
60
°
40
°
40
°
40
°
30
°
30
°
40º
40
°
60°
Risciaquo
Centrifuga
Scarico
Lavaggio a
Mano
3
6
9
CentrifugaInizio
Lavaggi
o
Avvio/
Pausa
On/Off
Rapido Extra
Risciacquo
Anti-Piega
600
800
400
900
1000
Esclusione
Centrifuga
Cotone
Lana
Sintetici
Delicati
Freddo
30º
60
°
Intensivo
6
Spin speed selection knob
1010
Pressing the “On/Off” button never means
that the program is started.
You must press “Start/Pause/Cancel” button
in order the machine starts its program.
Program selection table
Determine the suitable program according to
the type, amount, dirtiness level and washing
temperature of the laundry by looking at the
program selection table.Turn the program
selection knob to the program-temperature
position that you want to wash with.
*Energy Label Program EN 60456:1999 and IEC 60456
Ed.4 2001
Water and power consumption may show differences
from the table above depending on the water pressure,
hardness and temperature, environmental temperature,
laundry type and amount, auxiliary function selection and
changes in the electricity voltage.
Program
Laundry type
Maximum
Load (kg)
Program
Time (min)
Water
consumption (lt)
Power
consumption (kWh)
Quick wash
Rinse Plus
Anti-creasing
Cotton 90 Very dirty, heat resistant cotton, linen
6 150 55 2.00
• • •
Cotton 60* Normal dirty, heat resistant cotton, linen
6 135 49 1.14
• • •
Cotton 40 Less dirty or heat resistant cotton
6 125 49 0.70
• • •
Intensive 60 Very dirty, heat resistant cotton, linen
6 160 65 1.30
•
Intensive 40 Very dirty, heat resistant cotton, linen
6 160 65 0.70
•
Synthetic 60
Normal dirty, heat resistant cotton/synthetic
compound
3 115 55 0.90
• • •
Synthetic 40
Less dirty or heat resistant cotton/synthetic
compound
3 105 55 0.50
• • •
Synthetic 30
Very little dirty or heat resistant
cotton/synthetic compound
3 90 55 0.30
• • •
Delicate 40
Sensitive, Delicate synthetic, cotton
compound
2 70 60 0.35
• •
Delicate 30
Sensitive, Delicate synthetic, cotton
compound
2 65 60 0.25
•
Woolen 40
Woolens and sensitive compounds with machine
washable label
1.5 55 55 0.30
•
Cold (Woolen)
Woolens and sensitive compounds with machine
washable label
1.5 45 55 0.03
•
Hand Wash 30
Special program for laundries that have silk,
cashmere, un-washable in machine labels.
1 40 35 0.15
Rinsing
Rinsing program
6 23 13 0.04
Spin Spin Program
6 13 - 0.03
Pump Pump Program
2
11 11
Function Selection
Additional functions selectable according
to selected program can be selected by
pressing related key. Led of selected function will be on.
If not selected together some additional
functions go off when it is not selected with
other one. For example; when using cotton
program, quick wash and rinse plus auxillary functions can not be selected together.
After selecting quick wash program, if rinse
plus key is pressed fast program will be on
and quick wash function led will go off.
Auxiliary Functions
Quick wash
Shortens washing time for lightly soiled
fabrics. This function can be used for cotton and synthetic programs for temperatures below 60°C.
Rinse Plus
You can increase the number of the current rinsing cycles by using this function.
Thus, the risk of the sensitive skins get
effected by the detergent remaining on the
laundry is reduced.
Anti-creasing
ITo avoid wrinkling of your clothes, select
this function. When anti-creasing is
chosen please load less cloth, this way a
special washing and spinning profile will
reduce the wrinkles and your clothes will
be easy to iron.
Spin speed selection knob
You can spin the laundry up to 1000 cycle
/ min. with the models having cycle selection button. Your machine will spin not
more than 800 cycle / min. for synthetic
programs and 600-400 cycle/min. for
woollen programs. In addition if you do not
want to spin your laundry you may choose
“No Spin” position.
Program Progres
After machine starts operation relevant
program led on program progress display
will be on. When a step is completed that
step’s led is off and next step’s led is on.
When program is completed “Door” led will
be on again.
During machine operation you can press
“Start/Pause/Cancel” key for getting
machine to “Pause” position. In this case
“Start/Pause/Cancel” led will blink.
Changing Program
You can use this feature for washing
laundry in the same textile group for wash-
ing at lower or higher temperatures. For
example, instead of Cotton60, Cotton40
Child-proof lock
During washing laundry in order to maintain that program progress is not affected
by pressing keys by children there is childproof lock. To enable child-proof lock,
after washing begins, press Quick wash
and Rinse Plus function buttons together
simultaneously for three seconds. Prewash additional function led will always
blink.
After program ends in order to start a new
program or alter the program you have to
disable child-proof lock. To do this press
same buttons for three seconds and Childproof lock led will be off.
1212
Adding laundry
If you want to add laundry to your machine
after program begins press Start/Pause
key for switching machine to pause mode.
If water level in the machine is appropriate
“door” led on program progress display
is on and laundry can be added to the
machine. If “door” led is not on after one
minute than water level in the machine is
not appropriate and laundry can not be
added. You can press “Start/Pause/Cancel” key for continuing program.
Cancelling a program
For canceling a program “Start/Pause/
Cancel” key is pressed for three seconds.
After this period “Start/Pause/Cancel” and
all other leds will be off .You can select a
new program and start washing.
If cancel task is performed during washing
“Spin” led on display will light on, machine
will pump and when “Spin” led is off “door”
led will be on, door can be opened and
new program can be selected.
After machine starts operation even if spin
speed or washing temperature is changed,
initial speed and temperature is valid. In order to change spin speed or temperature
after pressing “Start/Pause/Cancel” new
cycle or temperature can be selected.
End of the Program
When program ends “ door” led will light
on and door can be opened and machine
is ready for next washing. Press “On/Off”
for turning machine off.
can be used. For selecting Cotton40
instead of Cotton60 by pressing “Start/
Pause/Cancel” key machine is switched to
pause position. Program knob is turned for
selecting Cotton40 program.
Even when the program selection knob
is changed during the program initially
selected program will be executed. For
changing washing program continuing
program must be cancelled.
Although selected auxillary functions must
be compatible with washing program.
Time delay for program start
Using time delay key you can delay the
starting of the selected program for 3
hours, 6 hours or 9 hours.
When time delay key is pressed once
3hours delay is adjusted and led will
light on. If same key is pressed once
more delay is 6hours, and if it is pressed
once more 9 hours delay is selected. If
time delay key is pressed again delay is
cancelled. After the selection of time delay
when “Start/Pause/Cancel” is pressed
program can be started with delay. During
delay period door can be opened or
laundry can be added
After time delay is initiated by pressing
“Start/Pause/Cancel” you can switch
machine to “Pause” mode and change
delay time.
Emptying Laundry
After program ends machine automatically stops. Turn off tap water. Pull the
handle and open loading door. Turn off
your machine by pressing “On/Off”. After
taking laundry out keep the loading door
open and let the drum ventilate. Check the
bellow and clean.
13 13
Maintenance and cleaning
Detergent Drawer
The powder detergent remnants may
accumulate in the detergent drawer.
To clean the detergent drawer, pull the
drawer towards you by pressing the
marked point of the siphon in the softener
compartment as shown in the illustration.
Wash the drawer in the sink with plenty of
water.
Siphon
Do not forget to clean the siphon
(the colored part in the detergent drawer)
when it gets dirty. To remove the siphon,
first take out the detergent drawer. To
prevent clogging, clean the softener
remnants inside of it. After cleaning, put
back the siphon and check if it is well
seated or not.
Inlet Water Filters
At the end of the water inlet valves which
are mounted to the back of the machine
and the flat end of the water inlet hoses
that are mounted onto the taps, there is
one filter for each. These filters prevent
the foreign substances and dirt in the
water entering the machine. Filters should
be cleaned when they get dirty. To do this,
close the taps. Remove the water inlet
hoses. Clean the tops of the filters on the
water inlet valves with a thin brush. If the
filters are very dirty, you can pull out with
pliers and clean them. The filters on the
flat end of the water inlet hoses should
be taken out with their gaskets by hand
and cleaned thoroughly under the flowing
water. (There are 2 filters in the machines
with single (cold) water inlet and 4 filters in the
machines with double (hot-cold) water inlets.
1414
Hose
Since there is a risk of freezing especially
in the cold areas, the water remaining in
the appliance can frozen and damage the
appliance. In this case, the water
remaining in the pump and hoses should
be drained by removing the pump filter.
Water inlet hoses should also be emptied
by removing them from the taps.
Cleaning the pump filter
• Clean the foreign substance filter
periodically at least for once!
• If the foreign substances (coins, buttons,
baby socks and etc.) clog the foamy water
pump, clean the filter.
• Before cleaning, empty the water that
remains inside first.
• Hot water danger: There may be 15 liters
of hot water at 90°C in the machine. Open
the filter carefully.
Drain the water completely in the following
situations...
• before cleaning the foreign substance
filter;
• before transporting the machine ( for
example moving into a new house);
• when there is a risk of freezing.
1. Turn off the appliance, unplug the power
cable and close the tap. Wait for the hot
soapy water to cool enough. Otherwise,
there is a risk of scalding.
2. Open the service cover by pressing the
button. In order to prevent the little amount
of water that is inside pump spilling over
the floor, put a container in front of the
filter cover. Take out the filter by turning
anticlockwise.
3. To loosen the foreign substance filter,
turn it half turn (anticlockwise) and take the
remaining water with a cloth. When there is
no water, turn the foreign substance filter
until it is totally released and take it out.
4. Clean the foreign substance filter and
pump opening.
5. Reinstall the foreign substance filter and
turn it tightly (clockwise).
6. Close the service cover.
Loading...
