Libretto istruzioni
Cappe aspiranti KSE 61X/ 71X/ 91X
Manual de Instrucciones
Campanas Extractoras KSE 61X/ 71X/ 91X
Bedienungsanleitung
Dunstabzugshauben KSE 61X/ 71X/ 91X
Instructions Manual
Kitchen Hoods KSE 61X/ 71X/ 91X
Manuel d’instructions
Hottes aspirantes KSE 61X/ 71X/ 91X
Manual de Instruções
Exaustores KSE 61X/ 71X/ 91X
Bruksanvisning
Köksfläktar KSE 61X/ 71X/ 91X
Gebruiksaanwijzing
Afzuigkappen KSE 61X/ 71X/ 91X
Инструкция по эксплуатации
Кухонные вытяжки KSE 61X/ 71X/ 91X
Rev. 1108
14
GB
Dear client:
Congratulations on your choice. We are sure
that this modern, functional and practical
appliance, made with top quality materials,
will fully satisfy your needs.
Please read every section of this
INSTRUCTIONS MANUAL before using your
kitchen hood for the first time, to ensure
maximum performance from the appliance
and to avoid breakdowns, which may be
caused by incorrect use, as well as to allow
any minor problems to be solved.
Keep and store this manual, as it will provide
useful information about your kitchen hood at
all times and will also help other people to use
it.
• Please be aware of current local
regulations with reference to domestic
electrical fittings and gas eduction.
• Verify that the tension and frequency of the
network match those indicated on the label
located inside the kitchen hood.
• If the supply cable is damaged it should be
replaced by the manufacturer, the aftersales service or a suitably qualified person
in order to avoid hazard.
• Once the kitchen hood has been installed,
ensure that the mains cable to the network
is not in contact with any live metal edges.
• Avoid connecting the appliance to
conductors used as exits for fumes
produced by a non-electric energy source,
e.g.: boilers, chimneys, etc.
• If the extractor fan is going to be used
simultaneously with equipment powered by
a non-electric energy source, e.g.: gas
cookers, then the room must have
sufficient ventilation.
• Excessive fat accumulation in the kitchen
hood and metal filters is a fire risk and may
also cause dripping, therefore the inside of
the kitchen hood and the metal filters must
be cleaned at least once a month.
• The lower part of the kitchen hood must be
fitted at least 50 cm. over electric hobs and
65 cm. over gas or mixed hobs. FOLLOW
THE HOBS´ MANUFACTURER'S
MINIMUM RECOMMENDATIONS.
• Never leave gas hobs lit if not covered by a
container. The fat accumulated in the filters
may drip or catch fire when the
temperature increases.
• Avoid cooking under the kitchen hood if the
metal filters are not fitted, e.g.: while they
are being cleaned in the dishwasher.
• You must not produce flames under the
kitchen hood.
• Do not place anything on top of the cooker
hood.
• Disconnect the appliance before any
interior manipulation, e.g. during cleaning
or maintenance.
• We recommend the use of gloves and to
be extremely careful when cleaning the
kitchen hood's interior.
• Your kitchen hood is designed for domestic
use and only for extraction and purification
of fumes produced during food
preparation. It will be your responsibility if it
is used for other purposes, which may be
dangerous. The manufacturer cannot
accept responsibility for damage caused
by improper use of the appliance.
• For repairs please contact the nearest
SMEG Technical Assistance Service, and
always use genuine spare parts. Repairs or
modifications carried out by unqualified
personnel can cause malfunctions or may
damage the appliance, putting your safety
in danger.
• This appliance is marked according to the
European directive 2002/96/EC on “Waste
Electrical and Electronic Equipment”
(WEEE). This guideline is the frame of a
European-wide validity of return and
recycling on Waste Electrical and
Electronic Equipment, and it is symbolized
by: .
• When the cooker hood is on at the same
time as other appliance or equipment with
different energy source, the air extraction
(underpressure) must no be higher than
4Pa (4 x 10-5bar).
• The appliance is not intended for use by
young children or infirm persons without
supervision. Young children should be
supervised to ensure they do not play with
the appliance.
Safety Instructions
15
GB
Index
Page
Description of the appliance 15
Instructions for use 15
Cleaning and maintenance 16
Problem solving 16
Sizes and specifications 16
Accessories supplied 17
Installation 17
Active charcoal filters 17
A On/ Off Push button, speed selector,
light and working pilot.
B Metal filters.
C Lamp with two bulbs - 40 W (E-14).
D, E Vertically adjustable tubecovers.
Switch on the extractor fan a few minutes
before you start to cook in order to ensure that
a steady air flow has been established before
fumes appear.
Allow the extractor fan to run for several
minutes after you have finished cooking
(between 3 to 5 minutes) in order to expel all
the grease from the outlet duct. This prevents
the return of grease, smoke and smells.
Description of the appliance
Instructions for use
You can control the kitchen hood by operating
the controls as shown in the diagram.
16
GB
SMEG reserves the right to make changes and corrections to its products as it deems
necessary, without altering their basic characteristics.
During cleaning and maintenance work,
make sure the safety instructions set out
on page 14 are fully satisfied.
• If your kitchen hood is made from stainless
steel, use suitable cleaners mentioned in
the product instructions.
• If your kitchen hood is painted, use
lukewarm water and a neutral soap.
• Never use metallic scourers, nor abrasive
or corrosive products.
• Dry the kitchen hood using a cloth that
does not produce fibres.
• The use of vapour cleaners is not
recommended.
To remove the filters from their fittings, press
lightly on the locks and then pull them off.
The metal filters can be cleaned by soaking
them in hot water with neutral detergent until
the fat dissolves and then rinsing them under
the tap or using special anti-grease products.
They can also be washed in a dishwasher. In
this case, it is advisable to stack them
vertically to avoid food residues to stick to
them.
Dishwasher cleaning may damage the
metallic surface (blackening it), although this
will not affect its fat retention capacity.
Once clean, leave them to dry off and then fit
them back to the kitchen hood.
Proceed as follows:
• Remove the metal filters.
• Change the broken/burnt out lamp.
Maximum lamp power is 40W (E-14).
• Fit the metal filters.
Cleaning the metal filters
Cleaning the hood body
Cleaning and maintenance
_________________________________________________________

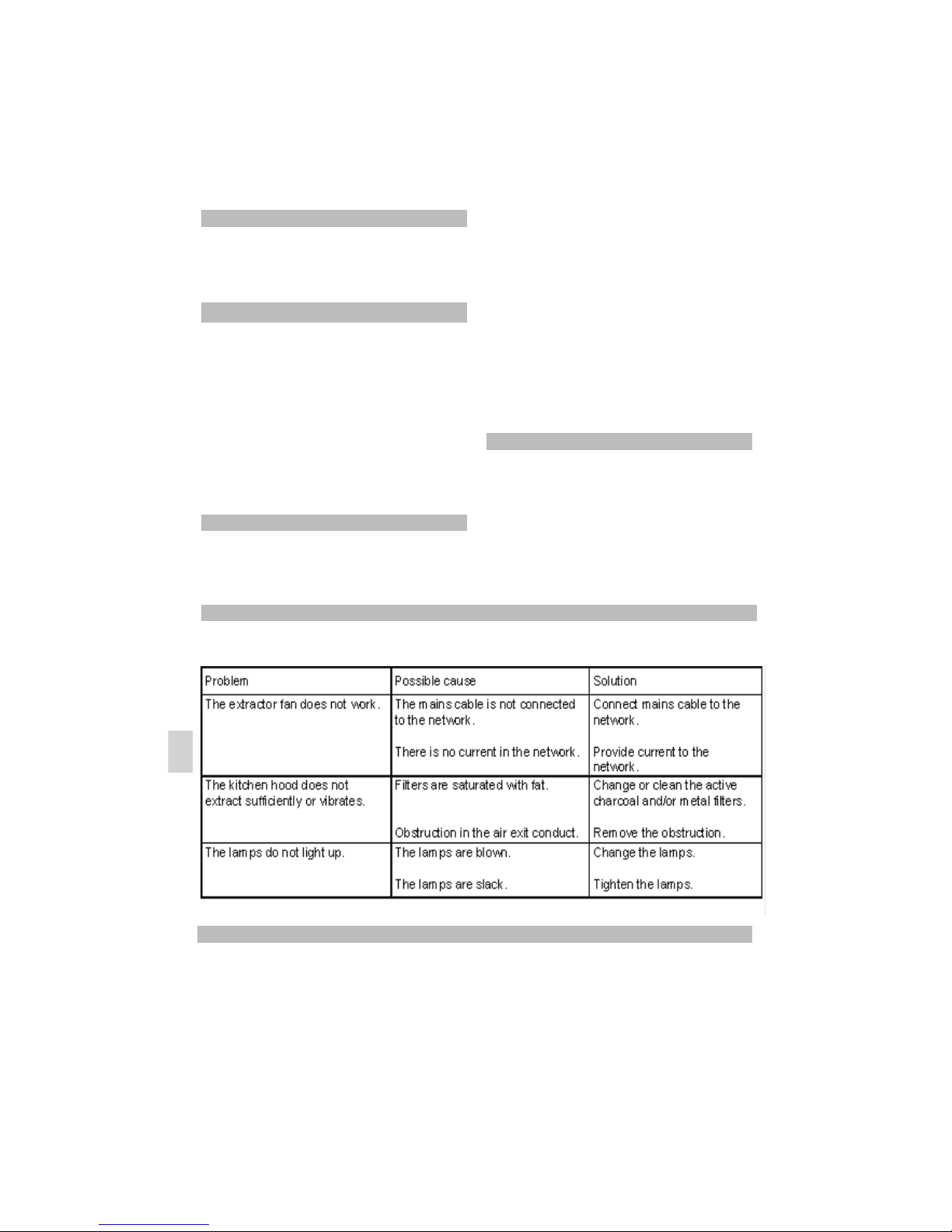

Problem solving
Proceed with the following checks before calling the Technical Service:
Changing light bulbs

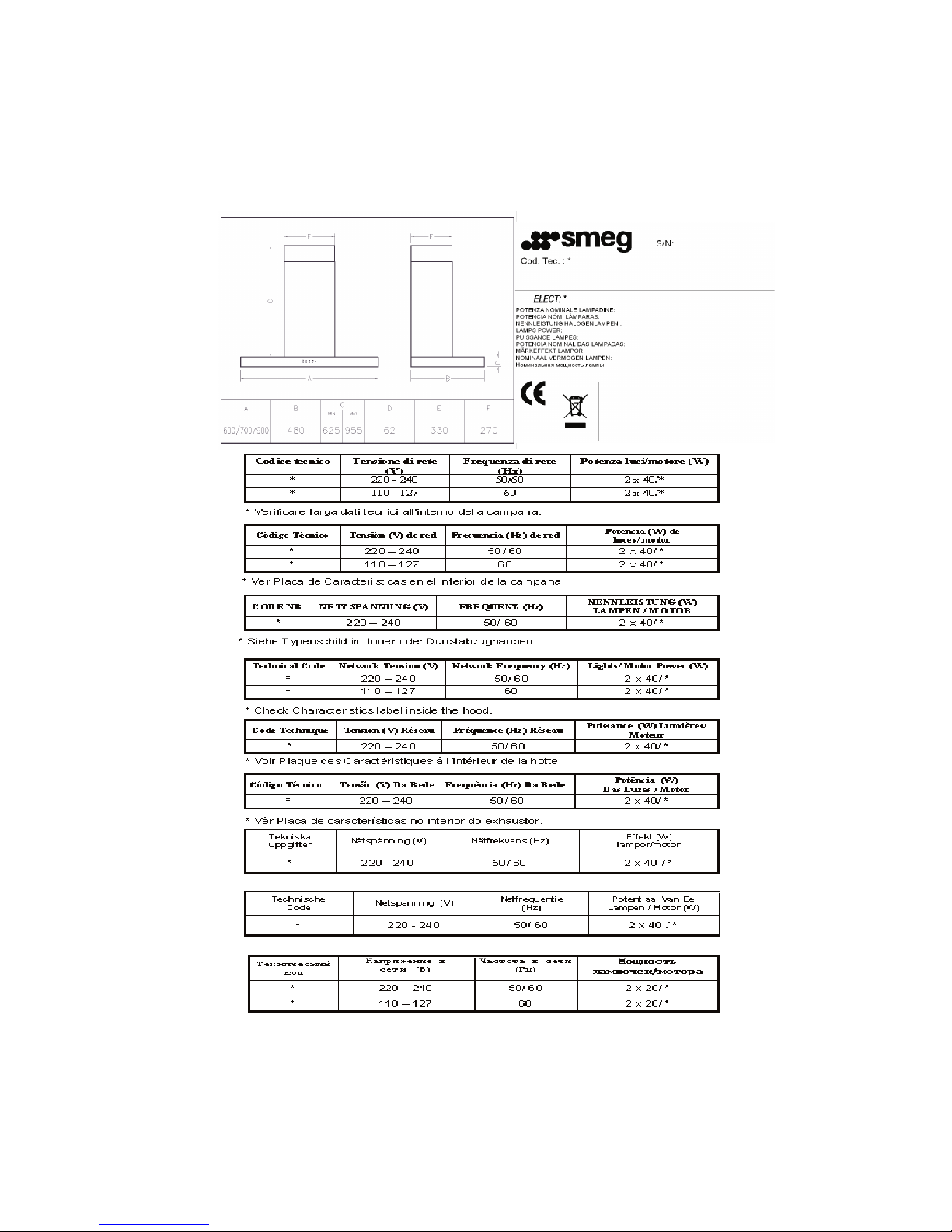

Sizes and specifications
See page 39.
17
GB
1 150/ 120 mm reduction.
1 Anti-recoil valve.
2 Support for tubecover.
4 Wall plugs (Ø6 x 30).
4 Wall plugs (Ø8 x 40).
4 Long bolts (Ø4 x 30).
2 Screws (Ø3,9 x 19).
6 Long bolts (Ø5 x 45).
2 Ø6,4 x Ø18, washers.
2 Clips.

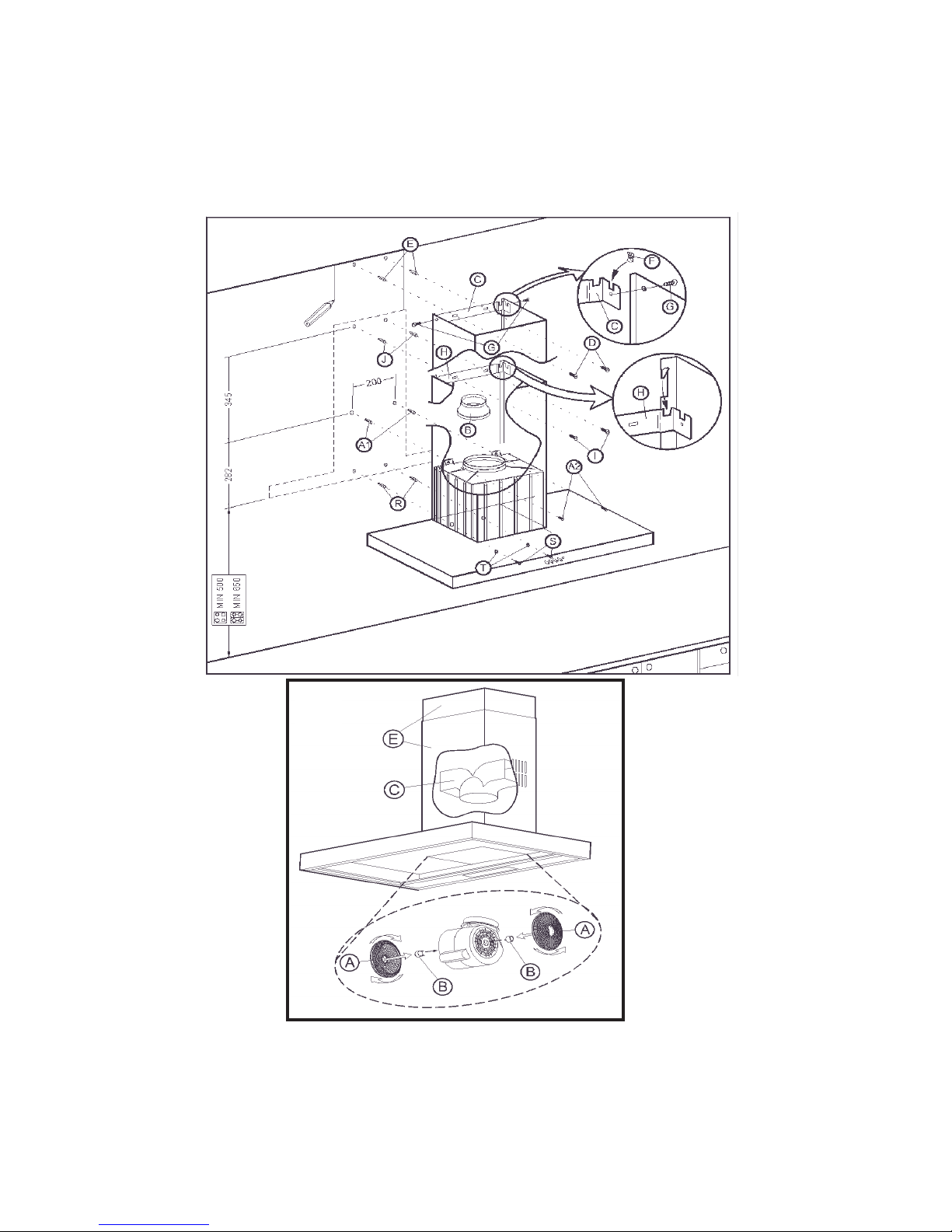

Fig. 1 (Page 39)
On installing the kitchen hood make sure
that the Safety Instructions set out on page
14 are complied with.
To obtain optimum performance, the external
conduct must not be more than FOUR
METRES long, have no more than two 90°
angles and its diameter must be at least Ø120.
1) Trace and drill the points for fitting the wall
plugs onto the wall (A1) (Ø8 x 40). See figure
nr. 1.
2) Fit the wall plugs (A1) and screw in the long
bolts (A2) (Ø5 x 45) leaving them protruding 5
mm out of the wall.
3) Attach the kitchen hood to the long bolts
(A2). Straighten the apparatus and tighten the
long bolts.
4) Trace the location of the wall plugs (R) (Ø8
x 40), through the inside of the kitchen hood.
5) Loosen the long bolts (A2) and take the
kitchen hood off.
6) Drill into the wall and fit the wall plugs (R).
7) Attach the kitchen hood, tighten the long
bolts (A2) and (S) (Ø5 x 45) with the washers
(T) (Ø6,4 x Ø18).
8) Mount the tubecovers, attaching the lower
one to the support (H) as per the detail in figure
1. Lift the upper tubecover up to the desired
height and mark its shape on the wall. Remove
the tubecovers.
9) Fit the clips (F) to the support (C).
10) Centre the support (C) around the shape
marked; trace and drill the fixing points for the
wall plugs (E) (Ø6 x 30). Attach the support (C)
with the long bolts (D) (Ø4 x 30).
11) Fit the part (B) if the inner tube (not
supplied) is Ø120.
12) Attach the inner tube with a clamp (not
supplied) to (B) or on to the motor's air outlet
vent as the case may be.
13) Once the inner tube is fitted, fit the lower
tubecover around the extractor fan outlet and
attach the upper tubecover with the screws (G)
(Ø3,9 x 19).
When exterior gas extraction is not possible,
then the kitchen hood may be set to purify the
air by recycling it through active charcoal
filters.
The active charcoal filters have an active life of
three to six months, depending on the
individual conditions of use. These filters
cannot be washed nor regenerated. They must
be replaced once their useful life comes to an
end.
Fig. 2 (Page 39)
1) Put the filters into the lateral draught section
of the motor making the holes in the filters
match up (A) with the pivots (B) of the motor
carcass. Turn as indicated in the diagram.
2) Remove the tubecovers (E). Fit the diffuser
(C) on to the motor's air outlet vent. Fit the
tubecovers back on (E).
Active charcoal filters (Optional)
Installation
Accesories supplied
38
* Se Informationsbricka inuti fläktkåpan.
* Zie beschrijving van de eignschappen in het interieur van de afzuigkap.
* проверьте табличку характеристик внутри вытяжки
39
2
