Smeg FC66B1, FP131X1, FP131N1, FC66N1, FCM60X1 User Manual

...
Contents
2. SAFETY INSTRUCTIONS ..........................................................41
3. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL
CARE ..........................................................................................42
4. GET TO KNOW YOUR OVEN.....................................................43
5. BEFORE INSTALLATION...........................................................43
6. AVAILABLE ACCESSORIES ...................................................... 44
7. USING THE OVEN ..................................................................... 45
8. COOKING WITH THE OVEN......................................................54
9. CLEANING AND MAINTENANCE..............................................63
10. EXTRAORDINARY MAINTENANCE ..........................................68
11. INSTALLING THE APPLIANCE..................................................72
INSTRUCTIONS FOR THE USER: these specify usage recommendations, and describe the commands and the correct cleaning and maintenance operations for the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who will carry out the installation, operation and testing of the appliance.
39
General instructions

1. INSTRUCTIONS FOR USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE APPLIANCE IS ESSENTIAL. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING FOODS; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT – (WEEE). THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
40
THE I.D. PLATE WITH TECHNICAL DATA, SERIAL NUMBER AND BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME. THE PLATE MUST NOT BE REMOVED.
DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY WILL DAMAGE THE SURFACE. USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS LEATHER. DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET INSIDE THE OVEN. IF LEFT TO SET FOR TOO LONG, THEY MIGHT DAMAGE THE ENAMEL LINING OF THE OVEN.
General instructions

2. SAFETY INSTRUCTIONS

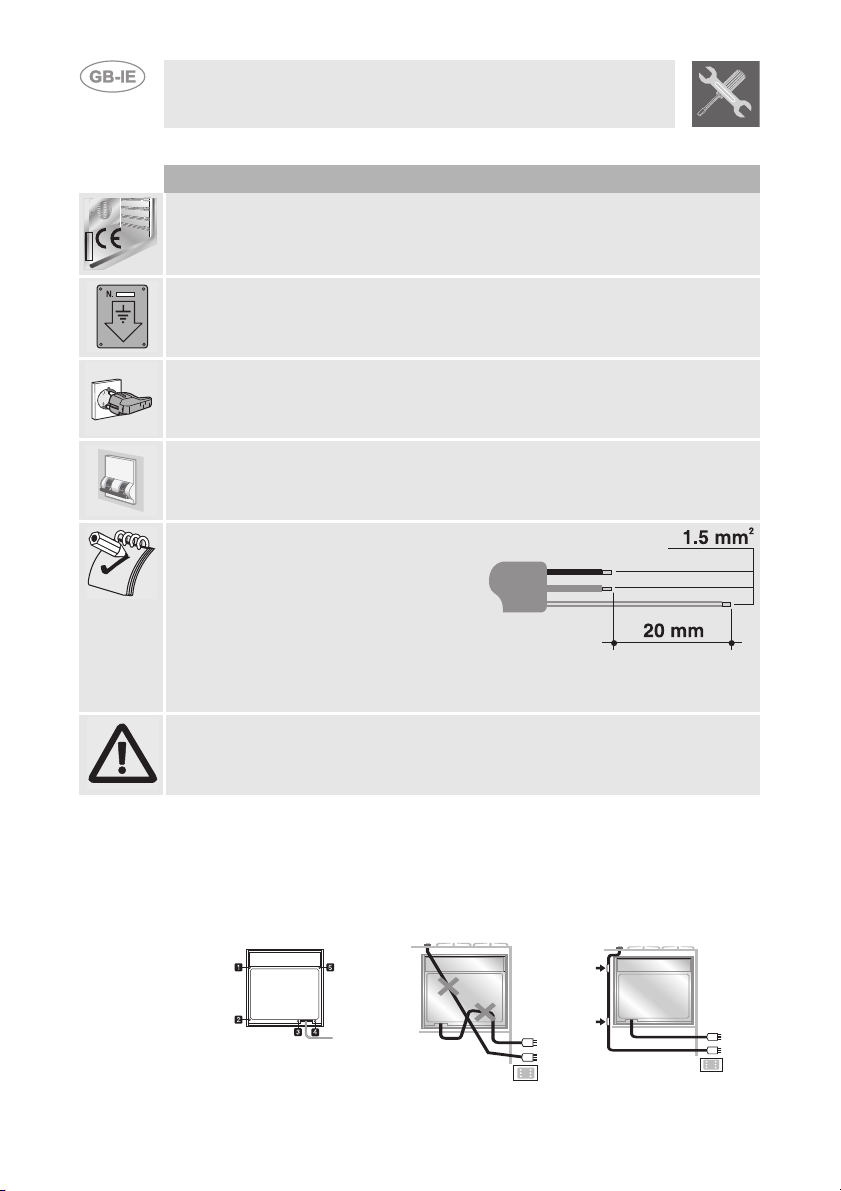

REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB. GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER CORD AND ITS SOCKET MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE. THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN. NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.
IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE ACCIDENTALLY LIGHTED AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR THEIR SAFETY.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS APPLIED ON THE OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons or things caused by the non-observance of the above prescriptions or by interference with any part of the appliance or by the use of non-original spares.
41
Instructions for disposal

3. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL CARE

Our product's packing is made of non-polluting materials, therefore compatible with the environment and recyclable. Please help by disposing of the packing correctly. Find the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations. Do not throw the packing or any part of it away. They can constitute a suffocation hazard for children, especially the plastic bags. Your old appliance also needs to be disposed of correctly. Important: hand over your appliance to the local agency authorised for the collection of electrical appliances no longer in use. Correct disposal means intelligent recycling of valuable materials. Before disposing of your old appliance remove the door and leave the racks in their normal working positions so that children cannot get stuck in the oven compartment whilst playing. It is also necessary to cut the electric power cord and remove it along with the plug.
DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.
INFORMATION FOR USERS
PURSUANT TO DIRECTIVES 2002/95/EC, 2002/96/EC AND 2003/108/EC RELATING TO THE REDUCTION OF THE USE OF HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC APPLIANCES, AS WELL AS TO THE DISPOSAL OF REFUSE. THE CROSSED OUT BIN SYMBOL ON THE APPLIANCE INDICATES THAT THE PRODUCT, AT THE END OF ITS USEFUL LIFE, MUST BE COLLECTED SEPARATELY FROM OTHER REFUSE. THEREFORE, THE USER MUST CONSIGN THE PRODUCT THAT HAS REACHED THE END OF ITS WORKING LIFE TO THE APPROPRIATE DIFFERENTIATED COLLECTION CENTRES FOR ELECTRICAL AND ELECTRONIC REFUSE, OR DELIVER IT BACK TO THE RETAILER WHEN PURCHASING AN EQUIVALENT PRODUCT, ON A ONE FOR ONE BASIS. ADEQUATE DIFFERENTIATED COLLECTION FOR THE SUBSEQUENT FORWARDING OF THE DECOMMISSIONED PRODUCT TO RECYCLING, TREATMENT AND ECOLOGICALLY COMPATIBLE DISPOSAL CONTRIBUTES TO AVOIDING POSSIBLE NEGATIVE EFFECTS ON THE ENVIRONMENT AND ON HEALTH AND PROMOTES THE RECYCLING OF THE MATERIALS OF WHICH THE APPLIANCE CONSISTS. THE ILLICIT DISPOSAL OF THE PRODUCT BY THE USER RESULTS IN THE APPLICATION OF ADMINISTRATIVE SANCTIONS.
42
Instructions for the user

4. GET TO KNOW YOUR OVEN

MULTIFUNCTION
Control panel
Oven light
Oven fan
Rack and pan runners
Temperature sensor
Roof liner
PYROLYTIC

5. BEFORE INSTALLATION

In order to remove all manufacturing residues, it is recommended to clean the inside of the appliance. For further information on cleaning see point "9. CLEANING AND MAINTENANCE".
Before using the oven for the first time, pre-heat it to maximum temperature long enough to burn any manufacturing oily residues which could give the food a bad taste. The Turbo function is recommended for
this purpose .
43
Instructions for the user

6. AVAILABLE ACCESSORIES

Rack: useful for holding cooking containers.
Pan rack: for placing on top of a tray for cooking
foods which may drip.
Oven pan: useful for collecting fat from foods placed on the grid above.
Baking pan (on some models only): for baking cakes, pizza and oven desserts.
Rotisserie frame (on some models only):
supports the rotisserie rod (see page 61 for instructions for use).
Chromium-plated gripper (on some models only): useful for removing hot racks and pans.
Rotisserie rod (on some models only): useful for
cooking chicken and all foods which require uniform cooking over their entire surface. (see page 61 for instructions for use)
Pizza plate (on some models only): specially designed for cooking pizza and similar dishes. (see page 62 for instructions for use)
44
Roof liner (on some models only): remove it to simplify cleaning inside the oven.
The oven accessories intended to come into contact with food are made of materials that comply with the provisions of Directive 89/109/EEC, dated 21/12/88 and of Decree Law 108, dated 25/01/92.
Accessories available on request: Original supplied and optional accessories may be ordered from any Authorised Service Centre.
Instructions for the user

7. USING THE OVEN

7.1 General Description

7.1.1 Oven runners

The oven features 4 runners for positioning pans and racks at different heights. The insertions heights are numbered from the bottom upwards (see figure).

7.1.2 Cooling system

The appliance is equipped with a cooling system which comes into operation as soon as a cooking function starts. The fan causes a steady outflow of air from above the door which may continue for a brief period of time even after the oven has been turned off.

7.1.3 Inside light

The oven light comes on when the door is opened or any function is
selected, except for and (where present).

7.2 Warnings and general advice for usage

All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans or oven trays on it as this may damage the enamel coating. If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.
To prevent any steam in the oven creating problems, open the door in two stages: half open (5 cm approx.) for 4-5 seconds and then fully open. To access food, always leave the door open as short a time as possible to prevent the temperature in the oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal glass, food should not be left inside the oven for too long after cooking.
45
Instructions for the user

7.3 Description of the controls on the front panel

All the appliance's control and monitoring devices are placed together on the front panel. The symbols used are described in the table below.
MULTIFUNCTIONPYROLYTIC
FUNCTIONS AND SYMBOLS SHOWN:
PT1
PT2
programmed cooking
DSP
Door interlock indicator
(on pyrolytic models only)
(on multifunction models only)
Thermostat
Timer
Knob
ON-OFF
Functions
Knob
Display
current
time
procedures
light
Clock
Bell:
Cooking duration:
Commands locking:
Allows to set the time, select the cooking temperature and duration and program the cooking start and end times. On some models it allows to turn on and off the oven lamp.
Allows to switch the oven on and to select a cooking or cleaning (where present) function.
This display shows the current time, or the cooking duration or the temperature.
The following symbols coming on indicate:
Comes on when the cleaning cycle is used, to indicate the door has been locked.
:
Adjusting the cooking time
:
(displayed during adjustments)
Minute minder activated.
Setting the cooking time.
Commands locking mode on.
46
Instructions for the user
Delayed start:
THERMOSTAT-TIMER KNOB - LAMP
Setting the cooking time with a delayed start.
This knob allows to set different parameters just by turning it to the right or to the left. LAMP FUNCTION (on multifunction models only) : On models where this function is available to turn on the oven lamp from the stand-by position, simply turn the PT1 knob clockwise releasing it immediately. To turn off the lamp turn PT1 counter-clockwise releasing it immediately. For convenience, it will be referred to from this point onwards as PT1.
Pyrolytic oven Multifunction oven
ON/OFF-FUNCTION KNOB
This knob allows to select the type of desired cooking from those indicated in chapter “8. COOKING WITH THE OVEN” on page 54 simply by turning it to the left or right. For convenience, it will be referred to from this point onwards as PT2.
Pyrolytic oven Multifunction oven Multifunction oven
with pizza plate
47
Instructions for the user

7.4 Operating modes

This product is programmed to have 2 operating conditions:
Stand-by setting: this condition is set when the knob PT2 is positioned on the “0” symbol and the current time appears on the display.
ON setting: this condition is set when the selection knob PT2 is turned to any function and the selected temperature appears on the display, or the message “PYro” if in pyrolysis.

7.5 Adjusting the clock

At first use, or after a power failure, the oven's display (DSP) will show a
flashing symbol. To be able to start any cooking function the current time must be set.
To adjust the time keep PT1 turned to the right or to the left in order to
increase (+

7.6 Selecting a function

To select a cooking function, turn PT2: the preset cooking temperature will be displayed on the DSP.

7.6.1 Cooking with preset temperature

Once the desired function has been selected, the oven will begin cooking at the pre-set time. Cooking itself is preceded by a preheating stage, which allows the oven to heat to the cooking temperature more quickly.
This phase is indicated by the symbol flashing on the display (DSP). When
the preheating stage is over, the symbol will remain constantly on and a buzzer will sound to indicate that the food can be placed inside the oven.
) or decrease (-) the value.
48
In multifunction models the function allows thawing by selecting a temperature of 30°C, or proving at 40°C.

7.6.2 Changing the preset temperature

The temperature preset for each function can be changed to suit the user's requirements. At any time while cooking is in progress, turn PT1 to increase or decrease the cooking temperature by 5 degrees at a time. (PT1 can also be held in the left or right position to increase or decrease the setting more quickly).
Instructions for the user

7.7 Programmed cooking procedures

7.7.1 Cooking with the minute minder

In the stand-by position (see point “7.4 Operating modes”), press PT1 once. The display will show the figures (constantly on) and the
symbol (flashing). Turn PT1 to set the minutes of cooking (from 00:01 to 04:00:00). After a few seconds, the symbol will stop flashing and stay
on constantly; the countdown will start from that moment. At this point it is also possible to select the desired cooking function and wait for the buzzer to sound, indicating that the cooking time is over. Press PT1 once to stop the buzzer. You can now set an additional cooking time by turning PT1, or return to display the current time by pressing PT1 twice. Turn PT2 to the “0” symbol to switch off the oven.
The minute minder also works with no function set.
Warning. The minute minder does not stop the cooking process. It only warns the user that the preset number of minutes have passed. To switch the oven off, turn PT2 to the “0” symbol.
Modifying the data set
Once the countdown has started it is possible to change its duration during cooking.
When the symbol is steady, press PT1 once. The symbol starts flashing and PT1 can be turned to change the set duration. A few seconds
after the last change, the symbol will stop flashing, and the countdown will restart from the new value.
To change the preset temperature, wait for the symbol to become steady and turn PT1 to the right or left to increase or decrease the cooking temperature. To modify the cooking duration in stand-by position simply turn PT1 to the right or left in order to increase or decrease the selected temperature.
49
Instructions for the user

7.7.2 Semiautomatic cooking

Semiautomatic cooking is the function which allows a cooking operation to be started and then ended after a specific length of time set by the user.
Select a cooking function (see point “7.6 Selecting a function”) and press PT1 twice. The display will show the figures and the symbol
(flashing). Turn PT1 to the right or left to set the minutes of cooking (from 00:01 to
23:59). A few seconds after the desired duration is set, the symbol will stop flashing, and semiautomatic cooking will start from that moment. At the end, the word STOP will appear on DSP, cooking will stop and a buzzer will sound; press PT1 once to deactivate it. To exit from the semiautomatic cooking settings, press PT1 again.
To switch the oven off completely, turn PT2 to the “0” symbol.
Modifying the data set
Once semiautomatic cooking has started, its duration can be changed. When the symbol is steady, press PT1 once. The symbol starts
flashing and PT1 can be turned to select the desired value. A few seconds after the last change, the symbol will stop flashing, and semiautomatic
cooking will restart from the new value. To change the preset temperature, wait for the symbol to become
steady and turn PT1 to the right or left to increase or decrease the cooking temperature. About 5 seconds after the user has last adjusted PT1, the time left until the end of cooking will be displayed on DSP.
50
Instructions for the user

7.7.3 Automatic cooking

Automatic cooking is the function which allows a cooking operation to be started at a set time and then ended after a specific length of time set by the user.
Select a cooking function, adjust the desired cooking temperature or leave the preset temperature (see point “7.6 Selecting a function”) and press
PT1 twice. The display will show the figures and the symbol (flashing). Turn PT1 to the right or left to set the minutes of cooking (from 00:01 to 23:59).
After setting the duration, press PT1 once. The symbol and the current time will appear on the display.
Turning PT1 to the right increases the time, allowing the desired end cooking time to be set.
A few seconds later, the and symbols will stop flashing and remain constantly on, and the oven will start to wait for the starting time set. At the end of this time the message STOP will appear on DSP, cooking will be interrupted and a buzzer will sound which can be deactivated by pressing PT1 once.To exit from the automatic cooking settings, press PT1 again.
To switch the oven off completely, turn PT2 to the “0” symbol.
Modifying the data set
The cooking duration can be changed before cooking starts or while it is in progress. Press PT1 once, the symbol starts flashing. Turn PT1 and select the desired value. A few seconds after the last change, the
symbol will stop flashing, and cooking will restart with the new settings. The cooking end time can be changed before cooking starts. Press PT1
twice; the symbol starts flashing. Turn PT1 and select the desired value. A few seconds after the last change, the symbol will stop
flashing, and automatic cooking will restart according to the new settings. Instead, to change the preset temperature during cooking turn PT1 to the right or left in order to increase or decrease the value.
51
Instructions for the user

7.8 Secondary menu

This product also has a “secondary menu” that allows the user to: 1 (P1: OF / ON) Activate or deactivate the commands locking function
( ); once the function is set to
the last use of the commands by the user, blocking all the functions of the knobs. Activation of command blocking is identified by the
appearance of the symbol on DSP. To temporarily deactivate locking
and modify a cooking programme or select a different function, keep
PT1 pressed down until the ( ) symbol disappears from DSP. At this
point you can make the desired changes, and 2 minutes after the last setting, locking will be reactivated. To permanently deactivate locking you have to enter the secondary menu and deactivate it as described in this paragraph.
2 (P2: OF / ON) Activate or deactivate the Show Room function; this
function disables all the heating elements so that only the control panel works (To use the oven normally, set P2:OFF).
3 (P3: HI / LO) Activate or deactivate the function that allows electrical
consumption to be reduced to 2300 W.
When the child safety device is activated (P1:ON), if a knob is moved “bLOC” is displayed on DSP for 2 seconds. An action on PT2 also activates the “BLOC” alarm until the function originally selected is restored.
ON it will be activated 2 minutes after
52
Instructions for the user

7.8.1 Change the settings in the secondary menu

The secondary menu is accessed by keeping PT1 pressed down for 3 seconds. Changing the parameters in the secondary menu is very simple. See the following diagram:
MENU MODIFICATION PROCEDURE
SYMBOLS
Tu r n P T1 t o t he right or left in order to activate
ON) or deactivate
(
OF) the
commands locking
function. Press PT1 to move to the next setting.
room function. Press PT1 to move to the next setting.
level of the product ( Press PT1 to return to
normal operation.
(
Turn PT1 to the right or left in order to activate
ON) or deactivate
( (OF) the show
Turn PT1 to the right or left in order to select the
electricity consumption
HI/LO).
53
Instructions for the user

8. COOKING WITH THE OVEN

ECO:
Using the grill and the bottom heating element plus the fan is particularly suitable for cooking small quantities of food, as it provides low energy consumption.
STATIC:
As the heat comes from above and below at the same time, this system is particularly suitable for certain types of food. Traditional cooking, also known as static cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread, and tarts and in any case particularly suitable for fatty meats such as goose and duck.
GRILL:
(multifunction mod. only)
the heat coming from the grill element gives perfect grilling results above all for thin and medium thickness meat and allows to give the food an even browning at the end of the cooking. Perfect for sausages, ribs and bacon. This function allows to grill large quantities of food, particularly meat, evenly.
54
ROTISSERIE GRILL:
(pyrolytic mod. only)
The rotisserie functions in combination with the grill element, browning food perfectly.
BOTTOM:
(multifunction mod. only)
the heat coming just from the bottom allows to complete the cooking of foods that require a longer basic cooking time, without affecting their browning. Perfect for cakes, pies, tarts and pizzas.
Instructions for the user
FAN-ASSISTED STATIC:
The operation of the fan, combined with traditional cooking, ensures uniform cooking even with complex recipes. Perfect for biscuits and cakes, even when simultaneously cooked on several levels.
FAN-ASSISTED GRILL:
The air produced by the fan softens the strong heatwave generated by the grill, giving perfect grilling even on very thick foods. Perfect for large cuts of meat (e.g. shin of pork).
FAN-ASSISTED BOTTOM:
The combination of the fan with just the bottom heating element allows cooking to be completed more rapidly. This system is recommended for sterilising or for finishing off the cooking of foods already well-cooked on the surface, but not inside, which therefore need a little more heat. Perfect for any type of food.
In pyrolytic models this function can be used for thawing and proving foods. Set the temperature to choose the function: thawing (30°C) or proving (40°C).
THAWING:
Rapid thawing is helped by switching on the fan provided and the top heating element that ensure uniform distribution of low temperature air inside the oven.
In multifunction models this function supplements proving. The choice to thaw or to prove depends on the temperature selected. Set the temperature to choose the function: thawing (30°C) or proving (40°C).
55
Instructions for the user

8.1 COOKING HINTS AND TIPS

HINTS ON USING THE ACCESSORIES:
• Use only original SMEG pans.
• When the pan is in the oven, the handle must be facing the oven door.
• Push the pans right inside the oven.
• Use only original SMEG racks.
• When the rack is in the oven, the contoured part must be facing downwards.
• Push the racks right inside the oven.
• Use only original racks.
• Push the racks right inside the oven.
• For best cooking results, we recommend placing kitchenware in the centre of the rack.
GENERAL HINTS:
We recommend preheating the oven before putting the food in. Do not place the foods inside the oven until
the degrees symbol on the display stops flashing and the beep has sounded to confirm that the set temperature has been reached.
• For cooking on several levels, we recommend using a fan-assisted function to achieve uniform cooking at all heights.
• In general, it is not possible to shorten the cooking times by increasing the temperature (the food could be well­cooked on the outside and undercooked on the inside).
• During the cooking of desserts and vegetables, dripping from the bottom of the door could occur. This is a natural physical phenomenon which mainly occurs when the food is placed in the oven before preheating. To avoid this, open the door a couple of times during cooking, taking great care.
56
Instructions for the user
COOKING HINTS FOR MEAT:
• Cooking times, especially meat, vary according to the thickness and quality of the food and to consumer taste.
• To save energy when roasting, we recommend putting the food in the cold oven.
• We recommend using a meat thermometer for meat when roasting it. Alternatively, simply press on the roast with a spoon: if it is hard it is ready, if not, it needs another few minutes cooking.
COOKING HINTS FOR DESSERTS AND BISCUITS:
• Use dark metal moulds for desserts: they help to absorb the heat better.
• The temperature and the cooking duration depend on the quality and consistency of the dough.
• The tables indicate the temperature ranges; try at first using the lowest value (the lower temperature allows more even browning).
• Check whether the dessert is cooked right through: About 10 minutes before the end of cooking, stick a toothpick into the highest point in the dessert. If the dough does not stick to the toothpick, the dessert is cooked.
• If the dessert goes flat when it comes out of the oven, on the next occasion reduce the set temperature by about 10 °C selecting a longer cooking time if necessary.
HINTS FOR THAWING AND PROVING:
• We recommend positioning frozen foods in a lidless container on the first runner of the oven.
• The food must be thawed without its wrapping.
• Lay out the foodstuffs to be thawed evenly, not overlapping.
57
Instructions for the user
• When thawing meat, we recommend using a rack positioned on the second runner with the food on it and a pan positioned on the first runner. In this way, the liquid from the thawing food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom of the oven.
• During proving it is recommended to cover the food with a damp canvas.
58
Instructions for the user

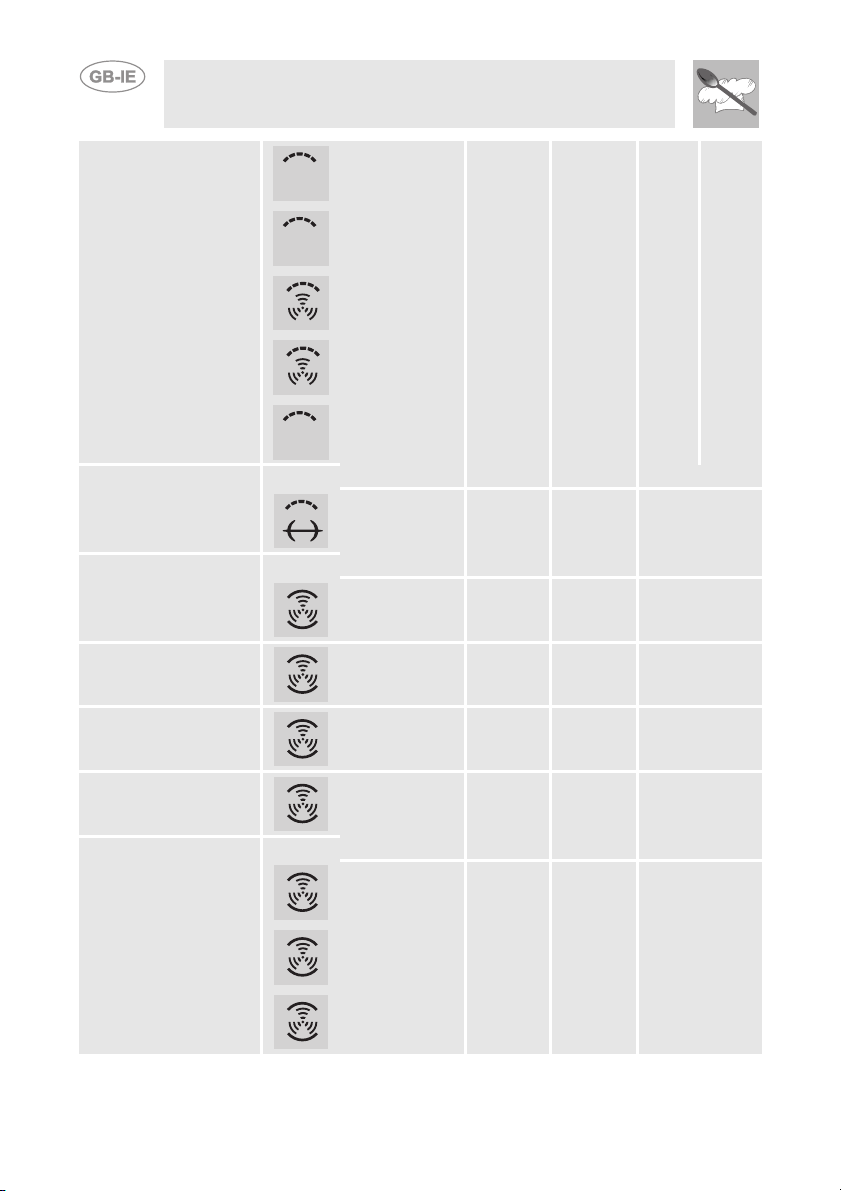

8.2 Cooking tables:

The times indicated in the following tables do not include the preheating times and are intended as a guide; users can adjust them to suit their own food habits. Always make sure to pre-heat and to load the
oven when the stays steady on.
FUNCTION
LEVEL FROM
BELOW
FIRST COURSES
LASAGNE Static 1 220 - 230 50 - 60
OVEN-BAKED PASTA Static 1 220 - 230 40
MEAT
TEMP.
°C
TIME IN
MINUTES
ROAST VEAL
LOIN OF PORK
SHOULDER OF PORK
ROAST RABBIT
TURKEY BREAST
ROAST NECK OF PORK
ROAST CHICKEN
GRILLED MEATS
PORK CHOPS
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
grill
2 180 - 190 70 - 80
2 180 - 190 70 - 80
2 180 - 190 90 - 100
2 180 - 190 70 - 80
2 180 - 190 110 - 120
2 180 - 190 190 - 210
2 180 - 190 60 - 70
FIRST
SURFACE
SECOND
SURFACE
4 300 7 - 9 5 - 7
59
Instructions for the user
FILLET OF PORK Grill 3 300 9 - 11 5 - 9
FILLET OF BEEF Grill 3 300 9 - 11 9 - 11
LIVER
SAUSAGES
MEAT-BALLS Grill 3 300 7 - 9 5 - 6
ROTISSERIE MEATS
CHICKEN Rotisserie grill
FISH
SALMON TROUT
PIZZA
BREAD
MUFFINS
DESSERTS
Fan-assisted
grill
Fan-assisted
grill
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
4 300 2 - 3 2 - 3
3 300 7 - 9 5 - 6
On a
rotisserie
rod
250 - 280 60 - 70
2 150 - 160 35 - 40
1 250 - 280 6 - 10
2 190 - 200 25 - 30
2 180 - 190 15 - 20
DOUGHNUT
FRUIT TART
SHORT PASTRY
60
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
2 160 55 - 60
2 160 30 - 35
2 160 - 170 20 - 25
Instructions for the user
JAM TARTS
PARADISE CAKE
ECLAIR
LIGHT SPONGE CAKE
RICE PUDDING
CROISSANTS
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
Fan-assisted
static
2 160 20 - 25
2 160 55 - 60
2 150 - 160 40 - 50
2 150 - 160 45 - 50
2 160 40 - 50
2 160 25 - 30

8.3 Using other functions

The following tables indicate how to use the functions for thawing, proving, and cooking with the rotisserie rod.
FUNCTION LEVEL FROM BELOW TEMPERATURE °C TIME IN MINUTES
Thawing 1 30 Depending on the
Proving 1 40
quantity.
ROTISSERIE COOKING (ON PYROLYTIC MODELS ONLY)
Prepare the rotisserie rod with the food, tightening the screws A of the prongs. Fit the frame onto the second runner from the bottom. Remove the handle D and position the rotisserie rod so that the pulley E is still in the guides on the frame
C
the rotisserie rod enters the hole
on the rear wall of the oven. Place a basin F on the first
bottom rack and pour a little water into it to prevent smoke from forming.
B.
Push the frame B fully in until the tip of
B
61
Instructions for the user

8.4 Use of the pizza plate (on some models only)

This appliance is equipped with a plate specially developed for cooking pizza. To cook pizza, use the relevant recipe
identified by the symbol .
• With the oven cold, remove the circular cover from the bottom (see figure) and insert the pizza plate.
• Select the pizza recipe.
• Wait for the preheating to finish (
steady on or buzzer).
• Place the pizza on the special plate. It does not normally take more than 3-4 minutes to cook a pizza to perfection, although this time may vary depending on individual taste.

8.4.1 Precautions for using the pizza plate

• Never use the pizza plate except as described above (for example, never use it on gas or ceramic hobs, or on ovens not designed to take this accessory).
• Use the pizza plate only while using the pizza recipe, it should preferably be removed for other cooking operations.
• If you like oil on your pizza, it is best to add it after removal from the oven since oil stains on the pizza plate are unsightly and may reduce its efficiency.
62
Instructions for the user

9. CLEANING AND MAINTENANCE

Before performing any operations requiring access to powered parts, switch off the power supply to the appliance.
Do not use a steam jet for cleaning the inside of the oven.

9.1 Cleaning stainless steel

To keep stainless steel in good condition it should be cleaned regularly after use. Let it cool first.

9.2 Ordinary daily cleaning

To clean and preserve the stainless steel surfaces, always use only specific products that do not contain abrasives or chlorine-based acids. How to use: pour the product on a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or deerskin.

9.3 Food stains or residues

Do not use metallic sponges or sharp scrapers: they will damage the surface. Use normal non-abrasive products and a wooden or plastic tool if necessary. Rinse thoroughly and dry with a soft cloth or deerskin. Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.
63
Instructions for the user

9.4 Cleaning the inside of the oven

For best oven upkeep clean regularly after having allowed to cool. Take out all removable parts.
• Clean the oven racks with hot water and non-abrasive detergent. Rinse and dry.
• For easier cleaning, the door can be removed (see point “10.2 Removing the door”).
The oven should be operated at the maximum heat setting for 15/20 minutes after use of specific products, to burn off the residues left inside the oven.
Only on some models, to clean the bottom of the oven, the following operations have to be carried out first.
64
• Remove the pizza plate or cover and then the base to which it is fixed (Fig. 1). Lift the base a few mm and then extract it from the oven.
• Now lift the end of the heating element next to the door of the oven and clean the bottom. When the operation is complete, damp parts should be dried thoroughly.
1) 2)
Instructions for the user
The pizza plate (present on some models only) must be washed separately, according to the instructions below:
• Before cleaning, remove any dirt burnt onto the stone with the aid of a metal spatula or a scraper of the kind used for cleaning ceramic hobs;
• For best results, the stone must still be warm; otherwise, wash it in hot water;
• Use metal mesh or non-abrasive scotch-brite pads, dipped in lemon or vinegar.
• Never use detergents.
• Never wash in the dishwasher.
• Never leave the stone to soak.
• The damp stone must not be used for a least 8 hours after the end of the cleaning procedures.
• Over time, slight cracks may appear on the surface of the stone. This is due to the normal expansion of the stone's finishing glazes at high temperatures.
• To put the pizza plate base back in place, push it firmly down against the oven's bottom panel and ensure it engages with the plate of the pizza heating element (detail A Fig. 2)

9.5 Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll; remove stubborn dirt with a damp sponge and ordinary detergent.
Do not use abrasive or corrosive cleaners for cleaning the door glazing. (e.g., powder products, oven-cleaner sprays, stain removers and metal scouring pads). Do not use rough or abrasive materials or sharp metal scrapers to clean the oven's glass doors since they may scratch the surface and cause the glass to shatter.
65
Instructions for the user

9.6 Pyrolysis: automatic oven cleaning (on some models only)

Pyrolysis is an automatic high-temperature cleaning procedure which causes dirt to dissolve. Thanks to this process, it is possible to clean the inside of the oven with great ease.
During the first automatic cleaning cycle unpleasant smells may occur due to the normal evaporation of oily manufacturing substances. this is an absolutely normal phenomenon which disappears after the first cleaning cycle.
Before starting the automatic cleaning cycle, make sure that the oven does not contain any foods or large spills from previous cooking operations inside.
During the pyrolysis cycle a door interlock device makes it impossible to open the door.
IF THE OVEN IS INSTALLED UNDERNEATH A HOB, MAKE SURE THAT THE BURNERS OR ELECTRIC PLATES REMAIN OFF DURING THE AUTOMATIC CLEANING CYCLE.

9.6.1 Before starting the automatic cleaning cycle

Pyrolysis may be carried out at any time of the day or night (if you wish to benefit from the lower cost of electricity overnight). Before proceeding, check the following:
only the baking pan, the oven pan, the pizza plate or the cover may be left inside the oven since they will withstand the high temperatures of the pyrolysis process; all the other accessories must be removed from inside the oven.
• make sure that the oven door is firmly closed.
When setting the cleaning cycle duration, refer to the chart below:
CLEANING DURATION
During the automatic cleaning cycle the fans make more noise because they are running at higher speed. This is an absolutely normal function, intended to provide more effective heat dispersal. At the end of the pyrolysis process, the fans continue to run automatically for long enough to prevent overheating of the sides of the cabinet and the front of the oven.
LIGHT DIRT MEDIUM DIRT HEAVY DIRT
Peco 90 MIN. 135 MIN. 180 MIN.
66
Instructions for the user

9.6.2 Setting the cleaning cycle

Use PT2 to select one of the two pyrolysis
functions, either or . To start the cleaning (Pyrolysis) cycle, press PT1 twice; the symbol will start flashing; turn knob PT1 to the left or right in order to increase or decrease the
duration of the cycle, from a minimum of 1h 30m to a maximum of 3h 00m. (Except for the function where the cycle duration is fixed at 1h 30m). A few seconds after selecting the desired duration the symbol
will remain lit.
The message “Pyro” will appear on DSP1 to indicate that the oven is performing the cleaning cycle. One minute after the cleaning cycle (Pyrolysis) starts, an interlock device which prevents opening of the door will be tripped.
The symbol lights up on DSP1 to indicate that this interlock device has been activated.
To select a delayed cleaning cycle you first need to set the duration of the pyrolysis. Then
press PT1 once: the symbol will start flashing and the current time will be displayed on DSP. Turning PT1 to the right increases the time and the time at which you wish the pyrolysis to finish can be selected.
A few seconds after the last action on PT1 the and symbols will remain lit, and the oven will start to wait for the starting time set.
It is not possible to select any functions once the door interlock has been
activated. Wait for the indicator to switch off.
67
Instructions for the user

10. EXTRAORDINARY MAINTENANCE

The oven may require extraordinary maintenance or replacement of parts subject to wear such as seals, bulbs, and so on. The following instructions describe how to carry out these minor maintenance operations.
Before any intervention that requires access to live parts, disconnect the power supply of the appliance.

10.1 Changing the light bulb

Remove the bulb protector A by turning anticlockwise and replace bulb B with a similar one (25 W). Re-fit the bulb protector A.
Use only oven bulbs (T 500°C) (only for pyrolytic models). Use only oven bulbs (T 300°C) (only for multifunction models).
68

10.2 Removing the door

10.2.1 With moveable levers

With the door completely open, lift the levers A of the two hinges until they touch the hinges B and take hold of the two sides of the door with both hands close to the hinges
themselves. Raise the door to an angle of about 45° and remove it. If the hinges have not locked, repeat the operation, raising the levers A and keeping the door slightly raised. To reassemble, fit the hinges B into their grooves, then lower the door into place, ensuring that it remains fitted into the grooves C, then lower the levers A.
Instructions for the user

10.2.2 Removing doors with pins

Open the door completely and insert the pins (supplied) into the holes from the inside. Close the door to an angle of about 45° and lift it off. To reassemble, fit the hinges into their grooves, then lower the door into place and extract the pins.

10.3 Removing the door seal

To permit thorough cleaning of the oven, the door seal may be removed.

10.4 Removing the glass panes

The glass in the door should always be kept thoroughly clean. For easier cleaning, it is possible to remove the door (see “10.2 Removing the door”) and place it on a canvas; or open it and block the hinges in order to extract the glass panes. The glass panes of the door can be completely removed by following the instructions provided below.
Warning: before removing the glass panes, make sure that at least one of the door's hinges has been locked in the open position as described in points “10.2 Removing the door”. This operation might have to be repeated during the glass removal process if the door is accidentally freed.
Warning: replace the glass panes in the same order and in the same direction in which they were removed. Finally, if the door was not removed, unlock the hinges and close it.
Warning: do not use the product without the glass inserted, otherwise the external surface of the door will overheat.
69
Instructions for the user
Removing the internal glass:
• Remove the internal glass pane
by pulling it towards you, following the movement indicated by the arrows. Doing this dislodges the 4 pins attached to the glass from their slots in the oven door
Removing the middle glass panes: (pyrolytic models)
• Pyrolytic models have two
middle panes that are attached together. Remove the middle panes by lifting them upwards
Removing the middle glass panes: (multifunction models)
• Multifunction models have a
single middle pane. Remove the middle pane by lifting it upwards
70
Cleaning:
• Now it is possible to clean the
external glass and the panes removed previously. Use absorbent kitchen roll paper. In the case of stubborn dirt, wash with a damp sponge and neutral detergent.
Replacing the glass:
• Replace the glass panes in the
opposite order to which they were removed.
• Reposition the internal glass
pane, taking care to centre and insert the 4 pins attached to the glass into their slots on the oven door by applying a light pressure.
Instructions for the user

10.5 what to do if...

The oven display is full off
The oven does not heat up
The controls do not respond.
The cooking times are longer than those indicated in the table.
After the automatic “pyrolysis” cleaning cycle (only on some models) it is not possible to select a function.
The display shows ERR 4
(on pyrolytic models only)
If the door is opened during a fan-assisted function, the fans stops.
• Check the mains power supply.
• Check whether an omnipolar switch upstream from the oven power supply line is in the “ON” position.
• Check whether the “showroom” mode has been set, for further details see point “7.8 Secondary menu” on page 52.
• Check whether the “child lock” mode has been set, for further details see point “7.8 Secondary menu” on page 52.
• Check whether the “2300 W” mode has been set, for further details see point “Secondary menu” on page 52.
• Verify whether the door interlock device has switched off. If it has not, the oven has a protection device that does not allow functions to be selected while the door interlock device is active. This is because the temperatures inside the oven are still too high to permit any type of cooking.
• The door interlock device has not hooked up to the door properly. This might be because the door was accidentally opened during its activation. Switch off the oven and switch it on again waiting a few minutes before selecting a new cleaning cycle.
• This is not a fault. It is a normal operation of the appliance, useful when cooking foods in order to avoid excessive heat escaping. When the door is closed, the oven will return to normal operation.
If the problem has not been resolved or for other types of faults, contact your local technical assistance centre.
71
Instructions for the installer

11. INSTALLING THE APPLIANCE

11.1 Electrical connection

The I.D. plate with technical data, serial number and brand name is positioned visibly on the oven door frame. The plate must not be removed.
The appliance must be electrically grounded in compliance with the electrical system safety regulations.
If a fixed connection is being used it is necessary to fit the power line with an omnipolar circuit breaker with a contact opening gap equal to or greater than 3 mm, in an easily accessible position close to the appliance.
If a plug and socket connection are being used make sure that the plug and socket are compatible. Avoid use of adapters and shunts as these could cause overheating and risk of burns.
Operation at 220-240 V~: use a type
H05RR-F (3 x 1.5 mm
H05V2V2-F (3 x 1.5 mm cable.
The earth wire (yellow-green) must be at least 20 mm longer than the other wires at the end for connection to the appliance.
WARNING: THE VALUES INDICATED ABOVE REFER TO THE CROSS­SECTION OF THE INTERNAL CONDUCTOR.
If the power supply cable has to be replaced, remove the rear casing by undoing the screws as shown below. The cross-section of the power cable
must be at least 1.5 mm temperatures up to 90°C (H05V2V2-F). Make sure that the cables follow the best possible route and use band clamps to fix them at the side of the cabinet, to avoid any contact with the oven.
2
) or type
2
) three-wire
2
(3 X 1.5 cable) and it must withstand
72
Instructions for the installer

11.2 Positioning the oven

The oven is designed for mounting into any piece of furniture as long as it is heat-resistant. Proceed according to the dimensions shown in Figures 1, 2 and 3. For installing under a work top, follow the dimensions given in Figure 1-3. When installing under worktops incorporating combined hobs, a gap of at least 110 mm must be left from any side wall, as shown in figure 1. When installing in tall units, comply with the dimensions shown in figure 1- 2, bearing in mind that the top/rear of the unit must have an opening 80-90 mm deep. Tighten the 2 screws A inside the frame (fig. 1). For installing beneath a non-integrated top, allow for a rear and bottom clearance as shown in Figure 1 (ref. B). See the relevant instructions for fitting and securing the hob.
73
Instructions for the installer
Never use the oven door to lever the oven into place when fitting. Avoid exerting too much pressure on the oven door when open.
It is recommended to install the oven with the help of a second person.
WARNING: When the oven has been extracted from the packing base, avoid resting the product on the ground as this could cause deformation of the drip trays. If necessary during handling, replace the oven in the packing base.
74
Loading...
