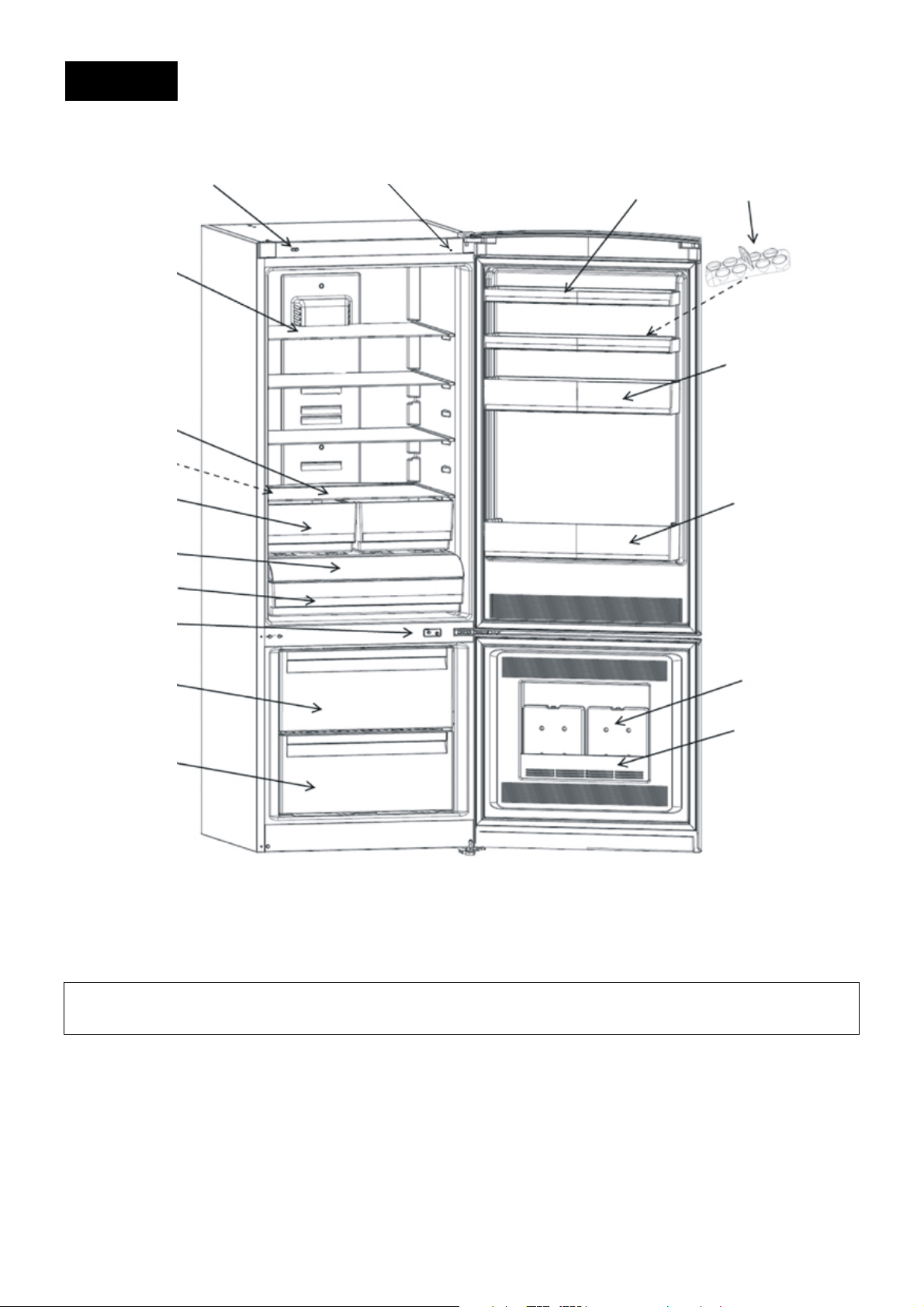

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....................... 27
PART- 1 . BEFORE USING YOUR REFRIGERATOR
Information on No-Frost technology
No-frost refrigerators differ from other static refrigerators in their operating principle.
In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container, and remove the ice gathered in the freezer department.
The situation is completely different in no-frost fridges. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.
Therefore your no-frost fridge allows you ease of use, in addition to its huge capacity and stylish appearance.
UK - 2 -
Safety Information
• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.
IMPORTANT NOTES:
• If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• Please read the instruction manual carefully before installing and using your appliance. Our company is not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.
Please ask your municipal authority about the disposal of the W EEE for the reuse, recycle and recovery purposes.
Conformity Information
• Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.
UK - 3 -
Security warnings
Warning: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.
• Please do not use a multi-way socket or an extension cable.
• Please do not insert a plug whose cable is damaged, torn or worn-out into the socket.
• Please never pull, bend or damage the cable.
• This product has been designed for utilization by adults; please do not let children play with the device and dangle their body by hanging on the door.
• Never ever take out the plug from the socket with wet hands in order not to cause any electrical shock!
• Please do not ever place acidic drinks in glass bottles and cans in the deep-freeze compartment of your refrigerator. Bottles and cans may burst out.
• For your safety, please do not place any explosive and flammable materials in the refrigerator. Place the drinks with high alcohol content into the cooling compartment of the device with their lids tightly closed and in a vertical position.
• Avoid any manual contact as you take out the ice made in the deep freeze compartment; the ice may cause burns and/or cuts.
• Never ever touch the frozen food with bare hands! Do not eat the ice cream and ice cubes immediately after you taken them out of the deep freeze compartment!
• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.
• Please do not cover the body and\or top of the refrigerator with cloth, table cover etc. This will negatively affect the performance of the refrigerator.
• Secure the accessories inside the appliance in order to prevent them get damaged while moving.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don’t play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similary qualified people in order to avoid a hazard.
UK - 4 -
Installation and Operation of your Refrigerator
• The operation voltage of your refrigerator is 220-240 V and 50 Hz.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• Our company shall not be held responsible for damages that may arise due to utilization with no grounding installation.
• Place your refrigerator in a suitable spot that it will not be exposed to direct sunlight.
• It should be at least 50 cm away from heat sources such as cookers, ovens, wing radiators and stoves and at least 5 cm away from electrical ovens.
• Your refrigerator should not be used in the open air and should not remain under the rain.
• If your refrigerator is juxtaposed with a deep freeze, it is necessary to leave a space of at least 2 cm between them in order to prevent condensation on the outer surfaces.
• Please do not place any heavy objects on your refrigerator and place your refrigerator in a suitable spot in such a way that there will be a free space of minimum 15 cm on the top.
• If your are going to place the refrigerator beside your kitchen cabinets then you should keep a clearance of at least 2 cm’s between them.
• To prevent the condenser (the black backside component with fins) from touching the wall, put on the plastic distance guide in its place rotating 90°.
• To ensure smooth and vibration-free operation of your refrigerator, the adjustable front feet must be set at the suitable height and mutually balanced. You can ensure this by turning the adjustable feet clockwise (or counter-clockwise). This process should be performed before the food is placed in the refrigerator.
• Before using your refrigerator, wipe all its parts with warm water in which you shall add one teaspoon of food soda, then rinse it with clean water and dry it. After the cleaning process is completed, place all the parts back.
Before Starting to Operate Your Refrigerator
• During the first operation or to ensure the efficient operation of the device following the relocation processes, allow your refrigerator to remain idle for 3 hours (in a vertical position), then insert the plug to the socket. Otherwise, you may damage the compressor.
• The first time you operate your refrigerator, an odor might be smelt. This odor shall disappear once your refrigerator starts cooling.
UK - 5 -
PART- 2 .
USAGE INFORMATION

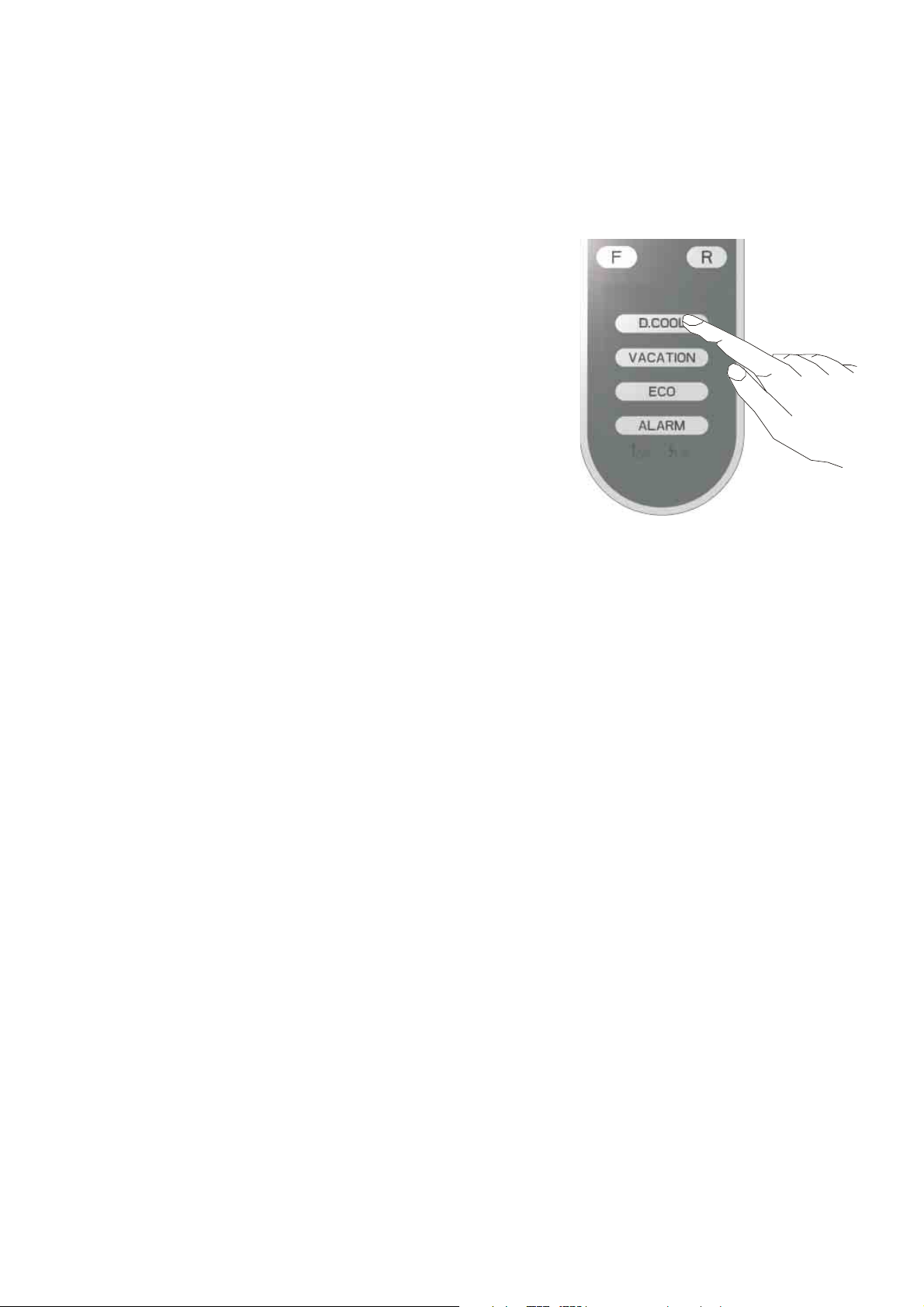

Display and control panel
1
Use of control panel
1. Indicator and bar of Super Freeze mode
2. Indicator and bar of Super Cool mode
3. Adjustment indicators and bars of freezer. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.
4. Adjustment indicators and bars of cooler. The active setting value will be illuminated. All bars from minimum up to the relative
2
setting value will be illuminated.
5. It enables the set ting value of freezer to be modified and Super Freeze mode to be activated if desired.
Freezer may be set to -16, -18, -20, -22,
-24 °C.
6. It enables the setting value of cooler to be
3
5
7
8
9
10
11
4
6
modified and Super Cool mode to be activated if desired.
Cooler may be set to +2, +4, +5, +6, +8 °C.
7. It activates Drink Cool mode. The expression will be illuminated when it is active.
8. It activates holiday mode. The expression will be illuminated when it is active.
9. It activates economical mode. The expression will be illuminated when it is active.
10. Alarm and SR will light red and audible alarm will be released when any problem occurs in the fridge. Audible alarm will be deactivated when pressed on alarm button. Red warning lights will continue to light up until the problem is corrected/eliminated.
11. In case the mains voltage is low, Alarm and LV will light red and audible alarm is released. Audible alarm w ill be deactivated when pressed on alarm button. Red warning lights will go off when mains voltage raises the appropriate level.
UK - 6 -
Operating your Fridge
On / Off button
After the appliance is plugged, all symbols will appear for 2 seconds, and then the startup values will appear as -18°C on freezer setting indicator and +4°C on cooler setting indicator.
All buttons on the control panel are touch-operated. (Only press to activate the button you want to operate.)
Super Freeze Mode
When would it be used?
(See in page 27, pict:1)
It cuts the power of appliance by pushing on-off switch.
• For freezing a large amount of food (too large to be fitted in the Super freezer).
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.
How would it be used?
• Press button F until letters "SF" and relative bar graphic light up.
• If pressed on no button in 1 second, SF and bar graphics will flash 3 times and a beep sound will be released.
• SF and relative bar graphics will be displayed during this mode.
During this mode:
• Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, set active SF mode 3 hours before placing fresh food in the freezer.
• 3 hours after being activated, your refrigerator starts giving signals. This signal tells that the quickfreezer compartment is ready for the foods to be placed in it. Your refrigerator will give intermittent beep sounds for 1 minute in every 5 minutes; provided that the doors are not opened, this signal giving will last 1 hour. When this sound is heard, foods to be frozen must be placed away from the already frozen ones. W henthe door of the freezer or cooler is opened, this signal stops. When your foods are cooled enough, your refrigerator will automatically go out of the quick freezing mode.
UK - 7 -
• After a period of maximum 24 hours after the function is activated, the freezing process will be completed.
• Freezer may be adjusted, Super Freeze will be cancelled and the selected setting values will proceed.
• Temperature of super cool and cooler may be adjusted. In this case, super freeze mode continues.
• Economical and Holiday modes can be selected. Super Freeze Mode will be cancelled and the selected mode is enabled.
• When "Super Freeze" is active, SF can be re-selected and cancelled by pressing on button F.
Note: “Super Freeze” mode will be automatically cancelled after 24 hours or freezer sensor temperature is lower than -32
o
C.
Super Cool Mode
When would it be used?
• To cool fast food before eating.
• To cool and store and lots of food.
• To cool drinks quickly.
How would it be used?
• Press button R until letters "SC" and relative bar graphic light up.
• If pressed on no button in 1 second, SC and bar graphics will flash 3 times and a beep sound will be released.
• SC and relative bar graphics will be displayed during this mode.
• When you use supercool mode, existing fresh food in refrigerator compartment can reach to much more cooling for a brief period. After this mode, the fresh food will turn back to normal temperature.
• And if needed you can use this mode again.
During this mode:
• Cooler may be adjusted, Super Cool will be cancelled and the selected setting values will proceed.
• Temperature of super freeze and freezer may be adjusted. In this case, super cool mode continues.
• Economical and Holiday modes can be selected. Super Cool Mode will be cancelled and the selected mode is enabled.
• When "Super Cool" is active, SC can be re-selected and cancelled by pressing on button R.
Note: “Super Cool” mode will be automatically cancelled after 12 hours or cooler sensor temperature is lower than 0°C.
UK - 8 -
Economy Mode
Freezer and Cooler operate in the economical conditions that are determined in the control unit.
When would it be used?
• When you want your fridge to operate economically.
How would it be used?
• Touch button ECO.
• ECO will start flashing
• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.
• When this mode is active, ECO symbol stays on.
• -18 and relative graphic bar will be displayed on Freezer
• +4 and relative graphic bar will be displayed on Cooler
During this mode:
• Freezer may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Cooler may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Super Cool and Super Freeze modes can be selected, Economical mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected. Economical mode is automatically cancelled and the selected mode is activated.
• To cancel, you will just need to press on button ECO.
Holiday Mode
When would it be used?
• If you are going to a long vacation, and want to empty the cooler, you can use this mode.
How would it be used?
• Touch button VACATION.
• VACATION will start flashing.
• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.
• When this mode is active, VACATION symbol stays on.
• Indicators and bar graphics of freezer and cooler will be off
• No adjustment can be carried out without cancelling Holiday Mode.
UK - 9 -
• To cancel, you will just need to press on button VACATION.
• Your fridge will continue to operate in the previous setting values.
Drink Cool Mode
When would it be used?
• This mode is used to cool the drinks within adjustable time.
How to use?
• Press DCOOL button.
• Press DCOOL button to adjust the time
05 minutes -> 1. bars;
10 minutes -> 2. bars;
15 minutes -> 3. bars;
20 minutes -> 4. bars;
25 minutes -> 5. bars;
30 minutes -> 6. bars are lighting;
• When you select the time the numbers will blink 3 times on screen and sound beep beep.
•Ifnobuttonispressedwithin2secondsthetimewillbeset.
• The countdown starts from the adjusted time every 5 minutes , 1 bar will disappear.
• At the end of adjusted time , display will give visual and voice alarm.
• To cancel this mode press D.COOL set button.
Note : You must adjust the time according the temperature of bottles before you put in .
• For example, at begining you can adjust to "5 min". After this period if this cooling is not sufficient, you will can again 5 or 10 or etc minute.
• When you use this mode, you must check temperature of bottles regularly. And the temperature of bottles will reach to sufficient level, you must remove these bottles from your appliance.
• If you forget the bottles in quick drink, can explode.
Function of Child Lock
When would it be used?
• To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.
Activating Child Lock
• Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.
Deactivating Child Lock
• Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.
Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.
UK - 10 -
Light Cancelling Mode
When would it be used?
• If you want to cancel lights of cooler, you can select this mode.
• Press on Freezer (F) and Cooler (R) buttons simultaneously, and open and close the cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on when freezer and cooler doors are opened.
• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.
Friendly lighting
• This mode is for energy saving.
• The lamps of your appliance will not be lightened if the area that you placed the appliance has enough luminance to be able to see inside of appliance.
Screen Saver Mode
• This mode can be selected for energy saving.
• Press D.COOL button for 3 seconds continously.
• After 3 seconds, the mode will be set and sound as beep beep.
• During screen saver mode, the lighting of display will be off.
• When we open door or press any button, the lighting of display will be on for 5 seconds, then it will be off again.
• Press D.COOL button for 3 seconds for cancelling this mode.
UK - 11 -
Cooler Temperature Settings
• Initial temperature value for the Cooler Indicator is +4°C.
• Press cooler (R) button once.
• When you first push this button, +2°C appears on the setting indicator of the cooler.
• Whenever you press on this button, one bar comes on cooler bar graphic indicator and lower temperature will be set. (+8°C, +6°C, 5°C, +4°C, +2°C)
• When you push the cooler button until +2°C (maximum cold) appears on the cooler setting indicator, and when you keep pushing, letters SC (Super Cool) will flash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.
Freezer Temperature Settings
• Initial temperature value for Freezer Setting Indicator is -18°C.
• Press freezer (F) button once.
• When you first push this button, -20°C appears on the setting indicator of the freezer.
• Whenever you press on this button, one bar comes on Freezer Bar Graphic Indicator and lower temperature will be set. ( -16°C, -18°C,
-20°C, -22°C, -24°C)
• When you push the freezer button until -24°C (maximum cold) appears on the Freezer Setting Indicator, and when you keep pushing, letters SF (Super Freeze) will flash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is over or cancelled. Your appliance will continue operating in this temperature value selected.
UK - 12 -
Warnings about Temperature Adjustments
• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. W e do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
Climate Class Ambient
T
ST
N
SN
16 to 43 °C 16 to 38 °C 16 to 32 °C 10 to 32 °C
Note: If the temperature of the environment is higher than 38°C, the freezer partition temperature cannot be adjusted to -22°C and -24°C. It can only be adjusted to the values of -16°C, -18°C, -20°C.
Accessories
Ice Box
• To remove ice box; pull the upper freezer box out as far as possible and then pull the ice box out.
• Fill 3/4 full of water and place the ice box in freezer.
Note: While placing the ice box in the freezer, place in a horizontal position. Otherwise the water in the iceboxcanbespill.
UK - 13 -
Freezer Box
The freezer box allows foods are maintained more regularly.
Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
! Make the inverse of the same operation for the resetting the sliding compartment.
Note: Always Keep the handle of box while removing the box.
Odor Filter
The filter in this area, blocks the bad smell in the cooler
odor filter
compartment.
Roller Storage Box
You can adjust and use this department as 3 different functional department.
1- To use for 0 °C Department: If you want to use
this compartment as 0°C box, you must take the slid ing part (cover, which is indicated in picture) from closed position to open position and at the
Klape
same time adjust refrigerator setting as 2°C.
2- To use for Crisper Department: If you want to
use this compartment as crisper, you must take the sliding part (cover, which is indicated in picture) from open position to closed position.
3- To use for Chiller Department: If you want to use this compartment as chiller, you must
take the sliding part (cover, which is indicated in picture) from closed position to open position and at the same time adjust refrigerator setting as 4°C or 5°C. Thus, temperature of this department has been adjusted as 1-2°C colder than refrigerator compartment's.
UK - 14 -
• While this department is used as 0 °C Department, Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. W hen chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...
• Pull the chiller shelf out toward you. the cover will open automatically
! Do not put foods you want to freeze or ice trays in order to make ice.

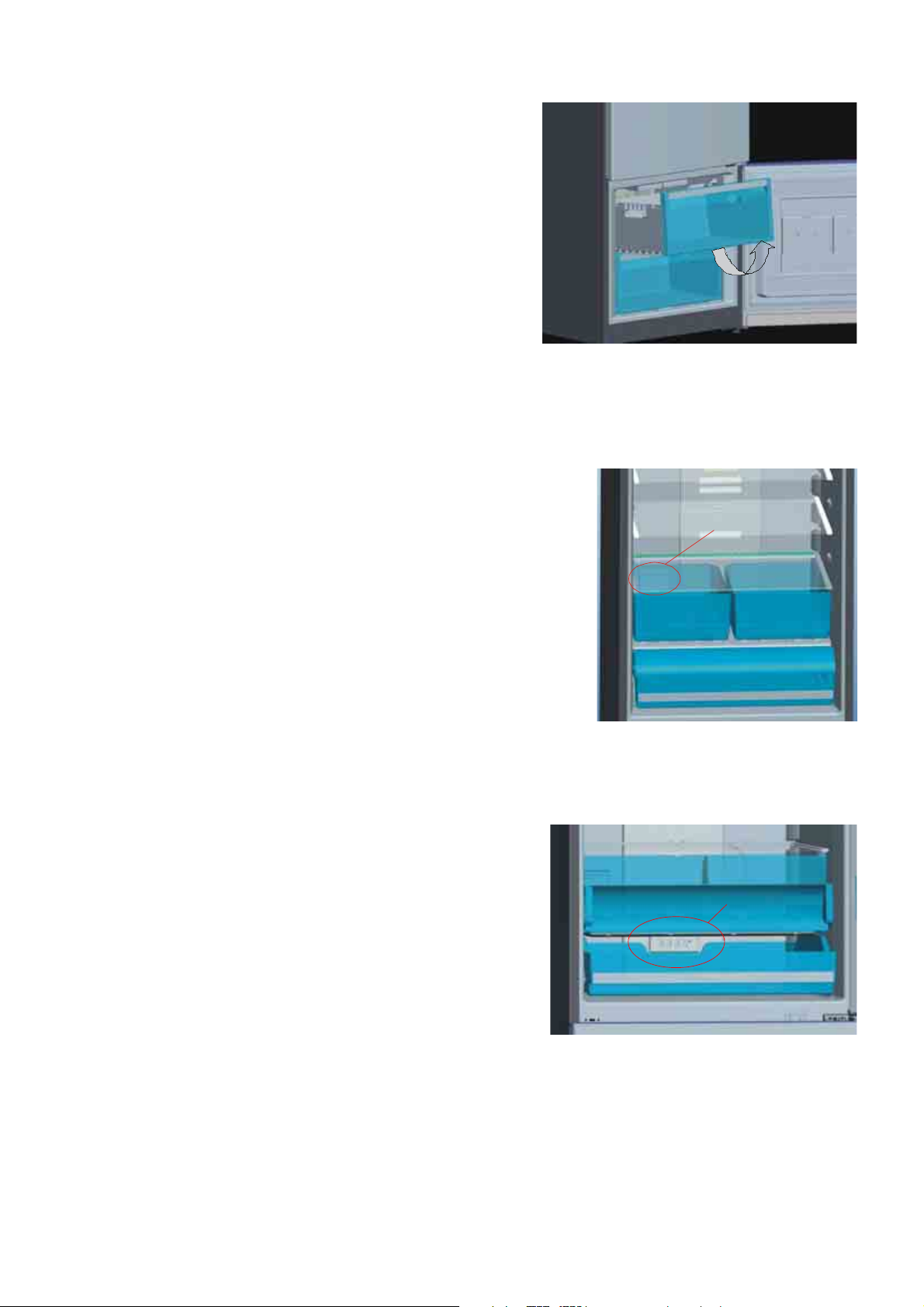

Picture. 1 Picture. 2 Picture. 3
Removing The chiller shelf;
• Open the cover fully. (Picture-1)
• Pull the chiller shelf out toward you. (Picture-2)
• Pull the wheels of chiller shelf up from rail to remove. (Picture-3)
Fresh Dial
In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity
rate will be controlled and endurance life will be increased.
If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.
UK - 15 -
PART- 3 .
FOOD PLACEMENT
Cooling Compartment
• To prevent humidification and odor formation, the food should be placed in the refrigerator in enclosed cups or with their top being covered.
• The hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.
• Please do not prop the packaged food and containers against the lamp and cover of the cooling compartment.
• Fruits and vegetables: Can be placed in the crisper directly without wrapping them.
• Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.
Food Storing time
Vegetables and fruits 1 week
Meatandfish 2to3days
Fresh cheese 3 to 4 days In the special door shelf
Butter and Margarine 1 week In the special door shelf
Bottled product, Milk and Yoghurt
Eggs 1 month In the egg shelf
Cooked food All shelves
Until the expiry date recommended by the producer
Where to place in the fridge
department
In the Crisper (without being wrapped)
Covered with plastic folio and bags Orinameatbox (on the glass shelf)
In the special door shelf
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
Deep Freeze Compartment
• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.
• If you are going to use the refrigerator with maximum freezing capacity:
* Place the foods that you want to freeze to the top basket of the freezer department
without exceeding the freezing capacity of your refrigerator ( for 466 model ).
* Place the foods that you want to freeze to the bottom basket of the freezer department
without exceeding the freezing capacity of your refrigerator ( for 566 model ).
* While you use Quick Freeze Mode , you mustn't storage an exist foozen food near
the fresh foods that you want to freeze.
Then enable the “Quick Freeze” mode again. You may place your food next to the other frozen food after they are frozen (for at least 24 hours after the 2 the “Quick Freeze” mode).
UK - 16 -
nd
activation of
• Please do not place the food you shall newly freeze nearby the already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.
• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.
• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.
• W hile storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.
• Frozen foods must be carried without corrupting them and placed on the quick freezing shelf as soon as possible. Do not use door shelves for freezing purpose.
• If there had been humidification in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!
• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.
• If you keep open freezer door for a long time or forget open, there will be a frost on sub-grade of freezer. Therefore that can cause to prevent of air curcilation. For overcame this situation, first plug out and wait for thawing. After this frost will thaw, you must clean freezer.
• To increase storage volume of freezer, you can remove baskets, cover..etc
• The declared volume on label is equal which the appliances is used without baskets, covers, etc...
ICE PACK
(See in page 27, pict:16)
* If a power failure or malfunction occurs, that ice pack can be used to slow down the
thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment.
* To save space, the ice pack can be storaged in the door compartment.
* The ice pack can also be used to cool food temporarily, for example in a cold bag.
• Some recommendations have been specified on pages 18, 19 and 20 for the placement and storage of your food in the deep freeze compartment.
UK - 17 -
Meat and fish Preparing
Steak Wrapping in a foil 6-10 1-2
Lamb meat Wrapping in a foil 6-8 1-2
Veal roast Wrapping in a foil 6-10 1-2
Veal cubes In small pieces 6-10 1-2
Lamb cubes In pieces 4-8 2-3
Minced meat In packages without using spices 1-3 2-3
Giblets (pieces) In pieces 1-3 1-2
Storing time
(months)
In room temperature
Defrost time
-hour-
Bologna sausage/salami
Chicken and turkey Wrapping in a foil 7-8 10-12
Goose and Duck Wrapping in a foil 4-8 10
Deer, Rabbit, Wild Boar
Freshwater fishes (Salmon, Carp, Crane, Siluroidea)
Lean fish; bass, turbot, flounder
Fattyfishes(Tunny, Mackarel, bluefish, anchovy)
Shellfish Cleaned and in bags 4-6
Should be packaged even if it has membrane
In 2.5 kg portions and as fillets 9-12 10-12
2
After cleaning the bowels and scalesofthefish,washanddryit; and if necessary, cut the tail and head.
4-8
2-4
Until it is defrosted
Until it is thawed
completely
Until it is thawed
completely
Until it is thawed
completely
Until it is thawed
completely
Caviar
Snail
In its package, aluminum or plastic container
In salty water, aluminum or plastic container
2-3
3
Until it is thawed
completely
Until it is thawed
completely
Note: Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
UK - 18 -
Vegetables and
Fruits
Cauliflower
Preparing
Take the leaves apart, cut the heart into pieces, and leaveitinwaterwithalittle lemon juice for a while
Storing time
(months)
10 - 12 It can be used as frozen
In room temperature
Defrost time
-hour-
String beans and beans
Beans Hull and wash 12 It can be used as frozen
Mushroom and asparagus
Cabbage Cleaned 6 - 8 2
Eggplant
Corn
Carrot Clean and cut to slices 12 It can be used as frozen
Pepper
Spinach Washed 6 - 9 2
Apple and pear Peel and slice 8 - 10 (In Fridge) 5
Apricot and Peach
Wash and cut to small pieces
Wash and cut to small pieces
Cuttopiecesof2cmafter washing
Clean and pack with its stem or as sweetcorn
Cut the stem, cut into two pieces and remove the core
Cut into two pieces and remove the stone
10 - 13 It can be used as frozen
6 - 9 It can be used as frozen
10 - 12 Separate them from one another
12 Itcanbeusedasfrozen
8-10 Itcanbeusedasfrozen
4 - 6 (In Fridge) 4
Strawberry and Blackberry
Cooked fruits
Plum, cherry, sourberry
Wash and hull 8 - 12 2
Adding 10 % of sugar in the container
Wash and hull the stems 8 - 12 5 - 7
12 4
UK - 19 -
Dairy Products
Pastry
Preparing
Storing time
(months)
Storing Conditions
Packet (Homogenize) Milk
Cheese-excluding white cheese
Butter, margarine
Albumen 10 - 12 30 gr of it is equal to a yolk.
Egg mixture (Albumen – yolk)
*Eggs
Yolk
In its own packet 2 - 3
In slices 6 - 8
In its package 6
Some salt or sugar is added for preventing it from becoming dense.
Some salt or sugar is added for preventing it from becoming dense.
10 50 gr of it is equal to a yolk.
8 - 10 20 gr of it is equal to a yolk.
PureMilk–Initsownpacket
Itcanbeleftinitsoriginal
package for storing for a short
time. For long term storage It
should be stored in a plastic
* It should not be frozen with its shells. The white and yolk of the egg should be frozen
separately or as having been well mixed.
Storing time
(months)
Thawing time in room
temperature (hours)
Thawingtimeinowen(min.)
In closed container
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.
The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.
UK - 20 -
PART- 4 .
• Make sure you have disconnected the plug from the socket before starting the cleaning.
• Please do not clean the refrigerator by pouring water in it.
• You may wipe the inner and outer parts of your device by using warm and soapy water with a soft cloth or sponge.
CLEANING AND MAINTENANCE
• Please remove the parts one by one and clean them with soapy water. Do not wash them in a dishwasher.
• Never ever use flammable, combustible or melting materials such as thinner, gasoline or acid for cleaning purposes.
• You should clean the condenser (back of the appliance) with broom ones a year in order to provide energy saving and increase the productivity.
Make sure that the appliance is unplugged.
Defrosting
• Your refrigerator makes fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator and evaporates by itself in there.
UK - 21 -
Evaporating tray
Replacing The Light Bulb
Replacing the Refrigerator Light Bulb (If the illumination is occured via lamp )
1. Unplug the unit from the power supply,
2. Removethescrewsoneachsideoftherefrigeratorlampcover(A).
3. Change the light bulb (B) with a new one (not more than 15 Watt)
4. Place the light cover in its place and plug the unit.
Replacing The Light Led
(If the illumination is occured via LED strip)
Please call the service man.
Replacing The Refrigerator Light Fluorescent Lamp
(If the illumination is occured via Fluorescent Lamp)
Please call the service man.
Light LED
Light fluorescent
UK - 22 -
PART- 5 .
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright positio.
SHIPMENT AND REPOSITIONING
Repositioning the Door
You can reposition the doors of your fridge. Contact nearest authorized service for this.
PART- 6 .
Check Warnings;
Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.
Err or Code MEANING CAUSE ACTIONS TO BE TAKEN
BEFORE CALLING THE SERVICE
(For some models)
SR
LV
Fault
warnings
Low
voltage
It appears when one or several parts of the fridge fail or a problem occurs on the cooling s ys tem .
Fridge switches to stand­bycondition when the voltage supply is lower than 170 Volts.
UK - 23 -
Contact the nearest authorized technical service as soon as possible. This feature prevents damage to the compressor due to low voltage. Fridge will start operating automatically when the supply voltage reaches the desired level.
If your refrigerator does not operate;
• Is there a power failure?
• Is the plug connected to the socket correctly?
• Is the fuse of the socket to which the plug is connected or the main fuse blown?
• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.
Control warnings;
If the temperatures of the cooling and freezer compartments are not in the suitable levels or there is a problem in the appliance, your refrigerator will warn you. Warning codes appear in the Freezer and Cooling Compartment Setting Displays.
If your refrigerator is operating noisily; Normal Noises
Crackling (Ice Cracking) Noise:
• It is heard during the automatic defrosting process.
• Once the device has been cooled or heated (expansions in the device material).
Short Cracking Noise
• It is heard when the thermostat turns on and off the compressor.
Compressor Noise
• It is the normal engine noise. This noise indicates that the compressor is operating normally. As the compressor is being introduced, it might operate a little bit more noisily for a short period of time.
Bubbling and burbling sound:
• This noise is emitted as the coolant fluid flows through the pipes within the system.
Water flowing sound:
• This is the normal sound of water flowing into the evaporation container during the defrosting process. This sound may be heard during the defrosting process performed in the device.
Water blowing sound:
• It is the normal fan sound. This sound may be heard due to air circulation in No Frost refrigerators as the system is operating normally.
If the edges of the refrigerator cabin contacted by the door seal are hot;
• Especially in summer months (in hot weathers), there might be heating on the surfaces contacted by the seal on the refrigerator when the compressor is operating and this is quite normal.
If there is humidification in the inner parts of your refrigerator;
• Has the food been properly packaged? Have the cups been well dried before they were put into the refrigerator?
UK - 24 -
• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.
• It is normal to have water drops formed on the back wall following the automatic defrosting process. (In Static Models)
If the doors are not being properly opened and closed:
• Are the food packages preventing the doors from being closed?
• Have the door compartments, shelves and drawers been properly placed?
• Have the door seals been defective or torn?
• Is your refrigerator standing on an even ground?
About the water dispenser;
If the water flow is abnormal;
Check that;
• The tank is well installed.
• The tank gaskets are well assembled.
If dripping occurs; Check that;
• The tap is well assembled.
• The tap gaskets are well assembled.
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).
UK - 25 -
Tips For Saving Energy
1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and
not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow ward food and drinks to cool down outside the appliance.
3– W hen thawing frozen food, place it in the refrigerator compartment. The low tem-
perature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wast­age of energy.
4– When placing, drinks and slops they must be covered. Otherwise humidity in-
creases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5– W hen placing food and drinks, open the appliance door as briefly as possible.
6– Keep close the covers of any different temrepature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.
UK - 26 -
PART- 7 .
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
5
7 8
3
4
6
1
2
12
13
14
15
9
10
16
17
11
This figure has been drawn for information purposes about parts and accessories
of the appliance. Parts may vary according to the model of the appliance.
1) On/Off Button
2) Light Sensor
3) Cooler Glass Shelf
4) Crisper Cover
5) Odor filter
6) Crisper
7) Roller Storage Box Cover
8) Roll er S torage Box
9) Lamb Switch
10) Freezer Upper Basket
11) Freezer Bottom Basket
12) Upper Shelf
13) Egg Holder
14) Middle Shelf
15) Bottle Shelf
16) Cooling Battery
17) Battery Cover
UK - 27 -
52044256
Loading...
