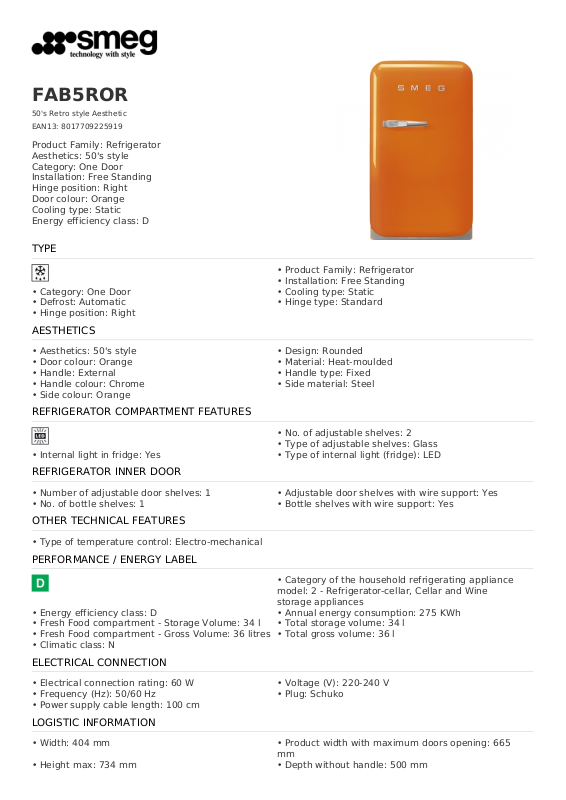

Smeg FAB5ROR User Manual

FAB5ROR

50's Retro style Aesthetic

EAN13: 8017709225919

Product Family: Refrigerator
Aesthetics: 50's style
Category: One Door
Installation: Free Standing
Hinge position: Right
Door colour: Orange
Cooling type: Static
Energy efficiency class: D

• Product Family: Refrigerator

• Installation: Free Standing

• Category: One Door • Cooling type: Static

• Defrost: Automatic • Hinge type: Standard

• Hinge position: Right

TYPE

• Aesthetics: 50's style • Design: Rounded

• Door colour: Orange • Material: Heat-moulded

• Handle: External • Handle type: Fixed

• Handle colour: Chrome • Side material: Steel

• Side colour: Orange

AESTHETICS

• No. of adjustable shelves: 2

• Type of adjustable shelves: Glass

• Internal light in fridge: Yes • Type of internal light (fridge): LED

REFRIGERATOR COMPARTMENT FEATURES

• Number of adjustable door shelves: 1 • Adjustable door shelves with wire support: Yes

• No. of bottle shelves: 1 • Bottle shelves with wire support: Yes

REFRIGERATOR INNER DOOR

• Type of temperature control: Electro-mechanical

OTHER TECHNICAL FEATURES

• Category of the household refrigerating appliance
model: 2 - Refrigerator-cellar, Cellar and Wine
storage appliances

• Energy efficiency class: D • Annual energy consumption: 275 KWh

• Fresh Food compartment - Storage Volume: 34 l • Total storage volume: 34 l

• Fresh Food compartment - Gross Volume: 36 litres • Total gross volume: 36 l

• Climatic class: N

PERFORMANCE / ENERGY LABEL

• Electrical connection rating: 60 W • Voltage (V): 220-240 V

• Frequency (Hz): 50/60 Hz • Plug: Schuko

• Power supply cable length: 100 cm

ELECTRICAL CONNECTION

• Width: 404 mm • Product width with maximum doors opening: 665
mm

• Height max: 734 mm • Depth without handle: 500 mm

LOGISTIC INFORMATION

For availability in specific countries please contact your local agent .

• Product depth with handle: 540 mm • Product depth with doors open at 90°: 800 mm

• Spacer depth: 50 mm • Dimensions of the product HxWxD (mm):
734x404x500

• FAB5LSV: Silver Left • FAB5LWH: White Left

• FAB5RWH: White Right • FAB5LCR: Cream Left

• FAB5RCR: Cream Right • FAB5LBL: Black Left

• FAB5RBL: Black Right • FAB5LRD: Red Left

• FAB5RRD: Red Right • FAB5LPG: Pastel green Left

• FAB5RPG: Pastel green Right • FAB5LPB: Pastel blue Left

• FAB5RPB: Pastel blue Right • FAB5LPK: Pink Left

• FAB5RPK: Pink Right

VERSIONS
