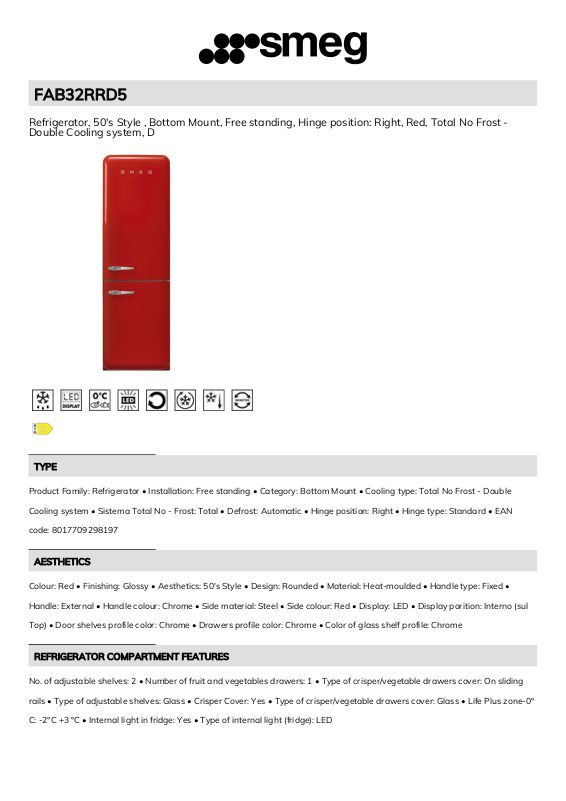

Smeg FAB32RRD5 Technical sheet

FAB32RRD5

Refrigerator, 50's Style , Bottom Mount, Free standing, Hinge position: Right, Red, Total No Frost ­Double Cooling system, D

TYPE

Product Family: Refrigerator • Installation: Free standing • Category: Bottom Mount • Cooling type: Total No Frost - Double

Cooling system • Sistema Total No - Frost: Total • Defrost: Automatic • Hinge position: Right • Hinge type: Standard • EAN

code: 8017709298197

AESTHETICS

Colour: Red • Finishing: Glossy • Aesthetics: 50's Style • Design: Rounded • Material: Heat-moulded • Handle type: Fixed •

Handle: External • Handle colour: Chrome • Side material: Steel • Side colour: Red • Display: LED • Display porition: Interno (sul

Top) • Door shelves profile color: Chrome • Drawers profile color: Chrome • Color of glass shelf profile: Chrome

REFRIGERATOR COMPARTMENT FEATURES

No. of adjustable shelves: 2 • Number of fruit and vegetables drawers: 1 • Type of crisper/vegetable drawers cover: On sliding

rails • Type of adjustable shelves: Glass • Crisper Cover: Yes • Type of crisper/vegetable drawers cover: Glass • Life Plus zone-0°

C: -2°C +3 °C • Internal light in fridge: Yes • Type of internal light (fridge): LED

REFRIGERATOR INNER DOOR

No. of door shelves with transparent cover: 1 • Number of adjustable door shelves: 2 • Adjustable door shelves with wire

support: Yes • No. of bottle shelves: 1 • Bottle shelves with wire support: Yes

OTHER REFRIGERATOR FEATURES

MultiFlow: Yes • Fan: Yes

FREEZER COMPARTMENT FEATURES

Number of drawers: 3 • No. of shelves: 2 • Type of shelves: Glass

OTHER FREEZER FEATURES

Fast freezing compartment: Yes

OTHER TECHNICAL FEATURES

Functions display: Holiday, Fast freezing, Fast cooling, ECO, Temperature alarm • Fast freezing button: Yes • Power on lamp:

Yes • Temperature alarm lamp: Yes • Door open alarm: Acoustic and visual • Temperature Alarm: Yes • Type of temperature

control: Electronic • No. of compressors: 1 • Type of compressor: Inverter

PERFORMANCE / ENERGY LABEL - REG. 2019

Annual energy consumption: 204 kWh/a • Energy efficiency class: D • Total net volume: 331 l • Sum of the volumes of the frozen

compartment(s): 97 l • Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 234 l • Airborne

acoustical noise emission class: C • Temperature Rise Time: 40 h • 4 star - Freezing capacity: 6 Kg/24h • Climate class: SN, N,

ST, T • EEI: 80 %

ELECTRICAL CONNECTION

Electrical connection rating: 127 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Power supply cable length: 180 cm

LOGISTIC INFORMATION

Dimensions: 1968x601x728 mm • Width: 601 mm • Product width with maximum doors opening: 926 mm • Height: 1968 mm •

Depth without handle: 728 mm • Product depth with handle: 768 mm • Product depth with doors open at 90°: 1197 mm • Net

weight (kg): 103.400 kg
