Smeg FAB28LRD5UK Technical sheet

FAB28LRD5UK

Refrigerator, 50's Style , One Door, Free Standing, Hinge position: Left, Red, Fan assisted refrigerator,
static freezer, D

TYPE

Product Family: Refrigerator • Installation: Free Standing • Category: One Door • Cooling type: Fan assisted refrigerator, static

freezer • Defrost: Automatic for refrigerator, manual for freezer • Hinge position: Left • Hinge type: Standard • EAN code:

8017709299019

AESTHETICS

Colour: Red • Finishing: Gloss • Aesthetics: 50's Style • Design: Rounded • Material: Heat-moulded • Handle type: Fixed •

Handle: External • Handle colour: Chrome • Side material: Steel • Side colour: Red • Door shelves profile colour: Chrome •

Drawers profile colour: Chrome • Colour of glass shelf profile: Chrome

REFRIGERATOR COMPARTMENT FEATURES

No. of adjustable shelves: 2 • Number of fruit and vegetables drawers: 1 • Type of crisper/vegetable drawers cover: On sliding

rails • Type of adjustable shelves: Glass • Crisper Cover: Yes • Type of crisper/vegetable drawers cover: Glass • Life Plus zone-0°

C: Yes • Internal light in fridge: Yes • Type of internal light (fridge): LED

INSTALLATION

When positioning these appliances adjacent to a wall
or kitchen unit a gap of 175mm must be left on the
hinged side of the product to allow the door to open.

REFRIGERATOR INNER DOOR

No. of door shelves with transparent cover: 1 • Number of adjustable door shelves: 1 • Adjustable door shelves with wire

support: Yes • No. of bottle shelves: 1 • Bottle shelves with wire support: Yes

OTHER REFRIGERATOR FEATURES

MultiFlow: Yes • Fan: Yes

OTHER TECHNICAL FEATURES

Door open alarm: Acoustic and visual • Antibacterial Gasket: Yes • Type of temperature control: Electronic • No. of compressors:

1 • Type of compressor: Variable Speed Compressor

PERFORMANCE / ENERGY LABEL NEW

Annual energy consumption: 130 KWh/year • Energy efficiency class: D • Total volume: 270 l • Sum of the volumes of the frozen

compartment(s): 26 l • Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 244 l • Airborne

acoustical noise emission class: B • Thaw time: 9 h • 4 star - Freezing capacity: 2.6 Kg/24h • Climatic class: SN, N, ST, T • EEI: 79

%

ELECTRICAL CONNECTION

Nominal power: 90 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Power supply cable length: 180 cm

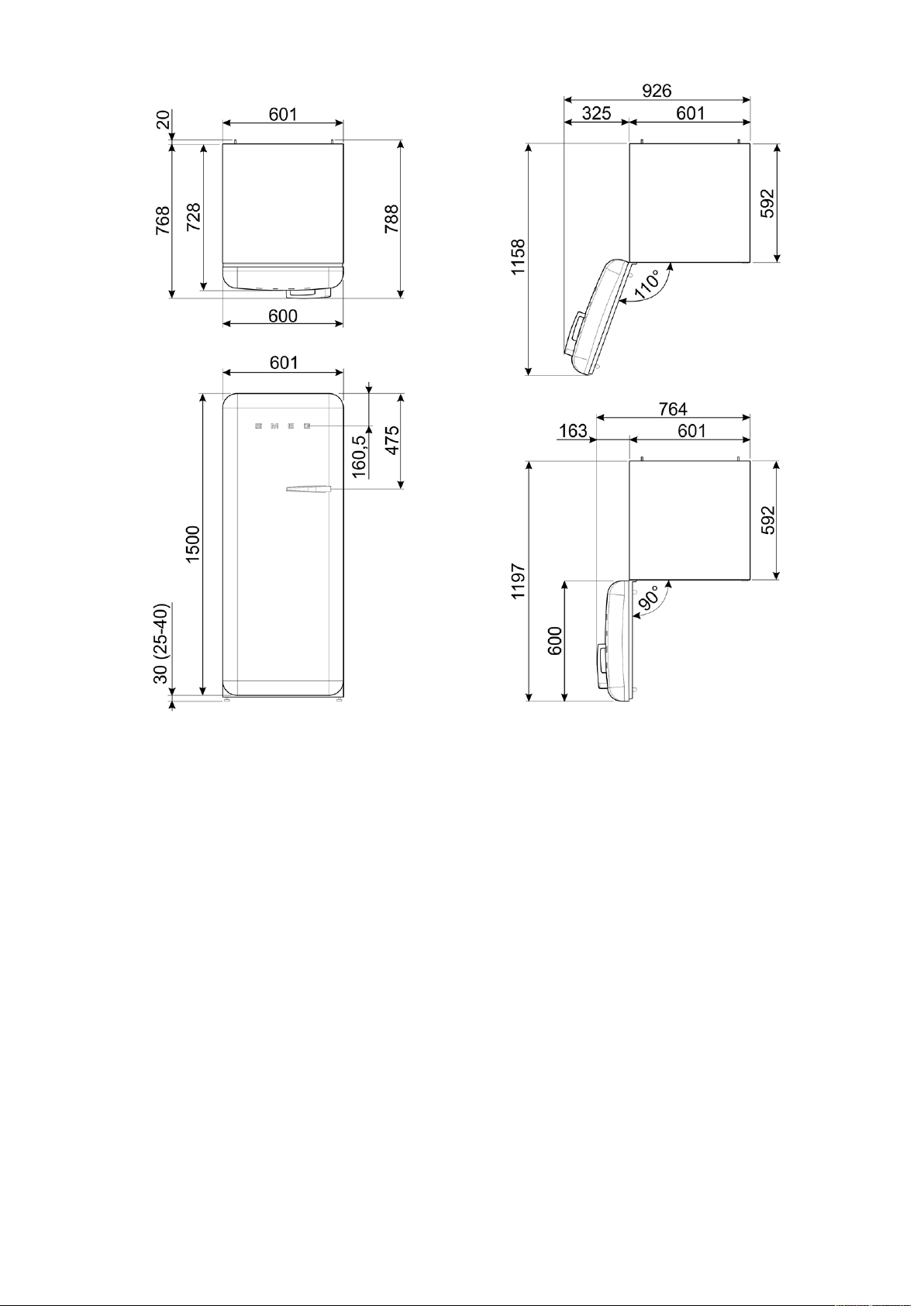

LOGISTIC INFORMATION

Dimensions: 1530x601x728 mm • Width (mm): 601 mm • Product width with maximum doors opening: 926 mm • Product

Height with feet: 1530 mm • Depth without handle: 728 mm • Product depth with handle: 732 mm • Product depth with doors

open at 90°: 1148 mm • Net weight (kg): 73.500 kg
