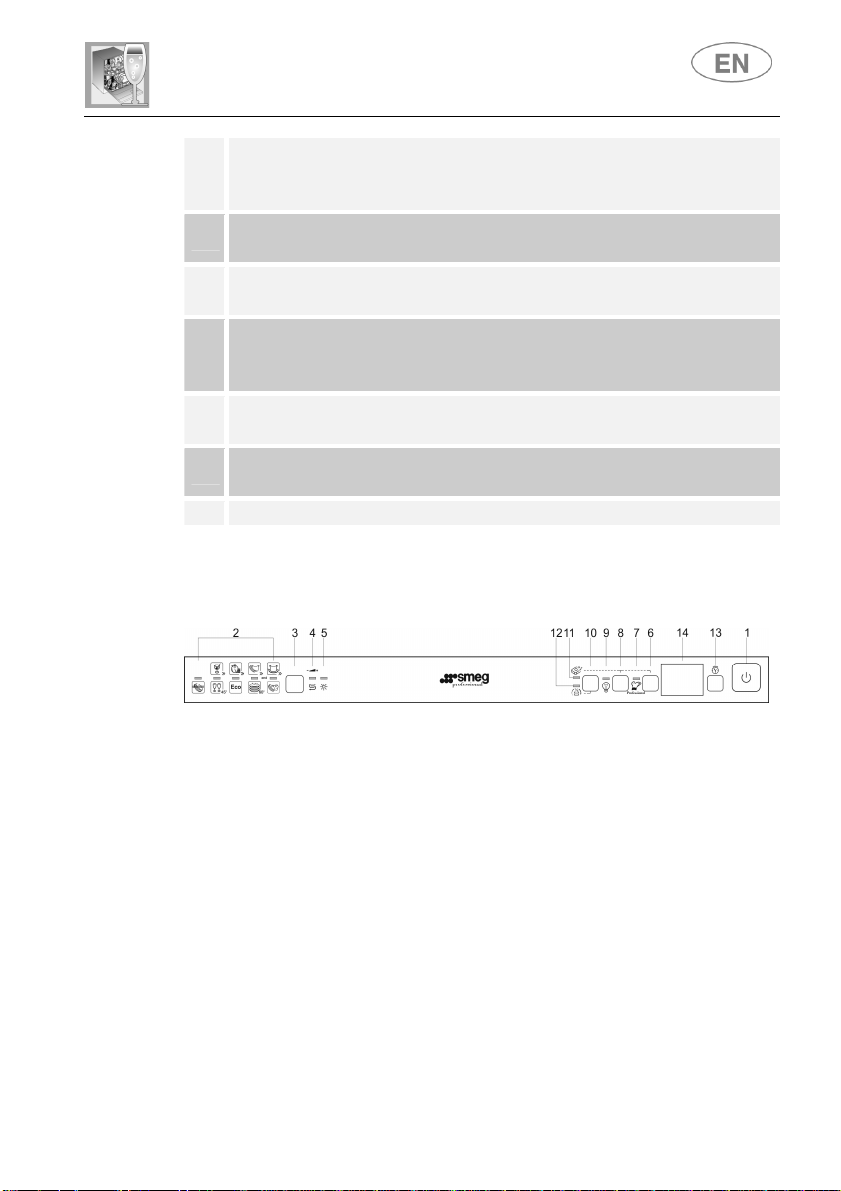

1. Description of the controls
1.1 Upper panel
User instructions
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the
door is open.
ON/OFF BUTTON
1
Pressing this button energises the appliance.
SELECTED PROGRAM INDICATOR LIGHTS
2
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
PROGRAM SELECTION BUTTON
3
By pressing this button in sequence it is possible to select the
desired program.
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
4
SALT WARNIN LIGHT (on some models only)
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
RINSE AID WARNING LIGHT (on some models only)
5
Illumination of this light signals that rinse aid dispenser is empty.
PROFESSIONAL OPTION + EXTRA OPTION (see “EXTRA
OPTIONS” section
6
The button controls selection of the professional programs. (See
)
table).
PROFESSIONAL OPTION LIGHT Illuminates to indicate one of the
7
professional programs (see table) is going to be executed.
2
User instructions
SETTING THE WASHING PROGRAM AND SWITCHING ON
ENERSAVE OPTION + EXTRA OPTION BUTTON
8
(see “EXTRA OPTIONS” section)
Press the button to enable/disable the option.
ENERSAVE OPTION LIGHT
9
Illuminates to indicate that the function is activated.
HALF LOAD BUTTON
10
Press this button to activate the half load wash option.
HALF LOAD LIGHT
11
One of the two buttons illuminates to indicate that the half load
wash option in the top or bottom basket has been selected.
PROGRAM DELAY BUTTON
12
Press this button to delay the start of the program.
“Flexi Tabs” OPTION LIGHT (EXTRA OPTION)
13
Illuminates to indicate that the function is activated.
14 INFORMATION DISPLAY
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
After identifying the most suitable program with the aid of the programs
table:
• Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
• Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
• select the option required (if any and if the model provides options);
• close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).
3
User instructions
PROGRAMS TABLE
2
AS/NZS 2007
ENERSAVE
CUTLERY
Cold prewash
Cold prewash
Wash at 45°C
Rinse at 45°C
PROGRAM PROGRESS
PROGRAMME,
NUMBER &
SYMBOL
1
SOAK
NORMAL
ECO (*)
LOAD CROCKERY AND
Pans and dishes awaiting
completion of the load.
Glass, china and mixed
dishes with light dirt.
Dry
Wash at 50°C
Cold rinse
Rinse at 70°C
Dry
When the "
dishwasher recognises the type of dirt and
AUTO
" program is selected, the
automatically adjusts the washing
parameters as appropriate.
Hot prewash
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
3
4
60-70
5
ULTRA
CLEAN
ECO
AUTO
Dishes with normal dirt,
even with dried-on
residues.
Pans and dishes with
normal dirt, even with
dried-on residues.
Very dirty pans and
dishes, even with dried-on
residues.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
(*) Reference program as per
. The
be disabled. Single-phase power supply, power setting P1.
2
NORMAL
ECO (*)
Duration for power
2.0 kW
Water
Litres
139’ 11,7 0,646
4
CONSUMPTION
DETERGENT
COM
PART
MEN
G/H
T
--- 20g
5g 20g
10g 25g
10g 25g
10g 25g
option must
Electricity (KWh)
COM
PART
MEN
K
T
User instructions
6
7
8
9

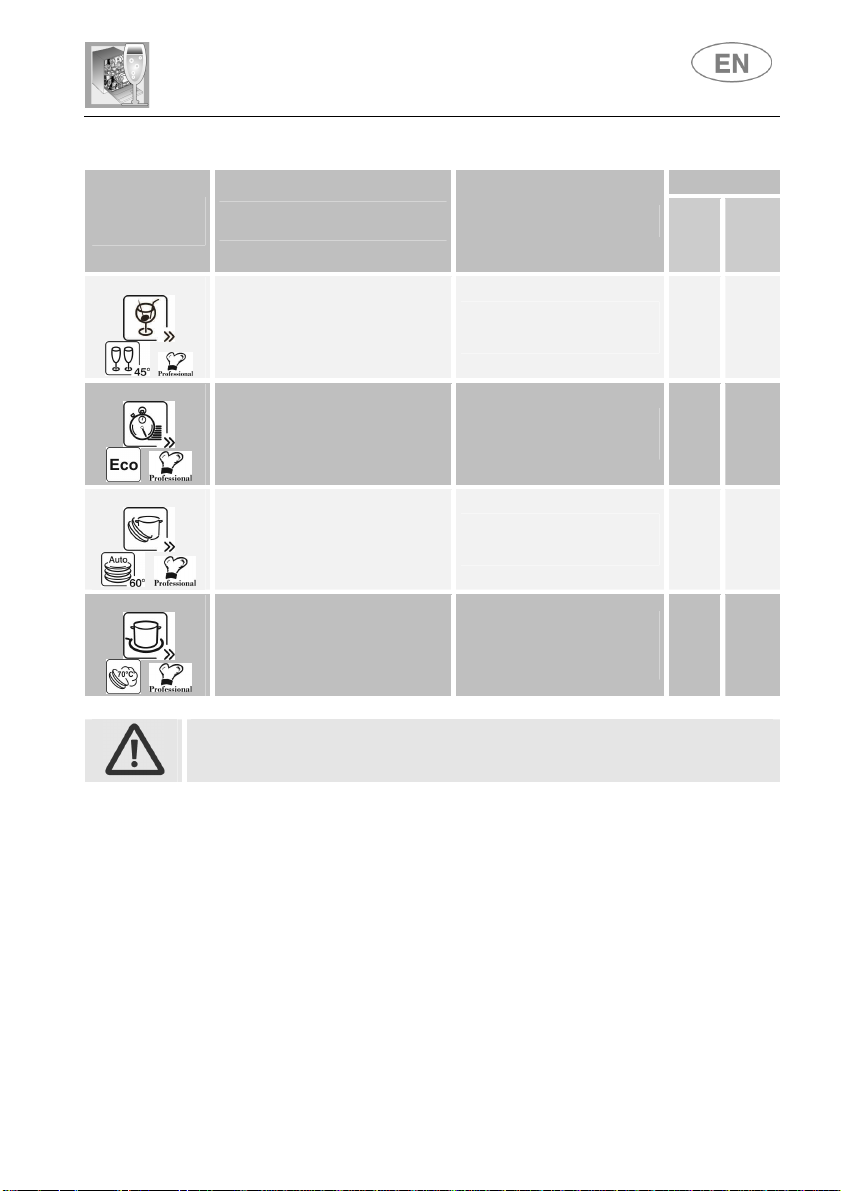

PROFESSIONAL PROGRAMS
PROGRAMME
NUMBER E
SYMBOL
PRO GLASSES
LOAD CROCKERY AND
Special program for washing
+
ULTRA RAPID
Very dirty pans and dishes, even
with dried-on residues, for fast
+
UNIVERSAL
Dishes with normal dirt, with some
fairly moist residues.
+
INTENSIVE
Very dirty pans and dishes, even
+
with dried-on residues, for fast
(see “professional programs option”)
CUTLERY
PROGRAM
PROGRESS
Wash at 50°C
glasses.
Cold rinse
Rinse at 70°C
Wash at 65°C
Cold rinse
washing.
Rinse at 65°C
Wash at 65°C
Cold rinse
Rinse at 70°C
Hot prewash
Wash at 72°C
washing.
2 cold rinses
Rinse at 70°C
DETERGENT
COM
COM
PART
MEN
G/H
PART
T
MEN
T
G/H
--- 30g
--- 30g
--- 30g
10g 25g
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
Only run the soak program with half loads. Options cannot be used with the soak program.
The HALF LOAD option cannot be used with the soak program or the professional
programs.
The ENERSAVE option (if featured) cannot be used with soak, ultra clean, or any
programs which do not include the final drying stage.
The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.
5
DURATION AND CONSUMPTION
6
7
8
9
P3
.
PROGRAMME
NUMBER E
SYMBOL
1
SOAK
2
NORMAL
ECO
3
ECO
4
AUTO 60
5
ULTRA CLEAN
PRO GLASSES
Duration for power
Hot H2O
60°C
User instructions
5.45 kW – P3
Cold H2O
15°C
Duration for power
Hot H2O
60°C
3.5 kW – P2
Cold H2O
15°C
CONSUMPTION
Water
Litres Hot H2O
(2) Electricity
(KWh)
Cold
H2O
15’ 15’
120’ 128’
114’ 119’
78’ 82’
115’ 120’
15’ 15’ 4,0 0,02 0,02
124’ 134’ 11,7 0,48 0,72
116’ 124’ 10,5 0,72 1,17
82’ 88’ 10,5 0,87 1,31
119’ 128’ 17,3 0,93 1,69
19’ 24’
+
ULTRA RAPID
16’ 20’
+
UNIVERSAL
23’ 27’
+
INTENSIVE
+
Values are with the appliance power set on
(2)
41’ 45’
6
24’ 31’ 12 0,59 1,22
19’ 25’ 12 0,68 1,46
27’ 33’ 12 0,82 1,53
45’ 52’ 15,7 0,77 1,59
User instructions

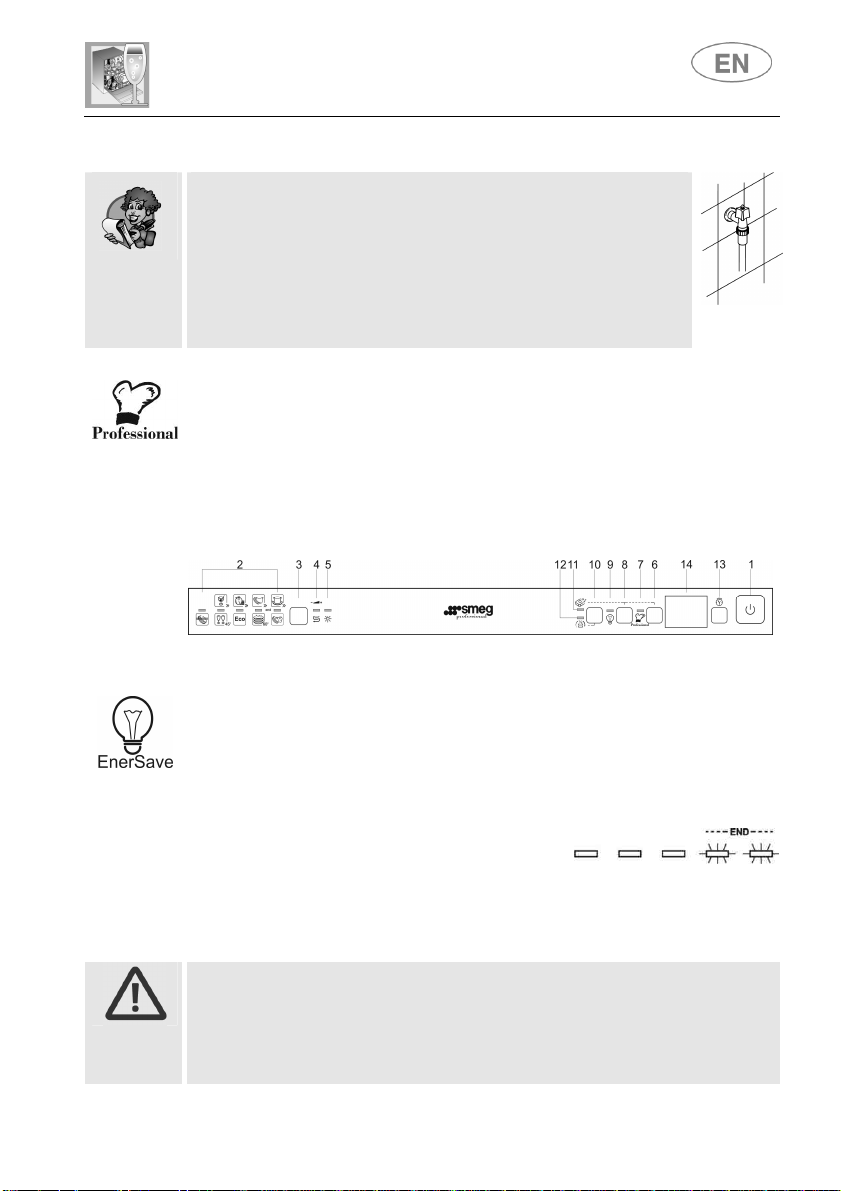

PROFESSIONAL PROGRAMS OPTION
ENERSAVE
OPTION
automatically every time
1.2 Washing programs
Before starting a washing program make sure that:
• The water supply tap is open.
• The correct amount of detergent has been added to the
dispenser.
• The baskets have been correctly loaded.
• The spray arms are able to rotate freely and without
obstruction.
• The dishwasher door is securely closed.
Enables operation in Professional mode, giving access to 4 extra
programs, with the times and performances usually associated with
professional dishwashers.
To activate the option, first select the “basic” program corresponding to the
professional cycle required.
N.B.: the highest power and shortest times will be obtained with
dishwashers connected to the highest power supply and hot water (see
electrical and water supply hook-up instructions).
This option can be selected with the wash programme of choice to
further reduce energy consumption. Drying is aided by a special device
that automatically releases the door, which opens slowly and smoothly
by a few centimetres. This ensures perfect drying and greater control of
rinsing temperatures, which can be kept at lower levels for significant
energy saving.
Once the door has opened, the dishwasher
emits a short beep and programme lights
nos. 4 and 5 (marked “end”) flash to indicate
the end of the washing cycle.
Enersave is activated
a wash cycle is
selected (except for programs that do not include the final drying phase;
see programs table) and can be disabled before the program is started.
When the function is activated, opening of the door must not be
impeded in any way; do not leave anything in the space in front of the
door necessary to allow it to open.
Do not re-close the door during automatic opening as this would
damage the mechanism.
7

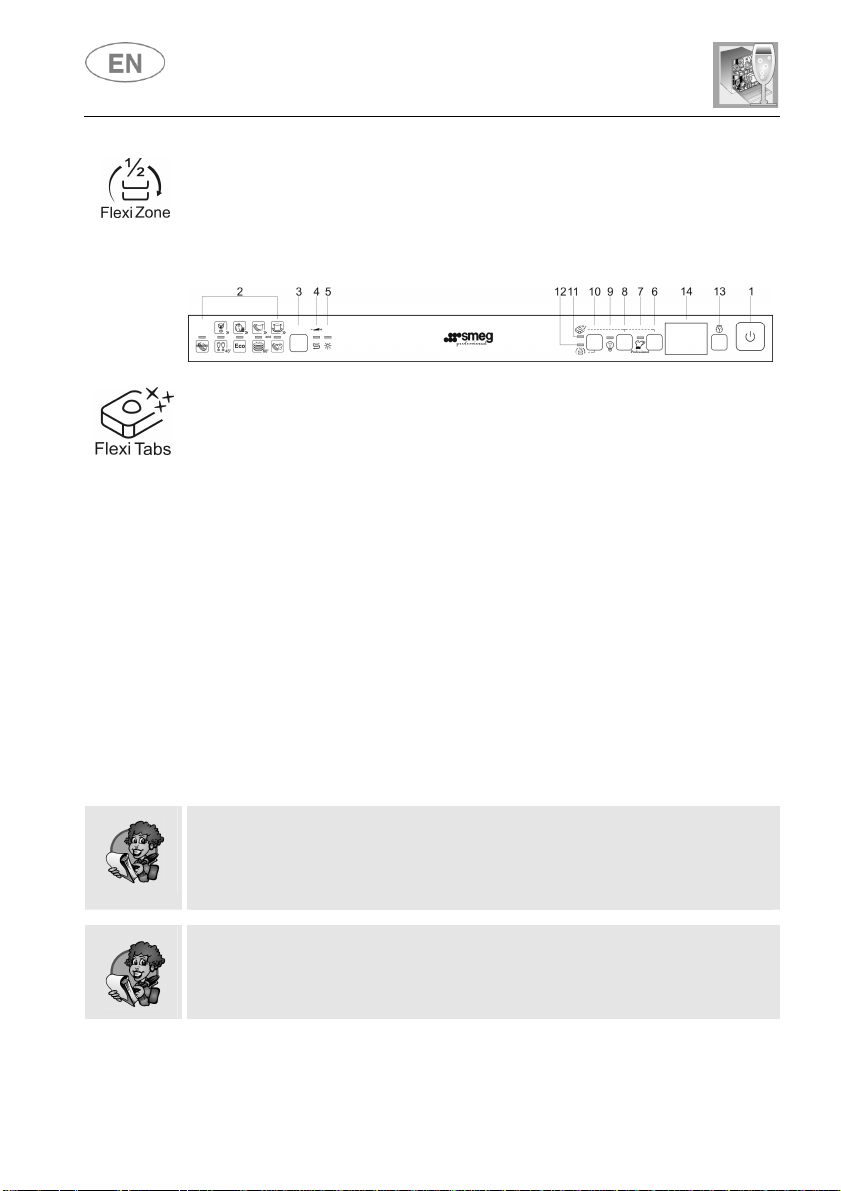

SPREAD HALF LOAD
OPTION
EXTRA OPTIONS
- “Flexi Tabs
” BUTTON
User instructions
Suitable when there are not many dishes to be washed, it saves energy
and reduces the program duration. Place dishes in both baskets then
load the detergent dispenser than less than the normal amount for a full
load.
Press buttons 6 + 8 (QUICK TIME option button + ENERSAVE option
button) simultaneously to activate the "Flexi Tabs" option; the
respective light comes on to confirm the selection.
Ideal for multi-function detergents, this option allows washing to be
optimised, with full benefits from the combined-action tablets. When this
option is activated, any salt and rinse aid in the relative containers will
not be used.
If the option is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles, combined products might create problems
such as a white deposit, poor drying results and residues left on dishes.
N.B.:
When the salt and rinse aid containers are empty, the relative lights will
remain on even if the “Flexi Tabs” option is selected.
IMPORTANT: the option continues to be active until it is deactivated by
pressing buttons 6 + 8 simultaneously; the light will then go out.
If the water hardness has been set on a value above H3, and the “Flexi
Tabs” option is activated, the relative light flashes, warning of a setting
error. Integrated products are not suitable for use with very "hard" water;
this does not prevent the use of the option, but the washing results
might not be of the best.
Do not use tablet detergents with the professional programs. Since these
programs are so short, the detergent tablet could fail to dissolve
completely.
8
User instructions
DELAYED START
OPTION
Multifunction detergents
As well as conventional detergents (which only wash), there are also a
large number of products with additional functions, which contain not
only detergents but also rinse aid and salt substitutes (3in1 detergents),
glassware protector, stainless steel polish, etc. (4in1, 5in1, etc.
products). Multifunction detergents are only effective up a certain level of
water hardness (usually 21°dH), above which salt an d rinse aid must be
added. If the dishwasher features the specific option (read the
description of the controls) it should be activated when products of this
kind are used.
Attention:
- Excellent washing and drying results are achieved with plain detergents
with salt and rinse aid added separately.
- With short programs, because there is less time for them to dissolve,
tablets may fail to wash effectively and undissolved residues may be left.
Powder detergents are more suitable for these programs.
The start of the washing program can be delayed to program the
dishwasher to operate at the preferred time of day (e.g. overnight). Press
the PROGRAM DELAY button to activate the option and display a 1 hour
delay. Keep pressing to select the delay required, which may be up to 9,
12 or 24 hours depending on the model.
When the door is closed, the appliance will prewash the dishes, after
which the "program delay" set will come into effect.
CANCELLING THE CURRENT PROGRAM
• To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4 and 5 illuminate
simultaneously (the word "end" is displayed on the window).
• Close the door.
• After approximately 1 minute the dishwasher will advance to the end
of cycle.
9
CHANGING THE PROGRAM
User instructions
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
• Always try to run the dishwasher fully loaded.
• Do not wash the dishes in running water.
• Use the washing program that is most appropriate for each type of
load.
• Do not carry out any preliminary rinsing.
• If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
• separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
• do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.
10
Loading...
