Smeg DWA6214W2 Technical sheet

DWA6214W2

Dishwashers, Universale, Free-standing, 60 cm, Number of place settings: 14 AU, White

TYPE

Product Family: Dishwashers • Commercial height: 85 cm • Number of place settings: 14 AU • Installation: Free-standing •

Commercial width: 60 cm • EAN code: 8017709278823

AESTHETICS

Color: White • Aesthetics: Universale • Front panel colour: White • Door type: Without frame • Door colour: White • Sides colour:

White • Top colour: White • Plinth colour: White • LED/display colour: White • Handle colour: White • Buttons colour: White

PROGRAMS / FUNCTIONS

N. of programmes: 5 • Soak: Yes • ECO: Yes • Ultraclean: Yes • Intensive 65°: Yes • Normal ECO: Yes • Washing temperatures:

45, 55, 65, 70 °C

OPTIONS

Delay timer option: 3-6-9 hours • Options for tabs FlexiTabs: Yes

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Handle: In plastic on upper and lower basket • Upper

Basket: With central fixed racks • Height adjustment of the upper basket: On three levels • Lower Basket: With 2 foldable racks

• Largest loadable dish in upper basket: 25,0 cm • Lower basket with anti-drip inserts: Yes • Largest loadable dish in lower

basket: 30,0 cm • Cutlery basket: 13 place settings sliding • Colour Inner Components: Grey handles, Grey pastic plate for

regulation second basket on three levels, Green Orbital

TECHNICAL FEATURES

Controls: Electronic • On/off indicator: Yes • Rinse aid indicator: Light • End of cycle indicator: Led on display, with acoustic

signal • Washing system: Orbital • Drying system: Natural condenser drying • Motor: Single phase • Third spray arm: Single •

Flood protection system: Total Acquastop • Water supply: Single; cold/hot water max. 60°C - energysave with hot water up to

35% • Max water hardness: 100°fH;58°dH • Tub material: Stainless steel • Filter: Stainless steel • Concealed heating element:

Yes • Hinges: Self balancing with fixed hinges • Adjustable feet: Just for levelling

PERFORMANCE / ENERGY LABEL

Noise level: 49 dB(A) re 1pW • Water consumption per cycle (l/cycle): 11.3 l • Annual energy consumption: 267 kWh/a •

Reference programme: Normal ECO • Total cycle time of reference programme (min): 147 min • Duration of the stand by on

mode (min): 5 min • Energy Label ex EU: Energy rating: 3,5 stars - Water rating: 5 stars

ELECTRICAL CONNECTION

Connected power: 1800 W • Voltage: 220-240 V • Type of connection: Single-phase • Frequency (Hz): 50 Hz • Power supply

cable length: 140 cm

ALSO AVAILABLE

LOGISTIC INFORMATION

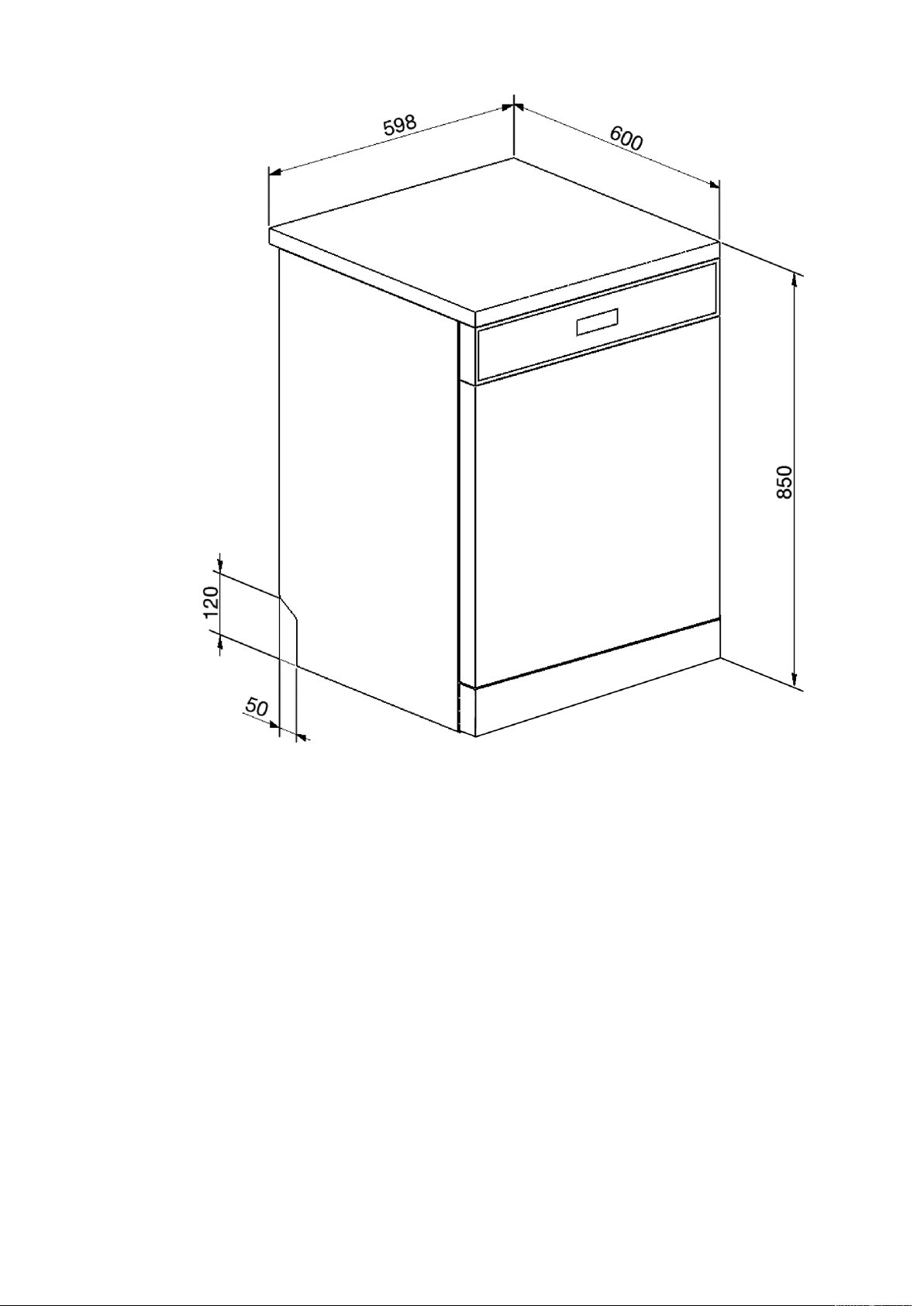

Dimensions of the product HxWxD (mm): 848x598x600

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019
