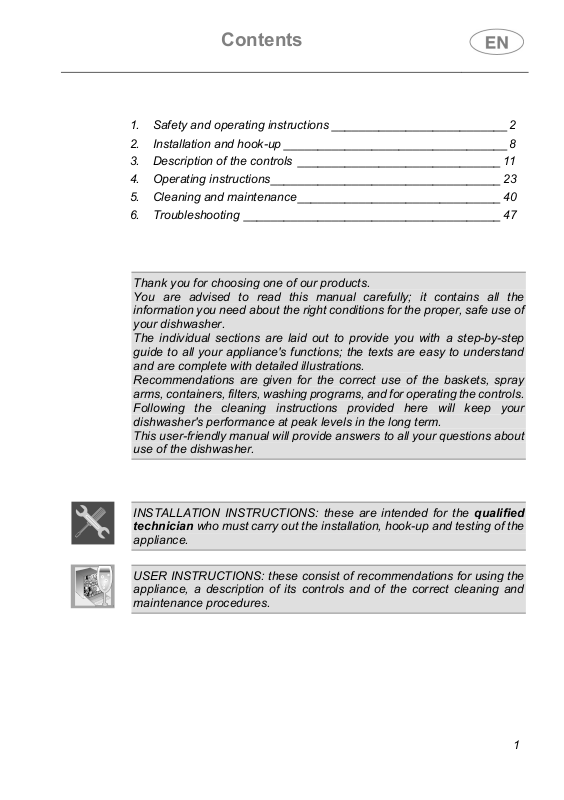

Contents
1. Safety and operating instructions __________________________ 2
2. Installation and hook-up _________________________________ 8
3. Description of the controls ______________________________ 11
4. Operating instructions __________________________________ 23
5. Cleaning and maintenance ______________________________ 40
6. Troubleshooting ______________________________________ 47
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
1
MANUAL ALWAYS ACCOMPANIES THE APPLIANCE.
RESIDENTIAL FACILITIES
.
PLACES (FOR EXAMPLE ON SHIPS, MOTOR CARAVANS, CARAV
ANS…….).
DESCRIBED ABOVE.
COMPLIANCE WITH THE REGULATIONS IN FORCE.
COLLECTION CENTRE.
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE
REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE
INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT
INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE
APPLIANCE. IN THE EVENT OF SALE OR TRANSFER, ENSURE THAT THE
THIS APPLIANCE IS INTENDED FOR INDOOR USE IN A HOUSEHOLD
THIS APPLIANCE MUST NOT BE INSTALLED AND USED IN NON-STATIONARY
THIS APPLIANCE COMPLIES WITH DIRECTIVES 2014/35/UC AND EMC
ENVIRONMENT AND SIMILAR SUCH AS STAFF KITCHENS OF SHOPS,
OFFICES AND OTHER WORKPLACES, INSTITUTIONS, AND FOR THE USE BY
GUESTS AT HOTELS, HOSTELS, BED AND BREAKFAST AND OTHER
2014/30/UE CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE AND IS DESIGNED
FOR THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY
OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER
DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT!
IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. DO NOT ALLOW CHILDREN TO PLAY WITH PACKAGING
MATERIALS. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE
PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND
MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.
THE NAME PLATE MUST NEVER BE REMOVED.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
2
Safety instructions
FROM THE NETWORK..
DO NOT INSTALL THE APPLIANCE IN A PL
ACE SUBJECT TO FREEZING.
THEY MAY CAUSE DAMAGE.
OR BELOW IT.
FORBIDDEN.
AND
THE
CABINET
, MUST BE ADEQUA
TELY FIXED.
AN ACCESSORY FROM SPECIALIST DEALERS OR THE AFTER
-
SALES.
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE.
THE POSSIBILITY OF OVERHEATING OR BURNING.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER CORD.
POSITION ON THE SUPPLY LINE.
DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.
DO NOT INSTALL THE APPLIANCE NEAR EQUIPMENT WITH HIGH
IF THE APPLIANCE IS INSTALLED IN A COMPARTMENT ABOVE OR BELOW
BUILDING-IN THE APPLIANCE UNDERNEATH A HOB IS ABSOLUTELY
TO ENSURE STABILITY, INSTALL THE APPLIANCE ONLY UNDER
IF THE APPLIANCE IS NOT BUILT-IN AND IS THEREFORE ACCESSIBLE ON
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE PLUG OF THE APPLIANCE MUST BE ACCESSIBLE AFTER
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD, A
IRRADIATION TEMPERATURES (EG. GAS BURNERS, FIREPLACES, ETC.) AS
ANOTHER EQUIPMENT (EG. GAS BURNERS, OVENS, ETC.), READ
CAREFULLY THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OF
THE EQUIPMENT. IF THE INSTRUCTIONS OF THE EQUIPMENT DO NOT
CONTAIN INFORMATION, CONTACT THE MANUFACTURER OF THE
EQUIPMENT TO ENSURE THAT THE APPLIANCE CAN BE INSTALLED ABOVE
FORBIDDEN.
INSTALL A HOB ON TOP OF A FREE-STANDING APPLIANCE IS ABSOLUTELY
CONTINUOUS WORKTOP, SECURELY FIXED TO ADJACENT CABINETS. IF
THE APPLIANCE IS INSTALLED IN A HIGH CABINET BOTH, THE APPLIANCE
ONE SIDE, THE DOOR HINGE AREA MUST BE COVERED FOR SAFETY
REASON (INJURY HAZARD). THE COVERING FIXTURES ARE AVAILABLE AS
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATION IN
FORCE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
INSTALLATION.
CIRCUIT BREAKER PROVIDING A FULL DISCONNECTION IN OVERVOLTAGE
PROTECTION CLASS III MUST BE INSTALLED IN AN EASILY ACCESSIBLE
3
HOSES; OLD HOSES MUS
T NEVER BE REUSED.
TO REPAIR THE APPLIANCE.
PERSON RESPONSIBLE FOR THEIR SAFETY.
DO NOT ALLOW
CHILDREN TO PLAY WITH THE APPLIANCE.
PACKAGING OF THESE PRODUCTS.
AFTER COMPLETION OF THE WASH CYCLE.
DO NOT LOAD DISHES
THAT ARE SOILED WITH ASH, WAX OR PAINT.
CAUSE THE APPLIAN
CE TO OVERTURN.
NOT PROJECT FROM THE BASKET.
Safety instructions
THE APPLIANCE MUST BE CONNECTED TO THE WATER SUPPLY BY NEW
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE. IF THE DISHWASHER FAILS TO OPERATE
CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY
AND CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT
THIS DISHWASHER MUST BE USED BY ADULTS. USE OF THE APPLIANCE
BY CHILDREN AGED FROM EIGHT YEARS AND PERSONS WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE
AND KNOWLEDGE IS ONLY PERMITTED UNDER THE SUPERVISION OF A
SOME DETERGENTS ARE STRONGLY ALKALINE. AVOID CONTACT WITH
THE SKIN AND EYES. DETERGENTS CAN BE EXTREMELY DANGEROUS IF
SWALLOWED. THEY CONTAIN SUBSTANCES CAPABLE OF CAUSING
PERMANENT DAMAGE TO THE MOUTH AND THROAT, AND EVEN LEADING
TO SUFFOCATION. OBSERVE ALL THE SAFETY INSTRUCTIONS ON THE
KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS
OPEN. ALWAYS CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR APPLIANCE AT THE END OF THE WASHING PROGRAM.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE IN
THE APPLIANCE, AS THIS MAY CAUSE AN EXPLOSION.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER
IT.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
KNIVES OR OTHER SHARP-ENDED COOKING TOOLS MUST BE PLACED IN
THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP
BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT THEY DO
4
Safety instructions
WAR
RANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
THE MANUFACT
URER OR AN AUTHORIZED TECHNICAL SERVICE CENTRE.
WIRING
RESPONSIBLE FOR THEIR SAFETY.
DO NOT USE STEAM CLEANERS TO
CLEAN THE DISHWASHER.
MAINS POWER SUPPLY
.
PHOTOBIOLOGICAL RISK IN NORMAL CONDITIONS OF USE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY TRAINED AND AUTHORISED TECHNICIANS: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED BY
SOME COMPONENTS ARE LIVE EVEN WITH THE ON/OFF BUTTON IN THE
OFF POSITION. BEFORE MAINTENANCE WORK ON THE APPLIANCE,
DISCONNECT THE PLUG OR TURN OFF THE MAINS SWITCH IN THE FIXED
CLEANING AND REGULAR MAINTENANCE OF THE APPLIANCE BY
CHILDREN IS ONLY PERMITTED UNDER THE SUPERVISION OF A PERSON
MODELS WITH “AQUASTOP” DEVICE
THE “AQUASTOP” DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE “AQUASTOP” DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
INSIDE THE “AQUASTOP” WATER INTAKE HOSE, THERE ARE ELECTRICAL
PARTS. DO NOT CUT THE HOSE AND DO NOT ALLOW THE “AQUASTOP”
DEVICE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE
“AQUASTOP” WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM
THE ELECTRICAL SUPPLY AND FROM THE WATER SUPPLY.
WARNING:
THE DEVICE ONLY WORKS IF THE DISHWASHER IS CONNECTED TO THE
MODELS WITH INTERNAL LIGHTING
THE LIGHTING SYSTEM OF THE APPLIANCE BELONGS TO RISK GROUP 1
UNDER THE IEC/EN 62471 STANDARD. THIS MEANS THAT THERE IS NO
5
MATERIALS WHICH COMPOSED THE DEVICE.
Safety instructions
IN ACCORDANCE TO ART. 26 OF THE LEGISLATIVE DECREE 14 MARCH
2014, NR. 49 “IMPLEMENTATION OF THE DIRECTIVE 2012/19/EU ON WASTE
OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)”.
THE SYMBOL OF A CROSSED OUT WHEELIE BIN ON THE DEVICE OR
PACKAGE SHOWS THAT THE PRODUCT MUST BE COLLECTED SEPARATE
FROM OTHER WASTE, AT THE END OF ITS SERVICE LIFE. THEREFORE, THE
USER HAS TO TAKE ANY EQUIPMENT THAT HAS REACHED THE END OF ITS
SERVICE LIFE TO LOCAL WASTE DISPOSAL CENTRES FOR ELECTRICAL
AND ELECTRONIC EQUIPMENT WASTE.
AS AN ALTERNATIVE TO THE IDEPENDENT MANAGEMENT, IT IS POSSIBLE
TO DELIVER THE EQUIPMENT WHICH HAS TO BE DISPOSED OF TO THE
DEALER, AT THE MOMENT OF PURCHASING A NEW EQUIVALENT DEVICE
AT THE ELECTRONIC EQUIPMENT DEALERS WITH A SALES AREA OF AT
LEAST OF 400 M2. ALSO, FOR DISUSED DEVICES WITH DIMENSIONS
INFERIOR TO 25 CM, FREE DELIVERY TO THE DEALERS IS POSSIBLE, WITH
NO PURCHASE OBLIGATION
A PROPER SEPARATE WASTE COLLECTION AND THE CONSEQUENT
HEADING OF THE DISUSED DEVICE TOWARDS ITS RECYCLING, TREATMENT
AND ENVIRONMENTALLY COMPATIBLE DISPOSAL, CONTRIBUTES IN
PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND
HEALTH; ALSO, IT SUPPORTS THE REUSE AND/OR RECYCLE OF THE
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, CABLES, HOSES, ETC.).
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original spare
parts.
6
TECHNICAL DATA
from 8
50 mm to 8
88 mm Capacity
13
Standard place settings
User instructions
Width
Depth measured flush with the
outer edge of the control panel
Height (depending on models)
597 599 mm
Fully integrated: 550 mm
Free standing: 584 mm
from 818 mm to 888 mm
Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
Electrical characteristics See rating plate
7
dealers or the After
-
Sales Ser
vice.
User instructions
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other furniture
units. If the dishwasher is installed near a heat source, fit the special
insulating panel to prevent overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under
continuous worktops, and screw them to the adjacent units. To facilitate
the installation procedure, the intake and drain hoses can be positioned in
any direction; make sure that the hoses are not kinked, crushed or pulled
too tightly. Make sure to tighten the locking ring-nut once the pipes have
been placed in the direction required. A hole at least 8 cm in diameter is
required to allow the power supply cable and pipes to pass. Before putting
the dishwasher into its definitive position, turn on the water tap and check
that there are no leaks from the tap connection, the dishwasher
connection or the hose.
Level the appliance on the floor using its adjustable feet. This operation is
essential for ensuring correct operation of the dishwasher.
Some models are equipped with only one adjustable foot at the rear, which
can be adjusted by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden.
Moreover, dishwashers may not be installed directly touching appliances
which are not conventional built-in kitchen appliances (e.g. fireplaces,
stoves, etc.).
When installing the dishwasher in a compartment next to one or more other
appliances, it is essential to comply with all the recommendations provided
by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
For free-standing models only:
- Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
- If the appliance is not built-in and is therefore accessible on one side, the
door hinge area must be covered for safety
reasons (injury hazard). The covering fixtures are available as an accessory
from specialist dealers or the After-Sales
Service.
- To build in the dishwasher, the special kit must be purchased from authorised
8
Connect the intake hose to a cold water supply with ¾” gas
Take care to screw the hose firmly into place with your
hands and then complete by tightening about ¼ of a
dishwashers equipped with the ACQUASTOP device,
85 cm
User instructions
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system with
new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
thread, inserting the filter A supplied with the dishwasher.
turn with pliers.
In
the filters is already fitted inside the threaded ring.
The dishwasher can also be connected to a hot water supply not exceeding
60°C. Supplying the appliance with hot water cuts down the washing time
by approximately 20 minutes, but slightly reduces its effectiveness. Make
the connection to the domestic hot water supply using the same procedure
described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100 cm,
and should never be submerged in water. If a horizontal drain extension
hose is used (for a maximum of 3 m) the drain hose can be placed at a
maximum height of
from the ground.
9
LEAD.
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
User instructions
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
"45 CM" MODELS ONLY (9-10 PLACE SETTING)
AFTER CHANGING THE SUPPLY CORD, MAKE SURE THAT THE BRACKET
WHICH SECURES THE CORD IS FIXED SECURELY IN PLACE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
Some components are live even with the ON/OFF button in the OFF position.
Before maintenance work on the appliance, remove the plug or turn off the
power supply at the wall switch.
AN OMNIPOLAR CIRCUIT BREAKER IN OVERVOLTAGE PROTECTION CLASS
III MUST BE INSTALLED IN AN EASILY ACCESSIBLE POSITION ON THE
POWER SUPPLY LINE.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A QUALIFIED
TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN BELOW AND THE
REGULATIONS IN FORCE.
L = brown
N = blue
= yellow-green
10
User instructions
3. Description of the controls
3.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off, etc. procedures are only possible when the door is
open.
The panel shown is only a guideline example: the form of the lights and
buttons may vary depending on the model.
ON/OFF BUTTON
1
Press this button to switch the dishwasher on/off.
SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
2
occurrence of a fault (troubleshooting).
PROGRAM SELECTION BUTTON
3
Press this button to select the required washing program.
WATER HARDNESS ADJUSTMENT INDICATOR LIGHT
A flashing light indicates that the machine is in the “water hardness
adjustment” mode.
4
SALT INDICATOR LIGHT (only if there is a symbol below the light)
When lit, it indicates that salt container is empty.
RINSE AID DISPENSER MODE INDICATOR LIGHT
A flashing light indicates that the machine is in “dispense rinse aid”
mode.
5
RINSE AID INDICATOR LIGHT
(only if there is a symbol below the light)
When lit, it indicates that the rinse aid dispenser is empty.
11
E
Err
User instructions
6
Press this button to delay the start of the program.
INFORMATION DISPLAY (1 or 3 digits depending on model)
7
OPTIONS (on some models only)
8
CHILD SAFETY DEVICE (on some models only)
9
PROGRAM DELAY BUTTON
Information displayed
no Scheduled program
yes
duration
no Remaining program
yes
time
1 - 9 hours Delayed start 1 - 24 hours
Error message
12
User instructions
<<OPTIONS (8)>>
Depending on the model, this zone may contain one or more of the
following options, identified by the relative symbols and described in more
detail in the relevant sections of the manual.
It is not possible to select any options when the soak program is being
used. All options except "Flexi Tabs" are disabled at the end of the wash
cycle. To disable the “Flexi tabs” option, press the relative button (the
light goes out).
Flexi Tabs
Option recommended for the use of multi-function tablet
detergent.
HYCLEAN
Adds a final antibacterial rinse to the selected program.
Spread HALF LOAD WASH
Allows washing of just a few dishes placed in both baskets.
PROGRAM DELAY
Allows the program to be set to start with a delay of 9, 12 or 24
hours depending on the model.
QUICK TIME OPTION
Select this option together with any washing program (except
the soak program) to SHORTEN the cycle.
ENERSAVE
Indicated option for save energy.
13
User instructions
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
select the option required (if any and if the model provides options);
close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).
PROGRAM IN PROGRESS INDICATOR LIGHT
(on some models only)
When a program is running, a flashing light is projected onto the floor
under the right-hand corner of the door. At the end of the program, the
light goes out to reduce sleep mode electricity consumption.
14
User instructions
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
1 RAPID 27’
2 GLASS
3 ECO (*)
EN 50242
4 MIX 65°
IEC/DIN***
5 SUPER
****
LOAD CROCKERY AND
CUTLERY
Dishes with light dirt,
washed immediately after
Glass, china and mixed
dishes with light dirt.
Dishes with normal dirt,
even with dried-on
Dishes with normal dirt,
even with dried-on
Very dirty pans and
dishes, even with dried-on
use
residues
residues
residues.
PROGRAM
PROGRESS
Wash at 38°C
Rinse at 50°C
Wash at 45°C
Cold rinse
Rinse at 55/70°C (3)
Dry
Wash at 45°C
Cold rinse
Rinse at 55/70°C (3)
Dry
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 55/70°C (3)
Dry
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
DURATION
MINUTES
(1)
CONSUMPTION
WATER
LITRES
27 6,5 0,70
140/70
(3)
**/
135 (3)
9,5 1,10
** **
170/
13,5 1,35
110 (3)
205/155
(3)
15,5 1,60
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
POWER
KWh (1)
15
User instructions
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
6 SOAK
+
7 DELICATE
QUICK
+
8 ECO
QUICK
+
9 MIX
EXPRESS
+
10 STRONG
and FAST
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
+
LOAD CROCKERY AND
Pans and dishes awaiting
completion of the load
Delicate dishes with normal
Dishes with normal dirt,
washed immediately after
Dishes with normal dirt,
washed immediately after
Mixed dishes with normal
dirt without dried-on
CUTLERY
dirt.
use.
use.
residues.
PROGRAM
PROGRESS
Cold prewash
Prewash
Wash at 50°C
Cold rinse
Rinse at 70°C
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
Wash at 65°C
Cold rinse
Rinse at 70°C
DURATION
MINUTI
(1)
CONSUMPTION
WATER
LITRES
15 6,5 0,70
60
10,5 1,15
80
12,5 1,25
75
13 1,40
50
10 1,20
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
POWER
KWh (1)
16
enabled
IEC/DIN
E
NERSAVE
be enabled
door
Configuration
User instructions
NOTES AND REFERENCES
Only run the soak program with half loads.
Options cannot be used with the soak program.
Enersave is activated automatically if the selected program is compatible with the
option.
* Standard programme under EN 50242. The ENERSAVE option must be
.
** See information sheet provided
***
reference programme. The
option must
**** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in
the
or tablet.
: see photo in “Using the baskets”.
(1) Program consumption and duration figures have been measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
room temperatures and the type and quantity of dishes loaded.
(2) 1 or 2 cold rinses depending on the model.
(3) ENERSAVE option selected (default)/not selected
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
If the form for the testing institutes is missing from
the documentation, please request the guidelines
by contacting us at the following e-mail address:
dishwasher@test-domestic-appliances.com
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.
.
17
“Flexi Tabs
”
User instructions
3.2 Washing programs
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
OPTION SELECTION
Options are selected by pressing the relative button by the symbol of the
option required; the light comes on to confirm that the option has been
activated.
It is not possible to select any options when the soak program
is being used.
All options except "Flexi Tabs" are disabled at the end of the
wash cycle. To disable the “Flexi Tabs” option, press the
relative button (the light goes out).
All options, including "Flexi Tabs" are disabled when a program
is CANCELLED after it has begun.
ADDITIONAL OPTIONS
Some models feature additional options, activated by pressing two
buttons simultaneously. In this case, two lines in the control panel
graphics link the symbol of the additional option to the two buttons to be
pressed simultaneously to enable it. (e.g.
18
in this illustration)
User instructions
QUICK TIME OPTION
Select this option together with any washing program (except the soak
program) to SHORTEN the cycle. To activate this option, press button (light
comes on) after selecting the program required.
The option is automatically deactivated at the end of the program.
ENERSAVE
This option further reduces energy consumption by opening the door at
the end of the cycle for more effective drying. At the end of the wash an
automatic device releases the door, which slowly opens by a few
centimetres. This allows optimal drying even with low rinsing
temperatures, for significant energy saving.
The dishwasher remains in an idle state between the rinse stage and the
end of the cycle to allow proper drying (the display shows the time left until
the end of the cycle). Opening the door at this stage causes the cycle to
stop and ends the program.
The program end is signalled by a short beep and the flashing of the
indicator lights for programs 4 and 5.
When the function is activated, opening of the door must not be
impeded in any way; do not leave anything in the necessary space in
front of the door to allow it to open. Do not force the door lock before
the end of the cycle is signalled, as this would damage the mechanism.
When the function is activated, opening of the door must not be
impeded in any way; do not leave anything in the space in front of the
door necessary to allow it to open.
Do not re-close the door during automatic opening as this would
damage the mechanism. Wait for the pushers to retract before re-closing
the door.
ULTRA CLEAN
The "ULTRA CLEAN" program prolongs the final hot rinse to ensure a
further reduction in the bacteria level. If the temperature in the tank falls
during this stage of the program (e.g. because the door is opened or due to
a power blackout), the light of the option and the program lights (2) flash to
warn that the additional washing phase has not been completed
successfully. This does not mean that the wash program has been less
effective than usual.
19
button
poor
User instructions
SPREAD HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy
and reduces the program duration. Place dishes in both baskets then load
the detergent dispenser than less than the normal amount for a full load.
20
Flexi Tabs
Ideal for multi-function detergents, this option allows washing to be
optimised, with full benefits from the combined-action tablets. When this
option is activated, any salt and rinse aid in the relative containers will not
be used.
With short programs, because there is less time for them to dissolve,
tablets may fail to wash effectively and undissolved residues may be left.
Powder detergents are more suitable for these programs.
If the option is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles, combined products might create problems
such as a white deposit, poor drying results and residues left on dishes.
N.B.:
When the salt and rinse aid containers are empty, the relative lights will
remain on even if the “Flexi Tabs” option is selected.
IMPORTANT:
when no longer required, the option must be deactivated by pressing the
relative
These products are not suitable for use with excessively “hard” water.
(the light goes out).
If the hardness level set is higher than H3, when the option is activated
the relative light flashes to indicate that the product is being used
incorrectly; the dishwasher will still work, but washing results may be
.
DELAYED START
The start of the washing program can be delayed to program the dishwasher
to operate at the preferred time of day (e.g. overnight). Press the
PROGRAM DELAY button to activate the option and display a 1 hour
delay. Keep pressing to select the delay required, which may be up to 9, 12
or 24 hours depending on the model.
When the door is closed, the appliance will prewash the dishes, after
which the "program delay" set will come into effect.
User instructions
CANCELLING THE CURRENT PROGRAM
To cancel the currently selected program open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds until
the indicator lights for programs 4 and 5 illuminate simultaneously
(marked "end").
Close the door.
After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always use the dishwasher with a full load.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type of
load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
21
(1)
switch
-
on once
5 seconds
empty the bottom basket first
User instructions
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in execution of the program.
SWITCHING OFF
At the end of the program the beeper sounds
briefly and the lights of programs no. 4 and 5
(marked "end") flash.
To switch off the dishwasher, open the door and press the ON/OFF button
.
ENERGY MANAGEMENT
After 5 minutes of waiting (washing cycle completed, stopped or set but
not started) the dishwasher switches to a standby state to reduce energy
consumption.
In this state, the dishwasher indicator panel (lights or display depending
on model) functions more slowly (
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool. To ensure that any drops of
water left in the top basket cannot drip onto the dishes still in the bottom
basket, you are advised always to
every
).
.
22
User instructions
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
Adjust the water softening system;
Add the regenerating salt;
Add the rinse aid and detergent.
4.1 Using the water softening system
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1 Kg of salt in grains. The container is
situated at the bottom of the dishwasher. After removing the lower basket,
unscrew the salt container cap by turning it anticlockwise and pour in the
salt using the funnel supplied with the dishwasher. Before replacing the
cap, remove any salt residues from around the opening.
When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the warranty
will be invalidated.
Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT
23
User instructions
Do not use table salt as it contains insoluble substances which, over
time, may damage the water softening system.
When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER SOFTENER
The setting can be adjusted using the PROGRAM SELECTION
BUTTON (3). Keep the button pressed until the WATER HARDNESS
ADJUSTMENT INDICATOR LIGHT (4) flashes. The SELECTED
PROGRAM INDICATOR LIGHTS (2) indicate the current setting. Each
press of the button modifies the setting according to the sequence in the
following table:
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
24
WATER HARDNESS
degrees (°dH)
degrees (°dH)
H3 - 16-
21°dH
28-37°dF
User instructions
WATER HARDNESS TABLE
German
French
0 – 6 0 – 11
7 – 10 12 – 18 H1
11 – 15 19 – 27 H2
16 – 21 28 – 37 H3
22 – 28 38 – 50 H4
29 - 50 51 – 90 H5
H0
All lights off
(no salt)
One light on
Two lights on
Three lights on
Four lights on
Five lights on
SETTINGS
Contact your local water board for information on the hardness of your
water supply.
Default settings:
–
4.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
25
User instructions
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and prevents the formation of
scale deposits and staining; it is automatically added to the water during
the final rinse cycle, from the container situated on the inner side of the
door.
To add rinse aid:
Open the dispenser by pressing and lifting the tab on the cover.
Fill the dispenser with rinse aid. Top up again when the rinse aid
indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
26
dispensed
b4 -
5 ml
User instructions
ADJUSTING THE RINSE AID DISPENSER MODE
Press and hold the PROGRAM SELECTION button (3), after about 15"
the salt indicator flashes; keep still pressed until the RINSE AID
DISPENSER MODE INDICATOR LIGHT (5) flashes and the SELECTED
PROGRAM LIGHTS (2) indicate the current setting.
Press several times to choose the desired dosage according to the
following table:
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
0 – not
b0 All indicator lights off
Maximum. 6 ml b5 Five indicator lights on
Default settings:
The amount of rinse aid must be increased if the washed dishes
If, on the other hand, the dishes are sticky or have white streaks, it is
Minimum. 2 ml b1 One indicator light on
3 ml b2 Two indicator lights on
4 ml b3 Three indicator lights on
5 ml b4 Four indicator lights on
appear dull or feature circular stains.
necessary to reduce the rinse aid setting.
27
ADDING THE DETERGENT
To open the detergent dispenser cover, lightly press button P. Add the
detergent or tablet and close the cover by sliding it until it stops, indicated
by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent (also in tablet form) if the dispenser is dry
User instructions
When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
Use only detergents specially formulated for dishwashers.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
28
User instructions
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
4.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing results.
29
WARNING!
User instructions
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made from anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after a great many washes. If in doubt as to the
fastness of the colours, it is advisable to wash just a few items at a
time for approximately one month.
30
With fixed supports
With tip
-
up supports
User instructions
4.4 Using the baskets
The dishwasher has a capacity of 13 place-settings, including serving
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve
the drying of dishes. The inserts are supplied in the accessories bag; to
use them, simply fit them into place as shown.
31
UPPER BASKET
User instructions
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
32
making sure that the knife blades do not protrude from the basket
.
any position
User instructions
CUTLERY BASKET
The basket has removable top grids into which items of cutlery should
be inserted to keep them properly spaced and allow water to pass
between them effectively. The top grids and central lid are in the bag of
accessories. The central lid functions as a lid only.
The top grids can be detached and used separately.
The cutlery should be arranged in an orderly manner inside the basket,
with the handles pointing downwards. Take care during loading to avoid
injury from the knife blades. The basket is suitable for all types of cutlery,
except those long enough to interfere with the upper spray arm. Ladles,
wooden spoons and cooking knives can be placed in the upper basket,
The cutlery basket slides across the dishwasher and can be placed in
to allow optimal use of the space in the bottom basket.
33
User instructions
FLEXI DUO TOP RACK (on some models only)
This comprises two independent sliding, pull-out tray racks for easier
loading/unloading of cutlery. Various loading systems and configurations
are possible. For example, tea cups can be loaded with the right-hand
rack set in the low position, while the left-hand rack or both can be
removed to allow large dishes to be put in the top basket.
In order to position the right hand basket in a low position, the upper
basket has to be adjusted so that it is in the lowest position (see “adjusting
the upper basket).
34
they should be laid flat for easier loading.
FLEXI D
UO TOP RACK (on some models only)
they should be laid flat for easier loading.
User instructions
EXAMPLES OF LOADING FOR INTENSIVE DIRT
13 Standard place setting
If the bottom basket inserts are of the fold-down type,
13 Standard place setting
If the bottom basket inserts are of the fold-down type,
35
nd long objects. The ends are
at the
User instructions
UPPER BASKET EQUIPMENT
(depending on the model)
Cutlery tray
For knives, spoons (tea and dessert) a
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers (B)
same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
36
For mugs, cups and long objects. The ends are designed to hold long
When not used they can be moved to a vertical position (until a click is
They can be used either closed or open (pull the upper, sliding part). To
an be moved to a vertical position (until a click is
User instructions
Fold-down shelves
stemmed glasses
heard).
Shelves with expandable wings
For small objects, mugs and cups.
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they c
heard).
37
These can be secured in a vertical position, resting on the bottom of the
User instructions
Fold-down tines
basket if unused, or placed in an intermediate position, as required.
The single tine on the right is ideal for supporting long stemmed glasses.
38
the same height
User instructions
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket.
The adjustment procedure may be type A or B, depending on the
dishwasher model purchased.
Version A: pull-out with adjustment in two positions.
Pull out both the basket guides.
Remove the stops, first releasing them as shown in the diagram.
Pull out the basket.
Fit the upper or lower pair of wheels into the guide, depending on the
setting required;
Return the stops to their original position.
The left hand and right hand sides of the basket must always be set at
.
Version B: with adjustment in three positions on both sides.
The sides of the basket must always be set at the same height.
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
39
User instructions
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the all-pole disconnection device.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank and
gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter A and clean it delicately under running
water. Reassemble filter A in its seat and carefully screw the water intake
hose back into position.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
40
User instructions
necessary, to clean it. To remove the filter, grip the tabs, turn them
ORBITAL
PLANETARIUM
CLEANING THE FILTER UNIT
To remove the lower spray arm, simply lift it up, pulling by the central
part.
To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.
To remove and clean the planetarium sprayer follow the instructions
provided.
It is advisable to periodically inspect the centre filter C and, if
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
41
CLEANING THE FILTER UNIT (models with planetarium sprayer)
User instructions
It is advisable to periodically inspect the centre filter and, if necessary,
to clean it.
remove the planetarium sprayer follow the instructions provided.
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or foul the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
PROLONGED DISUSE:
Run the soak program twice in succession.
Unplug the power cord from the socket.
Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
Fill the rinse aid dispenser.
Shut off the water supply tap.
42
User instructions
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
Plug the power cord back into the socket.
Reconnect the water intake hose and open the tap again.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
the dishwasher is connected to the electrical power supply;
there is no power failure;
the water tap is open;
the dishwasher door is properly closed.
the door does not close:
- the lock has been triggered; close the door with greater force
- regulate the catch of the lock on the door to its maximum adjustment
using the central plastic screw.
If water remains inside the dishwasher, check that:
the drain hose is not kinked;
the drain siphon is not obstructed;
the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
the correct amount of detergent has been added;
there is regenerating salt inside the special container;
the dishes are being loaded correctly;
the selected program is suitable for the dish types and their degree of
soiling;
all the filters are clean and positioned correctly;
the spray arm nozzles are not obstructed;
there is no object obstructing the rotation of the spray arms.
43
User instructions
If the dishes fail to dry or remain dull, check that:
there is rinse aid inside the special container;
the rinse aid dispenser setting is correct;
the detergent used is of good quality and has not lost its effectiveness
(for example, through incorrect storage, with the box left open).
Non-dry synthetic dishes. Synthetic material has a lower heat storage
capacity and is therefore harder to dry.
If the dishes show signs of streaking, staining, etc., check that:
the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
check that the cap of the salt container is securely closed, and that
the water softening setting is correct.
44
User instructions
If the door does not close:
1 - Check the position of the door lock catch (D)
2 - If necessary, raise it by adjusting the plastic screw (V) next to the
catch.
3 - Check the condition of the lock hook; if it has not triggered (reference
N), the door opens and closes normally. If it has triggered (reference S),
close the door with force until it resets; open and close the door.
45
User instructions
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
46
meanings:
User instructions
6. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
E1
E2
E3
E4
E5
E6
FAULT
DESCRIPTION
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case of
water leaks. Contact the after-sales service.
Safety level
The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing cycle.
If the problem persists, contact the after-sales service.
Water heating malfunction
The water is not heated or the heating parameters are
not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists, contact
the after-sales service.
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the aftersales service.
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are not
fouled. If the problem persists, contact the after-sales
service.
47
E11
Light off
Light on
Light flashing
possible to program the dishwasher again.
User instructions
FAULT
DESCRIPTION
Turbine flow-regulator malfunction
(for the relevant models only)
The appliance is not able to "measure" the amount
E7
of water loaded accurately. Interrupt the program
and switch off the dishwasher. Switch the
dishwasher back on, program it again and start the
washing cycle. If the problem persists, contact the
after-sales service.
Alternate washing system malfunction
Interrupt the program and switch off the dishwasher.
E8
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists, contact
the after-sales service.
E9
Water intake system malfunction
Contact the after-sales service.
Wash motor pump does not work
If an alarm occurs the appliance interrupts the program in progress and signals
a fault.
Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program
immediately.
The E5, E6 alarms interrupts the running program once the cause is
resolved, it will bring bach the execution of the program.
The alarm E7 is visualized at the end of the cycle that comes, however,
brought to the end since the operation of the dishwasher is not harmed.
E11: Contact the after-sales service.
To “reset” an alarm is necessary:
Open and close the door, or turn off and on the machine. At this point is
If the malfunction persists, contact your authorised Service Centre.
48
Loading...
