Smeg DF67 Instruction Manual

INSTRUCTION MANUAL

GGUUIIDDEE FFOORR UUSSIINNGG TTHHEE DDIISSHHWWAASSHHEERR AANNDD TTHHEE WWAASSHHIINNGG PPRROOGGRRAAMMSS

Contents

1

1.

Safety and operating instructions ___________________________2

2. Installation and hook-up___________________________________5

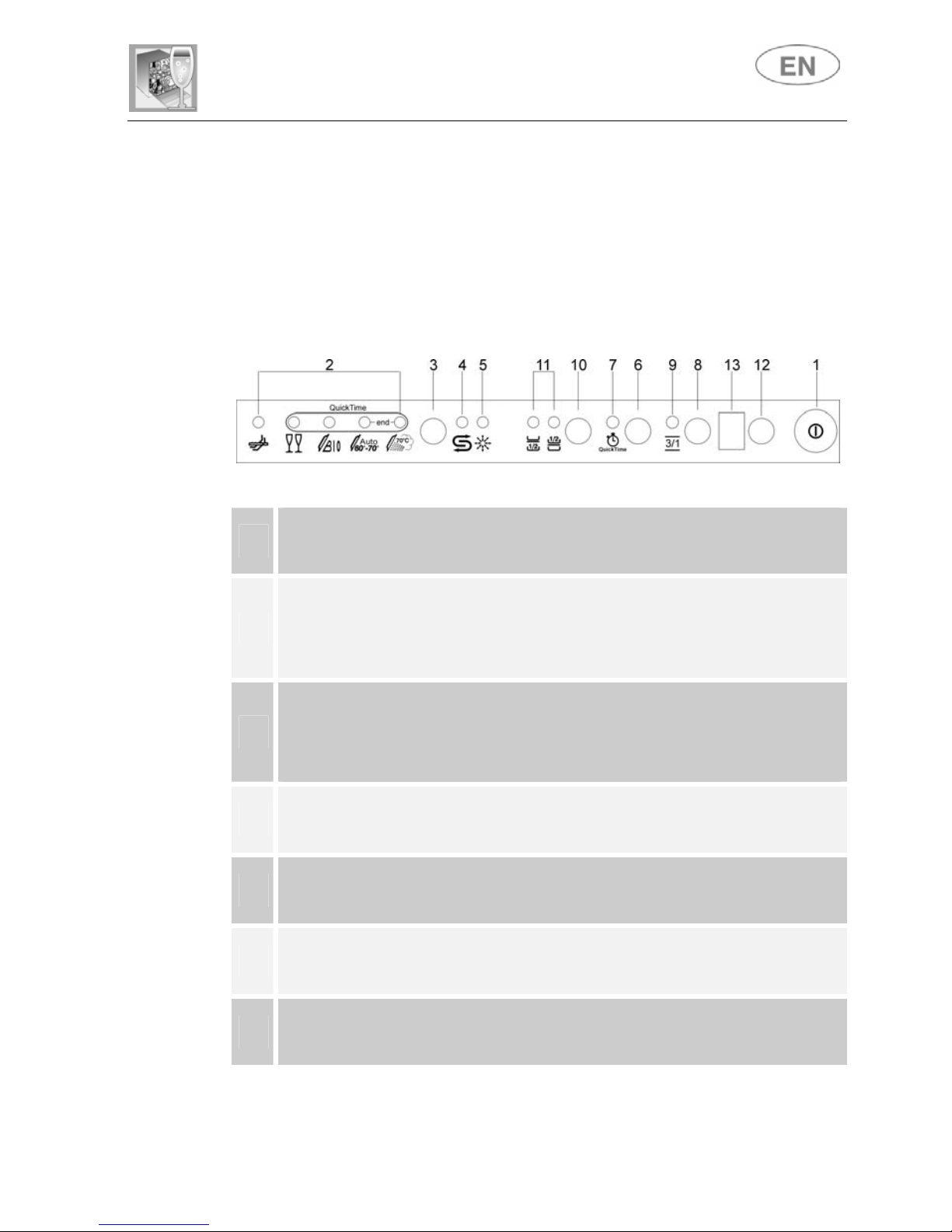

3. Description of the controls_________________________________9

4. Operating instructions ___________________________________16

5. Cleaning and maintenance _______________________________30

6. Troubleshooting________________________________________34

Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe us e
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.

USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

Safety instructions

2

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE EEC
DIRECTIVES 73/23, 89/336 (INCLUDING 92/31 AND 93/68) CURRENTLY IN
FORCE, INCLUDING THE PREVENTION AND ELIMINATION OF RADIO
FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.

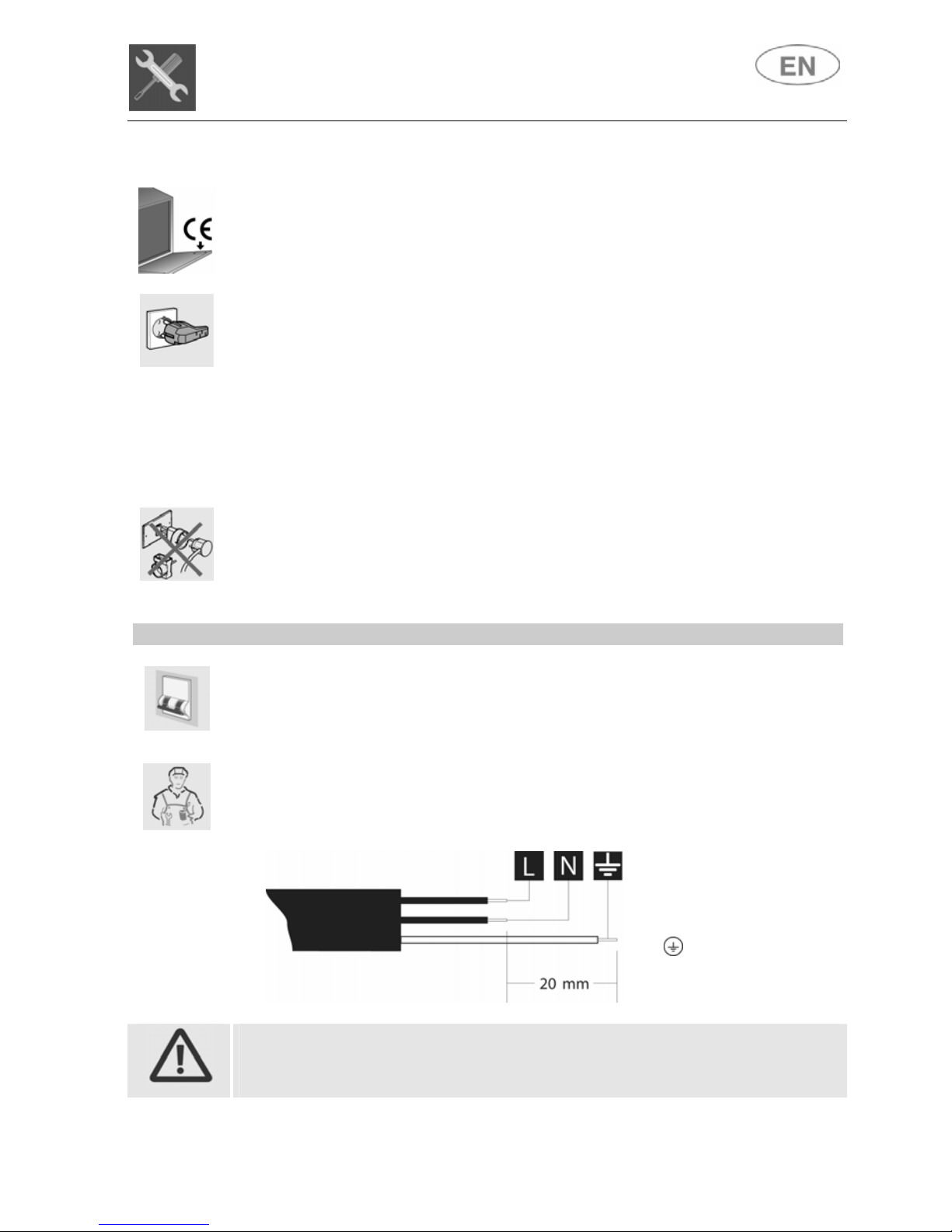

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.

ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID

WASTING ELECTRICITY.

Safety instructions

3

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLE T,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL
HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE
ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.

THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE

ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.

THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

Safety instructions

4

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.

KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.

AQUASTOP MODELS

THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND RE PAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE

HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,

DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS

CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.

The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.

Installation instructions

5

2. Installation and hook-up

Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in an y directio n; make sure t hat the h oses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
requ ired. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.

Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.

Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.

A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob are
installed and secured correctly, so that no hazards are generated.

When installing the dishwasher in a compartment next to one or more
other appliances, it is essential to comply with all the recommendations
provided by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).

For free-standing models only:

- Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.

- If the appliance is not built-in and is therefore accessible on on side, the
door hinge area must be covered for sa fety reasons (injury hazard). The
covering fixtures are available as an accessory from specialist dealers
or the After-Sales Service.

- To build in the dishwasher, the special kit must be purchased from
authorised dealers or the After-Sales Service.

Some models are equipped with only one adjustable foot at the rear,
which can be adjusted by turning the screw on the lower front part of the
appliance.

Installation instructions

6

2.1 Water supply connection

Preventing the risk of clogging or damage: if the water pipe is new or

has not been used for a long time, before connecting to the w ater supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.

The dishwasher must always be connected to the water system
with new hoses; old or used hoses must never be reused.

CONNECTING TO THE WATER SUPPLY

Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter A supplied with the
dishwasher. Take care to screw the hose firmly into

place with your hands and then complete by
tightening about ¼ of a turn with pliers.

In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.

The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the

washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for conn ecting to th e cold water supply .

DRAIN CONNECTION

Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.

The free end should be positioned at a height of between 30 and 100
cm, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.

Installation instructions

7

2.2 Electrical connection and precautions

CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.

THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.

THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.

IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED

BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.

DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.

IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:

IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
LEAST 3.5MM. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
TO BE EASY TO REACH.

THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN
BELOW AND THE REGULATIONS IN FORCE.

L = brown
N = blue

= yellow-green

In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.

Installation instructions

8

FOR GREAT BRITAIN ONLY:

THIS APPLIANCE MUST BE EARTHED.

Fuse replacement

If the mains lead of this appliance is fitted
with a BS 1363A 13amp fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type
and proceed as follows:

1. Remove the fuse cover A and fuse B.

2. Fit replacement 13A fuse into fuse

cover.

3. Refit both into plug.

The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.

Correct replacement are identified by the co lou r insert or th e colo ur
embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

User instructions

9

3. Description of the controls

3.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.

1

ON/OFF BUTTON

Pressing this button energises the appliance.

2

SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).

3

PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the
desired program.

4

SALT WARNING LIGHT
Illumination of this light signals that salt container is empty.

5

RINSE AID WARNING LIGHT

Illumination of this light signals that rinse aid dispenser is empty.

6

QUICK TIME OPTION BUTTON
This button can be pressed to reduce the duration of programs.

7

QUICK TIME OPTION LIGHT

Illuminates to indicate that the function is activated.

User instructions

10

8

“3/1” OPTION BUTTON
Press this button to activate the option for use of 3/1 products.

9

“3/1” OPTION LIGHT
Illuminates to indicate that the function is activated.

10

HALF LOAD BUTTON

Press this button to activate the half load wash option.

11

HALF LOAD LIGHTS

One of the two light illuminates to indicate that the half load wash
option in the top or bottom basket has been selected.

12

PROGRAM DELAY BUTTON

Press this button to delay the start of the program by up to 9 hours.

13 INFORMATION DISPLAY

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate progr am according
to dish type and degree of soiling.

After using the table to identify the most appropriate washing program:

• press the ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

• keep pressing the PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

• close the door; after about 2" the program will start. While it is in

progress, the relative LIGHT will flash (indic ating that t he p rogram is
being executed).

User instructions

11

DURATION

CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS

MINUTES

(2)

WATER
LITRES

(1)

POWER
KWh (2)

1

SOAK

Pans and dishes

awaiting completion

of the load.

Cold prewash

15' 4 0,03

2

LIGHT

Delicate dishes with

light dirt.

Wash at 45°C
Cold rinse
Rinse at 70°C
Dry

80'

10 1,00

3

BIO (*)

EN 50242

Dishes with normal

dirt, even with dried-

on residues.

Cold prewash
Wash at 50°C
Cold rinse
Rinse at 62°C
Dry

180'

(**) (**)

4

AUTO

60-70

Pans and dishes with
normal dirt, even with

dried-on residues.

Cold prewash
Wash at 50°C
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry

(***)

(***) (***)

5

ULTRA

CLEAN

(****)

Very dirty pans and

dishes, even with

dried-on residues.

Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry

140'

18 1,72

Only run the soak program with half loads.
The QUICK TI ME (6), “3/1” (8), HALF LOAD WASH (10) and DELAYED START (12)

options cannot be used with the soak program.
(*)

Reference program as per EN 50242 standard.
(**) See energy label.
(***)

When the "

AUTO 60-70" program is selected, the dishwasher recognises the

type of dirt and automatically adjusts th e washing parameters a s ap propriate.
(****)

The "ULTRA CLEAN" program terminates with an anti-bacteria rinse that

ensures a further reduction in the bacteria level. If the temperature falls during

this stage of the program (e.g. because the door is opened or due to a power

blackout), the program lights (2) flash to warn that the anti-bacteria effect is

not guaranteed.
(1)

Average power consumption with the softener set on level 2..
(2) The cycle duration and power consum ption may vary according to the water

and room temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwash er door is left open
or not properly closed.

User instructions

12

DURATION

CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD

CROCKERY

AND

CUTLERY

PROGRAM

PROGRESS

MINUTES

(2)

WATER

LITRES

(1)

POWER
KWh (2)

6

LIGHT

QUICK

Delicate

dishes, with

light dirt.

Wash at 45°C
Cold rinse
Rinse at 70°C

60

10 1,00

7

BIO

QUICK

Dishes with

normal dirt,

even with

dried-on

residues.

Cold prewash
Wash at 55°C
Cold rinse
Rinse at 70°C

80

15 1,45

8

NORMAL

Pans and
dishes with
normal dirt,

even with

dried-on

residues.

Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C

80

15 1,50

9

ULTRA

CLEAN

QUICK

(*)

Very dirty pans

and dishes,

even with

dried-on

residues.

Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C

100

18 1,72

To run programs 6, 7, 8 or 9 the user first has to select the QUI CK TIME option (6) ,
which cuts the program duration but generates a slight increase in water and electricity
consumption. The option is automatically disabled at the end of the program.

(*)

The "ULTRA CLEAN QUICK" program terminates with an anti-bacteria rinse
that ensures a further reduction in the bacteria level. If the temperature falls
during this stage of the program (e.g. bec ause the door is ope ned or due to a
power blackout), the program lights (2) flash to warn that the anti-bacteria
effect is not guaranteed.

(1)

Average power consumption with the softener set on level 2..

(2) The cycle duration and power consum ption may vary according to the water

and room temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwash er door is left open
or not properly closed.

User instructions

13

3.2 Washing programs

Before starting a washing program make sure that:

• The water supply tap is open.

• The correct amount of detergent has been added to the

dispenser.

• The baskets have been correctly loaded.

• The spray arms are able to rotate freely and without

obstruction.

• The dishwasher door is securely closed.

QUICK TIME (available in all programs except the soak program)

Select this option together with any washing program (except the soak
program) to SHORTEN the cycle. T o activate this option, press button (6)
(light 7 comes on) after selecting the progra m requ ired.
The option is automatically deactivated at the end of the program.

SELECTING HALF LOAD WASH
(available in all programs except the soak program)

This function is ideal for small loads and saves water and electricity. It is
controlled by the HALF LOAD (10) button, with two alternatives:

1)

Press the button once to select washing in the top basket (the
relative light comes on);

2)

Press the button a second time to select washing in the bottom
basket (the relative light comes on);

3)

Press the button a third time to return to th e normal full load washin g
mode (washing in both baskets, bo th lig h ts off).

When washing in the bottom basket only, t he cutlery basket can be
divided so that only half is used.

User instructions

14

DELAYED START
(available in all programs except the soak program)

The PROGRAM DELAY button (12) can be pressed to delay the start of
the program by up to 9 hours. This means that the dishwasher can be
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from 9 hours.

CANCELLING THE CURRENT PROGRAM

• To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4 and 5 illuminate
simultaneously (the word "end" is displayed on the window).

• Close the door.

• After approximately 1 minute the dish washer will advanc e to the end

of cycle.

CHANGING THE PROGRAM

To change the program in progress, simpl y open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

• Always try to run the dishwasher fully loaded.

• Do not wash the dishes in running water.

• Use the washi ng program that is most appropriate for each type of

load.

• Do not carry out any preliminary rinsing.

• If available, connect the dishwashe r to a ho t water sup ply up to 60°C .

User instructions

15

TO CUT DOWN ON DETERGENT CONSUMPTION! … A ND PROTECT
THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the followi ng:

• separate the more delicate items from dishes that are more resistant
to aggressive detergen ts and high temperatures ;

• do not pour the detergent directly on the dishes.

If the door has to be opened while w ashing is in progress, the program
will be interrupted. The relative light will keep flashi ng and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.

END OF CYCLE

At the end of the washing cycle the dishwasher
gives a short acustic signal and the program
indicators nr 4 and 5 start blinking (the word
"end" is displayed on the window).

To switch off the dishwasher, open the door and press the ON/OFF
button (1).

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.

User instructions

16

4. Operating instructions

Once the dishwasher has been correctly installed, prepare for use as
follows:

• Adjust the water softening system;

• Add the regenerating salt;

• Add the rinse aid and detergent.

4.1 Using the water softening system

The amount of scale contained in the
water (water hardness index) can cause
whitish staining on the dry dishes, which
tend to become dull over time. The
dishwasher is equipped with an automatic
softening system which uses a special
regenerating salt to reduce the hardness
of the water.
The dishwasher is factory set for water
hardness level 3 (average hardness

41-60°dF – 24-31°dH).

SALT

When using water of medium har dness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 Kg of salt in grains. The container
is situated at the bottom of the dishwasher. After removing the lower
basket, unscrew the salt container cap by turning it anticlockwise and
pour in the salt using the funnel supplied with the dishwasher. Before
replacing the cap, remove any salt residues from around the opening.

• When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.

• Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never

penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the
warranty will be invalidated.

• Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.

User instructions

17

• Do not use table salt as it contains insoluble substances which,
over time, may damage the water softening system.

• When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline

solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.

Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.

ADJUSTING THE WATER SOFTENING SYSTEM
NOTA: for the setting below to be possible, a washing program other

than the soak program must be set.
Press the PROGRAM DELAY button (12) and keep it pressed until the

preset value appears followed by a full stop (normally 3.). Release the
button then press it again in succession to display the value required,
referring to the table.

The 6 setting levels available will appe ar in this order:

3., 4., 5., 0., 1., 2..

When the value required appears on the diplay, release the button; after
5 seconds the system automatically returns to setting of the program
delay, and the setting will be made with the chosen value.

N.B.: the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.

User instructions

18

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF)

SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1
16 - 23 26 - 40 Setting N. 2
24 - 31 41 - 60 Setting N. 3
32 - 47 61 - 80 Setting N. 4
48 - 58 81 - 100 Setting N. 5

Contact your local water board for inform ation on the hardness of your

water supply.

4.2 Using the rinse aid and detergent dispensers

The detergent and rinse aid

dispensers are situated on the inner
part of the door: the detergent

dispenser is on the left, and the
rinse aid dispenser is on the right.

With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other han d, should only be added as
required.

User instructions

19

ADDING THE RINSE AID

The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.

To add rinse aid:

• Open the door.

• Rotate the container cap anticlockwise by ¼ of a turn and remove it.

• Add the rinse aid until the container is full (approximately 140 cc).

The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.

• Replace the cover and turn it in a clockwise direction.

• Use a cloth to remove any spillage of rinse aid which might lead to

the formation of excess foam.

ADJUSTING THE RINSE AID DISPENSER SETTING

The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser ’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.

• To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.

• Then use a screwdriver to rotate the rinse aid selector to the des ire d
position.

• Replace the cap, turning it clockwise.

• The amount of rinse aid must be increased if the washed dishes

appear dull or feature circular stains.

• If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.

User instructions

20

ADDING THE DETERGENT

To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.

• When a program with hot prew ash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).

• Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.

• The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be ke pt for too
long, otherwise the detergent loses its effectiveness.

• Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.

• Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and do es not improve the
washing results.

User instructions

21

• The market offers liquid and powder detergents with differing
chemical compositions, which may contain phosphates, or be
phosphate-free but contain natural enzymes.

- Detergents containing phosphates are more effective against

grease and starch at temperatures above 60°C.

- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) and are more easily
biodegradable. With enzyme detergent s it is possible to obtain at
low temperatures comparable results to those w hich can only be
achieved at 65°C using traditional detergents.

For the safeguarding of the environment we recommend th e use of
phosphate- and chlorine free detergents.

• Also available are tablet detergents which state that that no salt o r
rinse aid is required. In some cases, thes e detergents might not give
good results, especially with short and/or low-temperature washing
cycles.
If performance problems (e.g. a white coati ng on the tank or dis hes,
poor drying, dirt on dishes at the end of the wash) are noted, users
are advised to return to conventional products (granular salt , pow der
detergent and liquid rinse aid).
However, please note that on return to the use of conventi onal salt,
a number of cycles will be required before the system becomes fully
efficient again, so traces of white coating may still be found on the
tank and dishes. If the problem persists for too long, contact the
After-Sales Service.

• When using detergent in tablet form (bear in mind that we
recommend the use of three separate products: deterge nt, salt and
rinse aid), place the tablets in the cutlery rack. The dispenser is
designed to use powder or liquid detergent and the door does not
open completely during the washing cycle. This means that a tablet
is not completely dissolved (released), which may lead to the
following:

- not enough detergent rele ased duri ng the cycle, w ith poor washin g
results;

- the detergent forms a s olid block in the distributor and is re leased
during the final rinse cycle.

The introduction of detergent into the rinse aid d ispenser, even in
liquid form, will damage the dishwasher.

User instructions

22

4.3 General warnings and recommendations

Before using the dishwasher for the first time, it is advisab le to read the
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.

Before loading the dishes into the baskets it is necessary to:

• remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.

• soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.

There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.

Correct loading of the dishes helps ensure optimal washing
results.

WARNING!

• Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.

• Do not place very small objects in the baskets as these c ould fall
and obstruct the spray arms or the wash pump.

• Containers such as cups, bowls, glasses and pots should always
be loaded with the opening facing downward s and with any cavities
at an angle, to allow the water to drain out.

• Do not stack dishes or place them in such a way that they cover
one other.

• Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.

MAKE SURE that the items being washed are dishwasher-safe.

User instructions

23

Items which are not dishwasher-safe:

• Wooden dishes, pots or pans: these may be damaged by the
high washing temperatures.

• Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.

• Plastic dishes: heat resistant plastic dishes must be w ash e d in th e
upper basket.

• Dishes and objects in copper, tin, zinc or brass: these tend to
stain.

• Aluminium dishes: items made from anodised aluminium may
lose their colour.

• Silverware: silver items may stain.

• Glass and crystal: in general, glass and crystal objects can be

washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the
least aggressive program available.

• Decorated items: the decorated objects available on the market
are generally able to withstand washing in the dishwasher,
although the colours may fade after a great many washes. If in
doubt as to the fastness of the colours, it is advisable to wash just a
few items at a time for approximately one month.

User instructions

24

4.4 Using the baskets

The dishwasher has a capacity of 14 place-settings, including serving
dishes.

LOWER BASKET
The lower basket receives the full force of the lower spray arm, and
should therefore be used for the “toughest” items with a heavier degree
of soiling. All types and combinations of loads are permitted, provided
that the dishes, pots and pans are arranged with all the soiled surfaces
exposed to the water jets coming from the bottom.

The rear of the basket is fitted with a rack to take large plates (A). To
use it, simply lift it until it locks in place.

User instructions

25

In the front there are one or two supports (depending on the models) for
small plates (B). To use them, they have to be turned towards the front

of the dishwasher.

LOADING THE LOWER BASKET

Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plat es and dessert bowls, be sure to
leave a gap between them.

Loading examples:

½ LOAD

User instructions

26

CUTLERY BASKET
Cutlery must be placed with the tips facing downward.
Long items of cutlery (ladles, wooden spoons, kitchen knives, etc.),
which might interfere with the upper spray arm must be placed in the
upper basket, ensuring that knife tips do not project from the basket.

The cutlery basket features an exclusive system of independent
sliding tip-up supports, offering a series of combinations to allow
optimum use of the space available.

Vertical

inserts

Horizontal

insert

open

Movement required

to extract the inserts

Horizontal

insert closed

It can also be separated into two parts, particularly useful when carrying
out a ½ load wash (on models with this function).

User instructions

27

UPPER BASKET

It is recommended to load the upper basket with small- or medi um-sized
items such as glasses, small plates, tea or coffee cups, shallow bowls
and light objects made from heat resistant plastic. If the upper basket is
used in the lowermost position, it can also be loaded with serving dishes,
provided they are only slightly soiled.

The top basket is fitted (on the left)
with two plastic racks which can be
raised to make room for tall glasses,
such as stem glasses.
On the right there are two cutlery
racks designed to take knives and
teaspoons; when not in use, they can
be left vertical, attached to the
basket.
To use the space designed for
teaspoons, remove the insert as
shown in the illustrations.

LOADING THE UPPER BASKET

Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left-hand side of the basket can be loaded with two
layers of cups and glasses. The centre can be filled with plates and side­plates, fitted upright into the supports provided.

Loading examples:

½ LOAD

User instructions

28

ADJUSTING THE UPPER BASKET
Version A: the upper basket can be adjusted in two positions,

according to the user’s needs and accord ing to the height of the dishes
in the lower basket. Proceed as follows:

• pull out the right-hand basket guide;

• remove the stop, first releasing it as shown in the diagram;

• push the guide to free the wheels;

• fit the upper or lower pair of wheels into the guide, depending on the

setting required

;

• return the stop to its original position.

Version B:

• pull out the basket to its limit position and pull the right side
upwards. At this point it is possible to load larger sized plates into
the lower basket.

• To return to the original position, pull out the upper basket again and
press the release lever.

User instructions

29

Version C: the top basket can be set in three different positions on
both sides. The rack must be level on both sides.

To raise the basket lift it, pulling on the front edge (1), to the first or
second catch depending on the height required. To lower it, pull the
release lever (2).

This is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.

User instructions

30

5. Cleaning and maintenance

Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the all-pole disconnection device.

5.1 General warnings and recommendations

Avoid the use of acidic or abrasive detergents.

Clean the outer surfaces and door-lining of the dishwasher regularly
using a soft cloth moistened with water or with a normal detergent
suitable for painted surfaces. Clean the door gaskets with a damp
sponge. Periodically (once or twice a year) it is advisable to clean the
tank and gaskets, using a soft cloth and water to remove any deposits.

CLEANING THE WATER INTAKE FILTER

The water intake filter A located at the outlet of the water supply tap
needs to be cleaned periodically.
After having closed the water supply tap, un screw the end of the water
intake hose, remove the filter A and clean it delicately under running
water. Reassemble filter A in its seat and carefully screw the water
intake hose back into position.

CLEANING THE SPRAY ARMS

The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.

• To remove the upper spray arm, unscrew locking ring R.

• To remove the lower spray arm, simply lift it up, pulling by the

central part.

• To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.

ORBITAL

User instructions

31

CLEANING THE FILTER UNIT

• It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;

• push the centre filter D from the underside to remove it from the
micro-filter:

• separate the t wo parts which make up the plastic filter by pressing
the body of the filter in the zone shown by the arrows;

• remove the centre filter by lifting it upwards.

GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:

• The filters should be cleaned under running water using a stiff
brush.

• When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block
hydraulic components, or foul the spray arm nozzles.

• It is essential to thoroughly clean the filters according to the
above instructions: the dishwasher cannot function if the filters are
clogged.

• Carefully replace the filters in their seats, to avoid damaging the
wash pump.

PROLONGED DISUSE:

• Run the soak program twice in succession.

• Unplug the power cord from the socket.

• Leave the door slightly open, in order to prevent the formation of

unpleasant odours inside the washing tank.

• Fill the rinse aid dispenser.

• Shut off the water supply tap.

User instructions

32

BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:

• Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run fro m the water supply tap for
a few minutes.

• Plug the power cord back into the socket.

• Reconnect the water intake hose and open the tap again.

TROUBLESHOOTING MINOR PROBLEMS

In some cases it is possible to remedy minor prob lems by r e ferring to the
following instructions:

If the program fails to start, check that:

• the dishwasher is connected to the electrical power supply;

• there is no power failure;

• the water tap is open;

• the dishwasher door is properly closed.

If water remains inside the dishwasher, check that:

• the drain hose is not kinked;

• the drain siphon is not obstructed;

• the dishwasher filters are not clogged.

If the dishes are not being cleaned properly, check that:

• the correct amount of detergent has been added;

• there is regenerating salt inside the special container;

• the dishes are being loaded correctly;

• the selected program is suitable for the dish types and their degree

of soiling;

• all the filters are clean and positioned correctly;

• the spray arm nozzles are not obstructed;

• there is no object obstructing the rotation of the spray arms.

User instructions

33

If the dishes fail to dry or remain dull, check that:

• there is rinse aid inside the special container;

• the rinse aid dispenser setting is correct;

• the detergent used is of good quality and has not lost its

effectiveness (for example, through incorrect storage, with the box
left open).

If the dishes show signs of streaking, staining, etc., check that:

• the rinse aid dispenser setting is not too high.

If there are visible traces of rust inside the tank:

• the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially availa ble to re move
such marks;

• check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.

• check that the cap of the salt container is securely close d, and that
the water softening setting is correct.

If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.

WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.

User instructions

34

6. Troubleshooting

The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:

FAULT

DESCRIPTION

E1

Acquastop failure

The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case
of water leaks. Contact the after-sales service.

E2

Safety level

The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.

E3

Water heating malfunction

The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.

E4

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.

E5

Water intake malfunction

The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.

E6

Water pump-out malfunction

The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the after­sales service.

User instructions

35

FAULT

DESCRIPTION

E7

Turbine flow-regulator malfunction

(for the relevant models only)

The appliance is not able to " m easure" the amount
of water loaded accurately. Interrupt the program
and switch off the dishwasher. Switch the
dishwasher back on, program it again and start
the washing cycle. If the problem persists, contact
the after-sales service.

E8

Alternate washing system malfunction

Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.

E9

Water intake system malfunction

Contact the after-sales service.

Light off

Light on

Light flashing

If an alarm occurs the appliance interrupts the program in progress and
signals a fault.

• Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program

immediately.

• The E5, E6 alarms interrupts the running program once the cause is

resolved, it will bring bach the execut ion of t he program .

• The alarm E7 is visualized at the end of the cycle that comes, however,

brought to the end since the operation of the dishwasher is not harmed.

To “reset” an alarm is necessary:

• Open and close the door, or turn off and on the machine. At this point is

possible to program the dishwasher again.

If the malfunction persists, contact your authorised Service Centre.

User instructions

36

TECHNICAL DATA

Width

597 ÷ 599 mm

Depth

600 mm

Height (depending on models)

from 850 mm to 890 mm
from 890 mm to 910 mm

Capacity

14 Standard place settings

Water supply pressure

min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)

Electrical characteristics

See rating plate

3/4”

3/4”

1/2”

SW32

MIN

40cm

Cuø10

NOTA: N.B.: REMARQUE:
ANMERKUNG:

Solamente alcuni modelli sono dotati di uno dei dispositivi sotto illustrati. Only some models are equipped with one of the two devices illustrated below. seul quelques modèles sont munis de l’un de deux dispositifs illustrés ci-dessus.

Nur einige Modelle verfügen über eine der beiden unten dargestellten Einrichtungen.NOTA BENE: NOTA:

NOTA:

uitsluitend bepaalde modellen zijn uitgerust met één van de twee onderstaand afgebeelde inrichtingen Sólo algunos modelos están equipados con uno de los dos dispositivos que se ilustran a continuación.

Só alguns modelos estão equipados com ou dos dois dispositivos ilustrados abaixo

598 598

Sx

Dx

Allineare al bordo superiore delpannello porta.
Align with the top edgeof thedoor panel.
Aligner au bord supérieur dupanneau dela porte.
Mit der Oberkante der Dekorplattefluchten.
Alinhar com o rebordo superiordo painelda porta.

Pripojit na vrchný okraj dverovéhopanelu

Vyrovnejte s horním okrajem dverníhopanelu.
Az ajtópanel felso szélével hozzukegy vonalba.
Wyrównac do górnej krawedzi paneludrzwiowego.

Zet hem op éénlijn metde bovensterand vanhet
durpaneel.
Alinear respecto del borde superior del panel puerta.
Alinhe com a borda superiordo painelda porta.
Skal flugte med overkantenaf lågepanelet.
Aseta ovipaneelin yläreunan kohdalle.
Sett den øvre kanten iflukt meddørpanelet.
Placera i linje med dörrpanelensöverkant

ATTENZIONE: Quota : secondo imodelli 820÷870oppure 860÷910. Dependingon the model,distance may be 820÷870or 860÷910. Cote : selon les modèles 820÷870ou 860÷91 0.

Maß : gemäß den Modellen820÷870 oder860÷910. Hoogte : voor de modellen820÷870 of860÷910. Cota : según los modelos820 ÷870 obien 860÷ 910.
Cota : dependendo dos modelos820-870 ou860-910. 6 91 Afhængigt af modellener målet”H” 820÷870eller 860÷910.

691 6 91 691

- 6 -91 6 91 691

"H" CAUTION: "H" ATTENTION: “H”
ACHTUNG: "H" LET OP: "H" ATENCIÓN: "H"
ATENÇÃO: "H" BEMÆRK:UPOZORNENÍ: Rozmer „H“ podle modelu820-870 nebo8 0- 0.
HUOMIO OPGELET ADVARSEL:
UWAGA POZOR: OBSERVERA!

: Mitta ”H” on mallistariippuen 820-870tai 8 0- 0. : Geef "H" aan volgensde modellen820÷870 of8 0÷ 0. Avhengig av modell kan avstanden "H" være 820-870eller 8 0- 0.

Kvóta “H” podla modelov820-870 alebo8 0- 0. Beroende på modell kan måttet”H” vara820-870 eller8 0- 0.: W zaleznosci odmodelu, wartosc„H” moze wynosic820 870 lub 8 0 0.
