Smeg CSU2007B2, CSU2007B1, CSU2001B2, CSU2001X, CSU2001B1 User Manual
...Specifications and Main Features
- Width Measurement: 60 cm
- Depth Measurement: 60 cm
- Height Measurement: 85 cm
- Maximum Height with door open: 116 cm
- Carrying Capacity: 12 individuals plates, glasses and cutlery sets
- Water supply pressure: from a minimum of 100 KPa to a maximum of 900 KPa
- Voltage Power Range: 110-120 V
- Heating Equipment Watts: 1200 W
- Maximum Power Consumption: 1320 W
- Maximum Limiting Current: 15
- Equipment Options Like ‘ON’ And ‘OFF’ Switches, ECO Switches, and Super Switches Depending on Varied Equipment: Yes
- Water supply pipe has a solenoid valve attached (For AquaStop models)
- Features for cleaning consist of detachable spray arms and filter
- Rinse aid and detergent dispenser comes as standard
Frequently Asked Questions
- How many standard place-settings can dishwasher accommodate?
The dishwasher accommodates up to 12 standard plates, glasses and cutlery sets.
- How big in dimension is the dishwasher?
The dishwasher has a width of 60 cm, depth of 60 cm, and height of 85 cm.
- What are the rated voltage of the dishwasher?
The rated power supply voltage of the dishwasher is115 V.
- Is the dishwasher allergy friendly?
Yes, it is perfect for allergy sufferers as it can be connected to cold water with a maximum of 60 degrees.
- What safety features does the appliance have?
The device is equipped with AquaStop which avoids flooding in case water leaking happens, and there is an earth connection on the machine for safety reasons.

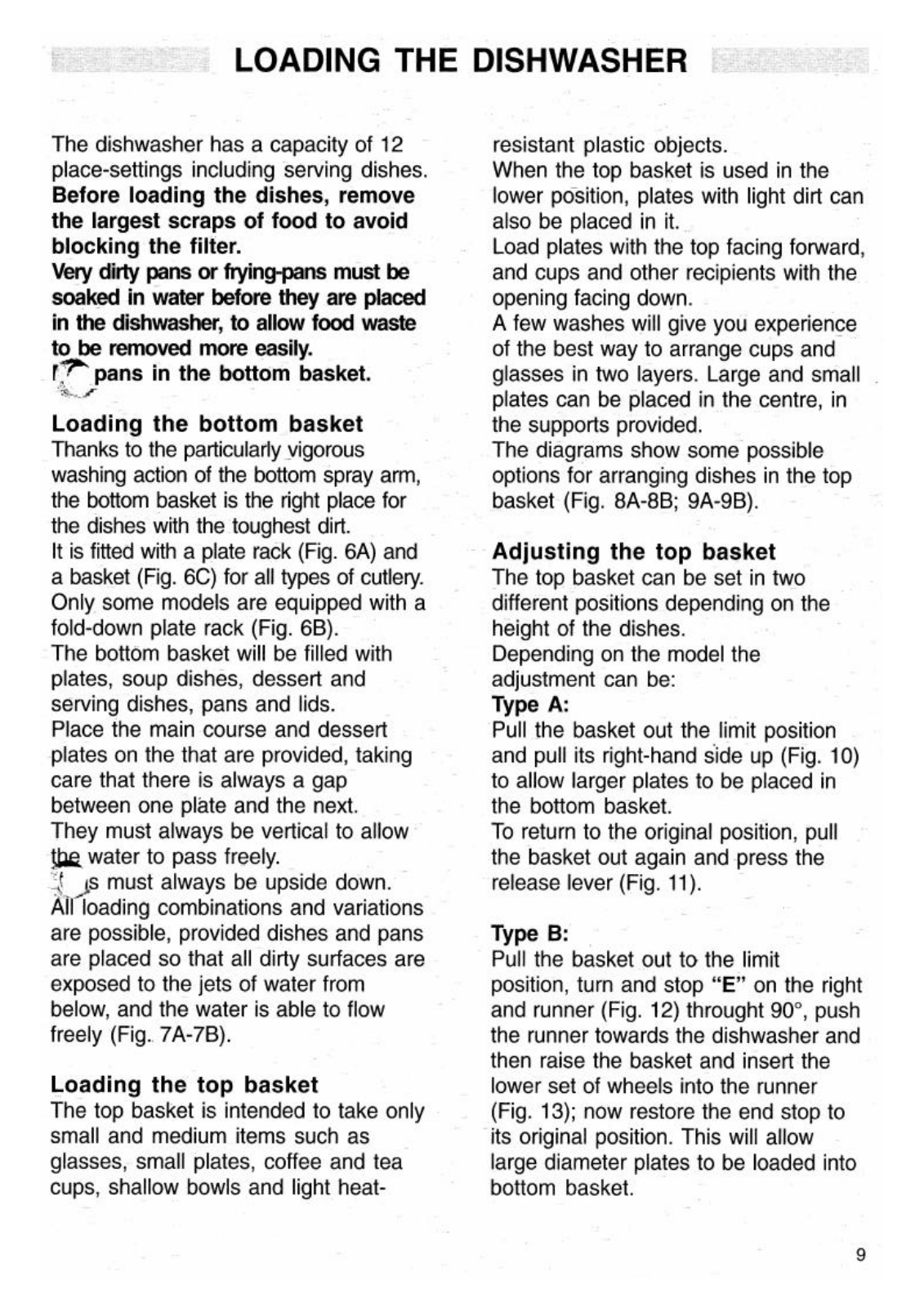

- How do I load the dishwasher?
Heavily soiled dishes should be placed in the bottom basket and smaller or medium items in the top basket.

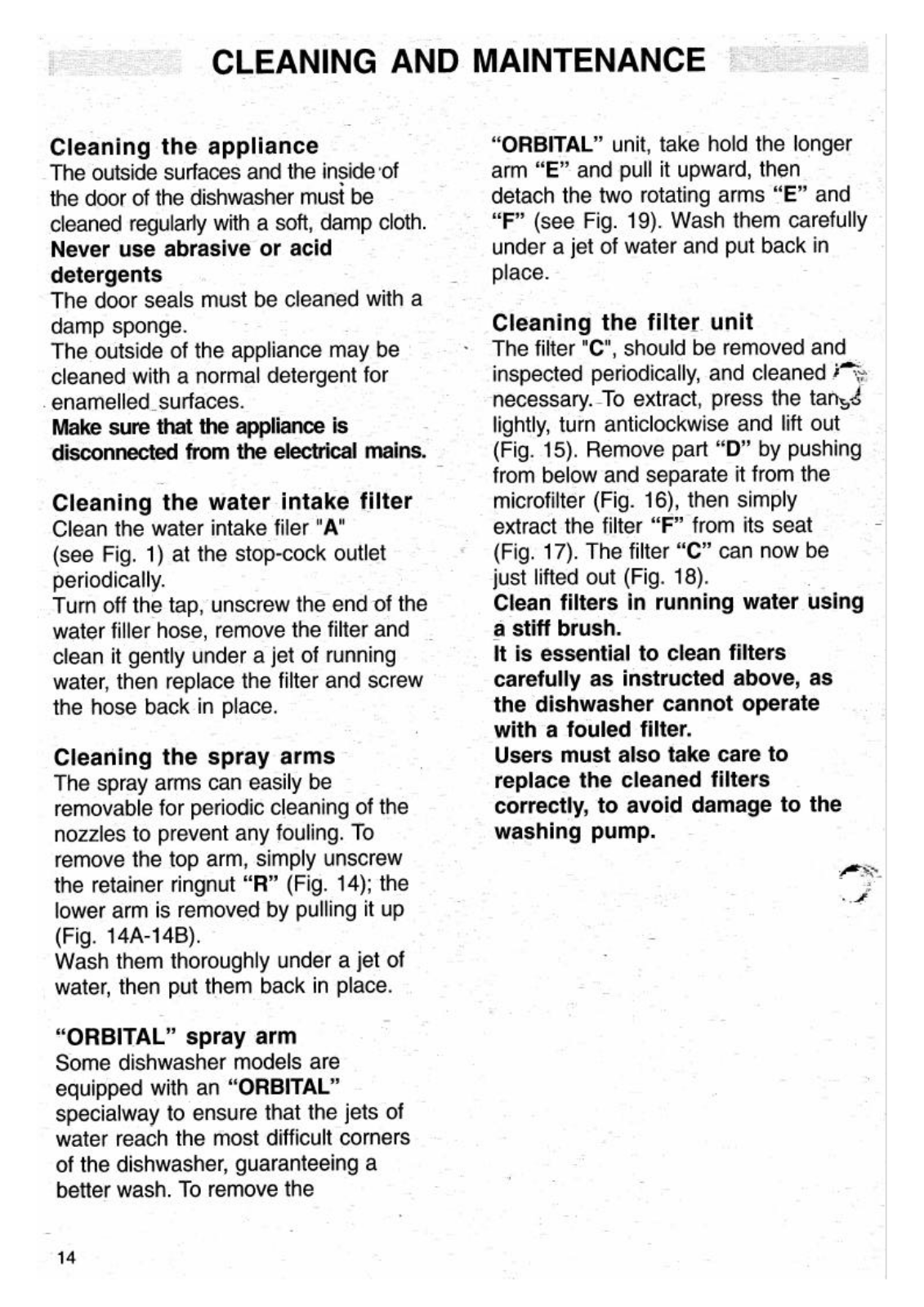

- How should I maintain the dishwasher?
The spray arms and filters, as well as the external surfaces of the dishwasher, should be cleaned from time to time.
- What type of detergent should I use?
Only use specially designed dishwashing detergents for automatic dishwashers, for best results.
- How can I save energy while using the dishwasher?
Use the machine when it is full, do not rinse the dishes prior to loading them, and choose the appropriate washing program for the load.

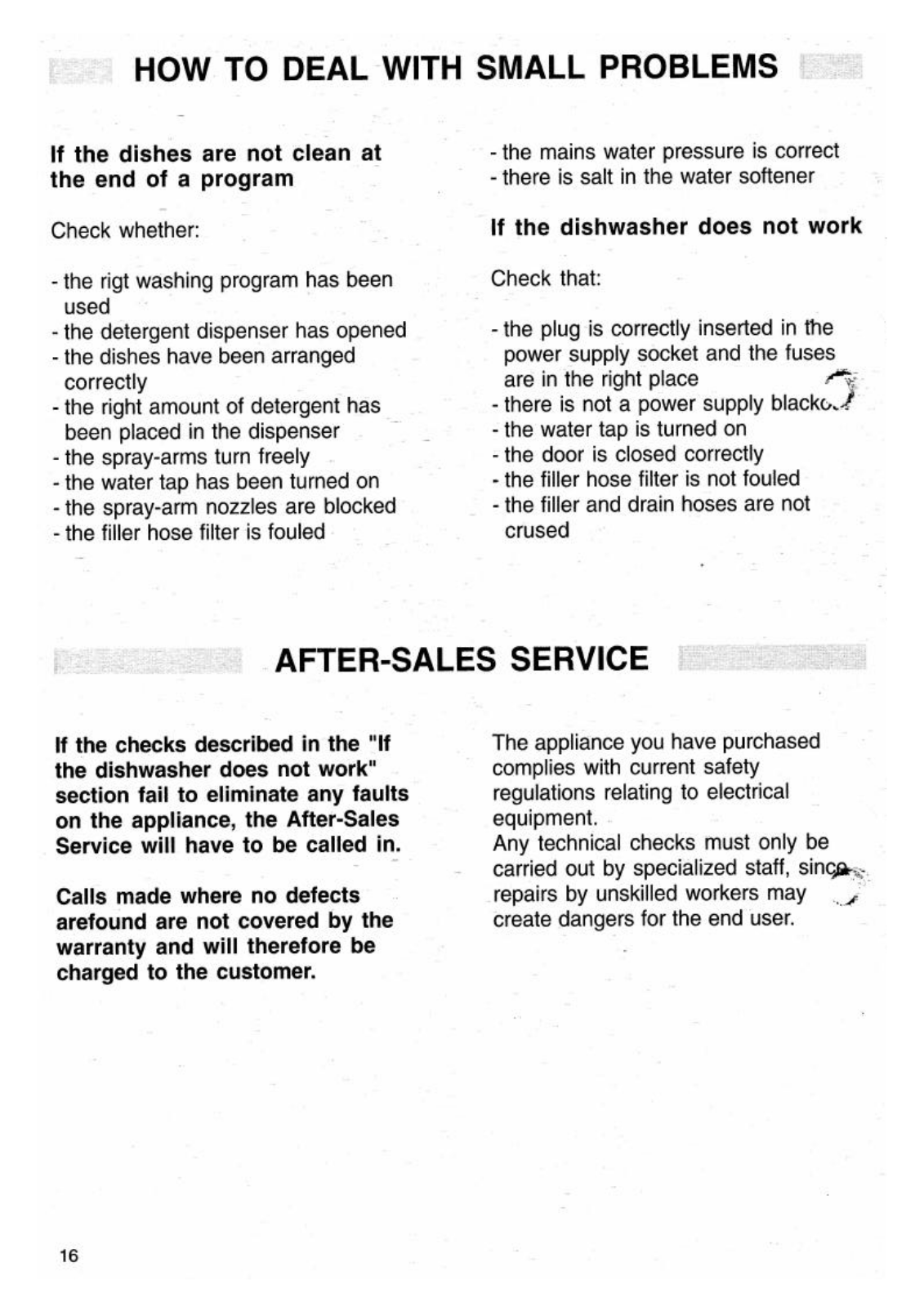

- What should I do if the dishwasher does not work?
Inspect the electricity supply, check if the water tap is switched on and making sure the door is properly closed, if issues persist contact After-Sales Service.
User Manual
