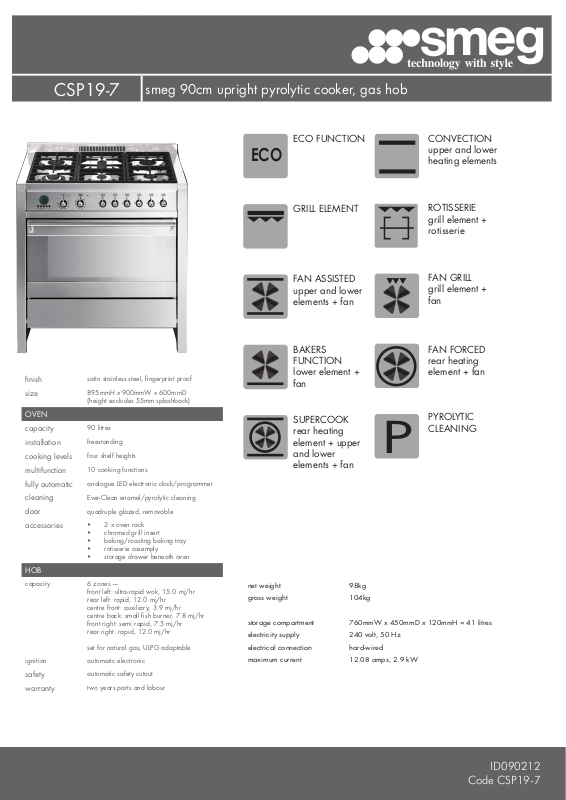

Page 1
CSP19-7
P
smeg 90cm upright pyrolytic cooker, gas hob
finish
size
OVEN
capacity
installation
cooking levels
multifunction
fully automatic
cleaning
door
accessories
HOB
capacity 6 zones —
ignition automatic electronic
safety
warranty
satin stainless steel, fingerprint proof
895mmH x 900mmW x 600mmD
(height excludes 55mm splashback)
90 litres
freestanding
four shelf heights
10 cooking functions
analogue LED electronic clock/programmer
Ever-Clean enamel/pyrolytic cleaning
quadruple glazed, removable
• 2 x oven rack
• chromed grill insert
• baking/roasting baking tray
• rotisserie assemply
• storage drawer beneath oven
front left: ultra-rapid wok, 15.0 mj/hr
rear left: rapid, 12.0 mj/hr
centre front: auxiliary, 3.9 mj/hr
centre back: small fish burner, 7.8 mj/hr
front right: semi rapid, 7.5 mj/hr
rear right: rapid, 12.0 mj/hr
set for natural gas, ULPG adaptable
automatic safety cutout
two years parts and labour
ECO FUNCTION
CONVECTION
upper and lower
ECO
▼▼ ▼
GRILL ELEMENT
▼▼ ▼
heating elements
ROTISSERIE
grill element +
rotisserie
FAN ASSISTED
upper and lower
elements + fan
BAKERS
FUNCTION
lower element +
FAN GRILL
grill element +
fan
FAN FORCED
rear heating
element + fan
fan
SUPERCOOK
rear heating
PYROLYTIC
CLEANING
element + upper
and lower
elements + fan
net weight 98kg
gross weight 104kg
storage compartment 760mmW x 450mmD x 120mmH = 41 litres
electricity supply 240 volt, 50 Hz
electrical connection hard-wired
maximum current 12.08 amps, 2.9 kW
ID090212
Code CSP19-7
Page 2
CSP19-7
smeg 90cm upright pyrolytic cooker, gas hob
1. auxiliary burner, 3.9 mj/hr: Ø12-14cm pot
2. semi-rapid burner, 7.5 mj/hr: Ø16-20cm pot
3. rapid burners, 12.0 mj/hr: Ø18-26cm pot
4. ultra-rapid wok burner, 15.0mj/hr: Ø20-26cm pot
5. small fish burner, 7.8mj/hr: use oval-shaped pan
PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specications and product sizes can be varied by the manufacturer
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
ID090212
Code CSP19-7
