CSK6B – USER MANUAL
Read carefully the safety warnings and the operating instructions of the Thermodisinfectors in which
the rack is used, together with the safety instructions of the producers of the instruments and of any
other item that have to be placed on the rack.
Badly positioned items or glass which shatters during washing may cause the inefficiency of the
process and dangerous injuries.
If necessary, washing results should be checked and subjected to non-visual inspections (eg.
Periodic validation processes).
19390410800_CSK6B-EN.docx
1
Rev. 00 - 24/01/2013
-EN- CSK6B -
1 HOW TO USE
The trolley CSK6B as stand alone trolley cannot wash surgical instruments,
For a correctly washing, in support of CSK4B, baskets restraints should always be used.
In the next pictures, the baskets proposed by SMEG
CSKDIN cod. 900018
Dimension lxpxh mm 245 x 480 x 50
CSK1 cod. 900019
Dimension lxpxh mm 450 x 450 x 55
Dimension lxpxh mm 160 x 435 x 50
CSK2 cod. 900020
The trolley CSK6B can be configured with different trays (load-carriers).
Typical configurations of the trolley:
• Configuration with n°6 baskets CSKDIN (standard size).
• Configuration with n°6 baskets CSK2.
• Configuration with n°3 baskets CSK1.
19390410800_CSK6B-EN.docx
2
Rev. 00 - 24/01/2013
-EN- CSK6B -
3
1
1
0
2
7
1

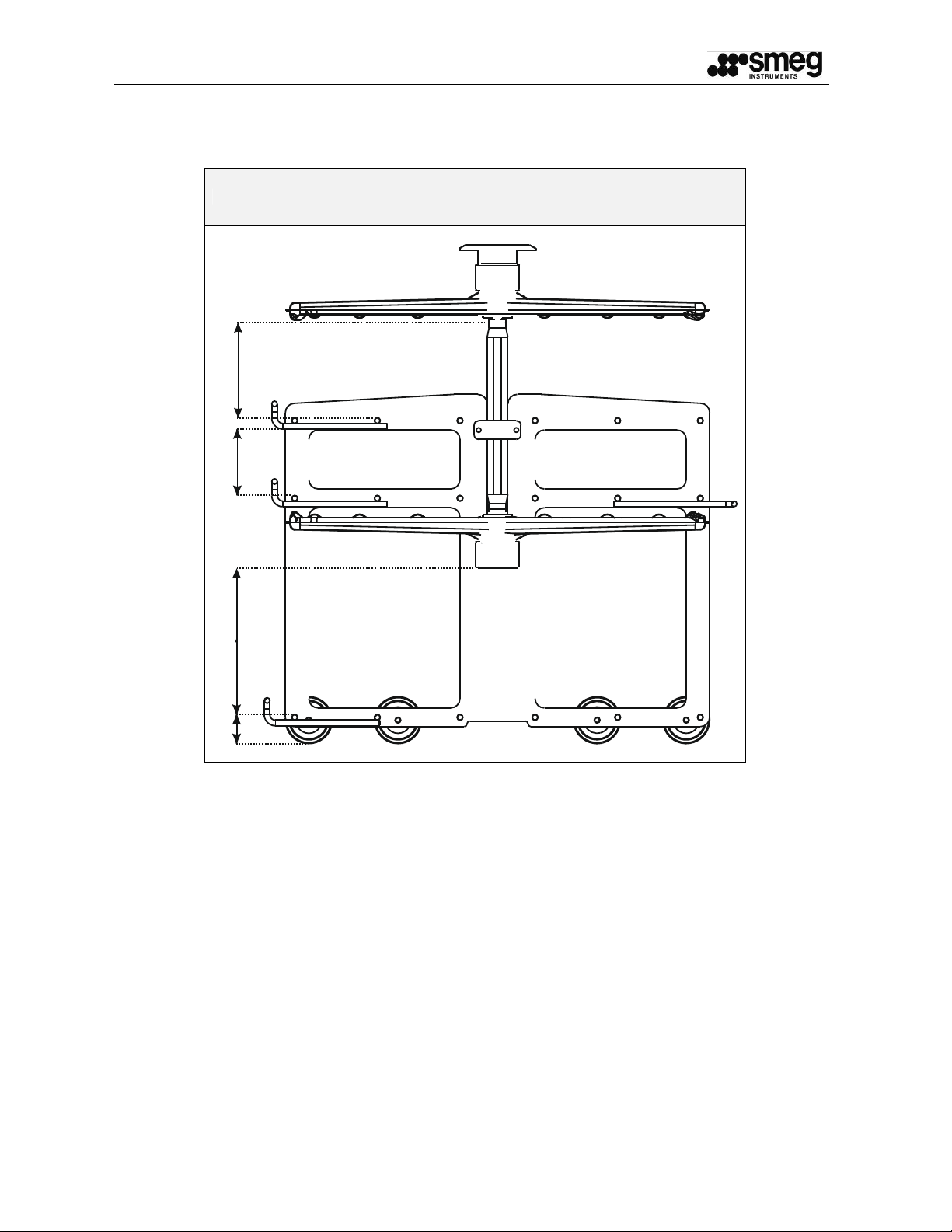

In the next pictures, the area between levels
AREA BETWEEN LEVELS CSK6B
154
19390410800_CSK6B-EN.docx
3
Rev. 00 - 24/01/2013
-EN- CSK6B -
INTERFERE
NCE
2 INITIAL OPERATION OF THE TROLLEY
2.1 Trolley spray arms
After inserting the instruments, it is very important to ensure that the spray arms are free to
rotate. Otherwise the correct washing is not guaranteed and the machine cannot report this
anomaly.

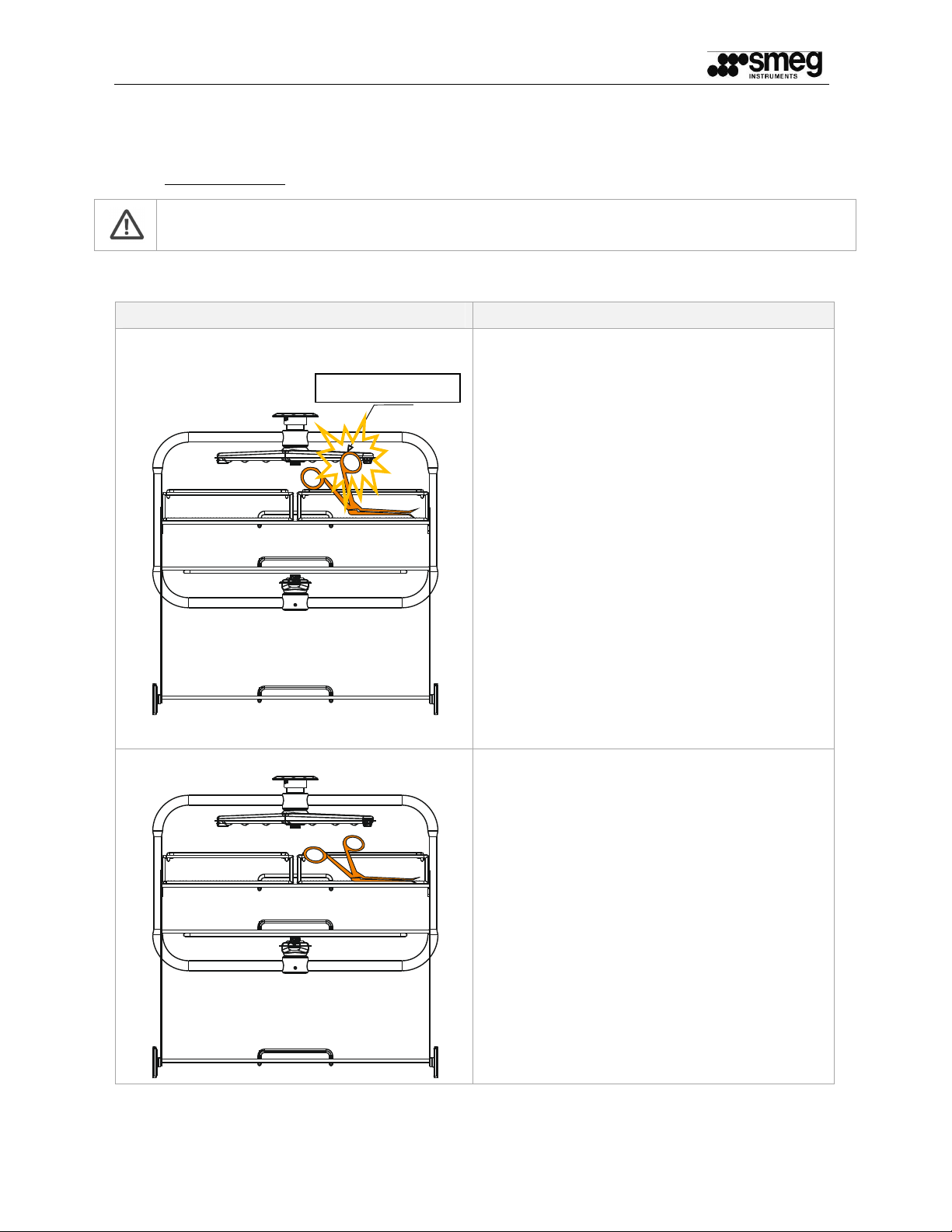

ILLUSTRATION NOTE
In the near picture, a schematic exemple for
incorrect positioning of surgical instrument.
You can see that the instrument blocks the
spray arms, with consequent bad washing.
19390410800_CSK6B-EN.docx
In the near picture, you can see a correct
positioning of surgical instrument, that don’t
stop the sprayarms.
4
Rev. 00 - 24/01/2013
-EN- CSK6B -

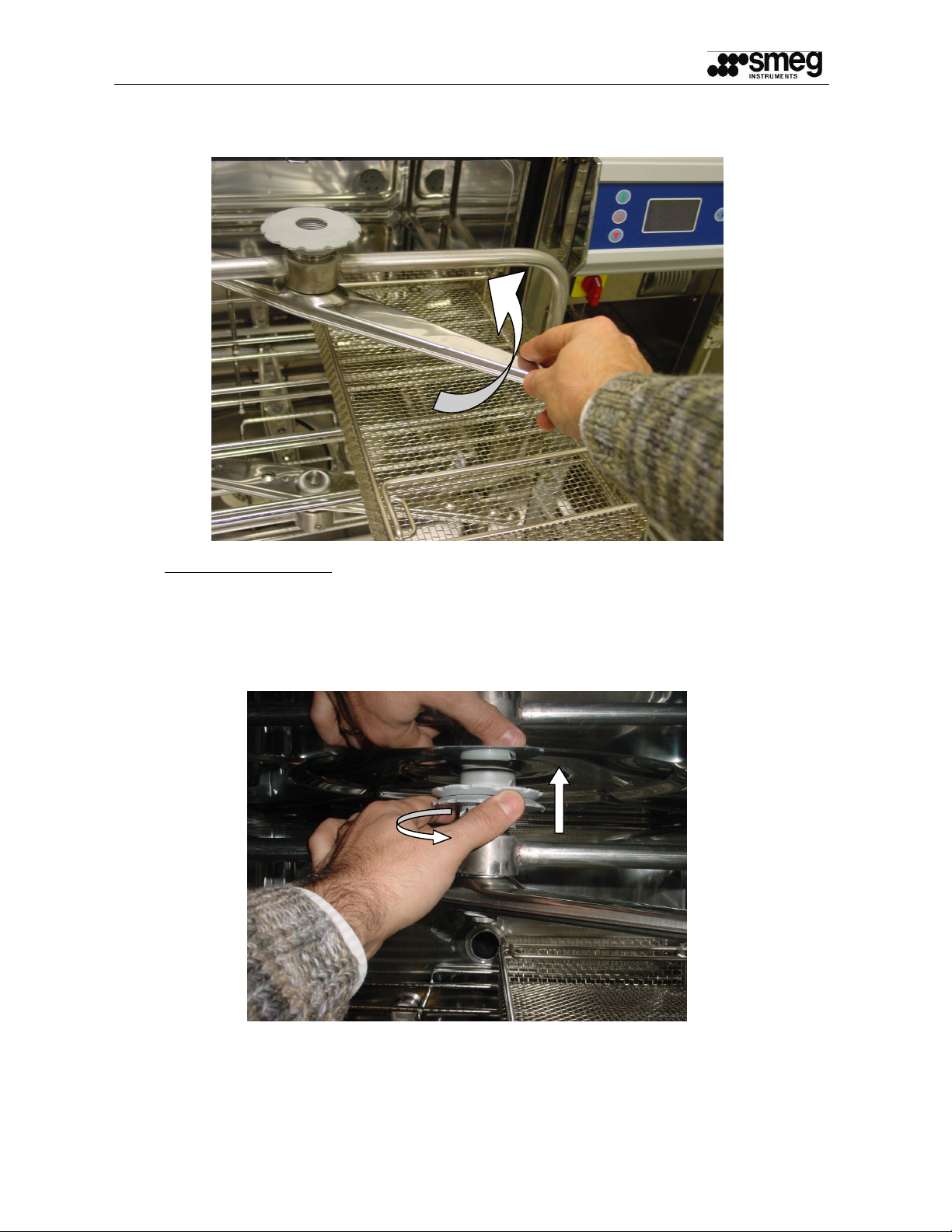

It is necessary, whenever the truck is loaded, try manually the free rotation of ALL spray arms (next
photo).
2.2 Hydraulic supply of trolley
For the correct use of the CSK6B, another important step is to check the perfect contact between the
nozzle supply trolley and that of the machine. If necessary, adjust the height by screwing / unscrewing
ONLY the nozzle trolley.
In the next picture you can see how to raise the nozzle trolley.
19390410800_CSK6B-EN.docx
5
Rev. 00 - 24/01/2013
-EN- CSK6B -
DRYER INLET
2.3 Drying surgical instruments

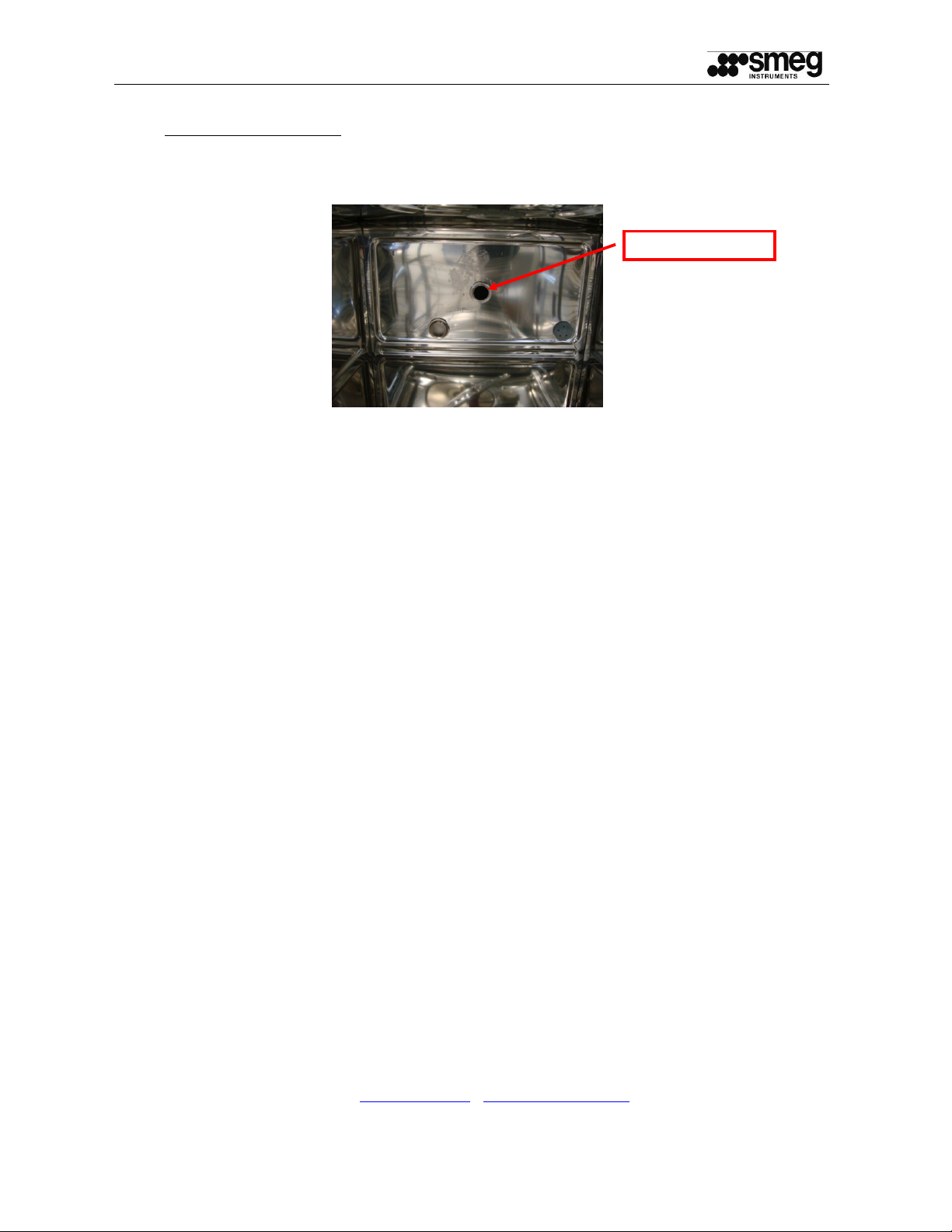

Some models of Washer-disinfectors, are provided with the drying system. You can identify by the
central hole, internally of the washer chamber. (see photo).
It’s very important that the instruments do not obstruct the air inlet. This could compromise the correct
drying of the instruments.
3
ATTENTION
For proper clearing, pay attention to this recommendations:
• A prerequisite for an effective washing, is given by the correct loading of the baskets, inserts,
holders, etc.. Articulated instruments must be positioned open.
• The baskets must not be overloaded, to allow proper rinsing of the instruments
• The large instruments should be stored in baskets in order to avoid "dead spots" that impede the
cleaning of other instruments.
• The instruments must be stored or placed, having regard to their mechanical sensitivity, so as to
avoid possible damage.
The CSK6B is a trolley for the thermal disinfection of surgical instruments, be necessary to ensure that the
tools introduced in the machine are suitable for the treatment of thermal disinfection.
Smeg S.p.A.
Via Leonardo da Vinci, 4 – 42016 Guastalla (RE) Italy
E-Mail: instruments@smeg.it – www.smeg-instruments.com
Instruments Division
Tel. +39 0522 8211 – Fax +39 0522 821 592
