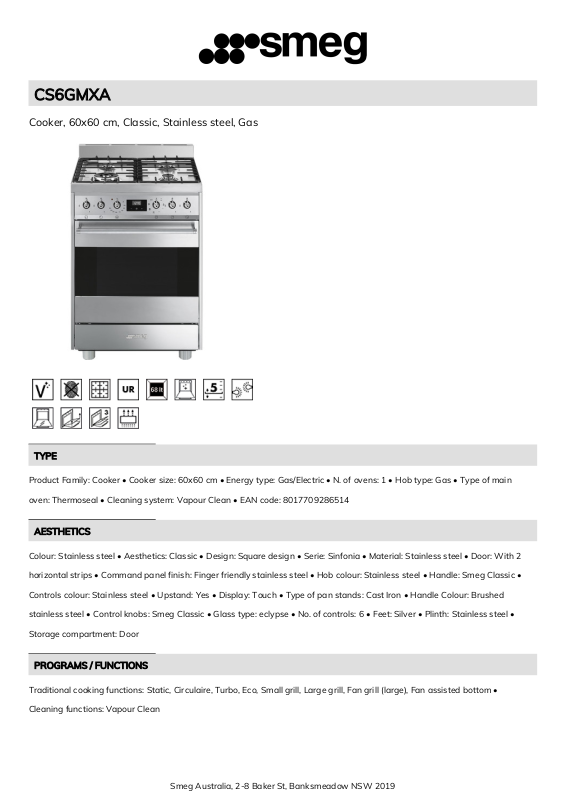

Smeg CS6GMXA Technical sheet

CS6GMXA

Cooker, 60x60 cm, Classic, Stainless steel, Gas

TYPE

Product Family: Cooker • Cooker size: 60x60 cm • Energy type: Gas/Electric • N. of ovens: 1 • Hob type: Gas • Type of main

oven: Thermoseal • Cleaning system: Vapour Clean • EAN code: 8017709286514

AESTHETICS

Colour: Stainless steel • Aesthetics: Classic • Design: Square design • Serie: Sinfonia • Material: Stainless steel • Door: With 2

horizontal strips • Command panel finish: Finger friendly stainless steel • Hob colour: Stainless steel • Handle: Smeg Classic •

Controls colour: Stainless steel • Upstand: Yes • Display: Touch • Type of pan stands: Cast Iron • Handle Colour: Brushed

stainless steel • Control knobs: Smeg Classic • Glass type: eclypse • No. of controls: 6 • Feet: Silver • Plinth: Stainless steel •

Storage compartment: Door

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Circulaire, Turbo, Eco, Small grill, Large grill, Fan grill (large), Fan assisted bottom •

Cleaning functions: Vapour Clean

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 4 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Rear right • 4th zone

position: Front right • 1st zone type: Gas - UR • 2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - Semi Rapid • 4th zone

type: Gas - AUX • 1st zone power: 4.20 kW • 2nd zone power: 1.80 kW • 3rd zone power: 1.80 kW • 4th zone power: 1.00 kW •

Type of gas burners: Standard • Burner caps: Matt black enamelled • Automatic electronic ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 68 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 1 • Light type: Halogen • Light Power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Flap

down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •

Total no. of door glasses: 3 • No.of thermo-reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential •

Grill type: Electric • Grill elememt: 1700 W • Large grill - Power: 2700 W • Lower heating element power: 1200 W • Upper

heating element - Power: 1000 W • Circular heating element - Power: 2000 W • Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Electrical connection rating: 2700 W • Voltage: 220-240 V • Frequency: 50/60 Hz • Power supply cable length: 120 cm

GAS CONNECTION

Gas connection rating (W): 9416.67 W • Gas Type: G20 Natural gas

LOGISTIC INFORMATION

Width (mm): 600 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 54.200 kg

ACCESSORIES INCLUDED

Other gas nozzles included: G30 LPG liquid gas

ACCESSORIES INCLUDED FOR MAIN OVEN & HOB

Grill mesh: 1Telescopic Guide rails, partial Extraction: 1TOP Oven grid with back stop: 1Moka stand: 1Wok stand: 120mm deep

tray: 140mm deep tray: 1
