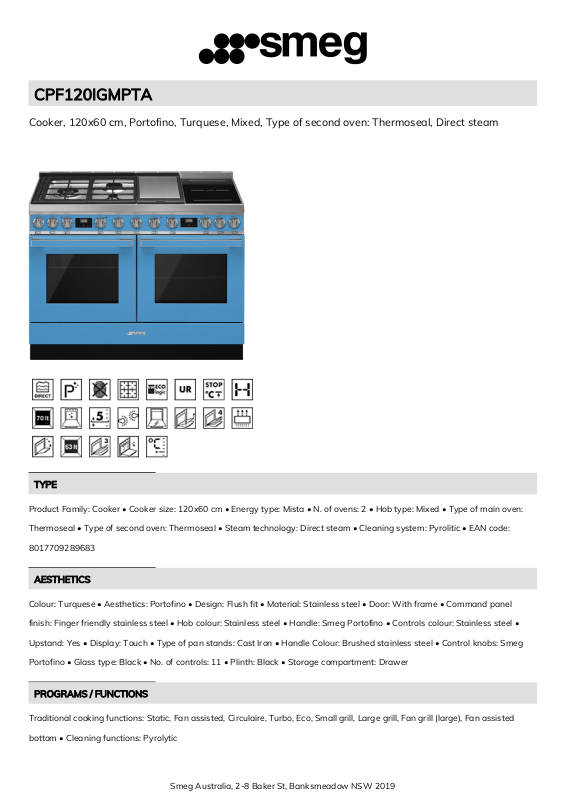

Smeg CPF120IGMPTA Technical sheet

CPF120IGMPTA

Cooker, 120x60 cm, Portofino, Turquese, Mixed, Type of second oven: Thermoseal, Direct steam

TYPE

Product Family: Cooker • Cooker size: 120x60 cm • Energy type: Mista • N. of ovens: 2 • Hob type: Mixed • Type of main oven:

Thermoseal • Type of second oven: Thermoseal • Steam technology: Direct steam • Cleaning system: Pyrolitic • EAN code:

8017709289683

AESTHETICS

Colour: Turquese • Aesthetics: Portofino • Design: Flush fit • Material: Stainless steel • Door: With frame • Command panel

finish: Finger friendly stainless steel • Hob colour: Stainless steel • Handle: Smeg Portofino • Controls colour: Stainless steel •

Upstand: Yes • Display: Touch • Type of pan stands: Cast Iron • Handle Colour: Brushed stainless steel • Control knobs: Smeg

Portofino • Glass type: Black • No. of controls: 11 • Plinth: Black • Storage compartment: Drawer

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Turbo, Eco, Small grill, Large grill, Fan grill (large), Fan assisted

bottom • Cleaning functions: Pyrolytic

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

PROGRAMS / FUNCTIONS AUXILIARY OVEN

Cooking functions cavity 2: 8 • Traditional cooking functions, cavity 2: Static, Fan assisted, Circulaire, Eco, Large grill, Fan grill

(large), Fan-assisted bottom • Cooking functions with Direct Steam technology: Termo-ventilato (Circolare + Ventola) • Cleaning

functions cavity 2: Vapour Clean

HOB OPTIONS

Multizone Option: Yes • Limited Power Consumption Mode: Yes • Limited Power Consumption Mode in W: 2800, 3700 W

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 30 °C • Maximum temperature: 280 °C

OPTIONS AUXILIARY OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 30 °C • Maximum temperature: 280 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 6 • 1st zone position: Centrale sinistra • 2nd zone position: Front centre • 3rd zone position: Rear centre

• 4th zone position: Front right • 5th zone position: Rear right • 6th zone position: Central • 1st zone type: Gas - 2UR (dual) •

2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - Rapid • 4th zone type: Induction - multizone • 5th zone type: Induction -

multizone • 6th zone type: Teppanyaki • 4th zone dimensions: 21.1x19.1 cm • 5th zone dimensions: 21.0x19.0 cm • 1st zone

power: 4.20 kW • 2nd zone power: 1.80 kW • 3rd zone power: 3.00 kW • 4th zone power: 2.10 kW • 5th zone power: 1.60 kW

• 6th zone power: 1.40 kW • 4th zone booster power: 2.30 kW • 5th zone booster power: 1.85 kW • Type of gas burners:

Standard • Burner caps: Matt black enamelled • Automatic electronic ignition: Yes • Automatic switch off when overheat: Yes •

Automatic pan detection: Yes • Minimum pan diameter indication: Yes • Selected zone indicator: Yes • Residual heat indicator:

Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 70 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 2 • Light type: Halogen • Light Power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Flap

down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •

Total no. of door glasses: 4 • No.of thermo-reflective door glasses: 3 • Door Lock During Pyrolisis: Yes • Safety Thermostat: Yes •

Cooling system: Tangential • Heating suspended when door is opened: Yes • Grill type: Electric • Grill elememt: 1700 W • Large

grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power: 1000 W • Circular heating

element - Power: 2000 W • Soft Close system: Yes • Temperature control: Electro-mechanical
