Page 1

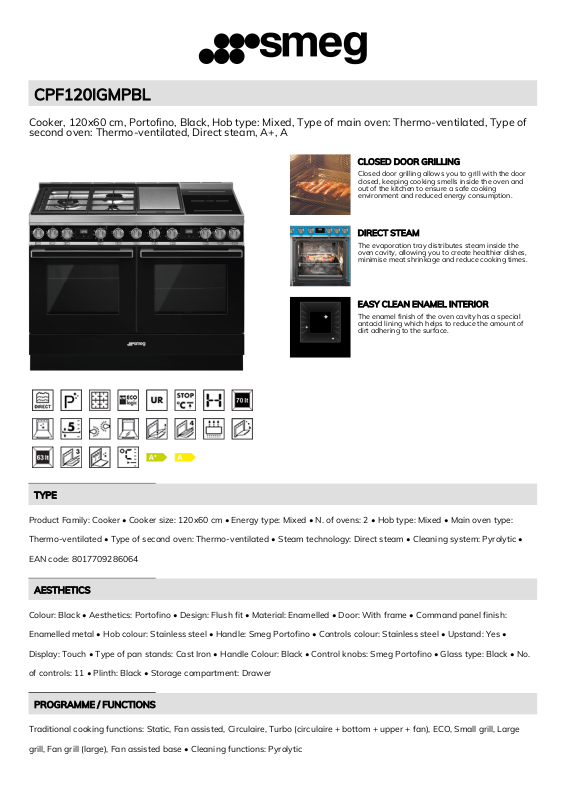

CPF120IGMPBL
Cooker, 120x60 cm, Portofino, Black, Hob type: Mixed, Type of main oven: Thermo-ventilated, Type of
second oven: Thermo-ventilated, Direct steam, A+, A
TYPE
Product Family: Cooker • Cooker size: 120x60 cm • Energy type: Mixed • N. of ovens: 2 • Hob type: Mixed • Main oven type:
Thermo-ventilated • Type of second oven: Thermo-ventilated • Steam technology: Direct steam • Cleaning system: Pyrolytic •
EAN code: 8017709286064
AESTHETICS
Colour: Black • Aesthetics: Portofino • Design: Flush fit • Material: Enamelled • Door: With frame • Command panel finish:
Enamelled metal • Hob colour: Stainless steel • Handle: Smeg Portofino • Controls colour: Stainless steel • Upstand: Yes •
Display: Touch • Type of pan stands: Cast Iron • Handle Colour: Black • Control knobs: Smeg Portofino • Glass type: Black • No.
of controls: 11 • Plinth: Black • Storage compartment: Drawer
PROGRAMME / FUNCTIONS
Traditional cooking functions: Static, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Small grill, Large
grill, Fan grill (large), Fan assisted base • Cleaning functions: Pyrolytic
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door
closed, keeping cooking smells inside the oven and
out of the kitchen to ensure a safe cooking
environment and reduced energy consumption.
DIRECT STEAM
The evaporation tray distributes steam inside the
oven cavity, allowing you to create healthier dishes,
minimise meat shrinkage and reduce cooking times.
EASY CLEAN ENAMEL INTERIOR
The enamel finish of the oven cavity has a special
antacid lining which helps to reduce the amount of
dirt adhering to the surface.
Page 2
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2: 8 • Traditional cooking functions, cavity 2: Static, Fan assisted, Circulaire, ECO, Large grill, Fan grill
(large), Fan-assisted bottom • Cooking functions with Direct Steam technology: Termo-ventilato (Circolare + Ventola) • Cleaning
functions cavity 2: Vapor Clean
HOB OPTIONS
Multizone Option: Yes • Limited Power Consumption Mode: Yes • Limited Power Consumption Mode in W: 2800, 3700 W
OPTIONS MAIN OVEN
Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 30 °C • Maximum temperature: 280 °C
OPTIONS AUXILIARY OVEN
Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 30 °C • Maximum temperature: 280 °C
HOB TECHNICAL FEATURES
Total no. of cook zones: 6 • 1st zone position: Left centre • 2nd zone position: Front centre • 3rd zone position: Rear centre • 4th
zone position: Front right • 5th zone position: Rear right • 6th zone position: Central • 1st zone type: Gas - 2UR (dual) • 2nd zone
type: Gas - Semi Rapid • 3rd zone type: Gas - Rapid • 4th zone type: Induction - multizone • 5th zone type: Induction - multizone
• 6th zone type: Teppanyaki • 4th zone dimensions: 21.1x19.1 cm • 5th zone dimensions: 21.0x19.0 cm • 1st zone power: 4.20
kW • 2nd zone power: 1.80 kW • 3rd zone power: 3.00 kW • 4th zone power: 2.10 kW • 5th zone power: 1.60 kW • 6th zone
power: 1.40 kW • 4th zone booster power: 2.30 kW • 5th zone booster power: 1.85 kW • Type of gas burners: Standard •
Burner caps: Matt black enamelled • Automatic electronic ignition: Yes • Automatic switch off when overheat: Yes • Automatic
pan detection: Yes • Minimum pan diameter indication: Yes • Selected zone indicator: Yes • Residual heat indicator: Yes
MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity: 70 litres • Cavity material: Easy clean enamel • Shelf positions: 5 • Type of shelves: Metal racks • No. of
lights: 2 • Light type: Halogen • Light power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Flap
down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •
Total no. of door glasses: 4 • No.of thermo-reflective door glasses: 3 • Door Lock During Pyrolisis: Yes • Safety Thermostat: Yes •
Cooling system: Tangential • Heating suspended when door is opened: Yes • Grill type: Electric • Grill elememt: 1700 W • Large
grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power: 1000 W • Circular heating
element - Power: 2000 W • Soft Close system: Yes • Temperature control: Electro-mechanical
Page 3
SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity: 63 litres • Cavity material: Easy clean enamel • Shelf positions: 5 • Type of shelves: Metal racks
• No. of lights: 2 • Light type: Halogen • Light power: 40 W • Cooking time setting: Start and Stop • Light when oven door is
open: Yes • Door opening: Flap down • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total
door glasses: 3 • No. thermo-reflective door glasses: 2 • Safety Thermostat: Yes • Cooling system: Tangential • Heating
suspended when door is opened: Yes • Grill type: Electric • Tilting grill: Yes • Grill element - power: 1700 W • Large grill - Power:
2700 W • Lower heating element - power: 1200 W • Upper heating element - Power: 1000 W • Soft Close system: Yes •
Temperature control: Electro-mechanical
PERFORMANCE / ENERGY LABEL
Energy efficiency class: A+ • GAS - Energy consumption in fan-forced convection, first cavity: 2.45 MJ • Energy consumption
forced air convection (kWh) first cavity: 0.68 KWh • GAS - Energy consumption conventional mode, first cavity: 3.92 MJ • Energy
consumption conventional first cavity (kWh): 1.09 KWh • Energy consumption zone 4: 180 Wh/Kg • Energy consumption zone 5:
178 Wh/Kg
PERFORMANCE /ENERGY LABEL - SECOND CAVITY
Energy efficiency class, second cavity: A • GAS - Energy consumption in conventional mode, second cavity: 4.18 MJ • GAS -
Energy consumption in conventional mode, second cavity: 1.16 KWh • GAS - Energy consumption in forced air convection,
second cavity: 2.77 MJ • GAS - Energy consumption in forced air convection, second cavity: 0.77 KWh
ELECTRICAL CONNECTION
Nominal power: 10900 W • Voltage: 220-240 V • Voltage 2 (V): 380-415 V • Frequency: 50/60 Hz
GAS CONNECTION
Gas connection rating (W): 9000 W • Gas Type: G20 Natural gas
LOGISTIC INFORMATION
Width (mm): 1200 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 156.500 kg
ACCESSORIES INCLUDED
Other gas nozzles included: G30 LPG liquid gas
ACCESSORIES INCLUDED FOR MAIN OVEN & HOB
Grill mesh: 1Telescopic Guide rails, partial Extraction: 1Top oven chrome shelf with back stop: 1Meat Probe: 120mm deep tray:
140mm deep tray: 1
Page 4
ACCESSORIES INCLUDED FOR SECONDARY OVEN
Chrome shelf with back and side stop: 1Grill mesh: 120mm deep tray: 140mm deep tray: 1Telescopic Guide rails, partial
Extraction: 1
OPTIONAL
GTT: Telescopic guides, Ovens, CookersGTP: Telescopic guides, Ovens, CookersPRTX: Pizza stone, Ovens, CookersPPR2: Pizza
stone, Ovens, CookersBGTR4110: Griddle, CookersWOKGHU: Wok support, Cookers, HobsKIT1CPF120X: Splashback, Cookers
