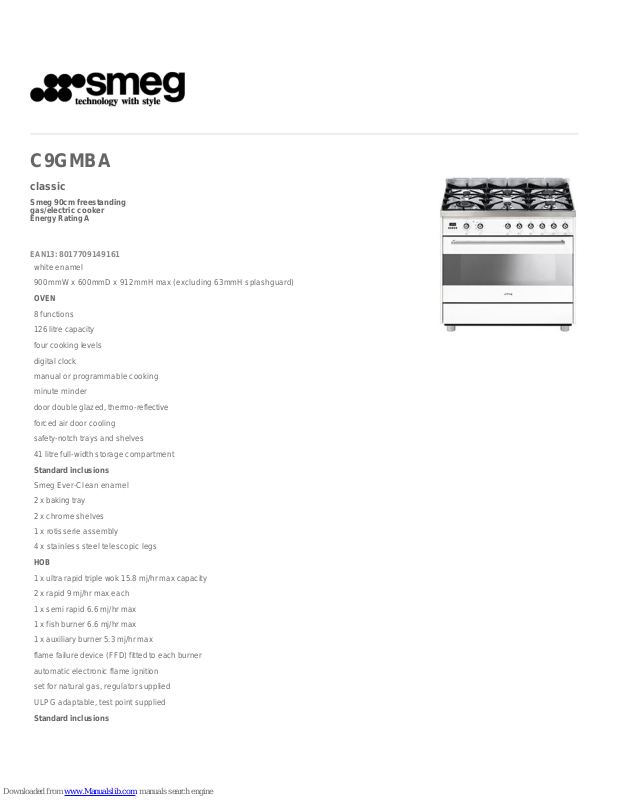

Page 1
C9GMBA
classic
Smeg 90cm freestanding
gas/electric cooker
Energy Rating A
EAN13:
8017709149161
white enamel
900mmW x 600mmD x 912mmH max (excluding 63mmH splashguard)
OVEN
8 functions
126 litre capacity
four cooking levels
digital clock
manual or programmable cooking
minute minder
door double glazed, thermo-reflective
forced air door cooling
safety-notch trays and shelves
41 litre full-width storage compartment
Standard inclusions
Smeg Ever-Clean enamel
2 x baking tray
2 x chrome shelves
1 x rotisserie assembly
4 x stainless steel telescopic legs
HOB
1 x ultra rapid triple wok 15.8 mj/hr max capacity
2 x rapid 9 mj/hr max each
1 x semi rapid 6.6 mj/hr max
1 x fish burner 6.6 mj/hr max
1 x auxiliary burner 5.3 mj/hr max
flame failure device (FFD) fitted to each burner
automatic electronic flame ignition
set for natural gas, regulator supplied
ULPG adaptable, test point supplied
Standard inclusions
Page 2
heavy
-duty cast-iron trivets for full gas hob cover
warranty
two years parts and labour
Functions
Main Oven
Smeg Australia
2 Baker ST , Banksmeadow
NSW 2019
Tel. 8667 4888
Fax 8667 4800
Page 3
C9GMBA
classic
electric oven, gas cooktop
90 cm
white
Main Oven
Convection (perimeter roof element+ floor element):
A gentle heat for long slow cooking of fruit cakes, casseroles & slow roasts. Single level cook using the middle zone of the oven to
achieve perfect results.
Static Grill (perimeter roof element + inner roof element) :
Radiant heat is directed straight onto the top of your food. Use this function for toast, cheese melts, focaccia etc. Turn to this function
toward the end of cooking if the food requires additional top browning. Oven door must be closed while grilling.
Base Heat (concealed floor element only):
Choose Base Heat for crisp pastry or any dish needing a higher base temperature. Base Heat will also keep a full oven hot without
overcooking. Snowy white crisp Pavlova is easily achieved with this function.
Supercook (fan+perimeter roof element+floor element+circular rear element):
Faster preheating. Perfect for roasting; after the meat is removed from the oven to rest, turn the temperature up to 220˚C for the best
roast potatoes.
Fan Grill (fan+perimeter roof element+inner roof element):
High power full width grilling producing succulent grilled meat, chicken or fish, while at the same time baking vegetables & dessert
below. Also great for chips. With this function both top elements are being used. The oven door must be closed while grilling.
Defrost (fan only):
Defrost your frozen food without changing the appearance or character of the food with this fan assisted function. Choose length of
defrost time by selecting a weight or a time.
Fan Forced (fan + circular rear element):
This versatile function is ideal for baking and roasting large quantities of food. It allows you to use every shelf position, including the
oven floor, because the heat source is from the back of the oven.
Full Rotisserie (rotisserie+perimeter roof element+inner roof element):
Works with the grill element to cook and brown food to perfection. A tray of vegetables beneath the rotisserie, basted by delicious
juices from above, is a meal not to be missed. Oven door must be closed while cooking.
Smeg Australia
2 Baker ST , Banksmeadow
NSW 2019
Tel. 8667 4888
Fax 8667 4800
