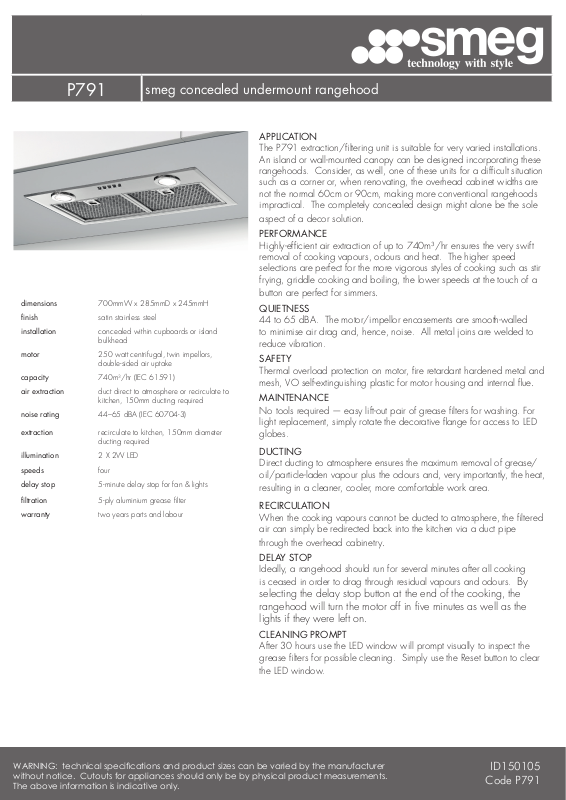

Smeg CLASSIC791SS, FOODIEPACK Specifications Sheet
P791
dimensions 700mmW x 285mmD x 245mmH
finish satin stainless steel
installation concealed within cupboards or island
bulkhead
motor 250 watt centrifugal, twin impellors,
double-sided air uptake
capacity 740m3/hr (IEC 61591)
air extraction duct direct to atmosphere or recirculate to
kitchen, 150mm ducting required
noise rating 44–65 dBA (IEC 60704-3)
extraction recirculate to kitchen, 150mm diameter
ducting required
illumination 2 X 2W LED
speeds four
delay stop 5-minute delay stop for fan & lights
filtration 5-ply aluminium grease filter
warranty two years parts and labour
smeg concealed undermount rangehood
APPLICATION
The P791 extraction/filtering unit is suitable for very varied installations.
An island or wall-mounted canopy can be designed incorporating these
rangehoods. Consider, as well, one of these units for a difficult situation
such as a corner or, when renovating, the overhead cabinet widths are
not the normal 60cm or 90cm, making more conventional rangehoods
impractical. The completely concealed design might alone be the sole
aspect of a decor solution.
PERFORMANCE
Highly-efficient air extraction of up to 740m³/hr ensures the very swift
removal of cooking vapours, odours and heat. The higher speed
selections are perfect for the more vigorous styles of cooking such as stir
frying, griddle cooking and boiling, the lower speeds at the touch of a
button are perfect for simmers.
QUIETNESS
44 to 65 dBA. The motor/impellor encasements are smooth-walled
to minimise air drag and, hence, noise. All metal joins are welded to
reduce vibration.
SAFETY
Thermal overload protection on motor, fire retardant hardened metal and
mesh, VO self-extinguishing plastic for motor housing and internal flue.
MAINTENANCE
No tools required — easy lift-out pair of grease filters for washing. For
light replacement, simply rotate the decorative flange for access to LED
globes.
DUCTING
Direct ducting to atmosphere ensures the maximum removal of grease/
oil/particle-laden vapour plus the odours and, very importantly, the heat,
resulting in a cleaner, cooler, more comfortable work area.
RECIRCULATION
When the cooking vapours cannot be ducted to atmosphere, the filtered
air can simply be redirected back into the kitchen via a duct pipe
through the overhead cabinetry.
DELAY STOP
Ideally, a rangehood should run for several minutes after all cooking
is ceased in order to drag through residual vapours and odours. By
selecting the delay stop button at the end of the cooking, the
rangehood will turn the motor off in five minutes as well as the
lights if they were left on.
CLEANING PROMPT
After 30 hours use the LED window will prompt visually to inspect the
grease filters for possible cleaning. Simply use the Reset button to clear
the LED window.
WARNING: technical specications and product sizes can be varied by the manufacturer
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
ID150105
Code P791
P791
smeg concealed undermount rangehood
PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specications and product sizes can be varied by the manufacturer
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
