ASSEMBLY INSTRUCTIONS FOR BUILT-IN WASHING MACHINES
IMPORTANT - This machine complies with current safety regulations governing electrical appliances and, to ensure user safety, it must be installed by a
qualified technician as required by current legislation
Size of cabinet The minimum dimensions of the cabinet are: height 820 mm,
width 600 mm, depth 584 mm (fig. 1).
Applying the
panel
Important! Before fitting the panel (removing all the hinge
Warning - To fix the panel on the right-hand side (direction of
Using the template
The panel may be attached to the left- or right-hand side of the
washing machine (fig. 2)
The machine is supplied fitted for a left-hand side panel attachment as the right-hand side is fitted with the push-pull lock
(upper part) and the rubber pad (lower part).
Should you wish to use the magnetic lock instead of the pushpull lock, remove the push-pull lock support and fit the supplied
magnetic lock support.
and locking elements from the front) make sure the washing machine is totally disconnected from the mains power
supply.
opening opposite to that of the door) dismount the push-pull
lock (or the magnet lock) from the front of the machine and the
rubber pad (fig. 3-A) and fit them on the opposite side (fig. 3-
B).
All the elements applied to the front of the washing machine
must be remounted correctly (no holes must remain open) in
order to make it impossible to touch live components inside the
machine.
Our company declines all liability for failure to observe the
above safety requirement.
1) Measure the height of the kitchen baseboard: the height of
E.g.: for a 100 mm high baseboard, the maximum height of
the wooden panel is obtained by first establishing the height
of the kitchen baseboard.
the panel is 720 mm. If the height of the baseboard must be
increased, the height of the wooden panel must be reduced.
4
Page 3
Applying the
panel elements
and fixing the
panel
Adjusting the
hinges
Positioning the
washing machine in the
cabinet

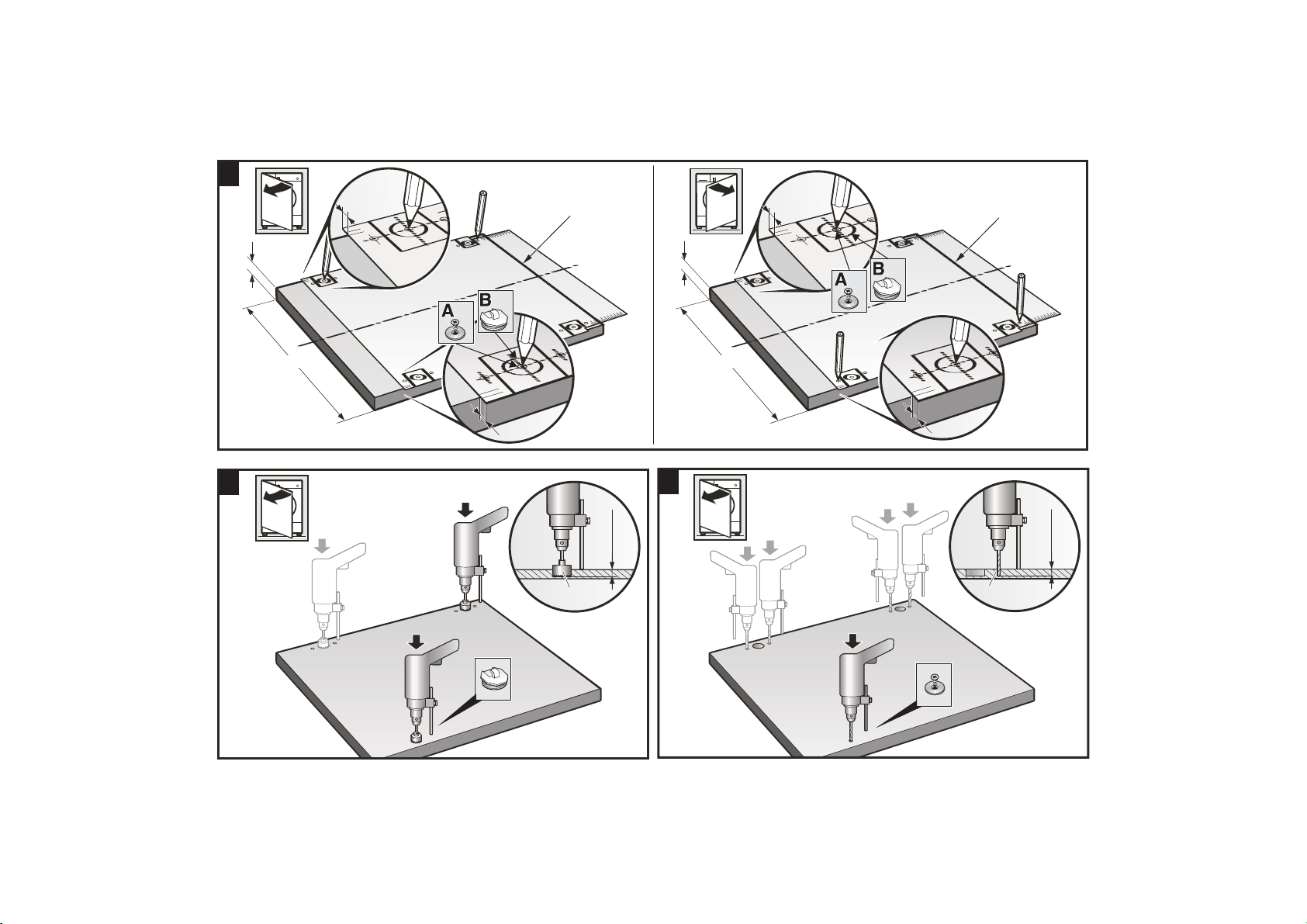

Place the template of the inner side of the panel and match the
height of the baseboard with the lower edge of the panel (fig. 4)
using the graduated scale. Make sure the template is horizontally centred with reference to the vertical lines marked at the
ends.
After placing the template in the correct position, trace the positions of the following holes, pushing in with the tip of your pencil:
• holes for the hinges and hinge screws (fig. 4)
•
holes for fixing the metal plate (if the magnetic lock is
used), or the hook for the push-pull lock (fig. 4, A - B)
1) Drill the holes for the hinges (fig. 5), the hook for the pushpull lock (fig. 5), or the metal plate if you decide to use the
magnetic lock (fig. 6), and the holes for fixing the hinges
(fig. 6).
2) The 13 mm depth of the 2 mm holes, for fixing the hinges
and a metal plate for the magnet lock, only applies to the
solid wood panel. For the chipboard panel, simply drill the
upper coating – fig. 6.
3) Screw the two hinges to the panel (fig. 7)
4) Mount the hook for the push-pull lock or the metal plate for
the magnet lock on the side opposite the hinges (fig. 7).
5) Fix the panel to the washing machine following the instructions shown in fig. 8.
If, after applying the panel to the washing machine, it is slightly
inclined or off-centre with respect to the front of the machine,
correct its position by adjusting the mobile part of the hinges
(fig. 9).
Position the washing machine in the cabinet and, if necessary,
adjust the feet to level it and lock them with the relative locknut.
To prevent the vibrations generated by the washing machine
from being transmitted to the cabinet, make sure the sides and
top do not touch the cabinet. There must be a gap of at least
2 mm. The back of the machine must also remain detached
from the rear panel.
If the cabinet is 870 mm high, the washing machine heightening kit on sale from the Spare Parts Service, must be
used.
To comply with safety legislation, any gaps between the floor
and the bottom of the baseplate and between the floor and the
sides of the machine when it is positioned at the end of a line of
furniture must be completely closed.
The cover must be installed in such a way as to make it
impossible to touch live components and a tool must be
5
Page 4
Applying the
baseboard
required to remove it.
Our company declines all liability for failure to observe the
above safety requirement.
It must be possible to remove the continuous kitchen baseboard
to allow the drain pump to be cleaned if necessary.
In some cases, the baseboard is not continuous but limited to
the width of the washing machine. In this case, the kitchen
baseboard can be fixed to the washing machine baseboard with
4 screws, respecting the 4 reference marks (see fig. 9-10-11).
When applying the kitchen baseboard, the washing machine baseboard may not be removed or adapted as, for
reasons of safety, it must remain as it is, in one piece and
fixed to the washing machine.
6
Page 5
1
!
!
820mm
!
!
2
820mm
150mm
16mm
595mm
AB
560mm
70mm
70mm
ca. 75kg
9
Page 6
3
3-A
22
11
33
C
22
88
77
9
33
5
44
-
B
A
C
C
66
55
77
88
B
11
33
A
22
-
B
A
44
D
C
66
1111
D
3
232
4
1010
11
12
12
99
3-B
545
Page 7
4
16...21mm
Unterkante
Lower edge
ee
Côté inférieur
Lato inferiore
Lado inferior
Onderkant
9
16...21mm
ee
Unterkante
Lower edge
Côté inférieur
Lato inferiore
Lado inferior
Onderkant
592...595mm
5
592...595mm
ee
ee
6
13mm13mm
Ø 35mmØ 35mm
13mm13mm
Ø 2mmØ 2mmØ 2mm
Page 8
7
2
8
2
9
?
1
33
11
22
11
3
4
5
6
22
11
33
Page 9
9
11
10
