Precautions for Use
1. PRECAUTIONS FOR USE
THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE: TAKE GOOD CARE OF IT
AND KEEP IT TO HAND THROUGHOUT ITS LIFE CYCLE.
WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT CONTAINS CAREFULLY
BEFORE USING THE PRODUCT. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED STAFF
IN COMPLIANCE WITH THE RELEVANT REGULATIONS. THIS APPLIANCE IS INTENDED FOR
HOUSEHOLD USE OUTDOORS, AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN
FORCE. THE APPLIANCE IS BUILT TO PROVIDE THE FOLLOWING FUNCTION: COOKING AND
HEATING FOODS; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN THOSE STATED
ABOVE.
NEVER USE THIS APPLIANCE FOR HEATING ROOMS.
NEVER LEAVE PACKAGING RESIDUES UNATTENDED IN THE HOME. SEPARATE THE VARIOUS
PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST SEPARATE
DISPOSAL CENTRE.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND HEAT
DISPERSAL ON THE SIDES AND REAR OF THE APPLIANCE.
THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK IS IN A VISIBLE
POSITION ON THE REAR OF THE APPLIANCE.
THE NAMEPLATE MUST NEVER BE REMOVED.
NEVER LEAVE THE APPLIANCE UNATTENDED DURING USE.
NEVER USE METAL SCOURING PADS OR SHARP SCRAPERS ON THE OUTSIDE
SURFACES; THEY WILL DAMAGE THEM.
USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT
CLOTH OR CHAMOIS LEATHER.
NEVER USE HIGH-PRESSURE JET CLEANERS TO CLEAN THE APPLIANCE; THE POWER OF THE
WATER JET MIGHT DAMAGE THE APPLIANCE, REDUCING ITS SAFETY LEVEL AND CAUSING
UNSIGHTLY FLAWS.
The manufacturer declines all responsibility for injury or damage caused by failure to comply
with the above regulations or deriving from tampering with even just one part of the appliance
and the use of non-original spare parts.
23
Disposal Instructions
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY
Our products are only packaged using non-pollutant, environment-friendly, recyclable materials. We urge
you to cooperate by disposing of the packaging properly. Contact your local dealer or the competent
local organisations for the addresses of collection, recycling and disposal facilities.
Never leave all or part of the packaging lying around. Packaging parts, and especially plastic bags, may
represent a suffocation hazard for children.
Your old appliance must also be disposed of properly.
Important: deliver the appliance to your local organisation authorised to collect scrapped appliances.
Proper disposal allows the intelligent recovery of valuable materials.
24
Safety Precautions
3. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC
OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTEREST AND TO ENSURE YOUR SAFETY, BY LAW ALL ELECTRIC APPLIANCES MUST
ONLY BE INSTALLED AND SERVICED BY QUALIFIED STAFF, IN ACCORDANCE WITH THE
RELEVANT REGULATIONS.
OUR APPROVED INSTALLATION ENGINEERS GUARANTEE YOU A JOB WELL DONE.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED
PEOPLE.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, THE PROTECTIVE FILMS APPLIED INSIDE
OR OUTSIDE MUST BE REMOVED.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE
FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. IF THE APPLIANCE FAILS
TO OPERATE, CONTACT YOUR NEAREST SERVICE CENTRE. NEVER ATTEMPT TO REPAIR THE
APPLIANCE.
THIS PRODUCT IS SET IN THE FACTORY TO USE LPG GAS SOLD IN SUITABLE CYLINDERS BY
AUTHORISED DEALERS. IF USE OF ANOTHER TYPE OF GAS SHOULD BECOME NECESSARY,
CONTACT YOUR NEAREST AUTHORISED SERVICE CENTRE.
EVEN IF APPARENTLY EMPTY, GAS CYLINDERS MUST ALWAYS BE HANDLED WITH CARE IN
ACCORDANCE WITH THE SAFETY REGULATIONS SUPPLIED WITH THE INSTRUCTIONS.
NEVER USE ANY GAS CYLINDER IF DENTED OR RUSTY.
NEVER USE A NAKED LIGHT TO CHECK THAT GAS IS FLOWING FROM THE BURNERS
PROPERLY, OR TO LOOK FOR GAS LEAKS IN THE APPLIANCE.
NEVER STORE A SPARE GAS CYLINDER CLOSE TO THE APPLIANCE.
NEVER DISCONNECT THE GAS CYLINDER FROM THE APPLIANCE WHILE IT IS IN OPERATION
AND ALWAYS PERFORM ANY PROCEDURE ON THE GAS CYLINDER WELL AWAY FROM THE
APPLIANCE.
IF REPLACING THE GAS CYLINDER, MOVE AWAY FROM ANY POSSIBLE IGNITION SOURCE.
NEVER PLACE PANS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND SMOOTH ON THE
BARBECUE GRIDS.
DURING USE, THE APPLIANCE BECOMES VERY HOT; PROTECTIVE GLOVES SHOULD BE
WORN TO PREVENT THE RISK OF BURNS.
NEVER USE PANS OR GRIDDLE PLATES WHICH PROJECT BEYOND THE OUTSIDE EDGE OF
THE BARBECUE.
NEVER PLACE FLAMMABLE OBJECTS OR MATERIALS ON THE APPLIANCE: IF IT SHOULD
ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.
THE APPLIANCE BECOMES VERY HOT DURING USE. TAKE CARE NEVER TO TOUCH THE
HEATING ELEMENTS INSIDE THE APPLIANCE.
ALWAYS KEEP HOLD OF THE LID (WHERE FITTED) WHEN LOWERING IT.
OBSERVE THE THERMOMETER PROVIDED ON THE LID: WHEN THE READING EXCEEDS 300°C
(RED ZONE) THE LID MUST BE RAISED TO PREVENT DANGEROUS OVERHEATING.
25
Safety Precautions
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. KEEP CHILDREN AT A SAFE DISTANCE
AND NEVER ALLOW THEM TO PLAY WITH IT.
WHEN THE APPLIANCE IS IN OPERATION, ACCESSIBLE PARTS MAY BECOME VERY HOT: KEEP
CHILDREN AT A SAFE DISTANCE.
AFTER EACH USE, ALWAYS CHECK THAT THE CONTROL KNOBS ARE TURNED TO THE (OFF)
POSITION.
NEVER USE THIS APPLIANCE INDOORS OR INSIDE CARS, TRAILERS, CAMPING VANS OR
CARAVANS.
WHEN HOOKING UP THE APPLIANCE TO THE CYLINDER, USE ONLY THE FITTINGS AND
REGULATORS SUPPLIED WITH THE APPLIANCE. THESE PRODUCTS ARE ALSO AVAILABLE
FROM OUR AUTHORISED SERVICE CENTRES. USING ANY OTHER PRODUCTS CAN
SERIOUSLY COMPROMISE THE SAFETY OF THE APPLIANCE.
IF THE BARBECUE HAS BEEN OUT OF USE FOR SOME TIME, BEFORE REUSING IT CHECK THAT
THE GAS OUTLET HOLES ARE NOT CLOGGED WITH DUST OR SPIDER'S WEBS.
FOR THE CORRECT PROCEDURE, SEE POINT “12.2.2 THE BURNERS”.
THIS APPLIANCE MAY ONLY BE USED OUTDOORS WITH NATURAL VENTILATION, OUTSIDE
ENCLOSED AREAS, WHERE ANY GAS LEAKS AND COMBUSTION PRODUCTS CAN BE RAPIDLY
DISPERSED BY THE WIND AND NATURAL AIR CONVECTION.
NEVER USE THE APPLIANCE OUTDOORS IN CASE OF BAD WEATHER. ANY CONTACT WITH
WATER MIGHT SERIOUSLY DAMAGE THE APPLIANCE AND PUT ITS SAFETY AT RISK.
ONLY LIGHT THE BURNERS WITH THE LID (WHERE FITTED) RAISED.
DURING COOKING, TAKE CARE NOT TO OBSTRUCT THE FAT DRAINAGE HOLE IN THE FRONT
OF THE APPLIANCE. IF NECESSARY, CLEAN IT THOROUGHLY WITH THE AID OF A WOODEN
OR PLASTIC UTENSIL.
THESE INSTRUCTIONS ONLY APPLY TO THE COUNTRIES OF DESTINATION WHOSE
IDENTIFICATION SYMBOLS ARE LISTED ON THE COVER OF THIS MANUAL.
The manufacturer declines all responsibility for injury or damage caused by failure to comply with the
above regulations or deriving from tampering with even just one part of the appliance and the use of nonoriginal spare parts.
26
Instructions for the User
4. INTENDED USE OF THE APPLIANCE
The appliance is specifically constructed for domestic use outdoors and is therefore suitable for
cooking and heating foods. The appliance has not been designed or manufactured for professional use.
Smeg declines all responsibility for damage deriving from improper use of the appliance.
THIS APPLIANCE MAY ONLY BE USED OUTDOORS WITH NATURAL VENTILATION, OUTSIDE
ENCLOSED AREAS, WHERE ANY GAS LEAKS AND COMBUSTION PRODUCTS CAN BE
RAPIDLY DISPERSED BY THE WIND AND NATURAL AIR CONVECTION.
4.1 Examples of outdoor use
Any enclosed areas in which the appliance is placed must be structured as
follows:
• An area with walls on all sides, but at least one permanent opening at ground
level and no roof.
• Inside an enclosed area with a roof but no more than two walls.
• Inside a partially enclosed area with a roof but no more than two walls
provided the following conditions are met:
At least 25% of the total wall area must be completely open.
At least 30% of the remaining area must be open and unrestricted.
• In the case of patios, at least 20% of the total wall area, front and back, must
be open.
27
Instructions for the User
5. GETTING TO KNOW YOUR APPLIANCE
BQ61S BQ61
BQ91S BQ91
CONTROL
PA NE L
IGNITION
BUTTON
DRIPPING
PA N
HEAT
DISPERSAL
VENTS
GRIDS
LID
AUXILIARY
BURNER
RAPID
BURNER
BURNER
GRID
BQ6130S BQ6130
28
Instructions for the Installer
6. BEFORE INSTALLATION
Never leave packaging residues unattended in the home. Separate waste packaging materials by type
and consign them to the nearest separate disposal centre.
The inside of the appliance should be cleaned to remove all manufacturing residues. For further
information about cleaning, see point 12. CLEANING AND MAINTENANCE.
The product's place of installation should be chosen with care:
1 it must not be too dusty: over time, dust might clog the burners, making the appliance dangerous to
use;
2 it must offer some protection against wind: too much wind during use might prevent the appliance
from functioning correctly;
3 when the appliance is installed on its trolley, it must be placed on a flat, level surface to ensure it is
level and stable.
7. INSTALLATION
This product may be installed in free-standing mode, on a small table or shelf, or built into a masonry or
wooden structure (see “7.3 Built-in installation”). Otherwise, it may be installed on a special trolley
available for separate purchase.
In all cases, the instructions provided below must be complied with.
7.1 Free-standing installation
The barbecue comes complete with 4 feet to be screwed into its four corners.
After fitting these feet and making sure the appliance is level, simply place it on any flat surface and it is
ready for use.
Never use the appliance if the feet
supplied are not screwed properly into
place.
This would cause an overheating
hazard which might put the user's
safety at risk and damage the
appliance's appearance.
The only circumstances in which the
feet provided must not be fitted is when
the appliance is installed on its trolley.
7.2 Trolley-mounted installation (optional)
For easier handling, the barbecue can be mounted on a trolley (optional). Make sure that the appliance
is correctly positioned on the trolley and fix it in place with the screws provided. For more information on
this type of installation, refer to the instructions supplied with the trolley.
29
Instructions for the Installer
7.3 Built-in installation
After screwing the 4 feet supplied into place, the barbecue can be installed in compliance with the
dimensions supplied and the instructions below.

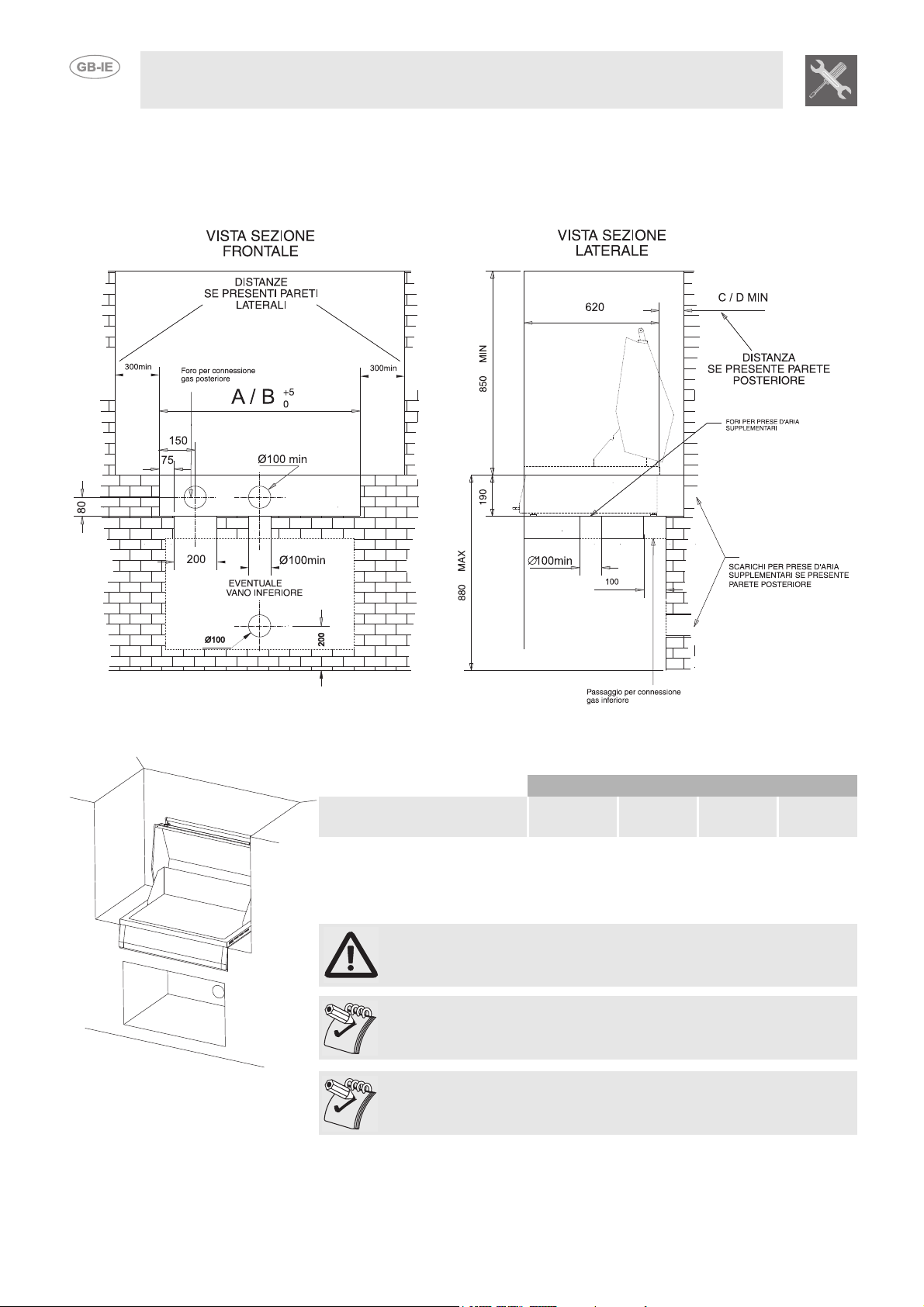

BARBECUE BUILT-IN INSTALLATION DIMENSIONS
MODELS
MATERIAL
NON-COMBUSTIBLE
COMBUSTIBLE
Smaller gaps may put the structure and the user at risk.
The gas cylinder may be accessed through a hole made in the structure
(taking care to protect the edge of the hole to avoid damaging the gas
connection hose).
For additional safety guarantees when installing on combustible material,
use of the built-in installation kit code 901719 (mod. 60cm) / code 901720
(mod. 90cm) available from our service centres is recommended.
DIMENSION
A 610 910 910
C 150 150 150
B 620 920 920
D 200 200 200
BQ61
BQ61S
BQ91
BQ91S
BQ6130
BQ6130S
30
Instructions for the Installer
7.4 Connecting the gas cylinder to the appliance
All the adjustments necessary to allow the appliance to function correctly are made in the factory. The
only procedure required for correct operation is connection of the hose supplied with the appliance, as
described below.
This product is designed to use only LPG gas sold in suitable cylinders obtainable from specialist
outlets. The appliance comes complete with a rubber hose with pressure regulator and unions. The
pressure regulator is preset in the factory to ensure the appliance functions to the highest standards.
The diagram below shows how to connect the hose supplied to the product and the gas cylinder.
The product leaves the factory set to operate on LPG. If it should become necessary to change the type
of gas and thus the nozzle diameter, contact your nearest authorised service centre.
The appliance can be set to operate on NATURAL GAS. Contact your nearest authorised service
centre.
If the appliance does not function to your satisfaction, DO NOT ATTEMPT TO REPAIR IT YOURSELF;
contact your nearest authorised service centre.
The hose must be fitted or replaced (check its expiration date periodically) in compliance with the
relevant regulations.
7.5 Burner, Nozzle and Gas Consumption Data Tables
Rated heat
Burner
Left 3.0 80 75 1800 218 214
Left central
(BQ91S - BQ91)
Central 3.0 80 75 1800 218 214
Right central
(BQ91S - BQ91)
Right 3.0 80 75 1800 218 214
Rapid (BQ6130 - S) 3.0 85 45 800 218 214
Auxiliary (BQ6130 - S) 1.05 50 30 400 76 75
capacity
(kW)
Nozzle
diameter
1/100 mm
3.0 80 75 1800 218 214
3.0 80 75 1800 218 214
Bottled gas – G30/G31 30/37 mbar
By-pass
1/100 mm
Reduced heat
capacity
(W)
Capacity
g/h G30
Capacity
g/h G31
7.6 Check for any gas leaks
These procedures must be carried out the first time the barbecue is connected and whenever the
gas supply is disconnected and reconnected.
Once the barbecue hose has been connected to the gas supply (LPG), proceed as follows:
1 Open the gas valve on the LPG cylinder, BUT DO NOT ATTEMPT TO LIGHT THE BURNERS. 2 While there is gas pressure in the hose, check all the connections for leaks using a soap and water
solution. NEVER CHECK FOR LEAKS WITH A NAKED LIGHT.
3 If there are any leaks, bubbles will appear on the poor connection from which gas is escaping. 4 Turn off the cylinder gas tap, tighten the connection which was leaking and repeat the test. 5 If the gas leaks persist, contact your nearest supplier.
31
Instructions for the User
8. THE CONTROL PANEL
All the appliance's control and monitoring devices are placed together on the front panel. The table
below provides the key to the symbols used.
BQ61 - BQ61S
STANDARD RANGE
ELECTRONIC IGNITION BUTTON RIGHT / CENTRAL BURNER IGNITION
LEFT BURNER IGNITION KNOB RIGHT BURNER IGNITION KNOB
LEFT / CENTRAL BURNER IGNITION
KNOB
CENTRAL BURNER IGNITION KNOB RAPID BURNER IGNITION KNOB
BQ6130 - BQ6130S
BQ91 - BQ91S
KNOB
AUXILIARY BURNER IGNITION KNOB
32
Instructions for the User
BURNER CONTROL KNOB
These knobs can be used to light the burners inside the barbecue.
To light the flame, proceed as described in point “9.3.1 Electronic burner
ignition”. Burners can also be lit by hand; see point “9.3.2 Manual burner
ignition (for internal burners only)” for further details.
AUXILIARY / RAPID BURNER CONTROL KNOB (Models BQ6130 - BQ6130S only)
These knobs can be used to light the Auxiliary or Rapid
side burners. These burners are useful for conventional
cooking or for keeping barbecued food hot.
To light the flame, proceed as described in point “9.3.1
Electronic burner ignition”.
This appliance is not fitted with a safety valve for internal burners. It therefore must never be left
unattended when in operation. If you notice that the flames have gone out, turn the knobs to the OFF
position AT ONCE and wait a few minutes before attempting to ignite the burners again.
The lid (if fitted) must always be kept open while the burners are being lit. It can be lowered once they
have ignited and must be raised as soon as the thermometer fitted on it reaches 300°C. Take care not to
obstruct the combustion gas outlet flue in the back of the lid.
When the appliance is used for the first time, operate all the burners for 15 minutes with nothing on them
and with the lid (where fitted) open to burn off any oils and manufacturing residues.
WARNING: TO PREVENT COMBUSTION OF RESIDUE FROM PREVIOUS USE OF THE
BARBECUE, CLEAN THE DRIPPING PAN, BURNER COMPARTMENT, CERAMIC PLATES AND
THE BURNERS THEMSELVES BEFORE EACH USE.
33
Instructions for the User
9. USING THE BARBECUE
9.1 Fitting and changing the battery
Some models in this product range have a compartment to take one 1.5 V AA
PENCIL battery to supply the burner ignition plugs.
To fit or change the battery, follow the instructions provided below, referring to
the diagram:
• remove the dripping pan;
• access the battery compartment through the opening in the front panel
(see diagram);
• unscrew the cap A and remove the seal B;
• replace the battery C with another of the same type;
• take care that the battery poles correspond (see diagram on the right);
• replace the seal B and screw the cap A back on.
If no spark appears when any burner control knob is pressed, the battery may need changing.
Caution: flat batteries must not be dumped at random or disposed of with other waste. They must be
collected separately and consigned to your local waste disposal company, or disposed of in the special
containers provided for old batteries.
If the battery is new and still no spark is produced, do not attempt to use the appliance and contact your
nearest authorised service centre.
If the barbecue is to be out of use for a long time, the battery must be removed to prevent possible
oxidation of its compartment.
9.2 Positioning the grids
On the rear of the barbecue, the grids can be set
at two different heights. These two levels allow
them to be set at different gradients to increase or
reduce the drainage of fats or liquids.
Level 2 is recommended when cooking
particularly fatty foods and level 1 for other foods.
Cooking can only be carried out with all the grids
fitted correctly. Any other configuration is a source
of hazard to the user and can compromise the
operation of the appliance as well as damaging its
exterior.
34
Before starting to cook, always check that the grids are correctly positioned.
Instructions for the User
9.3 Switching on
To check that the burners have ignited, hold one of your hands about 10 cm above the grids: you should
feel a gradually increasing amount of heat.
When lighting the rapid or auxiliary burners, keep the knob pressed down for about 2 seconds to
allow the thermocouple to heat up. The burner may go out when the knob is released: this means that
the thermocouple has not warmed up enough. Repeat the operation, keeping the knob pressed down for
longer.
If the burners have not ignited after several attempts, wait 5 minutes before attempting to light the
appliance again. This pause is necessary to allow any gas which has built up inside the appliance to
disperse. If no flame is obtained even after numerous attempts, contact your nearest authorised service
centre.
9.3.1 Electronic burner ignition
The burner it controls is shown next to each knob (See “The control panel” on page 32). To light the
flame, simply press the knob and turn it anti-clockwise to the minimum flame value and press the
ignition button. To adjust the flame, turn the knob to the zone between the maximum ( ) and the
minimum ( ) settings. To turn off the burner, turn the knob back to the OFF position.
9.3.2 Manual burner ignition (for internal burners only)
The barbecue's internal burners can be lit using a long match or with the aid of a piezoelectric kitchen
lighter. Lift the plate above the burner to be lit, place the lit match or piezoelectric lighter next to the
burner and turn its control knob to the maximum flame setting. Take great care not to allow large
amounts of unburnt gas to escape. If the burner has not lit after 3 seconds, turn the knob to OFF and
repeat the operation a few minutes later.
When lighting more than one burner by hand, the most efficient method is to light the central burner as
described above and then turn the knobs of the burners next to the one just lit to use the inter-ignition
function. Burner inter-ignition is possible if one or more adjacent burners are lit.
Before removing the grid to light the burner by hand, make sure that it is not hot.
If the burner does not light even in manual mode after a few attempts, call the after-sales service.
9.4 Pan diameters
Rapid Burner pans with diameter from 18 cm to 26 cm can be used on this burner.
Auxiliary Burner pans with diameter from 12 cm to 16 cm can be used on this burner.
Pans of different sizes might put the user’s safety at risk and adversely affect the appliance’s
performance, as well as damaging its exterior.
10.STANDARD ACCESSORIES
Food warmer shelf: useful for keeping food hot after cooking.
Hang this shelf on the back of the barbecue, above the burners.
Fit it into the holes provided in the back panel.
Additional optional accessories are also available from
our authorised service centres.
35
Instructions for the User
11.COOKING ADVICE
Some hints and recommendations for getting the best results from your barbecue are provided below.
However, remember that cooking times and heat levels have to be modified to suit the user's taste.
Direct cooking: when the meat or vegetables are cooked directly on the grid underneath which the
burner is lit.
Indirect cooking: when the meat or vegetables are cooked on the grid next to the lit burner.
During indirect cooking the lid (if fitted) must be left closed and only opened if the temperature exceeds
300°C. Close it again after 5 minutes have passed.
Water should be poured into the dripping pan for more succulent cooking results and to simplify
cleaning of the barbecue after use.
11.1 Meat
Before any meat cooking procedures, the grids must be preheated (with the burners lit) at minimum heat
for at least 10-15 minutes, depending on the thickness of the meat. Quick preheating (about 10 minutes)
is recommended for thin pieces of meat (chops, slices of bacon, spare ribs, etc.). Lengthier preheating
(about 15 minutes) is recommended for thicker pieces of meat (large, fatty steaks, whole chickens, etc.).
In both cases, the lid (if fitted) must be kept closed during preheating.
11.1.1 Direct cooking
In general, when cooking meat over direct heat the burners must be set on the maximum setting, while
for fish and vegetables they must be set on medium / minimum power.
The cooking time varies depending on the thickness of the food and personal taste.
For best results when grilling, brown the outside at maximum heat then use the knobs to turn the burners
down to a medium / minimum setting to allow the meat to cook right through without burning on the
outside.
The appearance of flames, when cooking pork (i.e. fatty foods) in particular, is normal and is caused by
dripping fats. Do not worry, but move the food being cooked to another part of the grid.
To allow this, it is best not to fill the whole grid with food for cooking.
11.1.2 Indirect cooking
After preheating the grids with the burners on the minimum setting and the lid (where fitted) closed,
place the meat on a grid next to the lit burner. On the 90 cm barbecue, for example, the meat can be
placed on the central grid after the side burners have been ignited.
The advantage of indirect cooking is that the heat is less fierce. Start cooking with the burners on the
minimum setting then gradually increase over time.
Naturally, it takes considerably longer than direct cooking, but excellent results will be assured.
Indirect cooking is suited for large cuts of meat or fish, such as: roasts, whole chickens, lamb or
particular thick and/or fatty items.
11.2 Vegetables
As for meat, when cooking vegetables it is best to preheat the burners at the minimum setting with the lid
(where present) closed. However, in this case the grids must always be preheated for 15 minutes.
36
11.2.1 Direct cooking
After preheating, arrange the vegetables on the grid. Given the type of food, the knobs should be kept
turned to the minimum setting.
11.3 Cooking table
Instructions for the User
HEAT TEMPERATURE
High 230 - 250 °C
Medium-High 200 °C
Medium 160-180 °C
Medium-Low 150 °C
Low 110-120 °C
11.4 Cooking recommendations
• Always preheat at the minimum setting.
• For processes requiring fiercer grilling, preheat the burners for 15’.
• Preheating for indirect cooking is performed by igniting the burner where the food is to be placed for
5' at the minimum setting and the other burners at maximum setting for 10’.
• During direct cooking (meat or fish), if the fierce heat burns the food, turn the burners down using the
knob or move the food.
• Keep the lid (where fitted) closed during cooking.
BURNER
SETTING
Maximum setting
()
Mediummaximum setting
Intermediate
setting
Mediumminimum setting
Minimum setting
()
BARBECUE
PREPARATION
230 - 250 °C on
barbecue thermometer
(if fitted).
200°C on barbecue
thermometer (if fitted).
160-180 °C on
barbecue thermometer
(if fitted).
150°C on barbecue
thermometer (if fitted).
110-120 °C on
barbecue thermometer
(if fitted).
USE
For preheating before cooking starts.
For direct cooking of thin cuts of
meat, fish and vegetables; for more
delicate browning of the outside of
large cuts.
For direct cooking of medium-sized
cuts of meat such as half chickens or
chicken joints. Also suitable for
indirect cooking
For indirect cooking and smoking, or
for keeping food already grilled warm.
For smoking and indirect cooking of
large pieces of fatty or delicate foods,
or for keeping food already grilled
warm.
ALWAYS REMEMBER TO POUR WATER INTO THE DRIPPING PAN.
37
Instructions for the User
Medium / high flame
Flame at maximum setting
Miscellaneous / advice
3 ‘ / 5 ‘
4' per side
Cooking time
10 ‘
15 ‘
Preheating
0.5 Kg
Weight (hg) / N°
2.0 Kg = 4 pcs
Medium / high flame
Burners on minimum setting
45 ‘
40 ‘ / 50 ‘
10 ‘
10 ‘
1.5 Kg
2.0 Kg
Burners on medium / minimum setting
150 ‘
10 ‘
3.0 Kg
Medium / minimum flame
15 ‘ / 18 ‘
10 ‘
1.0 Kg
Tilt the grids to drain the liquid
5 ‘ / 7 ‘
10 ‘
0.5 Kg
Start cooking at min then gradually increase
Start cooking at min then gradually increase
4 h
150 ‘
10 ‘
10 ‘
2.5 Kg
2.5 Kg
Start cooking at min then gradually increase
Rotate pieces, and medium / minimum flame
70 ‘
30’ / 40 ‘
10 ‘
8 ‘ / 10 ‘
1.0 Kg
2.0 Kg
Burners on medium / minimum setting
13 ‘ / 15 ‘
10 ‘
1.0 Kg
Cooking procedure requiring stainless steel / cast iron griddle plate (optional)
150 ‘ / 180 ‘
10 ‘
2.5 Kg
Cooking procedure requiring preheated stainless steel / cast iron griddle plate (optional)
10 ‘ / 15 ‘
15 ‘
600 g.
Medium flow flame
8 ‘ / 13’
10 ‘
500 g.
Flame at maximum setting
90’ / 110 ‘
10 ‘
1.0 Kg
Medium flow flame
80 ‘ / 90’
10 ‘
1.0 Kg
Medium / minimum flame
15 ‘ / 18 ‘
10 ‘
0.5 g.
medium flow flame
Medium / minimum flame
13 ‘ / 15 ‘
10 ‘ / 12 ‘
10 ‘
10 ‘
3 pcs
750 g
Minimum flame
Cooking procedure with stainless steel / cast iron griddle plate (optional) and flame at maximum setting
18 ‘
4' per side
10 ‘
15 ‘
1.0 Kg
0.3 Kg
Medium / minimum flame
40 ‘
10 ‘
3.0 Kg
Minimum flame
Minimum flame
15 ‘
40 ‘
10 ‘
10 ‘
0.5 Kg
1.0 Kg
Minimum flame
Only burner underneath the stainless steel / cast iron griddle plate (optional) lit
8 ‘
7 ‘
10 ‘
15 ‘
0.8 Kg
0.4 Kg
The 2 burners underneath the pizza plate lit at maximum setting
The 2 burners underneath the pizza plate lit at maximum setting
4 ‘ / 6’
15 ‘
15 ‘
0.4 Kg
0.4 Kg
The 2 burners underneath the pizza plate lit at minimum setting
20 ‘ / 25 ‘
5 ‘
200 g rolls
Medium / minimum flame
Burners at maximum setting
4 ‘ / 5’ per side
6 ‘ / 8’ per side
5 ‘
10 ‘
1.0 Kg
BARBECUE COOKING
Direct
Direct
Direct
Cooking mode
Beef steaks
T-bone steaks
BEEF
TYPES OF FOOD
38
Fillet steak
Direct
Chicken joints
Direct
Indirect
Chops
Grilled whole chicken
CHICKEN
Direct
Belly pork
MEAT
Direct
Direct
Direct
Sliced onion
Direct
Indirect
Whole potatoes
Sliced aubergine
Indirect
Indirect
Indirect
Spare ribs
Pork shank
Stuffed roast pork
Whole neck of pork
PORK
Indirect
Leg
Sausages
LAMB
Indirect
Potatoes in pieces
Direct
Direct
Peppers
Courgettes
Direct
Direct
Trout
Prawns
Direct
Indirect
Gilthead
Herring fillets (small fish)
Direct
Direct
Sea-bass
Salmon slices
Direct
Direct
Pineapple
Ready-made dough
Direct
Direct
Ready-made canned products
Home-made flour and yeast dough
Direct
Direct
Home-made flour and yeast dough
Direct
SLICED BREAD FOR TOASTING
FISH
FRUIT
PIZZA
PIZZA
PIZZA
READY-COOKED POLENTA SLICES
BREAD
VEGETABLES
Instructions for the User
12.CLEANING AND MAINTENANCE
For the best, most thorough cleaning, we recommend the use of fairly mild products; use cream-type
stainless steel cleaners. SMEG brand products, which guarantee optimal cleaning of your appliance, are
available from authorised service centres.
Protective gloves should be worn when cleaning internal steel parts of the appliance.
12.1 Cleaning the exterior (stainless steel)
To keep the appliance in good condition, the outside and inside parts and accessories should be
cleaned regularly after each use, after allowing them to cool.
For optimal, in-depth cleaning of your barbecue, wear protective gloves and use specific degreasing
cleaners for stainless steel.
SMEG brand products, which guarantee optimal cleaning of your appliance, are available from
authorised service centres (Puliforno and Crema inox).
12.1.1 Routine cleaning
When cleaning and caring for external stainless steel surfaces, always use only specific
products which do not contain abrasives or chlorine-based acids.
Never use metal scouring pads or sharp scrapers; they will damage the stainless steel. Use
ordinary non-abrasive products, with the aid of wooden or plastic utensils if necessary.
Instructions for use: spray the product straight onto the dirty surfaces several times.
Wipe with a non-abrasive sponge, rinse thoroughly and dry with a soft cloth. For the best results,
allow the degreasing detergent to act for some time. To eliminate yellowing, pour Crema inox
onto a paper cloth and rub in the direction of the satin-finish.
12.2 Cleaning the internal barbecue components
12.2.1 The grids
For the best results, clean the grids when still warm. Wearing heat-resistant gloves, dip them in water
and then scrub them with a brass-bristle brush to remove any food residues. Complete cleaning by
washing the grids with a degreasing detergent and rinse thoroughly.
The grids are dishwasher-friendly.
After thorough cleaning, operate the appliance to burn off detergent residues.
IT IS ABSOLUTELY ESSENTIAL TO REMOVE ALL RESIDUES FROM ONE COOKING PROCESS
BEFORE STARTING THE NEXT.
39
Instructions for the User
12.2.2 The burners
Check regularly that the burners are igniting completely and no gas outlet holes are clogged.
If you notice that a burner is not igniting completely, blowing it with compressed air may be sufficient to
clear dust or spiders' webs from the clogged holes. If this is not sufficient, the burners can be dismantled
for more thorough cleaning, for example by poking a pin through the clogged holes and blowing
compressed air straight into the burner.

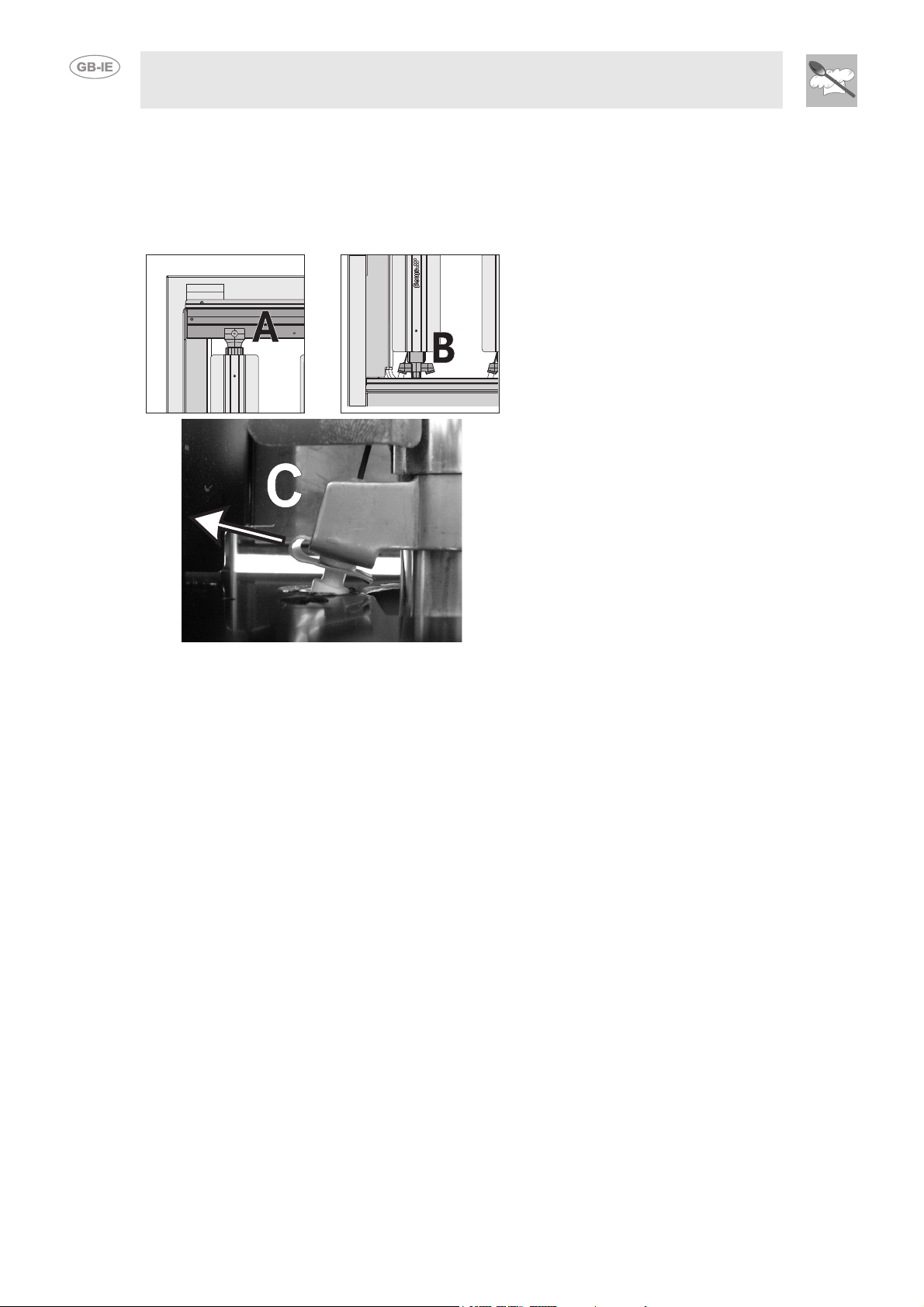

To dismantle the burners, unscrew the fixing screw
A. The burners can then be removed a few
centimetres from their bases (in the front of the
appliance, detail B), taking care not to damage the
ignition cable. Remove the clip (C) and extract the
burner ignition plug. This allows the burner to be
completely removed from the interior of the
barbecue for thorough cleaning.
After cleaning, put the burners back in place,
taking care to fit the ignition plug as shown and
secure it with the clip (C) removed earlier. Fit the
burner into place (B) and secure it with the screw
(A).
12.3 Cleaning the dripping pan
After cooking, (taking great care), extract the dripping pan, into which a thin layer of water may have
been poured before cooking started, and pour the fats into a container from which they can then be
disposed of appropriately. The oil or fat produced by cooking meat and fish must never be poured down
drains or sinks, for example. It must be disposed of correctly in special containers or delivered to the
regulation collection points. Clean the dripping pan with suitable non-abrasive products and put it back in
place.
40
Loading...
