Smeg BLV1R User Manual
INSTRUCTION MANUAL
GGUUIIDDEEFFOORRUUSSIINNGGTTHHEEDDIISSHHWWAASSHHEERRAANNDDTTHHEEWWAASSHHIINNGGPPRROOGGRRAAMMS
S
Contents
1. Description of the controls________________________________16
2. Troubleshooting _______________________________________25
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.
15
User instructions
1. Description of the controls
1.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.
2
Auto
60°-70°
7
11 10
5
34
end
9
6
3/1
813
12
ON/OFF BUTTON
1
Pressing this button energises the appliance.
SELECTED PROGRAM INDICATOR LIGHTS
2
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
PROGRAM SELECTION BUTTON
3
By pressing this button in sequence it is possible to select the desired
program.
SALT WARNING LIGHT
4
Illumination of this light signals that salt container is empty.
RINSE AID WARNING LIGHT
5
Illumination of this light signals that rinse aid dispenser is empty.
(certain models only)
(certain models only)
EXTRA PROGRAM BUTTON
6
This button gives access to the one of the five extra programs (see
table).
1
16
EXTRA PROGRAM LIGHT
7
Illuminates to indicate that one of the five extra programs (see table) is
going to be executed.
User instructions
"3/1" OPTION BUTTON
8
Press this button to activate the option for use of 3/1 products.
"3/1" OPTION LIGHT
9
Illuminates to indicate that the function is activated.
HALF LOAD BUTTON
10
Press this button to activate the half load wash option.
HALF LOAD LIGHT
11
One of the two buttons illuminates to indicate that the half load wash
option in the top or bottom basket has been selected.
PROGRAM DELAY BUTTON
12
Press this button to delay the start of the program by up to 9 hours.
INFORMATION DISPLAY
13
WARNING:
(on some models only)
(on some models only)
(on some models only)
(on some models only)
(on some models only)
(on some models only)
When cleaning outside surfaces take care not to use corrosive, acid or
rasive detergents nd to use
ab
clean, soft cloths.
Unsuitable detergents and used or dusty clths might leave scratches on the
painted surfaces.
17
User instructions
SETTING THE WASHING PROGRAM AND SWITCHING ON
To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program according
to dish type and degree of soiling.
2
Auto
60°-70°
11 10
5
34
end
9
6
3/1
7
After using the table to identify the most appropriate washing program:
• press the
ON/OFF
INDICATOR LIGHT (2)
• keep pressing the
PROGRAM SELECTION
button
(1)
and wait for the
to illuminate;
button
indicator light corresponding to the desired program illuminates;
• close the door; after about 2" the program will start. While it is in
progress, the relative
LIGHT
will flash (indicating that the program is
being executed).
813
12
1
PROGRAM
(3)
until the
PROGRAMME,
NUMBER & SYMBOL
1
2
3
4
18
RINSE
DELICATE
AUTO 60-70
BIO
(*) EN 50242
LOAD CROCKERY
AND CUTLERY
Pans and dishes for
rinsing and drying
Dishes
with normal dirt
Normally soiled
dishes, including
dried-on residue
Dishes
with normal dirt
PROGRAM
PROGRESS
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 50°C
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 50°C
Cold rinse
Rinse at 55°C
Dry
DURATION CONSUMPTION
MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
45' 9 0,9
75' 16 1,15
(**) (**) (**)
180' 15 1,08
User instructions
PROGRAMME,
NUMBER & SYMBOL
5
6
7
8
9
10
run the soak program with half loads.
Only
SUPER
SOAK
QUICK
AUTO 40-50
ECO
INTENSIVE
To execute programs
LOAD CROCKERY
AND CUTLERY
pans and dishes,
Pans and dishes
a further wash
Wash immediately
after use for dishes
with normal dirt
Wash immediately
after use for dishes
with normal dirt
Normally soiled
pans and dishes,
dried-on residue
6,7,8,9,10
PROGRAM
PROGRESS
Very dirty
even with
dried-on dirt
awaiting
Dishes
with light dirt
including
Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
Cold prewash
Wash at 38°C
Cold rinse
Rinse at 68°C
Cold prewash
Wash at 40°C
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
users must first press the
DURATION CONSUMPTION
MINUTES
(2)
WATER
LITRES (1)
110’ 20 1,70
16' 6
45' 13 0,85
(**) (**) (**)
100' 14 1,25
95' 17 1,5
extra programs button (6)
(*) Reference program as per EN 50242 standard.
(**) When the "
AUTO 40-50
" or "
AUTO 60-70
" program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the washing parameters as
appropriate.
(–) Not present.
(1) Average power consumption with the softener set on
level 2
.
(2) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
POWER
KWh (2)
_
.
The washing cycle will not take place if the dishwasher door is left open or
not properly closed.
19
User instructions
TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program BIO
Load 14 place-settings
Type of detergent B
Amount of detergent 35 g
Rinse aid setting 5/6
1.2 Washing programs
Before starting a washing program make sure that:
• The water supply tap is
• The
• The baskets have been
• The spray arms are able to
• The dishwasher door is
CANCELLING THE CURRENT PROGRAM
• To cancel the currently selected program, open the door and hold
correct amount of detergent
dispenser
obstruction.
down the
until the
simultaneously.
.
PROGRAM SELECTION (3)
indicator lights
open.
has been added to the
correctly loaded.
rotate freely
securely closed
for programs 4 and 5 illuminate
and without
.
button for a few seconds
20
• Close the door.
• After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
User instructions
SELECTING HALF LOAD WASH
This function is ideal for small loads and saves water and electricity. It is
controlled by the
1) press the button
relative light comes on);
2) press the button
basket
3) press the button
washing mode (washing in both baskets, both lights off).
HALF LOAD (10)
once
a second time
button, with two alternatives:
to select washing in the
to select washing in the
(the relative light comes on);
a third time
to return to the normal
top basket
bottom
full load
(the

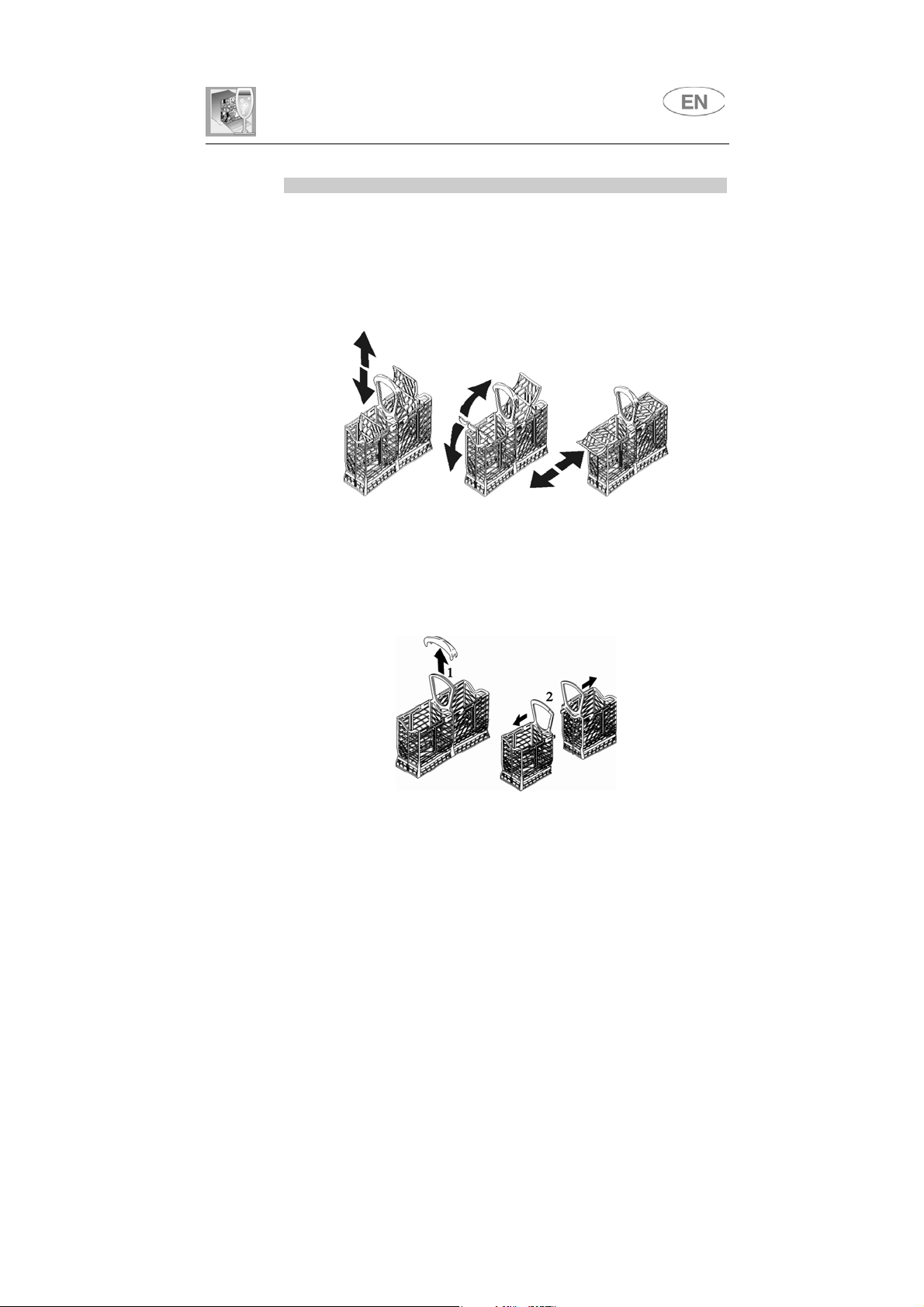

When washing in the
divided
so that
2
Auto
60°-70°
only half is used.
end
bottom basket
5
34
only,
11 10
the cutlery basket can be
7
9
6
3/1
813
12
1
EXTRA PROGRAMS
Button
(6)
gives access to
five extra programs
in addition to the ones
which can be selected directly using the program selector button.
This button must be pressed (the light comes on)
after
selection of the
"main" program (1, 2, 3, 4 or 5).
This function
is retained in the memory
, so the button has to be
pressed again (the light goes out) if the user wishes to execute one of
the 5 main programs at the next cycle.
21
User instructions
"3/1" OPTION BUTTON
(available in all programs except the soak program)
By pressing the button
the relative light comes on. This option has been studied for the use of
dishwashing powder or tablets with integrated substances in place of
regenerating salt or rinse-aid known on the market as “3 in 1” or “triple
action” products; in this case the dishwasher will use the product in an
optimal way avoiding salt and rinse-aid consumption, which could
already be found in the dishwasher.
Note:
When selecting the "
rinse-aid lights remain on, if their containers are empty.
DELAYING THE PROGRAM
PROGRAM DELAY
The
the program by up to
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
• Always try to run the dishwasher
• Do not wash the dishes in running water.
• Use the washing program that is
load.
• Do not carry out any preliminary rinsing.
• If available, connect the dishwasher to a hot water supply up to 60°C.
(8)
you activate the "
3/1
" button, it is normal that the salt and
(12)
button
9 hours.
This means that the dishwasher can be
9 hours
fully loaded
3/1
" option, confirmed when
can be pressed to delay the start of
.
.
most appropriate
for each type of
22
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•
separate
to aggressive detergents and high temperatures;
•
do not pour
the more delicate items from dishes that are more resistant
the detergent directly on the dishes.
User instructions
2
Auto
60°-70°
11 10
5
34
end
7
9
6
3/1
813
12
1
ADJUSTING THE WATER SOFTENING SYSTEM
N.B.:
for the setting below to be possible, a washing program other than
the soak program must be set.
Press the
PROGRAM DELAY
button
(12)
and keep it pressed until the
preset value appears followed by a full stop (normally 3.).
Release the button then press it again in succession to display the value
required, referring to the table.
The 6 setting levels available will appear in this order:
3.,4.,5.,0.,1.,2.
.
When the value required appears on the display, release the button;
5 seconds
after
the system automatically returns to setting of the
program delay, and the setting will be made with the chosen value.
N.B.:
the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF)
0 - 5 0 - 9 0.
6 - 11 10 - 19 1.
12 - 21 20 - 36 2.
22 - 33 37 - 59 3.
34 - 45 60 - 79 4.
46 - 53 80 - 107 5.
SETTING
Contact your local water board for information on the hardness of your
water supply.
23
User instructions
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about
before closing the door to restart the program. When the door is
minute
closed the program will continue from where it was interrupted. This
operation should
only be carried out if strictly necessary
might cause problems in execution of the program.
END OF CYCLE
At the end of the program the beeper sounds briefly and the
programs 4 and 5flash.
, because it
lights
of
1
24
12
ON/OFF
1
To switch off the dishwasher, open the door and press the
(1)
button
.
2
Auto
60°-70°
11 10
5
34
end
7
813
9
6
3/1
REMOVING THE DISHES
At the end of the washing program, wait at least
20 minutes
before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is
advisable
to unload the lower basket first, and then the
upper basket.
E1
E2
E3
E4
E5
E6
User instructions
2. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT DESCRIPTION
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case
of water leaks. Contact the after-sales service.
Safety level
The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.
Water heating malfunction
The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the aftersales service.
25
Loading...
