Smeg ALFA201XE User Manual

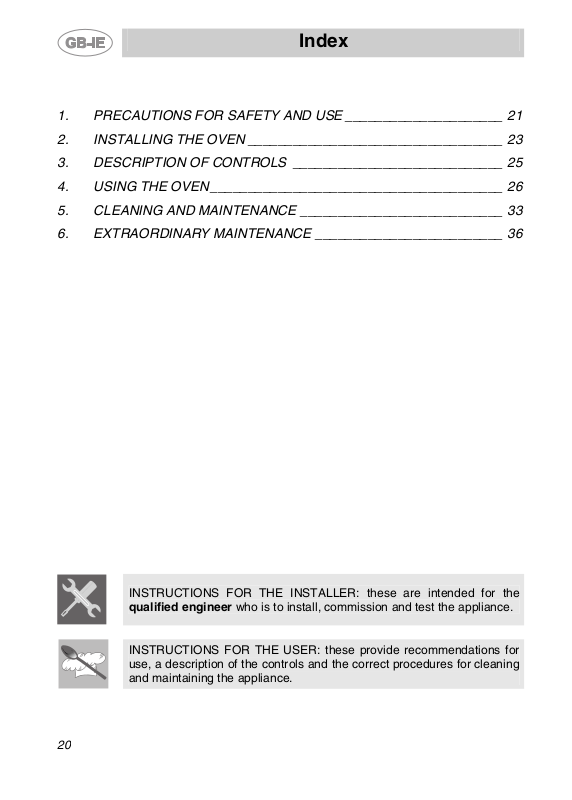

Index

1. PRECAUTIONS FOR SAFETY AND USE _____________________ 21

2. INSTALLING THE OVEN __________________________________ 23

3. DESCRIPTION OF CONTROLS ____________________________ 25

4. USING THE OVEN_______________________________________ 26

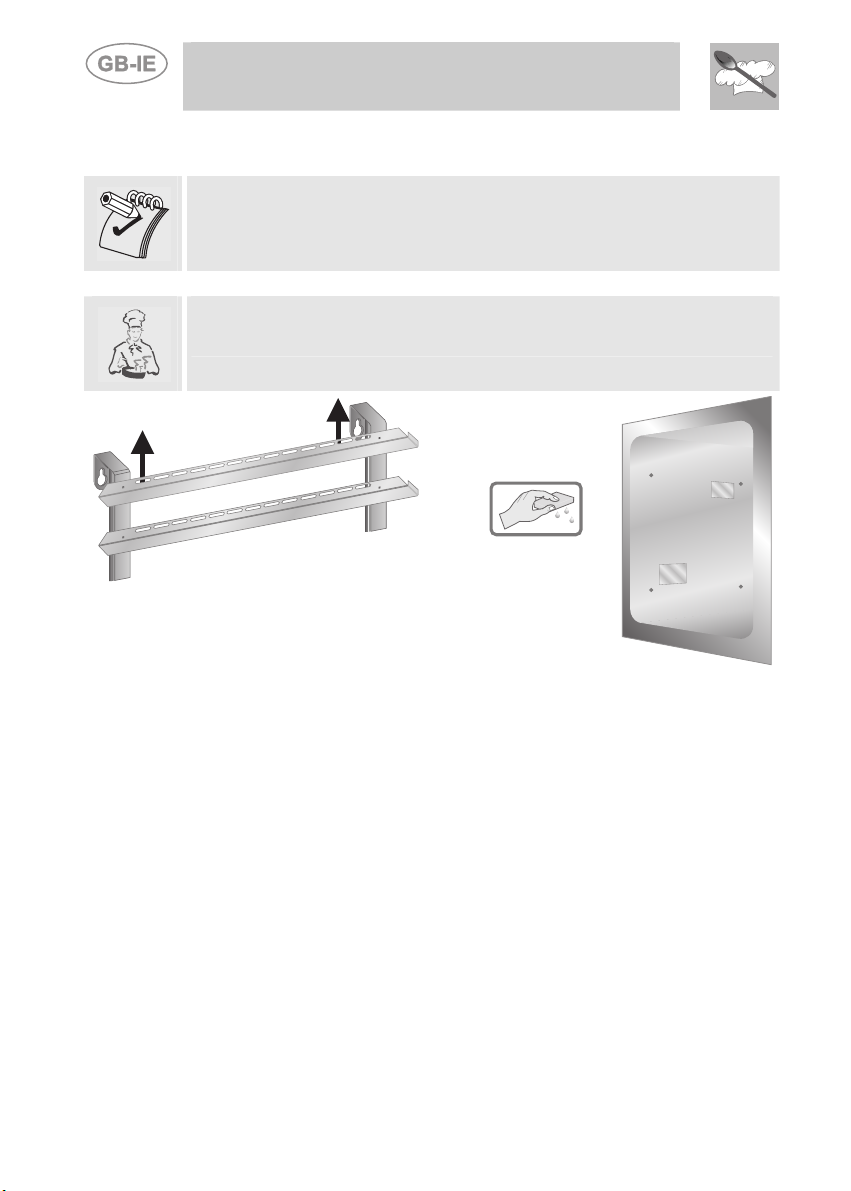

5. CLEANING AND MAINTENANCE ___________________________ 33

6. EXTRAORDINARY MAINTENANCE _________________________ 36

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified engineer who is to install, commission and test the appliance.

INSTRUCTIONS FOR THE USER: these provide recommendations for use, a description of the controls and the correct procedures for cleaning and maintaining the appliance.

Presentation

1. PRECAUTIONS FOR SAFETY AND USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. TAKE GOOD CARE OF IT AND KEEP IT TO HAND THROUGHOUT THE OVEN'S LIFE CYCLE. WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT CONTAINS CAREFULLY BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED STAFF IN COMPLIANCE WITH THE RELEVANT REGULATIONS. THIS OVEN IS INTENDED FOR PROFESSIONAL USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE IS BUILT TO PROVIDE THE FOLLOWING FUNCTION: COOKING AND HEATING

FOODS; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN THOSE STATED ABOVE.

NEVER USE PACKAGING RESIDUES UNATTENDED IN THE HOME. SEPARATE THE VARIOUS WASTE PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST SEPARATE DISPOSAL CENTRE.

THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH ELECTRICAL SYSTEM SAFETY REGULATIONS.

IF THE MAIN ELECTRICAL CONNECTION IS TO BE MADE BY MEANS OF A PLUG AND SOCKET, THEY MUST BOTH BE OF THE SAME TYPE AND MUST BE CONNECTED TO THE POWER SUPPLY LEAD IN ACCORDANCE WITH THE RELEVANT REGULATIONS.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.

NEVER OBSTRUCT THE OPENINGS PROVIDED FOR VENTILATION OR HEAT DISPERSAL.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE OVEN FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. IF THE APPLIANCE FAILS TO OPERATE, DISCONNECT IT FROM THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

AFTER EACH USE OF THE OVEN, ALWAYS CHECK THAT THE CONTROL KNOBS ARE TURNED TO 0 (OFF).

Presentation

NEVER PLACE INFLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.

THE APPLIANCE BECOMES VERY HOT DURING USE. OVEN GLOVES SHOULD ALWAYS BE WORN.

THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK IS IN A VISIBLE POSITION ON THE BACK OF THE OVEN.

THIS NAMEPLATE MUST NEVER BE REMOVED.

THE APPLIANCE IS INTENDED FOR PROFESSIONAL USE BY TRAINED STAFF. KEEP CHILDREN AT A SAFE DISTANCE AND NEVER ALLOW

THEM TO PLAY WITH IT.

THE HARDNESS OF THE WATER USED FOR STEAM COOKING MUST NOT EXCEED 10-11°F. USE TAP-WATER TREATED WITH A PURIFIER/SOFTENER SYSTEM.

ALFA 200XE: THE OVEN'S SIZE IS CALCULATED FOR A MAXIMUM LOAD OF 15 KG. ALFA 135VE: THE OVEN'S SIZE IS CALCULATED FOR A MAXIMUM LOAD OF 7 KG.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.

The manufacturer declines all responsibility for injury or damage caused by failure to comply with the above regulations or deriving from tampering with even just one part of the appliance and the use of nonoriginal spare parts.

Instructions for the Installer

Check that the power supply voltage and size are as specified on the

2. INSTALLING THE OVEN

The oven is designed for free-standing installation on a horizontal worktop. It must be far enough from the wall behind it to allow easy access to the terminal board for connection of the power supply lead. Installation must be carried out by a qualified engineer in compliance with the relevant EEC DIRECTIVES.

2.1 Electrical connection (Mod.Alfa 200XE)

nameplate on the back of the oven. This nameplate must never be removed.

Operation at 380-415V3N~: use a H07RN-F five-wire cable (cable of 5 x

1.5 mm2).

In case of connection to the electrical mains by means of socket and pin, the connection must be completed with a plug of suitable rating. The power supply plug and wall socket must be of the same type (in compliance with CEI standards). Check that the power supply line is properly earthed. The use of reductions, adapters or junctions is not recommended.

If a permanent connection to the elctrical mains is used, the appliance's power supply line must be fitted with an omnipolar breaking device with contact breaking gap of at least 3 mm, located in an easily accessible position close to the appliance itself.

The power supply socket on the rear of the oven must only be used to power the extractor hood supplied as an optional accessory, having maximum power absorption of 300W.

aaaaaaaaaaa

Instructions for the Installer

2.2 Safety thermostat

The oven is fitted with a safety device tripped in case of a serious malfunction. To reset the safety device, call the after-sales service.

The manufacturer declines all responsibility for injury or damage caused by failure to comply with the above regulations or deriving from tampering with even just one part of the appliance.

2.3 Levelling

Level the oven by means of its four adjustable feet. To make the adjustment, undo the lock-nut and unscrew the foot. The adjuster screw travel is 10 mm.

2.4 Connection to the water supply

Connect the water inlet connection on the rear to a water supply outlet having ¾ gas threaded connection, taking care to screw tightly to the hose. If the water supply pipe is new or has been unused for a long time, before making the connection turn the water on and allow it to flow out to ensure that it is clear and free from impurities. Otherwise, the water inlet may become fouled, damaging the oven.

The oven must be supplied with water at a pressure between min. 50 kPa and max. 500 kPa.

2.5 Steam vent pipe (Mod. Alfa 200XE)

The top of the oven is fitted with a pipe which vents the steam produced during cooking. This pipe must be left free of all obstructions. Take care not to obstruct it.

Instructions for the User

3. DESCRIPTION OF CONTROLS

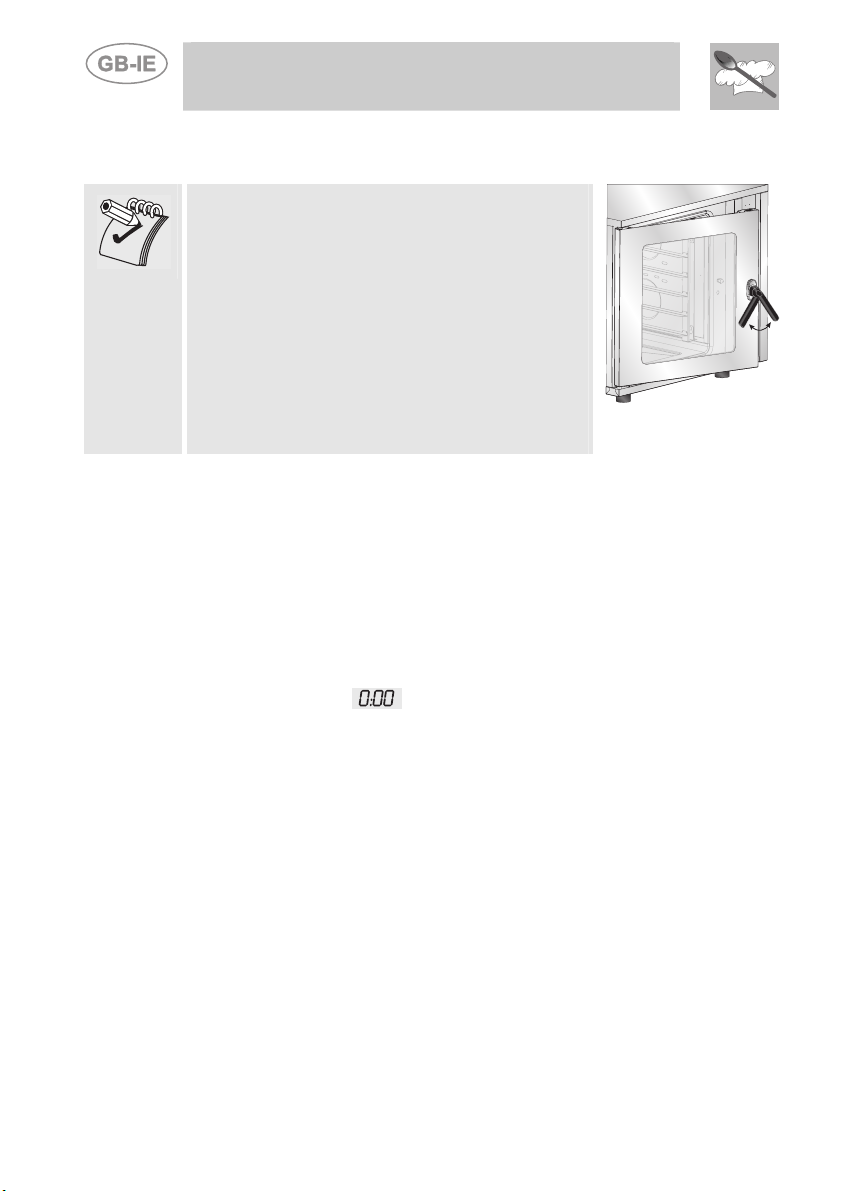

STOP BUTTON

Use this button to set the time when turning on the appliance for the first time or after a power failure, scroll through preset programs and terminate cooking cycles.

START BUTTON

Use this button to set the time when turning on the appliance for the first time or after a power failure, scroll through preset programs and start cooking cycles.

DISPLAY

Displays the current time, the selected program, the cooking parameters of the selected program and (for 90 cm models only) the operating power.

PROGRAM SELECTION KNOB

Turn this knob to set the cooking cycle with a preset program.

STEAM VENTING CONTROL KNOB

This two-setting knob allows the steam formed during the cooking of foods to be vented while cooking is in progress. The venting levels are from 0 to 1 and all the intermediate positions between these settings can be used.
