General instructions

1. INSTRUCTIONS FOR USE

This manual is an integral part of the appliance. It must be kept in its entirety and in an accessible place for the whole working life of the appliance. We recommend reading this manual and all information it contains carefully before using the appliance. Installation must be carried out by qualified personnel in accordance with the standards in force. This appliance is intended for domestic use and conforms to the EC directives currently in force. The appliance has been built to carry out the following functions: cooking and heating up food; all other uses are considered unsuitable.

These instructions are valid only for the destination countries whose identifying symbols are included on the cover of this manual.

Never obstruct the openings and slots provided for ventilation and heat dispersal; this may cause malfunctions.

Do not use this appliance for heating rooms.

This appliance is marked according to European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This directive defines the standards for the collection and recycling of waste electrical and electronic equipment applicable throughout the European union.

The identification plate with technical data, serial number and brand name is located in an exposed position either in the drawer (where present) or on the back of the appliance. A copy of the identification plate is included in the booklet. It should be applied to the appropriate space on the back of the cover. Do not remove this plate for any reason.

Before the appliance is put into operation, all labels and protective films applied on external surfaces must be removed.

Do not use metallic sponges or sharp scrapers as they will damage the surface. Use normal non-abrasive products and a wooden or plastic tool if necessary. Rinse thoroughly and dry using a soft cloth. Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

Do not use plastic kitchenware or containers. The high temperatures inside the oven could melt the plastic, damaging the appliance.

Always check that the control knobs are in the “zero” (off) position when you finish using the appliance.

General instructions

Do not use sealed tins or containers in the appliance. Overpressure may occur inside the containers during cooking, creating a danger of explosion.

Do not cover the bottom of the oven with aluminium or tin foil sheets during cooking and do not place pans or trays on it to avoid damage to the enamelled surface.

Never place saucepans with bases which are not perfectly flat and smooth on the hob. Unstable cookware can lead to scalding.

Do not rest any weight or sit on the open door of the appliance. Excessive weight may jeopardise its stability.

The appliance becomes very hot during use. Suitable heat-proof gloves should be worn for all operations.

Do not use the hob if pyrolysis (where present) is taking place inside the oven.

If you intend to go away for a prolonged period of time, close the mains gas tap or the gas cylinder tap.

Take care that no objects are stuck in the door of the oven.

Do not open the storage compartment (where present) when the oven is on and still hot. The temperatures inside it may be very high.

If the surfaces are still very hot during cooking, do not pour water directly onto the trays. The steam could cause severe burns and damage enamelled surfaces.

All cooking operations must take place with the door closed. The dissipation of heat may cause hazards.

The manufacturer declines all responsibility for damage to persons or things caused by non-observance of the above prescriptions or by interference with any part of the appliance or by the use of non-original spare parts.

General instructions

2. SAFETY PRECAUTIONS

Consult the installation instructions for safety standards on electrical or gas appliances and for ventilation functions. In your interests and for your safety the law requires that the installation and servicing of all electrical and gas appliances be carried out by qualified personnel in accordance with the standards in force. Our approved installers guarantee a satisfactory job. Gas or electrical appliances must always be uninstalled by suitably skilled people.

Before connecting the appliance to the power grid, check the data on the plate against the data for the grid itself.

If the appliance is installed on a raised platform, secure it using suitable fastening systems.

Before carrying out installation/maintenance work, make sure that the appliance is disconnected from the power grid.

If cooking appliances are installed in motor vehicles (for example, camper vans, caravans etc.), they must only be used when the vehicle is stationary.

Install the appliance so that when opening the drawers or doors of units positioned at the level of the hob there is no possibility of making contact with pans positioned on top of it.

The plug to be connected to the power supply cable and its socket must be of the same type and conform to the standards in force. The socket must be accessible after the appliance has been installed. Never disconnect the plug by pulling on the cable.

If the power supply cable is damaged, contact the technical assistance centre immediately and they will replace it.

The appliance must be connected to earth in compliance with electrical system safety standards.

During use the appliance and its accessible parts become very hot. Take care never to touch the heating elements. Keep children younger than 8 away from the appliance, unless under continuous supervision.

If a crack forms on the the glass ceramic cooking surface, turn off the appliance immediately and contact the technical assistance centre.

Never put inflammable objects in the oven: they could be accidentally ignited and cause fires.

General instructions

The appliance is intended for use by adults. Do not allow children to go near it or play with it.

This appliance may be used by children from the age of 8 and by people of reduced physical and mental ability or lacking in experience and knowledge, provided they are supervised or instructed on the safe use of the appliance and if they understand the associated risks. Do not allow children to play with the appliance. Do not allow unsupervised children to perform cleaning or maintenance operations.

Never attempt to repair the appliance. All repairs must be carried out by an authorised technician or at an authorised service centre. The improper use of tools can cause hazards.

This appliance must not be controlled using an external timer or remote control system.

Be aware of how rapidly the cooking zones heat up. Do not place empty saucepans on the heat. Danger of overheating.

Fats and oils can catch fire if they overheat. You are therefore recommended not to leave the appliance unattended while preparing foods containing oils or fats. If fats or oils catch fire, never put water on them. Place the lid on the saucepan and turn off the cooking zone.

Take care when using additional electrical appliances in the kitchen (e.g. blender, toaster etc.). Connection cables must not come into contact with hot cooking zones.

Do not use steam jets for cleaning the appliance. The steam could reach the electronics, damaging them and causing short-circuits.

Do not spray any spray products near the household appliance while it is in operation. Do not use spray products while the appliance is still hot. The gases contained in spray cans may catch fire.

Instructions for disposal

3. ENVIRONMENTAL CARE

3.1 Our environmental care

Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduction of the use of hazardous substances in electrical and electronic appliances, as well as to the disposal of refuse, the crossed out bin symbol on the appliance indicates that the product, at the end of its working life, must be collected separately from other refuse. Therefore, the user must consign the product that has reached the end of its working life to the appropriate selective collection centres for electrical and electronic refuse, or deliver it back to the retailer when purchasing an equivalent product, on a one for one basis. Adequate selective collection for the subsequent forwarding of the decommissioned product to recycling, treatment and ecologically compatible disposal contributes to avoiding possible negative effects on the environment and on health and promotes the recycling of the materials of which the appliance consists. Illicit disposal of the product by the user will lead to the application of administrative sanctions. The product does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

3.2 Your environmental care

Our product's packaging is made of non-polluting materials, therefore compatible with the environment and recyclable. Please help by disposing of the packaging correctly. You can obtain the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations.

Do not discard the packaging or any part of it, or leave it unattended. It can constitute a suffocation hazard for children, especially the plastic bags.

Your old appliance also needs to be disposed of correctly. Important: hand over your appliance to the local agency authorised for the collection of electrical appliances no longer in use. Correct disposal enables intelligent recovery of valuable materials. Before disposing of your appliance it is important to remove doors and leave

shelves in the same position as for use, to ensure that children cannot accidentally become trapped inside during play. It is also necessary to cut the connecting cable to the power grid, removing it along with the plug.

Instructions for the user

4. GET TO KNOW YOUR APPLIANCE

1 Cooking hob 5 Fan

2 Control panel 6 Oven light

3 Oven seal 7 Storage compartment

4 Door

Frame shelf

Instructions for the user

4.1 Description of the controls on the front panel

1 Programming clock

The programming clock makes it possible to display the current time or to set a timer or a programmed cooking operation.

2 Temperature selection knob

The cooking temperature is selected by turning the knob clockwise to the required setting, between the maximum and the minimum settings.

3 Thermostat indicator light

The indicator light comes on to indicate that the oven is heating up. When this light goes out, the preset heating temperature has been reached. When the light flashes regularly, it means that the temperature inside the oven is kept steady on the set level.

4 Function selection knob

The oven's various functions are suitable for different cooking modes. After selecting the required function, set the cooking temperature using the thermostat knob. For more information on cooking functions, see: “8. OVEN FUNCTIONS”.

Instructions for the user

5 Cooking zones control knob Individual zone heating

The circle next to each knob indicates the cooking position that will be put into operation. Heating is adjusted pressing and turning the knob to the required position between 1 and 9. The adjustment is gradual so all the intermediate zones can be used. To turn off, return the knob to the 0 position.

Double zone heating

The circle next to each knob indicates the cooking position that will be put into operation. Heating within the smaller circle is adjusted pressing and turning the knob to one of the positions between 1 and 9.

To heat both zones turn the knob to the symbol or . Releasing the knob

will return it to the 9 position. To adjust heating turn the knob anticlockwise to the required position. To return to heat the smaller circle only, turn the knob to 0 and then to a position between 1 and 9. To turn off, return the knob to the 0 position.

Instructions for the user

5. AVAILABLE ACCESSORIES

NOTE: Some models are not provided with all accessories.

Wide rack: useful for holding cooking

containers. It can be placed on top of a tray for cooking foods which may drip.

Narrow rack: useful for cooking small sized food, such as meat. It can be placed on top of a tray for cooking foods which may drip.

Tray : useful for collecting fat from foods placed on the rack above. Necessary when using the rotisserie.

Rotisserie supports: They support the rotisserie rod.

Rotisserie rod: for cooking chicken and all foods which require uniform cooking over their entire surface.

Scraper: useful for cleaning the glass ceramic hob. Do not use on other surfaces.

Instructions for the user

• The oven accessories intended to come into contact with food are made of materials that comply with the provisions of Directive 89/109/EEC, dated 21/ 12/88, and of Legislative Decree 108, dated 25/01/92.

• Accessories available on request: Original supplied and optional accessories may be ordered from any Authorised Assistance Centre.

• Use only original accessories supplied by the manufacturer.

5.1 Using the oven racks and trays

The racks and trays are equipped with a mechanical safety lock which prevents them from being taken out accidentally. To insert the rack or tray correctly, check that the lock is facing downwards (as shown in the figure at the side). To remove the rack or tray, lift the front slightly. The mechanical lock (or the extension piece where present) must always face the back of the oven.

Gently insert racks and trays into the oven until they come to a stop.

Instructions for the user

5.2 Using the rotisserie rod

Keep the oven door closed during cooking.

Use the clip forks provided to prepare the rotisserie rod with the food. The clip forks can be tightened using the fastening screws.

Place the rotisserie supports into the inserts at the corners of the tray. The supports should be placed as shown in the adjacent figure.

Place the rotisserie rod on the supports. Make sure the pins are correctly positioned on the shaped part of the supports.

Instructions for the user

After having prepared the rotisserie rod, place the tray on the first runner (see 4. GET TO KNOW YOUR APPLIANCE). Rocking the rotisserie supports, insert the tip of the rotisserie rod into the hole of the rotisserie motor on the side of the oven.

At the end of cooking, screw on the handle provided so that you can move the rod with the food on it readily.

Pour a little water in the drip tray to prevent smoke from forming.

Regular flashing of the thermostat indicator light during cooking is normal and indicates that the temperature inside the oven is being maintained constant.

Instructions for the user

6. USING THE COOKING HOB

6.1 Before using the appliance

Metal objects such as cutlery or lids must not be placed on the hob surface as they can become very hot.

Before using the hob for the first time, pre-heat it to the maximum temperature long enough to burn any manufacturing oily residues which could give the food unpleasant odours.

6.2 Cooking zones

The appliance has 5 cooking zones of various diameters and power levels. Their position is clearly indicated with circles and heat is released within the diameters traced on the glass ceramic surface. The 5 cooking zones are HIGH-LIGHT zones and come on a few seconds after activation. The heat intensity can be adjusted using

the knobs located on the front panel from a minimum of 1 to a maximum value of 9.

The cooking zones indicated by two concentric circles ( ) and by a circle +

fish kettle burner ( ) allow double heating, either within the inner circle or in

both circles. The five indicator lights located at the front between the cooking zones come on when the temperature of one or more of the radiating zones exceeds 60°C. These indicator lights switch off when the temperature drops below approximately 60°C.

Instructions for the user

To obtain better results and save energy, only use containers suitable for cooking on electric cookers.

• The base of the containers must be thick and completely flat. Before placing a container on the hob, check that both hob and container are completely clean and dry.

• To avoid scratches to the hob, do not use cast iron containers or containers with an uneven base.

• In order to avoid wasting energy, make sure that the diameter of the container base is the same as the diameter of the circle marked on the hob.

Take care not to spill sugar or sugar mixtures on the hob when it is hot. Do not place materials or substances that could melt on the hob (plastic or aluminium foil). If melting does occur, in order to avoid compromising the condition of the hob surface, immediately switch it off and remove the melted material using the scraper provided, while the hob is still warm.

Failure to clean the glass ceramic hob straight away could lead to encrustations which are impossible to remove once the hob has cooled down.

Important:

Supervise children carefully as they cannot readily see the residual heat indicator lights on the hob. The cooking zones remain hot for a certain period of time even after they have been turned off.

Make sure that children do not touch the hob at any time.

Instructions for the user

KNOB

POSITION

1 To melt butter, chocolate or similar products.

2-3

4-5

7-8

9 To deep-fry potatoes, etc., or bring water to the boil rapidly.

To heat food, keep small amounts of water on the boil, and whip up sauces with egg yolk or butter.

To heat solid or liquid food, keep water on the boil, thaw deepfrozen food, cook omelettes of 2 or 3 eggs, fruit and vegetables, various cooking operations.

To stew meat, fish and vegetables, simmer food, make jams, etc.

To roast meat, fish, steaks and liver; to sauté meat, fish, eggs, etc.

FOOD TYPE

Instructions for the user

7. USING THE OVEN

7.1 Before using the appliance

• Remove any labels (apart from the technical data plate) from trays, dripping pans and the cooking compartment.

• Remove any protective film from the outside or inside of the appliance, including accessories such as trays, dripping pans, the pizza plate or the base cover.

• Before using the appliance for the first time, remove all accessories from the oven compartment and wash them as indicated in “9. CLEANING AND MAINTENANCE”.

Heat the empty appliance to the maximum temperature in order to remove any manufacturing residues which could affect the food with unpleasant odours.

7.2 Cooling system

The appliance is equipped with a cooling system which comes into operation as soon as a cooking function starts. The fan causes a steady outflow of air that exits from the rear of the appliance and which may continue for a brief period of time even after the appliance has been turned off.

7.3 Storage compartment

The storage compartment is in the bottom of the cooker, underneath the ovens. To open it, pull on the bottom of the door. It provides storage space for the appliance’s metal accessories and must not be used to store flammable materials, cloths, paper etc.

Do not open the storage compartment when the oven is on and still hot. The temperatures inside it may be very high.

7.4 Internal oven lights

The oven lights switch on by selecting any function.

Instructions for the user

7.5 General warnings and advice for use

All cooking operations must be carried out with the door closed. The dissipation of heat may cause hazards.

During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans or oven trays on it as this may damage the enamel coating. If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.

For the best cooking results, we recommend placing cookware in the centre of the rack.

To prevent any steam in the oven from causing problems, open the door in two stages: keep it half open (5 cm approx.) for 4-5 seconds and then open it fully. If you need to access the food, always leave the door open for as short a time as possible to prevent the temperature in the oven from falling and ruining the food.

To prevent excessive amounts of condensation from forming on the internal glass, hot food should not be left inside the oven for too long after cooking.

While cooking desserts or vegetables, excessive condensation may form on the glass. In order to avoid this, open the door very carefully a couple of times while cooking.

Heat the empty appliance to the maximum temperature in order to remove

any manufacturing residues which could affect the food with unpleasant odours.

Instructions for the user

7.6 Programming clock

Timer

End of cooking

Time setting and reset

Value decrease

Value increase

The buzzer that sounds at the end of each programming will be made up of 10 buzzes repeated 3 times at intervals of about 1 minute. It can be stopped at any time by pressing any key.

7.7 Analogue clock operation

7.7.1 Setting the time

When the oven is used for the first time, or after a power supply failure, the display flashes at regular intervals.

Press the key to stop the display flashing. Press key again for 2

seconds; the current time can now be set. Press the value modification keys

or to increase or decrease the setting by one minute for each pressure. Press either of the value modification keys to display the current time. Five seconds after last pressing the key, the clock will start from the set time.

Instructions for the user

7.7.2 Timer

This function only activates the buzzer, without stopping cooking.

• Press and the display will light up as shown in figure 1;

• Within 5 seconds press key or to set the timer. Each time a key is pressed, an outer

segment representing 1 minute of cooking is lit or switched off (figure 2 shows 1 hour and 10 minutes).

• Five seconds after last pressing the key the countdown begins, at the end of which the buzzer activates.

• The current time can be viewed during the

countdown by pressing key once, press the key again to return to the timer display.

At the end of the countdown the oven must be stopped manually by turning the thermostat knob and the function selector knob to 0.

It is not possible to set a cooking time of more than 4 hours.

Instructions for the user

7.7.3 Programming

Cooking time: the 2nd key can be pressed to set the cooking time. Before it

can be set, the thermostat knob must be turned to the required cooking temperature and the function selector knob to any setting. To set the cooking time, proceed as follows:

• Press key ; the pointer will go to position 12

and the adjacent symbol will flash (Fig. 1).

• Within 5 seconds press key or to set the

cooking time: each pressure on adds 1 minute to the cooking time, and every 12 minutes

a new inside segment will light up (figure 2 shows a cooking duration of 1 hour);

• Once the required time is obtained, cooking will start about 5 seconds after the last pressure on

or .

• The display will show the current time, represented by the constantly illuminated segments, and the minutes left to the end of the cooking time, represented by the flashing segments (each flashing segment means 12 minutes of cooking time left).

• At the end of the cooking time the timer will switch the oven heating elements off, the buzzer will start to sound and the numbers on the dial will flash.

• The time can also be reset by deleting the

program selected: Press the central key for 2 seconds to cancel the set time and the oven will

have to be manually switched off if the cooking operation is in progress.

It is not possible to set a cooking time of more than 12 hours.

Instructions for the user

Cooking start: as well as setting a cooking time, the cooking start time can also

be set (with a maximum delay of 12 hours in relation to the current time). To set the cooking start/end time, proceed as follows:

• Set the cooking time as described in the previous point.

• Within 5 seconds of last pressing key or , press key again to set

the cooking end time. Symbol will flash on the display together with the current time, with the internal segments illuminated to show the end of

cooking time. Use keys and to set the cooking end time.

• 5 seconds after the last key is pressed, the display will show the current time and the cooking start and end times, which will be represented by the illuminated inside segments. The display segments will be constantly illuminated as long as the current time is not the same as the cooking start time; as soon as the current time reaches the set starting time, all the inside segments will start to flash, indicating that the oven has started cooking.

• At the end of the cooking time the timer will switch the oven heating elements off, the buzzer will start to sound and the numbers on the dial will flash.

• To delete the entire set program, hold down the central key for 2 seconds; if cooking has already started, the oven will have to be switched off manually.

• Here we can see a programming example: the current time is 7.06 and cooking is programmed to start at 8.00 and end at 9.00.

• At 8 o'clock the inside segments between 8 and 9 will start to flash, while the hours hand will remain still.

Warning: for the oven to start cooking after the programming procedures just described, the thermostat and functions switch knob must be correctly set on the required temperature and function.

7.7.4 Display brightness reduction

To reduce energy consumption in stand-by, briefly press key to reduce the

display brightness. To restore the normal brightness, press again.

Instructions for the user

8. OVEN FUNCTIONS

STATIC: As the heat comes from above and below at the same time, this

system is particularly suitable for certain types of food. Traditional cooking, also known as static or thermal radiation cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread and cakes and in any case particularly suitable for fatty meats such as goose and duck.

FAN-ASSISTED STATIC: The operation of the fan, combined with traditional cooking, ensures uniform cooking even with complex recipes. Perfect for biscuits and cakes, even when simultaneously cooked on several levels.

GRILL: Using only the heat released from the central element, this function allows you to grill small portions of meat and fish for making kebabs, toasted sandwiches and any types of grilled vegetable side dishes.

FAN-ASSISTED GRILL: The air produced by the fan softens the strong heatwave generated by the grill, giving perfect grilling results even with very thick foods. Perfect for large cuts of meat (e.g. shin of pork).

FAN-ASSISTED BOTTOM: The combination of the fan with just the bottom heating element allows cooking to be completed more rapidly. This system is recommended for finishing off the cooking of foods which are already wellcooked on the surface, but not inside, which therefore need a little more heat. Perfect for any type of food.

BOTTOM + FAN-ASSISTED CIRCULAR: Fan-assisted cooking is combined with the heat coming from the bottom and allows food to be slightly browned at the same time. Perfect for any type of food.

CIRCULAR: The combination of the fan and the circular element (incorporated in the rear of the oven) enables different foods to be cooked on several levels, as long as they need the same temperature and same type of cooking operation. Hot air circulation ensures instant and uniform distribution of heat. It will be possible, for instance, to cook fish, vegetables and biscuits simultaneously (on different levels) without mixing odours and flavours.

DEFROSTING: Rapid defrosting is helped by switching on the fan to ensure uniform distribution of room temperature air inside the oven.

Instructions for the user

8.1 Cooking advice and instructions

8.1.1 General advice

We recommend preheating the oven before putting food in.

• For cooking on several levels, we recommend using a fan-assisted function to achieve uniform cooking at all heights.

• In general, it is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).

• While cooking desserts or vegetables, excessive condensation may form on the glass. In order to avoid this, open the door very carefully a couple of times while cooking.

8.1.2 Advice for cooking meat

• Cooking times, especially for meat, vary according to the thickness and quality of the food and to consumer taste.

• We recommend using a meat thermometer for meat when roasting it. Alternatively, simply press on the roast with a spoon: if it is hard, it is ready; if not, it needs another few minutes cooking.

8.1.3 Advice for cooking desserts and biscuits

• Use dark metal moulds for desserts: they help to absorb the heat better.

• The temperature and the cooking duration depend on the quality and consistency of the dough.

• Check whether the dessert is cooked right through: at the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.

• If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10°C, selecting a longer cooking time if necessary.

8.1.4 Advice for defrosting and proving

• We recommend positioning frozen foods in a lidless container on the first shelf of the oven.

• The food must be defrosted without its wrapping.

• Lay out the foodstuffs to be defrosted evenly, not overlapping.

• When defrosting meat, we recommend using a rack positioned on the second runner with the food on it and a tray positioned on the first runner. In this way, the liquid from the defrosting food drains away from the food.

• The most delicate parts can be covered with aluminium foil.

• For successful proving, a container of water should be placed in the bottom of the oven.

Instructions for the user

8.1.5 Advice for cooking with the Grill and the Fan-assisted grill

• Using the Grill function (where present), meat can be grilled even when it is put into the cold oven; preheating is recommended if you wish to change the effect of the cooking.

• With the Fan-assisted grill function (where present), however, we recommend that you preheat the oven before grilling.

• We recommend placing the food at the centre of the rack.

8.2 To save energy

To save energy while using the appliance, the following instructions may be followed:

• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.

• Reduce any opening of the door to a minimum to avoid heat dispersal.

• Use the ECO function (where present) for cooking on a single runner.

• Keep the inside of the appliance clean at all times.

Instructions for the user

8.3 Cooking tables

TYPES OF FOOD WEIGHT FUNCTION

FIRST COURSES

LASAGNE 3-4 kg Static

OVEN-BAKED PASTA 2 kg Static

MEAT

ROAST VEAL 1.2 kg Fan-assisted static

PORK LOIN 1.2 kg Fan-assisted static

PORK SHOULDER 1.2 kg Turbo

ROAST RABBIT 1.2 kg Circular

TURKEY BREAST 1.5 kg Fan-assisted static

ROAST PORK NECK 2 kg Turbo

ROAST CHICKEN 1.2 kg Turbo

GRILLED MEATS

PORK SAUSAGES 1.2 kg Fan-assisted grill

PORK CHOPS 1.2 kg

HAMBURGERS 0.8 kg Grill

BACON 0.8 kg Fan-assisted grill

ROTISSERIE CHICKEN 1-1.2 kg Rotisserie grill

FISH

SALMON TROUT 1.2 Kg Fan-assisted bottom

Grill

Instructions for the user

RUNNER POSITION

FROM BOTTOM

1 220 - 230 50 - 60

1220 - 230 40

2 180 - 190 70 - 80

2 180 - 190 90 - 100

2 180 - 190 70 - 80

2 180 - 190 80 - 90

2 180 - 190 190 - 210

2 180 - 190 60 - 70

3 250 - 280 7 - 9 5 - 6

TEMPERATURE

°C

TIME IN MINUTES

1ST SURFACE 2ND SURFACE

4250 - 280155

4250 - 28095

3250 - 280133

250 - 280 70 - 80

2 150 - 160 35 - 40

Instructions for the user

TYPES OF FOOD WEIGHT FUNCTION

PIZZA 1 kg Pizza

BREAD 1 kg Circular

FOCACCIA 1 kg Tu rb o

DESSERTS

RING CAKE 1 kg Fan-assisted static

FRUIT TART 1 kg Fan-assisted static

SHORT PASTRY 0.5 kg Fan-assisted bottom

JA M TA RT S 1.2 k g Tur b o

PARADISE CAKE 1.2 kg Fan-assisted static

CREAM PUFFS 0.8 kg Turbo

LIGHT SPONGE CAKE 0.8 kg Circular

RICE PUDDING 1 kg Turbo

BRIOCHES 0.6 kg Circular

BRIOCHES (on multiple runners)

SHORT PASTRY BISCUITS (on multiple runners)

The times indicated in the following tables do not include the preheating times and are provided as a guide only.

Instructions for the user

RUNNER POSITION

FROM BOTTOM

1 250 - 280 6 -10

2 190 - 200 25 -30

2 180 - 190 15 -20

2 160 50 - 60

2 160 30 - 35

2 160 - 170 20 - 25

2 160 20 - 25

2 160 55 - 60

2 150 - 160 40 - 50

2 150 - 160 45 - 50

2 160 40 - 50

2 160 25 - 30

TEMPERATURE

°C

TIME IN MINUTES

1 and 3 160 - 170 16 - 20

For cooking on multiple runners, we recommend that you use functions

, and only, and the 1

and 3rd runners.

Instructions for the user

9. CLEANING AND MAINTENANCE

Do not use steam jets to clean the appliance. The steam could reach the electronics, damaging them and causing short-circuits.

WARNING: For your safety, you are advised to wear protective gloves while performing any cleaning or extraordinary maintenance.

Do not use cleaning products containing chlorine, ammonia or bleach on steel parts or parts with metallic finishes on the surface (e.g. anodizing, nickel- or chromium-plating).

We recommend the use of cleaning products distributed by the manufacturer.

9.1 Cleaning the surfaces

To keep the oven surfaces in good condition, they should be cleaned regularly after use. Let the appliance cool first.

9.2 Ordinary daily cleaning

To clean and preserve stainless steel surfaces, always use only specific products that do not contain abrasives or chlorine-based acids. How to use: pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

9.3 Food stains or residues

Do not use metallic sponges or sharp scrapers as they will damage the surfaces. Use normal non-abrasive products and a wooden or plastic tool if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth. Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

Instructions for the user

9.4 Cleaning the glass ceramic hob

The glass ceramic hob should be cleaned regularly, preferably after every use, once the residual heat indicator lights have gone off.

Smudges from aluminium-based pans can be easily cleaned off with a cloth dampened in vinegar. After cooking remove any burnt residues with the scraper provided; rinse with water and dry thoroughly with a clean cloth. Regular use of the scraper considerably reduces the need for chemical detergents for the daily cleaning of the hob. Never use abrasive or corrosive detergents (e.g. cleaning powders, oven sprays, spot-removers and wire sponges). Dirt which may have fallen on the hob while cleaning lettuce or potatoes can scratch the hob when moving saucepans. Consequently, remove any dirt from the cooking surface immediately. Changes in colour do not affect the functioning and stability of the glass ceramic. These are not alterations to the material of the hob but just residues which have not been removed and have then carbonised. Shiny surfaces can form due to the bases of saucepans, especially aluminium ones, rubbing on the surface, and due to the use of unsuitable detergents. These are difficult to remove with ordinary cleaning products. It may be necessary to repeat the cleaning process several times. Using aggressive detergents, or friction with the base of saucepans, can wear away the decoration on the hob over time and contribute to the formation of stains.

9.5 Weekly cleaning

Clean and maintain the hob once a week using an ordinary glass ceramic cleaning product. Always follow the manufacturer's instructions. The silicon in these products creates a protective, water-repellent membrane which also resists dirt. All marks stay on the membrane and can therefore be easily removed. After cleaning, dry the surface with a clean cloth. Make sure that there is no detergent left on the cooking surface as it will undergo an aggressive reaction when heated up and could modify the structure of the cooking surface.

Instructions for the user

9.6 Cleaning the oven

For the best oven upkeep, clean it regularly after having allowed it to cool. Take out all removable parts.

• Clean the oven racks with warm water and non-abrasive detergent. Rinse and dry.

• For easier cleaning, the door can be removed (see “10.2 Removing the door”).

The oven should be operated at the maximum heat setting for 15/20 minutes after use of specific products, to burn off the residues left inside the oven.

When the operation is complete, damp parts should be dried thoroughly.

9.6.1 Removing guide frames

Removing the guide frames enables the sides to be cleaned more easily.

To remove the guide frames: 1 Pull the frame towards the top of the oven

to unhook it from its housing A, then slide it out of the seats B at the back.

2 When cleaning is complete, repeat the

above procedures to put the guide frames back in.

Instructions for the user

9.7 Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll; remove stubborn dirt with a damp sponge and an ordinary detergent.

Do not use abrasive or corrosive detergents to clean the oven door glass panels (e.g. powder products, spot-removers and wire sponges). Do not use rough or abrasive materials or sharp metal scrapers to clean the oven's glass doors since they may scratch the surface.

9.8 Removing the door seal

To permit thorough cleaning of the oven, the door seal may be removed. There are fasteners on all four sides to attach it to the edge of the oven. Pull the edges of the seal outwards to detach the fasteners. The seal must be replaced when it loses elasticity and hardens.

9.9 Cleaning the door seal

To keep the seal clean, use a non-abrasive sponge and lukewarm water. The seal should be soft and flexible (with the exception of pyrolitic models). In pyrolitic models, the seal may flatten over time and lose its original shape. To restore it, pinch the seal all the way along its perimeter. This also helps remove any dirt on the seal.

Instructions for the user

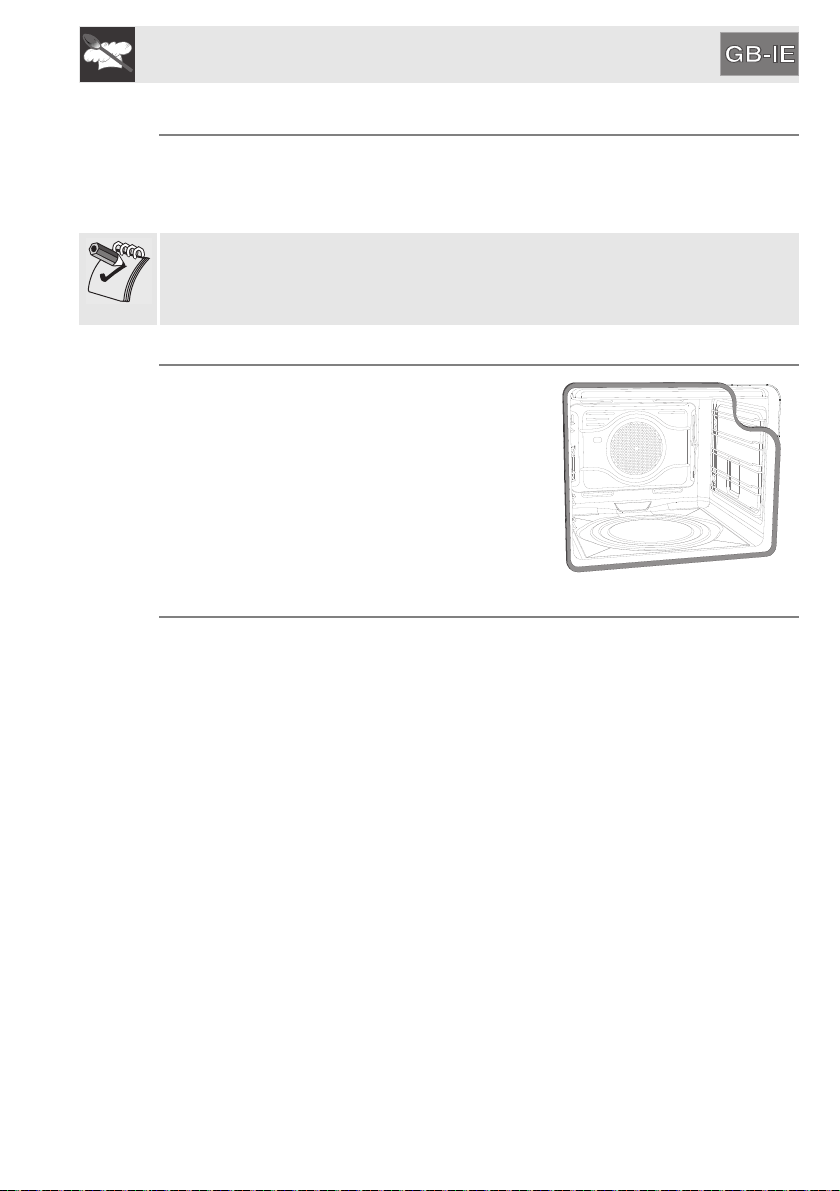

9.10 Cleaning self-cleaning panels (catalysis cycle)

If the self-cleaning panels are dirty, primarily with small amounts of grease, a heating cycle can be executed to regenerate them. Clean the base and the roof liner first with a microfibre cloth soaked in water and neutral washing up liquid, then rinse thoroughly. Set a regeneration cycle by selecting a fan-assisted function at the maximum temperature for one hour. If the panels are particularly dirty, after the regeneration cycle, remove them and wash them with neutral washing up liquid. Then rinse and dry them. Put the panels back in the oven and set a fan-assisted function at a temperature of 180°C for one hour, in order to ensure that they are thoroughly dry.

We recommend carrying out the self-cleaning panel regeneration cycle every 15 days.

The panel regeneration cycle is a cleaning method suitable for grease residues, not sugar-based ones.

Instructions for the user

10.EXTRAORDINARY MAINTENANCE

The oven requires periodic minor maintenance or replacement of parts subject to wear, such as gaskets, light bulbs, etc. Specific instructions for each operation of this kind are given below.

Before any intervention that requires access to live parts, disconnect the appliance from the power supply.

If a problem cannot be resolved through ordinary maintenance or in case of other types of fault, contact your local technical support centre.

10.1 Replacing the light bulbs

Remove the bulb protector A by turning it anticlockwise and replace bulb B with a similar one. Re-fit bulb protector A. Use only oven bulbs (T 300°C).

Instructions for the user

10.2 Removing the door

Open the door completely. Insert two pins into the holes on the hinges towards the back of them until they engage.

Grasp the door on both sides with both hands, lift it forming an angle of around 30° and remove it.

To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections C are resting completely in the slots. Lower the door and once it is in place remove the pins from the holes in the hinges.

Instructions for the installer

11.INSTALLING THE APPLIANCE

11.1 Installing in kitchen units

Veneers, adhesives or plastic coatings on adjacent furniture should be temperature-resistant (no less than 90°C). If they are not sufficiently temperature-resistant, they may warp over time.

The appliance must be installed by a qualified technician and according to the regulations in force. Depending on the type of installation, this appliance belongs to class 2, subclass 1 (Fig. A - Fig. B) or to class 1 (Fig. C).

It may be installed next to walls, one of which must be higher than the worktop, at a minimum distance of 50 mm from the side of the appliance, as shown in figures A and C relative to the installation classes.

Any wall units must be at a minimum distance of at least 750 mm above the appliance. This distance can be reduced to 650 mm if a ventilation hood is installed.

Built-in appliance (Class 2 subclass 1)

Free-standing appliance (Class 1)

Instructions for the installer

11.2 Electrical connection

Make sure the voltage and the cross-section of the power supply line match the specifications indicated on the identification plate positioned on the appliance. Do not remove this plate for any reason. A copy of the plate is attached to the instructions.

The appliance must be connected to the power supply by a qualified technician.

Before performing any operations, switch off the power supply to the appliance.

The appliance must be connected to earth in compliance with electrical system safety standards.

Where the appliance is connected to the power grid via plug and socket, both of these must be of the same type and connected to the power cable in accordance with current standards. The socket must be accessible after the appliance has been built in.

NEVER UNPLUG BY PULLING ON THE CABLE.

Should the earthing wire need replacing it must be longer than the conducting wires so that, if the plug is torn off the power cable, it is the last to be detached.

Avoid use of adapters and shunts as these could cause overheating and a risk of burns.

If a fixed connection is being used, fit the power line with an omnipolar circuit breaker with a contact opening gap equal to or greater than 3 mm, in an easily accessible position close to the appliance.

The manufacturer declines all responsibility for damage to persons or things caused by non-observance of the above prescriptions or by interference with any part of the appliance.

Instructions for the installer

POSSIBLE

CONNECTION TYPES

CABLE TYPE

(if not present)

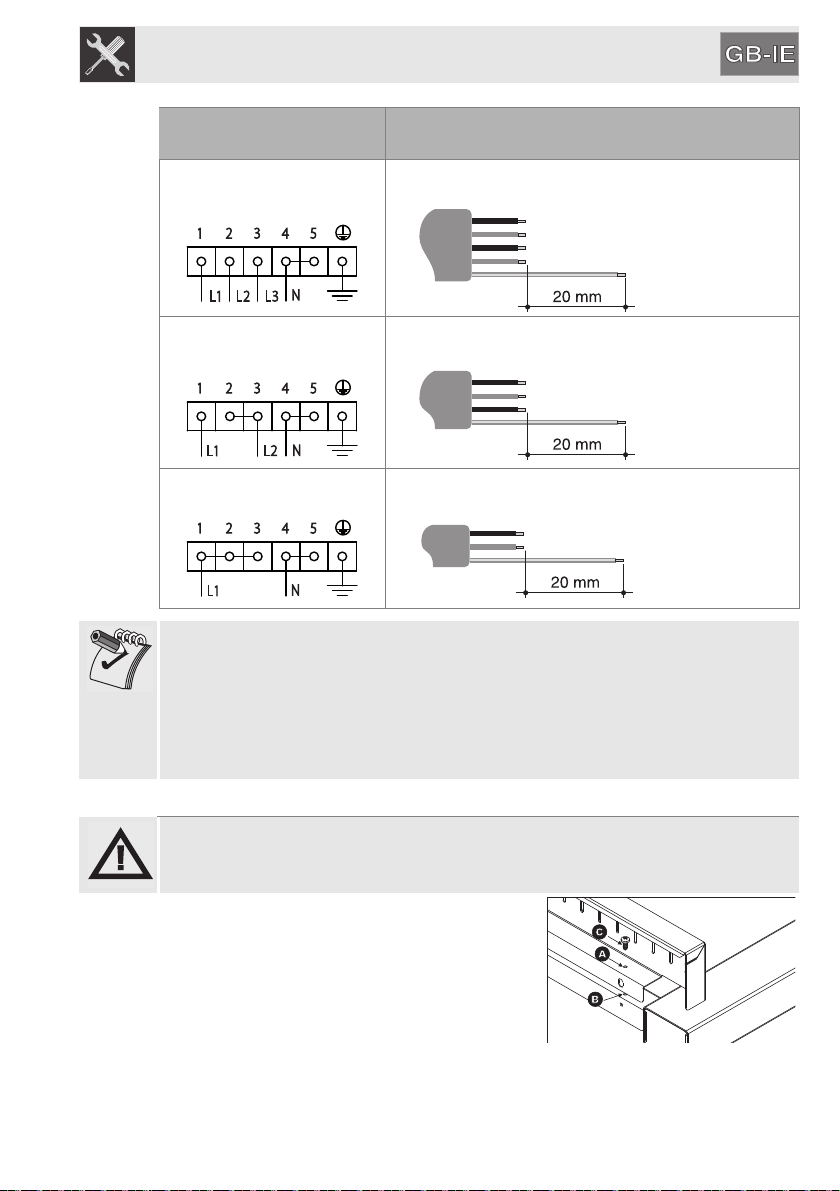

380 - 415 V 3N~ 5-pole 5 x 2.5 mm² H05V2V2-F

380 - 415 V 2N~ 4-pole 4 x 4 mm² H05V2V2-F

220 - 240 V 1N~ 3-pole 3 x 6 mm² H05V2V2-F

• Use H05V2V2-F cables withstanding temperatures of 90°C or higher.

• The values indicated above refer to the cross-section of the internal conductor.

• The tightening torque of the screws of the terminal supply wires must be 1.5

- 2 Nm.

The aforementioned power cables are sized taking into account the coincidence factor (in compliance with standard EN 60335-2-6).

11.3 Positioning the skirt

WARNING: The skirt provided is an integral part of the product; it must be fastened to the appliance prior to installation.

• Position the skirt above the top, taking care to align holes A with holes B.

• Secure the skirt to the top by tightening screws C.

Instructions for the installer

11.4 Positioning and levelling the appliance

After making the electrical and/or gas connections, properly level the appliance on the floor to ensure better stability. Screw or unscrew the bottom part of the foot until the appliance is stable and level on the floor.

11.5 Wall mounting instructions (some markets only)

1 Fasten a hook bolt (not supplied) into the wall at

a height (h) of 800 mm from the floor.

The installer must provide the hook bolt when installing the appliance.

2 Attach the snap hook to the chain.

3 Attach the end of the chain to the hook bolt

fastened in the wall.

4 Finally, connect the snap hook to the appropriate

hole on the back of the appliance.

Smeg A1C-7 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
