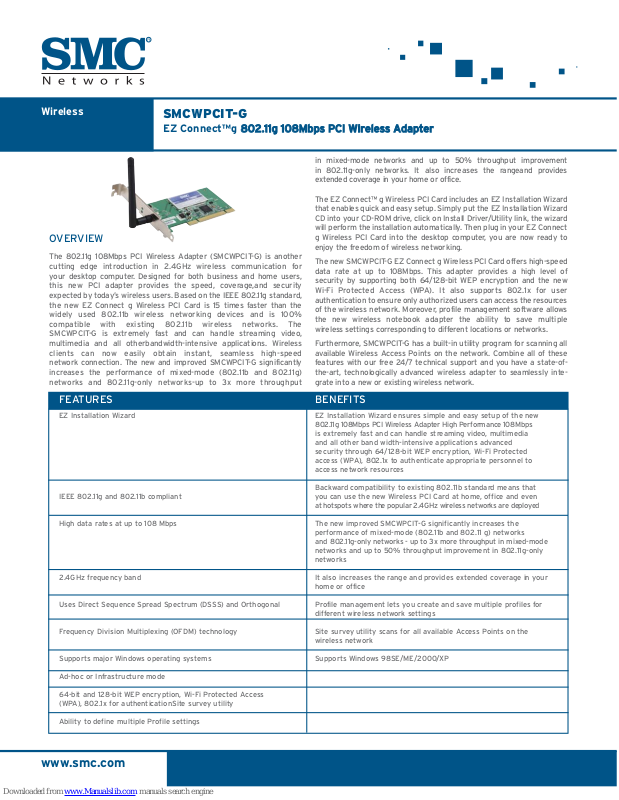

SMC Networks SMCWPCIT-G, WPCIT-G - FICHE TECHNIQUE, EZ Connect g SMCWPCIT-G Specifications

Wireless

SMCWPCIT-G

EZ Connect™g

880022..1111gg 110088MMbbppss PPCCII WWiirreelleessss AAddaapptteerr

www.smc.com

The 802.11g 108Mbps PCI Wireless Adapter (SMCWPCIT-G) is another
cutting edge introduction in 2.4GHz wireless communication for
your desktop computer. Designed for both business and home users,
this new PCI adapter provides the speed, coverage,and security
expected by today’s wireless users. Based on the IEEE 802.11g standard,
the new EZ Connect g Wireless PCI Card is 15 times faster than the
widely used 802.11b wireless networking devices and is 100%
compatible with existing 802.11b wireless networks. The
SMCWPCIT-G is extremely fast and can handle streaming video,
multimedia and all otherbandwidth-intensive applications. Wireless
clients can now easily obtain instant, seamless high-speed
network connection. The new and improved SMCWPCIT-G significantly
increases the performance of mixed-mode (802.11b and 802.11g)
networks and 802.11g-only networks-up to 3x more throughput

in mixed-mode networks and up to 50% throughput improvement
in 802.11g-only networks. It also increases the rangeand provides
extended coverage in your home or office.

The EZ Connect™ g Wireless PCI Card includes an EZ Installation Wizard
that enables quick and easy setup. Simply put the EZ Installation Wizard
CD into your CD-ROM drive, click on Install Driver/Utility link, the wizard
will perform the installation automatically. Then plug in your EZ Connect
g Wireless PCI Card into the desktop computer, you are now ready to
enjoy the freedom of wireless networking.

The new SMCWPCIT-G EZ Connect g Wireless PCI Card offers high-speed
data rate at up to 108Mbps. This adapter provides a high level of
security by supporting both 64/128-bit WEP encryption and the new
Wi-Fi Protected Access (WPA). It also supports 802.1x for user
authentication to ensure only authorized users can access the resources
of the wireless network. Moreover, profile management software allows
the new wireless notebook adapter the ability to save multiple
wireless settings corresponding to different locations or networks.

Furthermore, SMCWPCIT-G has a built-in utility program for scanning all
available Wireless Access Points on the network. Combine all of these
features with our free 24/7 technical support and you have a state-of­the-art, technologically advanced wireless adapter to seamlessly inte­grate into a new or existing wireless network.

FEATURES

EZ Installation Wizard

IEEE 802.11g and 802.11b compliant

High data rates at up to 108 Mbps

2.4GHz frequency band

Uses Direct Sequence Spread Spectrum (DSSS) and Orthogonal

Frequency Division Multiplexing (OFDM) technology

Supports major Windows operating systems

Ad-hoc or Infrastructure mode

64-bit and 128-bit WEP encryption, Wi-Fi Protected Access
(WPA), 802.1x for authenticationSite survey utility

Ability to define multiple Profile settings

EZ Installation Wizard ensures simple and easy setup of the new

802.11g 108Mbps PCI Wireless Adapter High Performance 108Mbps
is extremely fast and can handle streaming video, multimedia
and all other band width-intensive applications advanced
security through 64/128-bit WEP encryption, Wi-Fi Protected
access (WPA), 802.1x to authenticate appropriate personnel to
access network resources

Backward compatibility to existing 802.11b standard means that
you can use the new Wireless PCI Card at home, office and even
at hotspots where the popular 2.4GHz wireless networks are deployed

The new improved SMCWPCIT-G significantly increases the
performance of mixed-mode (802.11b and 802.11 g) networks
and 802.11g-only networks - up to 3x more throughput in mixed-mode
networks and up to 50% throughput improvement in 802.11g-only
networks

It also increases the range and provides extended coverage in your
home or office

Profile management lets you create and save multiple profiles for
different wireless network settings

Site survey utility scans for all available Access Points on the
wireless network

Supports Windows 98SE/ME/2000/XP

BENEFITS

OVERVIEW

TECHNICAL SPECIFICATIONS SMCWPCIT-G

STANDARDS

• 802.11B

• 802.11G

NETWORK CONFIGURATION

• AD-HOC (PEER-TO-PEER)

• INFRASTRUCTURE

MODULATION TYPE

• 16-QAM, 64-QAM, BPSK, QPSK, CCK

OPERATING CHANNELS

• 11 CHANNELS (US, CANADA)

• 13 CHANNELS (ETSI)

• 14 CHANNELS (JAPAN)

RADIO TECHNOLOGY

• DIRECT SEQUENCE SPREAD SPECTRUM

• ORTHOGONAL FREQUENCY DIVISION MULTIPLEXING

SECURITY

• 64-BIT/128-BIT WIRED EQUIVALENT PRIVACY (WEP)

• WI-FI PROTECTED ACCESS (WPA)

• ADVANCED ENCRYPTION STANDARD (AES)

• 802.1X AUTHENTICATION

DATA RATES

• 1 / 2 / 5.5 / 11 MBPS

• 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 MBPS

• SMC 108G – 108MBPS

OUTPUT POWER

• 15 DBM MAX

RECEIVE SENSITIVITY

• 802.11B

• 1MBPS: -86DBM

• 2MBPS: -84DBM

• 5.5MBPS: -82DBM

• 11MBPS: -80DBM

• 802.11G

• 6MBPS: -88DBM

• 9MBPS: -87DBM

• 12MBPS:-84DBM

• 18MBPS: -82DBM

• 24MBPS: -79DBM

• 36MBPS: -75DBM

• 48MBPS: -68DBM

• 54MBPS: -68DBM

INTERFACE

• PCI V2.2 (5V/3.3V)

ANTENNA

• EXTERNAL SMA (DETACHABLE)

• 2.0 DBI PEAK

OPERATING TEMPERATURE

• 0˚C TO 55˚C

• 0˚F TO 131˚F

STORAGE TEMPERATURE

• -20˚C TO 75˚C

• -4˚F TO 167˚F

HUMIDITY

• 5-90% NON-CONDENSING

COMPLIANCE

•FCC PART 15

• ETSI / CE-MARK

• INDUSTRY CANADA

• C-TICK

COMPATIBILITY

• IEEE 802.11B

• IEEE 802.11G

• WINDOWS 98SE/ME/2000/XP

OPERATING RANGE

• OUTDOORS: UP TO 1,155 FEET / 350 METERS

• INDOORS: UP TO 328 FEET / 100 METERS
