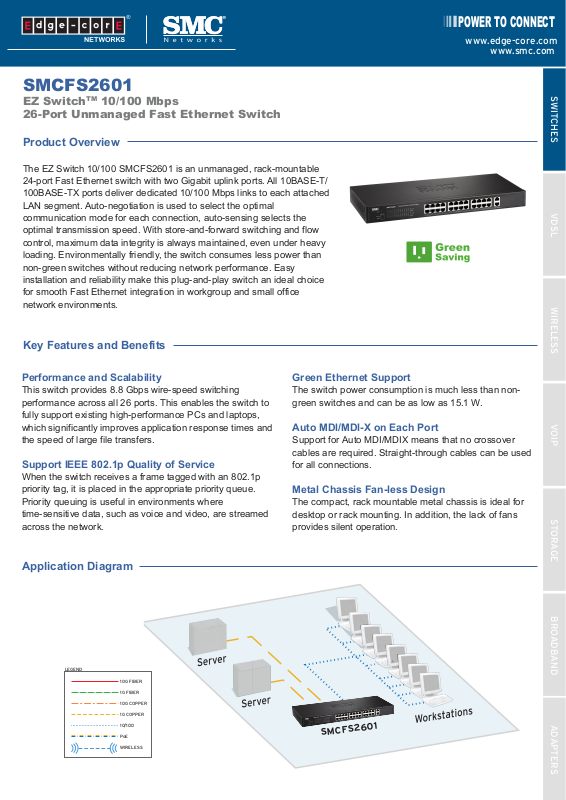

SMC Networks SMCFS2601 Datasheet
POWER TO CONNECT
www.edge-core.com
www.smc.com
SMCFS2601
EZ SwitchTM 10/100 Mbps
26-Port Unmanaged Fast Ethernet Switch
Product Overview
The EZ Switch 10/100 SMCFS2601 is an unmanaged, rack-mountable
24-port Fast Ethernet switch with two Gigabit uplink ports. All 10BASE-T/
100BASE-TX ports deliver dedicated 10/100 Mbps links to each attached
LAN segment. Auto-negotiation is used to select the optimal
communication mode for each connection, auto-sensing selects the
optimal transmission speed. With store-and-forward switching and flow
control, maximum data integrity is always maintained, even under heavy
loading. Environmentally friendly, the switch consumes less power than
non-green switches without reducing network performance. Easy
installation and reliability make this plug-and-play switch an ideal choice
for smooth Fast Ethernet integration in workgroup and small office
network environments.
Key Features and Benefits
SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS
Performance and Scalability
This switch provides 8.8 Gbps wire-speed switching
performance across all 26 ports. This enables the switch to
fully support existing high-performance PCs and laptops,
which significantly improves application response times and
the speed of large file transfers.
Support IEEE 802.1p Quality of Service
When the switch receives a frame tagged with an 802.1p
priority tag, it is placed in the appropriate priority queue.
Priority queuing is useful in environments where
time-sensitive data, such as voice and video, are streamed
across the network.
Application Diagram
Green Ethernet Support
The switch power consumption is much less than nongreen switches and can be as low as 15.1 W.
Auto MDI/MDI-X on Each Port
Support for Auto MDI/MDIX means that no crossover
cables are required. Straight-through cables can be used
for all connections.
Metal Chassis Fan-less Design
The compact, rack mountable metal chassis is ideal for
desktop or rack mounting. In addition, the lack of fans
provides silent operation.
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
SMCFS2601
POWER TO CONNECT
www.edge-core.com
www.smc.com
Features
PHYSICAL PORTS
SMCFS2601:
■ 24 x 10/100 Mbps Auto-Negotiation RJ-45 ports
■ 2 x 10/100/1000 Mbps Auto-Negotiation RJ-45 ports
NETWORK INTERFACE
■ 10BASE-T (IEEE 802.3)
■ 100BASE-TX (IEEE 802.3u)
■ 1000BASE-T (IEEE 802.3ab)
FEATURE
■ IEEE 802.1p QoS
■ IEEE 802.3x Flow Control
■ Auto-MDI/MDIX
■ Green Saving
LEDs
■ Power
■ Link/Activity
■ 100 Mbps / 1000 Mbps
SWITCHING DATABASE
■ 8K MAC address entries
SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS
ELECTROMAGNETIC COMPATIBILITY
■ CE Mark
■ FCC Class A
■ KCC
IMMUNITY
■ EN55024
■ IEC61000-4/2/3/4/5/6/8/11
EMISSIONS
■ FCC Class A, EN55022/EN61000-3-2/3
SAFETY
■ LVD (EN60950)
TEMPERATURE
■ Operating Temperature: 0°C~40°C (32°F~104°F)
■ Operating Humidity: 10%~90% non-condensing
■ Storage Temperature: -40°C~70°C (-40°F~158°F)
■ Storage Humidity: 5%~90% non-condensing
WARRANTY
Please check www.smc.com for the warranty terms in your country.
BUFFER MEMORY
■ 2.5 Mbytes/device
SWITCHING CAPACITY
■ 8.8 Gbps
POWER REQUIREMENT
■ 100-240V~50/60Hz, 0.6A
FRAME FILTER RATE
■ 10BASE-T: 14880 pps/port
■ 100BASE-TX: 148800 pps/port
■ 1000BASE-T: 1488000 pps/port
FRAME FORWARDING RATE
■ 10BASE-T: 14880 pps/port
■ 100BASE-TX: 148800 pps/port
■ 1000BASE-T: 1488000 pps/port
THROUGHPUT
■ 6.5 Mpps
DIMENSIONS
■ 44 x 18.0 x 4.4 cm (17.4 x 7.11 x 1.73 in)
Contact
World Wide Corporate and Sales Headquarters
No. 1 Creation Road III,
Hsinchu Science Park,
30077, Taiwan, R.O.C.
Tel: +886 3 5770270 Fax: +886 3 5780764
Singapore
1 Coleman Street
#07-09, The Adelphi
Singapore 179803
Tel: 65-63387667 Fax: 65-63387767
Check www.smc-asia.com for your local country contact information
Europe/Africa
C/Fructuós Gelabert 6-8 2º, 2ª,
Edificio Conata II,
08970 Sant Joan Despí
Barcelona - Spain
Phone: +34 93 477 4920
WEIGHT
■ 2.4 Kg (5.28 lbs)
Ordering Information
Check www.smc.com for your local country contact information
©2011 SMC Networks. EZ SwitchTM is a trademark of SMC Networks.
Other trademarks or registered trademarks are the property of their
respective owners. Information is subject to change without notice. All
rights reserved.
SMC-DS-0811-01
