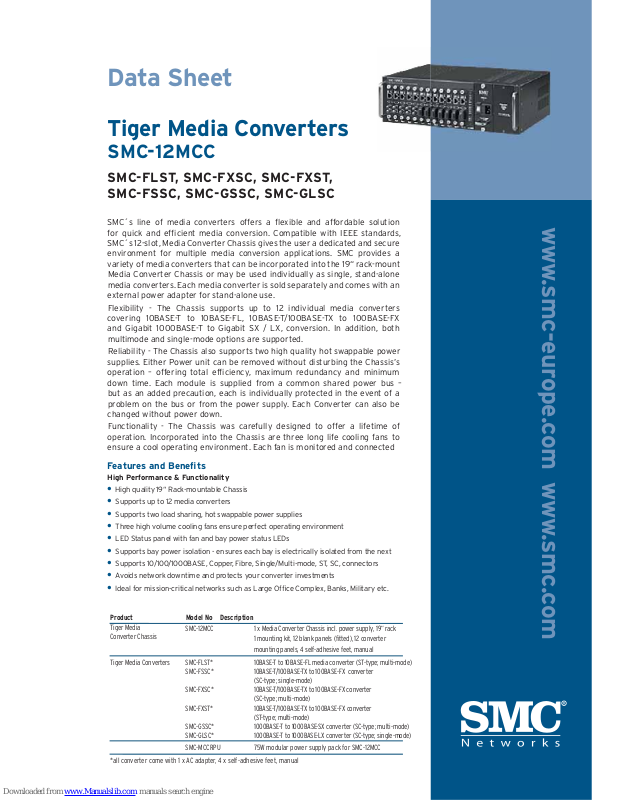

SMC Networks SMC-FLST, SMC-FXSC, SMC-FXST, SMC-FSSC, SMC-GSSC Datasheet
...
www.smc-europe.com www.smc.com
Tiger Media Converters
SMC-12MCC
SMC-FLST, SMC-FXSC, SMC-FXST,
SMC-FSSC, SMC-GSSC, SMC-GLSC
SMC´s line of media converters offers a flexible and affordable solution
for quick and efficient media conversion. Compatible with IEEE standards,
SMC´s 12-slot, Media Converter Chassis gives the user a dedicated and secure
environment for multiple media conversion applications. SMC provides a
variety of media converters that can be incorporated into the 19“ rack-mount
Media Converter Chassis or may be used individually as single, stand-alone
media converters. Each media converter is sold separately and comes with an
external power adapter for stand-alone use.
Flexibility - The Chassis supports up to 12 individual media converters
covering 10BASE-T to 10BASE-FL, 10BASE-T/100BASE-TX to 100BASE-FX
and Gigabit 1000BASE-T to Gigabit SX / LX, conversion. In addition, both
multimode and single-mode options are supported.
Reliability - The Chassis also supports two high quality hot swappable power
supplies. Either Power unit can be removed without disturbing the Chassis’s
operation – offering total efficiency, maximum redundancy and minimum
down time. Each module is supplied from a common shared power bus –
but as an added precaution, each is individually protected in the event of a
problem on the bus or from the power supply. Each Converter can also be
changed without power down.
Functionality - The Chassis was carefully designed to offer a lifetime of
operation. Incorporated into the Chassis are three long life cooling fans to
ensure a cool operating environment. Each fan is monitored and connected
Features and Benefi ts
High Performance & Functionality
• High quality 19“ Rack-mountable Chassis
• Supports up to 12 media converters
• Supports two load sharing, hot swappable power supplies
• Three high volume cooling fans ensure perfect operating environment
• LED Status panel with fan and bay power status LEDs
• Supports bay power isolation - ensures each bay is electrically isolated from the next
• Supports 10/100/1000BASE, Copper, Fibre, Single/Multi-mode, ST, SC, connectors
• Avoids network downtime and protects your converter investments
• Ideal for mission-critical networks such as Large Offi ce Complex, Banks, Military etc.
Product Model No Description
SMC-12MCC 1 x Media Converter Chassis incl. power supply, 19“ rack
1 mounting kit, 12 blank panels (fitted), 12 converter
mounting panels, 4 self-adhesive feet, manual
Tiger Media
Converter Chassis
Data Sheet
SMC-FLST* 10BASE-T to 10BASE-FL media converter (ST-type; multi-mode)
SMC-FSSC* 10BASE-T/100BASE-TX to 100BASE-FX converter
(SC-type; single-mode)
SMC-FXSC* 10BASE-T/100BASE-TX to 100BASE-FX converter
(SC-type; multi-mode)
SMC-FXST* 10BASE-T/100BASE-TX to 100BASE-FX converter
(ST-type; multi-mode)
SMC-GSSC* 1000BASE-T to 1000BASE-SX converter (SC-type; multi-mode)
SMC-GLSC* 1000BASE-T to 1000BASE-LX converter (SC-type; single-mode)
Tiger Media Converters
SMC-MCCRPU 75W modular power supply pack for SMC-12MCC
*all converter come with 1 x AC adapter, 4 x self-adhesive feet, manual
Specifications
SMC-12MCC
Physical Characteristics
Capacity
• 12 Bay - up to 12 stand-alone converters
Chassis
• Aluminium/ Steel
Power
• Up to two power supplies, load sharing,
hot swappable
LEDs
• 3 Red for fan status
• 12 Green for bay power status
• 1 Red for each power supply
Cooling
• Three 42.5 cfm rear mounted fans
Dimension (L x W x H)
• 12-Bay: 430 x 290 x 133mm (EIA 3U)
Weight
• 9kgs (with 12 converters and 1 power
supply)
AC Input
• 90~260VAC @ 47~63Hz
AC Output
• Norm. +12V,
• Min. +11.88V,
• Max +12.12V, 75Watts Load
• Min. OA, Full. 6.4A Total Reg.
• +/- 1.0%, Rip. 120mV,
• Load 2.0%,
• Line 0.5%
Over volts
• Output level exceeding + 13.2v
Protection
• causes shutdown – automatic recovery
Tempertature
• Operation 0°C ~ 70°C,
• Storage -55°C ~ 85°C
Standards Conformance
EMI
• FCC Part 15 Class A, CE approved
Safety
• UL / cUL / TUL Approval
SMC-FLST
Connector
• 1x 10BASE-FL (ST, single-mode),
1x 10BASE-T (RJ-45)
Uplink
• MDI/MDIX push button on RJ-45 port
Status LED
• Power, Link, Activity
SMC-FXSC
Connector
• 1x 100BASE-FX (SC; multi-mode),
1x 10BASE-T/100BASE-TX (RJ-45)
Uplink
• Auto MDI/MDIX on RJ-45 port
Status LED
• Full-Duplex, Collision, Link, Activity
SMC-FXST
Connector
• 1x 100BASE-FX (ST; multi-mode),
1x 10BASE-T/100BASE-TX (RJ-45)
Uplink
• Auto MDI/MDIX on RJ-45 port
Status LED
• Full-Duplex, Collision, Link, Activity
SMC-FSSC
Connector
• 1x 100BASE-FX (SC; single-mode),
1x 10BASE-T/100BASE-TX (RJ-45)
Uplink
• Auto MDI/MDIX on RJ-45 port
Status LED
• Full-Duplex, Collision, Link, Activity
SMC-GSSC
Connector
• 1x 1000BASE-SX (SC; multi-mode),
1x 1000BASE-T (RJ-45)
Uplink
• Auto MDI/MDIX on RJ-45 port
Status LED
• Power, Full-Duplex, Link, Activity
SMC-GLSC
Connector
• 1x 1000BASE-LX (SC; single-mode),
1x 1000BASE-T (RJ-45)
Uplink
• Auto MDI/MDIX on RJ-45 port
Status LED
• Power, Full-Duplex, Link, Activity
Tiger Media Converters
SMC-12MCC
SMC-FLST, SMC-FXSC, SMC-FXST,
SMC-FSSC, SMC-GSSC, SMC-GLSC
For all Media Converters
Max. Distance
Cat 5 Twisted Pair: 100m (330ft)
Fibre Optic:
SMC-FLST: 2km
SMC-FXSC: 2km
SMC-FXST: 2km
SMC-FSSC: 20km
SMC-GSSC: 220m
SMC-GLSC: 10km
Wavelength
*SMC-FLST: 850nm
*SMC-FXSC,SMC-FXST, SMC-FSSC: 1300nm
*SMC-GSSC: 850nm
*SMC-GLSC: 1310nm
Power
External power supply,
12Vdc@0.8A
Cable Types supported:
50/125 or 62.5/125
Temperature
Operating: 0 to 70 Celsius
Storage: -20 to 70 Celsius
Humidity
Operating: 10% to 80%RH
Storage: 5% to 90%RH
Standards
IEEE 802.3 (SMC-FLST,
SMC-FXSC, SMC-FXST, SMC-FSSC)
IEEE 802.3u (SMC-FXSC,
SMCFXST, SMC-FSSC)
IEEE 802.3ab, 802.3z
(SMC-GSSC, SMC-GLSC)
Emissions
FCC Part 15 of Class A &
CE approved
