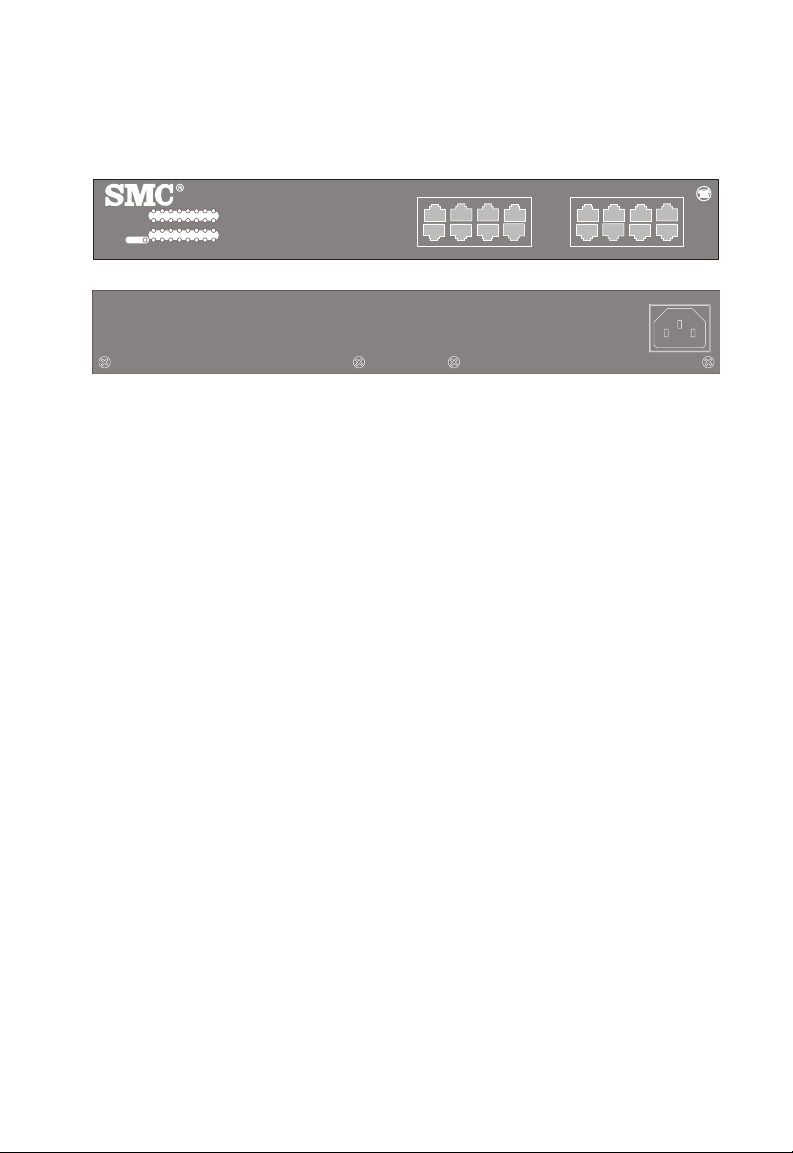

SMC Networks SMC8516T User Manual

EZ Switch 10/100/1000
User Guide

From SMC’s EZ line of low-cost workgroup LAN solutions

38 Tesla
Irvine, CA 92618
Phone: [phone]

December 2003

Pub. # 150000009400H R01

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of
patents or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to
change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618.

All rights reserved.

Trademarks:
SMC is a registered trademark; and EZ Switch is a trademark of SMC Networks, Inc. Other
product and company names are trademarks or registered trademarks of their respective
holders.

L

IMITED

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free
from defects in workmanship and materials, under normal use and service, for the applicable
warranty term. All SMC products carry a standard 90-day limited warranty from the date of
purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or
replace any product not operating as warranted with a similar or functionally equivalent
product, during the applicable warranty term. SMC will endeavor to repair or replace any
product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering
new products within 30 days of purchase from SMC or its Authorized Reseller. Registration
can be accomplished via the enclosed product registration card or online via the SMC Web
site. Failure to register will not affect the standard limited warranty. The Limited Lifetime
warranty covers a product during the Life of that Product, which is defined as the period of
time during which the product is an “Active” SMC product. A product is considered to be
“Active” while it is listed on the current SMC price list. As new technologies emerge, older
technologies become obsolete and SMC will, at its discretion, replace an older product in its
product line with one that incorporates these newer technologies. At that point, the obsolete
product is discontinued and is no longer an “Active” SMC product. A list of discontinued
products with their respective dates of discontinuance can be found at:
http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products may be
either new or reconditioned. Any replaced or repaired product carries either a 30-day limited
warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible
for any custom software or firmware, configuration information, or memory data of
Customer contained in, stored on, or integrated with any products returned to SMC pursuant
to any warranty. Products returned to SMC should have any customer-installed accessory or
add-on components, such as expansion modules, removed prior to returning the product for
replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning
any product to SMC. Proof of purchase may be required. Any product returned to SMC
without a valid Return Material Authorization (RMA) number clearly marked on the outside
of the package will be returned to customer at customer’s expense. For warranty claims within
North America, please call our toll-free customer support number at [phone].
Customers are responsible for all shipping charges from their facility to SMC. SMC is
responsible for return shipping charges from SMC to customer.

W

ARRANTY

i

L

IMITED WARRANTY

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR
REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE
UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE
ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY
CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR
ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT
OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR
INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED
RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES
OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS
WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the active
SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans,
and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

ii

C

OMPLIANCES

FCC - Class A

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected

• Consult the dealer or an experienced radio/TV technician for help

EC Conformance Declaration - Class A

SMC contact for these products in Europe is:

SMC Networks Europe,
Edificio Conata II,
Calle Fructuós Gelabert 6-8, 2
08970 - Sant Joan Despí,
Barcelona, Spain.

This information technology equipment complies with the requirements of the Council
Directive 89/336/EEC on the Approximation of the laws of the Member States relating to
Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain
voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the
compliance with these Directives, the following standards were applied:

RFI Emission: • Limit class A according to EN 55022:1998, IEC 60601-1-2 (EMC,

medical)

• Limit class A for harmonic current emission according to
EN 61000-3-2/1995

• Limitation of voltage fluctuation and flicker in low-voltage supply system
according to EN 61000-3-3/1995

Immunity: • Product family standard according to EN 55024:1998

• Electrostatic Discharge according to EN 61000-4-2:1995
(Contact Discharge: ±4 kV, Air Discharge: ±8 kV)

o

, 4a,

iii

C

OMPLIANCES

• Radio-frequency electromagnetic field according to EN 61000-4-3:1996
(80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC
power supply: ±1 kV, Data/Signal lines: ±0.5 kV)

• Surge immunity test according to EN 61000-4-5:1995
(AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)

• Immunity to conducted disturbances, Induced by radio-frequency fields:
EN 61000-4-6:1996 (0.15 - 80 MHz with
1 kHz AM 80% Modulation: 3 V/m)

• Power frequency magnetic field immunity test according to
EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)

• Voltage dips, short interruptions and voltage variations immunity test
according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30%
Reduction @500 ms, >95% Reduction @5000 ms)

LVD: • EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)

MDD: • IEC 60601-1

Industry Canada - Class A

This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled “Digital
Apparatus,” ICES-003 of the Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils
numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils
Numériques,” NMB-003 édictée par le ministère des Communications.

Japan VCCI Class A

iv

C

OMPLIANCES

Safety Compliance

Underwriters Laboratories Compliance Statement

Important!
label on the cable) against the following:

The unit automatically matches the connected input voltage. Therefore, no additional adjustments
are necessary when connecting it to any input voltage within the range marked on the rear panel.

Before making connections, make sure you have the correct cord set. Check it (read the

Operating Voltage Cord Set Specifications
120 Volts UL Listed/CSA Certified Cord Set

Minimum 18 AWG
Type SVT or SJT three conductor cord
Maximum length of 15 feet
Parallel blade, grounding type attachment plug rated

15 A, 125 V

240 Volts (Europe only) Cord Set with H05VV-F cord having three

conductors with minimum diameter of 0.75 mm
IEC-320 receptacle
Male plug rated 10 A, 250 V

2

v

C

OMPLIANCES

Wichtige Sicherheitshinweise (Germany)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssi­goder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen
könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung
schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch
nichts auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz
trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das
Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.

13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit
nur von authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von
einer qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt.
b. Flüssigkeit ist in das Gerät eingedrungen.
c. Das Gerät war Feuchtigkeit ausgesetzt.
d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen.
e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. Stellen Sie sicher, daß die Stromversorgung dieses Gerätes nach der EN 60950 geprüft ist.
Ausgangswerte der Stromversorgung sollten die Werte von AC 7.5-8 V, 50-60 Hz nicht
über oder unterschreiten sowie den minimalen Strom von 1 A nicht unterschreiten.

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder
weniger.

vi

T

ABLE OF

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Front Panel RJ-45 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SMC8516T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Application Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cable Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

10BASE-T/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . 9

1000BASE-T Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1000BASE-T Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cable Testing for Existing Category 5 Cable . . . . . . . . . . . . . . . . 11

Adjusting Existing Category 5 Cabling . . . . . . . . . . . . . . . . . . . . . 11

C

ONTENTS

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

EZ Switch 10/100/1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

vii

T

ABLE OF CONTENTS

viii

I

NTRODUCTION

The EZ Switch™ 10/100/1000, SMC8516T, is a high-performance
Gigabit Ethernet switch designed for delivering Gigabit connectivity to the
desktop. It provides 16 full-duplex 1000BASE-T ports that significantly
improve network performance and boost throughput for high-bandwidth
applications. With 32 Gigabits of aggregate bandwidth, this switch
provides the quickest solution to meeting the growing demands on your
network’s limited resources.

Features and Benefits

• Auto-negotiation supported on all ports

• Automatic MDI/MDI-X operation

• IEEE 802.3ab, 802.3u, and 802.3 compliance ensures compatibility
with standards-based hubs, switches and cards from any vendor

• Store-and-forward switching ensures error-free transmission

• Half- and full-duplex flow control prevents packets from being
dropped under heavy loading

• Plug-and-play—nothing to configure

• “At-a-glance” LEDs for port and system status monitoring

• Desktop or rack installation

1

I

NTRODUCTION

Front Panel RJ-45 Ports

The EZ Switch 10/100/1000 features 16 1000BASE-T ports with RJ-45
connectors located on the front panel of the switch. Because all ports
support automatic MDI/MDI-X operation, you can use straight-through
cables for all network connections to PCs or servers, or to other switches
or hubs.

Front Panel LEDs

The front panel of the switch provides status LEDs for “at-a-glance”
system monitoring. The following table details the functions of the various
indicators.

Port and System Status LEDs

LED Condition Status

Power On The switch is receiving power.

Off The switch is not receiving power.

Ports

Link/Act On The port has established a valid network

Off The port has not established a network

Flashing Traffic is passing through the port.

100/
1000M

On Green Indicates the port is operating at 1000 Mbps.

On Yellow Indicates the port is operating at 100 Mbps.

Off Indicates the port is operating at 10 Mbps.

connection.

connection.

2

SMC8516T

1234

9101112

21435786

10912111315 1614

Power

EZ Switch10/100/1000
8516T

Link/Act

1000/100M

Link/Act

1000/100M

Rear Panel

The AC power receptacle is located on the rear panel of the switch.

R

EAR PANEL

5

678

13 14 15 16

100-240V 50-60Hz 2A

~

3

I

NSTALLING THE

Before installing the switch, verify that you have all the items listed under
“Package Contents.” Note that the switch can be installed on any suitably
large flat surface or in a standard EIA 19-inch rack.

S

WITCH

Package Contents

The EZ Switch 10/100/1000 includes:

• EZ Switch 10/100/1000 (SMC8516T)

• Four rubber foot pads

• Rack-mount bracket kit

• Appropriate AC power cord

•This User Guide

• SMC Warranty Registration Card

Selecting a Site

Be sure to follow the site selection guidelines below when choosing a
location:

• Select a suitable location for the switch:

• It should be accessible for installing, cabling and maintaining the
switch.

• The temperature and humidity should be within the ranges listed
in the specifications.

• The status LEDs should be clearly visible.

4

• There should be adequate space (approximately two inches) on all
sides for proper air flow.

• Make sure twisted-pair cable is always routed away from power lines,
fluorescent lighting fixtures and other sources of electrical interference
such as radios, transmitters, etc.

• Make sure that a properly grounded power outlet is within 2.44 meters
(8 feet) of the switch and is powered from an independent circuit
breaker. As with any equipment, using a filter or surge suppressor is
recommended.

Instructions

1. Positioning the Switch: For desktop or shelf mounting, attach the four

adhesive foot pads to the bottom of the switch. For rack mounting,
install into a standard EIA 19-inch rack using the included brackets.

2. Applying Power: Plug one end of the power adapter into the socket on

the switch’s rear panel, and the other end into an appropriate electrical
outlet. Check the Power LED to be sure power is on.

I

NSTRUCTIONS

Note: It is not necessary to power off the switch before connecting or

disconnecting any UTP cables, as these actions will not disrupt
the operation of other devices attached to the switch.

3. Connecting PCs: Connect each PC to an RJ-45 port on the switch

using Category 5 or 5e shielded or unshielded twisted-pair (UTP or
STP) cable, maximum length 100 meters (328 ft). The EZ Switch 10/
100/1000 will support up to 16 PCs. All ports on the switch support
automatic MDI/MDI-X operation, so you can use straight-through
cables for all network connections to PCs or servers, or to other
switches or hubs.

Note: If an attached device does not support auto-negotiation, the data

rate will be sensed automatically and the communication mode
will default to half duplex.

5

I

NSTALLING THE SWITCH

4. Cascading Switches and Other Network Devices: All the ports on the
switch support automatic MDI/MDI-X configuration for cable
connections. This allows you to use straight-through cable to connect
to other switches or hubs from any port on the switch. No crossover
cables or other device settings are needed. See the “Cable
Specifications” on page 9 of this guide for further information.

Caution: Do not plug a phone jack connector into any RJ-45 port. This

may damage the switch. Instead, use only twisted-pair cables
with RJ-45 connectors that conform with FCC standards.

6

A

PPLICATION

A typical application for the SMC8516T is illustrated below.

EZ Switch 10/100/1000

Server

SMC-EZ109DT

Workstations

Workstations With
SMC9452TX Gigabit
PCI Cards

SMC8516T

4

3

2

1

2
1

1
1

0

1

9

0/100/1000

1
witch
S

EZ

Link/Act

8516T

1000/100M

78
6

5
43

Link/Act

21

6
1
5

1000/100M

1
4
1

3
1
2
1

1
1
0
1

9

Power

8

7

6

5

6
1

5
1

4
1

3
1

Notebook

E

XAMPLE

SMC2804WBR Wireless
Broadband Router

Notebook with
SMC2835W
Wireless PC Card

Internet

3

2

Link

1
LAN

Activity

WAN

WLAN

PWR

7

T

ROUBLESHOOTING

Diagnosing Switch Indicators

1. Symptom
Power LED does not light after power on.

Probable Causes

• AC power cord may be defective.

Possible Solutions

• Check for loose connections.

• Check the power outlet by using it for another device.

• Replace the AC power cord.

2. Symptom
Link LED does not light after connection is made.

Probable Causes

• Switch port, network card or cable may be defective.

Possible Solutions

• Check that the switch and attached device are both powered on.

• Be sure the network cable is connected to both devices.

• Verify that Category 5 or better cable is used for 10/100 Mbps

connections, Category 5 or 5e cable for 1000 Mbps connections, and
that the length of any cable does not exceed 100 meters (328 feet).

• Check the network card and cable connections for defects.

• Replace the defective card or cable if necessary.

8

C

ABLES

Cable Specifications

Cable Types and Specifications
Cable Type Max. Length Connector
10BASE-T 2-pair Cat. 3 or better 100-ohm UTP 100 m (328 ft) RJ-45
100BASE-TX 2-pair Cat. 5 or better 100-ohm UTP 100 m (328 ft) RJ-45
1000BASE-T 4-pair Cat. 5 or better 100-ohm UTP 100 m (328 ft) RJ-45

10BASE-T/100BASE-TX Pin Assignments

Caution: DO NOT plug a phone jack connector into any RJ-45 port.

Use only twisted-pair cables with RJ-45 connectors that
conform with FCC standards.

8

1

8

1

Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for
RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps
connections or 100-ohm Category 5 or better cable for 100 Mbps
connections. Also be sure
does not exceed 100 meters (328 feet).

Because all ports on this switch support automatic MDI/MDI-X
operation, you can use straight-through cables for all network connections
to PCs or servers, or to other switches or hubs. In straight-through cable,
pins 1, 2, 3, and 6, at one end of the cable, are connected straight through
to pins 1, 2, 3 and 6 at the other end of the cable.

that the length of any twisted-pair connection

9

C

ABLES

The table below shows the 10BASE-T/100BASE-TX MDI-X and MDI
port pinouts.

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data plus (RD+) Transmit Data plus (TD+)

2 Receive Data minus (RD-) Transmit Data minus (TD-)

3 Transmit Data plus (TD+) Receive Data plus (RD+)

6 Transmit Data minus (TD-) Receive Data minus (RD-)

4,5,7,8 Not used at 10/100 Mbps Not used at 10/100 Mbps

1000BASE-T Pin Assignments

The table below shows the 1000BASE-T MDI and MDI-X port pinouts.
These ports require that all four pairs of wires be connected. Note that for
1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.

Use 100-ohm Category 5 or 5e unshielded twisted-pair (UTP) or shielded
twisted-pair (STP) cable for 1000BASE-T connections. Also be sure that
the length of any twisted-pair connection does not exceed 100 meters
(328 feet).

10

Pin MDI-X MDI

Bi-directional Data Two Plus (BI_D2+) Bi-directional Data One Plus (BI_D1+)

1

Bi-directional Data Two Minus (BI_D2-) Bi-directional Data One Minus (BI_D1-)

2

Bi-directional Data One Plus (BI_D1+) Bi-directional Data Two Plus (BI_D2+)

3

Bi-directional Data Four Plus (BI_D4+)

4

Bi-directional Data Four Minus (BI_D4-)

5

Bi-directional Data One Minus (

6

Bi-directional Data One Plus (BI_D3+) Bi-directional Data One Plus (BI_D4+)

7

Bi-directional Data Three Minus (BI_D3-)

8

BI_D1-)

Bi-directional Data Three Plus (BI_D3+)

Bi-directional Data Three Minus (BI_D3-)

Bi-directional Data Two Minus (BI_D2-)

Bi-directional Data Four Minus (BI_D4-)

1000BASE-T C

ABLE REQUIREMENTS

1000BASE-T Cable Requirements

All Category 5 UTP cables that are used for 100BASE-TX connections
should also work for 1000BASE-T, providing that all four wire pairs are
connected. However, it is recommended that for all critical connections, or
any new cable installations, 4-pair Category 5e (enhanced Category 5) cable
should be used. The Category 5e specifications include test parameters
that are only recommendations for Category 5. Therefore, the first step in
preparing existing Category 5 cabling for running 1000BASE-T is a simple
test of the cable installation to be sure that it complies with the IEEE

802.3ab standards.

Cable Testing for Existing Category 5 Cable

Installed Category 5 cabling must pass tests for Attenuation, Near-End
Crosstalk (NEXT), and Far-End Crosstalk (FEXT). This cable testing
information is specified in the ANSI/TIA/EIA-TSB-67 standard.
Additionally, cables must also pass test parameters for Return Loss and
Equal-Level Far-End Crosstalk (ELFEXT). These tests are specified in the
ANSI/TIA/EIA-TSB-95 Bulletin, “The Additional Transmission
Performance Guidelines for 100 Ohm 4-Pair Category 5 Cabling.”

Note that when testing your cable installation, be sure to include all patch
cables between switches and end devices.

Adjusting Existing Category 5 Cabling

If your existing Category 5 installation does not meet one of the test
parameters for 1000BASE-T, there are basically three measures that can be
applied to try to correct the problem:

1. Replace any Category 5 patch cables with high-performance Category
5e or 6 cables.

2. Reduce the number of connectors used in the link.

3. Reconnect some of the connectors in the link.

11

P

RODUCT

S

PECIFICATIONS

EZ Switch 10/100/1000

Standards Conformance
IEEE 802.3

IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab

Communication Rate
10, 100, and 1000 Mbps

Communication Mode
Full or half duplex at 10/100 Mbps
Full duplex at 1000 Mbps

Media Supported
10BASE-T: 100-ohm Category 3 or better twisted-pair

100BASE-TX: 100-ohm 2-pair Category 5 or better twisted pair
1000BASE-T: 100-ohm 4-pair Category 5/5e twisted-pair

Indicator Panel
Power
Ports: Link/Act, 100/1000M

Dimensions
33 x 23 x 4.4 cm (12.99 x 9.06 x 1.73 in.)

12

Weight

2.494 kg (5.05 lbs)

MAC Address Table
8 K entries

Memory Buffer
400 Kbits on-chip frame buffer

Power Consumption
38 Watts

Heat Dissipation
130 BTU/hr maximum

Power Requirement
Input Voltage: 100 - 240 VAC@50/60 Hz

Tem perature
Operating: 0 ~ 40 ºC / 32 ~ 98 ºF
Storage: -40 ~ 70 ºC / -40 ~ 158 ºF

Humidity
10% to 90% non-condensing

P

RODUCT SPECIFICATIONS

EMC/Safety Compliances
CE Mark

Immunity
EN 61000-4-2/3/4/5/6/8/11

Emissions
FCC Class A, CISPR Class A, EN 61000-3-2/3

Safety
CSA/NRTL (C22.2.950, UL 1950)

TUV/GS EN60950, (IEC 950)

13
