MANAGEMENT GUIDE

SMC8126PL2-F

TigerSwitch L2-Lite SMB PoE Gigabit Switch

10/100/1000

TigerSwitch 10/100/1000 Management Guide

From SMC’s Tiger line of feature-rich workgroup LAN solutions

20 Mason Irvine, CA 92618 Phone: (949) 679-8000

Pub. # 149100000023A

August 2009

E082009/MW-R01

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Switch, TigerStack and TigerSwitch are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

About This Guide

Purpose

This guide gives specific information on how to operate and use the management functions of the switch.

Audience

The guide is intended for use by network administrators who are responsible for operating and maintaining network equipment; consequently, it assumes a basic working knowledge of general switch functions, the Internet Protocol (IP), and Simple Network Management Protocol (SNMP).

Conventions

The following conventions are used throughout this guide to show information:

Note: Emphasizes important information or calls your attention to related features or

instructions.

Caution: Alerts you to a potential hazard that could cause loss of data, or damage the

system or equipment.

Warning: Alerts you to a potential hazard that could cause personal injury.

Related Publications

The following publication details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch:

The Installation Guide

Also, as part of the switch’s software, there is an online web-based help that describes all management related features.

Revision History

This section summarizes the changes in each revision of this guide.

August 2009 Revision

This is the first revision of this guide. This guide is valid for software release v1.0.0.10.

Contents

Chapter 1: Introduction 1-1

Key Features 1-1 Description of Software Features 1-2 System Defaults 1-6

Chapter 2: Initial Configuration 2-1

Connecting to the Switch 2-1

Configuration Options 2-1 Required Connections 2-2 Remote Connections 2-3

Basic Configuration 2-3

Console Connection 2-3 Setting Passwords 2-4 Setting an IP Address 2-4

Manual Configuration 2-4 Dynamic Configuration 2-5

Enabling SNMP Management Access 2-6

Community Strings (for SNMP version 1 and 2c clients) 2-6 Trap Receivers 2-7 Configuring Access for SNMP Version 3 Clients 2-8

Managing System Files 2-8

Saving Configuration Settings 2-9

Chapter 3: Configuring the Switch 3-1

Using the Web Interface 3-1 Navigating the Web Browser Interface 3-2

Home Page 3-2 Configuration Options 3-3 Panel Display 3-3 Main Menu 3-4

Basic Configuration 3-11

Displaying System Information 3-11 Displaying Switch Hardware/Software Versions 3-13 Displaying Bridge Extension Capabilities 3-15 Setting the Switch’s IP Address 3-16

Manual Configuration 3-17

Using DHCP/BOOTP 3-18 Enabling Jumbo Frames 3-19 Managing Firmware 3-20

Downloading System Software from a Server 3-20

vii

Contents

Saving or Restoring Configuration Settings 3-22

Downloading Configuration Settings from a Server 3-23 Console Port Settings 3-24 Telnet Settings 3-26 Configuring Event Logging 3-28

System Log Configuration 3-28

Remote Log Configuration 3-29

Displaying Log Messages 3-31

Simple Mail Transfer Protocol 3-31 Renumbering the System 3-33 Resetting the System 3-34 Setting the System Clock 3-35

Setting the Time Manually 3-35

Configuring SNTP 3-35

Setting the Time Zone 3-36

Simple Network Management Protocol 3-37

Enabling the SNMP Agent 3-39 Setting Community Access Strings 3-39 Specifying Trap Managers and Trap Types 3-40 Configuring SNMPv3 Management Access 3-43

Setting the Local Engine ID 3-43

Specifying a Remote Engine ID 3-44

Configuring SNMPv3 Users 3-45

Configuring Remote SNMPv3 Users 3-47

Configuring SNMPv3 Groups 3-49

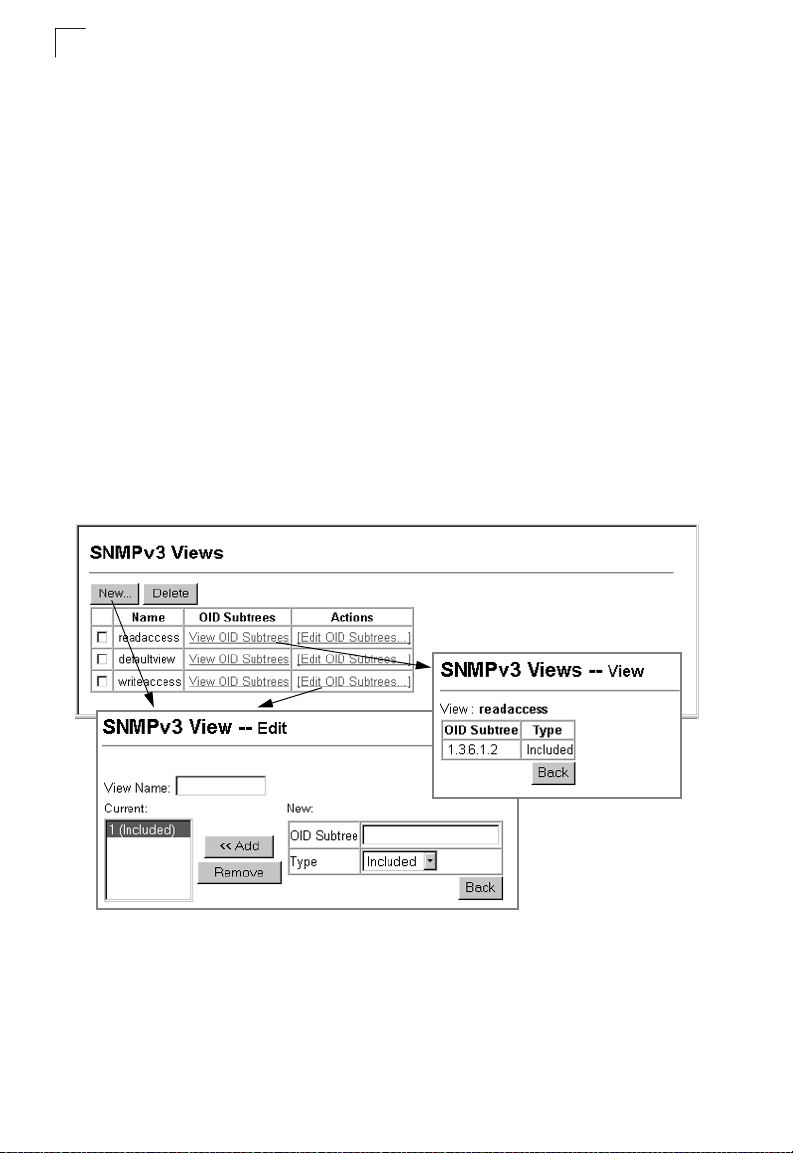

Setting SNMPv3 Views 3-52

User Authentication 3-54

Configuring User Accounts 3-54 Configuring Local/Remote Logon Authentication 3-56 Configuring Encryption Keys 3-59 AAA Authorization and Accounting 3-61

Configuring AAA RADIUS Group Settings 3-62

Configuring AAA TACACS+ Group Settings 3-63

Configuring AAA Accounting 3-63

AAA Accounting Update 3-65

AAA Accounting 802.1X Port Settings 3-66

AAA Accounting Exec Command Privileges 3-67

AAA Accounting Exec Settings 3-68

AAA Accounting Summary 3-68

Authorization Settings 3-70

Authorization EXEC Settings 3-71

Authorization Summary 3-72 Configuring HTTPS 3-73

Replacing the Default Secure-site Certificate 3-74 Configuring the Secure Shell 3-75

viii

Contents

Generating the Host Key Pair 3-77 Configuring the SSH Server 3-79

Configuring 802.1X Port Authentication 3-80

Displaying 802.1X Global Settings 3-81 Configuring 802.1X Global Settings 3-82 Configuring Port Settings for 802.1X 3-83 Displaying 802.1X Statistics 3-86

Filtering IP Addresses for Management Access 3-87

General Security Measures 3-89

Configuring Port Security 3-90

Access Control Lists 3-91

Configuring Access Control Lists 3-91

Setting the ACL Name and Type 3-92 Configuring a Standard IP ACL 3-93 Configuring an Extended IP ACL 3-94 Configuring a MAC ACL 3-96

Binding a Port to an Access Control List 3-98 Filtering IP Addresses for Management Access 3-99 DHCP Snooping 3-101

DHCP Snooping Configuration 3-102

DHCP Snooping VLAN Configuration 3-103

DHCP Snooping Information Option Configuration 3-103

DHCP Snooping Port Configuration 3-105

DHCP Snooping Binding Information 3-106 IP Source Guard 3-107

Configuring Ports for IP Source Guard 3-107

Configuring Static Binding for IP Source Guard 3-109

Displaying Information for Dynamic IP Source Guard Bindings 3-111

Port Configuration 3-112

Displaying Connection Status 3-112 Configuring Interface Connections 3-114 Creating Trunk Groups 3-116

Statically Configuring a Trunk 3-117

Enabling LACP on Selected Ports 3-118

Configuring Parameters for LACP Group Members 3-120

Displaying LACP Port Counters 3-122

Displaying LACP Settings and Status for the Local Side 3-124

Displaying LACP Settings and Status for the Remote Side 3-126 Setting Broadcast Storm Thresholds 3-127 Configuring Local Port Mirroring 3-128 Configuring Rate Limits 3-129

Rate Limit Configuration 3-129 Showing Port Statistics 3-130

Power Over Ethernet Settings 3-134

Switch Power Status 3-135

Contents

Setting a Switch Power Budget 3-136 Displaying Port Power Status 3-136 Configuring Port PoE Power 3-137

Address Table Settings 3-139

Setting Static Addresses 3-139 Displaying the Address Table 3-140 Changing the Aging Time 3-141

Spanning Tree Algorithm Configuration 3-142

Displaying Global Settings for STA 3-144 Configuring Global Settings for STA 3-147 Displaying Interface Settings for STA 3-151 Configuring Interface Settings for STA 3-154 Configuring Multiple Spanning Trees 3-158 Displaying Interface Settings for MSTP 3-161 Configuring Interface Settings for MSTP 3-163

VLAN Configuration 3-164

IEEE 802.1Q VLANs 3-164

Enabling or Disabling GVRP (Global Setting) 3-167 Displaying Basic VLAN Information 3-168 Displaying Current VLANs 3-169 Creating VLANs 3-170 Adding Static Members to VLANs (VLAN Index) 3-173 Adding Static Members to VLANs (Port Index) 3-175 Configuring VLAN Behavior for Interfaces 3-176

Configuring IEEE 802.1Q Tunneling 3-178

Enabling QinQ Tunneling on the Switch 3-181

Adding an Interface to a QinQ Tunnel 3-182 Configuring Private VLANs 3-184 Enabling Private VLANs 3-184 Configuring Uplink and Downlink Ports 3-185 Protocol VLANs 3-185

Configuring Protocol VLAN Groups 3-186

Mapping Protocols to VLANs 3-187

Class of Service Configuration 3-189

Layer 2 Queue Settings 3-189

Setting the Default Priority for Interfaces 3-189

Mapping CoS Values to Egress Queues 3-191

Selecting the Queue Mode 3-193

Setting the Service Weight for Traffic Classes 3-194 Layer 3/4 Priority Settings 3-195

Mapping Layer 3/4 Priorities to CoS Values 3-195

Selecting IP Precedence/DSCP Priority 3-195

Mapping IP Precedence 3-196

Mapping DSCP Priority 3-197

Mapping IP Port Priority 3-199

Contents

Quality of Service 3-200

Configuring Quality of Service Parameters 3-201

Configuring a Class Map 3-201 Creating QoS Policies 3-204 Attaching a Policy Map to Ingress Queues 3-207

Multicast Filtering 3-208

Layer 2 IGMP (Snooping and Query) 3-209

Configuring IGMP Snooping and Query Parameters 3-210 Enabling IGMP Immediate Leave 3-212 Displaying Interfaces Attached to a Multicast Router 3-214 Specifying Static Interfaces for a Multicast Router 3-215 Displaying Port Members of Multicast Services 3-216 Assigning Ports to Multicast Services 3-217

IGMP Filtering and Throttling 3-218

Enabling IGMP Filtering and Throttling 3-218 Configuring IGMP Filter Profiles 3-219 Configuring IGMP Filtering and Throttling for Interfaces 3-221

Multicast VLAN Registration 3-223

Configuring Global MVR Settings 3-224 Displaying MVR Interface Status 3-226 Displaying Port Members of Multicast Groups 3-227 Configuring MVR Interface Status 3-228 Assigning Static Multicast Groups to Interfaces 3-230

Configuring Domain Name Service 3-231

Configuring General DNS Service Parameters 3-231 Configuring Static DNS Host to Address Entries 3-233 Displaying the DNS Cache 3-235

Switch Clustering 3-236

Cluster Configuration 3-236 Cluster Member Configuration 3-238 Displaying Information on Cluster Members 3-239 Cluster Candidate Information 3-240

Chapter 4: Command Line Interface 4-1

Using the Command Line Interface 4-1

Accessing the CLI 4-1 Console Connection 4-1 Telnet Connection 4-2

Entering Commands 4-3

Keywords and Arguments 4-3 Minimum Abbreviation 4-3 Command Completion 4-3 Getting Help on Commands 4-3 Showing Commands 4-4

Contents

Partial Keyword Lookup 4-5 Negating the Effect of Commands 4-5 Using Command History 4-5 Understanding Command Modes 4-6 Exec Commands 4-6 Configuration Commands 4-7 Command Line Processing 4-9

Command Groups 4-10 General Commands 4-11

enable 4-11 disable 4-12 configure 4-12 show history 4-13 reload 4-13 prompt 4-14 end 4-14 exit 4-15 quit 4-15

System Management Commands 4-16

Device Designation Commands 4-16

hostname 4-16 System Status Commands 4-17

show startup-config 4-17

show running-config 4-18

show system 4-21

show users 4-21

show version 4-22 Frame Size Commands 4-23

jumbo frame 4-23 File Management Commands 4-24

copy 4-25

delete 4-28

dir 4-28

whichboot 4-29

boot system 4-30 Line Commands 4-31

line 4-31

password 4-33

timeout login response 4-34

exec-timeout 4-34

password-thresh 4-35

silent-time 4-36

databits 4-36

parity 4-37

xii

Contents

speed 4-38 stopbits 4-38 disconnect 4-39 show line 4-39

Event Logging Commands 4-40

logging on 4-41 logging history 4-42 logging host 4-43 logging facility 4-43 logging trap 4-44 clear log 4-44 show logging 4-45 show log 4-46

SMTP Alert Commands 4-47

logging sendmail host 4-47 logging sendmail level 4-48 logging sendmail source-email 4-49 logging sendmail destination-email 4-49 logging sendmail 4-50 show logging sendmail 4-50

Time Commands 4-51

sntp client 4-51 sntp server 4-52 sntp poll 4-53 show sntp 4-53 clock timezone 4-54 calendar set 4-55 show calendar 4-55

Switch Cluster Commands 4-56

cluster 4-56 cluster commander 4-57 cluster ip-pool 4-58 cluster member 4-58 rcommand 4-59 show cluster 4-59 show cluster members 4-60 show cluster candidates 4-60

SNMP Commands 4-61

snmp-server 4-62 show snmp 4-62 snmp-server community 4-63 snmp-server contact 4-64 snmp-server location 4-64 snmp-server host 4-65 snmp-server enable traps 4-67

xiii

Contents

snmp-server engine-id 4-68 show snmp engine-id 4-69 snmp-server view 4-69 show snmp view 4-71 snmp-server group 4-71 show snmp group 4-73 snmp-server user 4-74 show snmp user 4-75

Authentication Commands 4-76

User Account and Privilege Level Commands 4-77

username 4-77

enable password 4-78

privilege 4-79

privilege rerun 4-79

show privilege 4-80 Authentication Sequence 4-80

authentication login 4-81

authentication enable 4-82 RADIUS Client 4-83

radius-server host 4-83

radius-server port 4-84

radius-server key 4-84

radius-server retransmit 4-85

radius-server timeout 4-85

show radius-server 4-85 TACACS+ Client 4-86

tacacs-server host 4-87

tacacs-server port 4-87

tacacs-server key 4-88

tacacs-server retransmit 4-88

tacacs-server timeout 4-89

show tacacs-server 4-89 AAA Commands 4-90

aaa group server 4-90

server 4-91

aaa accounting dot1x 4-92

aaa accounting exec 4-93

aaa accounting commands 4-94

aaa accounting update 4-95

accounting dot1x 4-95

accounting exec 4-96

accounting commands 4-96

aaa authorization exec 4-97

authorization exec 4-98

show accounting 4-98

xiv

Contents

Web Server Commands 4-99

ip http port 4-99 ip http server 4-100 ip http secure-server 4-100 ip http secure-port 4-101

Telnet Server Commands 4-102

ip telnet server 4-102

Secure Shell Commands 4-103

ip ssh server 4-105 ip ssh timeout 4-106 ip ssh authentication-retries 4-106 ip ssh server-key size 4-107 delete public-key 4-107 ip ssh crypto host-key generate 4-108 ip ssh crypto zeroize 4-108 ip ssh save host-key 4-109 show ip ssh 4-109 show ssh 4-110 show public-key 4-111

802.1X Port Authentication 4-112 dot1x system-auth-control 4-112 dot1x default 4-113 dot1x max-req 4-113 dot1x port-control 4-113 dot1x operation-mode 4-114 dot1x re-authenticate 4-115 dot1x re-authentication 4-115 dot1x timeout quiet-period 4-116 dot1x timeout re-authperiod 4-116 dot1x timeout tx-period 4-117 dot1x timeout supp-timeout 4-117 show dot1x 4-118

Management IP Filter Commands 4-121

management 4-121 show management 4-122

General Security Measures 4-123

Port Security Commands 4-124

port security 4-124

Network Access (MAC Address Authentication) 4-126

network-access max-mac-count 4-126 network-access mode 4-127 mac-authentication reauth-time 4-128 mac-authentication intrusion-action 4-128 mac-authentication max-mac-count 4-129 show network-access 4-129

Contents

show network-access mac-address-table 4-130

DHCP Snooping Commands 4-131

ip dhcp snooping 4-132 ip dhcp snooping vlan 4-133 ip dhcp snooping trust 4-134 ip dhcp snooping verify mac-address 4-135 ip dhcp snooping information option 4-136 ip dhcp snooping information policy 4-137 show ip dhcp snooping 4-138 show ip dhcp snooping binding 4-138

IP Source Guard Commands 4-139

ip source-guard 4-139 ip source-guard binding 4-141 show ip source-guard 4-142 show ip source-guard binding 4-142

Access Control List Commands 4-143

IP ACLs 4-143

access-list ip 4-144 permit, deny (Standard ACL) 4-145 permit, deny (Extended ACL) 4-146 show ip access-list 4-148 ip access-group 4-148 show ip access-group 4-149

MAC ACLs 4-149

access-list mac 4-150 permit, deny (MAC ACL) 4-150 show mac access-list 4-152 mac access-group 4-152 show mac access-group 4-153

ACL Information 4-154

show access-list 4-154 show access-group 4-154

Interface Commands 4-155

interface 4-155 description 4-156 speed-duplex 4-156 negotiation 4-157 capabilities 4-158 flowcontrol 4-159 media-type 4-160 shutdown 4-160 switchport packet-rate 4-161 clear counters 4-162 show interfaces status 4-163 show interfaces counters 4-164

xvi

Contents

show interfaces switchport 4-165

Link Aggregation Commands 4-167

channel-group 4-168 lacp 4-169 lacp system-priority 4-170 lacp admin-key (Ethernet Interface) 4-171 lacp admin-key (Port Channel) 4-172 lacp port-priority 4-173 show lacp 4-174

Mirror Port Commands 4-178

port monitor 4-178 show port monitor 4-179

RSPAN Mirroring Commands 4-180

rspan source 4-181 rspan destination 4-182 rspan remote vlan 4-183 no rspan session 4-184 show rspan 4-184

Rate Limit Commands 4-185

rate-limit 4-185

Power over Ethernet Commands 4-186

power mainpower maximum allocation 4-186 power inline compatible 4-187 power inline 4-188 power inline maximum allocation 4-189 power inline priority 4-189 power inline overload-auto-recover 4-190 show power inline status 4-191 show power mainpower 4-192 mac-address-table static 4-193 clear mac-address-table dynamic 4-194 show mac-address-table 4-194 mac-address-table aging-time 4-195 show mac-address-table aging-time 4-195

Spanning Tree Commands 4-196

spanning-tree 4-197 spanning-tree mode 4-197 spanning-tree forward-time 4-198 spanning-tree hello-time 4-199 spanning-tree max-age 4-200 spanning-tree priority 4-200 spanning-tree pathcost method 4-201 spanning-tree transmission-limit 4-202 spanning-tree mst-configuration 4-202 mst vlan 4-203

xvii

Contents

mst priority 4-203 name 4-204 revision 4-205 max-hops 4-205 spanning-tree spanning-disabled 4-206 spanning-tree cost 4-206 spanning-tree port-priority 4-208 spanning-tree edge-port 4-208 spanning-tree portfast 4-209 spanning-tree link-type 4-210 spanning-tree mst cost 4-211 spanning-tree mst port-priority 4-212 spanning-tree protocol-migration 4-212 show spanning-tree 4-213 show spanning-tree mst configuration 4-215

VLAN Commands 4-215

GVRP and Bridge Extension Commands 4-216

bridge-ext gvrp 4-216 show bridge-ext 4-217 switchport gvrp 4-217 show gvrp configuration 4-218 garp timer 4-218 show garp timer 4-219

Editing VLAN Groups 4-220

vlan database 4-220 vlan 4-221

Configuring VLAN Interfaces 4-222

interface vlan 4-222 switchport mode 4-223 switchport acceptable-frame-types 4-224 switchport ingress-filtering 4-224 switchport native vlan 4-225 switchport allowed vlan 4-226 switchport forbidden vlan 4-227

Displaying VLAN Information 4-228

show vlan 4-228

Configuring IEEE 802.1Q Tunneling 4-229

dot1q-tunnel system-tunnel-control 4-230 switchport dot1q-tunnel mode 4-230 switchport dot1q-tunnel tpid 4-231 show dot1q-tunnel 4-232

Configuring Port-based Traffic Segmentation 4-233

pvlan 4-233 pvlan up-link/down-link 4-234 show pvlan 4-234

xviii

Contents

Configuring Private VLANs 4-235

private-vlan 4-236 private vlan association 4-237 switchport mode private-vlan 4-238 switchport private-vlan host-association 4-238 switchport private-vlan mapping 4-239 show vlan private-vlan 4-239

Configuring Protocol-based VLANs 4-240

protocol-vlan protocol-group (Configuring Groups) 4-241 protocol-vlan protocol-group (Configuring Interfaces) 4-241 show protocol-vlan protocol-group 4-242 show interfaces protocol-vlan protocol-group 4-243

Class of Service Commands 4-244

Priority Commands (Layer 2) 4-244

queue mode 4-245 switchport priority default 4-245 queue bandwidth 4-246 queue cos-map 4-247 show queue mode 4-248 show queue bandwidth 4-249 show queue cos-map 4-249

Priority Commands (Layer 3 and 4) 4-250

map ip port (Global Configuration) 4-250 map ip port (Interface Configuration) 4-251 map ip precedence (Global Configuration) 4-251 map ip precedence (Interface Configuration) 4-252 map ip dscp (Global Configuration) 4-252 map ip dscp (Interface Configuration) 4-253 show map ip port 4-254 show map ip precedence 4-255 show map ip dscp 4-255

Quality of Service Commands 4-257

class-map 4-258 match 4-259 rename 4-260 description 4-260 policy-map 4-261 class 4-261 set 4-262 police 4-263 service-policy 4-264 show class-map 4-264 show policy-map 4-265 show policy-map interface 4-265

Multicast Filtering Commands 4-266

xix

Contents

IGMP Snooping Commands 4-266

ip igmp snooping 4-267 ip igmp snooping vlan static 4-267 ip igmp snooping version 4-268 ip igmp snooping leave-proxy 4-268 ip igmp snooping immediate-leave 4-269 show ip igmp snooping 4-270 show mac-address-table multicast 4-270

IGMP Query Commands (Layer 2) 4-271

ip igmp snooping querier 4-271 ip igmp snooping query-count 4-272 ip igmp snooping query-interval 4-273 ip igmp snooping query-max-response-time 4-273 ip igmp snooping router-port-expire-time 4-274

Static Multicast Routing Commands 4-275

ip igmp snooping vlan mrouter 4-275 show ip igmp snooping mrouter 4-276

IGMP Filtering and Throttling Commands 4-277

ip igmp filter (Global Configuration) 4-277 ip igmp profile 4-278 permit, deny 4-278 range 4-279 ip igmp filter (Interface Configuration) 4-279 ip igmp max-groups 4-280 ip igmp max-groups action 4-281 show ip igmp filter 4-281 show ip igmp profile 4-282 show ip igmp throttle interface 4-283

Multicast VLAN Registration Commands 4-284

mvr (Global Configuration) 4-284 mvr (Interface Configuration) 4-286 show mvr 4-287

Domain Name Service Commands 4-290

ip host 4-290 clear host 4-291 ip domain-name 4-291 ip domain-list 4-292 ip name-server 4-293 ip domain-lookup 4-294 show hosts 4-295 show dns 4-295 show dns cache 4-296 clear dns cache 4-296

IP Interface Commands 4-297

ip address 4-297

Contents

ip default-gateway 4-298 ip dhcp restart 4-299 show ip interface 4-299 show ip redirects 4-300 ping 4-300

Appendix A: Software Specifications A-1

Software Features A-1 Management Features A-2 Standards A-2 Management Information Bases A-3

Appendix B: Troubleshooting B-1

Problems Accessing the Management Interface B-1 Using System Logs B-2

Glossary

Index

xxi

Contents

xxii

Tables

Table 1-1 Key Features 1-1 Table 1-2 System Defaults 1-6 Table 3-1 Configuration Options 3-3 Table 3-2 Main Menu 3-4 Table 3-3 Logging Levels 3-28 Table 3-5 Supported Notification Messages 3-49 Table 3-6 HTTPS System Support 3-73 Table 3-7 802.1X Statistics 3-86 Table 3-8 LACP Port Counters 3-122 Table 3-9 LACP Internal Configuration Information 3-124 Table 3-10 LACP Neighbor Configuration Information 3-126 Table 3-11 Port Statistics 3-130 Table 3-12 Recommended STA Path Cost Range 3-155 Table 3-13 Recommended STA Path Costs 3-155 Table 3-14 Default STA Path Costs 3-156 Table 3-15 Mapping CoS Values to Egress Queues 3-191 Table 3-16 CoS Priority Levels 3-191 Table 3-17 Mapping IP Precedence 3-196 Table 3-18 Mapping DSCP Priority Values 3-197 Table 4-1 Command Modes 4-6 Table 4-2 Configuration Modes 4-8 Table 4-3 Command Line Processing 4-9 Table 4-4 Command Groups 4-10 Table 4-5 General Commands 4-11 Table 4-6 System Management Commands 4-16 Table 4-7 Device Designation Commands 4-16 Table 4-8 System Status Commands 4-17 Table 4-9 Frame Size Commands 4-23 Table 4-10 Flash/File Commands 4-24 Table 4-11 File Directory Information 4-29 Table 4-12 Line Commands 4-31 Table 4-13 Event Logging Commands 4-40 Table 4-14 Logging Levels 4-42 Table 4-15 show logging flash/ram - display description 4-45 Table 4-16 show logging trap - display description 4-46 Table 4-17 SMTP Alert Commands 4-47 Table 4-18 Time Commands 4-51 Table 4-19 Switch Cluster Commands 4-56 Table 4-20 SNMP Commands 4-61 Table 4-21 show snmp engine-id - display description 4-69 Table 4-22 show snmp view - display description 4-71 Table 4-23 show snmp group - display description 4-74

xxiii

Tables

Table 4-25 Authentication Commands 4-76 Table 4-24 show snmp user - display description 4-76 Table 4-26 User Access Commands 4-77 Table 4-27 Default Login Settings 4-77 Table 4-28 Authentication Sequence 4-80 Table 4-29 RADIUS Client Commands 4-83 Table 4-30 TACACS Commands 4-86 Table 4-32 Web Server Commands 4-99 Table 4-33 HTTPS System Support 4-101 Table 4-34 Telnet Server Commands 4-102 Table 4-35 SSH Commands 4-103 Table 4-36 show ssh - display description 4-110 Table 4-37 802.1X Port Authentication 4-112 Table 4-38 IP Filter Commands 4-121 Table 4-39 Client Security Commands 4-123 Table 4-40 Port Security Commands 4-124 Table 4-41 Network Access 4-126 Table 4-42 DHCP Snooping Commands 4-131 Table 4-43 IP Source Guard Commands 4-139 Table 4-44 Access Control Lists 4-143 Table 4-45 IP ACLs 4-143 Table 4-46 MAC ACL Commands 4-149 Table 4-47 ACL Information 4-154 Table 4-48 Interface Commands 4-155 Table 4-49 Interfaces Switchport Statistics 4-166 Table 4-50 Link Aggregation Commands 4-167 Table 4-51 show lacp counters - display description 4-174 Table 4-52 show lacp internal - display description 4-175 Table 4-53 show lacp neighbors - display description 4-176 Table 4-54 show lacp sysid - display description 4-177 Table 4-55 Mirror Port Commands 4-178 Table 4-56 RSPAN Commands 4-180 Table 4-57 Rate Limit Commands 4-185 Table 4-61 Address Table Commands 4-192 Table 4-62 Spanning Tree Commands 4-196 Table 4-65 Default STA Path Costs 4-207 Table 4-66 VLANs 4-215 Table 4-67 GVRP and Bridge Extension Commands 4-216 Table 4-68 Editing VLAN Groups 4-220 Table 4-69 Configuring VLAN Interfaces 4-222 Table 4-70 Show VLAN Commands 4-228 Table 4-72 Traffic Segmentation Commands 4-233 Table 4-73 Traffic Segmentation Forwarding 4-233 Table 4-74 Private VLAN Commands 4-235 Table 4-75 Protocol-based VLAN Commands 4-240

xxiv

Ta bl e s

Table 4-76 Priority Commands 4-244 Table 4-77 Priority Commands (Layer 2) 4-244 Table 4-78 Default CoS Values to Egress Queues 4-248 Table 4-79 Priority Commands (Layer 3 and 4) 4-250 Table 4-81 IP DSCP to CoS Vales 4-253 Table 4-82 Quality of Service Commands 4-257 Table 4-83 Multicast Filtering Commands 4-266 Table 4-84 IGMP Snooping Commands 4-266 Table 4-85 IGMP Query Commands (Layer 2) 4-271 Table 4-86 Static Multicast Routing Commands 4-275 Table 4-87 IGMP Filtering and Throttling Commands 4-277 Table 4-88 Multicast VLAN Registration Commands 4-284 Table 4-89 show mvr - display description 4-288 Table 4-90 show mvr interface - display description 4-288 Table 4-91 show mvr members - display description 4-289 Table 4-94 IP Interface Commands 4-297 Table B-1 Troubleshooting Chart B-1

xxv

Tables

xxvi

Figures

Figure 3-1 Home Page 3-2 Figure 3-2 Panel Display 3-3 Figure 3-3 System Information 3-12 Figure 3-4 Switch Information 3-13 Figure 3-5 Bridge Extension Configuration 3-15 Figure 3-6 Manual IP Configuration 3-17 Figure 3-7 DHCP IP Configuration 3-18 Figure 3-8 Bridge Extension Configuration 3-19 Figure 3-9 Copy Firmware 3-21 Figure 3-10 Setting the Startup Code 3-21 Figure 3-11 Deleting Files 3-21 Figure 3-12 Downloading Configuration Settings for Startup 3-23 Figure 3-13 Setting the Startup Configuration Settings 3-23 Figure 3-14 Console Port Settings 3-25 Figure 3-15 Enabling Telnet 3-27 Figure 3-16 System Logs 3-29 Figure 3-17 Remote Logs 3-30 Figure 3-18 Displaying Logs 3-31 Figure 3-19 Enabling and Configuring SMTP 3-32 Figure 3-20 Renumbering the System 3-33 Figure 3-21 Resetting the System 3-34 Figure 3-22 SNTP Configuration 3-36 Figure 3-23 Setting the System Clock 3-37 Figure 3-24 Enabling SNMP Agent Status 3-39 Figure 3-25 Configuring SNMP Community Strings 3-40 Figure 3-26 Configuring IP Trap Managers 3-42 Figure 3-27 Setting an Engine ID 3-43 Figure 3-28 Setting a Remote Engine ID 3-44 Figure 3-29 Configuring SNMPv3 Users 3-46 Figure 3-30 Configuring Remote SNMPv3 Users 3-48 Figure 3-31 Configuring SNMPv3 Groups 3-51 Figure 3-32 Configuring SNMPv3 Views 3-52 Figure 3-33 Access Levels 3-55 Figure 3-34 Authentication Settings 3-58 Figure 3-35 Encryption Key Settings 3-60 Figure 3-36 AAA Radius Group Settings 3-62 Figure 3-37 AAA TACACS+ Group Settings 3-63 Figure 3-38 AAA Accounting Settings 3-64 Figure 3-39 AAA Accounting Update 3-65 Figure 3-40 AAA Accounting 802.1X Port Settings 3-66 Figure 3-41 AAA Accounting Exec Command Privileges 3-67 Figure 3-42 AAA Accounting Exec Settings 3-68

xxvii

Figures

Figure 3-43 AAA Accounting Summary 3-69 Figure 3-44 AAA Authorization Settings 3-71 Figure 3-45 AAA Authorization Exec Settings 3-71 Figure 3-46 AAA Authorization Summary 3-72 Figure 3-47 HTTPS Settings 3-74 Figure 3-48 SSH Host-Key Settings 3-78 Figure 3-49 SSH Server Settings 3-79 Figure 3-50 802.1X Global Information 3-81 Figure 3-51 802.1X Global Configuration 3-82 Figure 3-52 802.1X Port Configuration 3-84 Figure 3-53 Displaying 802.1X Port Statistics 3-86 Figure 3-54 Creating an IP Filter List 3-88 Figure 3-55 Configuring Port Security 3-91 Figure 3-56 Selecting ACL Type 3-92 Figure 3-57 Configuring Standard IP ACLs 3-93 Figure 3-58 Configuring Extended IP ACLs 3-95 Figure 3-59 Configuring MAC ACLs 3-97 Figure 3-60 Configuring ACL Port Binding 3-98 Figure 3-61 Creating an IP Filter List 3-100 Figure 3-62 DHCP Snooping Configuration 3-102 Figure 3-63 DHCP Snooping VLAN Configuration 3-103 Figure 3-64 DHCP Snooping Information Option Configuration 3-104 Figure 3-65 DHCP Snooping Port Configuration 3-106 Figure 3-66 DHCP Snooping Binding Information 3-107 Figure 3-67 IP Source Guard Port Configuration 3-109 Figure 3-68 Static IP Source Guard Binding Configuration 3-110 Figure 3-69 Dynamic IP Source Guard Binding Information 3-111 Figure 3-70 Displaying Port/Trunk Information 3-112 Figure 3-71 Port/Trunk Configuration 3-115 Figure 3-72 Configuring Static Trunks 3-117 Figure 3-73 LACP Trunk Configuration 3-119 Figure 3-74 LACP Port Configuration 3-121 Figure 3-75 LACP - Port Counters Information 3-123 Figure 3-76 LACP - Port Internal Information 3-125 Figure 3-77 LACP - Port Neighbors Information 3-126 Figure 3-78 Port Broadcast Control 3-128 Figure 3-79 Mirror Port Configuration 3-129 Figure 3-80 Input Rate Limit Port Configuration 3-130 Figure 3-81 Port Statistics 3-134 Figure 3-82 Displaying the Global PoE Status 3-135 Figure 3-83 Setting the Switch Power Budget 3-136 Figure 3-84 Displaying Port PoE Status 3-137 Figure 3-85 Configuring Port PoE Power 3-138 Figure 3-86 Configuring a Static Address Table 3-139 Figure 3-87 Configuring a Dynamic Address Table 3-140

xxviii

Figures

Figure 3-88 Setting the Address Aging Time 3-141 Figure 3-89 Displaying Spanning Tree Information 3-146 Figure 3-90 Configuring Spanning Tree 3-150 Figure 3-91 Displaying Spanning Tree Port Information 3-153 Figure 3-92 Configuring Spanning Tree per Port 3-157 Figure 3-93 Configuring Multiple Spanning Trees 3-159 Figure 3-94 Displaying MSTP Interface Settings 3-161 Figure 3-95 Displaying MSTP Interface Settings 3-164 Figure 3-96 Globally Enabling GVRP 3-167 Figure 3-97 Displaying Basic VLAN Information 3-168 Figure 3-98 Displaying Current VLANs 3-169 Figure 3-99 Configuring a VLAN Static List 3-171 Figure 3-100 Configuring a VLAN Static Table 3-174 Figure 3-101 VLAN Static Membership by Port 3-175 Figure 3-102 Configuring VLANs per Port 3-177 Figure 3-103 .1Q Tunnel Status and Ethernet Type 3-182 Figure 3-104 Tunnel Port Configuration 3-183 Figure 3-105 Private VLAN Status 3-184 Figure 3-106 Private VLAN Link Status 3-185 Figure 3-107 Protocol VLAN Configuration 3-186 Figure 3-108 Protocol VLAN Port Configuration 3-188 Figure 3-109 Port Priority Configuration 3-190 Figure 3-110 Traffic Classes 3-192 Figure 3-111 Queue Mode 3-193 Figure 3-112 Configuring Queue Scheduling 3-194 Figure 3-113 IP Precedence/DSCP Priority Status 3-195 Figure 3-114 Mapping IP Precedence Priority Values 3-196 Figure 3-115 Mapping IP DSCP Priority Values 3-198 Figure 3-116 IP Port Priority Status 3-199 Figure 3-117 IP Port Priority 3-199 Figure 3-118 Configuring Class Maps 3-203 Figure 3-119 Configuring Policy Maps 3-206 Figure 3-120 Service Policy Settings 3-207 Figure 3-121 IGMP Configuration 3-211 Figure 3-122 IGMP Immediate Leave 3-213 Figure 3-123 Displaying Multicast Router Port Information 3-214 Figure 3-124 Static Multicast Router Port Configuration 3-215 Figure 3-125 IP Multicast Registration Table 3-216 Figure 3-126 IGMP Member Port Table 3-217 Figure 3-127 Enabling IGMP Filtering and Throttling 3-219 Figure 3-128 IGMP Profile Configuration 3-220 Figure 3-129 IGMP Filter and Throttling Port Configuration 3-222 Figure 3-130 MVR Global Configuration 3-225 Figure 3-131 MVR Port Information 3-226 Figure 3-132 MVR Group IP Information 3-227

xxix

Figures

Figure 3-133 MVR Port Configuration 3-229 Figure 3-134 MVR Group Member Configuration 3-230 Figure 3-135 DNS General Configuration 3-232 Figure 3-136 DNS Static Host Table 3-234 Figure 3-137 DNS Cache 3-235 Figure 3-138 Cluster Member Choice 3-236 Figure 3-139 Cluster Configuration 3-237 Figure 3-140 Cluster Member Configuration 3-238 Figure 3-141 Cluster Member Information 3-239 Figure 3-142 Cluster Candidate Information 3-240

xxx

Chapter 1: Introduction

This switch provides a broad range of features for Layer 2 switching. It includes a management agent that allows you to configure the features listed in this manual. The default configuration can be used for most of the features provided by this switch. However, there are many options that you should configure to maximize the switch’s performance for your particular network environment.

Key Features

Table 1-1 Key Features

Feature Description

Power over Ethernet Powers attached devices using IEEE 802.3af Power over Ethernet (PoE)

Configuration Backup and Restore

Authentication Console, Telnet, web – User name / password, RADIUS, TACACS+, AAA,

Access Control Lists Supports up to 128 ACLs, 96 MAC rules, and 96 IP rules

DHCP Client

DNS Client and Proxy service

Port Configuration Speed, duplex mode and flow control

Rate Limiting Input and output rate limiting per port

Port Mirroring One or more port mirrored to a single analysis port

RSPAN Mirroring Mirrors traffic from remote switches over a dedicated VLAN

Port Trunking Supports up to 32 trunks using either static or dynamic trunking (LACP)

Storm Control Throttling for broadcast, multicast, and unknown unicast storms

Static Address Up to 8K MAC addresses in the forwarding table

IEEE 802.1D Bridge Supports dynamic data switching and addresses learning

Store-and-Forward Switching Supported to ensure wire-speed switching while eliminating bad frames

Spanning Tree Algorithm Supports standard STP, and Rapid Spanning Tree Protocol (RSTP) and

Backup to TFTP server

Web – HTTPS Telnet – SSH SNMP v1/2c - Community strings SNMP version 3 – MD5 or SHA password Port Authentication – IEEE 802.1X, Port Security – MAC address filtering Private VLANs Network Access – MAC Address Authentication DHCP Snooping (with Option 82 relay information) IP Source Guard

Multiple Spanning Trees (MSTP)

1-1

Introduction

Table 1-1 Key Features (Continued)

Feature Description

Virtual LANs Up to 256 using IEEE 802.1Q, port-based, protocol-based or private VLANs

Traffic Prioritization Default port priority, traffic class map, queue scheduling, IP Precedence, or

Qualify of Service Supports Differentiated Services (DiffServ)

Multicast Filtering Supports IGMP snooping and query, as well as Multicast VLAN Registration

Switch Clustering Supports up to 16 Member switches in a cluster

Tunneling Supports IEEE 802.1Q tunneling (QinQ)

Differentiated Services Code Point (DSCP), and TCP/UDP Port

Description of Software Features

The switch provides a wide range of advanced performance enhancing features. Flow control eliminates the loss of packets due to bottlenecks caused by port saturation. Storm suppression prevents broadcast, multicast or unknown unicast traffic storms from engulfing the network. Port-based, protocol based and private VLANs, plus support for automatic GVRP VLAN registration provide traffic security and efficient use of network bandwidth. CoS priority queueing ensures the minimum delay for moving real-time multimedia data across the network. While multicast filtering provides support for real-time network applications. Some of the management features are briefly described below.

Configuration Backup and Restore – You can save the current configuration settings to a file on a TFTP server, and later download this file to restore the switch configuration settings.

Authentication – This switch authenticates management access via the console port, Telnet or web browser. User names and passwords can be configured locally or can be verified via a remote authentication server (i.e., RADIUS or TACACS+). Port-based authentication is also supported via the IEEE 802.1X protocol. This protocol uses the Extensible Authentication Protocol over LANs (EAPOL) to request user credentials from the 802.1X client, and then verifies the client’s right to access the network via an authentication server.

Other authentication options include HTTPS for secure management access via the web, SSH for secure management access over a Telnet-equivalent connection, SNMP Version 3, IP address filtering for SNMP/web/Telnet management access. MAC address filtering and IP source guard also provide authenticated port access. While DHCP snooping is provided to prevent malicious attacks from insecure ports.

Access Control Lists – ACLs provide packet filtering for IP frames (based on address, protocol, Layer 4 protocol port number or TCP control code) or any frames (based on MAC address or Ethernet type). ACLs can be used to improve performance by blocking unnecessary network traffic or to implement security controls by restricting access to specific network resources or protocols.

1-2

Description of Software Features

Port Configuration – You can manually configure the speed, duplex mode, and flow control used on specific ports, or use auto-negotiation to detect the connection settings used by the attached device. Use the full-duplex mode on ports whenever possible to double the throughput of switch connections. Flow control should also be enabled to control network traffic during periods of congestion and prevent the loss of packets when port buffer thresholds are exceeded. The switch supports flow control based on the IEEE 802.3x standard (now incorporated in IEEE 802.3-2002).

Rate Limiting – This feature controls the maximum rate for traffic transmitted or received on an interface. Rate limiting is configured on interfaces at the edge of a network to limit traffic into or out of the network. Packets that exceed the acceptable amount of traffic are dropped.

Port Mirroring – The switch can unobtrusively mirror traffic from any port to a monitor port. You can then attach a protocol analyzer or RMON probe to this port to perform traffic analysis and verify connection integrity.

RSPAN Mirroring – You can configure the switch to mirror traffic from remote switches over a dedicated VLAN. The traffic mirrored can be analyzed in the same way you would when mirroring traffic locally on a switch.

Port Trunking – Ports can be combined into an aggregate connection. Trunks can be manually set up or dynamically configured using Link Aggregation Control Protocol (LACP). The additional ports dramatically increase the throughput across any connection, and provide redundancy by taking over the load if a port in the trunk should fail. The switch supports up to 32 trunks.

Storm Control – Broadcast, multicast and unknown unicast storm suppression prevents traffic from overwhelming the network. When enabled on a port, the level of traffic passing through the port is restricted. If traffic rises above a pre-defined threshold, it will be throttled until the level falls back beneath the threshold.

Static Addresses – A static address can be assigned to a specific interface on this switch. Static addresses are bound to the assigned interface and will not be moved. When a static address is seen on another interface, the address will be ignored and will not be written to the address table. Static addresses can be used to provide network security by restricting access for a known host to a specific port.

IP Address Filtering – Access to insecure ports can be controlled using DHCP Snooping which filters ingress traffic based on static IP addresses and addresses stored in the DHCP Snooping table. Traffic can also be restricted to specific source IP addresses or source IP/MAC address pairs based on static entries or entries stored in the DHCP Snooping table.

IEEE 802.1D Bridge – The switch supports IEEE 802.1D transparent bridging. The address table facilitates data switching by learning addresses, and then filtering or forwarding traffic based on this information. The address table supports up to 8K addresses.

Store-and-Forward Switching – The switch copies each frame into its memory before forwarding them to another port. This ensures that all frames are a standard Ethernet size and have been verified for accuracy with the cyclic redundancy check

1-3

Introduction

(CRC). This prevents bad frames from entering the network and wasting bandwidth.

To avoid dropping frames on congested ports, the switch provides 4 Mbits for frame buffering. This buffer can queue packets awaiting transmission on congested networks.

Spanning Tree Algorithm – The switch supports these spanning tree protocols:

Spanning Tree Protocol (STP, IEEE 802.1D) – This protocol provides loop detection and recovery by allowing two or more redundant connections to be created between a pair of LAN segments. When there are multiple physical paths between segments, this protocol will choose a single path and disable all others to ensure that only one route exists between any two stations on the network. This prevents the creation of network loops. However, if the chosen path should fail for any reason, an alternate path will be activated to maintain the connection.

Rapid Spanning Tree Protocol (RSTP, IEEE 802.1D-2004) – This protocol reduces the convergence time for network topology changes to 3 to 5 seconds, compared to 30 seconds or more for the older IEEE 802.1D STP standard. It is intended as a complete replacement for STP, but can still interoperate with switches running the older standard by automatically reconfiguring ports to STP-compliant mode if they detect STP protocol messages from attached devices.

Multiple Spanning Tree Protocol (MSTP, IEEE 802.1D-2004) – This protocol is a direct extension of RSTP. It can provide an independent spanning tree for different VLANs. It simplifies network management, provides for even faster convergence than RSTP by limiting the size of each region, and prevents VLAN members from being segmented from the rest of the group (as sometimes occurs with IEEE 802.1D STP).

Virtual LANs – The switch supports up to 256 VLANs. A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network. The switch supports tagged VLANs based on the IEEE 802.1Q standard. Members of VLAN groups can be dynamically learned via GVRP, or ports can be manually assigned to a specific set of VLANs. This allows the switch to restrict traffic to the VLAN groups to which a user has been assigned. By segmenting your network into VLANs, you can:

• Eliminate broadcast storms which severely degrade performance in a flat network.

• Simplify network management for node changes/moves by remotely configuring VLAN membership for any port, rather than having to manually change the network connection.

• Provide data security by restricting all traffic to the originating VLAN.

• Use private VLANs to restrict traffic to pass only between data ports and the uplink ports, thereby isolating adjacent ports within the same VLAN, and allowing you to limit the total number of VLANs that need to be configured.

• Use protocol VLANs to restrict traffic to specified interfaces based on protocol type.

Note: The switch allows 255 user-manageable VLANs. One other VLAN (VLAN ID 4093)

is reserved for switch clustering.

1-4

Description of Software Features

Traffic Prioritization – This switch prioritizes each packet based on the required level of service, using four priority queues with strict or Weighted Round Robin Queuing. It uses IEEE 802.1p and 802.1Q tags to prioritize incoming traffic based on input from the end-station application. These functions can independent priorities for delay-sensitive data and best-effort data.

This switch also supports several common methods of prioritizing layer 3/4 traffic to meet application requirements. Traffic can be prioritized based on the priority bits in the IP frame’s Type of Service (ToS) octet or the number of the TCP/UDP port. When these services are enabled, the priorities are mapped to a Class of Service value by the switch, and the traffic then sent to the corresponding output queue.

Quality of Service – Differentiated Services (DiffServ) provides policy-based management mechanisms used for prioritizing network resources to meet the requirements of specific traffic types on a per-hop basis. Each packet is classified upon entry into the network based on access lists, IP Precedence or DSCP values, or VLAN lists. Using access lists allows you select traffic based on Layer 2, Layer 3, or Layer 4 information contained in each packet. Based on network policies, different kinds of traffic can be marked for different kinds of forwarding.

Multicast Filtering – Specific multicast traffic can be assigned to its own VLAN to ensure that it does not interfere with normal network traffic and to guarantee real-time delivery by setting the required priority level for the designated VLAN. The switch uses IGMP Snooping and Query to manage multicast group registration. It also supports Multicast VLAN Registration (MVR) which allows common multicast traffic, such as television channels, to be transmitted across a single network-wide multicast VLAN shared by hosts residing in other standard or private VLAN groups, while preserving security and data isolation for normal traffic.

be used to provide

IEEE 802.1Q Tunneling (QinQ) – This feature is designed for service providers carrying traffic for multiple customers across their networks. QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when different customers use the same internal VLAN IDs. This is accomplished by inserting Service Provider VLAN (SPVLAN) tags into the customer’s frames when they enter the service provider’s network, and then stripping the tags when the frames leave the network.

1-5

Introduction

System Defaults

The switch’s system defaults are provided in the configuration file “Factory_Default_Config.cfg.” To reset the switch defaults, this file should be set as the startup configuration file (page 3-22).

The following table lists some of the basic system defaults.

Table 1-2 System Defaults

Function Parameter Default

Console Port Connection

Authentication Privileged Exec Level Username “admin”, Password “admin”

Web Management HTTP Server Enabled

Baud Rate auto

Data bits 8

Stop bits 1

Parity none

Local Console Timeout 0 (disabled)

Normal Exec Level Username “guest”, Password “guest”

Enable Privileged Exec from Normal Exec Level

RADIUS Authentication Disabled

TACACS Authentication Disabled

802.1X Port Authentication Disabled

MAC Authentication Disabled

HTTPS Enabled

SSH Disabled

Port Security Disabled

IP Filtering Disabled

DHCP Snooping Disabled

IP Source Guard Disabled (all ports)

HTTP Port Number 80

HTTP Secure Server Enabled

HTTP Secure Port Number 443

Password “super”

1-6

Table 1-2 System Defaults (Continued)

Function Parameter Default

SNMP SNMP Agent Enabled

Community Strings “public” (read only), “private” (read/write)

Traps Authentication traps: enabled

Link-up-down events: enabled

SNMP V3 View: default view

Group: public (read only) private (read/write)

Port Configuration Admin Status Enabled

Auto-negotiation Enabled

Flow Control Disabled

Rate Limiting Input and output limits Disabled

Port Trunking Static Trunks None

LACP (all ports) Disabled

Broadcast Storm Protection

Spanning Tree Algorithm

Address Table Aging Time 300 seconds

Virtual LANs Default VLAN 1

Traffic Prioritization Ingress Port Priority 0

Status Broadcast: enabled (all ports)

Multicast: disabled Unknown Unicast: disabled

Rate Limit Broadcast: 500 packets per second

Status Enabled, RSTP

(Defaults: Based on RSTP standard)

Fast Forwarding (Edge Port) Disabled

PVID 1

Acceptable Frame Type All

Ingress Filtering Enabled

Switchport Mode (Egress Mode) Hybrid: tagged/untagged frames

GVRP (global) Disabled

GVRP (port interface) Disabled

Weighted Round Robin Queue: 0 1 2 3

IP Precedence Priority Disabled

IP DSCP Priority Disabled

IP Port Priority Disabled

Weight: 1 2 4 8

System Defaults

1-7

Introduction

Table 1-2 System Defaults (Continued)

Function Parameter Default

IP Settings IP Address DHCP assigned

Subnet Mask 255.255.255.0

Default Gateway 0.0.0.0

DHCP Client: Enabled

DNS Client/Proxy service: Disabled

BOOTP Disabled

Multicast Filtering IGMP Snooping Snooping: Enabled

Querier: Enabled

Multicast VLAN Registration Disabled

System Log Status Enabled

Messages Logged Levels 0-7 (all)

Messages Logged to Flash Levels 0-3

SMTP Email Alerts Event Handler Enabled (but no server defined)

SNTP Clock Synchronization Disabled

DHCP Snooping Status Disabled

IP Source Guard Status Disabled (all ports)

Switch Clustering Status Enabled

Commander Disabled

1-8

Chapter 2: Initial Configuration

Connecting to the Switch

Configuration Options

The switch includes a built-in network management agent. The agent offers a variety of management options, including SNMP, RMON (Groups 1, 2, 3, 9) and a web-based interface. A PC may also be connected directly to the switch for configuration and monitoring via a command line interface (CLI).

Note: The IP address for this switch is obtained via DHCP by default. To change this

address, see "Setting an IP Address" on page 2-4.

The switch’s HTTP web agent allows you to configure switch parameters, monitor port connections, and display statistics using a standard web browser such as Internet Explorer 5.x or above, Netscape 6.2 or above, and Mozilla Firefox 2.0.0.0 or above. The switch’s web management interface can be accessed from any computer attached to the network.

The CLI program can be accessed by a direct connection to the RS-232 serial console port on the switch, or remotely by a Telnet or Secure Shell (SSH) connection over the network.

The switch’s management agent also supports SNMP (Simple Network Management Protocol). This SNMP agent permits the switch to be managed from any system in the network using network management software such as SMC’s EliteView.

The switch’s web interface, CLI configuration program, and SNMP agent allow you to perform the following management functions:

• Set user names and passwords

• Set an IP interface for a management VLAN

• Configure SNMP parameters

• Enable/disable any port

• Set the speed/duplex mode for any port

• Configure the bandwidth of any port by limiting input rates

• Control port access through IEEE 802.1X security or static address filtering

• Filter packets using Access Control Lists (ACLs)

• Configure up to 255 IEEE 802.1Q VLANs

• Enable GVRP automatic VLAN registration

• Configure IGMP multicast filtering

• Upload and download system firmware via TFTP

• Upload and download switch configuration files via TFTP

• Configure Spanning Tree parameters

• Configure Class of Service (CoS) priority queuing

2-1

Initial Configuration

• Configure up to 32 static or LACP trunks

• Enable port mirroring

• Set broadcast, multicast or unknown unicast storm control on any port

• Display system information and statistics

Required Connections

The switch provides an RS-232 serial port that enables a connection to a PC or terminal for monitoring and configuring the switch. A null-modem console cable is provided with the switch.

Attach a VT100-compatible terminal, or a PC running a terminal emulation program to the switch. You can use the console cable provided with this package, or use a null-modem cable that complies with the wiring assignments shown in the Installation Guide.

To connect a terminal to the console port, complete the following steps:

1. Connect the console cable to the serial port on a terminal, or a PC running

terminal emulation software, and tighten the captive retaining screws on the RS-232 connector.

2. Connect the other end of the cable to the RS-232 serial port on the switch.

3. Make sure the terminal emulation software is set as follows:

• Select the appropriate serial port (COM port 1 or COM port 2).

• Set to any of the following baud rates: 9600, 19200, 38400, 57600, 115200 (Note: Set to 9600 baud if want to view all the system initialization messages.).

• Set the data format to 8 data bits, 1 stop bit, and no parity.

• Set flow control to none.

• Set the emulation mode to VT100.

• When using HyperTerminal, select Terminal keys, not Windows keys.

Notes: 1. Refer to "Line Commands" on page 4-31 for a complete description of

For a description of how to use the CLI, see "Using the Command Line Interface" on page 4-1. For a list of all the CLI commands and detailed information on using the CLI, refer to "Command Groups" on page 4-10.

console configuration options.

2. Once you have set up the terminal correctly, the console login screen will be displayed.

2-2

Basic Configuration

Remote Connections

Prior to accessing the switch’s onboard agent via a network connection, you must first configure it with a valid IP address, subnet mask, and default gateway using a console connection, DHCP or BOOTP protocol.

The IP address for this switch is obtained via DHCP by default. To manually configure this address or enable dynamic address assignment via DHCP or BOOTP, see "Setting an IP Address" on page 2-4.

Note: This switch supports four concurrent Telnet/SSH sessions.

After configuring the switch’s IP parameters, you can access the onboard configuration program from anywhere within the attached network. The switch’s command-line interface can be accessed using Telnet or SSH from any computer attached to the network. The switch can also be managed by any computer using a web browser (Internet Explorer 5.x or above, or Netscape 6.2 or above, or Mozilla Firefox 2.0.0.0), or from a network computer using SNMP network management software.

Note: The onboard program only provides access to basic configuration functions. To

access the full range of SNMP management functions, you must use SNMP-based network management software.

Basic Configuration

Console Connection

The CLI program provides two different command levels — normal access level (Normal Exec) and privileged access level (Privileged Exec). The commands available at the Normal Exec level are a limited subset of those available at the Privileged Exec level and allow you to only display information and use basic utilities. To fully configure the switch parameters, you must access the CLI at the Privileged Exec level.

Access to both CLI levels are controlled by user names and passwords. The switch has a default user name and password for each level. To log into the CLI at the Privileged Exec level using the default user name and password, perform these steps:

1. To initiate your console connection, press <Enter>. The “User Access Verification” procedure starts.

2. At the Username prompt, enter “admin.”

3. At the Password prompt, also enter “admin.” (The password characters are not displayed on the console screen.)

4. The session is opened and the CLI displays the “Console#” prompt indicating you have access at the Privileged Exec level.

2-3

Initial Configuration

Setting Passwords

Note: If this is your first time to log into the CLI program, you should define new

passwords for both default user names using the “username” command, record them and put them in a safe place.

Passwords can consist of up to 8 alphanumeric characters and are case sensitive. To prevent unauthorized access to the switch, set the passwords as follows:

1. Open the console interface with the default user name and password “admin” to access the Privileged Exec level.

2. Type “configure” and press <Enter>.

3. Type “username guest password 0 password,” for the Normal Exec level, where password is your new password. Press <Enter>.

4. Type “username admin password 0 password,” for the Privileged Exec level, where password is your new password. Press <Enter>.

Note: ‘0’ specifies a password in plain text, ‘7’ specifies the password in encrypted form.

Username: admin Password:

CLI session with the SMC8126PL2-F is opened. To end the CLI session, enter [Exit].

Console#configure Console(config)#username guest password 0 [password] Console(config)#username admin password 0 [password] Console(config)#

Setting an IP Address

You must establish IP address information for the stack to obtain management access through the network. This can be done in either of the following ways:

Manual — You have to input the information, including IP address and subnet mask. If your management station is not in the same IP subnet as the stack’s master unit, you will also need to specify the default gateway router.

Dynamic — The switch sends IP configuration requests to BOOTP or DHCP address allocation servers on the network.

Manual Configuration

You can manually assign an IP address to the switch. You may also need to specify a default gateway that resides between this device and management stations that exist on another network segment. Valid IP addresses consist of four decimal numbers, 0 to 255, separated by periods. Anything outside this format will not be accepted by the CLI program.

Note: The IP address for this switch is obtained via DHCP by default.

2-4

Basic Configuration

Before you can assign an IP address to the switch, you must obtain the following information from your network administrator:

• IP address for the switch

• Default gateway for the network

• Network mask for this network

To assign an IP address to the switch, complete the following steps:

1. From the Global Configuration mode prompt, type “interface vlan 1” to access the interface-configuration mode. Press <Enter>.

2. Type “ip address ip-address netmask,” where “ip-address” is the switch IP address and “netmask” is the network mask for the network. Press <Enter>.

3. Type “exit” to return to the global configuration mode prompt. Press <Enter>.

4. To set the IP address of the default gateway for the network to which the switch belongs, type “ip default-gateway gateway,” where “gateway” is the IP address of the default gateway. Press <Enter>.

Console(config)#interface vlan 1 Console(config-if)#ip address 192.168.1.5 255.255.255.0 Console(config-if)#exit Console(config)#ip default-gateway 192.168.1.254 Console(config)#

Dynamic Configuration

If you select the “bootp” or “dhcp” option, IP will be enabled but will not function until a BOOTP or DHCP reply has been received. Requests will be sent periodically in an effort to obtain IP configuration information. BOOTP and DHCP values can include the IP address, subnet mask, and default gateway. If the DHCP/BOOTP server is slow to respond, you may need to use the “ip dhcp restart” command to re-start broadcasting service requests.

If the “bootp” or “dhcp” option is saved to the startup-config file (step 6), then the switch will start broadcasting service requests as soon as it is powered on.

To automatically configure the switch by communicating with BOOTP or DHCP address allocation servers on the network, complete the following steps:

1. From the Global Configuration mode prompt, type “interface vlan 1” to access the interface-configuration mode. Press <Enter>.

2. At the interface-configuration mode prompt, use one of the following commands:

• To obtain IP settings via DHCP, type “ip address dhcp” and press <Enter>.

• To obtain IP settings via BOOTP, type “ip address bootp” and press <Enter>.

3. Type “end” to return to the Privileged Exec mode. Press <Enter>.

2-5

Initial Configuration

4. If network connections are normally slow, type “ip dhcp restart” to re-start broadcasting service requests. Press <Enter>.

5. Wait a few minutes, and then check the IP configuration settings by typing the “show ip interface” command. Press <Enter>.

6. Then save your configuration changes by typing “copy running-config startup-config.” Enter the startup file name and press <Enter>.

Console(config)#interface vlan 1 4-155 Console(config-if)#ip address dhcp 4-297 Console(config-if)#end Console#ip dhcp restart Console#show ip interface 4-299 IP address and netmask: 192.168.1.54 255.255.255.0 on VLAN 1, and address mode: User specified. Console#copy running-config startup-config 4-25 Startup configuration file name []: startup \Write to FLASH Programming.

\Write to FLASH finish. Success.

Enabling SNMP Management Access

The switch can be configured to accept management commands from Simple Network Management Protocol (SNMP) applications such as SMC EliteView. You can configure the switch to (1) respond to SNMP requests or (2) generate SNMP traps.

When SNMP management stations send requests to the switch (either to return information or to set a parameter), the switch provides the requested data or sets the specified parameter. The switch can also be configured to send information to SNMP managers (without being requested by the managers) through trap messages, which inform the manager that certain events have occurred.

The switch includes an SNMP agent that supports SNMP version 1, 2c, and 3 clients. To provide management access for version 1 or 2c clients, you must specify a community string. The switch provides a default MIB View (i.e., an SNMPv3 construct) for the default “public” community string that provides read access to the entire MIB tree, and a default view for the “private” community string that provides read/write access to the entire MIB tree. However, you may assign new views to version 1 or 2c community strings that suit your specific security requirements (see page 3-52).

Community Strings (for SNMP version 1 and 2c clients)

Community strings are used to control management access to SNMP version 1 and 2c stations, as well as to authorize SNMP stations to receive trap messages from the switch. You therefore need to assign community strings to specified users, and set the access level.

2-6

Basic Configuration

The default strings are:

• public - with read-only access. Authorized management stations are only able to retrieve MIB objects.

• private - with read-write access. Authorized management stations are able to both retrieve and modify MIB objects.

To prevent unauthorized access to the switch from SNMP version 1 or 2c clients, it is recommended that you change the default community strings.

To configure a community string, complete the following steps:

1. From the Privileged Exec level global configuration mode prompt, type

“snmp-server community string mode,” where “string” is the community access string and “mode” is rw (read/write) or ro (read only). Press <Enter>. (Note that the default mode is read only.)

2. To remove an existing string, simply type “no snmp-server community string,”

where “string” is the community access string to remove. Press <Enter>.

Console(config)#snmp-server community admin rw 4-63 Console(config)#snmp-server community private Console(config)#

Note: If you do not intend to support access to SNMP version 1 and 2c clients, we

recommend that you delete both of the default community strings. If there are no community strings, then SNMP management access from SNMP v1 and v2c clients is disabled.

Trap Receivers

You can also specify SNMP stations that are to receive traps from the switch. To configure a trap receiver, use the “snmp-server host” command. From the Privileged Exec level global configuration mode prompt, type:

“snmp-server host host-address community-string

[version {1 | 2c | 3 {auth | noauth | priv}}]”

where “host-address” is the IP address for the trap receiver, “community-string” specifies access rights for a version 1/2c host, or is the user name of a version 3 host, “version” indicates the SNMP client version, and “auth | noauth | priv” means that authentication, no authentication, or authentication and privacy is used for v3 clients. Then press <Enter>. For a more detailed description of these parameters, see "snmp-server host" on page 4-65. The following example creates a trap host for each type of SNMP client.

Console(config)#snmp-server host 10.1.19.23 batman 4-65 Console(config)#snmp-server host 10.1.19.98 robin version 2c Console(config)#snmp-server host 10.1.19.34 barbie version 3 auth Console(config)#

2-7

Initial Configuration

Configuring Access for SNMP Version 3 Clients

To configure management access for SNMPv3 clients, you need to first create a view that defines the portions of MIB that the client can read or write, assign the view to a group, and then assign the user to a group. The following example creates one view called “mib-2” that includes the entire MIB-2 tree branch, and then another view that includes the IEEE 802.1d bridge MIB. It assigns these respective read and read/write views to a group call “r&d” and specifies group authentication via MD5 or SHA. In the last step, it assigns a v3 user to this group, indicating that MD5 will be used for authentication, provides the password “greenpeace” for authentication, and the password “einstien” for encryption.

Console(config)#snmp-server view mib-2 1.3.6.1.2.1 included 4-69 Console(config)#snmp-server view 802.1d 1.3.6.1.2.1.17 included Console(config)#snmp-server group r&d v3 auth mib-2 802.1d 4-71 Console(config)#snmp-server user steve group r&d v3 auth md5

greenpeace priv des56 einstien 4-74

Console(config)#

For a more detailed explanation on how to configure the switch for access from SNMP v3 clients, refer to "Simple Network Management Protocol" on page 3-37, or refer to the specific CLI commands for SNMP starting on page 4-61.

Managing System Files

The switch’s flash memory supports three types of system files that can be managed by the CLI program, web interface, or SNMP. The switch’s file system allows files to be uploaded and downloaded, copied, deleted, and set as a start-up file.

The three types of files are:

• Configuration — This file type stores system configuration information and is created when configuration settings are saved. Saved configuration files can be selected as a system start-up file or can be uploaded via TFTP to a server for backup. The file named “Factory_Default_Config.cfg” contains all the system default settings and cannot be deleted from the system. If the system is booted with the factory default settings, the switch will also create a file named “startup1.cfg” that contains system settings for initialization, including information about the unit identifier, MAC address, and installed module type. The configuration settings from the factory defaults configuration file are copied to this file, which is then used to boot the switch. See "Saving or Restoring Configuration Settings" on page 3-22 for more information.

• Operation Code — System software that is executed after boot-up, also known as run-time code. This code runs the switch operations and provides the CLI and web management interfaces. See "Managing Firmware" on page 3-20 for more information.

• Diagnostic Code — Software that is run during system boot-up, also known as POST (Power On Self-Test).

2-8

Managing System Files

Due to the size limit of the flash memory, the switch supports only two operation code files. However, you can have as many diagnostic code files and configuration files as available flash memory space allows. The switch has a total of 16 Mbytes of flash memory for system files.

In the system flash memory, one file of each type must be set as the start-up file. During a system boot, the diagnostic and operation code files set as the start-up file are run, and then the start-up configuration file is loaded.

Note that configuration files should be downloaded using a file name that reflects the contents or usage of the file settings. If you download directly to the running-config, the system will reboot, and the settings will have to be copied from the running-config to a permanent file.

Saving Configuration Settings

Configuration commands only modify the running configuration file and are not saved when the switch is rebooted. To save all your configuration changes in nonvolatile storage, you must copy the running configuration file to the start-up configuration file using the “copy” command.

New startup configuration files must have a name specified. File names on the switch are case-sensitive, can be from 1 to 31 characters, must not contain slashes (\ or /), and the leading letter of the file name must not be a period (.). (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

There can be more than one user-defined configuration file saved in the switch’s flash memory, but only one is designated as the “startup” file that is loaded when the switch boots. The copy running-config startup-config command always sets the new file as the startup file. To select a previously saved configuration file, use the boot system config:<filename> command.

The maximum number of saved configuration files depends on available flash memory, with each configuration file normally requiring less than 20 kbytes. The amount of available flash memory can be checked by using the dir command.

To save the current configuration settings, enter the following command:

1. From the Privileged Exec mode prompt, type “copy running-config

startup-config” and press <Enter>.

2. Enter the name of the start-up file. Press <Enter>.

Console#copy running-config startup-config 4-25 Startup configuration file name []: startup \Write to FLASH Programming.

\Write to FLASH finish. Success.

Console#

2-9

Initial Configuration

2-10

Chapter 3: Configuring the Switch

Using the Web Interface

This switch provides an embedded HTTP web agent. Using a web browser you can configure the switch and view statistics to monitor network activity. The web agent can be accessed by any computer on the network using a standard web browser (Internet Explorer 5.0 or above, Netscape 6.2 or above, or Mozilla Firefox 2.0.0.0 or above).

Note:

You can also use the Command Line Interface (CLI) to manage the switch over a serial connection to the console port or via Telnet. For more information on using the CLI, refer to "Chapter 4: Command Line Interface.”

Prior to accessing the switch from a web browser, be sure you have first performed the following tasks:

1. Configure the switch with a valid IP address, subnet mask, and default gateway

using an out-of-band serial connection, BOOTP or DHCP protocol. (See "Setting an IP Address" on page 2-4.)

2. Set user names and passwords using an out-of-band serial connection. Access

to the web agent is controlled by the same user names and passwords as the onboard configuration program. (See "Setting Passwords" on page 2-4.)

3. After you enter a user name and password, you will have access to the system

configuration program.

Notes: 1.

You are allowed three attempts to enter the correct password; on the third failed attempt the current connection is terminated.

2. If you log into the web interface as guest (Normal Exec level), you can view

the configuration settings or change the guest password. If you log in as “admin” (Privileged Exec level), you can change the settings on any page.

3. If the path between your management station and this switch does not pass

through any device that uses the Spanning Tree Algorithm, then you can set the switch port attached to your management station to fast forwarding (i.e., enable Admin Edge Port) to improve the switch’s response time to management commands issued through the web interface. See "Configuring Interface Settings for STA" on page 3-154.

3-1

Configuring the Switch

Navigating the Web Browser Interface

To access the web-browser interface you must first enter a user name and password. The administrator has Read/Write access to all configuration parameters and statistics. The default user name and password for the administrator is “admin.”

Home Page

When your web browser connects with the switch’s web agent, the home page is displayed as shown below. The home page displays the Main Menu on the left side of the screen and System Information on the right side. The Main Menu links are used to navigate to other menus, and display configuration parameters and statistics.

3-2

Figure 3-1 Home Page

Navigating the Web Browser Interface

Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a configuration change has been made on a page, be sure to click on the Apply button to confirm the new setting. The following table summarizes the web page configuration buttons.

Table 3-1 Configuration Options

Button Action

Revert Cancels specified values and restores current values prior to pressing Apply.

Apply Sets specified values to the system.

Help Links directly to webhelp.

Notes: 1.

To ensure proper screen refresh, be sure that Internet Explorer is configured so that the setting “Check for newer versions of stored pages” reads “Every visit to the page”. Internet Explorer 6.x and earlier: This option is available under the menu “Tools / Internet Options / General / Temporary Internet Files / Settings”. Internet Explorer 7.x: This option is available under “Tools / Internet Options / General / Browsing History / Settings / Temporary Internet Files”.

2. When using Internet Explorer 5.0, you may have to manually refresh the

screen after making configuration changes by pressing the browser’s refresh button.

Panel Display

The web agent displays an image of the switch’s ports. The Mode can be set to display different information for the ports, including Active (i.e., up or down), Duplex (i.e., half or full duplex, or Flow Control (i.e., with or without flow control). Clicking on the image of a port opens the Port Configuration page as described on page 3-114.

Figure 3-2 Panel Display

3-3

Configuring the Switch

Main Menu

Using the onboard web agent, you can define system parameters, manage and control the switch, and all its ports, or monitor network conditions. The following table briefly describes the selections available from this program.

Table 3-2 Main Menu

Menu Description Page

System 3-11

System Information Provides basic system description, including contact information 3-11

Switch Information Shows the number of ports, hardware/firmware version

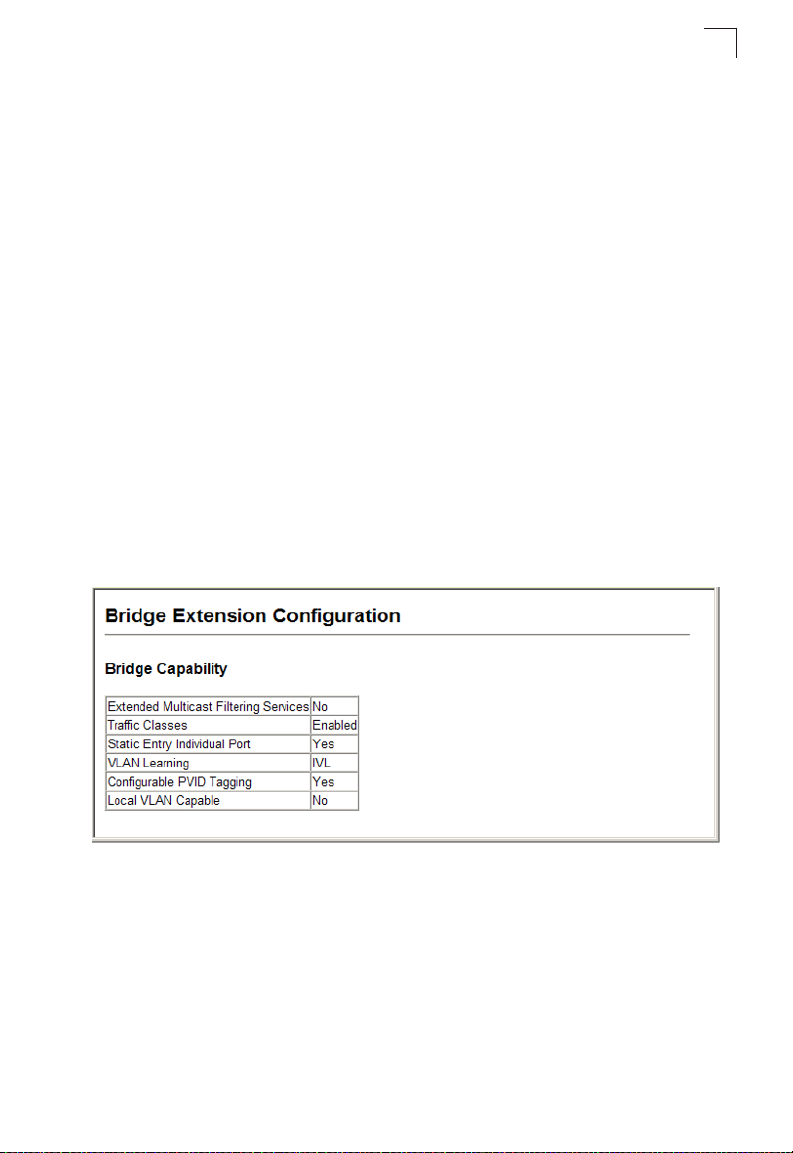

Bridge Extension Configuration

IP Configuration Sets the IP address for management access 3-16

Jumbo Frames Enables jumbo frame packets. 3-19

File Management 3-20

Copy Operation Allows the transfer and copying files 3-20

Delete Allows deletion of files from the flash memory 3-20

Set Start-Up Sets the startup file 3-20

Line 3-24

Console Sets console port connection parameters 3-24

Telnet Sets Telnet connection parameters 3-26

Log 3-28

Logs Stores and displays error messages 3-28

System Logs Sends error messages to a logging process 3-28

Remote Logs Configures the logging of messages to a remote logging process 3-29

SMTP Sends an SMTP client message to a participating server. 3-31

Renumbering Renumbers the units in the stack 3-33

Reset Restarts the switch 3-34

SNTP Simple Network Time Protocol 3-35

Configuration Configures SNTP client settings, including broadcast mode or a

Clock Time Zone Sets the local time zone for the system clock 3-36

SNMP Simple Network Management Protocol 3-37

Configuration Configures community strings and related trap functions 3-39

Agent Status Enables or disables SNMP Agent Status 3-39

numbers, and power status

Shows the bridge extension parameters 3-15

specified list of servers

3-13

3-35

3-4

Navigating the Web Browser Interface

Table 3-2 Main Menu (Continued)

Menu Description Page

SNMPv3 3-43

Engine ID Sets the SNMP v3 engine ID on this switch 3-43

Remote Engine ID Sets the SNMP v3 engine ID for a remote device 3-44

Users Configures SNMP v3 users on this switch 3-45

Remote Users Configures SNMP v3 users from a remote device 3-47

Groups Configures SNMP v3 groups 3-49

Views Configures SNMP v3 views 3-52

Security 3-54

User Accounts Assigns a new password for the current user 3-54

Authentication Settings Configures authentication sequence, RADIUS and TACACS 3-56

Encryption Key Configures RADIUS and TACACS encryption key settings 3-59

AAA Authentication, Authorization and Accounting 3-61

RADIUS Group Settings Defines the configured RADIUS servers to use for accounting 3-62

TACACS+ Group Settings Defines the configured TACACS+ servers to use for accounting 3-63

Accounting 3-63

Settings Configures accounting of requested services for billing or

Periodic Update Sets the interval at which accounting updates are sent to

802.1X Port Settings Applies the specified accounting method to an interface 3-66

Command Privileges Specifies a method name to apply to commands entered at

Exec Settings Specifies console or Telnet authentication method 3-68

Summary Displays accounting information and statistics 3-68

Authorization 3-70

Settings Configures authorization of requested services 3-70

EXEC Settings Specifies console or Telnet authorization method 3-71

Summary Displays authorization information 3-72

HTTPS Settings Configures secure HTTP settings 3-73

SSH Secure Shell 3-75

Settings Configures Secure Shell server settings 3-90

Host-Key Settings Generates the host key pair (public and private) 3-77

Port Security Configures per port security, including status, response for

security purposes

RADIUS AAA servers

specific CLI privilege levels

security breach, and maximum allowed MAC addresses

3-63

3-65

3-67

3-90

3-5

Configuring the Switch

Table 3-2 Main Menu (Continued)

Menu Description Page

802.1X Port authentication 3-80

Information Displays global configuration settings 3-82

Configuration Configures the global configuration setting 3-82

Port Configuration Sets parameters for individual ports 3-83

Statistics Displays protocol statistics for the selected port 3-86

ACL Access Control Lists 3-91

Configuration Configures packet filtering based on IP or MAC addresses 3-91

Port Binding Binds a port to the specified ACL 3-98

IP Filter Sets IP addresses of clients allowed management access via

Port 3-112

Port Information Displays port connection status 3-112

Trunk Information Displays trunk connection status 3-112

Port Configuration Configures port connection settings 3-114

Trunk Configuration Configures trunk connection settings 3-114

Trunk Membership Specifies ports to group into static trunks 3-117

LACP Link Access Control Protocol 3-118

Configuration Allows ports to dynamically join trunks 3-118

Aggregation Port Configures parameters for link aggregation group members 3-120

Port Counters Information Displays statistics for LACP protocol messages 3-122

Port Internal Information Displays settings and operational state for the local side 3-124

Port Neighbors Information Displays settings and operational state for the remote side 3-126

Port Broadcast Control Sets the broadcast storm threshold for each port 3-127

Trunk Broadcast Control Sets the broadcast storm threshold for each trunk 3-127

Mirror Port Configuration Sets the source and target ports for local mirroring 3-128

Rate Limit 3-129

Input Port Configuration Sets the input rate limit for each port 3-129

Input Trunk Configuration Sets the input rate limit for each trunk 3-129

Output Port Configuration Sets the output rate limit for ports 3-129

Output Trunk Configuration Sets the output rate limit for trunks 3-129

Port Statistics Lists Ethernet and RMON port statistics 3-130

PoE 3-134

Power Status Displays the status of global power parameters 3-135

the web, SNMP, and Telnet

3-87

3-6

Navigating the Web Browser Interface

Table 3-2 Main Menu (Continued)

Menu Description Page

Power Config Configures the power budget for the switch 3-136

Power Port Status Displays the status of port power parameters 3-136

Power Port Config Configures port power parameters 3-137

Address Table 3-139

Static Addresses Displays entries for interface, address or VLAN 3-139

Dynamic Addresses Displays or edits static entries in the Address Table 3-140

Address Aging Sets timeout for dynamically learned entries 3-141

Spanning Tree 3-142

STA Spanning Tree Algorithm 3-142

Information Displays STA values used for the bridge 3-144

Configuration Configures global bridge settings for STA and RSTP 3-147

Port Information Displays individual port settings for STA 3-151

Trunk Information Displays individual trunk settings for STA 3-151

Port Configuration Configures individual port settings for STA 3-154

Trunk Configuration Configures individual trunk settings for STA 3-154

MSTP Multiple Spanning Tree Protocol 3-158

VLAN Configuration Configures priority and VLANs for a spanning tree instance 3-158

Port Information Displays port settings for a specified MST instance 3-161

Trunk Information Displays trunk settings for a specified MST instance 3-161

Port Configuration Configures port settings for a specified MST instance 3-163

Trunk Configuration Configures trunk settings for a specified MST instance 3-163

VLAN Virtual LAN 3-164

802.1Q VLAN IEEE 802.1Q VLANs 3-164

GVRP Status Enables GVRP VLAN registration protocol 3-167

802.1Q Tunnel Configuration

Basic Information Displays information on the VLAN type supported by this switch 3-168

Current Table Shows the current port members of each VLAN and whether or

Static List Used to create or remove VLAN groups 3-170

Static Table Modifies the settings for an existing VLAN 3-173

Static Membership by Port Configures membership type for interfaces, including tagged,

Port Configuration Specifies default PVID and VLAN attributes 3-176

Enables QinQ Tunneling on the switch 3-168

not the port is tagged or untagged

untagged or forbidden

3-169

3-175

3-7

Configuring the Switch

Table 3-2 Main Menu (Continued)

Menu Description Page

Trunk Configuration Specifies default trunk VID and VLAN attributes 3-176

Tunnel Port Configuration Adds ports to a QinQ tunnel 3-182

Tunnel Trunk Configuration Adds trunks to a QinQ tunnel 3-182

Private VLAN 3-184

Status Enables or disables the private VLAN 3-184

Link Status Configures the private VLAN 3-185

Protocol VLAN 3-185

Configuration Configures protocol VLANs 3-186

Port Configuration Configures protocol VLAN port type, and associated protocol

Priority 3-189

Default Port Priority Sets the default priority for each port 3-189

Default Trunk Priority Sets the default priority for each trunk 3-189

Traffic Classes Maps IEEE 802.1p priority tags to output queues 3-191

Traffic Classes Status Enables/disables traffic class priorities (not implemented) NA

Queue Mode Sets queue mode to strict priority or Weighted Round-Robin 3-193

Queue Scheduling Configures Weighted Round Robin queueing 3-194

IP Precedence/DSCP Priority Status

IP Precedence Priority Sets IP Type of Service priority, mapping the precedence tag to

IP DSCP Priority Sets IP Differentiated Services Code Point priority, mapping a

IP Port Priority Status Globally enables or disables IP Port Priority 3-199

IP Port Priority Sets TCP/UDP port priority, defining the socket number and

QoS Quality of Service 3-200

DiffServ Differentiated Services 3-200

Class Map Sets Class Maps 3-201

Policy Map Sets Policy Maps 3-204

Service Policy Defines service policy settings for ports 3-207

IGMP Snooping 3-209

IGMP Configuration Enables multicast filtering; configures parameters for multicast

IGMP Filter Configuration Enables IGMP filtering for the switch 3-218

VLANs

Globally selects IP Precedence or DSCP Priority, or disables both.

a class-of-service value

DSCP tag to a class-of-service value

associated class-of-service value

query

3-187

3-195

3-196

3-197

3-199

3-210

3-8

Navigating the Web Browser Interface

Table 3-2 Main Menu (Continued)

Menu Description Page

IGMP Immediate Leave Enables the immediate leave function 3-212

Multicast Router Port Information

Static Multicast Router Port Configuration

IP Multicast Registration Table

IGMP Member Port Table Indicates multicast addresses associated with the selected

IGMP Filter Profile Configuration

IGMP Filter/Throttling Port Configuration

IGMP Filter/Throttling Trunk Configuration

MVR Multicast VLAN Registration 3-223

Configuration Globally enables MVR, sets the MVR VLAN, adds multicast

Port Information Displays MVR interface type, MVR operational and activity

Trunk Information Displays MVR interface type, MVR operational and activity

Group IP Information Displays the ports attached to an MVR multicast stream 3-227

Port Configuration Configures MVR interface type and immediate leave status 3-228

Trunk Configuration Configures MVR interface type and immediate leave status 3-228

Group Member Configuration Statically assigns MVR multicast streams to an interface 3-230

DNS Domain Name Service

General Configuration Enables DNS; configures domain name and domain list; and

Static Host Table Configures static entries for domain name to address mapping 3-233

Cache Displays cache entries discovered by designated name servers 3-235

DHCP Snooping 3-99

Configuration Enables DHCP Snooping and DHCP Snooping MAC-Address

VLAN Configuration Enables DHCP Snooping for a VLAN 3-103

Information Option Configuration

Port Configuration Selects the DHCP Snooping Information Option policy 3-105

Displays the ports that are attached to a neighboring multicast router for each VLAN ID

Assigns ports that are attached to a neighboring multicast router 3-215

Displays all multicast groups active on this switch, including multicast IP addresses and VLAN ID

VLAN

Configures IGMP filter profiles, controlling groups and access mode

Assigns IGMP filter profiles to port interfaces and sets throttling action

Assigns IGMP filter profiles to trunk interfaces and sets throttling action

stream addresses

status, and immediate leave status

specifies IP address of name servers for dynamic lookup

Verification

Enables DHCP Snooping Information Option 3-103

3-214

3-216

3-217

3-218

3-221

3-224

3-226

3-231

3-102

3-9

Configuring the Switch

Table 3-2 Main Menu (Continued)

Menu Description Page

Binding Information Displays the DHCP Snooping binding information 3-106

IP Source Guard 3-107

Port Configuration Enables IP source guard and selects filter type per port 3-107

Static Configuration Adds a static addresses to the source-guard binding table 3-109

Dynamic Information Displays the source-guard binding table for a selected interface 3-111

Cluster 3-236

Configuration Globally enables clustering for the switch 3-236

Member Configuration Adds switch Members to the cluster 3-238

Member Information Displays cluster Member switch information 3-239

Candidate Information Displays network Candidate switch information 3-240

3-10

Basic Configuration

This section describes the basic functions required to set up management access to the switch, display or upgrade operating software, or reset the system.

Displaying System Information

You can easily identify the system by displaying the device name, location and contact information.

Field Attributes

• System Name – Name assigned to the switch system.

• Object ID – MIB II object ID for switch’s network management subsystem.

• Location – Specifies the system location.

• Contact – Administrator responsible for the system.

• System Up Time – Length of time the management agent has been up.

These additional parameters are displayed for the CLI.

• MAC Address – The physical layer address for this switch.

• Web Server – Shows if management access via is enabled.

• Web Server Port – Shows the TCP port number used by the web interface.

• Web Secure Server – Shows if management access via HTTPS is enabled.

• Web Secure Server Port – Shows the TCP port used by the HTTPS interface.

• Telnet Server – Shows if management access via Telnet is enabled.

• Telnet Server Port – Shows the TCP port used by the Telnet interface.

• Authentication Login – Shows the user login authentication sequence.

• Jumbo Frame – Shows if jumbo frames are enabled.

• POST result – Shows results of the power-on self-test.

3-11

Configuring the Switch

Web – Click System, System Information. Specify the system name, location, and contact information for the system administrator, then click Apply. (This page also includes a Telnet button that allows access to the Command Line Interface via Telnet.)

Figure 3-3 System Information

CLI – Specify the hostname, location and contact information.

Console(config)#hostname R&D 5 4-16 Console(config)#snmp-server location WC 9 4-64 Console(config)#snmp-server contact Ted 4-64 Console(config)#exit Console#show system 4-21 System Description: SMC TigerSwitch 10/100/1000 PoE SMC8126PL2-F System OID String: 1.3.6.1.4.1.202.20.74 System information System Up Time: 0 days, 2 hours, 18 minutes, and 36.38 seconds System Name: [NONE] System Location: [NONE] System Contact: [NONE] MAC Address (Unit1): 00-D0-CB-6A-23-F3 Web Server: Enabled Web Server Port: 80 Web Secure Server: Enabled Web Secure Server Port: 443 Telnet Server: Enable Telnet Server Port: 23 Jumbo Frame: Disabled

POST result

DUMMY Test 1 ................. PASS

UART Loopback Test ........... PASS

DRAM Test .................... PASS

Timer Test ................... PASS

PCI Device 1 Test ............ PASS

Done All Pass. Console#

3-12

Basic Configuration

Displaying Switch Hardware/Software Versions

Use the Switch Information page to display hardware/firmware version numbers for the main board and management software, as well as the power status of the system.

Field Attributes

Main Board

• Serial Number – The serial number of the switch.

• Number of Ports – Number of built-in RJ-45 ports.

• Hardware Version – Hardware version of the main board.

• Internal Power Status – Displays the status of the internal power supply.

Management Software

• EPLD Version – Version number of the Electronically Programmable Logic Device

code.

• Loader Version – Version number of loader code.

• Boot-ROM Version – Version of Power-On Self-Test (POST) and boot code.

• Operation Code Version – Version number of runtime code.

• Role – Shows that this switch is operating as Master or Slave.

Web – Click System, Switch Information.

Figure 3-4 Switch Information

3-13

Configuring the Switch

CLI – Use the following command to display version information.

Console#show version 4-22 Unit 1 Unit 1 Serial Number: MWOR0AA134A0009 Hardware Version: R01 EPLD Version: 0.00 Number of Ports: 26 Main Power Status: Up Redundant Power Status: Not present

Agent (Master) Unit ID: 1 Loader Version: 1.0.0.2 Boot ROM Version: 1.0.0.2 Operation Code Version: 1.0.0.10

Console#

3-14

Basic Configuration

Displaying Bridge Extension Capabilities

The Bridge MIB includes extensions for managed devices that support Multicast Filtering, Traffic Classes, and Virtual LANs. You can access these extensions to display default settings for the key variables.

Field Attributes

• Extended Multicast Filtering Services – This switch does not support the filtering

of individual multicast addresses based on GMRP (GARP Multicast Registration Protocol).

• Traffic Classes – This switch provides mapping of user priorities to multiple traffic

classes. (Refer to "Class of Service Configuration" on page 3-189.)

• Static Entry Individual Port – This switch allows static filtering for unicast and

multicast addresses. (Refer to "Setting Static Addresses" on page 3-139.)

• VLAN Learning – This switch uses Independent VLAN Learning (IVL), where all

VLANs share the same address table.

• Configurable PVID Tagging – This switch allows you to override the default Port

VLAN ID (PVID used in frame tags) and egress status (VLAN-Tagged or Untagged) on each port. (Refer to "VLAN Configuration" on page 3-164.)

• Local VLAN Capable – This switch does not support multiple local bridges outside

of the scope of 802.1Q defined VLANs.

Web – Click System, Bridge Extension Configuration.

Figure 3-5 Bridge Extension Configuration

3-15

Configuring the Switch

CLI – Enter the following command.

Console#show bridge-ext 4-217 Max support VLAN numbers: 256 Max support VLAN ID: 4094 Extended multicast filtering services: No Static entry individual port: Yes VLAN learning: IVL Configurable PVID tagging: Yes Local VLAN capable: No Traffic classes: Enabled Global GVRP status: Disabled GMRP: Disabled Console#

Setting the Switch’s IP Address

This section describes how to configure an IP interface for management access over the network. The IP address for the stack is obtained via DHCP by default. To manually configure an address, you need to change the switch’s default settings to values that are compatible with your network. You may also need to a establish a default gateway between the stack and management stations that exist on another network segment.

You can manually configure a specific IP address, or direct the device to obtain an address from a BOOTP or DHCP server. Valid IP addresses consist of four decimal numbers, 0 to 255, separated by periods. Anything outside this format will not be accepted by the CLI program.

Command Attributes

• Management VLAN – ID of the configured VLAN (1-4094). By default, all ports on the switch are members of VLAN 1. However, the management station can be attached to a port belonging to any VLAN, as long as that VLAN has been assigned an IP address.

• IP Address Mode – Specifies whether IP functionality is enabled via manual configuration (Static), Dynamic Host Configuration Protocol (DHCP), or Boot Protocol (BOOTP). If DHCP/BOOTP is enabled, IP will not function until a reply has been received from the server. Requests will be broadcast periodically by the switch for an IP address. (DHCP/BOOTP values can include the IP address, subnet mask, and default gateway.)

• IP Address – Address of the VLAN that is allowed management access. Valid IP addresses consist of four numbers, 0 to 255, separated by periods. (Default: 0.0.0.0)

• Subnet Mask – This mask identifies the host address bits used for routing to specific subnets. (Default: 255.0.0.0)

• Gateway IP address – IP address of the gateway router between this device and management stations that exist on other network segments. (Default: 0.0.0.0)

• MAC Address – The physical layer address for this switch.

• Restart DHCP – Requests a new IP address from the DHCP server.

3-16

Basic Configuration

Manual Configuration

Web – Click System, IP Configuration. Select the VLAN through which the management station is attached, set the IP Address Mode to “Static,” enter the IP address, subnet mask and gateway, then click Apply.

Figure 3-6 Manual IP Configuration

CLI – Specify the management interface, IP address and default gateway.

Console#config Console(config)#interface vlan 1 4-155 Console(config-if)#ip address 192.168.1.1 255.255.255.0 4-297 Console(config-if)#exit Console(config)#ip default-gateway 0.0.0.0 4-298 Console(config)#

3-17

Configuring the Switch

Using DHCP/BOOTP

If your network provides DHCP/BOOTP services, you can configure the switch to be dynamically configured by these services.

Web – Click System, IP Configuration. Specify the VLAN to which the management station is attached, set the IP Address Mode to DHCP or BOOTP. Click Apply to save your changes. Then click Restart DHCP to immediately request a new address. Note that the switch will also broadcast a request for IP configuration settings on each power reset.

Figure 3-7 DHCP IP Configuration

Note: If you lose your management connection, use a console connection and enter

“show ip interface” to determine the new switch address.

CLI – Specify the management interface, and set the IP address mode to DHCP or BOOTP, and then enter the “ip dhcp restart” command.

Console#config Console(config)#interface vlan 1 4-155 Console(config-if)#ip address dhcp 4-297 Console(config-if)#end Console#ip dhcp restart 4-299 Console#show ip interface 4-299 IP Address and Netmask: 192.168.1.1 255.255.255.0 on VLAN 1,

Address Mode: DHCP

Console#

3-18

Basic Configuration

Renewing DCHP – DHCP may lease addresses to clients indefinitely or for a specific period of time. If the address expires or the switch is moved to another network segment, you will lose management access to the switch. In this case, you can reboot the switch or submit a client request to restart DHCP service via the CLI.

Web – If the address assigned by DHCP is no longer functioning, you will not be able to renew the IP settings via the web interface. You can only restart DHCP service via the web interface if the current address is still available.

CLI – Enter the following command to restart DHCP service.

Console#ip dhcp restart 4-299 Console#

Enabling Jumbo Frames

The switch provides more efficient throughput for large sequential data transfers by supporting jumbo frames up to 10 KB for the Gigabit Ethernet ports. Compared to standard Ethernet frames that run only up to 1.5 KB, using jumbo frames significantly reduces the per-packet overhead required to process protocol encapsulation fields.

Command Usage

• To use jumbo frames, both the source and destination end nodes (such as a

computer or server) must support this feature. Also, when the connection is operating at full duplex, all switches in the network between the two end nodes must be able to accept the extended frame size. And for half-duplex connections, all devices in the collision domain would need to support jumbo frames.

• Enabling jumbo frames will limit the maximum threshold for broadcast storm

control to 64 packets per second. (See "Setting Broadcast Storm Thresholds" on page 3-127.)

Command Attributes

Jumbo Packet Status – Check the box to enable jumbo frames.

Web – Click System, Jumbo Frames. Enable or disable support for jumbo frames,

and click Apply.

Figure 3-8 Bridge Extension Configuration

CLI – Enter the following command.

Console#config Console(config)#jumbo frame Console(config)#

3-19

Configuring the Switch

Managing Firmware

Just specify the method of file transfer, along with the file type and file names as required. By saving run-time code to a file on a TFTP server, that file can later be downloaded to the switch to restore operation.

Only two copies of the system software (i.e., the run-time firmware) can be stored in the file directory on the switch. When downloading run-time code, the destination file name can be specified to replace the current run-time code file, or the file can be first downloaded using a different name from the current run-time code file, and then the new file set as the startup file.

Command Attributes

• File Transfer Method – The firmware copy operation includes these options:

- file to file – Copies a file within the switch directory, assigning it a new name.

- file to tftp – Copies a file from the switch to a TFTP server.

- tftp to file – Copies a file from a TFTP server to the switch.

• TFTP Server IP Address – The IP address of a TFTP server.

• File Type – Specify opcode (operational code) to copy firmware.

• File Name – the file name should not be a period (.), and the maximum length for file names on the TFTP server is 127 characters or 31 characters for files on the switch. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

Note:

Up to two copies of the system software (i.e., the runtime firmware) can be stored in the file directory on the switch. The currently designated startup version of this file cannot be deleted.

The file name should not contain slashes (\ or /),

the leading letter of

Downloading System Software from a Server

When downloading runtime code, you can specify the destination file name to replace the current image, or first download the file using a different name from the current runtime code file, and then set the new file as the startup file.

3-20

Basic Configuration

Web –Click System, File Management, Copy Operation. Select “tftp to file” as the file transfer method, enter the IP address of the TFTP server, set the file type to “opcode,” enter the file name of the software to download, select a file on the switch to overwrite or specify a new file name, then click Apply. If you replaced the current firmware used for startup and want to start using the new operation code, reboot the system via the System/Reset menu.

Figure 3-9 Copy Firmware

If you download to a new destination file, go to the System/File/Set Start-Up menu, mark the operation code file used at startup, and click Apply. To start the new firmware, reboot the system via the System/Reset menu.

Figure 3-10 Setting the Startup Code

To delete a file select System, File, Delete. Select the file name from the given list by checking the tick box and click Apply. Note that t

startup code cannot be deleted.

Figure 3-11 Deleting Files

he file currently designated as the

3-21

Configuring the Switch

CLI – To download new firmware form a TFTP server, enter the IP address of the TFTP server, select “opcode” as the file type, then enter the source and destination file names. When the file has finished downloading, set the new file to start up the system, and then restart the switch.

To start the new firmware, enter the “reload” command or reboot the system.

Console#copy tftp file 4-25 TFTP server ip address: 192.168.1.23 Choose file type:

1. config: 2. opcode: <1-2>: 2 Source file name: ES4526RO-PoE-FLF-17V01 Destination file name: V10010.F \Write to FLASH Programming.

-Write to FLASH finish. Success. Console#config Console(config)#boot system opcode:V10010.F 4-30 Console(config)#exit Console#reload 4-13

Saving or Restoring Configuration Settings

You can upload/download configuration settings to/from a TFTP server. The configuration files can be later downloaded to restore the switch’s settings.

Command Attributes

• File Transfer Method – The configuration copy operation includes these options:

- file to file – Copies a file within the switch directory, assigning it a new name.

- file to running-config – Copies a file in the switch to the running configuration.

- file to startup-config – Copies a file in the switch to the startup configuration.

- file to tftp – Copies a file from the switch to a TFTP server.

- running-config to file – Copies the running configuration to a file.

- running-config to startup-config – Copies the running config to the startup config.

- running-config to tftp – Copies the running configuration to a TFTP server.

- startup-config to file – Copies the startup configuration to a file on the switch.

- startup-config to running-config – Copies the startup config to the running config.

- startup-config to tftp – Copies the startup configuration to a TFTP server.

- tftp to file – Copies a file from a TFTP server to the switch.

- tftp to running-config – Copies a file from a TFTP server to the running config.

- tftp to startup-config – Copies a file from a TFTP server to the startup config.

• TFTP Server IP Address – The IP address of a TFTP server.

• File Type – Specify config (configuration) to copy configuration settings.

•

File Name

— The file name should not contain slashes (\ or /),

the leading letter of the file name should not be a period (.), and the maximum length for file names on the TFTP server is 127 characters or 31 characters for files on the switch. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

Note:

The maximum number of user-defined configuration files is limited only by available flash memory space.

3-22

Basic Configuration

Downloading Configuration Settings from a Server

You can download the configuration file under a new file name and then set it as the startup file, or you can specify the current startup configuration file as the destination file to directly replace it. Note that the file “Factory_Default_Config.cfg” can be copied to the TFTP server, but cannot be used as the destination on the switch.

Web – Click System, File, Copy Operation. Select “tftp to startup-config” or “tftp to file” and enter the IP address of the TFTP server. Specify the name of the file to download and select a file on the switch to overwrite or specify a new file name, then click Apply.

Figure 3-12 Downloading Configuration Settings for Startup

If you download to a new file name using “tftp to startup-config” or “tftp to file,” the file is automatically set as the start-up configuration file. To use the new settings, reboot the system via the System/Reset menu.

Note:

You can also select any configuration file as the start-up configuration by using the System/File/Set Start-Up page.

Figure 3-13 Setting the Startup Configuration Settings

3-23

Configuring the Switch

CLI – Enter the IP address of the TFTP server, specify the source file on the server, set the startup file name on the switch, and then restart the switch.

Console#copy tftp startup-config 4-25 TFTP server ip address: 192.168.1.23 Source configuration file name: config-1 Startup configuration file name [] : startup \Write to FLASH Programming.

-Write to FLASH finish. Success.

Console#reload

To select another configuration file as the start-up configuration, use the boot system command and then restart the switch.

Console#config Console(config)#boot system config: startup-new 4-30 Console(config)#exit Console#reload 4-13

Console Port Settings

You can access the onboard configuration program by attaching a VT100 compatible device to the switch’s serial console port. Management access through the console port is controlled by various parameters, including a password, timeouts, and basic communication settings. These parameters can be configured via the web or CLI interface.

Command Attributes

• Login Timeout – Sets the interval that the system waits for a user to log into the CLI. If a login attempt is not detected within the timeout interval, the connection is terminated for the session. (Range: 0-300 seconds; Default: 0 seconds)

• Exec Timeout – Sets the interval that the system waits until user input is detected. If user input is not detected within the timeout interval, the current session is terminated. (Range: 0-65535 seconds; Default: 600 seconds)

• Password Threshold – Sets the password intrusion threshold, which limits the number of failed logon attempts. When the logon attempt threshold is reached, the system interface becomes silent for a specified amount of time (set by the Silent Time parameter) before allowing the next logon attempt. (Range: 0-120; Default: 3 attempts)

• Silent Time – Sets the amount of time the management console is inaccessible after the number of unsuccessful logon attempts has been exceeded. (Range: 0-65535; Default: 0)

• Data Bits – Sets the number of data bits per character that are interpreted and generated by the console port. If parity is being generated, specify 7 data bits per character. If no parity is required, specify 8 data bits per character. (Default: 8 bits)

• Parity – Defines the generation of a parity bit. Communication protocols provided by some terminals can require a specific parity bit setting. Specify Even, Odd, or None. (Default: None)

3-24

Basic Configuration

• Speed – Sets the terminal line’s baud rate for transmit (to terminal) and receive

(from terminal). Set the speed to match the baud rate of the device connected to the serial port. (Range: 9600, 19200, 38400 baud; Default: 9600)

• Stop Bits – Sets the number of the stop bits transmitted per byte.

(Range: 1-2; Default: 1 stop bit)

• Password

started on a line with password protection, the system prompts for the password. If you enter the correct password, the system shows a prompt. (Default: No password)

• Login

single global password as configured for the Password parameter, or by passwords set up for specific user-name accounts. (Default: Local)

Web – Click System, Line, Console. Specify the console port connection parameters as required, then click Apply.

– Specifies a password for the line connection. When a connection is

– Enables password checking at login. You can select authentication by a

1. CLI only.

Figure 3-14 Console Port Settings

3-25

Configuring the Switch

CLI – Enter Line Configuration mode for the console, then specify the connection parameters as required. To display the current console port settings, use the show line command from the Normal Exec level.

Console(config)#line console 4-31 Console(config-line)#login local 4-32 Console(config-line)#password 0 secret 4-33 Console(config-line)#timeout login response 0 4-34 Console(config-line)#exec-timeout 0 4-34 Console(config-line)#password-thresh 3 4-35 Console(config-line)#silent-time 60 4-36 Console(config-line)#databits 8 4-36 Console(config-line)#parity none 4-37 Console(config-line)#speed 19200 4-38 Console(config-line)#stopbits 1 4-38 Console(config-line)#end Console#show line console 4-39 Console configuration: Password threshold: 3 times Interactive timeout: Disabled Login timeout: Disabled Silent time: 60 Baudrate: 19200 Databits: 8 Parity: none Stopbits: 1 Console#

Telnet Settings

You can access the onboard configuration program over the network using Telnet (i.e., a virtual terminal). Management access via Telnet can be enabled/disabled and other various parameters set, including the TCP port number, timeouts, and a password. These parameters can be configured via the web or CLI interface.

Command Attributes

• Telnet Status – Enables or disables Telnet access to the switch.

(Default: Enabled)

• Telnet Port Number – Sets the TCP port number for Telnet on the switch. (Default: 23)

3-26

Basic Configuration

• Password2 – Specifies a password for the line connection. When a connection is

started on a line with password protection, the system prompts for the password. If you enter the correct password, the system shows a prompt. (Default: No password)

• Login

– Enables password checking at login. You can select authentication by a

single global password as configured for the Password parameter, or by passwords set up for specific user-name accounts. (Default: Local)

Web – Click System, Line, Telnet. Specify the connection parameters for Telnet access, then click Apply.

Figure 3-15 Enabling Telnet

CLI – Enter Line Configuration mode for a virtual terminal, then specify the connection parameters as required. To display the current virtual terminal settings, use the show line command from the Normal Exec level.

Console(config)#line vty 4-31 Console(config-line)#login local 4-32 Console(config-line)#password 0 secret 4-33 Console(config-line)#timeout login response 300 4-34 Console(config-line)#exec-timeout 600 4-34 Console(config-line)#password-thresh 3 4-35 Console(config-line)#end Console#show line vty 4-39 VTY configuration: Password threshold: 3 times Interactive timeout: 600 sec Login timeout: 300 sec Console#

2. CLI only.

3-27

Configuring the Switch

Configuring Event Logging

The switch allows you to control the logging of error messages, including the type of events that are recorded in switch memory, logging to a remote System Log (syslog) server, and displays a list of recent event messages.

System Log Configuration

The system allows you to enable or disable event logging, and specify which levels are logged to RAM or flash memory.

Severe error messages that are logged to flash memory are permanently stored in the switch to assist in troubleshooting network problems. Up to 4096 log entries can be stored in the flash memory, with the oldest entries being overwritten first when the available log memory (256 kilobytes) has been exceeded.

The System Logs page allows you to configure and limit system messages that are logged to flash or RAM memory. The default is for event levels 0 to 3 to be logged to flash and levels 0 to 7 to be logged to RAM.

Command Attributes

• System Log Status – Enables/disables the logging of debug or error messages to the logging process. (Default: Enabled)

• Flash Level – Limits log messages saved to the switch’s permanent flash memory for all levels up to the specified level. For example, if level 3 is specified, all messages from level 0 to level 3 will be logged to flash. (Range: 0-7, Default: 3)

Table 3-3 Logging Levels

Level Severity Name Description

7 Debug Debugging messages

6 Informational Informational messages only

5 Notice Normal but significant condition, such as cold start

4 Warning Warning conditions (e.g., return false, unexpected return)

3 Error Error conditions (e.g., invalid input, default used)

2 Critical Critical conditions (e.g., memory allocation, or free memory

1 Alert Immediate action needed

0 Emergency System unusable

* There are only Level 2, 5 and 6 error messages for the current firmware release.

error - resource exhausted)

• RAM Level – Limits log messages saved to the switch’s temporary RAM memory for all levels up to the specified level. For example, if level 7 is specified, all messages from level 0 to level 7 will be logged to RAM. (Range: 0-7, Default: 7)

Note:

The Flash Level must be equal to or less than the RAM Level.

3-28

Basic Configuration

Web – Click System, Log, System Logs. Specify System Log Status, event messages to be logged to RAM and flash memory, then click Apply.

Figure 3-16 System Logs

CLI – Enable system logging and then specify the level of messages to be logged to RAM and flash memory. Use the show logging command to display the current settings.

Console(config)#logging on 4-41 Console(config)#logging history ram 0 4-42 Console(config)#end Console#show logging flash 4-45 Syslog logging: Enabled History logging in FLASH: level emergencies Console#

set the level of

Remote Log Configuration

The Remote Logs page allows you to configure the logging of messages that are sent to syslog servers or other management stations. You can also limit the error messages sent to only those messages below a specified level.

Command Attributes

• Remote Log Status – Enables/disables the logging of debug or error messages

to the remote logging process. (Default: Disabled)

• Logging Facility – Sets the facility type for remote logging of syslog messages.

There are eight facility types specified by values of 16 to 23. The facility type is used by the syslog server to dispatch log messages to an appropriate service.

The attribute specifies the facility type tag sent in syslog messages. (See RFC 3164.) This type has no effect on the kind of messages reported by the switch. However, it may be used by the syslog server to process messages, such as sorting or storing messages in the corresponding database. (Range: 16-23, Default: 23)

• Logging Trap – Limits log messages that are sent to the remote syslog server for

all levels up to the specified level. For example, if level 3 is specified, all messages from level 0 to level 3 will be sent to the remote server. (Range: 0-7, Default: 7)

• Host IP List – Displays the list of remote server IP addresses that receive the

syslog messages. The maximum number of host IP addresses allowed is five.

3-29

Configuring the Switch

• Host IP Address – Specifies a new server IP address to add to the Host IP List.

Web – Click System, Log, Remote Logs. To add an IP address to the Host IP List,

type the new IP address in the Host IP Address box, and then click Add. To delete an IP address, click the entry in the Host IP List, and then click Remove.

Figure 3-17 Remote Logs

CLI – Enter the syslog server host IP address, choose the facility type and set the logging trap.

Console(config)#logging host 192.168.1.15 4-43 Console(config)#logging facility 23 4-43 Console(config)#logging trap 4 4-44 Console(config)#end Console#show logging trap 4-44 Syslog logging: Enabled REMOTELOG status: Enabled REMOTELOG facility type: local use 7 REMOTELOG level type: Warning conditions REMOTELOG server ip address: 192.168.1.15 REMOTELOG server ip address: 0.0.0.0 REMOTELOG server ip address: 0.0.0.0 REMOTELOG server ip address: 0.0.0.0 REMOTELOG server ip address: 0.0.0.0 Console#

3-30

Basic Configuration

Displaying Log Messages

The Logs page allows you to scroll through the logged system and event messages. The switch can store up to 2048 log entries in temporary random access memory (RAM; i.e., memory flushed on power reset) and up to 4096 entries in permanent flash memory.

Web – Click System, Log, Logs.

Figure 3-18 Displaying Logs

CLI – This example shows the event message stored in RAM.

Console#show log ram 4-45 [1] 00:00:27 2001-01-01 "VLAN 1 link-up notification." level: 6, module: 5, function: 1, and event no.: 1 [0] 00:00:25 2001-01-01 "System coldStart notification." level: 6, module: 5, function: 1, and event no.: 1 Console#

Simple Mail Transfer Protocol

To alert system administrators of problems, the switch can use SMTP (Simple Mail Transfer Protocol) to send email messages when triggered by logging events of a specified level. The messages are sent to specified SMTP servers on the network and can be retrieved using POP or IMAP clients.

Command Attributes

• Admin Status – Enables/disables the SMTP function. (Default: Enabled)

• Email Source Address – Sets the email address used for the “From” field in alert

messages. You may use a symbolic email address that identifies the switch, or the address of an administrator responsible for the switch.

• Severity – Sets the syslog severity threshold level (see table on 3-28) used to

trigger alert messages. All events at this level or higher will be sent to the configured email recipients. For example, using Level 7 will report all events from level 7 to level 0. (Default: Level 7)

• SMTP Server List – Specifies a list of up to three recipient SMTP servers. The

switch attempts to connect to the other listed servers if the first fails. Use the New SMTP Server text field and the Add/Remove buttons to configure the list.

3-31

Configuring the Switch

• SMTP Server – Specifies a new SMTP server address to add to the SMTP Server List.

• Email Destination Address List – Specifies the email recipients of alert messages. You can specify up to five recipients. Use the New Email Destination Address text field and the Add/Remove buttons to configure the list.

• Email Destination Address – This command specifies SMTP servers that may receive alert messages.

Web – Click System, Log, SMTP. Enable SMTP, specify a source email address, and select the minimum severity level. To add an IP address to the SMTP Server List, type the new IP address in the SMTP Server field and click Add. To delete an IP address, click the entry in the Server IP List and click Remove. Specify up to five email addresses to receive the alert messages, and click Apply.

3-32

Figure 3-19 Enabling and Configuring SMTP

Basic Configuration

CLI – Enter the IP address of at least one SMTP server, set the syslog severity level to trigger an email message, and specify the switch (source) and up to five recipient (destination) email addresses. Enable SMTP with the logging sendmail command to complete the configuration. Use the show logging sendmail command to display the current SMTP configuration.

Console(config)#logging sendmail host 192.168.1.4 4-47 Console(config)#logging sendmail level 3 4-48 Console(config)#logging sendmail source-email

big-wheels@matel.com 4-49

Console(config)#logging sendmail destination-email

chris@matel.com 4-49

Console(config)#logging sendmail 4-50 Console(config)#exit Console#show logging sendmail 4-50 SMTP servers

-----------------------------------------------

1. 192.168.1.4

SMTP minimum severity level: 4

SMTP destination email addresses

-----------------------------------------------

1. chris@matel.com

SMTP source email address: big-wheels@matel.com

SMTP status: Enabled Console#

Renumbering the System

Web – Click System, Renumber. Click the Renumber button to renumber the switch. When prompted, confirm that you want to renumber the switch.

Figure 3-20 Renumbering the System

3-33

Configuring the Switch

CLI – Use the reload command to restart the switch. When prompted, confirm that you want to reset the switch.

Console#reload 4-22 System will be restarted, continue <y/n>? y

When restarting the system, it will always run the Power-On Self-Test.

Console(config)#logging sendmail host 192.168.1.19 Console(config)#logging sendmail level 3 Console(config)#logging sendmail source-email bill@this-company.com Console(config)#logging sendmail destination-email ted@this-company.com Console(config)#logging sendmail Console#

Resetting the System

Web – Click System, Reset. Click the Reset button to reboot the switch. When prompted, confirm that you want reset the switch.

Figure 3-21 Resetting the System

CLI – Use the reload command to restart the switch. When prompted, confirm that you want to reset the switch.

Console#reload 4-13 System will be restarted, continue <y/n>? y

Note:

When restarting the system, it will always run the Power-On Self-Test. It will also retain all configuration information stored in non-volatile memory (see "Saving or Restoring Configuration Settings" on page 3-22).

3-34

Basic Configuration

Setting the System Clock

Simple Network Time Protocol (SNTP) allows the switch to set its internal clock based on periodic updates from a time server (SNTP or NTP). Maintaining an accurate time on the switch enables the system log to record meaningful dates and times for event entries. You can also manually set the clock using the CLI. (See "calendar set" on page 4-55) If the clock is not set, the switch will only record the time from the factory default set at the last bootup.

When the SNTP client is enabled, the switch periodically sends a request for a time update to a configured time server. You can configure up to three time server IP addresses. The switch will attempt to poll each server in the configured sequence.

Setting the Time Manually

You can set the system time on the switch manually without using SNTP.

CLI – This example sets the system clock time and then displays the current time and date

Configuring SNTP

You can configure the switch to send time synchronization requests to time servers.

Command Attributes

• SNTP Client – Configures the switch to operate as an SNTP client. This requires

• SNTP Poll Interval – Sets the interval between sending requests for a time update

• SNTP Server – Sets the IP address for up to three time servers. The switch

Console#calendar set 17 46 00 october 18 2008 4-55 Console#show calendar 4-55 17:46:11 October 18 2008 Console#

at least one NTP or SNTP time server to be specified in the SNTP Server field. (Default: Disabled)

from a time server. (Range: 16-16384 seconds; Default: 16 seconds)

attempts to update the time from the first server, if this fails it attempts an update from the next server in the sequence.

3-35

Configuring the Switch

Web – Select SNTP, Configuration. Modify any of the required parameters, and click Apply.

Figure 3-22 SNTP Configuration

CLI – This example configures the switch to operate as an SNTP unicast client and then displays the current time and settings.

Console(config)#sntp server 10.1.0.19 137.82.140.80 128.250.36.2 4-52 Console(config)#sntp poll 60 4-53 Console(config)#sntp client 4-51 Console(config)#exit Console#show sntp Current time: Jan 6 14:56:05 2004 Poll interval: 16 Current mode: unicast SNTP status : Enabled SNTP server 10.1.0.19 137.82.140.80 128.250.36.2 Current server: 128.250.36.2 Console#

Setting the Time Zone

SNTP uses Coordinated Universal Time (or UTC, formerly Greenwich Mean Time, or GMT) based on the time at the Earth’s prime meridian, zero degrees longitude. To display a time corresponding to your local time, you must indicate the number of hours and minutes your time zone is east (before) or west (after) of UTC.

Command Attributes

• Current Time – Displays the current time.

• Name – Assigns a name to the time zone. (Range: 1-29 characters)

• Hours (0-13) – The number of hours before/after UTC.

• Minutes (0-59) – The number of minutes before/after UTC.

• Direction – Configures the time zone to be before (east) or after (west) UTC.

3-36

Simple Network Management Protocol

Web – Select SNTP, Clock Time Zone. Set the offset for your time zone relative to the UTC, and click Apply.

Figure 3-23 Setting the System Clock

CLI - This example shows how to set the time zone for the system clock.

Console(config)#clock timezone Atlantic hours 4 minute 0

before-UTC 4-54

Console(config)#

Simple Network Management Protocol

Simple Network Management Protocol (SNMP) is a communication protocol designed specifically for managing devices on a network. Equipment commonly managed with SNMP includes switches, routers and host computers. SNMP is typically used to configure these devices for proper operation in a network environment, as well as to monitor them to evaluate performance or detect potential problems.

Managed devices supporting SNMP contain software, which runs locally on the device and is referred to as an agent. A defined set of variables, known as managed objects, is maintained by the SNMP agent and used to manage the device. These objects are defined in a Management Information Base (MIB) that provides a standard presentation of the information controlled by the agent. SNMP defines both the format of the MIB specifications and the protocol used to access this information over the network.

The switch includes an onboard agent that supports SNMP versions 1, 2c, and 3. This agent continuously monitors the status of the switch hardware, as well as the traffic passing through its ports. A network management station can access this information using software such as SMC EliteView. Access to the onboard agent from clients using SNMP v1 and v2c is controlled by community strings. To communicate with the switch, the management station must first submit a valid community string for authentication.

3-37

Configuring the Switch

Access to the switch using from clients using SNMPv3 provides additional security features that cover message integrity, authentication, and encryption; as well as controlling user access to specific areas of the MIB tree.

The SNMPv3 security structure consists of security models, with each model having it’s own security levels. There are three security models defined, SNMPv1, SNMPv2c, and SNMPv3. Users are assigned to “groups” that are defined by a security model and specified security levels. Each group also has a defined security access to set of MIB objects for reading and writing, which are known as “views.” The switch has a default view (all MIB objects) and default groups defined for security models v1 and v2c. The following table shows the security models and levels available and the system default settings.

Table 3-4 SNMPv3 Security Models and Levels

Model Level Group Read View Write View Notify View Security

v1 noAuthNoPriv public

v1 noAuthNoPriv private

v1 noAuthNoPriv user defined user defined user defined user defined Community string only

v2c noAuthNoPriv public

v2c noAuthNoPriv private

v2c noAuthNoPriv user defined user defined user defined user defined Community string only

v3 noAuthNoPriv user defined user defined user defined user defined A user name match only

v3 AuthNoPriv user defined user defined user defined user defined Provides user

v3 AuthPriv user defined user defined user defined user defined Provides user

(read only)

(read/write)

(read only)

(read/write)

defaultview none none Community string only

defaultview defaultview none Community string only

defaultview none none Community string only

defaultview defaultview none Community string only

authentication via MD5 or SHA algorithms

authentication via MD5 or SHA algorithms and data privacy using DES 56-bit encryption

Note:

The predefined default groups and view can be deleted from the system. You can then define customized groups and views for the SNMP clients that require access.

3-38

Simple Network Management Protocol

Enabling the SNMP Agent

Enables SNMPv3 service for all management clients (i.e., versions 1, 2c, 3).

Command Attributes

SNMP Agent Status – Enables SNMP on the switch.

Web – Click SNMP, Agent Status.

Figure 3-24 Enabling SNMP Agent Status

CLI – The following example enables SNMP on the switch.

Console(config)#snmp-server 4-62 Console(config)#

Setting Community Access Strings

You may configure up to five community strings authorized for management access by clients using SNMP v1 and v2c. All community strings used for IP Trap Managers should be listed in this table. For security reasons, you should consider removing the default strings.

Command Attributes

• SNMP Community Capability – The switch supports up to five community strings.

• Current – Displays a list of the community strings currently configured.

• Community String – A community string that acts like a password and permits

access to the SNMP protocol. Default strings: “public” (read-only), “private” (read/write) Range: 1-32 characters, case sensitive

• Access Mode

- Read-Only – Authorized management stations are only able to retrieve MIB objects.

- Read/Write – Authorized management stations are able to both retrieve and modify MIB objects.

3-39

Configuring the Switch

Web – Click SNMP, Configuration. Add new community strings as required, select the access rights from the Access Mode drop-down list, then click Add.

Figure 3-25 Configuring SNMP Community Strings

CLI – The following example adds the string “spiderman” with read/write access.

Console(config)#snmp-server community spiderman rw 4-63 Console(config)#

Specifying Trap Managers and Trap Types

Traps indicating status changes are issued by the switch to specified trap managers. You must specify trap managers so that key events are reported by this switch to your management station (using network management platforms such as SMC EliteView). You can specify up to five management stations that will receive authentication failure messages and other trap messages from the switch.

Command Usage

• If you specify an SNMP Version 3 host, then the “Trap Manager Community String” is interpreted as an SNMP user name. If you use V3 authentication or encryption options (authNoPriv or authPriv), the user name must first be defined in the SNMPv3 Users page (3-45). Otherwise, the authentication password and/or privacy password will not exist, and the switch will not authorize SNMP access for the host. However, if you specify a V3 host with the no authentication (noAuth) option, an SNMP user account will be automatically generated, and the switch will authorize SNMP access for the host.

• Notifications are issued by the switch as trap messages by default. The recipient of a trap message does not send a response to the switch. Traps are therefore not as reliable as inform messages, which include a request for acknowledgement of receipt. Informs can be used to ensure that critical information is received by the host. However, note that informs consume more system resources because they must be kept in memory until a response is received. Informs also add to network traffic. You should consider these effects when deciding whether to issue notifications as traps or informs.

3-40

Simple Network Management Protocol

To send an inform to a SNMPv2c host, complete these steps:

1. Enable the SNMP agent (3-39).

2. Enable trap informs as described in the following pages.

3. Create a view with the required notification messages (3-52).

4. Create a group that includes the required notify view (3-49).

To send an inform to a SNMPv3 host, complete these steps:

1. Enable the SNMP agent (3-39).

2. Enable trap informs as described in the following pages.

3. Create a view with the required notification messages (3-52).

4. Create a group that includes the required notify view (3-49).

5. Specify a remote engine ID where the user resides (3-44).

6. Then configure a remote user (3-47).

Command Attributes

• Trap Manager Capability – This switch supports up to five trap managers.

• Current – Displays a list of the trap managers currently configured.

• Trap Manager IP Address – IP address of a new management station to receive

notification message (i.e., the targeted recipient).

• Trap Manager Community String – Specifies a valid community string for the

new trap manager entry. Though you can set this string in the Trap Managers table, we recommend that you define this string in the SNMP Community section at the top of the SNMP Configuration page (for Version 1 or 2c clients), or define a corresponding “User Name” in the SNMPv3 Users page (for Version 3 clients). (Range: 1-32 characters, case sensitive)

• Trap UDP Port – Specifies the UDP port number used by the trap manager.

(Default: 162)

• Trap Version – Specifies whether to send notifications as SNMP v1, v2c, or v3

traps. (Default: v1)

• Trap Security Level – When trap version 3 is selected, you must specify one of

the following security levels. (Default: noAuthNoPriv)

- noAuthNoPriv – There is no authentication or encryption used in SNMP communications.

- AuthNoPriv – SNMP communications use authentication, but the data is not encrypted (only available for the SNMPv3 security model).

- AuthPriv – SNMP communications use both authentication and encryption (only available for the SNMPv3 security model).

• Trap Inform – Notifications are sent as inform messages. Note that this option is only available for version 2c and 3 hosts. (Default: traps are used)

- Timeout – The number of seconds to wait for an acknowledgment before

resending an inform message. (Range: 0-2147483647 centiseconds; Default: 1500 centiseconds)

- Retry times – The maximum number of times to resend an inform message if

the recipient does not acknowledge receipt. (Range: 0-255; Default: 3)

3-41

Configuring the Switch

• Enable Authentication Traps3 – Issues a notification message to specified IP trap managers whenever an invalid community string is submitted during the SNMP access authentication process. (Default: Enabled)

• Enable Link-up and Link-down Traps whenever a port link is established or broken. (Default: Enabled)

Web – Click SNMP, Configuration. Enter the IP address and community string for each management station that will receive trap messages, specify the UDP port, trap version, trap security level (for v3 clients), trap inform settings (for v2c/v3 clients), and then click Add. Select the trap types required using the check boxes for Authentication and Link-up/down traps, and then click Apply.

– Issues a notification message

Figure 3-26 Configuring IP Trap Managers

CLI – This example adds a trap manager and enables both authentication and link-up, link-down traps.

Console(config)#snmp-server host 192.168.1.19 private version 2c 4-65 Console(config)#snmp-server enable traps 4-67

3. These are legacy notifications and therefore when used for SNMP Version 3 hosts, they must be

enabled in conjunction with the corresponding entries in the Notification View (3-52).

3-42

Simple Network Management Protocol

Configuring SNMPv3 Management Access

To configure SNMPv3 management access to the switch, follow these steps:

1. If you want to change the default engine ID, it must be changed first before

configuring other parameters.

2. Specify read and write access views for the switch MIB tree.

3. Configure SNMP user groups with the required security model (i.e., SNMP v1,

v2c or v3) and security level (i.e., authentication and privacy).

4. Assign SNMP users to groups, along with their specific authentication and

privacy passwords.

Setting the Local Engine ID

An SNMPv3 engine is an independent SNMP agent that resides on the switch. This engine protects against message replay, delay, and redirection. The engine ID is also used in combination with user passwords to generate the security keys for authenticating and encrypting SNMPv3 packets.

A local engine ID is automatically generated that is unique to the switch. This is referred to as the default engine ID. If the local engine ID is deleted or changed, all SNMP users will be cleared. You will need to reconfigure all existing users.

A new engine ID can be specified by entering 10 to 64 hexadecimal characters.

Web – Click SNMP, SNMPv3, Engine ID. Enter an ID of a least 10 hexadecimal characters and then click Save.

Figure 3-27 Setting an Engine ID

CLI – This example sets an SNMPv3 engine ID.

Console(config)#snmp-server engine-id local 12345abcdef0 4-68 Console(config)#exit Console#show snmp engine-id4-114 Local SNMP engineID: 12345abcdef0 Local SNMP engineBoots: 1 Console#

3-43

Configuring the Switch

Specifying a Remote Engine ID

To send inform messages to an SNMPv3 user on a remote device, you must first specify the engine identifier for the SNMP agent on the remote device where the user resides. The remote engine ID is used to compute the security digest for authenticating and encrypting packets sent to a user on the remote host.

SNMP passwords are localized using the engine ID of the authoritative agent. For informs, the authoritative SNMP agent is the remote agent. You therefore need to configure the remote agent’s SNMP engine ID before you can send proxy requests or informs to it. (See "Specifying Trap Managers and Trap Types" on page 3-40 and "Configuring Remote SNMPv3 Users" on page 3-47.)

A new engine ID can be specified by entering 10 to 64 hexadecimal characters.

Web – Click SNMP, SNMPv3, Remote Engine ID.

Figure 3-28 Setting a Remote Engine ID

CLI – This example specifies a remote SNMPv3 engine ID.

Console(config) Console(config)#exit Console#show snmp engine-id Local SNMP engineID: 8000002a8000000000e8666672 Local SNMP engineBoots: 1

Remote SNMP engineID IP address 80000000030004e2b316c54321 192.168.1.19 Console#

#snmp-server engineID remote 192.168.1.19 54321fedcba0 4-68

4-68

3-44

Simple Network Management Protocol

Configuring SNMPv3 Users

Each SNMPv3 user is defined by a unique name. Users must be configured with a specific security level and assigned to a group. The SNMPv3 group restricts users to a specific read, write, and notify view.

Command Attributes

• User Name – The name of user connecting to the SNMP agent.

(Range: 1-32 characters)

• Group Name – The name of the SNMP group to which the user is assigned.

(Range: 1-32 characters)

• Security Model – The user security model; SNMP v1, v2c or v3.

• Security Level – The security level used for the user:

- noAuthNoPriv – There is no authentication or encryption used in SNMP communications. (This is the default for SNMPv3.)

- AuthNoPriv – SNMP communications use authentication, but the data is not encrypted (only available for the SNMPv3 security model).

- AuthPriv – SNMP communications use both authentication and encryption (only available for the SNMPv3 security model).

• Authentication Protocol – The method used for user authentication. (Options: MD5, SHA; Default: MD5)

• Authentication Password – A minimum of eight plain text characters is required.

• Privacy Protocol – The encryption algorithm use for data privacy; only 56-bit DES is currently available.

• Privacy Password – A minimum of eight plain text characters is required.

• Actions – Enables the user to be assigned to another SNMPv3 group.

3-45

Configuring the Switch

Web – Click SNMP, SNMPv3, Users. Click New to configure a user name. In the New User page, define a name and assign it to a group, then click Add to save the configuration and return to the User Name list. To delete a user, check the box next to the user name, then click Delete. To change the assigned group of a user, click Change Group in the Actions column of the users table and select the new group.

Figure 3-29 Configuring SNMPv3 Users

CLI – Use the snmp-server user command to configure a new user name and assign it to a group.

Console(config)#snmp-server user chris group r&d v3 auth md5

greenpeace priv des56 einstien Console(config)#exit Console#show snmp user EngineId: 83010000030000352810030000 User Name: chris Authentication Protocol: md5Privacy Protocol: des56 Storage Type: nonvolatile Row Status: active

Console#

3-46

4-74

Simple Network Management Protocol

Configuring Remote SNMPv3 Users

Each SNMPv3 user is defined by a unique name. Users must be configured with a

specific security level and assigned to a group. The SNMPv3 group restricts users to

a specific read, write, and notify view.

To send inform messages to an SNMPv3 user on a remote device, you must first

specify the engine identifier for the SNMP agent on the remote device where the

user resides. The remote engine ID is used to compute the security digest for

authenticating and encrypting packets sent to a user on the remote host. (See

"Specifying Trap Managers and Trap Types" on page 3-40 and "Specifying a

Remote Engine ID" on page 3-44.)

Command Attributes

• User Name – The name of user connecting to the SNMP agent. (Range: 1-32 characters)

• Group Name – The name of the SNMP group to which the user is assigned. (Range: 1-32 characters)

• Engine ID – The engine identifier for the SNMP agent on the remote device where the remote user resides. Note that the remote engine identifier must be specified before you configure a remote user. (See "Specifying a Remote Engine ID" on page 3-44.)

• Remote IP – The Internet address of the remote device where the user resides.

• Security Model – The user security model; SNMP v1, v2c or v3. (Default: v3)

• Security Level – The security level used for the user:

- noAuthNoPriv – There is no authentication or encryption used in SNMP

communications. (This is the default for SNMPv3.)

- AuthNoPriv – SNMP communications use authentication, but the data is not

encrypted (only available for the SNMPv3 security model).

- AuthPriv – SNMP communications use both authentication and encryption (only

available for the SNMPv3 security model).

• Authentication Protocol – The method used for user authentication. (Options: MD5, SHA; Default: MD5)

• Authentication Password – A minimum of eight plain text characters is required.

• Privacy Protocol – The encryption algorithm use for data privacy; only 56-bit DES is currently available.

• Privacy Password – A minimum of eight plain text characters is required.

3-47

Configuring the Switch

Web – Click SNMP, SNMPv3, Remote Users. Click New to configure a user name. In the New User page, define a name and assign it to a group, then click Add to save the configuration and return to the User Name list. To delete a user, check the box next to the user name, then click Delete.

Figure 3-30 Configuring Remote SNMPv3 Users

CLI – Use the snmp-server user command to configure a new user name and assign it to a group.

Console(config)#snmp-server user mark group r&d remote

192.168.1.19 v3 auth md5 greenpeace priv des56 einstien

Console(config)#exit Console#show snmp user No user exist. SNMP remote user EngineId: 80000000030004e2b316c54321 User Name: mark Authentication Protocol: none Privacy Protocol: none Storage Type: nonvolatile Row Status: active

Console#

3-48

4-74

Simple Network Management Protocol

Configuring SNMPv3 Groups

An SNMPv3 group sets the access policy for its assigned users, restricting them to specific read, write, and notify views. You can use the pre-defined default groups or create new groups to map a set of SNMP users to SNMP views.

Command Attributes

• Group Name – The name of the SNMP group to which the user is assigned. (Range: 1-32 characters)

• Model – The user security model; SNMP v1, v2c or v3.

• Level – The security level used for the group:

- noAuthNoPriv – There is no authentication or encryption used in SNMP

communications. (This is the default for SNMPv3.)

- AuthNoPriv – SNMP communications use authentication, but the data is not

encrypted (only available for the SNMPv3 security model).

- AuthPriv – SNMP communications use both authentication and encryption (only

available for the SNMPv3 security model).

• Read View – The configured view for read access. (Range: 1-64 characters)

• Write View – The configured view for write access. (Range: 1-64 characters)

• Notify View – The configured view for notifications. (Range: 1-64 characters)

Table 3-5 Supported Notification Messages

Object Label Object ID Description

RFC 1493 Traps

newRoot 1.3.6.1.2.1.17.0.1 The newRoot trap indicates that the sending agent

topologyChange 1.3.6.1.2.1.17.0.2 A topologyChange trap is sent by a bridge when

SNMPv2 Traps

coldStart 1.3.6.1.6.3.1.1.5.1 A coldStart trap signifies that the SNMPv2 entity,

warmStart 1.3.6.1.6.3.1.1.5.2 A warmStart trap signifies that the SNMPv2 entity,

has become the new root of the Spanning Tree; the trap is sent by a bridge soon after its election as the new root, e.g., upon expiration of the Topology Change Timer immediately subsequent to its election.

any of its configured ports transitions from the Learning state to the Forwarding state, or from the Forwarding state to the Discarding state. The trap is not sent if a newRoot trap is sent for the same transition.

acting in an agent role, is reinitializing itself and that its configuration may have been altered.

acting in an agent role, is reinitializing itself such that its configuration is unaltered.

3-49

Configuring the Switch

Table 3-5 Supported Notification Messages (Continued)

Object Label Object ID Description

linkDown

linkUp

authenticationFailure

RMON Events (V2)

risingAlarm 1.3.6.1.2.1.16.0.1 The SNMP trap that is generated when an alarm

fallingAlarm 1.3.6.1.2.1.16.0.2 The SNMP trap that is generated when an alarm

Private Traps

swPowerStatus ChangeTrap

swPortSecurityTrap

swIpFilterRejectTrap

swSmtpConnFailureTrap

swMainBoardVerMism atchNotificaiton

* These are legacy notifications and therefore must be enabled in conjunction with the corresponding traps on the

SNMP Configuration menu.

1.3.6.1.6.3.1.1.5.3 A linkDown trap signifies that the SNMP entity,

1.3.6.1.6.3.1.1.5.4 A linkUp trap signifies that the SNMP entity, acting

1.3.6.1.6.3.1.1.5.5 An authenticationFailure trap signifies that the

1.3.6.1.4.1.202.20.74.2.1.0.1 This trap is sent when the power state changes.

1.3.6.1.4.1.202.20.74.2.1.0.36

1.3.6.1.4.1.202.20.74.2.1.0.40

1.3.6.1.4.1.202.20.74.2.1.0.41

1.3.6.1.4.1.202.20.74.2.1.0.56

acting in an agent role, has detected that the ifOperStatus object for one of its communication links is about to enter the down state from some other state (but not from the notPresent state). This other state is indicated by the included value of ifOperStatus.

in an agent role, has detected that the ifOperStatus object for one of its communication links left the down state and transitioned into some other state (but not into the notPresent state). This other state is indicated by the included value of ifOperStatus.

SNMPv2 entity, acting in an agent role, has received a protocol message that is not properly authenticated. While all implementations of the SNMPv2 must be capable of generating this trap, the snmpEnableAuthenTraps object indicates whether this trap will be generated.

entry crosses its rising threshold and generates an event that is configured for sending SNMP traps.

entry crosses its falling threshold and generates an event that is configured for sending SNMP traps.

This trap is sent when a port is being intruded.

This trap is sent when an incorrect IP address is rejected by the IP Filter.

This trap is triggered if the SMTP system cannot open a connection to the mail server successfully.

This trap is sent when the slave version is mismatch with the master version. This trap will binds two object, the first object indicate the master version, whereas the second represent the slave version.

3-50

Simple Network Management Protocol

Web – Click SNMP, SNMPv3, Groups. Click New to configure a new group. In the New Group page, define a name, assign a security model and level, and then select read and write views. Click Add to save the new group and return to the Groups list. To delete a group, check the box next to the group name, then click Delete.

Figure 3-31 Configuring SNMPv3 Groups

CLI – Use the snmp-server group command to configure a new group, specifying the security model and level, and restricting MIB access to defined read, write, and notify views.

Console(config)#snmp-server group secure-users v3 priv

read defaultview write defaultview notify defaultview 4-71

Console(config)#exit Console#show snmp group 4-73

. . .

Group Name: secure-users Security Model: v3 Read View: defaultview Write View: defaultview Notify View: defaultview Storage Type: nonvolatile Row Status: active

Console#

3-51

Configuring the Switch

Setting SNMPv3 Views

SNMPv3 views are used to restrict user access to specified portions of the MIB tree. The predefined view “defaultview” includes access to the entire MIB tree.

Command Attributes

• View Name – The name of the SNMP view. (Range: 1-64 characters)

• View OID Subtrees – Shows the currently configured object identifiers of branches within the MIB tree that define the SNMP view.

• Edit OID Subtrees – Allows you to configure the object identifiers of branches within the MIB tree. Wild cards can be used to mask a specific portion of the OID string.

• Type – Indicates if the object identifier of a branch within the MIB tree is included or excluded from the SNMP view.

Web – Click SNMP, SNMPv3, Views. Click New to configure a new view. In the New View page, define a name and specify OID subtrees in the switch MIB to be included or excluded in the view. Click Back to save the new view and return to the SNMPv3 Views list. For a specific view, click on View OID Subtrees to display the current configuration, or click on Edit OID Subtrees to make changes to the view settings. To delete a view, check the box next to the view name, then click Delete.

3-52

Figure 3-32 Configuring SNMPv3 Views
