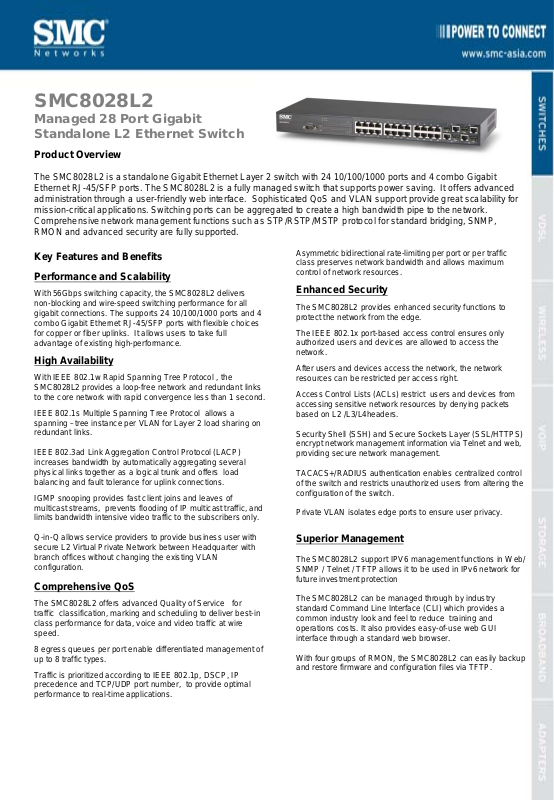

SMC Networks SMC8028L2 Datasheet

SMC8028L2

Managed 28 Port Gigabit
Standalone L2 Ethernet Switch

Product Overview

The SMC8028L2 is a standalone G igabit Et hernet Lay er 2 switch with 24 10/100/1000 ports and 4 combo Gigabit
Ethernet RJ-45/SFP ports. The SMC8028L2 is a fully managed sw itch that supports power saving. It offers advanced
administration through a user-friendly web interface. Sophisticated QoS and VLAN support provide great scalability for
mission-critical applications. Switching ports can be aggregated to create a high bandwidth pipe to the networ k.
Comprehensive netw ork management functions such as STP/RST P/ MSTP protocol for standard bridging, SNM P,
RMON and advanced security are fully supported.

Key Features and Benefits
Performance and Scalability

With 56Gbps switching capacity, the SMC8028L2 delivers
non-blocking and wire-speed switching performance for all
gigabit connections. The supports 24 10/100/ 1000 port s and 4
combo Gigabit Ethernet RJ-45/S F P ports with flexible choices
for copper or fiber uplinks. It allows users to take full
advantage of existing high-performance.

High Availability

With IEEE 802.1w Rapid Spanning Tree Protocol , the
SMC8028L2 provides a loop-free net work and redundant li nks
to the core network with rapid convergence less than 1 second.

IEEE 802.1s Multiple Spanning Tree Protocol allows a
spanning –tree instance per VLAN for Layer 2 load sharing on
redundant links.

IEEE 802.3ad Link Aggregation Control Protocol (LACP)
increases bandwidth by automatically aggregating several
physical links together as a logic al trunk and offers load
balancing and fault toleranc e for uplink connections.

IGMP snooping provides fast client joins and leaves of
multicast streams, prevents flooding of IP multicast traffic, and
limits bandwidth intensive video t raf fic to the subscribers only.

Q-in-Q allows service providers to provide business us er with
secure L2 Virtual Private Network between Headquarter with
branch offices without changing the existing VLAN
configuration.

Comprehensive QoS

The SMC8028L2 offers advanced Quality of Service for
traffic classificati on, marking and scheduling to deliver best-in
class performance for data, voice and video traffic at wire
speed.

8 egress queues per port enable differentiated management of
up to 8 traffic types.

Traffic is prioritized according to IEEE 802.1p, DSCP, IP
precedence and TCP/UDP port number, to provide optimal
performance to real-time applications.

Asymmetric bidirectional rate-limiting per port or per traffic
class preserves network bandwidth and allows maximum
control of network resources.

Enhanced Security

The SMC8028L2 provides enhanced security functions to
protect the network from the edge.

The IEEE 802.1x port-based access control ens ures only
authorized users and devices are al l owed to access the
network.

After users and devices access the network, the network
resources can be restricted per access right.

Access Control Lists (ACLs) restrict users and devices from
accessing sensitive network resources by denying packets
based on L2 /L3/L4headers.

Security Shell (SSH) and Secure Sockets Layer (SSL/HTTPS)
encrypt network management information via Telnet and web,
providing secure network management.

TACACS+/RADIUS authentication enables centralized control
of the switch and restrict s unauthorized users from altering the
configuration of the s witch.

Private VLAN isolates edge ports to ensure user privacy.

Superior Management

The SMC8028L2 support IPV6 management functions in Web/
SNMP / Telnet / TFTP allows it to be used in I P v6 net work for
future investment protection

The SMC8028L2 can be managed through by industry
standard Command Line Interface (CLI) which provides a
common industry look and feel to reduc e training and
operations costs. It also provides easy-of-use web GUI
interface through a standard web browser.

With four groups of RMON, the SMC8028L2 can easily backup
and restore firmware and configurat i on files via TFTP.

Physical Ports Management

24 RJ-45 10/100/1000Base-T ports
4 Combo G (RJ-45/SFP) ports
1 console port

Switch Management:

CLI via console port or Telnet
WEB management
SNMP v1, v2c,v3

Performance

Switching Capacity: 56Gbps
Forwarding Rate: 41.7Mpps
MAC Address Table Size: 8K
Packet Buffer Size: 1.75MB

L2 Features

Auto-negotiation for port speed and duplex mode
Flow Control: IEEE 802.3x & Back -Pressure
Spanning Tree Protocol:

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RS T P)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU guard
Root guard
Auto Edge

VLANs:

255 IEEE 802.1Q VLANs, Port-based VLA Ns, GVR P
IEEE 802.1v Protocol-based V LANs
Private VLAN

Link Aggregation:

Static Trunk, IEEE 802.3ad Link Aggregation Control Protocol
Trunk groups: 32, Trunk links: 2~8

IGMP Snooping:

IGMP v1, v2 snooping
IGMP Queried

Firmware & Configuration:

Dual firmware images
Firmware upgrade via TFTP server
Multiple configuration files

Configuration file upload/download vi a T FT P server
RMON (groups 1, 2, 3 and 9)
BOOTP, DHCP for IP address assignment
SNTP
Event/Error Log/Syslog

SNMP Standards

 RFC 2674 VLAN MIB
 RFC 1213 MIB II
 RFC 4188 Bridge MIB
 RFC 4668 Radius auth. Client MIB
 RFC 4670 Radius Accounting MIB
 RFC 3635 Ethernet-like MIB
 RFC 2863 Interface Group MIB using SMI v2
 RFC 2933 IGMP MIB
 RFC 3636 802.3 MAU MIB
 RFC 4133 Entity MIB version 3
 RFC 3414 User-based Security Model for SNMPv3
 RFC 3415 View-based access Control Model for SNMP
 IEEE 802.3AB LLDP-MIB
 IEEE 802.3ad MIB (IEEE802.3-AD-MIB)
 RFC 2819 RMON-MIB
 RFC 3411 SNMP-FRAMEWORK-MIB

IGMP snooping leave proxy
IGMP filtering/throttling

IGMP immediate leave
QinQ
Jumbo frames up to 9KB

IEEE Standards

IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet,

IPv6 Features

IPv4/IPv6 Dual Protocol stack
IPv6 Address Types Stack : Multicast / Unicast
IPv6 Neighbor Discovery
ICMPv6 Redirect (host)
IPv6 SNMP/HTTP/Telnet/SSH/RADIUS/TACACS+
IPv6 ACL and DSCP remapping

QoS Features

IEEE802.3z Gigabit
IEEE 802.1D MAC Bridges
IEEE802.1p priority tags
IEEE802.1Q VLAN
IEEE802.1ac VLAN tagging
IEEE802.1ad Link aggregation control protocol
IEEE802.1w Fast Spanning Tree
IEEE802.1x authentication

802.3x Flow Control

802.1Q-2005 Multiple Spanni ng T ree (phase 2 feature)

Priority Queues: 8 hardware queues per port
Traffic classification based on IEE E 802.1p CoS, IP Precedence, DS CP ,
TCP/UDP port number and Access Control List
Scheduling: WRR and strict priority
DiffServ
Bandwidth Control:

Egress rate limiting: 500Kbps granularity



Ingress rate limiting: 500Kbps granularit y



Security

IEEE 802.1x port-based/ MAC-based access control
RADIUS authentication
IP Source Guard
TACACS+
Access Control List
ACL bind to VLAN
SSH v2
HTTPS
DHCP snooping
DHCP option 82 relay
IP Source guard
Dynamic ARP Inspection (DAI)
