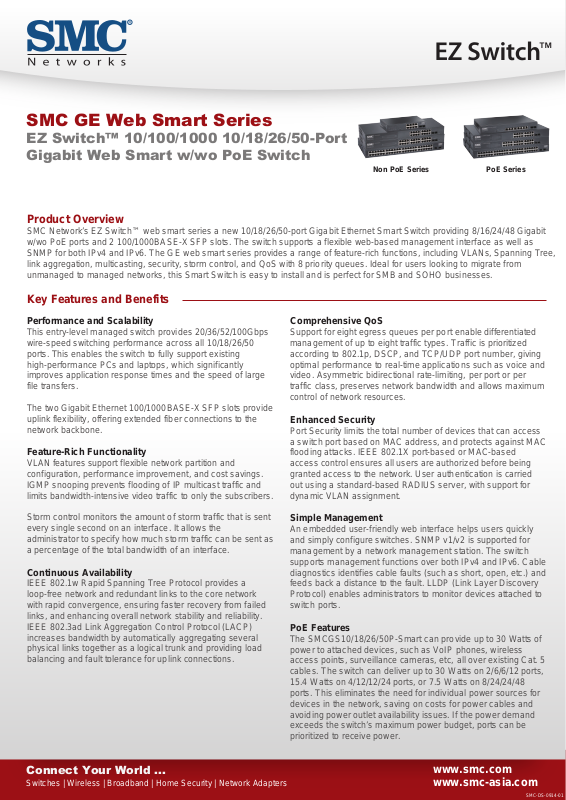

SMC Networks EZ Switch Datasheet

SMC GE Web Smart Series

EZ Switch™ 10/100/1000 10/18/26/50-Port
Gigabit Web Smart w/wo PoE Switch

Non PoE Series PoE Series

Product Overview

SMC Network’s EZ Switch™ web smart series a new 10/18/26/50-port Gigabit Ethernet Smart Switch providing 8/16/24/48 Gigabit
w/wo PoE ports and 2 100/1000BASE-X SFP slots. The switch supports a flexible web-based management interface as well as
SNMP for both IPv4 and IPv6. The GE web smart series provides a range of feature-rich functions, including VLANs, Spanning Tree,
link aggregation, multicasting, security, storm control, and QoS with 8 priority queues. Ideal for users looking to migrate from
unmanaged to managed networks, this Smart Switch is easy to install and is perfect for SMB and SOHO businesses.

Key Features and Benefits

Performance and Scalability

This entry-level managed switch provides 20/36/52/100Gbps
wire-speed switching performance across all 10/18/26/50
ports. This enables the switch to fully support existing
high-performance PCs and laptops, which significantly
improves application response times and the speed of large
file transfers.

The two Gigabit Ethernet 100/1000BASE-X SFP slots provide
uplink flexibility, offering extended fiber connections to the
network backbone.

Feature-Rich Functionality

VLAN features support flexible network partition and
configuration, performance improvement, and cost savings.
IGMP snooping prevents flooding of IP multicast traffic and
limits bandwidth-intensive video traffic to only the subscribers.

Storm control monitors the amount of storm traffic that is sent
every single second on an interface. It allows the
administrator to specify how much storm traffic can be sent as
a percentage of the total bandwidth of an interface.

Continuous Availability

IEEE 802.1w Rapid Spanning Tree Protocol provides a
loop-free network and redundant links to the core network
with rapid convergence, ensuring faster recovery from failed
links, and enhancing overall network stability and reliability.
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
increases bandwidth by automatically aggregating several
physical links together as a logical trunk and providing load
balancing and fault tolerance for uplink connections.

Comprehensive QoS

Support for eight egress queues per port enable differentiated
management of up to eight traffic types. Traffic is prioritized
according to 802.1p, DSCP, and TCP/UDP port number, giving
optimal performance to real-time applications such as voice and
video. Asymmetric bidirectional rate-limiting, per port or per
traffic class, preserves network bandwidth and allows maximum
control of network resources.

Enhanced Security

Port Security limits the total number of devices that can access
a switch port based on MAC address, and protects against MAC
flooding attacks. IEEE 802.1X port-based or MAC-based
access control ensures all users are authorized before being
granted access to the network. User authentication is carried
out using a standard-based RADIUS server, with support for
dynamic VLAN assignment.

Simple Management

An embedded user-friendly web interface helps users quickly
and simply configure switches. SNMP v1/v2 is supported for
management by a network management station. The switch
supports management functions over both IPv4 and IPv6. Cable
diagnostics identifies cable faults (such as short, open, etc.) and
feeds back a distance to the fault. LLDP (Link Layer Discovery
Protocol) enables administrators to monitor devices attached to
switch ports.

PoE Features

The SMCGS10/18/26/50P-Smart can provide up to 30 Watts of
power to attached devices, such as VoIP phones, wireless
access points, surveillance cameras, etc, all over existing Cat. 5
cables. The switch can deliver up to 30 Watts on 2/6/6/12 ports,

15.4 Watts on 4/12/12/24 ports, or 7.5 Watts on 8/24/24/48
ports. This eliminates the need for individual power sources for
devices in the network, saving on costs for power cables and
avoiding power outlet availability issues. If the power demand
exceeds the switch’s maximum power budget, ports can be
prioritized to receive power.

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

www.smc.com
www.smc-asia.com

SMC-DS-0914-01

Product Model

Product Image

SMCGS10C-

Smart

SMCGS10P-

Smart

SMCGS18C-

Smart

SMCGS18P-

Smart

Port

Performance

PoE Support on all Gigabit ports based on IEEE

RJ-45 10/100/1000 Ports 8816 16

SFP Uplink Ports

PoE Port X8X16

Switching Capacity 20 Gbps 20 Gbps 36 Gbps 36 Gbps

Forwarding Rate 14.9 Mpps 14.9 Mpps 26.8 Mpps 26.8 Mpps

Flash Memory 8 M8 M 16 M 16 M

DRAM 64 M 64 M 128 M 128 M

MAC Address Table Size 8 K 8 K8

Jumbo Frames 10 K 10 K 10 K 10 K

Auto-negotiation, Auto-MDI/MDIXOOOO

802.3af
PoE+ based on IEEE 802.3at XOXO

Auto disable after exceeding power budget XOXO

Dynamic Power Allocation XOXO

2222

K8 K

XOXO

Mechanical

Power Supply

Environmental

Electromagnetic
Compatibility

PoE Power Budget X 75 WX190 W

Rack Space 19" 19" 19" 19"

Dimension (W x D x H) cm 19.64 x 11.63 x 3.66 33 x 20.4 x 4.3 44 x 17.3 x 4.4 44 x 35 x 4.4

Weight 1.55 kg 2.2 kg 1.91 kg 4.05 kg

100-240 VAC, 50-60 Hz

Max System Power Consumption (Watts) 20 W 100 W 20 W 250 W

Operating Temperature 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC

Storage Temperature -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC

Operating Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Storage Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Environmental Regulation compliance: WEEE

Environmental Regulation compliance: RoHS OOOO

Safety Compliance: UL

CE OOOO

Safety Compliance: CB OOOO

OOOO

OOOO

OOOO

Safety Compliance: UL OOOO

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

www.smc.com
www.smc-asia.com

SMC-DS-0914-01SMC-DS-0914-01

Product Model

Product Image

SMCGS26C-

Smart

SMCGS26P-

Smart

SMCGS50C-

Smart

SMCGS50P-

Smart

Port

Performance

PoE Support on all Gigabit ports based on IEEE

RJ-45 10/100/1000 Ports 24 24 48 48

SFP Uplink Ports

PoE Port X24X48

Switching Capacity 52 Gbps 52 Gbps 100 Gbps 100 Gbps

Forwarding Rate 38.7 Mpps 38.7 Mpps 74.4 Mpps 74.4 Mpps

Flash Memory 16 Mpps 16 Mpps 16 Mpps 16 Mpps

DRAM 128 M 128 M 128 M 128 M

MAC Address Table Size 8 K8 K 32 K 32 K

Jumbo Frames 10 K 10 K 10 K 10 K

Auto-negotiation, Auto-MDI/MDIXOOOO

802.3af
PoE+ based on IEEE 802.3at XOXO

Auto disable after exceeding power budget XOXO

Dynamic Power Allocation XOXO

2222

XOXO

Mechanical

Power Supply

Environmental

Electromagnetic
Compatibility

PoE Power Budget X 190 WX375 W

Rack Space 19" 19" 19" 19"

Dimension (W x D x H) cm 44 x 17.3 x 4.4 44 x 35 x 4.4 43 x 25 x 4.45 44 x 35 x 4.45

Weight 2.01 kg 4.22 kg 2.99 kg 5.19 kg

100-240 VAC, 50-60 Hz

Max System Power Consumption (Watts) 20 W 250 W 50 W 525 W

Operating Temperature 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC

Storage Temperature -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC

Operating Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Storage Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Environmental Regulation compliance: WEEE

Environmental Regulation compliance: RoHS OOOO

Safety Compliance: UL

CE OOOO

Safety Compliance: CB OOOO

OOOO

OOOO

OOOO

Safety Compliance: UL OOOO

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

www.smc.com
www.smc-asia.com

SMC-DS-0914-01SMC-DS-0914-01

Features

L2 Features

Spanning Tree:

■ IEEE 802.1D Spanning Tree Protocol (STP)

■ IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

■ IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP)

■ Loopback detection

■ BDPU Filter / Guard

■ Root Guard

VLAN:

■ Supports 4K IEEE 802.1Q VLANs

■ Port-based / Private / Protocol / Management / Voice / Guest VLANs

■ MVR

■ Q-in-Q

Link Aggregation:

■ Static Trunk

■ IEEE 802.3ad (LACP) Link Aggregation Control Protocol

IGMP :

■ IGMP snooping v1/v2/v3

■ IGMP snooping v1/v2/v3 Proxy

■ IGMP Filtering / Throtting

■ IGMP immediate leave

■ IGMP Querier

■ MLD Snooping

Storm Control:

■ Broadcast / Multicast / Unknown Storm Control

LLDP (802.1ab) LLDP/ LLDP-MED

802.3az EEE (No Link Power-Saving)

PoE Features

Support 802.3af/at

■ Support 7.5W/15.4W/30W in each port

(Total PoE Power Budget have limited as follow)
PoE power budget:

■ SMGS10P-Smart (75W)

■ SMGS18P-Smart (190W)

■ SMGS26P-Smart (190W)

■ SMGS50P-Smart (375W)

Dynamic Power Allocation / Auto disable after exceeding power budget

QoS Features

Rate Limiting:
Priority Queues Schedule

■ WRR/Strict Priority / Hybrid

CoS

■ IEEE 802.1p QoS

■ 8 HW Queues / per port

■ TCP / UDP Port

■ DSCP

■ IPv4/ IPv6-Base QoS

■ DiffServ

IPv6 Features

IPv4/ IPv6 Dual Protocol Stack
IPv6 Management
SNMP over IPv6 (SMCGS10-C Smart and SMCGS10P Smart are not
supported)

Security Features

IEEE 802.1X
ACL

■ L2/L3/L4

■ ACL entry (10C/10P/18C/18P/26C/26P: 256); (50C/50P: 512)

■ IPv4/ IPv6

Port Security (Static / Dynamic)
Trusted MAC
MAC Filter
MAC limitation per port
DHCP Snooping
Dynamic ARP Inspection
AAA (RADIUS / TACACS+)
SSH1.5/2.0
SSL

■ SSL L2/L3/L4

■ SSL v3

■ SSL IPv4/IPv6 (SMCGS10-C Smart and SMCGS10P Smart are not

supported)

Management Features

System password protection
sFlow (SMCGS10-C Smart and SMCGS10P Smart are not supported)
NTP
Dual Image
Configuration upload / download (HTTP / TFTP)
Firmware upload /download (HTTP/ TFTP)
RMON(groups 1,2,3 and 9)
SNMP

■ SNMP Trap

■ SNMP v1/v2/v3

■ SNMP Standard MIB

Management Access (SNMP / WEB /Telnet )
BOOTP
Memory Flash Log
Event / Error Log / Syslog
DHCP Client/ Option 82
Port Mirroring (One to One) TX/RX (both)
