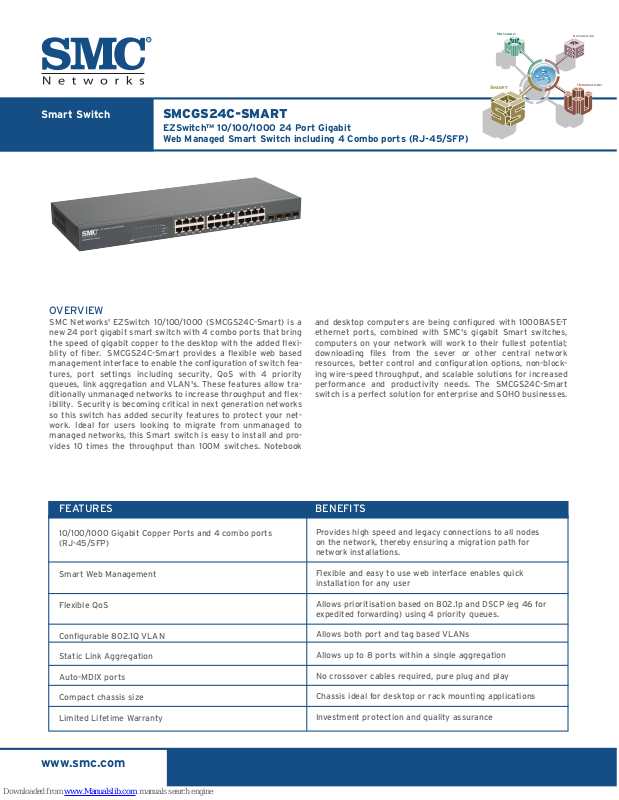

SMC Networks EZ, EZSwitch SMCGS24C-SMART Specifications

Smart Switch

SMCGS24C-SMART

EZSwitch™ 10/100/1000 24 Port Gigabit
Web Managed Smart Switch including 4 Combo ports (RJ-45/SFP)

www.smc.com

SMC Networks' EZSwitch 10/100/1000 (SMCGS24C-Smart) is a
new 24 port gigabit smart switch with 4 combo ports that bring
the speed of gigabit copper to the desktop with the added flexi­blity of fiber. SMCGS24C-Smart provides a flexible web based
management interface to enable the configuration of switch fea­tures, port settings including security, QoS with 4 priority
queues, link aggregation and VLAN's. These features allow tra­ditionally unmanaged networks to increase throughput and flex­ibility. Security is becoming critical in next generation networks
so this switch has added security features to protect your net­work. Ideal for users looking to migrate from unmanaged to
managed networks, this Smart switch is easy to install and pro­vides 10 times the throughput than 100M switches. Notebook

and desktop computers are being configured with 1000BASE-T
ethernet ports, combined with SMC's gigabit Smart switches,
computers on your network will work to their fullest potential;
downloading files from the sever or other central network
resources, better control and configuration options, non-block­ing wire-speed throughput, and scalable solutions for increased
performance and productivity needs. The SMCGS24C-Smart
switch is a perfect solution for enterprise and SOHO businesses.

FEATURES

10/100/1000 Gigabit Copper Ports and 4 combo ports
(RJ-45/SFP)

Smart Web Management

Flexible QoS

Configurable 802.1Q VLAN

Static Link Aggregation

Auto-MDIX ports

Compact chassis size

Limited Lifetime Warranty

BENEFITS

OVERVIEW

Provides high speed and legacy connections to all nodes
on the network, thereby ensuring a migration path for
network installations.

Flexible and easy to use web interface enables quick
installation for any user

Allows prioritisation based on 802.1p and DSCP (eg 46 for
expedited forwarding) using 4 priority queues.

Allows both port and tag based VLANs

Allows up to 8 ports within a single aggregation

No crossover cables required, pure plug and play

Chassis ideal for desktop or rack mounting applications

Investment protection and quality assurance

Smart

Managed

Unmanaged

Enterprise

TECHNICAL SPECIFICATIONS SMCGS24C-SMART

PORTS

• 24 Auto-MDIX 10BASE-T/100BASE-TX/1000BASE-T RJ-45 ports

• 4 Combo SFP ports

NETWORK INTERFACE

• 10BASE-T: RJ-45 UTP CAT. 3,4,5

• 100BASE-TX: RJ-45 UTP Cat. 5

• 1000BASE-T: RJ-45 connector

• Multimode fiber cable; 62.5/125 or 50/125 microns

• Singlemode fiber cable: 9/125 micron

SWITCH FABRIC

• 48Gbps

SWITCHING DATABASE

• 8K MAC address entries

LED

• System: Power

• Port: Link/activity

• 1000/100M

WEIGHT

• 3.72kg / 8.44 lbs

SIZE

• 44.0 x 17.5 x 4.4cm / 17.4 x 6.9 x 1.8 in.

MEMORY BUFFER

• 400 Kbits

POWER CONSUMPTION

•28 Watts

TEMPERATURE

• Operating: 0 ~ 40 ºC / 32 ~ 104 ºF

• Storage: -40 ~ 70 ºC / -40 ~ 158 ºF

HUMIDITY

• 10% to 90% (non-condensing)

MANAGEMENT FEATURES

• In-Band Management

• Web-based HTTP

• Software Loading

• HTTP InBand

SWITCH FEATURES

• Forwarding Mode

• Store-and-forward

• VLAN Support

• Up to 255 groups; port-based or with 802.1Q

• VLAN tagging

• Quality of Service

• Supports four levels of priority with flexible classification and
prioritization based on 802.1p / DSCP

• Port Trunking

• Port Mirroring

• Rate limiting

• Jumbo Frame support

• Cable Diagnostics

• IP Filter

• Static Port Security

• IGMP Snooping

STANDARDS

• IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet,

• IEEE802.1p Priority tags

• IEEE802.1Q VLAN

• IEEE802.1ac VLAN tagging

EMC/SAFETY COMPLIANCES

• CE Mark

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

EMISSIONS

• FCC Class A, CISPR Class A, EN 61000-3-2/3

• VCCI Class A

SAFETY

• CSA/CUS (CSA60950-1 & UL60950-1)

• TUV / GS EN60950-1

• CB IEC60950-1

WARRANTY

• Limited lifetime

SMC1GSFP-SX

• 1G SX SFP Transciever, 550M, Multimode fiber

SMC1GSFP-LX

• 1G LX SFP Transciever, 10Km, Singlemode fiber

SMCBGZLCX1

• 1G LH SFP Transciever, 70Km Singlemode fiber
