Congratulations on your purchase of the IEEE 802.11g ADSL Router,
hereafter referred to as the “ADSL Router”. We are proud to provide you
with a powerful yet simple communication device for connecting your
local area network (LAN) to the Internet. For those who want to surf the
Internet in the most secure way, this router provides a convenient and
powerful solution.
About the ADSL Router
The ADSL Router provides Internet access to multiple users by sharing a
single-user account. Support is provided for both wired and wireless
devices. New technology provides wireless security via Wired Equivalent
Privacy (WEP) encryption and MAC address filtering. It is simple to
configure and can be up and running in minutes.
1
Features and Benefits
• Internet connection to an ADSL modem via an RJ-11 ADSL port
• Local network connection via four 10/100 Mbps Ethernet ports
• On-board IEEE 802.11g wireless network adapter
• DHCP for dynamic IP configuration, and DNS for domain name
mapping
1-1
Page 8
I
NTRODUCTION
• Firewall with Stateful Packet Inspection, client privileges, intrusion
detection, and NAT
• NAT also enables multi-user Internet access via a single user account,
and virtual server functionality (providing protected access to Internet
services such as web, FTP, email, and Telnet)
• VPN pass-through (IPSec-ESP Tunnel mode, L2TP, PPTP)
• User-definable application sensing tunnel supports applications
requiring multiple connections
• Easy setup through a web browser on any operating system that
supports TCP/IP
• Compatible with all popular Internet applications
Applications
Many advanced networking features are provided by the ADSL Router:
• Wireless and Wired LAN
The ADSL Router provides connectivity to 10/100 Mbps devices,
and wireless IEEE 802.11g compatible devices, making it easy to
create a network in small offices or homes.
• Internet Access
This device supports Internet access through an ADSL connection.
Since many DSL providers use PPPoE or PPPoA to establish
communications with end users, the ADSL Router includes built-in
clients for these protocols, eliminating the need to install these
services on your computer.
1-2
Page 9
A
PPLICATIONS
• Shared IP Address
The ADSL Router provides Internet access for up to 253 users via a
single shared IP address. Using only one ISP account, multiple users
on your network can browse the web at the same time.
• Virtual Server
If you have a fixed IP address, you can set the ADSL Router to act as
a virtual host for network address translation. Remote users access
various services at your site using a constant IP address. Then,
depending on the requested service (or port number), the ADSL
Router can route the request to the appropriate server (at another
internal IP address). This secures your network from direct attack by
hackers, and provides more flexible management by allowing you to
change internal IP addresses without affecting outside access to your
network.
• DMZ Host Support
Allows a networked computer to be fully exposed to the Internet.
This function is used when NAT and firewall security prevent an
Internet application from functioning correctly.
•Security
The ADSL Router supports security features that deny Internet access
to specified users, or filter all requests for specific services that the
administrator does not want to serve. The ADSL Router’s firewall also
blocks common hacker attacks, including IP Spoofing, Land Attack,
Ping of Death, IP with zero length, Smurf Attack, UDP port
loopback, Snork Attack, TCP null scan, and TCP SYN flooding. WEP
(Wired Equivalent Privacy), SSID, and MAC filtering provide security
over the wireless network.
1-3
Page 10
I
NTRODUCTION
1-4
Page 11
C
HAPTER
I
NSTALLATION
Before installing the ADSL Router, verify that you have all the items listed
under the Package Contents list. If any of the items are missing or
damaged, contact your local distributor. Also be sure that you have all the
necessary cabling before installing the ADSL Router. After installing the
ADSL Router, refer to “Configuring the ADSL Router” on page 4-1.
Package Contents
After unpacking the ADSL Router, check the contents of the box to be
sure you have received the following components:
• Ozenda 11g Wireless ADSL Firewall Router
• Power adapter
•One Category 5 Ethernet cable (RJ-45)
2
• Telephone patch cable (RJ-11)
• Microfilter/Splitter
•Quick Starter Guide
•Manual CD
Immediately inform your dealer in the event of any incorrect, missing, or
damaged parts. If possible, please retain the carton and original packing
materials in case there is a need to return the product.
2-1
Page 12
I
NSTALLATION
System Requirements
You must meet the following minimum requirements:
• ADSL line installed by your Internet Service Provider.
• A PC using a fixed IP address or dynamic IP address assigned via
DHCP, as well as a gateway server address and DNS server address
from your service provider.
• A computer equipped with a 10/100 Mbps network adapter, a
USB-to-Ethernet converter or an IEEE 802.11g wireless network
adapter.
• TCP/IP network protocols installed on each PC that will access the
Internet.
• A Java-enabled web browser, such as Microsoft Internet Explorer 5.5
or above, installed on one PC at your site for configuring the ADSL
Router.
Hardware Description
The ADSL Router contains an integrated ADSL modem and connects to
the Internet or to a remote site using its RJ-11 WAN port. It can be
connected directly to your PC or to a local area network using any of the
four Fast Ethernet LAN ports.
Data passing between devices connected to your local area network can
run at up to 100 Mbps over the Fast Ethernet ports and 54 Mbps over the
built-in wireless network adapter.
The ADSL Router includes an LED display on the front panel for system
power and port indications that simplifies installation and network
troubleshooting. It also provides the following ports on the rear panel:
2-2
Page 13
H
ARDWARE DESCRIPTION
Figure 2-1. Rear Panel
Item Description
LAN Ports Fast Ethernet ports (RJ-45). Connect devices on your local area
network to these ports (i.e., a PC, hub, or switch).
Power
button
Reset Button Use this button to reset the power and restore the default
Power Inlet Connect the included power adapter to this inlet.
ADSL Port WAN port (RJ-11). Connect your ADSL line to this port.
Press this button to turn on/turn off the ADSL Router.
factory settings. To reset without losing configuration settings,
see “Reset” on page 4-58.
Warning: Using the wrong type of power adapter may damage
the ADSL Router.
2-3
Page 14
I
NSTALLATION
LED Indicators
The power and port LED indicators on the front panel are illustrated by
the following figure and table.
Figure 2-2. Front Panel
LED Status Description
PWR On The ADSL Router is receiving power. Normal
operation.
Off Power off or failure.
ADSL On ADSL connection is functioning correctly.
Flashing The ADSL Router is establishing an ADSL link.
Off ADSL connection is not established.
PPP On PPP connection is on.
2-4
Off PPP connection is off.
WL Flashing The WLAN port is sending or receiving data.
LAN
(4 LEDs)
On Ethernet connection is established.
Flashing The indicated LAN port is sending or receiving data.
Off There is no LAN connection on the port.
Page 15
ISP Settings
Please collect the following information from your ISP before setting up
the
ADSL Router:
• ISP account user name and password
• Protocol, encapsulation and VPI/VCI circuit numbers
•DNS server address
• IP address, subnet mask and default gateway (for fixed IP users only)
Connect the System
The ADSL Router can be positioned at any convenient location in your
office or home. No special wiring or cooling requirements are needed. You
should, however, comply with the following guidelines:
• Keep the ADSL Router away from any heating devices.
ISP S
ETTINGS
• Do not place the ADSL Router in a dusty or wet environment.
You should also remember to turn off the power, remove the power cord
from the outlet, and keep your hands dry when you install the ADSL
Router.
Connect the ADSL Line
Connect the supplied RJ-11 cable from the ADSL Microfilter/Splitter to
the ADSL port on your ADSL Router. When inserting an ADSL RJ-11
plug, be sure the tab on the plug clicks into position to ensure that it is
properly seated.
2-5
Page 16
I
NSTALLATION
Phone Line Configuration
Installing a Full-Rate Connection
If you are using a full-rate (G.dmt) connection, your service provider will
attach the outside ADSL line to a data/voice splitter. In this case you can
connect your phones and computer directly to the splitter as shown below:
Plain Old
Telephone
System (POTS)
Residential
Connection
Point [Network
Interface
Device (NID)]
Voice
Data
Splitter
ADSL Router
or
Ethernet
hub or switch
Figure 2-3. Installing with a Splitter
2-6
Page 17
C
ONNECT THE SYSTEM
Installing a Splitterless Connection
If you are using a splitterless (G.lite) connection, then your service
provider will attach the outside ADSL line directly to your phone system.
In this case you can connect your phones and computer directly to the
incoming ADSL line, but you will have to add low-pass filters to your
phones as shown below:
Plain Old
Telephone
System (POTS)
Voice
Residential
Connection
Point [Network
Interface
Device (NID)]
Voice
& Data
Voice
& Data
Data
Filter
ADSL Router
or
Ethernet
hub or switch
Figure 2-4. Installing without a Splitter
2-7
Page 18
I
NSTALLATION
Attach to Your Network Using Ethernet Cabling
The four LAN ports on the ADSL Router auto-negotiate the connection
speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, as well as the
transmission mode to half duplex or full duplex.
Use RJ-45 cables to connect any of the four LAN ports on the ADSL
Router to an Ethernet adapter on your PC. Otherwise, cascade any of the
LAN ports on the ADSL Router to an Ethernet hub or switch, and then
connect your PC or other network equipment to the hub or switch. When
inserting an RJ-45 connector, be sure the tab on the connector clicks into
position to ensure that it is properly seated.
Warning: Do not plug a phone jack connector into an RJ-45 port. This
may damage the ADSL Router.
Notes: 1. Use 100-ohm shielded or unshielded twisted-pair cable with
RJ-45 connectors for all Ethernet ports. Use Category 3, 4, or 5
for connections that operate at 10 Mbps, and Category 5 for
connections that operate at 100 Mbps.
2. Make sure each twisted-pair cable length does not exceed
100 meters (328 feet).
Connect the Power Adapter
Plug the power adapter into the power socket on the rear of the ADSL
Router, and the other end into a power outlet.
Check the power indicator on the front panel is lit. If the power i
not lit, refer to
In case of a power input failure, the ADSL Router will automatically restart
and begin to operate once the input power is restored.
“Troubleshooting” on page A-1.
2-8
ndicator is
Page 19
C
HAPTER
C
ONFIGURING
After completing hardware setup by connecting all your network devices,
you need to configure your computer to connect to the ADSL Router.
See:
“Windows 98/Me” on page 3-3
“Windows NT 4.0” on page 3-8
“Windows 2000” on page 3-12
“Windows XP” on page 3-15
or
“Configuring Your Macintosh Computer” on page 3-17
depending on your operating system.
C
LIENT
3
PC
3-1
Page 20
C
ONFIGURING CLIENT
PC
TCP/IP Configuration
To access the Internet through the ADSL Router, you must configure the
network settings of the computers on your LAN to use the same IP subnet
as the ADSL Router. The default IP settings for the ADSL Router are:
IP Address 192.168.2.1
Subnet Mask 255.255.255.0
DHCP function Enable
DHCP IP Pool Range 192.168.2.2 to
192.168.2.254
Note: These settings can be changed to fit your network requirements,
but you must first configure at least one computer to access the
ADSL Router’s web configuration interface in order to make the
required changes. (See “Configuring the ADSL Router” on page
4-1 for instruction on configuring the ADSL Router.)
3-2
Page 21
W
Windows 98/Me
You may find that the instructions in this section do not exactly match
your version of Windows. This is because these steps and screen shots
were created from Windows 98. Windows Millennium Edition is similar,
but not identical, to Windows 98.
1. On the Windows desktop,
click Start/Settings/Control Panel.
2. In Control Panel,
double-click the Network
icon.
INDOWS
98/M
E
3-3
Page 22
C
ONFIGURING CLIENT
3. In the Network window,
under the Configuration
tab, double-click the
TCP/IP item listed for
your network card.
4. In the TCP/IP window,
select the IP Address tab.
If “Obtain an IP address
automatically” is already
selected, your computer
is already configured for
DHCP. If not, select this
option.
PC
3-4
Page 23
W
INDOWS
5. Windows may need your
Windows 98/Me CD to
copy some files. After it
finishes copying, it will
prompt you to restart
your system. Click Yes and your computer will restart.
TCP/IP Configuration Setting
Primary DNS Server ____.____.____.____
Secondary DNS Server ____.____.____.____
Default Gateway ____.____.____.____
Host Name ____.____.____.____
Disable HTTP Proxy
You need to verify that the “HTTP Proxy” feature of your web browser is
disabled. This is so that your browser can view the ADSL Router’s HTML
configuration pages. The following steps are for Internet Explorer.
Internet Explorer
1. Open Internet Explorer.
98/M
E
2. Click the Stop button,
then click Tools/Internet
Options.
3-5
Page 24
C
ONFIGURING CLIENT
3. In the Internet Options
window, click the
Connections tab. Next, click
the LAN Settings... button.
4. Clear all the check boxes.
5. Click OK, and then click
OK again to close the
Internet Options window.
PC
3-6
Page 25
Obtain IP Settings from Your ADSL Router
Now that you have configured your computer to
connect to your ADSL Router, it needs to obtain new
network settings. By releasing old DHCP IP settings
and renewing them with settings from your ADSL
Router, you can also verify that you have configured
your computer correctly.
1. On the Windows desktop, click Start/Run...
2. Type “WINIPCFG” and click OK.
It may take a second or two for the
IP Configuration window to
appear.
3. In the IP Configuration window,
select your network card from the
drop-down menu. Click Release
and then click Renew. Verify that
your IP address is now
192.168.2.xxx, your Subnet
Mask is 255.255.255.0 and your
Default Gateway is 192.168.2.1.
These values confirm that your ADSL Router is functioning. Click OK
to close the IP Configuration window.
W
INDOWS
98/M
E
3-7
Page 26
C
ONFIGURING CLIENT
PC
Windows NT 4.0
1. On the Windows desktop,
click Start/Settings/Control
Panel.
2. Double-click the Network
icon.
3-8
Page 27
3. In the Network window,
Select the Protocols tab.
Double-click TCP/IP
Protocol.
4. When the Microsoft
TCP/IP Properties
window open, select the
IP Address tab.
5. In the Adapter drop-down
list, be sure your Ethernet
adapter is selected.
6. If “Obtain an IP address
automatically” is already
selected, your computer is
already configured for
DHCP. If not, select this
option and click “Apply.”
7. Click the DNS tab to see the
primary and secondary DNS
servers. Record these values,
and then click “Remove.” Click
“Apply”, and then “OK.”
W
INDOWS
NT 4.0
3-9
Page 28
C
ONFIGURING CLIENT
8. Windows may copy some files, and will then prompt you to restart
your system. Click Yes and your computer will shut down and restart.
TCP/IP Configuration Setting
Default Gateway ____.____.____.____
Primary DNS Server ____.____.____.____
Secondary DNS Server ____.____.____.____
Host Name ____.____.____.____
PC
Disable HTTP Proxy
You need to verify that the “HTTP Proxy” feature of your web browser is
disabled. This is so that your browser can view the ADSL Router’s HTML
configuration pages (refer to “Internet Explorer” on page 3-5).
Obtain IP Settings from Your ADSL Router
Now that you have configured your computer to connect to your ADSL
Router, it needs to obtain new network settings. By releasing old DHCP IP
settings and renewing them with settings from your ADSL Router, you will
verify that you have configured your computer correctly.
1. On the Windows desktop,
click Start/Programs/
Command Prompt.
3-10
Page 29
W
INDOWS
2. In the Command Prompt window, type “IPCONFIG /RELEASE”
and press the ENTER key.
3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that
your IP Address is now 192.168.2.xxx, your Subnet Mask is
255.255.255.0 and your Default Gateway is 192.168.2.1.
These values confirm that your ADSL Router is functioning.
NT 4.0
4. Type “EXIT” and press the ENTER key to close the Command
Prompt window.
Your computer is now configured to connect to the ADSL Router.
3-11
Page 30
C
ONFIGURING CLIENT
PC
Windows 2000
1. On the Windows desktop, click Start/Settings/Network and Dial-Up
Connections.
2. Click the icon that
corresponds to the
connection to your ADSL
Router.
3. The connection status
screen will open. Click
Properties.
4. Double-click Internet
Protocol (TCP/IP).
5. If “Obtain an IP address
automatically” and
“Obtain DNS server
address automatically” are
already selected, your
computer is already
configured for DHCP. If
not, select this option.
3-12
Page 31
W
Disable HTTP Proxy
You need to verify that the “HTTP Proxy” feature of your web browser is
disabled. This is so that your browser can view the ADSL Router’s HTML
configuration pages (refer to “Internet Explorer” on page 3-5).
Obtain IP Settings from Your ADSL Router
Now that you have configured your computer to connect to your ADSL
Router, it needs to obtain new network settings. By releasing old DHCP IP
settings and renewing them with settings from your ADSL Router, you can
verify that you have configured your computer correctly.
1. On the Windows desktop,
click Start/Programs/
Accessories/Command
Prompt.
INDOWS
2000
2. In the Command Prompt window, type “IPCONFIG/RELEASE”
and press the ENTER key.
3-13
Page 32
C
ONFIGURING CLIENT
3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that
your IP Address is now 192.168.2.xxx, your Subnet Mask is
255.255.255.0 and your Default Gateway is 192.168.2.1.
These values confirm that your ADSL Router is functioning.
4. Type “EXIT” and press the ENTER key to close the Command
Prompt window.
Your computer is now configured to connect to the ADSL Router.
PC
3-14
Page 33
Windows XP
1. On the Windows desktop, click Start/Control Panel.
2. In the Control Panel window, click Network and Internet
Connections.
3. The Network Connections window will open. Double-click the
connection for this device.
4. On the connection status screen, click Properties.
5. Double-click Internet Protocol (TCP/IP).
6. If “Obtain an IP address automatically” and “Obtain DNS server
address automatically” are already selected, your computer is already
configured for DHCP. If not, select this option.
W
INDOWS
XP
3-15
Page 34
C
ONFIGURING CLIENT
PC
Disable HTTP Proxy
You need to verify that the “HTTP Proxy” feature of your web browser is
disabled. This is so that your browser can view the ADSL Router’s HTML
configuration pages (refer to “Internet Explorer” on page 3-5).
Obtain IP Settings from Your ADSL Router
Now that you have configured your computer to connect to your ADSL
Router, it needs to obtain new network settings. By releasing old DHCP IP
settings and renewing them with settings from your ADSL Router, you can
verify that you have configured your computer correctly.
1. On the Windows desktop, click Start/Programs/Accessories/
Command Prompt.
2. In the Command Prompt window, type “IPCONFIG/RELEASE”
and press the ENTER key.
3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that
your IP Address is now 192.168.2.xxx, your Subnet Mask is
255.255.255.0 and your Default Gateway is 192.168.2.1.
These values confirm that your ADSL router is functioning.
Type “EXIT” and press the ENTER key to close the Command Prompt
window.
Your computer is now configured to connect to the ADSL Router.
3-16
Page 35
C
ONFIGURING YOUR MACINTOSH COMPUTER
Configuring Your Macintosh Computer
You may find that the instructions here do not exactly match your
operating system. This is because these steps and screen shots were created
using Mac OS 10.2. Mac OS 7.x and above are similar, but may not be
identical to Mac OS 10.2.
Follow these instructions:

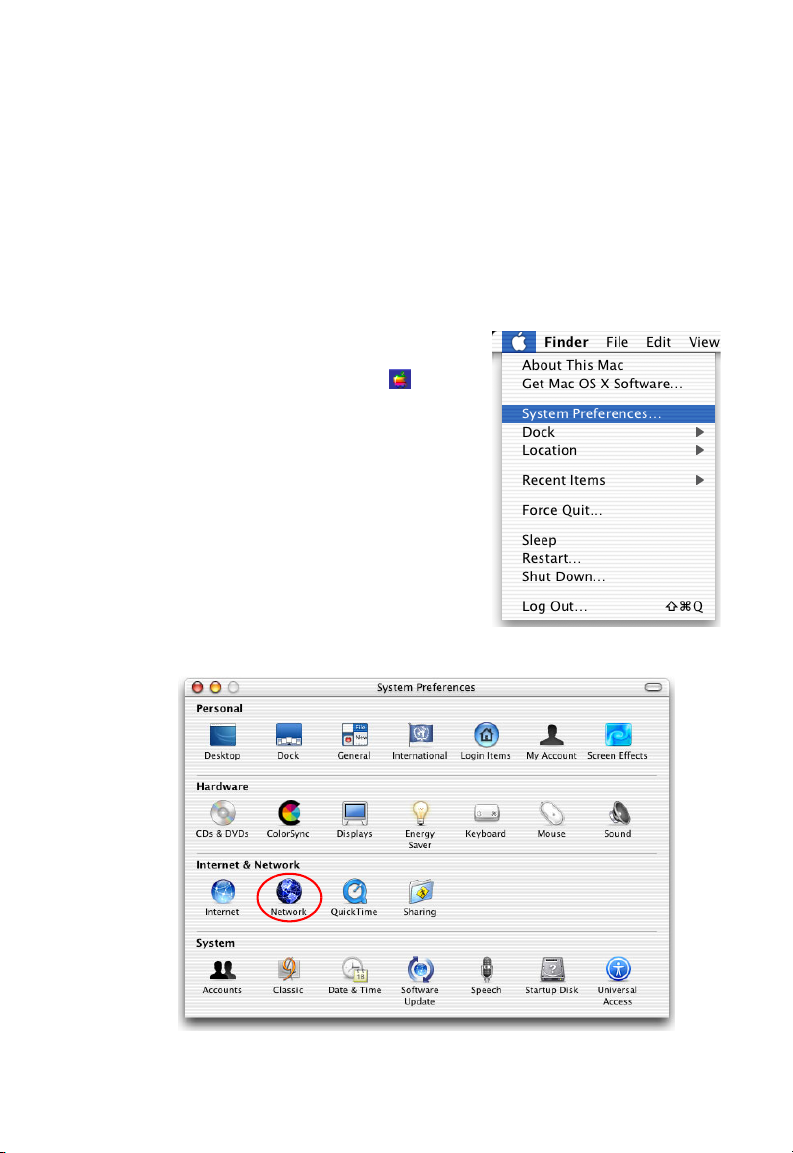

1. Pull down the Apple Menu . Click
System Preferences
2. Double-click the Network icon in the
Systems Preferences window.
3-17
Page 36
C
ONFIGURING CLIENT
3. If “Using DHCP Server” is
already selected in the
Configure field, your
computer is already
configured for DHCP. If
not, select this Option.
4. Your new settings are shown on the TCP/IP tab. Verify that your IP
Address is now 192.168.2.xxx, your Subnet Mask is
255.255.255.0 and your Default Gateway is 192.168.2.1. These
values confirm that your ADSL Router is functioning.
5. Close the Network window.
Now your computer is configured to connect to the ADSL Router.
PC
Disable HTTP Proxy
You need to verify that the “HTTP Proxy” feature of your web browser is
disabled. This is so that your browser can view the ADSL Router’s HTML
configuration pages. The following steps are for Internet Explorer.
Internet Explorer
1. Open Internet Explorer and click the Stop
button. Click Explorer/Preferences.
2. In the Internet Explorer Preferences window,
under Network, select Proxies.
3-18
Page 37
C
ONFIGURING YOUR MACINTOSH COMPUTER
3. Uncheck all check boxes and click OK.
3-19
Page 38
C
ONFIGURING CLIENT
PC
3-20
Page 39
C
HAPTER
C
ONFIGURING THE
After you have configured TCP/IP on a client computer, you can
configure the ADSL Router using Internet Explorer 5.5 or above.
To access the ADSL Router’s
management interface, enter the default
IP address of the ADSL Router in your
web browser: http://192.168.2.1.
By default there is no password, click
“LOGIN” to access the user interface.
If you are logging in to the management interface for the first time, the
country selection page will appear. Please select the country in which you
will be using the ADSL Router, and then click Apply.
ADSL
R
OUTER
4
4-1
Page 40
C
ONFIGURING THE
ADSL R
OUTER
Navigating the Management Interface
The ADSL Router’s management interface consists of 12 main items.
Setup Wizard: Use the Setup Wizard if you want to quickly set up the
ADSL Router. Go to “SETUP WIZARD” on page 4-3.
Advanced Setup: Advanced Setup supports more advanced functions like
hacker attack detection, IP and MAC address filtering, virtual server setup,
virtual DMZ host, as well as other functions. Go to “Advanced Setup” on
page 4-13.
Making Configuration Changes
Configurable parameters have a dialog box or a drop-down list. Once a
configuration change has been made on a page, click the “SAVE SETTINGS”
or “NEXT” button at the bottom of the page to enable the new setting.
Note: To ensure proper screen refresh after a command entry, be sure
that Internet Explorer 5.5 is configured as follows: Under the
menu Tools/Internet Options/General/Temporary Internet
Files/Settings, the setting for “Check for newer versions of stored
pages” should be “Every visit to the page.”
4-2
Page 41
SETUP WIZARD
SETUP WIZARD

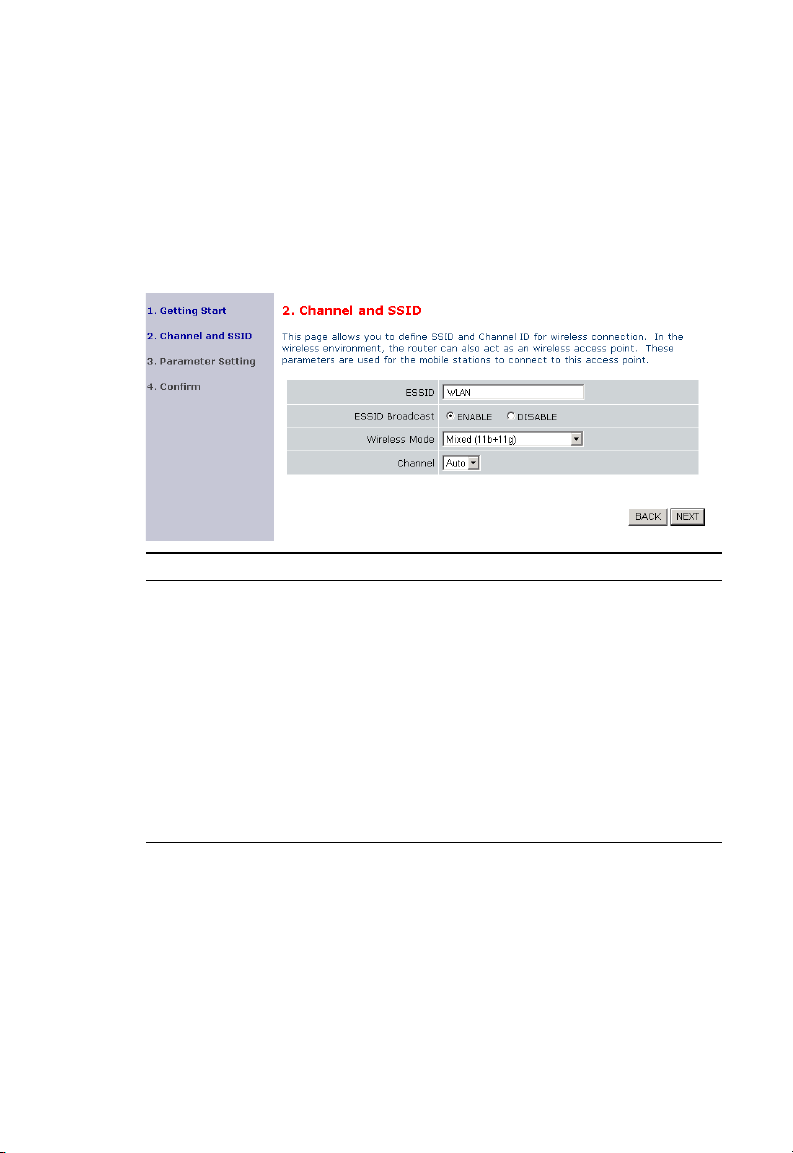

Channel and SSID
Click on “SETUP WIZARD” and “NEXT”, then you will see the Channel
and SSID page.
Parameter Description
ESSID Extended Service Set ID. The ESSID must be the same on the
ESSID Broadcast Enable or disable the broadcasting of the SSID.
Wireless Mode This device supports both 11g and 11b wireless networks. Make
Channel The radio channel used by the wireless router and its clients to
ADSL Router and all of its wireless clients.
your selection depending on the type of wireless network that
you have.
communicate with each other. This channel must be the same
on the ADSL Router and all of its wireless clients.
The ADSL Router will automatically assign itself a radio
channel, or you may select one manually.
Click “NEXT” to continue.
4-3
Page 42
C
ONFIGURING THE
ADSL R
OUTER
Parameter Setting
Select your Country and Internet Service Provider. This will automatically
configure the
VPI/VCI settings for your ISP.
If your Country or Internet Service Provider is not listed you will need to
manually enter settings. Go to “Parameter Setting - Country or ISP Not
Listed” on page 4-7 in the manual.
If your ISP uses PPPoA or PPPoE, then you will need to enter the
username, password and DNS Server address supplied by your ISP.
ADSL Router with the correct Protocol, Encapsulation and
If your ISP uses 1483 Routing, then you will need to enter the IP address,
Subnet Mask, Default Gateway and DNS Server address supplied by your
ISP.
Note: By default 192.168.2.1 is set for the DNS Server address, this
needs to be changed to reflect your ISP’s DNS Server address.
Click “NEXT” to continue.
4-4
Page 43
SETUP WIZARD
Confirm
The Confirm page shows a summary of the configuration parameters.
Check ADSL operation mode (WAN), Network Layer Parameters (WAN)
and DHCP parameters are correct.
Parameter Description
ADSL Operation Mode
(WAN)
ISP The type of ISP you have selected.
Protocol Indicates the protocol used.
VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI).
AAL5 Encapsulation Shows the packet encapsulation type. Go to page 4-20 for
a detailed description.
Network Layer
Parameters (WAN)
IP Address WAN IP address.
Subnet Mask WAN subnet mask.
Default Gateway WAN gateway.
4-5
Page 44
C
ONFIGURING THE
Parameter Description
DHCP Parameters
Function Shows the DHCP function is enabled or disabled.
Default Gateway LAN IP address of the ADSL Router.
Subnet Mask The network subnet mask.
Name Server 1 Primary DNS server IP address.
Name Server 2 Alternate DNS server IP address.
Start IP Address Start IP address of DHCP assigned IP addresses.
Number of IP Number of IP addresses available for assignment by the
ADSL R
OUTER
DHCP server.
If the parameters are correct, click “NEXT” to save these settings.
4-6
Page 45
SETUP WIZARD
Parameter Setting - Country or ISP Not Listed
If your Country or Internet Service Provider is not listed on the drop
down menu, select “Others”. This will allow you to manually configure
your ISP settings.
For manual configuration you will need to know the Protocol, DNS
Server, Encapsulation and VPI/VCI settings used by your ISP. If you have
a Static IP address you will also need to know the IP address, Subnet Mask
and Gateway address. Please contact your ISP for these details if you do
not already have them.
After selecting “Others” you will be required to select what Protocol your
ISP uses from the “Internet Service Provider” drop down list.
4-7
Page 46
C
ONFIGURING THE
ADSL R
OUTER

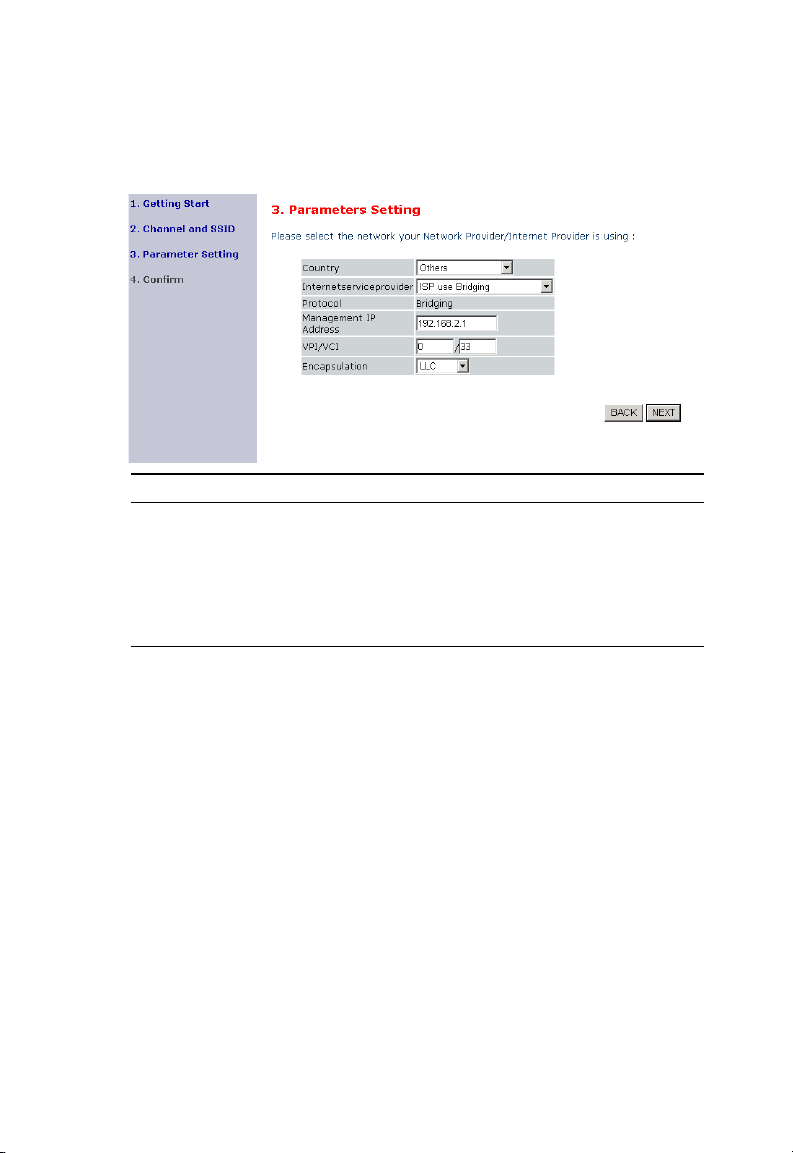

ISP use Bridging - Parameter Setting
Enter the Bridging settings provided by your ISP.
Parameter Description
Management IP Address Enter the IP address provided by your ISP.
VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual
Encapsulation Select the encapsulation used by ISP from the drop
(Default: 192.168.2.1)
Circuit Identifier (VCI) supplied by your ISP.
down list.
Click “NEXT” to continue to the “Confirm” settings page.
Go to “Confirm” on page 4-5 in the manual for details about the
“Confirm” settings page.
4-8
Page 47
SETUP WIZARD

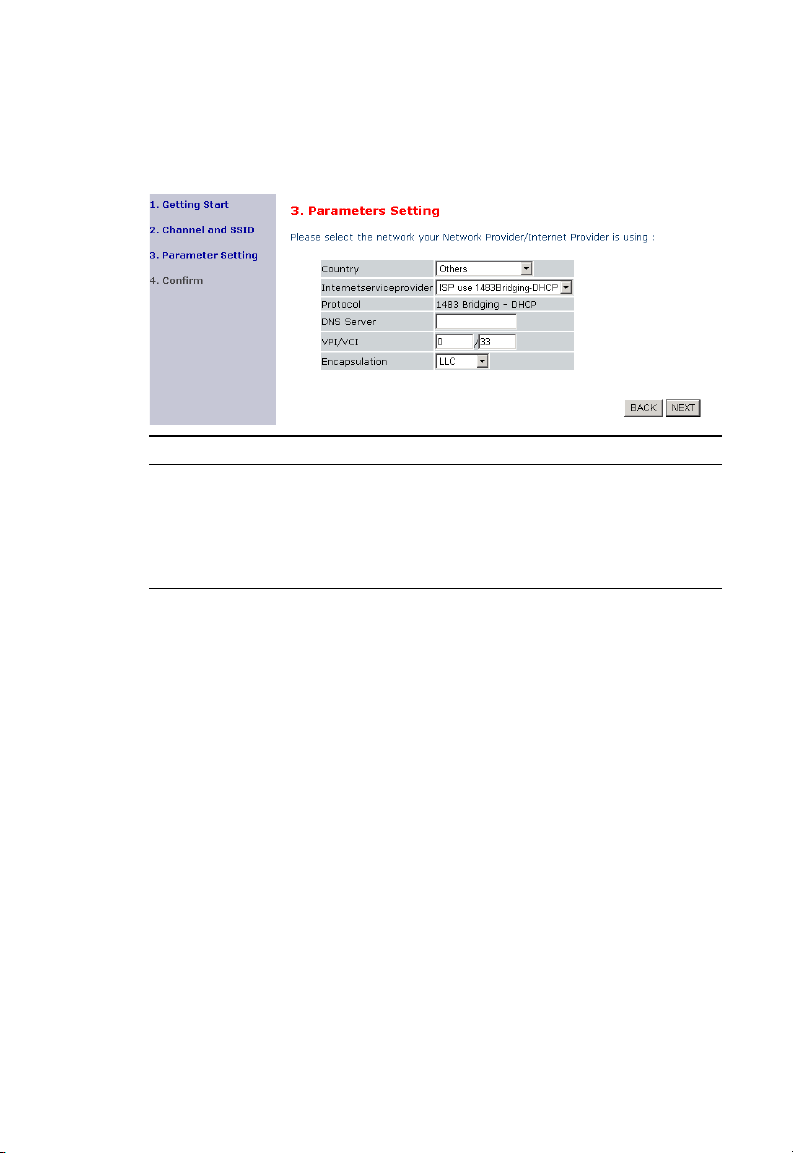

ISP use 1483 Bridging - Parameter Setting
Enter the RFC1483 Bridging settings provided by your ISP.
Parameter Description
DNS Server Enter the Domain Name Server address.
VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual
Circuit Identifier (VCI) supplied by your ISP.
Encapsulation Select the encapsulation used by ISP from the drop
down list.
Click “NEXT” to continue to the “Confirm” settings page.
Go to “Confirm” on page 4-5 in the manual for details about the
“Confirm” settings page.
4-9
Page 48
C
ONFIGURING THE
ADSL R
OUTER

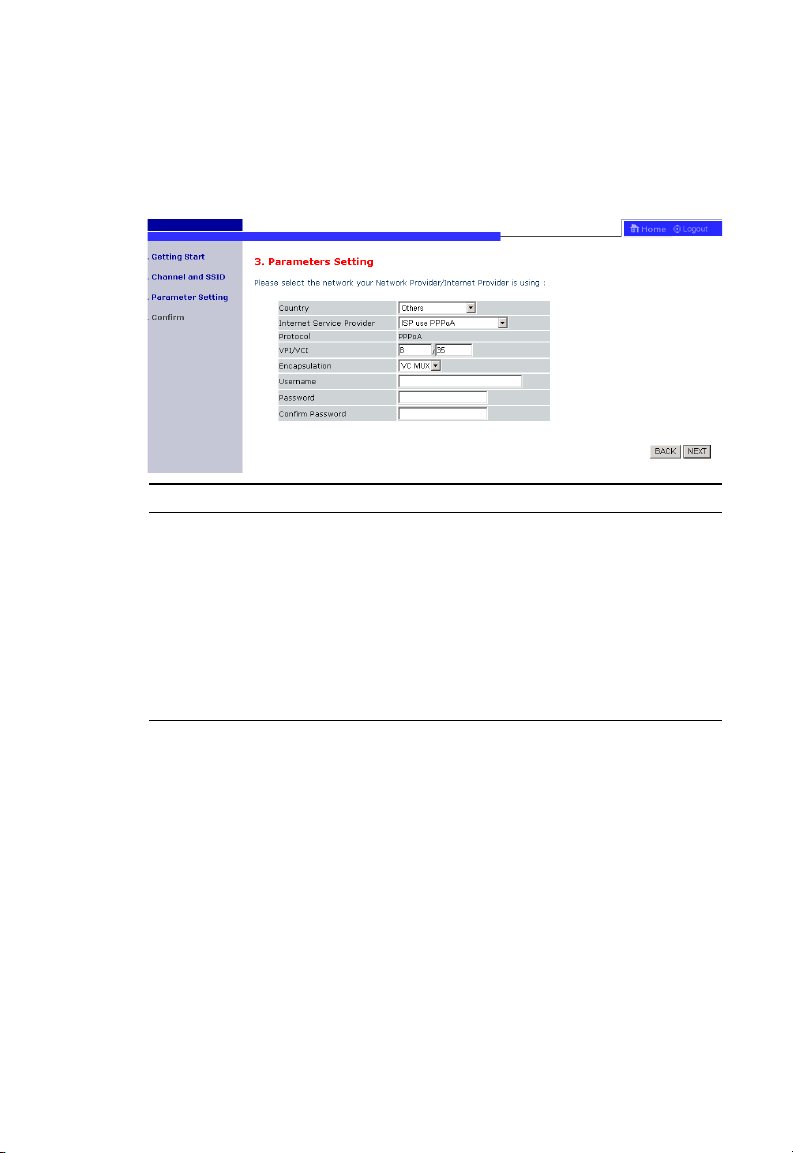

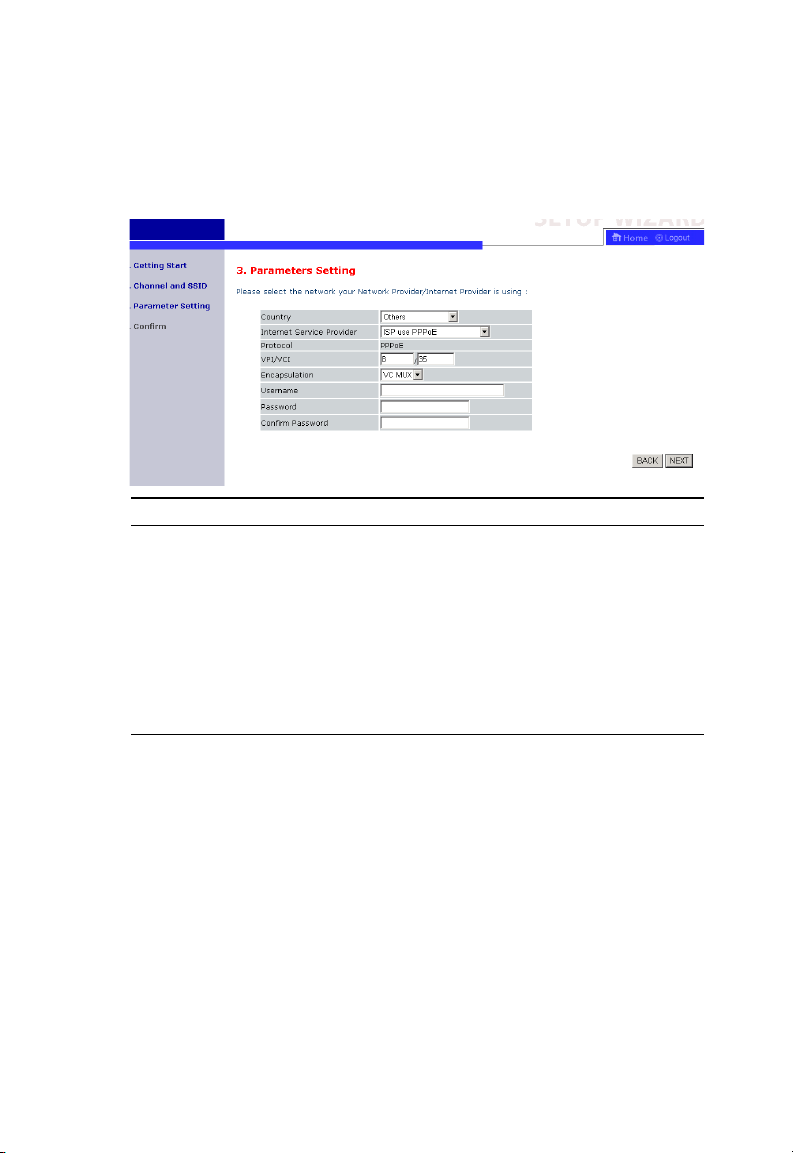

ISP use PPPoE - Parameter Setting
Enter the PPPoE (Point-to-Point Protocol over Ethernet) settings
provided by your ISP.
Parameter Description
DNS Server Enter the ISP Domain Name Server address.
VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual
Circuit Identifier (VCI) supplied by your ISP.
Encapsulation Select the encapsulation used by ISP from the drop
down list.
Username Enter the ISP assigned user name.
Password Enter your password.
Confirm Password Confirm your password.
Click “NEXT” to continue to the “Confirm” settings page.
Go to “Confirm” on page 4-5 in the manual for details about the
“Confirm” settings page.
4-10
Page 49
SETUP WIZARD
ISP use PPPoA - Parameter Setting
Enter the PPPoA (Point-to-Point Protocol over ATM) settings provided
by your ISP.
Parameter Description
DNS Server Enter the ISP Domain Name Server address.
VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual
Circuit Identifier (VCI) supplied by your ISP.
Encapsulation Select the encapsulation used by ISP from the drop
down list.
Username Enter the ISP assigned user name.
Password Enter your password.
Confirm Password Confirm your password.
Click “NEXT” to continue to the “Confirm” settings page.
Go to “Confirm” on page 4-5 in the manual for details about the
“Confirm” settings page.
4-11
Page 50
C
ONFIGURING THE
ADSL R
OUTER

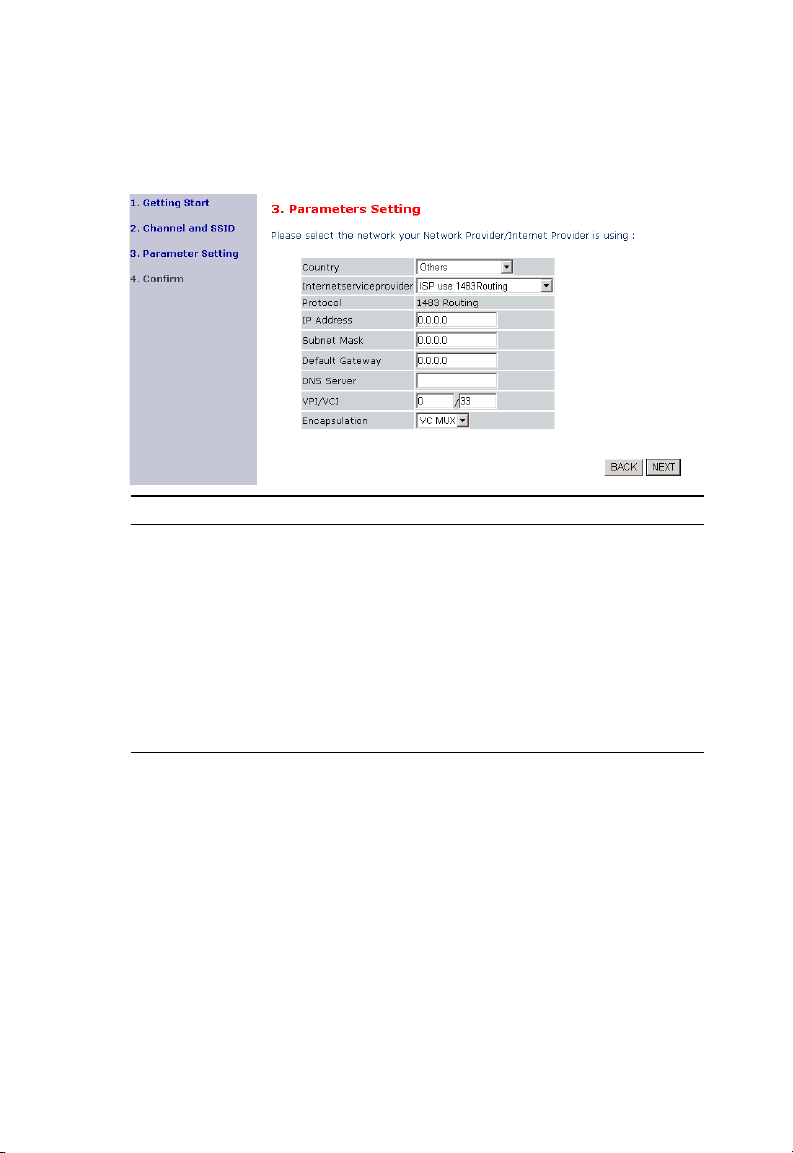

ISP use 1483 Routing - Parameter Setting
Enter the 1483 Routing settings provided by your ISP.
Parameter Description
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the subnet mask address provided by your
ISP.
Default Gateway Enter the gateway address provided by your ISP.
DNS Server Enter the Domain Name Server address.
VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual
Circuit Identifier (VCI) supplied by your ISP.
Encapsulation Select the encapsulation used by ISP from the drop
down list.
Click “NEXT” to continue to the “Confirm” settings page.
Go to “Confirm” on page 4-5 in the manual for details about the
“Confirm” settings page.
4-12
Page 51
Advanced Setup
Click on Home which is located on the upper right-hand corner. The
left-hand side displays the main menu and the right-hand side shows
descriptive information.
The advanced management interface contains 11 main menu items as
described in the following table.
A
DVANCED SETUP
Menu Description
SYSTEM Sets the local time zone, the password for administrator access, and
the IP address of a PC or notebook that will be allowed to manage
the ADSL Router remotely.
WAN Specifies the Internet connection settings.
LAN Sets the TCP/IP configuration for the ADSL Router LAN interface
and DHCP clients.
WIRELESS Configures the radio frequency, SSID, and security for wireless
communications.

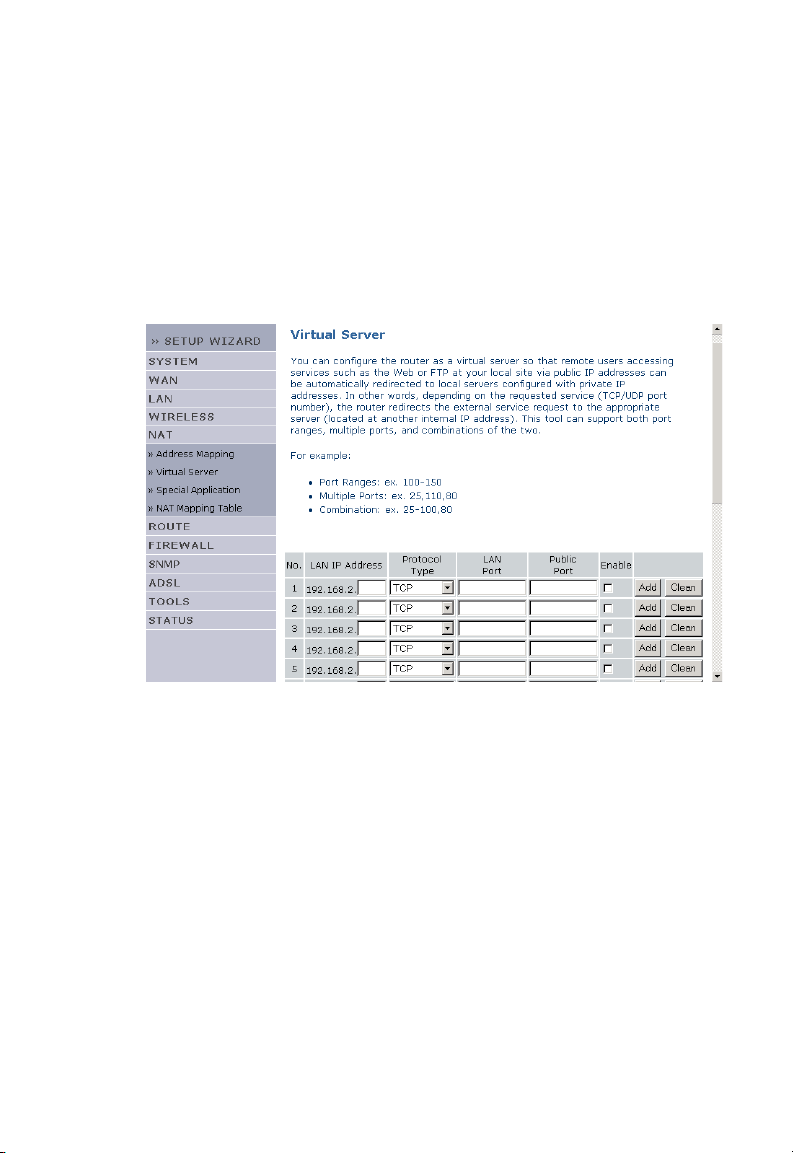

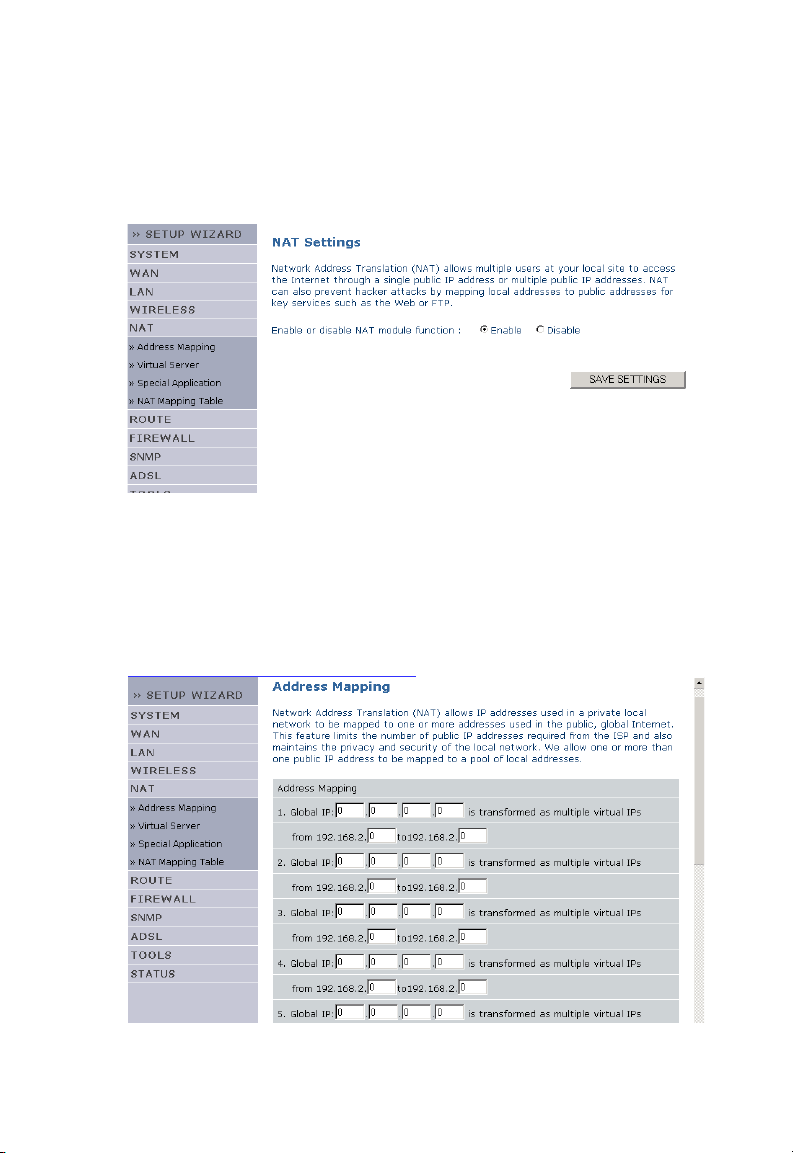

NAT Configures Address Mapping, virtual server and special applications.
ROUTE Sets the routing parameters and displays the current routing table.

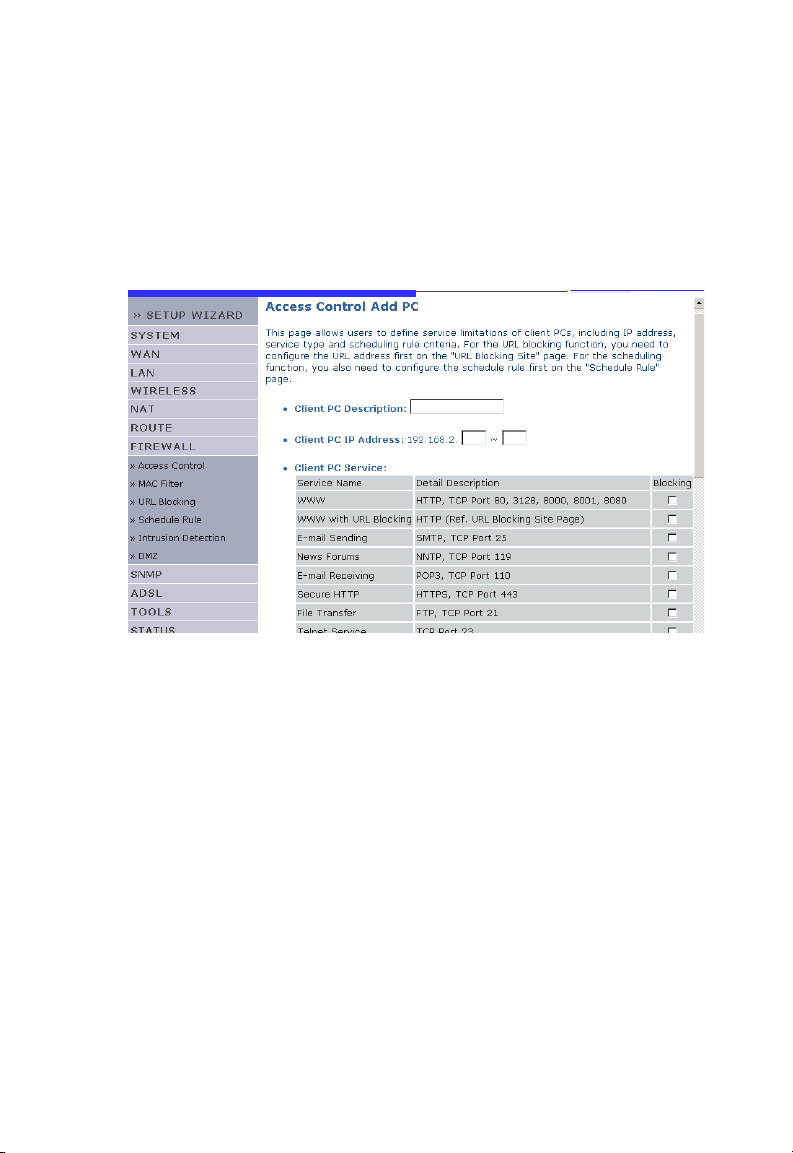

FIREWALL Configures a variety of security and specialized functions including:

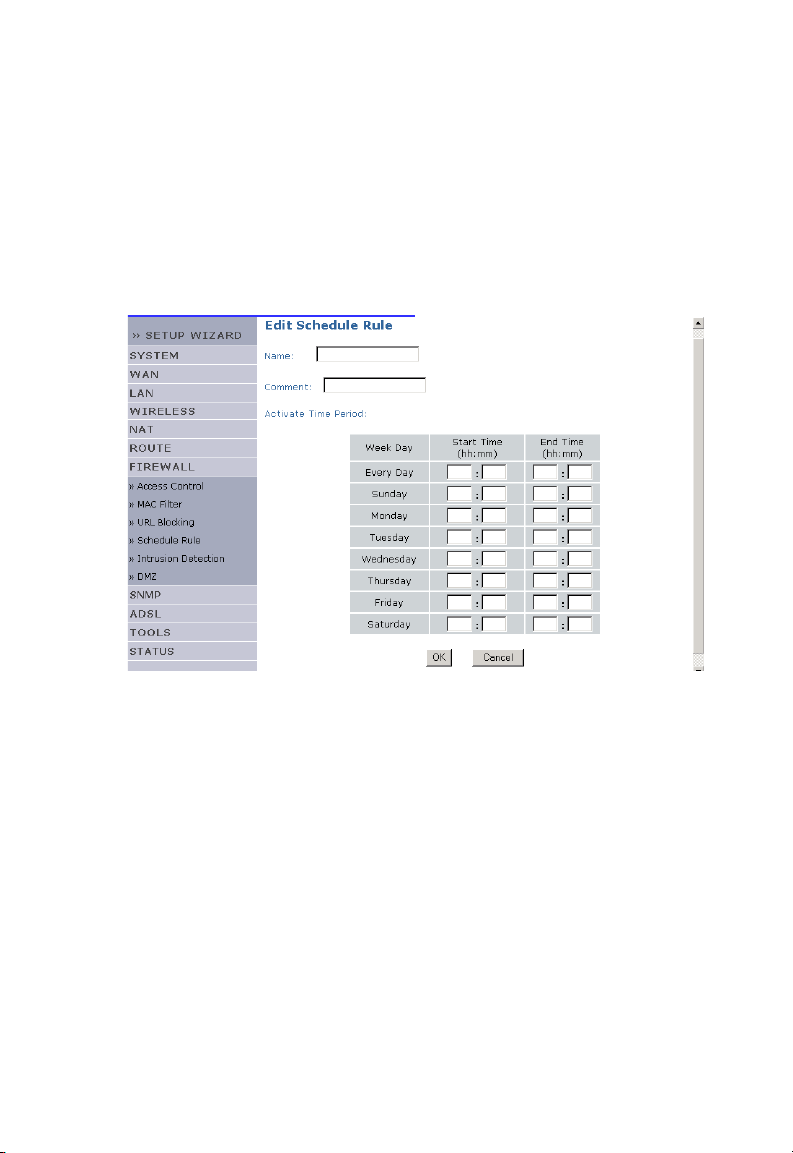

Access Control, URL blocking, Internet access control scheduling,

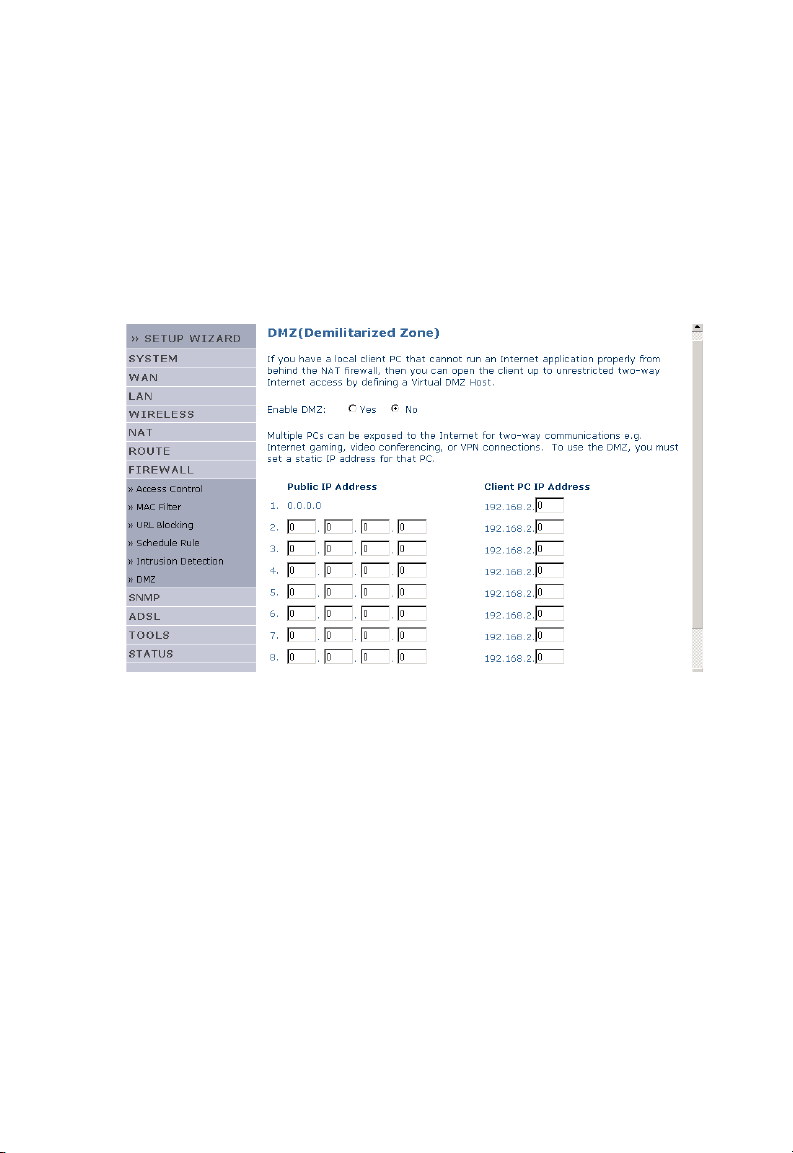

intruder detection, and DMZ.

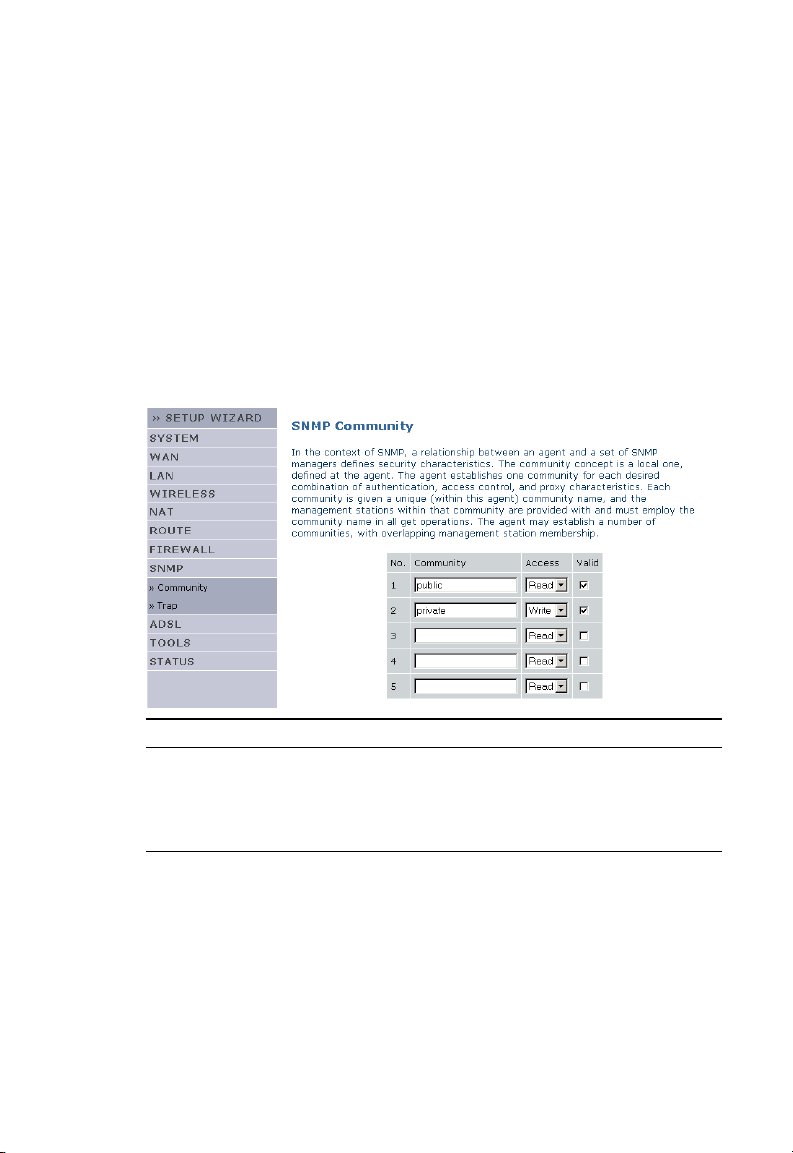

SNMP Community string and trap server settings.
4-13
Page 52
C
ONFIGURING THE
Menu Description

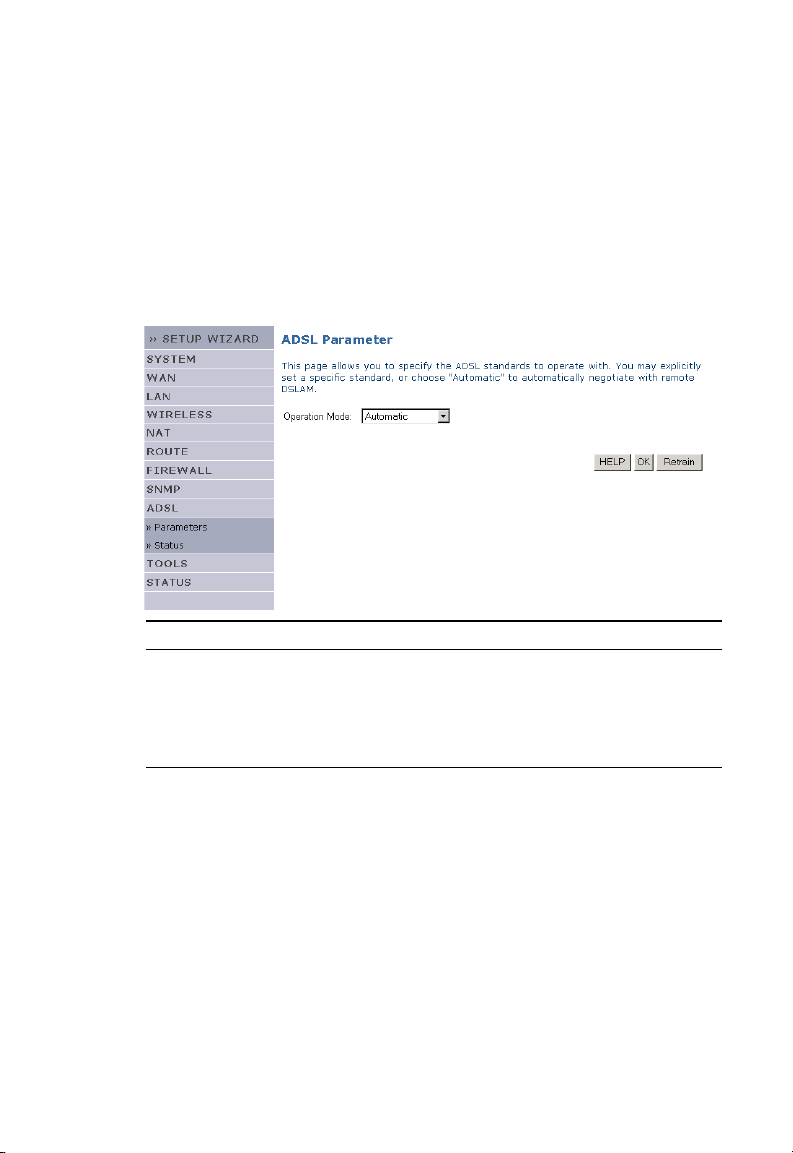

ADSL Sets the ADSL operation type and shows the ADSL status.
TOOLS Contains options to backup & restore the current configuration,

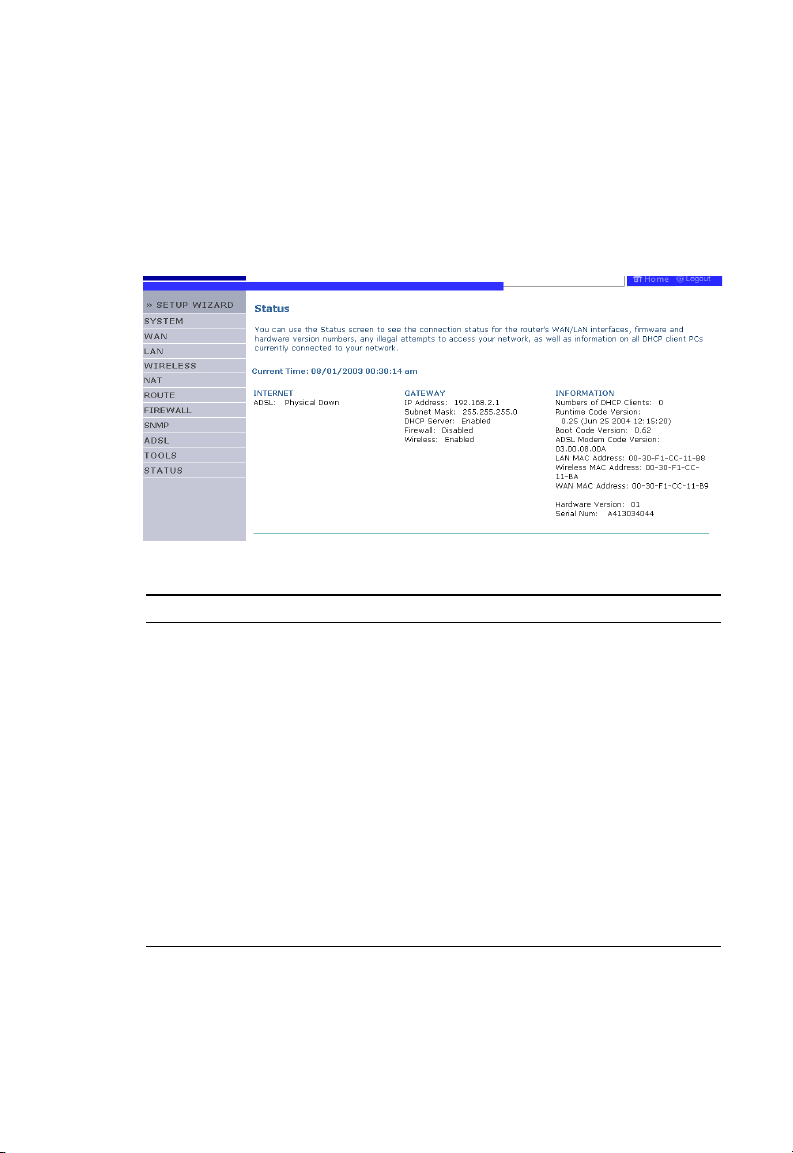

STATUS Provides WAN connection type and status, firmware and hardware
ADSL R
restore all configuration settings to the factory defaults, update
system firmware, or reset the system.
version numbers, system IP settings, as well as DHCP, NAT, and
firewall information. Displays the number of attached clients, the
firmware versions, the physical MAC address for each media
interface, and the hardware version and serial number. Shows the
security and DHCP client log.
OUTER
4-14
Page 53
A
DVANCED SETUP
SYSTEM

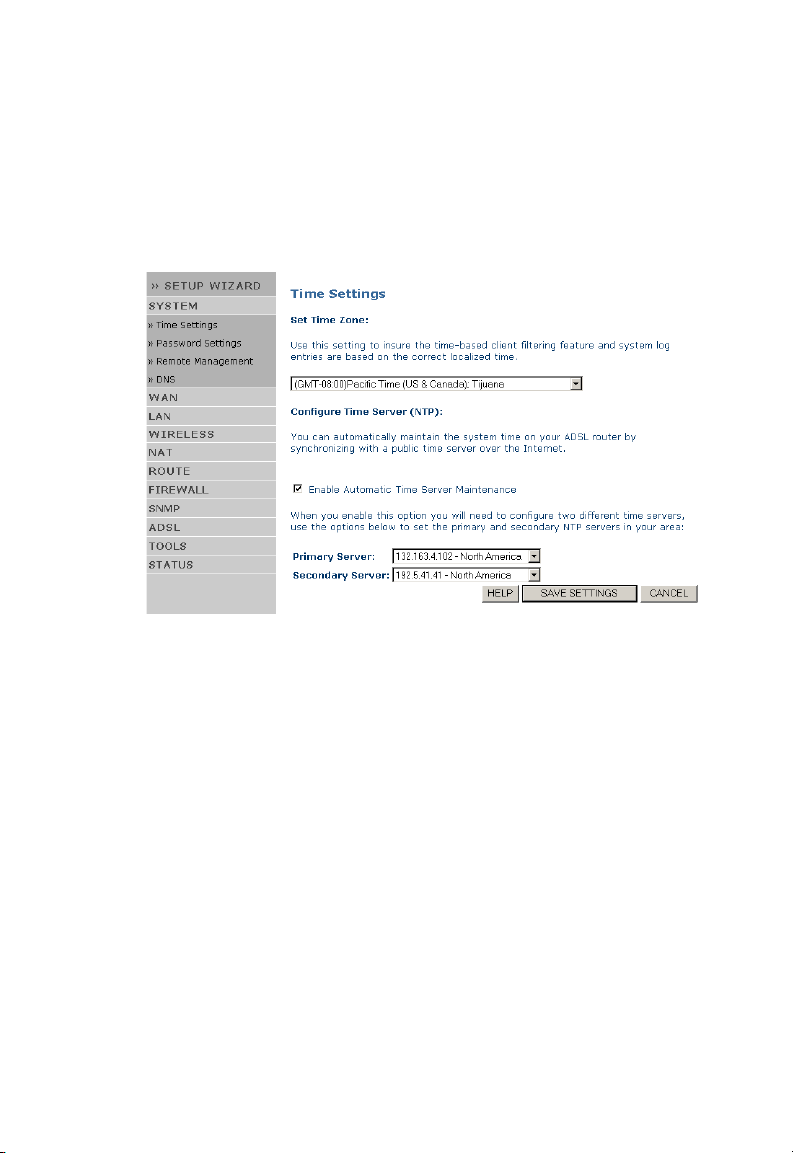

Time Settings
Select your local time zone from the drop down list. This information is
used for log entries and client filtering.
For accurate timing of log entries and system events, you need to set the
time zone. Select your time zone from the drop down list.
If you want to automatically synchronize the ADSL router with a public
time server, check the box to Enable Automatic Time Server Maintenance.
Select the desired servers from the drop down menu.
4-15
Page 54
C
ONFIGURING THE
Password Settings

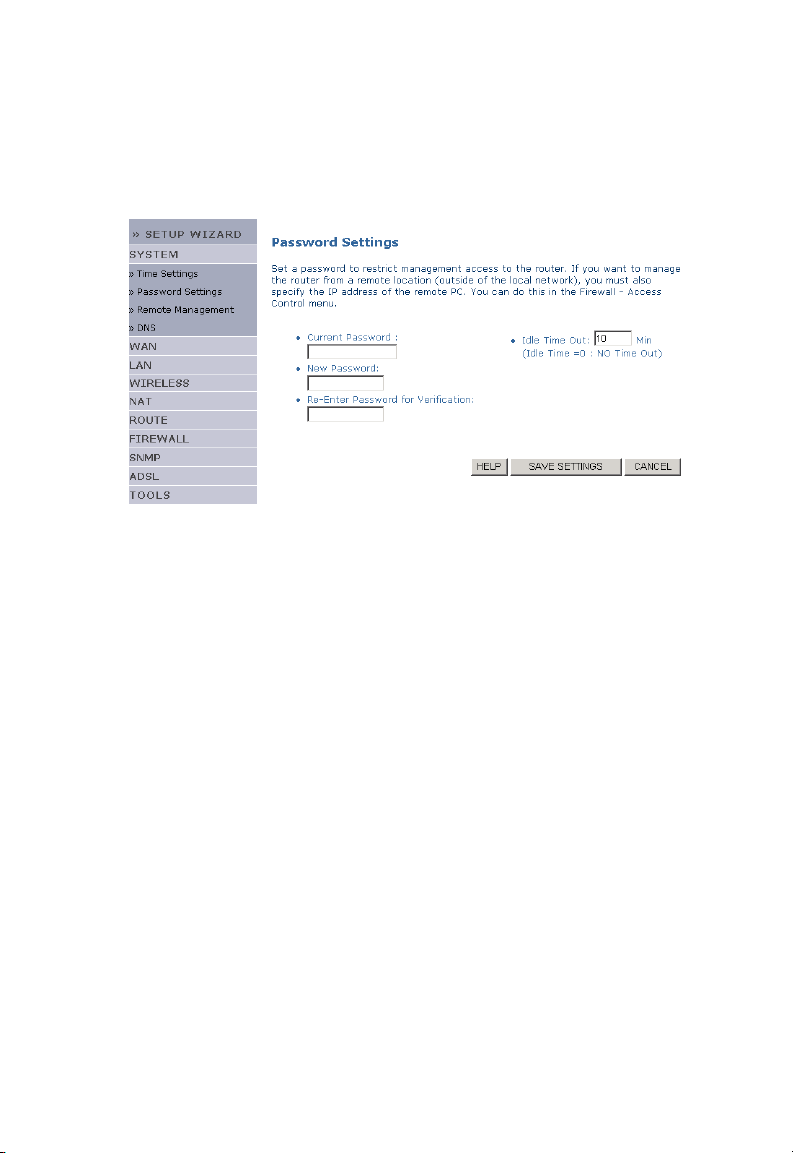

Use this page to change the password for accessing the management
interface of the
Passwords can contain from 3~12 alphanumeric characters and are case
sensitive.
Note: If you lost the password, or you cannot gain access to the user
ADSL R
interface, press the blue reset button on the rear panel, holding it
down for at least five seconds to restore the factory defaults. By
default, there is no password to login to the user interface.
OUTER
ADSL Router.
Enter a maximum Idle Time Out (in minutes) to define a maximum period
of time for which the login session is maintained during inactivity. If the
connection is inactive for longer than the maximum idle time, it will
perform system logout, and you have to log in again to access the
management interface. (Default: 10 minutes)
4-16
Page 55
A
DVANCED SETUP

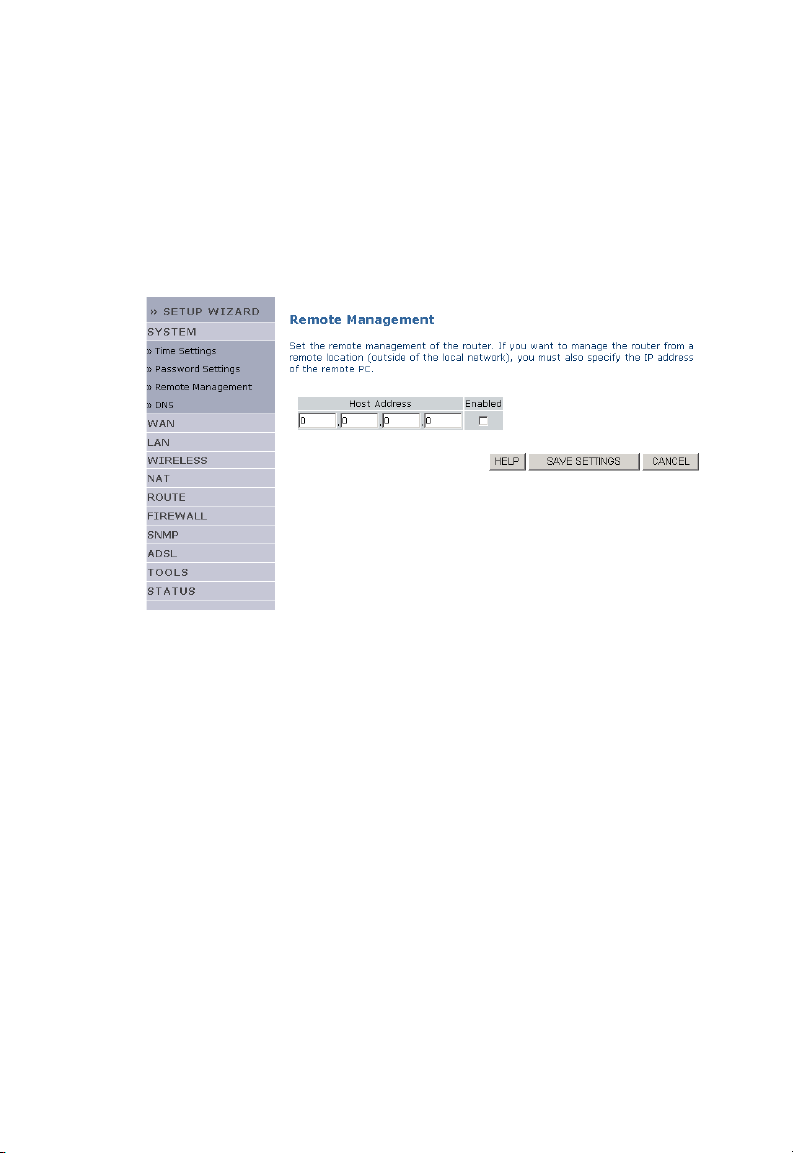

Remote Management
By default, management access is only available to users on your local
network. However, you can also manage the ADSL Router from a remote
host by entering the IP address of a remote computer on this screen.
Check the Enabled check box, and enter the IP address of the Host
Address and click “
Note: If you check Enable and specify an IP address of 0.0.0.0, any
remote host can manage the ADSL Router.
SAVE SETTINGS
”.
For remote management via WAN IP address you need to connect using
port 8080. Simply enter WAN IP address followed by :8080, for example,
212.120.68.20:8080.
4-17
Page 56
C
ONFIGURING THE
DNS
Domain Name Servers (DNS) are used to map a domain name
(e.g., www.smc.com) with the IP address (e.g., 64.147.25.20). Your ISP
should provide the IP address of one or more Domain Name Servers.
Enter those addresses on this page, and click “
ADSL R
OUTER
SAVE SETTINGS
”.
4-18
Page 57
WAN

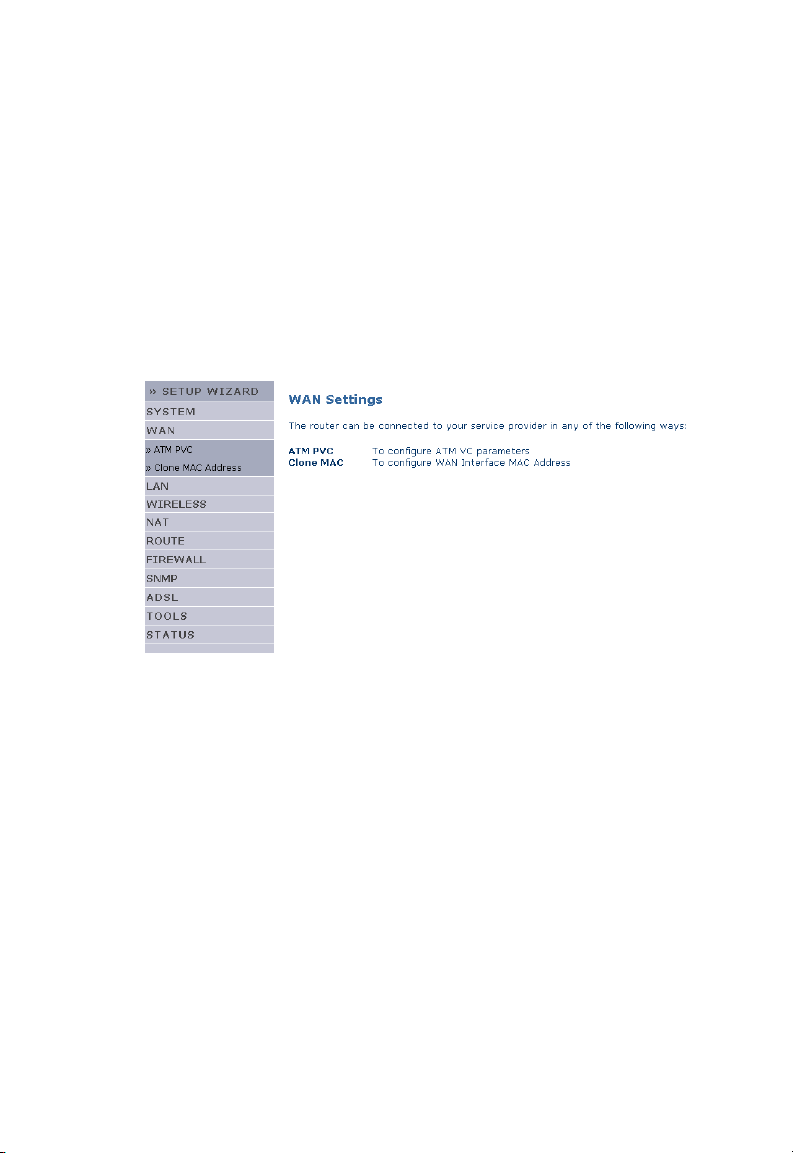

Specify the WAN connection parameters provided by your Internet
Service Provider (ISP).
The
ADSL Router can be connected to your ISP in one of the following
ways:
•ATM PVC
• Clone MAC
A
DVANCED SETUP
4-19
Page 58
C
ONFIGURING THE
ADSL R
OUTER

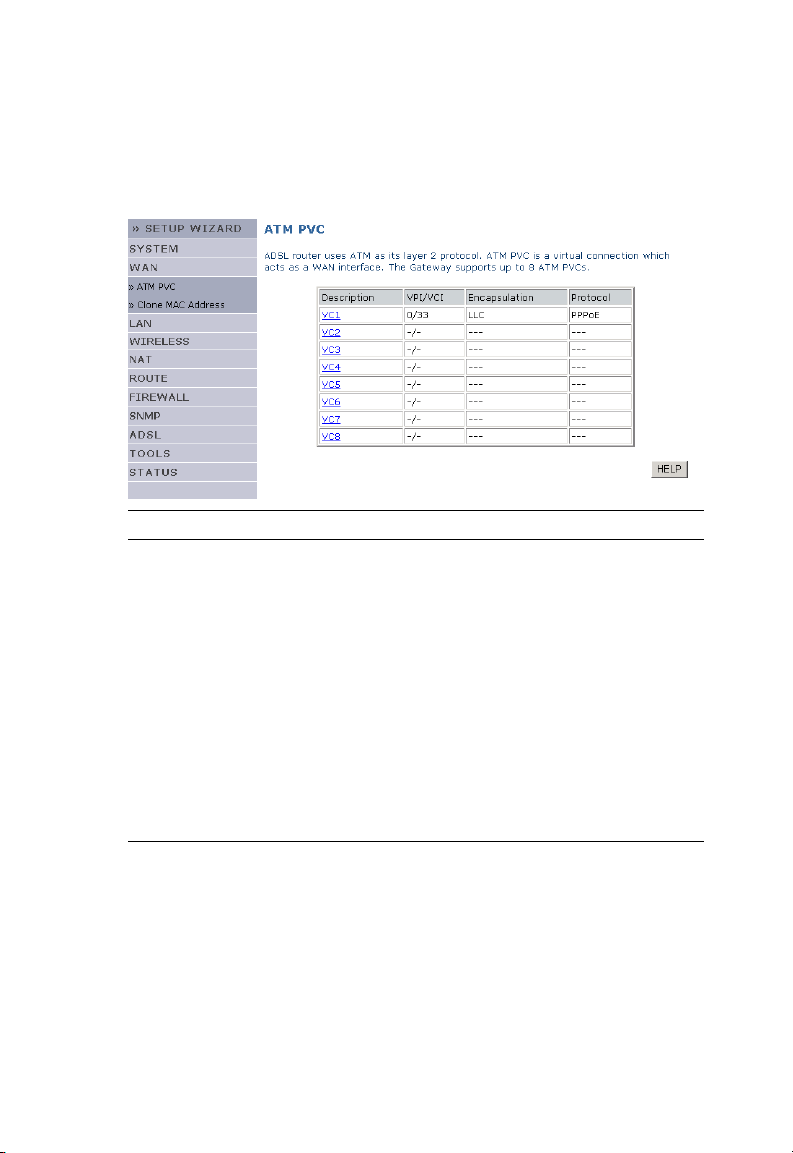

ATM PVC
Enter the ATM (Asynchronous Transfer Mode) virtual connection
parameters here.
Parameter Description
Description Click on the VC to set the values for the connection.
VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI).
Encapsulation Specifies how to handle multiple protocols at the ATM
transport layer.
• VC-MUX: Point-to-Point Protocol over ATM Virtual
Circuit Multiplexer (null encapsulation) allows only
one protocol running per virtual circuit with less
overhead.
• LLC: Point-to-Point Protocol over ATM Logical Link
Control (LLC) allows multiple protocols running over
one virtual circuit (using slightly more overhead).
Protocol Protocal used for the connection.
4-20
Page 59
A
DVANCED SETUP
Clone MAC Address
Some ISPs require you to register your MAC address with them. If this is
the case, the MAC address of the ADSL Router must be changed to the
MAC address that you have registered with your ISP.
4-21
Page 60
C
ONFIGURING THE
ADSL R
OUTER
LAN
Use the LAN menu to configure the LAN IP address and to enable the
DHCP server for dynamic client address allocation.
Parameter Description
IP Address The IP address of the ADSL Router.
IP Subnet Mask The subnet mask of the network.
DHCP Server The ADSL Router comes with the DHCP function. Enable
Lease Time Set the IP lease time. For home networks this may be set to
Start IP Address Specify the start IP address of the DHCP pool. Do not include
End IP Address Specify the end IP address of the DHCP pool.
Domain Name If your network uses a domain name, enter it here. Otherwise,
this function to dynamically assign an IP address to client PCs.
Forever, which means there is no time limit on the IP address
lease.
the gateway address of the ADSL Router in the client address
pool. If you change the pool range, make sure the first three
octets match the gateway’s IP address, i.e., 192.168.2.xxx.
leave this field blank.
Note: Remember to configure your client PCs for dynamic address
allocation. (See page 3-2 for details.)
4-22
Page 61
A
DVANCED SETUP
Wireless

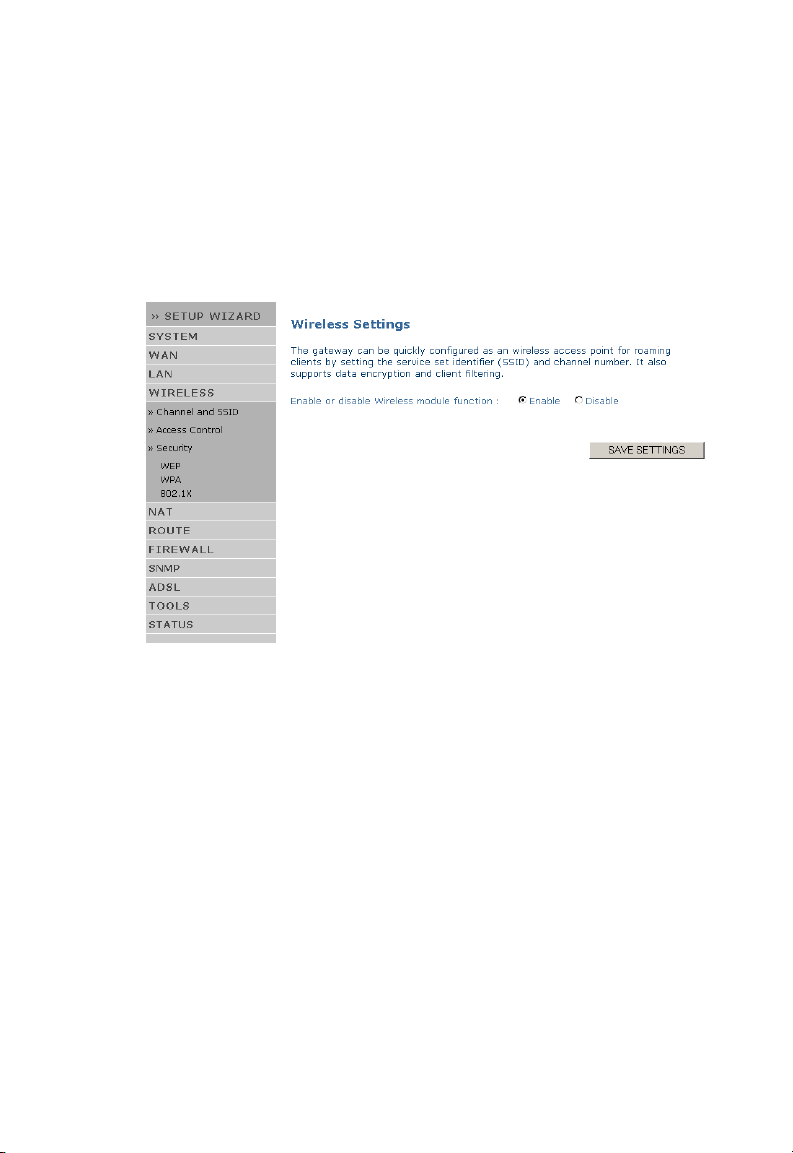

The ADSL Router also operates as a wireless access point, allowing wireless
computers to communicate with each other. To configure this function,
you need to enable the wireless function, define the radio channel, the
domain identifier, and the security options. Check Enable and click “
SETTINGS
”.
SAVE
4-23
Page 62
C
ONFIGURING THE
ADSL R
OUTER
Channel and SSID
You must specify a common radio channel and SSID (Service Set ID) to
be used by the
ADSL Router and all of its wireless clients. Be sure you
configure all of its clients to the same values.
Parameter Description
ESSID Extended Service Set ID. The ESSID must be the same on the
ADSL Router and all of its wireless clients.
ESSID Broadcast Enable or disable the broadcasting of the SSID.
Wireless Mode This device supports both 11g and 11b wireless networks. Make
Channel The radio channel used by the wireless router and its clients to
your selection depending on the type of wireless network that
you have.
communicate with each other. This channel must be the same
on the ADSL Router and all of its wireless clients.
The ADSL Router will automatically assign itself a radio
channel, or you may select one manually.
4-24
Page 63
A
DVANCED SETUP

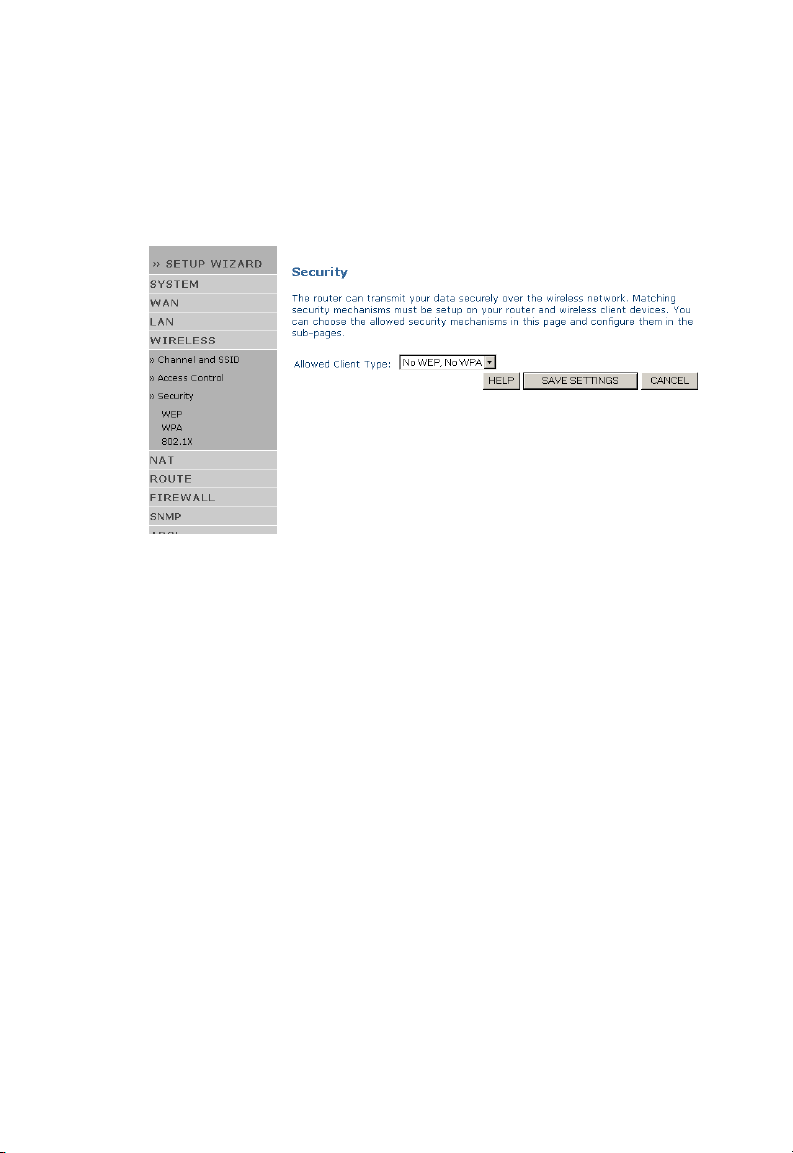

Security
To make your wireless network safe, you should turn on the security
function. The ADSL Router supports WEP (Wired Equivalent Privacy),
WPA (Wi-Fi Protected), and 802.1x security mechanisms.
4-25
Page 64
C
ONFIGURING THE
ADSL R
OUTER

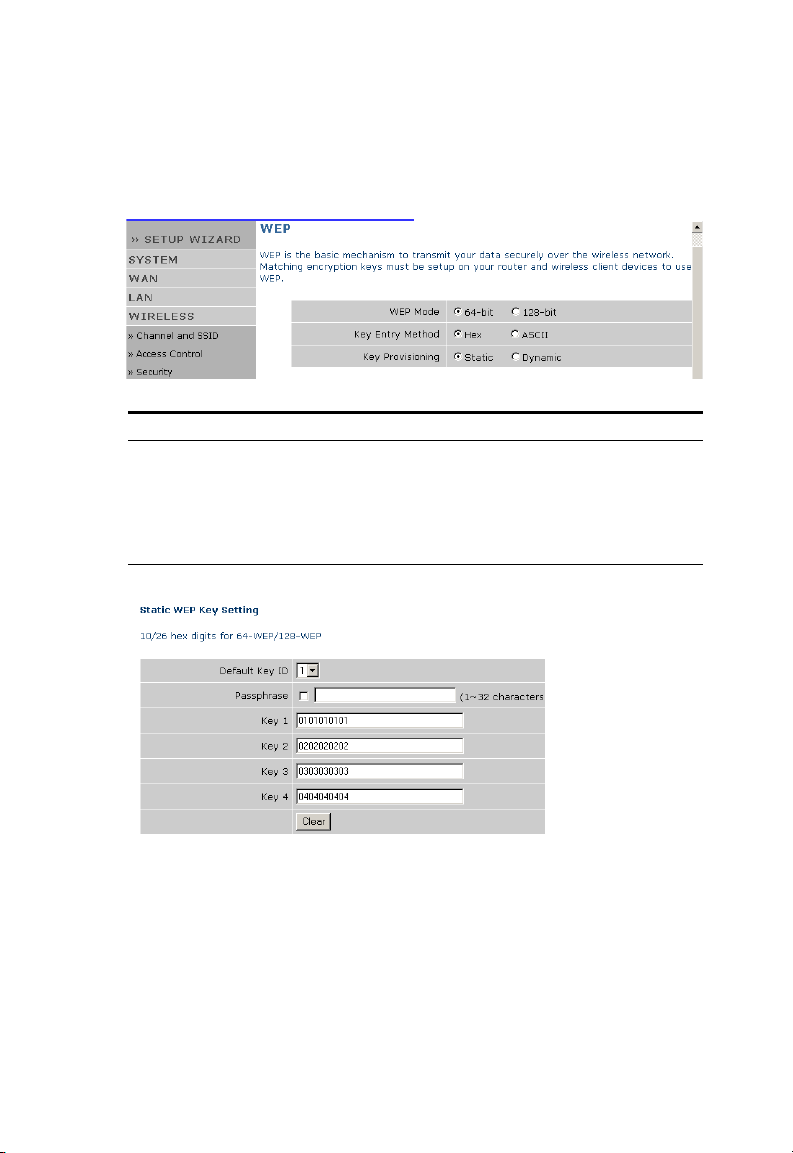

WEP
If you use WEP to protect your wireless network, you need to set the same
parameters for the ADSL Router and all your wireless clients.
Parameter Description
WEP Mode Select 64 bit or 128 bit key to use for encryption.
Key Entry Method Select Hex or ASCII code for encryption key generation.
Key Provisioning Select Static if there is only one fixed key for encryption. If
you want to select Dynamic, you would need to enable 802.1x
function first.
You may automatically generate encryption keys or manually enter the
keys. To generate the key automatically with passphrase, check the
Passphrase box, enter a string of characters. Select the default key from the
drop down menu. Click “
SAVE SETTINGS
”.
Note: The passphrase can consist of up to 32 alphanumeric characters.
4-26
Page 65
A
DVANCED SETUP
To manually configure the encryption key, enter five hexadecimal pairs of
digits for each 64-bit key, or enter 13 pairs for the single 128-bit key.
(A hexadecimal digit is a number or letter in the range 0-9 or A-F.) Note
that WEP protects data transmitted between wireless nodes, but does not
protect any transmissions over your wired network or over the Internet.
WPA
Wi-Fi Protected Access (WPA) combines temporal key integrity protocol
(TKIP) and 802.1x mechanisms. It provides dynamic key encryption and
802.1x authentication service.
Parameter Description
Cypher suite The security mechanism used in WPA for encryption.
Authentication Choose 802.1X or Pre-shared Key to use as the
authentication method.
•802.1X: for the enterprise network with a RADIUS server.
•Pre-shared key: for the SOHO network environment
without an authentication server.
Pre-shared key type Select the key type to be used in the Pre-shared Key.
Pre-shared Key Type in the key here.
Group Key Re-Keying The period of renewing broadcast/multicast key.
4-27
Page 66
C
ONFIGURING THE
ADSL R
OUTER
802.1X
If 802.1x is used in your network, then you should enable this function for
the ADSL Router. These parameters are used for the ADSL Router to
connect to the authentication server.
Parameter Description
802.1X
Authentication
Session Idle
timeout
Re-Authentication
Period
Quiet Period Defines a maximum period of time for which the ADSL Router
Server Type RADIUS authentication server.
RADIUS Server
Parameters
Server IP The IP address of your authentication server.
Server Port The port used for the authentication service.
Enable or disable this authentication function.
Defines a maximum period of time for which the connection is
maintained during inactivity.
Defines a maximum period of time for which the
authentication server will dynamically re-assign a session key to
a connected client.
will wait between failed authentications.
4-28
Page 67
A
DVANCED SETUP
Parameter Description
Secret Key The secret key shared between the authentication server and its
clients.
NAS-ID Defines the request identifier of the Network Access Server.
4-29
Page 68
C
ONFIGURING THE
ADSL R
OUTER
NAT
Network Address Translation allows multiple users to access the Internet
sharing one public IP.
Address Mapping
Allows one or more public IP addresses to be shared by multiple internal
users. This also hides the internal network for increased privacy and
security. Enter the Public IP address you wish to share into the Global IP
field. Enter a range of internal IPs that will share the global IP into the
“from” field.
4-30
Page 69
A
DVANCED SETUP
Virtual Server
If you configure the ADSL Router as a virtual server, remote users
accessing services such as web or FTP at your local site via public IP
addresses can be automatically redirected to local servers configured with
private IP addresses. In other words, depending on the requested service
(TCP/UDP port number), the ADSL Router redirects the external service
request to the appropriate server (located at another internal IP address).
For example, if you set Type/Public Port to TCP/80 (HTTP or web) and
the Private IP/Port to 192.168.2.2/80, then all HTTP requests from
outside users will be transferred to 192.168.2.2 on port 80. Therefore, by
just entering the IP address provided by the ISP, Internet users can access
the service they need at the local address to which you redirect them.
A list of ports is maintained at the following link:
http://www.iana.org/assignments/port-numbers.
4-31
Page 70
C
ONFIGURING THE
Special Applications
Some applications require multiple
connections, such as Internet gaming,
video-conferencing, and Internet
telephony. These applications may
not work when Network Address
Translation (NAT) is enabled. If you
need to run applications that require multiple connections, use these pages
to specify the additional public ports to be opened for each application.
ADSL R
OUTER
4-32
Page 71
A
DVANCED SETUP
NAT Mapping Table
This page displays the current NAPT (Network Address Port Translation)
address mappings.
4-33
Page 72
C
ONFIGURING THE
ADSL R
OUTER
Route
These pages define routing related parameters, including static routes and
RIP (Routing Information Protocol) parameters.

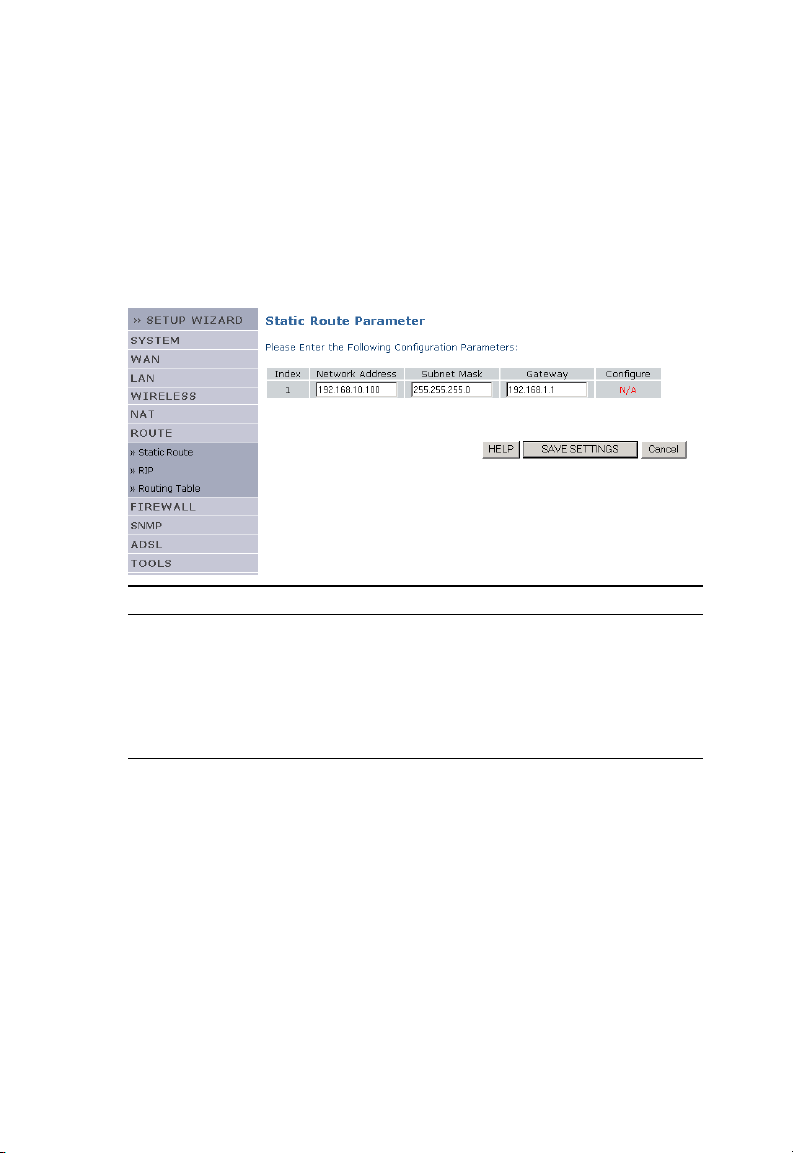

Static Route
Click “Add” to add a new static route to the list.
Parameter Description
Network Address Enter the IP address of the remote computer for which
to set a static route.
Subnet Mask Enter the subnet mask of the remote network for which
to set a static route.
Gateway Enter the WAN IP address of the gateway to the remote
network.
Click “Save Settings” to save the configuration.
4-34
Page 73
A
DVANCED SETUP
RIP
Parameter Description
General RIP Parameters
RIP mode Globally enables or disables RIP.
Auto summary If Auto summary is disabled, then RIP packets will
Table of current Interface RIP
parameter
Interface The WAN interface to be configured.
Operation Mode Disable: RIP disabled on this interface.
Version Sets the RIP (Routing Information Protocol)
Poison Reverse A method for preventing loops that would cause
include sub-network information from all subnetworks connected to the router. If enabled, this
sub-network information will be summarized to
one piece of information covering all subnetworks.
Enable: RIP enabled on this interface.
Silent: Listens for route broadcasts and updates its
route table. It does not participate in sending route
broadcasts.
version to use on this interface.
endless retransmission of data traffic.
4-35
Page 74
C
ONFIGURING THE
Parameter Description
Authentication Required • None: No authentication.
Authentication Code Password Authentication key.
ADSL R
OUTER
• Password: A password authentication key is
included in the packet. If this does not match
what is expected, the packet will be discarded.
This method provides very little security as it
is possible to learn the authentication key by
watching RIP packets.
RIP sends routing-update messages at regular intervals and when the
network topology changes. When a router receives a routing update that
includes changes to an entry, it updates its routing table to reflect the new
route. RIP routers maintain only the best route to a destination. After
updating its routing table, the router immediately begins transmitting
routing updates to inform other network routers of the change.
4-36
Page 75
A
DVANCED SETUP

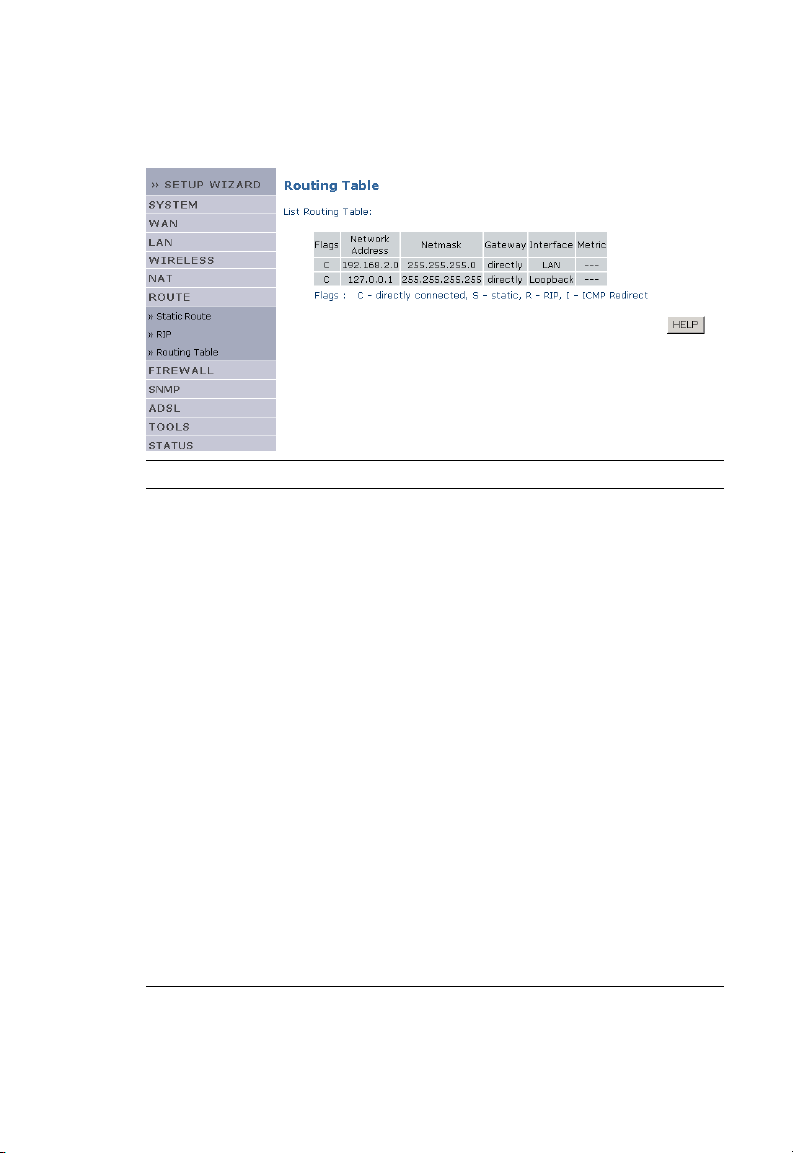

Routing Table
Parameter Description
Flags Indicates the route status:
C = Direct connection on the same subnet.
S = Static route.
R = RIP (Routing Information Protocol) assigned route.
I = ICMP (Internet Control Message Protocol) Redirect route.
Network
Address
Netmask The subnetwork associated with the destination.
Gateway The IP address of the router at the next hop to which frames are
Interface The local interface through which the next hop of this route is
Metric When a router receives a routing update that contains a new or
Destination IP address.
This is a template that identifies the address bits in the destination
address used for routing to specific subnets. Each bit that corresponds
to a “1” is part of the subnet mask number; each bit that corresponds
to “0” is part of the host number.
forwarded.
reached.
changed destination network entry, the router adds 1 to the metric
value indicated in the update and enters the network in the routing
table.
4-37
Page 76
C
ONFIGURING THE
ADSL R
OUTER
Firewall
The ADSL Router’s firewall inspects packets at the application layer,
maintains TCP and UDP session information including time-outs and the
number of active sessions, and provides the ability to detect and prevent
certain types of network attacks.
Network attacks that deny access to a network device are called
Denial-of-Service (DoS) attacks. DoS attacks are aimed at devices and
networks with a connection to the Internet. Their goal is not to steal
information, but to disable a device or network so users no longer have
access to network resources.
The
ADSL Router firewall function protects against the following DoS
attacks: IP Spoofing, Land Attack, Ping of Death, IP with zero length,
Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP
SYN flooding. (See page 4-45 for details.)
The firewall does not significantly affect system performance, so we advise
leaving it enabled to protect your network. Select Enable and click the
“
SAVE SETTINGS
” button to open the Firewall submenus.
4-38
Page 77
A
DVANCED SETUP
Access Control
Access Control allows users to define the outgoing traffic permitted or
not-permitted through the WAN interface. The default is to permit all
outgoing traffic.
The following items are on the Access Control screen:
Parameter Description
Enable Filtering
Function
Normal Filtering Table Displays the IP address (or an IP address range) filtering
Click Yes to turn on the filtering function.
table.
4-39
Page 78
C
ONFIGURING THE
To add the PC to the filtering table:
1. Click “Add PC” on the Access Control screen.
2. Define the appropriate settings for client PC services.
ADSL R
OUTER
3. Click “OK” and then click “
SAVE SETTINGS
” to save your settings.
4-40
Page 79
A
DVANCED SETUP
MAC Filter
The ADSL Router can also limit the network access based on the MAC
address. The MAC Filtering Table allows the ADSL Router to enter up to
32 MAC addresses that are not allowed access to the WAN port.
Click Yes to enable, or No to disable this function.
Enter the MAC address in the space provided.
4-41
Page 80
C
ONFIGURING THE
URL Blocking
The ADSL Router allows the user to block access to web sites by entering
either a full URL address or just a keyword. This feature can be used to
protect children from accessing violent or pornographic web sites.
You can define up to 30 sites here.
ADSL R
OUTER
4-42
Page 81
A
DVANCED SETUP

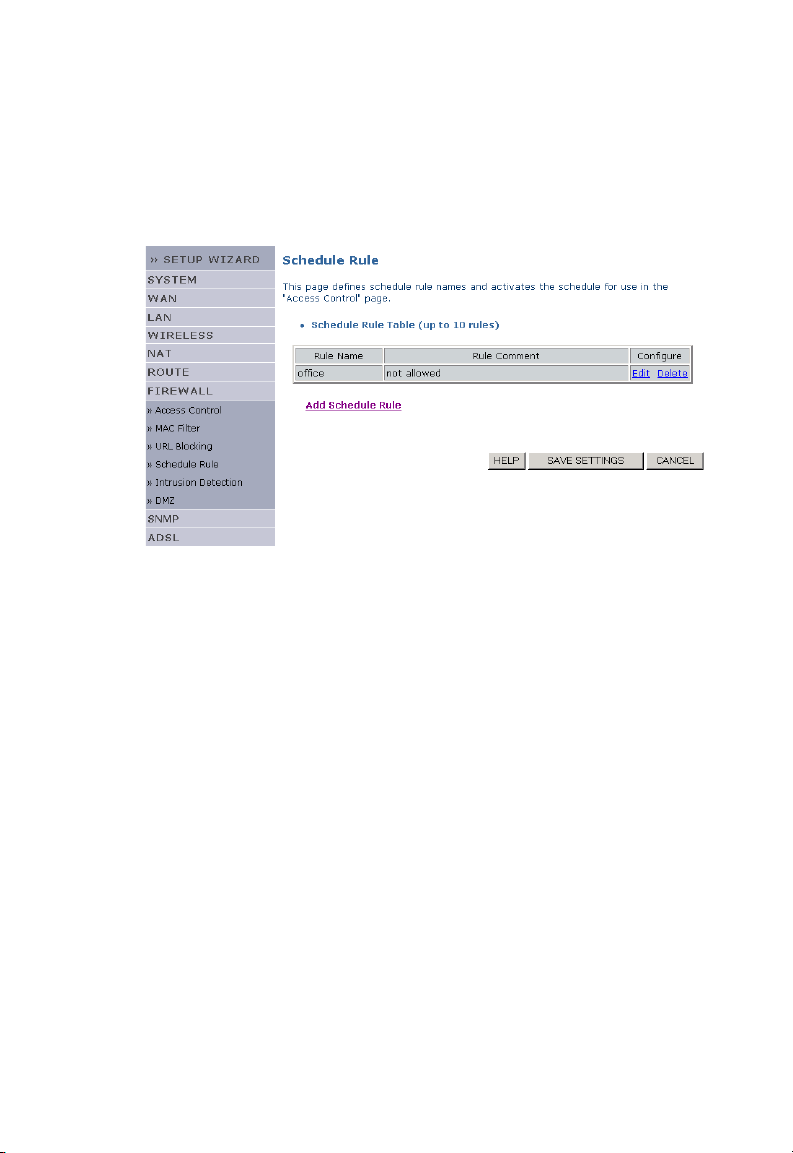

Schedule Rule
You may filter Internet access for local clients based on rules. Each access
control rule may be activated at a scheduled time. Define the time schedule
on this page, and apply the rule on the Access Control page.
4-43
Page 82
C
ONFIGURING THE
Follow these steps to add a schedule rule:
1. Click “Add Schedule Rule”.
2. Define the appropriate settings for a schedule rule (as shown in this
example).
ADSL R
OUTER
3. Click “OK” and then click “
SAVE SETTINGS
” to save your settings.
4-44
Page 83
A
DVANCED SETUP

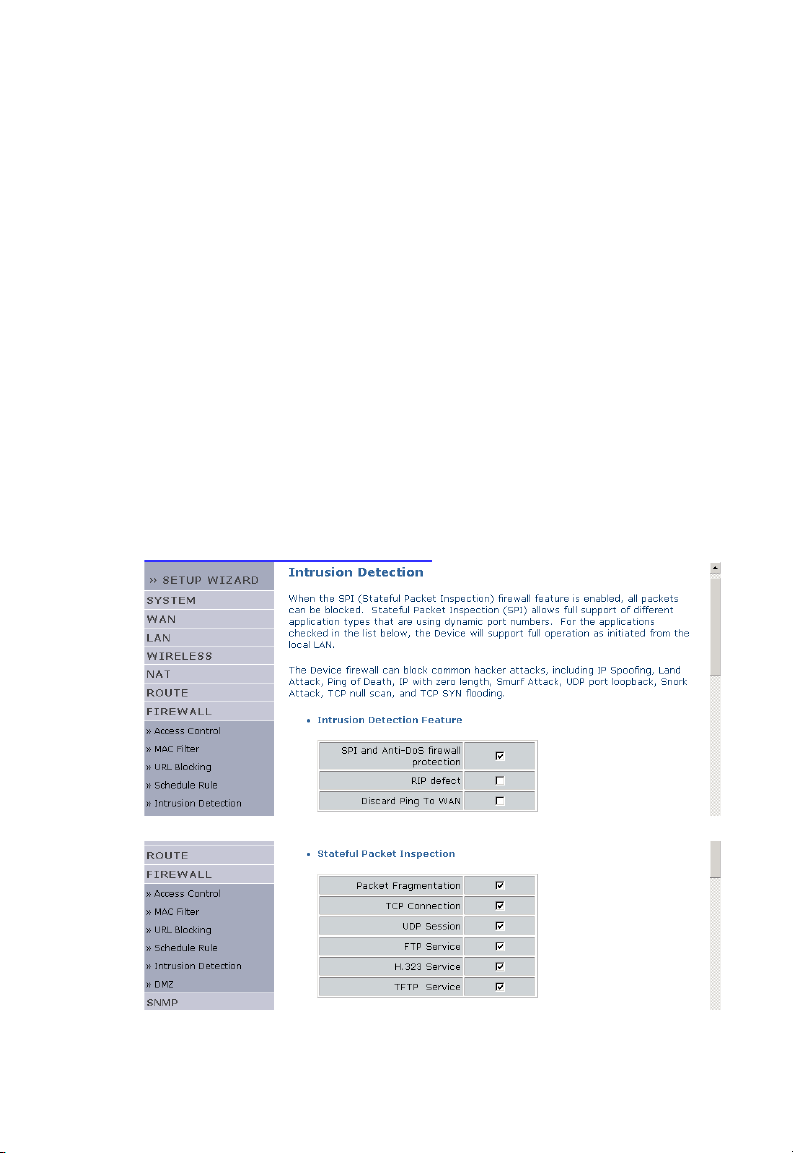

Intrusion Detection
• Intrusion Detection Feature
Stateful Packet Inspection (SPI) and Anti-DoS firewall protection
(Default: Enabled) — The Intrusion Detection Feature of the
ADSL Router
limits access for incoming traffic at the WAN port. When the SPI feature
is turned on, all incoming packets will be blocked except for those types
marked in the Stateful Packet Inspection section.
RIP Defect (Default: Disabled) — If an RIP request packet is not
acknowledged to by the router, it will stay in the input queue and not be
released. Accumulated packets could cause the input queue to fill, causing
severe problems for all protocols. Enabling this feature prevents the
packets from accumulating.
Discard Ping to WAN (Default: Disabled) — Prevent a ping on the
’s WAN port from being routed to the network.
Router
Scroll down to view more information.
ADSL
4-45
Page 84
C
ONFIGURING THE
ADSL R
OUTER
4-46
Page 85
A
DVANCED SETUP
• Stateful Packet Inspection
This is called a “stateful” packet inspection because it examines the
contents of the packet to determine the state of the communications; i.e., it
ensures that the stated destination computer has previously requested the
current communication. This is a way of ensuring that all communications
are initiated by the recipient computer and are taking place only with
sources that are known and trusted from previous interactions. In addition
to being more rigorous in their inspection of packets, stateful inspection
firewalls also close off ports until connection to the specific port is
requested.
When particular types of traffic are checked, only the particular type of
traffic initiated from the internal LAN will be allowed. For example, if the
user only checks “FTP Service” in the Stateful Packet Inspection section,
all incoming traffic will be blocked except for FTP connections initiated
from the local LAN.
Stateful Packet Inspection allows you to select different application types
that are using dynamic port numbers. If you wish to use the Stateful Packet
Inspection (SPI) to block packets, click on the Yes radio button in the
“Enable SPI and Anti-DoS firewall protection” field and then check the
inspection type that you need, such as Packet Fragmentation, TCP
Connection, UDP Session, FTP Service, H.323 Service, or TFTP Service.

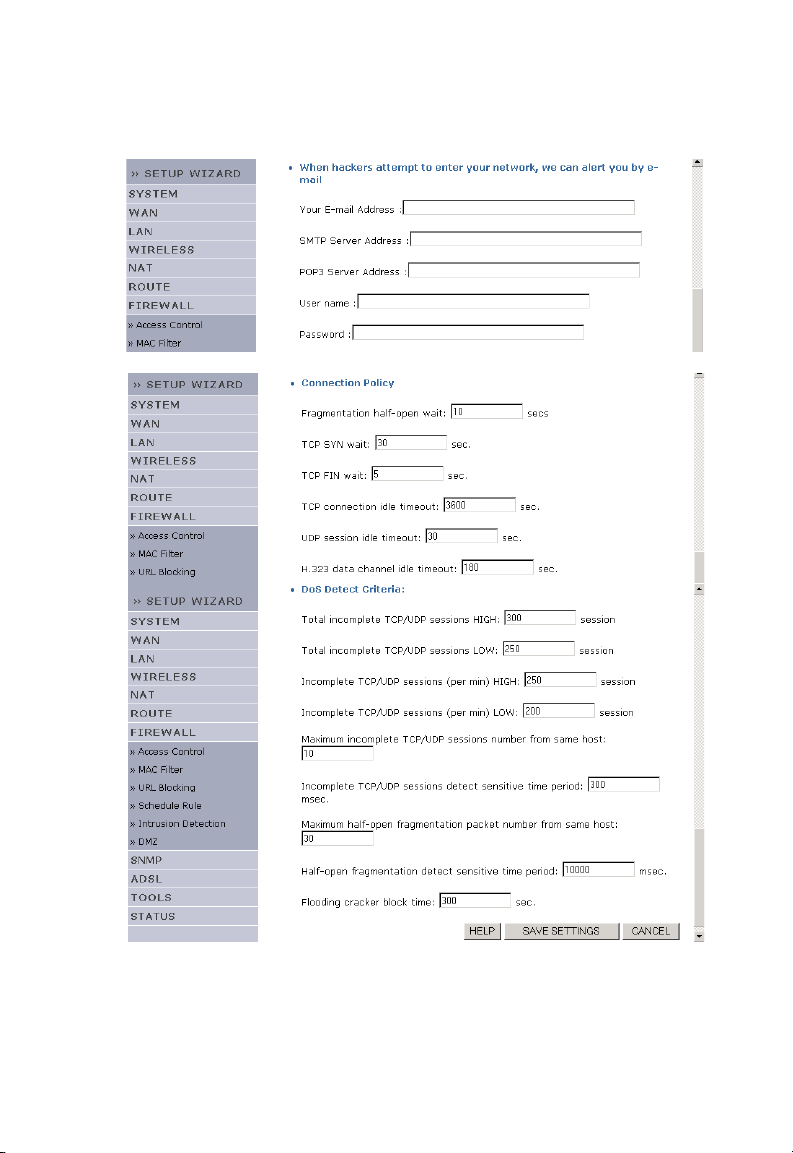

• When hackers attempt to enter your network, we can
alert you by e-mail
If the mail server needs to authenticate your identification before sending
out any e-mail, please fill related information in POP3 server, username
and password fields. Otherwise leave the three fields blank.
4-47
Page 86
C
ONFIGURING THE
ADSL R
OUTER
• Connection Policy
Enter the appropriate values for TCP/UDP sessions as described in the
following table.
Parameter Defaults Description
Fragmentation
half-open wait
TCP SYN wait 30 sec Defines how long the software will wait for a
TCP FIN wait 5 sec Specifies how long a TCP session will be
TCP connection
idle timeout
UDP session idle
timeout
H.323 data channel
idle timeout
10 sec Configures the number of seconds that a packet
state structure remains active. When the timeout
value expires, the router drops the unassembled
packet, freeing that structure for use by another
packet.
TCP session to synchronize before dropping the
session.
maintained after the firewall detects a FIN
packet.
3600 sec
(1 hour)
30 sec The length of time for which a UDP session will
180 sec The length of time for which an H.323 session
The length of time for which a TCP session will
be managed if there is no activity.
be managed if there is no activity.
will be managed if there is no activity.
4-48
Page 87
A
DVANCED SETUP
• DoS Criteria and Port Scan Criteria
Set up DoS and port scan criteria in the spaces provided (as shown below).
Parameter Defaults Description
Total incomplete
TCP/UDP sessions
HIGH
Total incomplete
TCP/UDP sessions
LOW
Incomplete
TCP/UDP sessions
(per min) HIGH
Incomplete
TCP/UDP sessions
(per min) LOW
Maximum incomplete
TCP/UDP sessions
number from same
host
Incomplete
TCP/UDP sessions
detect sensitive time
period
Maximum half-open
fragmentation packet
number from same
host
Half-open
fragmentation detect
sensitive time period
Flooding cracker
block time
300
sessions
250
sessions
250
sessions
200
sessions
10 Maximum number of incomplete TCP/UDP
300
msec
30 Maximum number of half-open fragmentation
10000
msec
300 sec Length of time from detecting a flood attack to
Defines the rate of new unestablished sessions
that will cause the software to start deleting
half-open sessions.
Defines the rate of new unestablished sessions
that will cause the software to stop deleting half-
open sessions.
Maximum number of allowed incomplete
TCP/UDP sessions per minute.
Minimum number of allowed incomplete
TCP/UDP sessions per minute.
sessions from the same host.
Length of time before an incomplete
TCP/UDP session is detected as incomplete.
packets from the same host.
Length of time before a half-open
fragmentation session is detected as half-open.
blocking the attack.
Note: The firewall does not significantly affect system performance, so
we advise enabling the prevention features to protect your
network.
4-49
Page 88
C
ONFIGURING THE
DMZ
If you have a client PC that cannot run an Internet application properly
from behind the firewall, you can open the client up to unrestricted
two-way Internet access. Enter the IP address of a DMZ (Demilitarized
Zone) host on this screen. Adding a client to the DMZ may expose your
local network to a variety of security risks, so only use this option as a last
resort.
ADSL R
OUTER
4-50
Page 89
A
DVANCED SETUP
SNMP
Use the SNMP configuration screen to display and modify parameters for
the Simple Network Management Protocol (SNMP).
Community
A computer attached to the network, called a Network Management
Station (NMS), can be used to access this information. Access rights to the
agent are controlled by community strings. To communicate with the
ADSL Router, the NMS must first submit a valid community string for
authentication.
Parameter Description
Community A community name authorized for management access.
Access Management access is restricted to Read Only (Read) or
Read/Write (Write).
Valid Enables/disables the entry.
Note: Up to five community names may be entered.
4-51
Page 90
C
ONFIGURING THE
ADSL R
OUTER
Trap
Specify the IP address of the NMS to notify when a significant event is
detected by the agent. When a trap condition occurs, the SNMP agent
sends an SNMP trap message to any NMS specified as a trap receiver.
Parameter Description
IP Address Traps are sent to this address when errors or specific events occur on
Community A community string (password) specified for trap management.
Version Sets the trap status to disabled, or enabled with V1 or V2c.
the network.
Enter a word, something other than public or private, to prevent
unauthorized individuals from accessing information on your system.
The v2c protocol was proposed in late 1995 and includes
enhancements to v1 that are universally accepted. These include a
get-bulk command to reduce network management traffic when
retrieving a sequence of MIB variables, and a more elaborate set of
error codes for improved reporting to a Network Management
Station.
4-52
Page 91
A
DVANCED SETUP
ADSL
ADSL (Asymmetric Digital Subscriber Line) is designed to deliver more
bandwidth downstream (from the central office to the customer site) than
upstream. This section is used to configure the ADSL operation type and
shows the ADSL status.
Parameters
Parameter Description
Operation Mode • Automatic
• T1.413 issue 2
•G.992.1
•G.992.2
This page is designed for the engineer to test the ADSL loop condition.
Therefore, it is advised that users should not change the settings here at all.
4-53
Page 92
C
ONFIGURING THE
ADSL R
OUTER

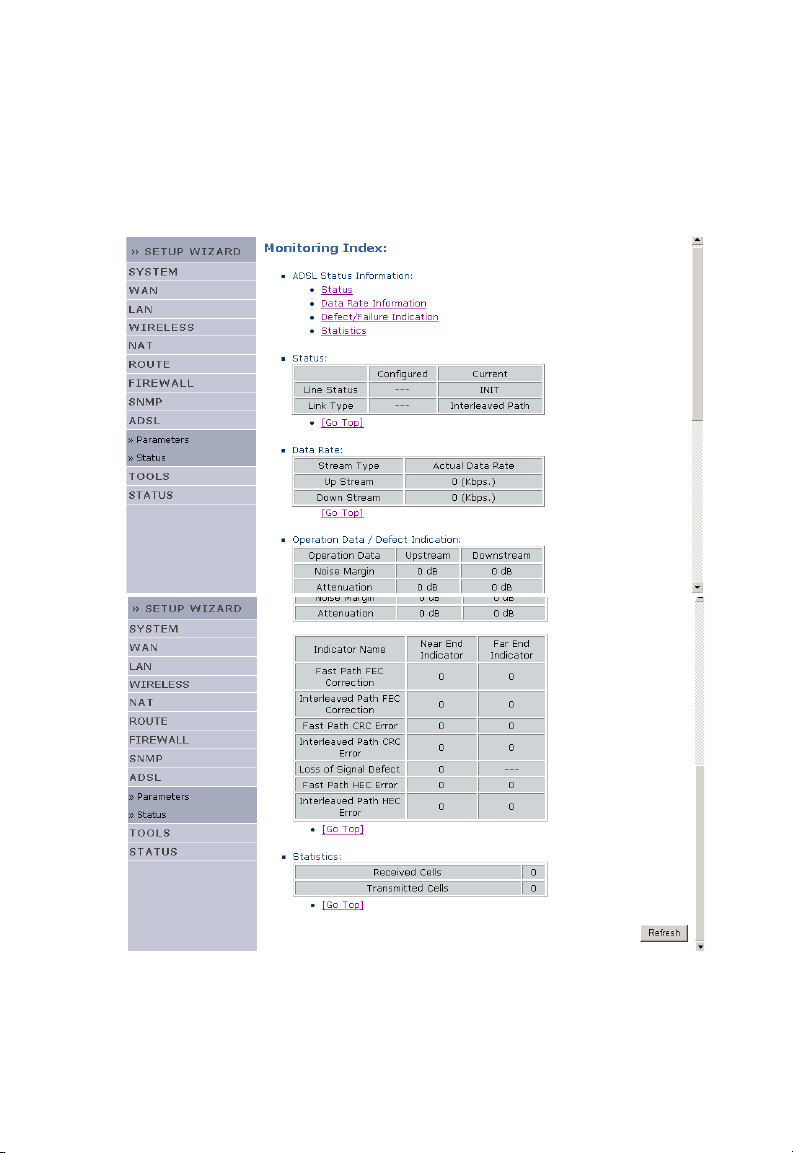

Status
The Status screen displays information on connection line status, data rate,
operation data and defect indication, and statistics.
4-54
Page 93
A
DVANCED SETUP
The following items are included on the ADSL status page:
Parameter Description
Status
Line Status Shows the current status of the ADSL line connection.
Link Type Two types of link: Fast path and Interleaved path.
Data Rate
Upstream Maximum upstream data rate.
Downstream Maximum downstream data rate.
Operation Data/Defect Indication
Noise Margin Maximum upstream and downstream noise margin.
Attenuation Maximum reduction in the strength of the upstream and
Fast Path FEC
Correction
Interleaved Path
FEC Correction
Fast Path CRC
Error
Interleaved Path
CRC Error
Loss of Signal
Defect
Fast Path HEC
Error
Interleaved Path
HEC Error
downstream signal.
There are two latency paths that may be used: fast and
interleaved. For either path, a forward error correction (FEC)
scheme is employed to ensure higher data integrity. For
maximum noise immunity, an interleaver may be used to
supplement FEC.
An interleaver is basically a buffer used to introduce a delay,
allowing for additional error correction techniques to handle
noise. Interleaving slows the data flow and may not be
optimal for real-time signals such as video transmission.
The number of Fast Path Cyclic Redundancy Check errors.
The number of Interleaved Path Cyclic Redundancy Check
errors.
Momentary signal discontinuities.
Fast Path Header Error Concealment errors.
Interleaved Path Header Error Concealment errors.
4-55
Page 94
C
ONFIGURING THE
Parameter Description
Statistics (Superframes represent the highest level of data presentation.
Received cells Number of cells received.
Transmitted cells Number of cells transmitted.
ADSL R
OUTER
Each superframe contains regular ADSL frames, one of
which is used to provide superframe synchronization,
identifying the start of a superframe. Some of the remaining
frames are also used for special functions.)
4-56
Page 95
A
DVANCED SETUP
Tools
Use the Tools menu to backup the current configuration, restore a
previously saved configuration, restore factory settings, update firmware,
and reset the

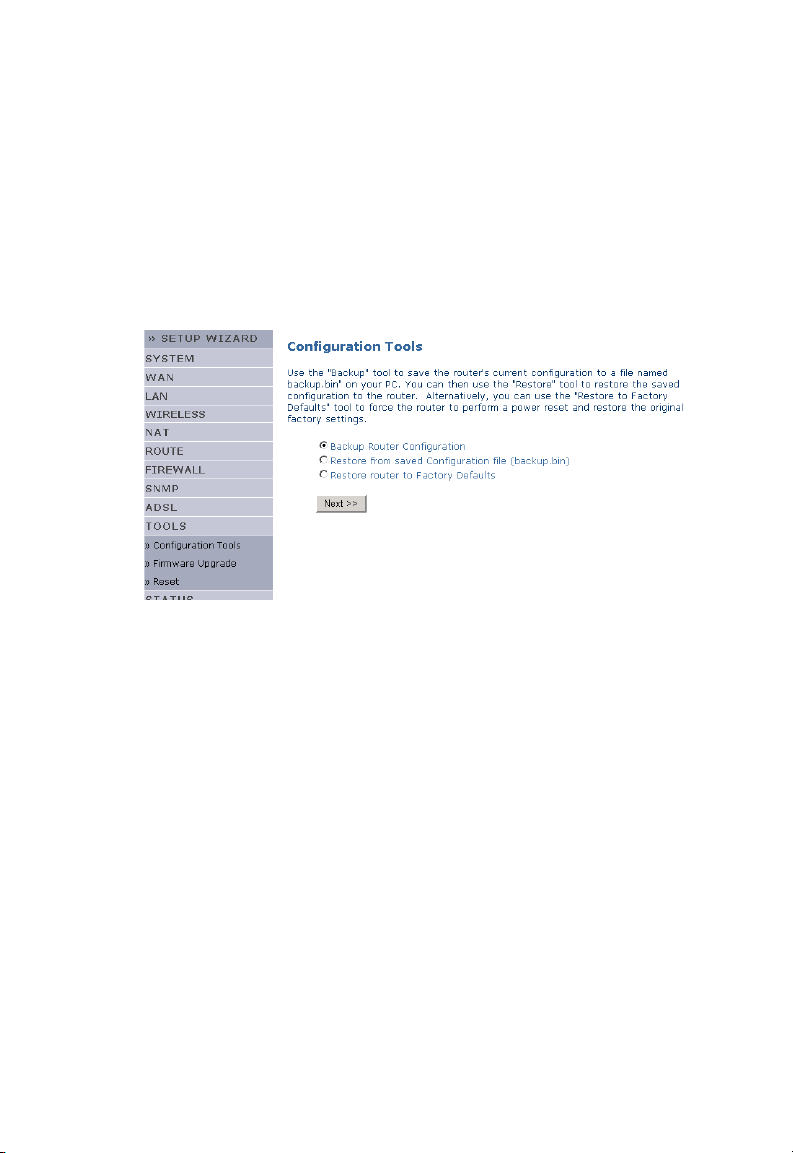

Configuration Tools
Choose a function and click Next.
ADSL Router.
Backup allows you to save the
Restore can be used to restore the saved backup configuration file. Restore
to Factory Defaults resets the
You will be asked to confirm your decision.
ADSL Router’s configuration to a file.
ADSL Router to the original settings.
4-57
Page 96
C
ONFIGURING THE
Firmware Upgrade
Use the Firmware Upgrade screen to update the firmware or user interface
to the latest versions. Download the upgrade file, and save it to your hard
drive. Then click “Browse...” to look for the downloaded file. Click
“BEGIN UPGRADE”. Check the Status page Information section to
confirm that the upgrade process was successful.
Reset
Click “REBOOT ROUTER” to reset the
If you perform a reset from this page, the configurations will not be
changed back to the factory default settings.
ADSL R
OUTER
ADSL Router.
Note: If you use the Reset button on the rear panel, the
performs a power reset. Press the button for over five seconds,
and the factory default settings will be restored.
4-58
ADSL Router
Page 97
A
DVANCED SETUP
Status
The Status page displays WAN/LAN connection status, firmware, and
hardware version numbers, illegal attempts to access your network, as well
as information on DHCP clients connected to your network. The security
log may be saved to a file by clicking “Save” and choosing a location.
The following items are included on the Status page:
Item Description
INTERNET Displays WAN connection type and status. Click the
GATEWAY Displays system IP settings, as well as DHCP Server and
INFORMATION Displays the number of attached clients, the firmware
Security Log Displays illegal attempts to access your network.
Save Click on this button to save the security log file.
Clear Click on this button to delete the access log.
Refresh Click on this button to refresh the screen.
DHCP Client Log Displays information on DHCP clients on your network.
Connect button to connect to your ISP.
Firewall status.
versions, the physical MAC address for each media interface,
and for the ADSL Router, as well as the hardware version
and serial number.
4-59
Page 98
C
ONFIGURING THE
ADSL R
OUTER
Finding the MAC address of a Network Card
Windows 98/ME
Click Start/Run. Type “winipcfg” and press “ENTER”.
The MAC address is in the “Adapter Address” section.
Windows NT4/2000/XP
Click Start/Programs/Command Prompt. Type “ipconfig /all” and press
“ENTER”.
The MAC address is listed as the “Physical Address.”
Macintosh
Click System Preferences/Network.
The MAC address is listed as the “Ethernet Address” on the TCP/IP tab.
Linux
Run the command “/sbin/ifconfig.”
The MAC address is the value after the word “HWaddr.”
4-60
Page 99
A
PPENDIX
T
ROUBLESHOOTING
This section describes common problems you may encounter and possible
solutions to them. The ADSL Router can be easily monitored through
panel indicators to identify problems.
Troubleshooting Chart
Symptom Action
LED Indicators
A
Power LED is
Off
• Check connections between the ADSL Router,
the external power supply, and the wall outlet.
• If the power indicator does not turn on when the
power cord is plugged in, you may have a
problem with the power outlet, power cord, or
external power supply. However, if the unit
powers off after running for a while, check for
loose power connections, power losses, or
surges at the power outlet.
If you still cannot isolate the problem, then the
external power supply may be defective. In this
case, contact Technical Support for assistance.
A-1
Page 100
T
ROUBLESHOOTING
Troubleshooting Chart
Symptom Action
LED Indicators
Link LED is Off • Verify that the ADSL Router and attached device are
Network Connection Problems
Cannot ping the
ADSL Router
from the
attached LAN
powered on.
• Be sure the cable is plugged into both the ADSL
Router and the corresponding device.
• Verify that the proper cable type is used and that its
length does not exceed the specified limits.
• Be sure that the network interface on the attached
device is configured for the proper communication
speed and duplex mode.
• Check the adapter on the attached device and cable
connections for possible defects. Replace any
defective adapter or cable if necessary.
• Verify that the IP addresses are properly configured.
For most applications, you should use the ADSL
Router’s DHCP function to dynamically assign IP
addresses to hosts on the attached LAN. However, if
you manually configure IP addresses on the LAN,
verify that the same network address (network
component of the IP address) and subnet mask are
used for both the ADSL Router and any attached
LAN devices.
• Be sure the device you want to ping (or from which
you are pinging) has been configured for TCP/IP.
A-2
Loading...
