ADSL Barricade

4-Port ADSL Router with Built-in Annex A ADSL Modem User Guide

February 2004

Page 3

ABLE OF

ONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Using this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Notational conventions . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Typographical conventions . . . . . . . . . . . . . . . . . . . . . . . .3

Special messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting to Know the ADSL Barricade . . . . . . . . . . 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Step 1. Connect the ADSL cable . . . . . . . . . . . . . . . . . . .8

Step 2. Connect the Ethernet cable . . . . . . . . . . . . . . . . .9

Step 3. Attach the power connector . . . . . . . . . . . . . . . . .9

Step 4. Power up your systems . . . . . . . . . . . . . . . . . . . .9

Configuring Your Computers . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Windows 95, 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Assigning static Internet Information to your PCs . . . . . .16

Configuring the ADSL Barricade . . . . . . . . . . . . . . . . . . . . . . .17

Logging into the ADSL Barricade –

Quick Configuration Page . . . . . . . . . . . . . . . . . . . . . . . .17

Default Router Settings . . . . . . . . . . . . . . . . . . . . . . . . . .20

Page 4

Table of Contents

Getting Started with the Configuration Manager 23

Accessing the Configuration Manager . . . . . . . . . . . . . . . . . . . 23

Functional Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Commonly used buttons . . . . . . . . . . . . . . . . . . . . . . . . 25

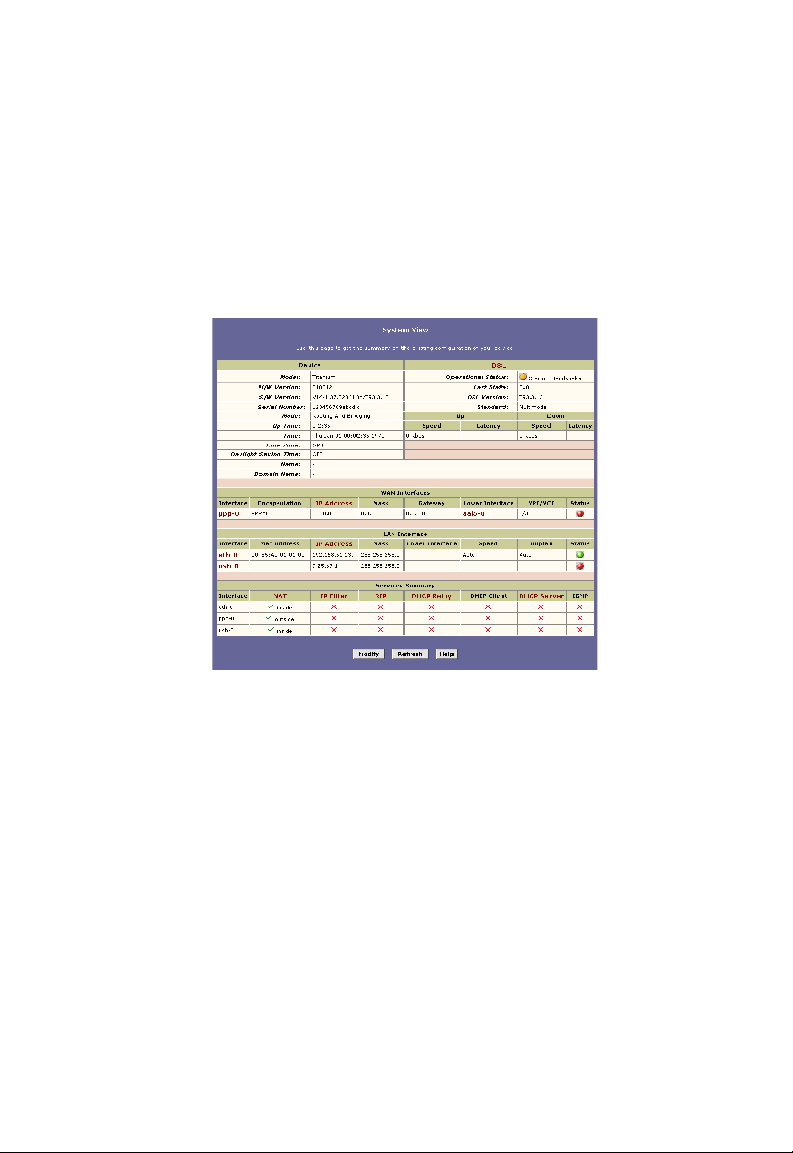

The Home Page and System View Table . . . . . . . . . . . . . . . . 26

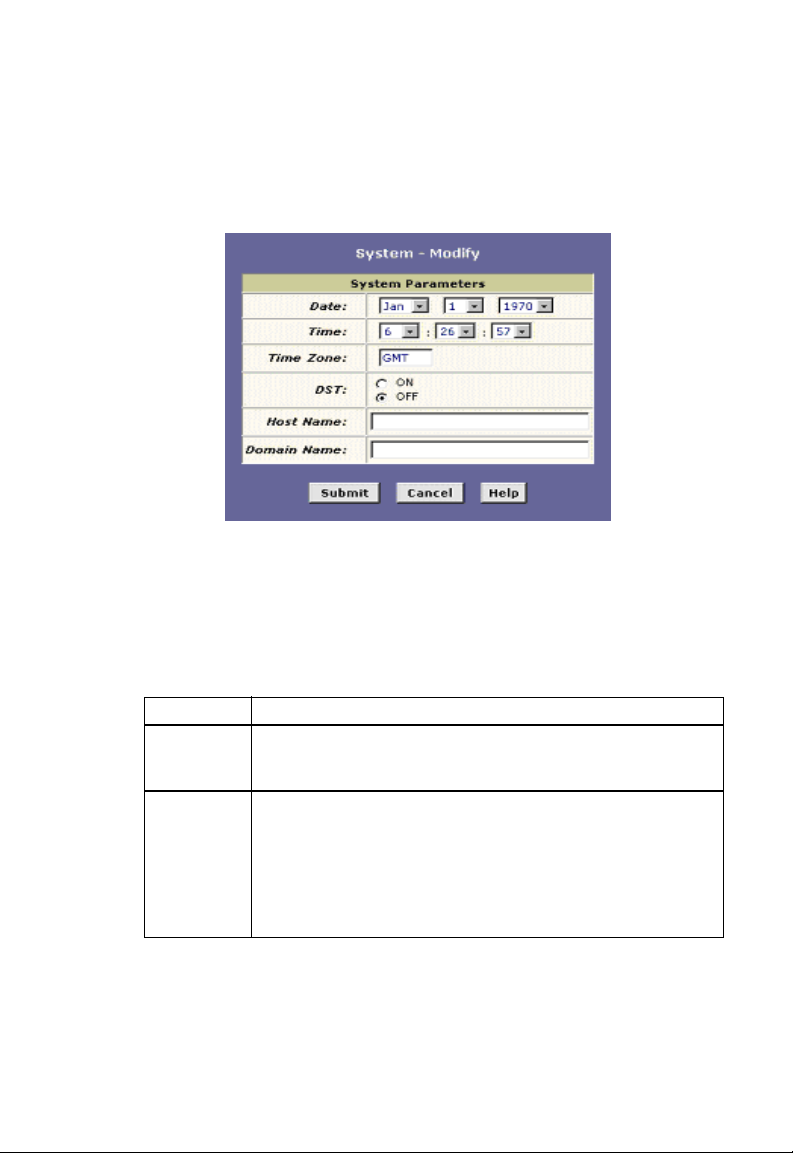

Modifying Basic System Information . . . . . . . . . . . . . . . . . . . . 28

Committing Changes and Rebooting . . . . . . . . . . . . . . . . . . . . 30

Committing your changes . . . . . . . . . . . . . . . . . . . . . . . 30

Rebooting the device using Configuration Manager . . . 31

Configuring the LAN Ports . . . . . . . . . . . . . . . . . .33

Connecting via Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

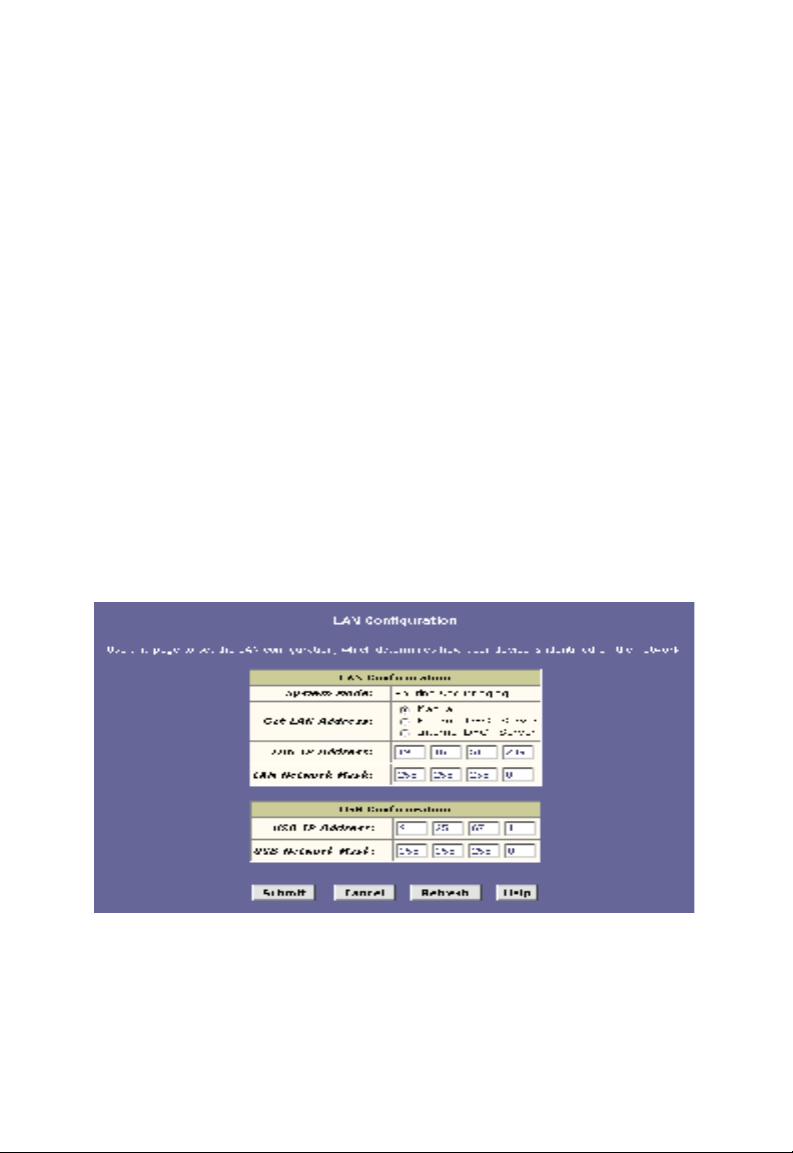

Configuring the LAN Port IP Address . . . . . . . . . . . . . . . . . . . 33

Viewing System IP Addresses

and IP Performance Statistics . . . . . . . . . . . . . . .39

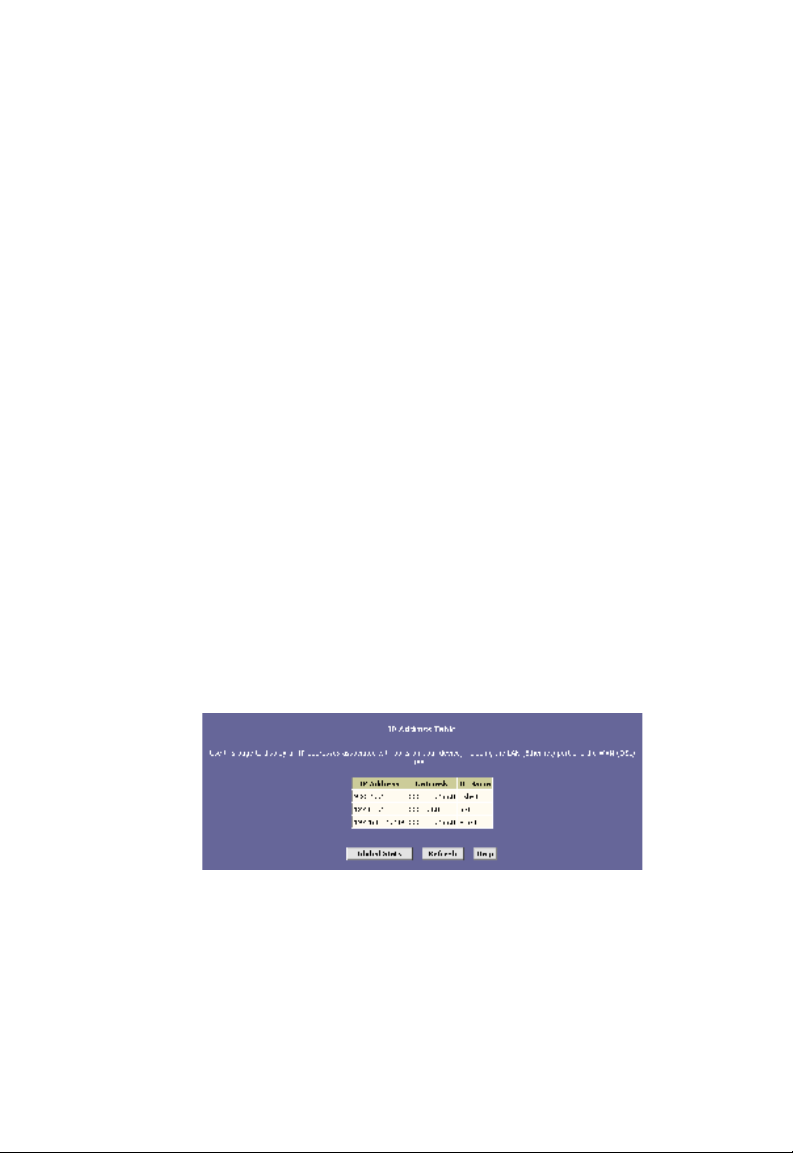

Viewing the ADSL Barricade's IP Addresses . . . . . . . . . . . . . . 39

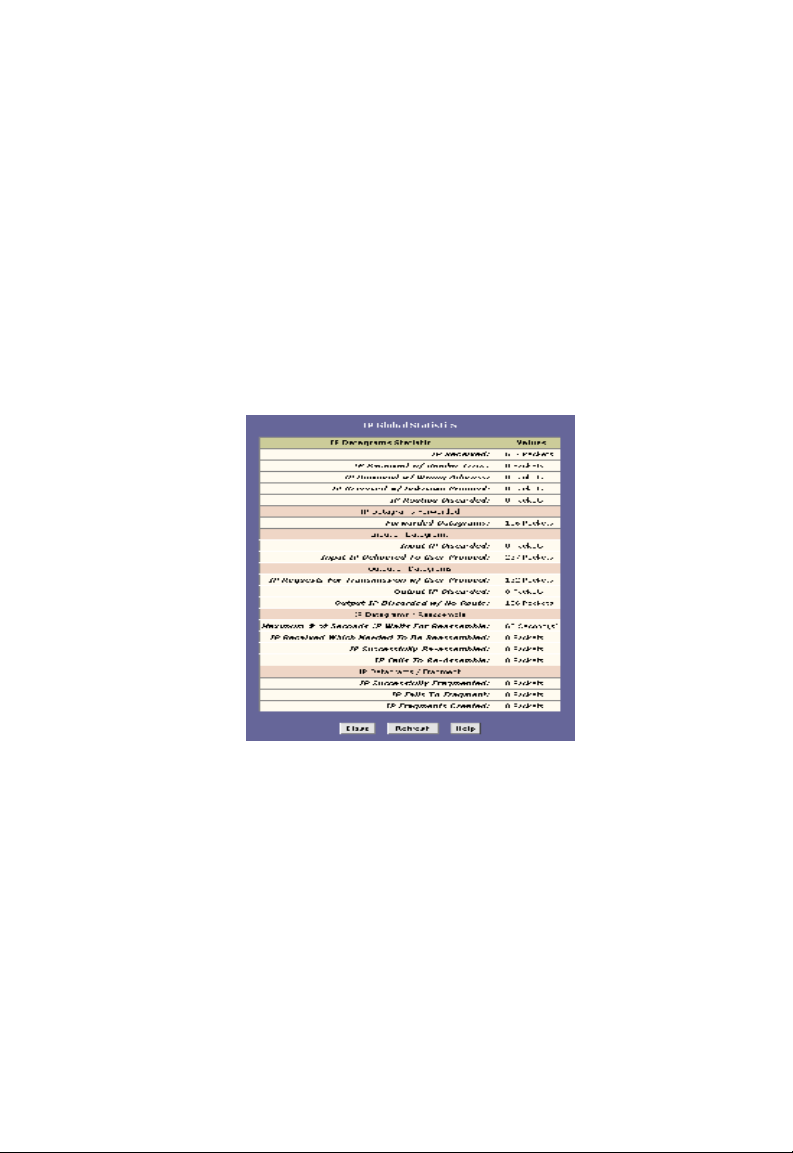

Viewing IP Performance Statistics . . . . . . . . . . . . . . . . . . . . . . 41

Configuring Dynamic Host Configuration

Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Overview of DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

What is DHCP? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Why use DHCP? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

ADSL Barricade DHCP modes . . . . . . . . . . . . . . . . . . . 44

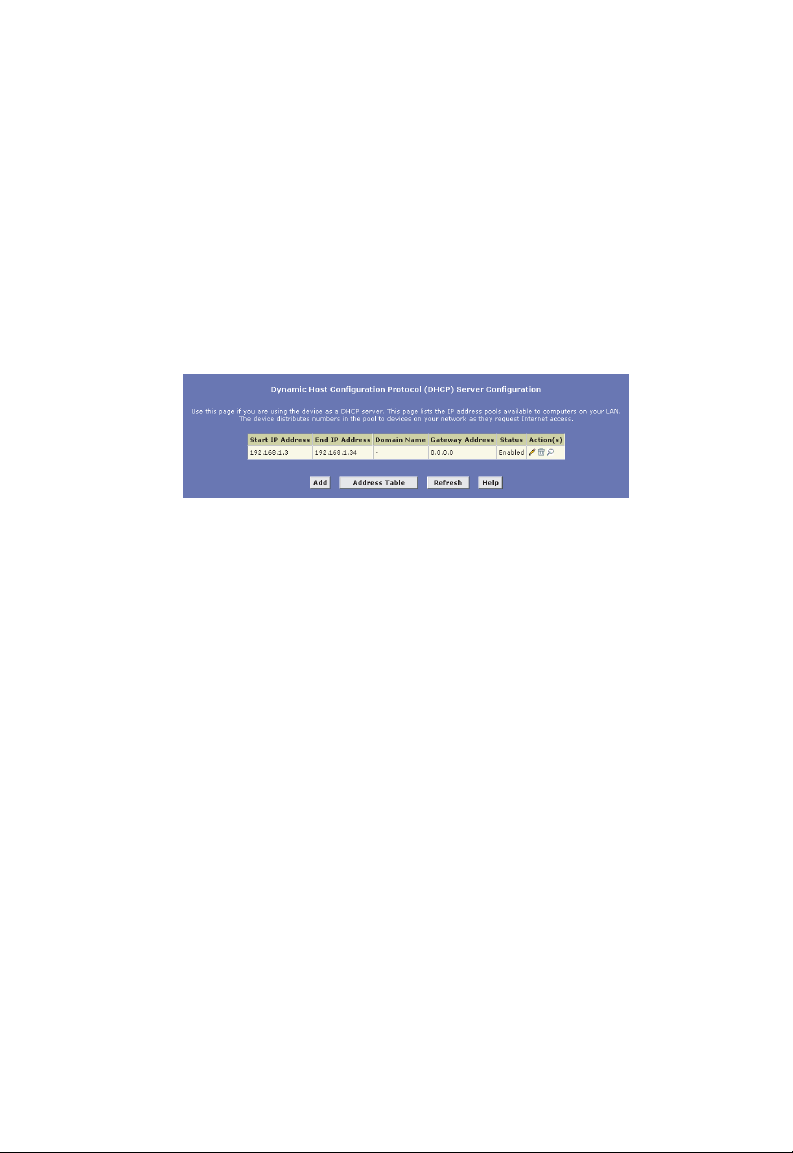

Configuring DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Guidelines for creating DHCP server address pools . . . 45

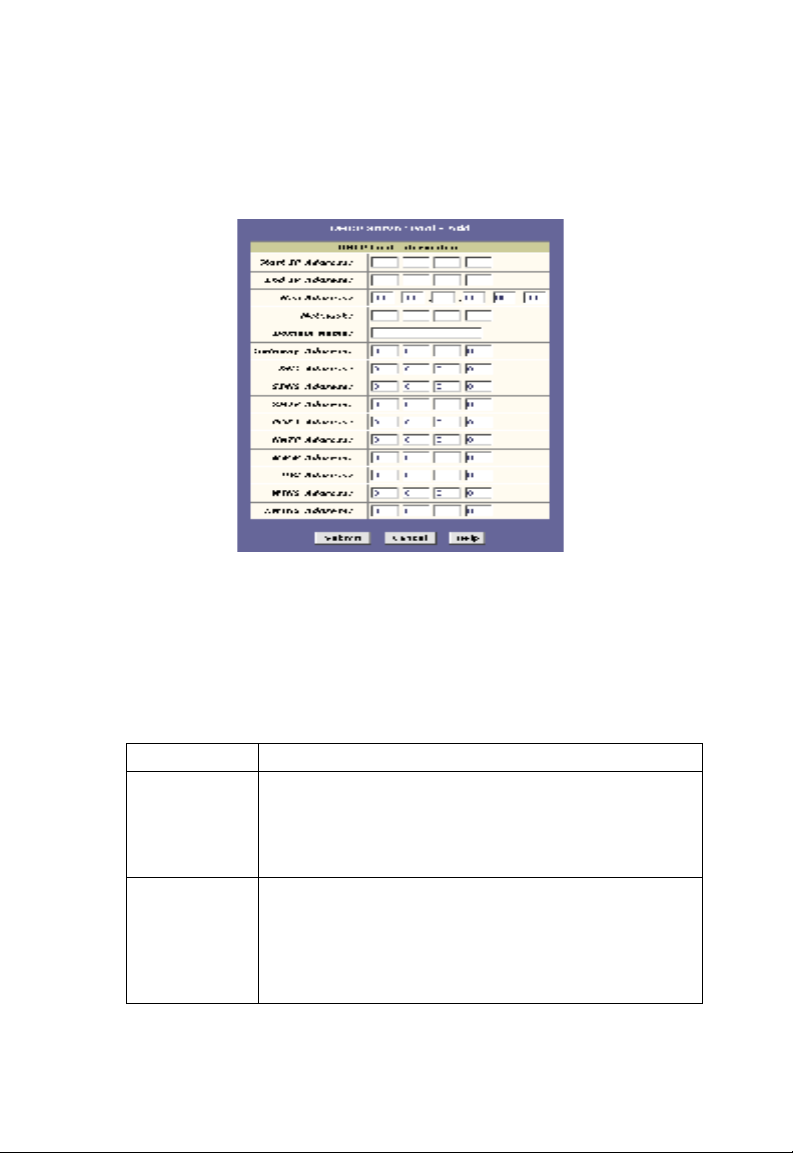

Adding DHCP Server Address Pools . . . . . . . . . . . . . . . 47

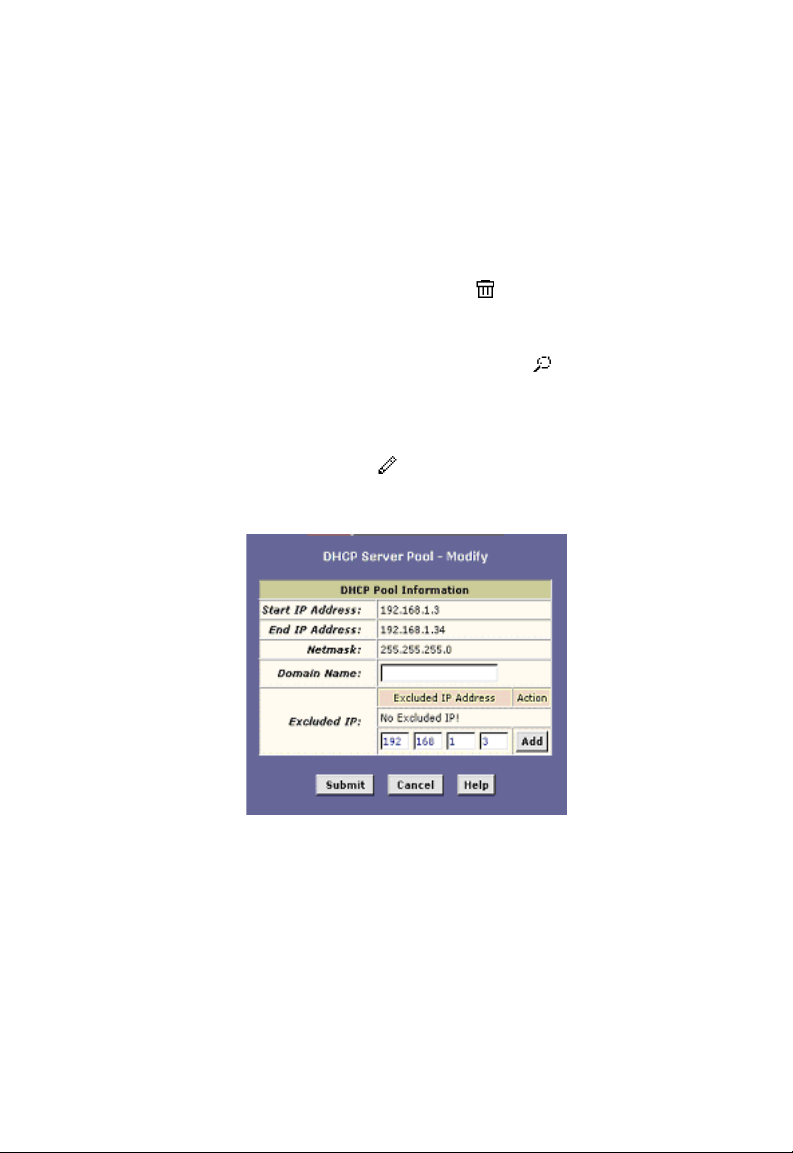

Viewing, modifying, and deleting address pools . . . . . . 50

Excluding IP addresses from a pool . . . . . . . . . . . . . . . . 51

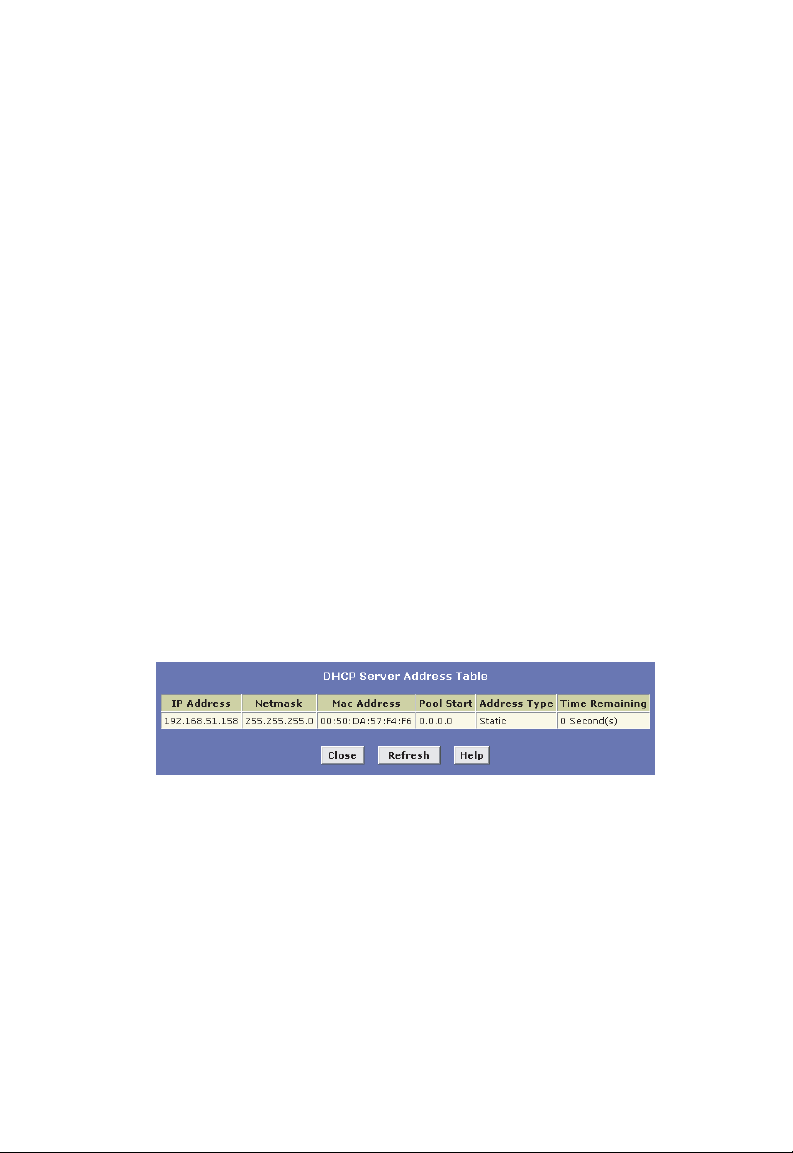

Viewing current DHCP address assignments . . . . . . . . 51

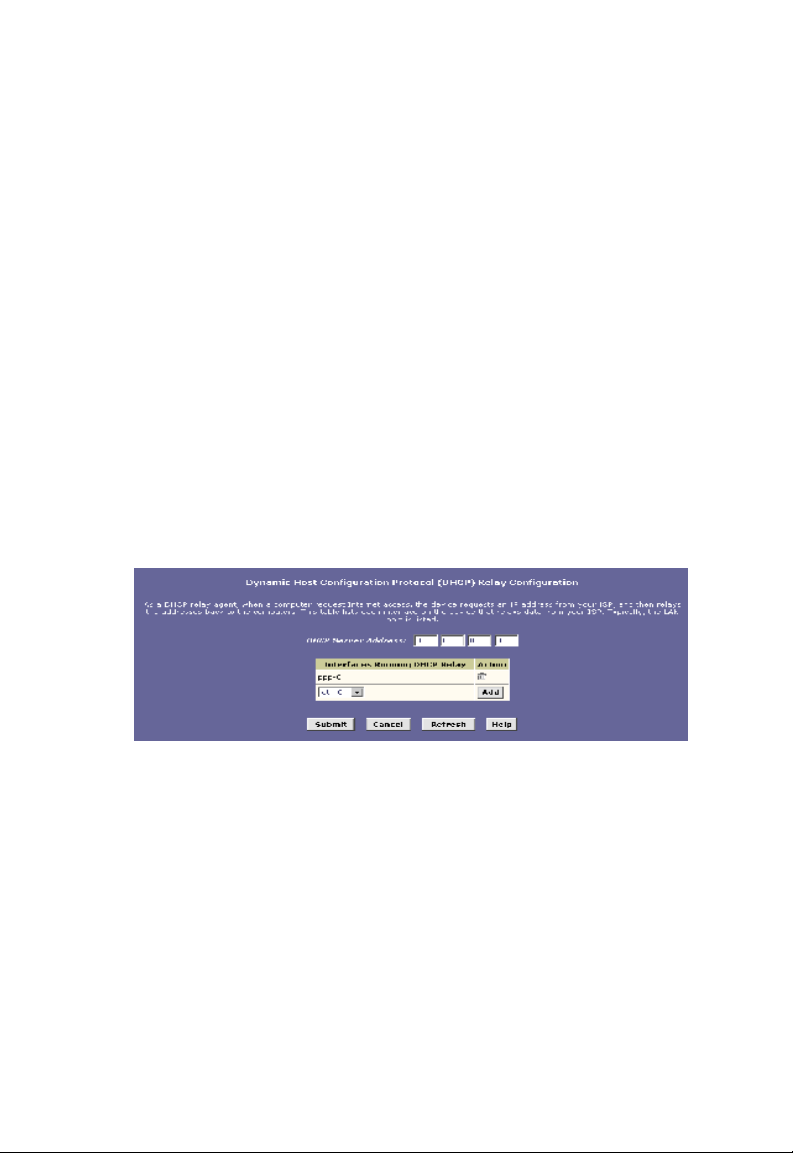

Configuring DHCP Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

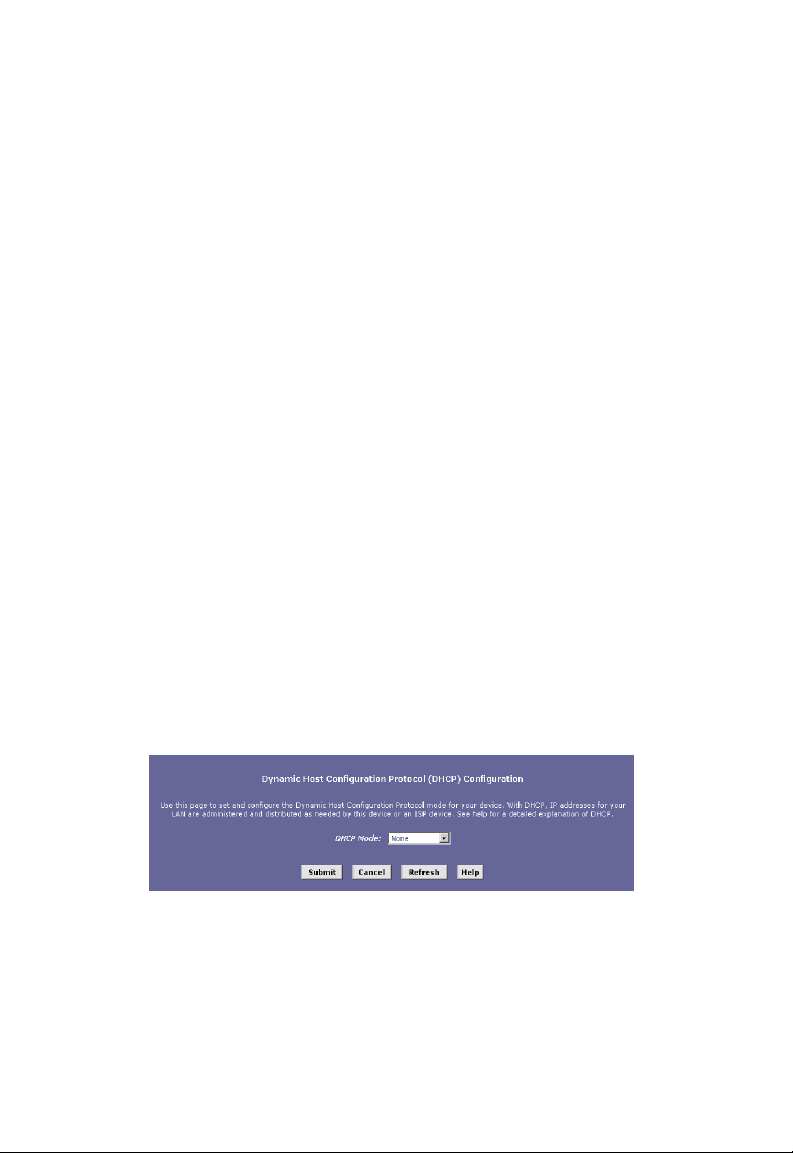

Setting the DHCP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Configuring Network Address Translation . . . . .57

Overview of NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Page 5

Table of Contents

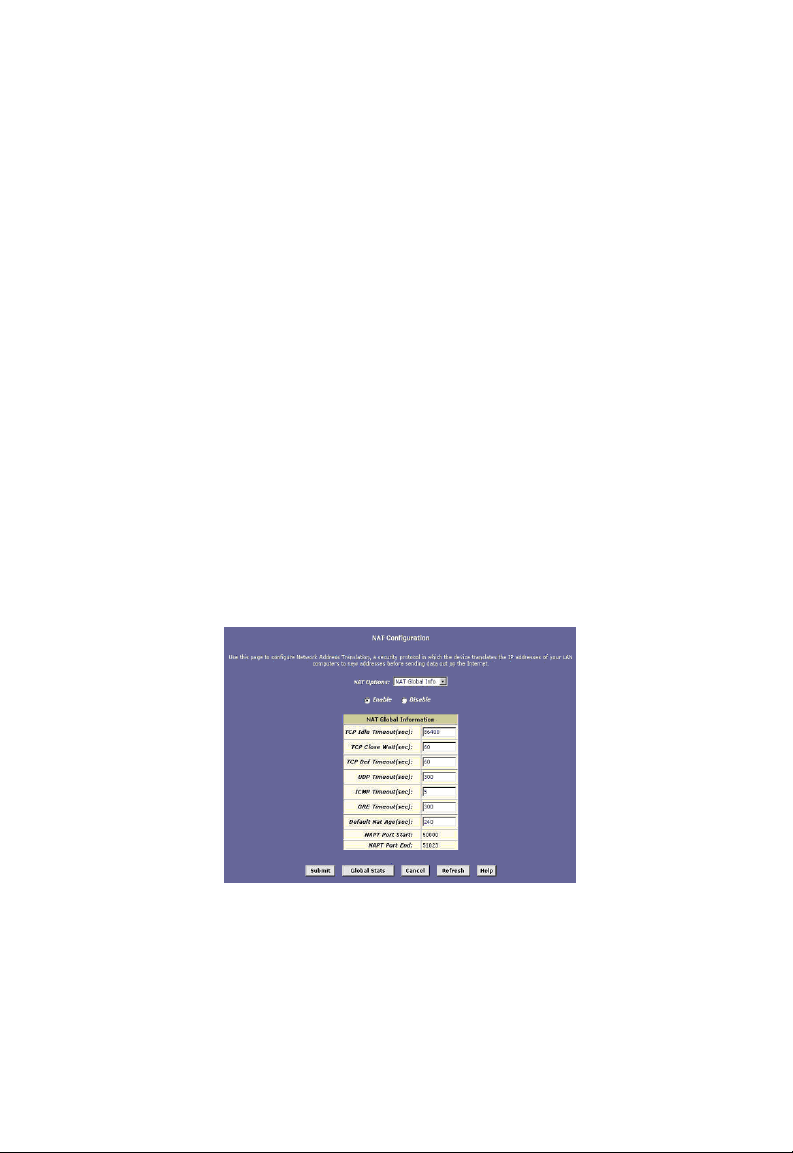

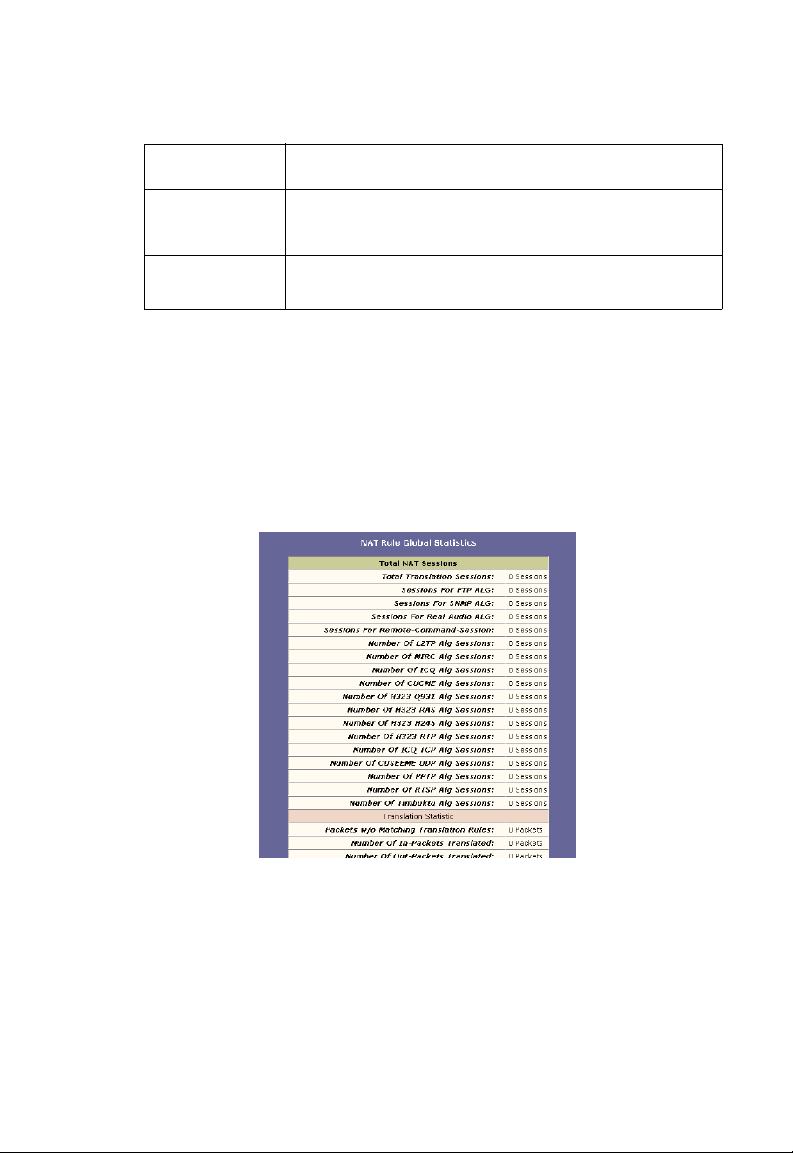

Viewing NAT Global Settings

and Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

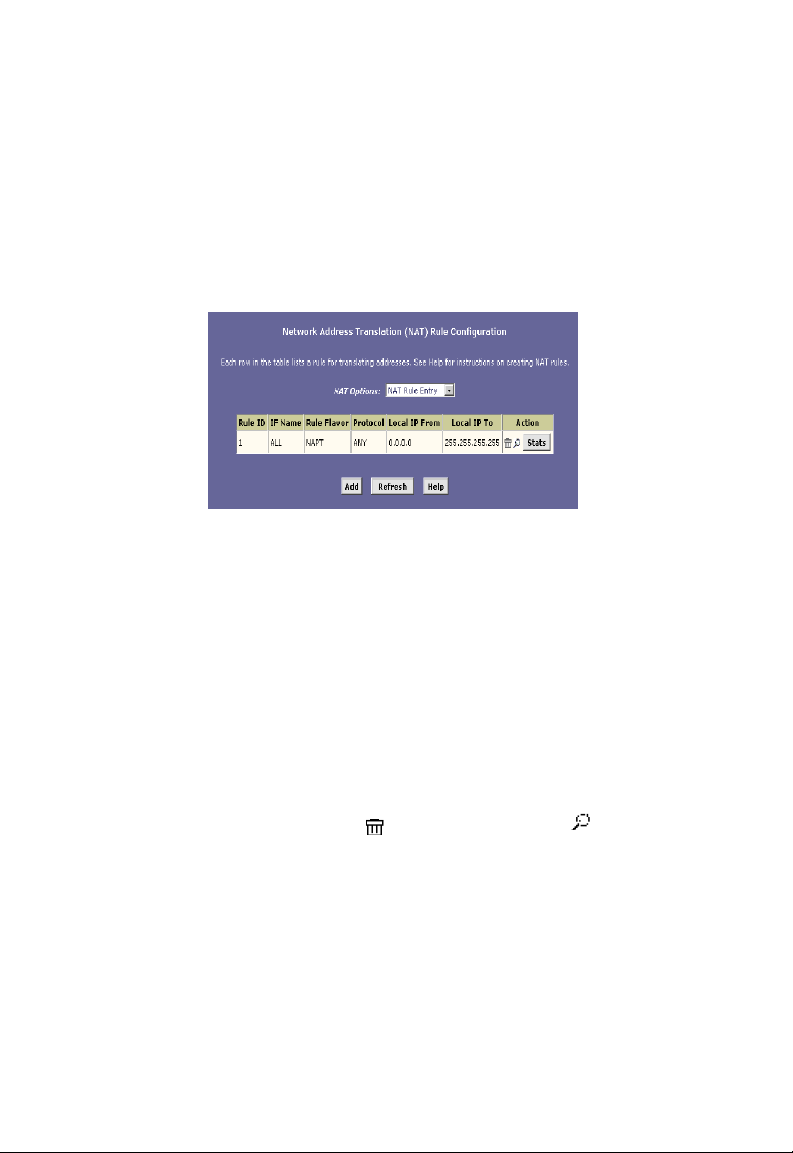

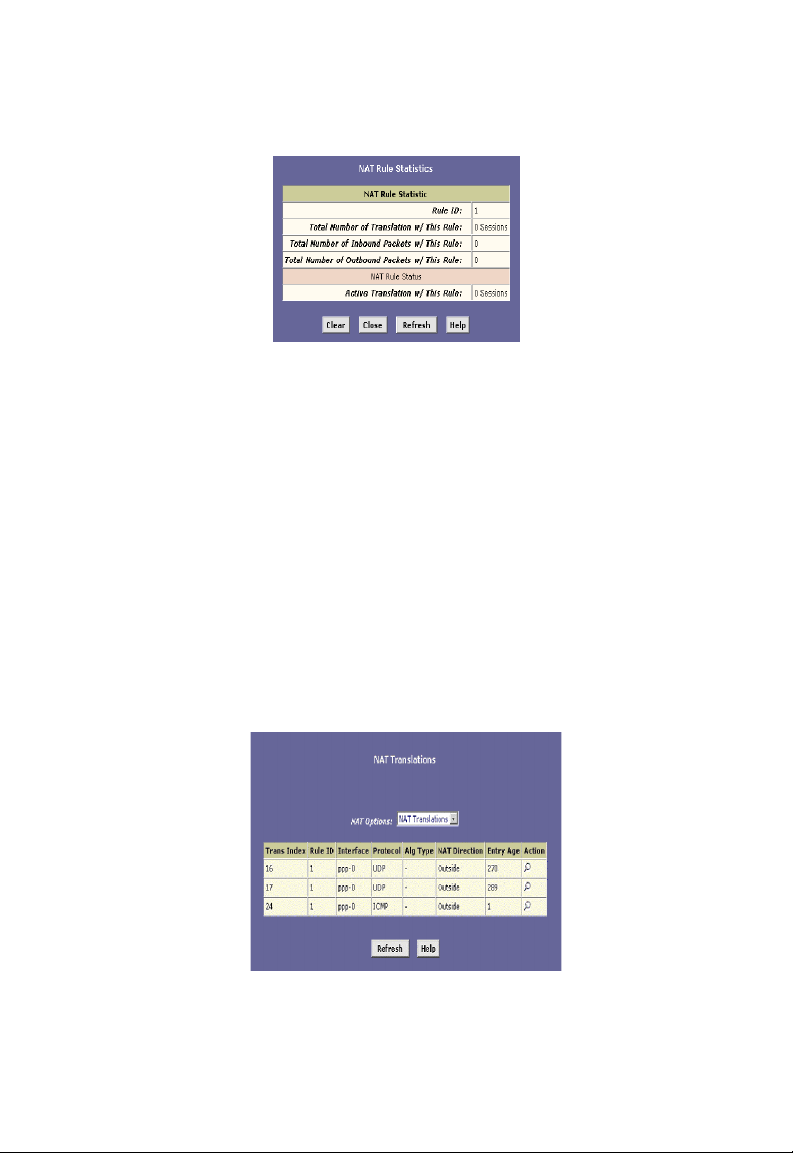

Viewing NAT Rules and Rule Statistics . . . . . . . . . . . . . . . . . .62

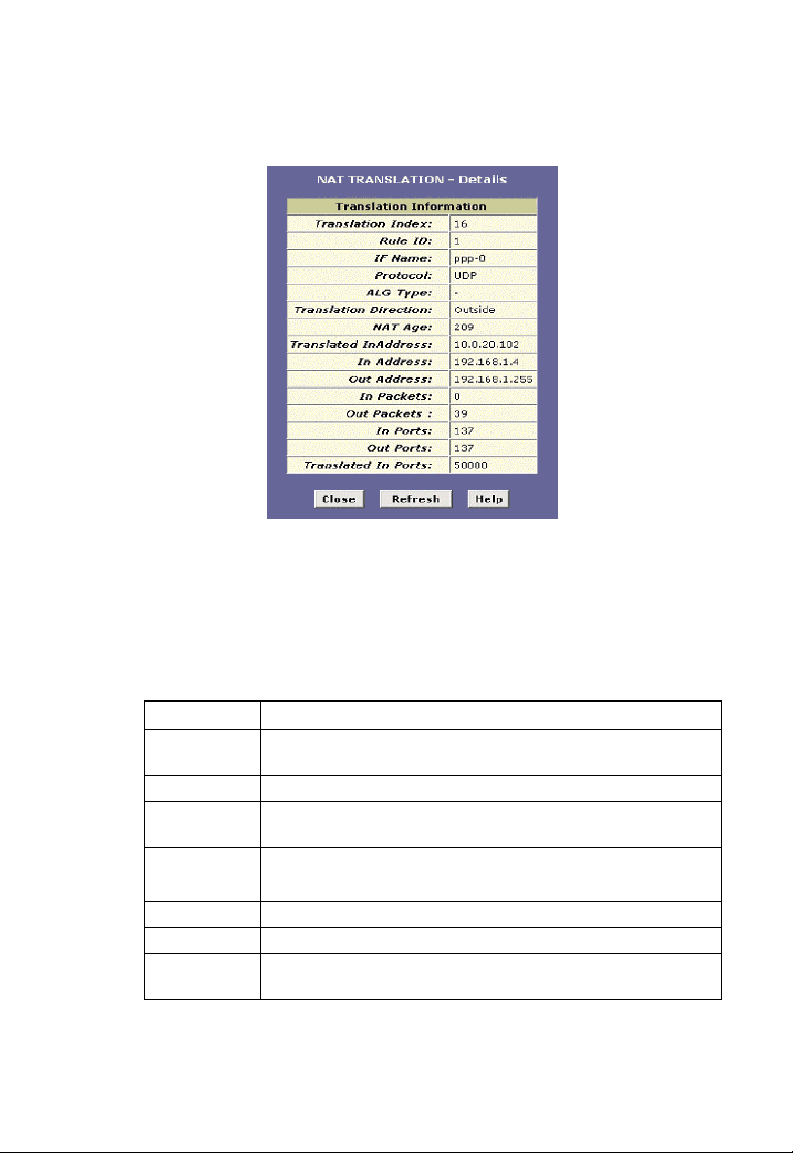

Viewing Current NAT Translations . . . . . . . . . . . . . . . . . . . . . . 63

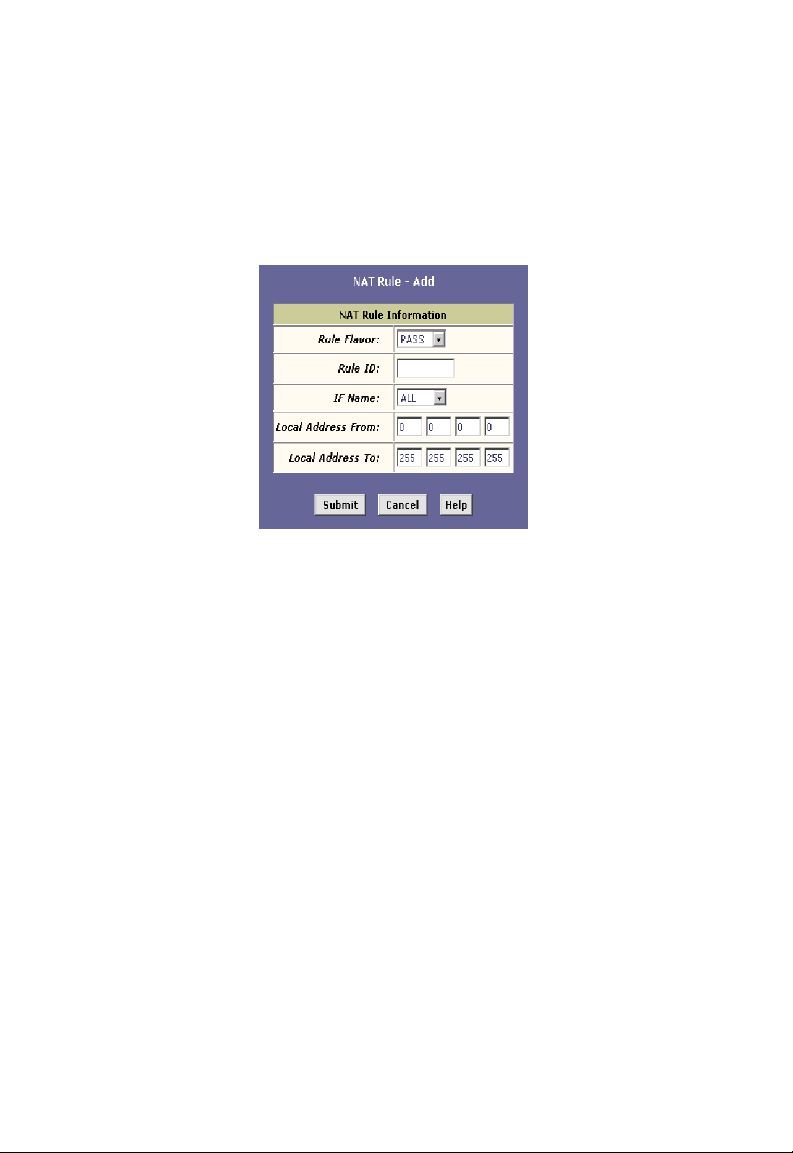

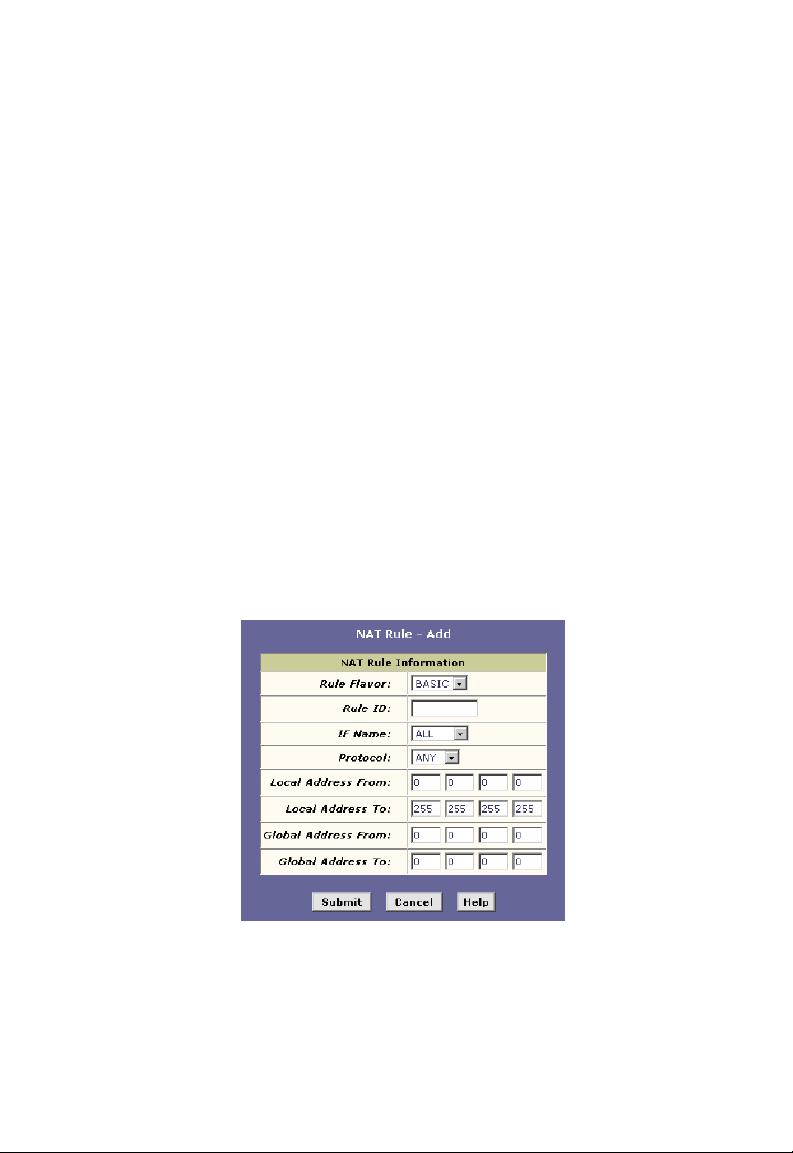

Adding NAT Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

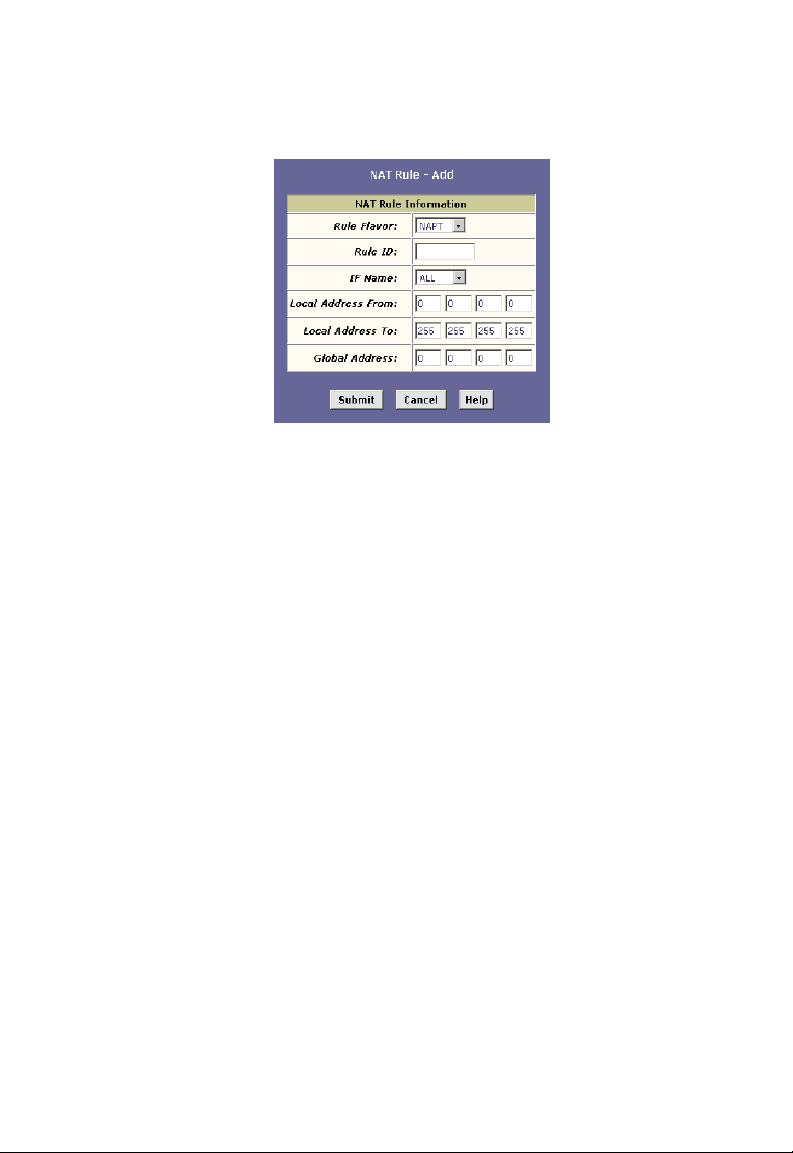

The NAPT rule: Translating between private

and public IP addresses . . . . . . . . . . . . . . . . . . . . . . . . .66

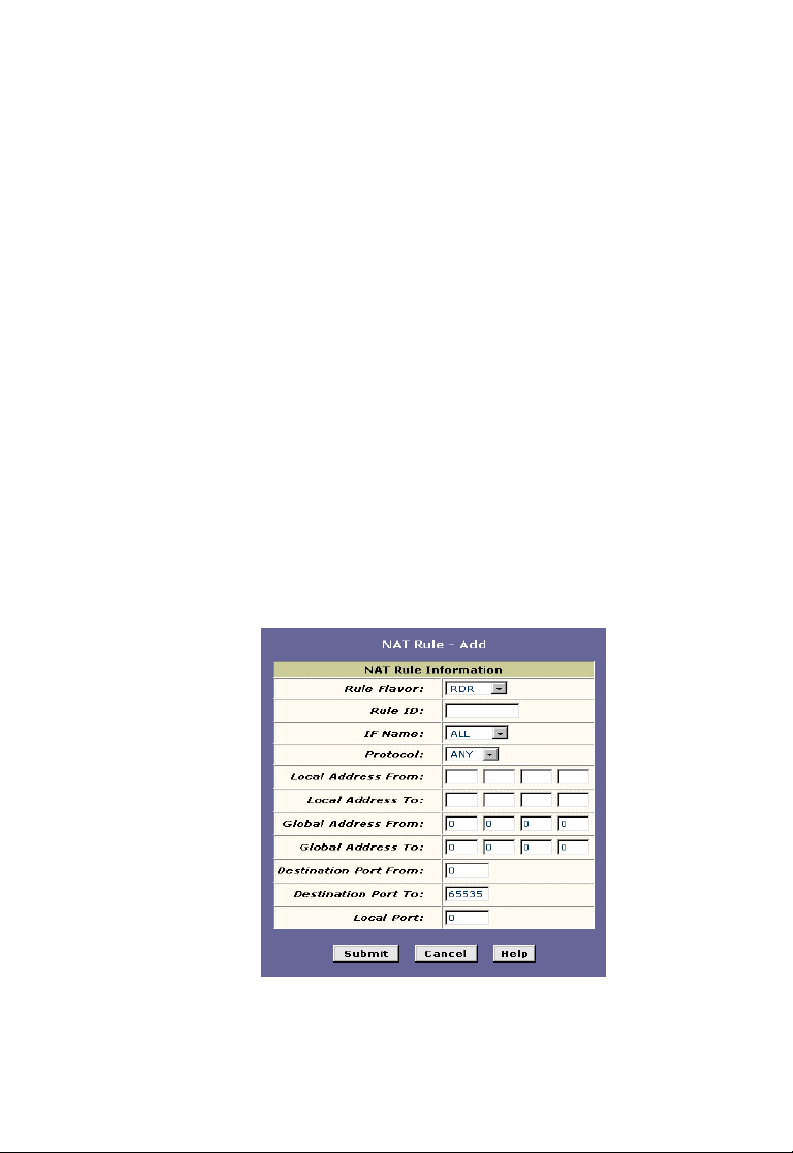

The RDR rule: Allowing external access

to a LAN computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

The Basic rule: Performing 1:1 translations . . . . . . . . . .72

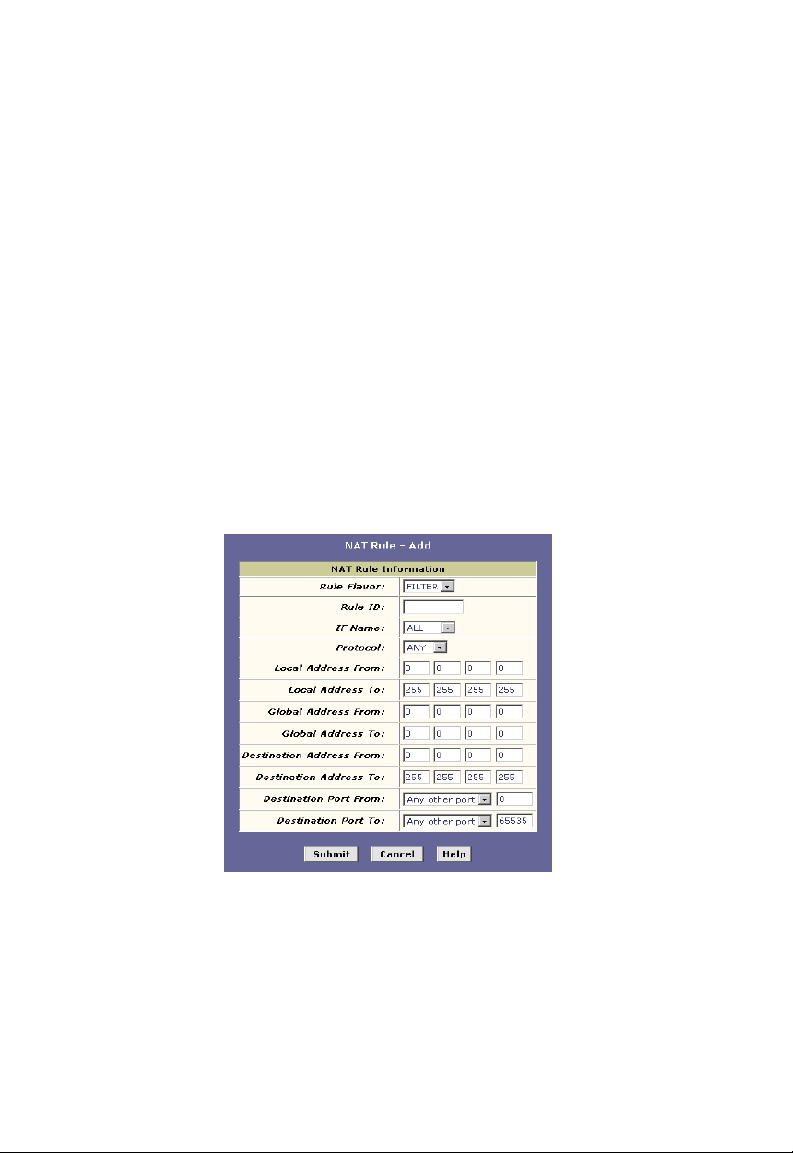

The Filter rule: Configuring a BASIC rule

with additional criteria . . . . . . . . . . . . . . . . . . . . . . . . . . .74

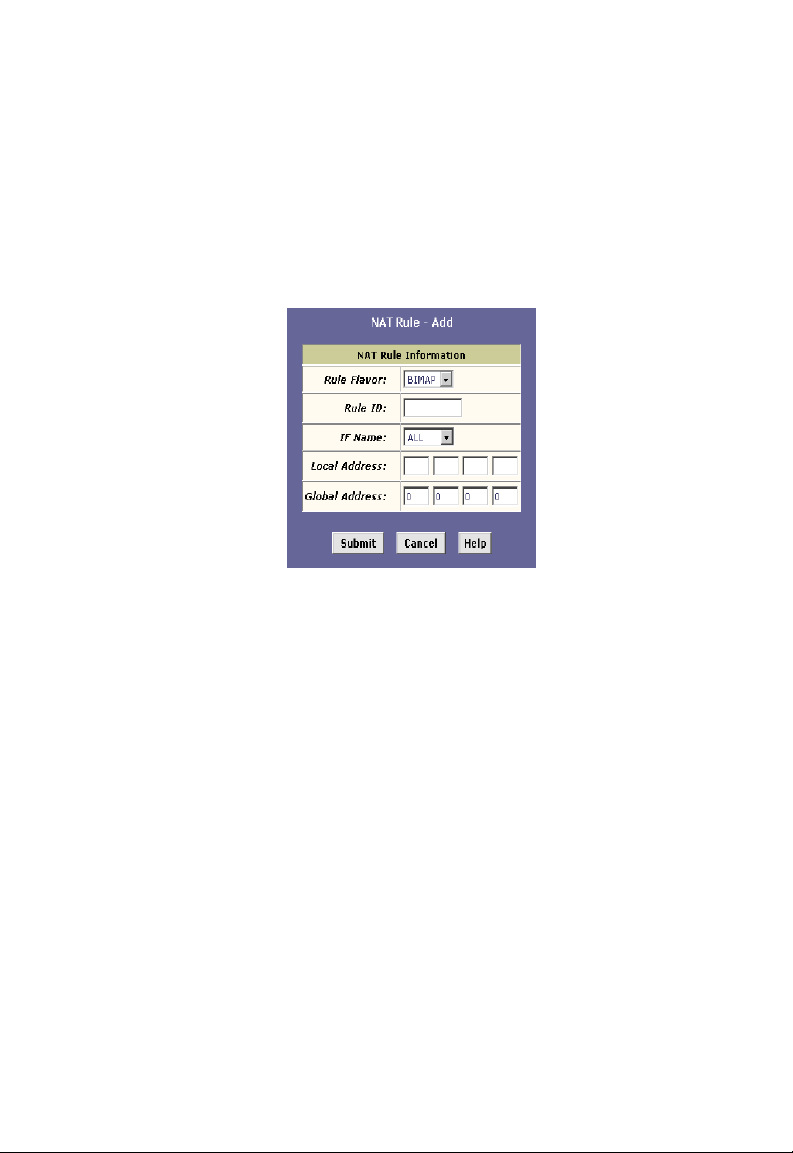

The Bimap rule: Performing two-way translations . . . . .76

The Pass rule: Allowing specific addresses

to pass through untranslated . . . . . . . . . . . . . . . . . . . . .78

Configuring DNS Server Addresses . . . . . . . . . . 81

About DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Assigning DNS Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

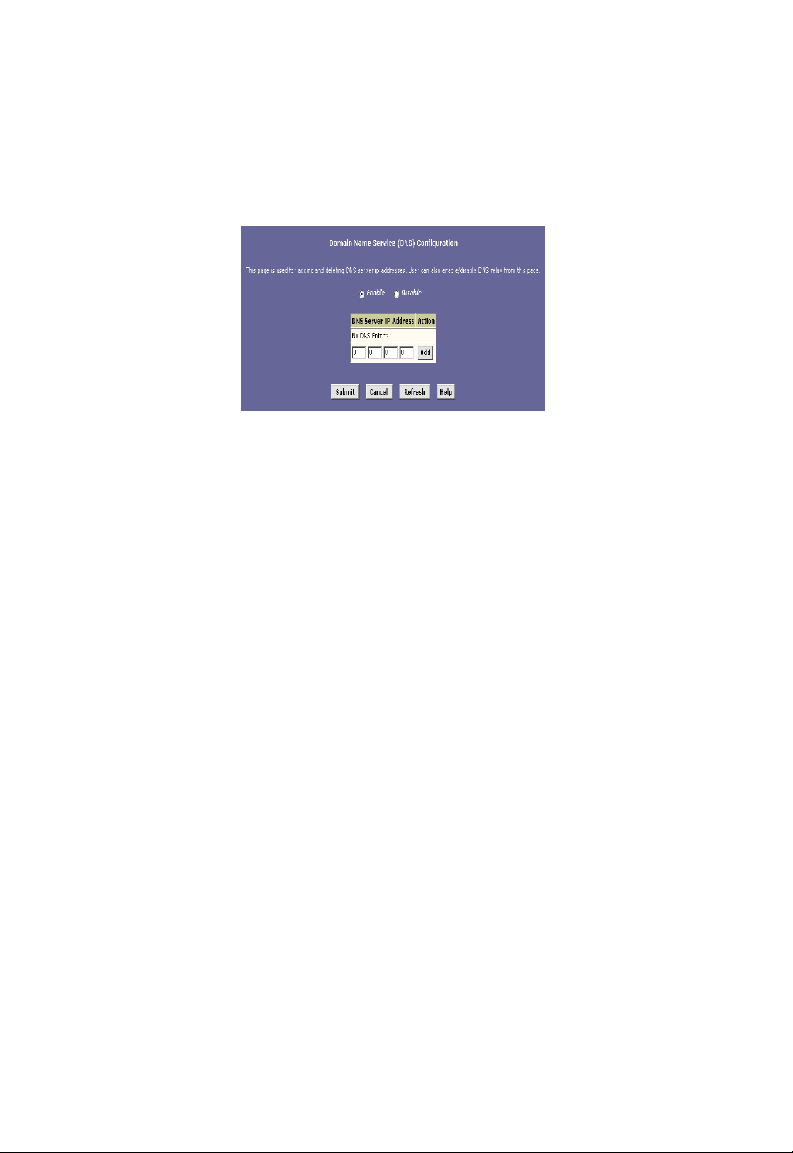

Configuring DNS Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Configuring IP Routes . . . . . . . . . . . . . . . . . . . . . 85

Overview of IP Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

IP routing versus telephone switching . . . . . . . . . . . . . .85

Hops and gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Using IP routes to define default gateways . . . . . . . . . .87

Do I need to define IP routes? . . . . . . . . . . . . . . . . . . . .87

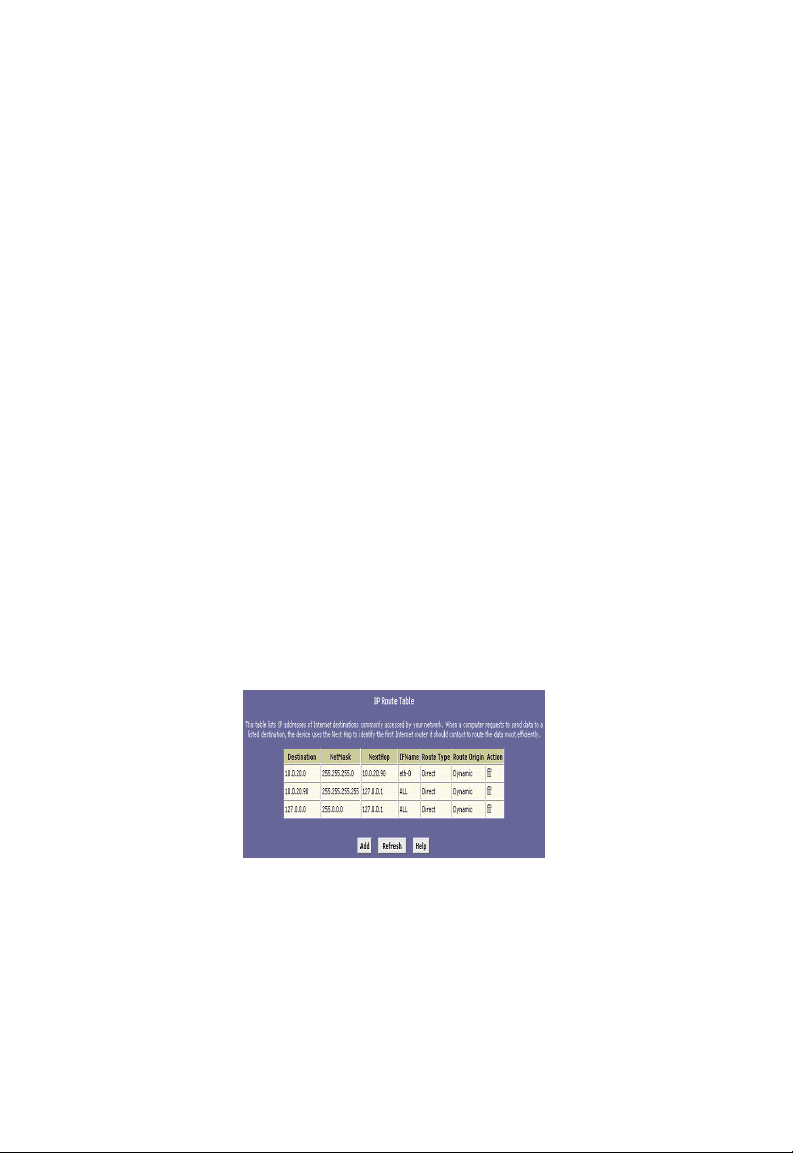

Viewing the IP Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . 88

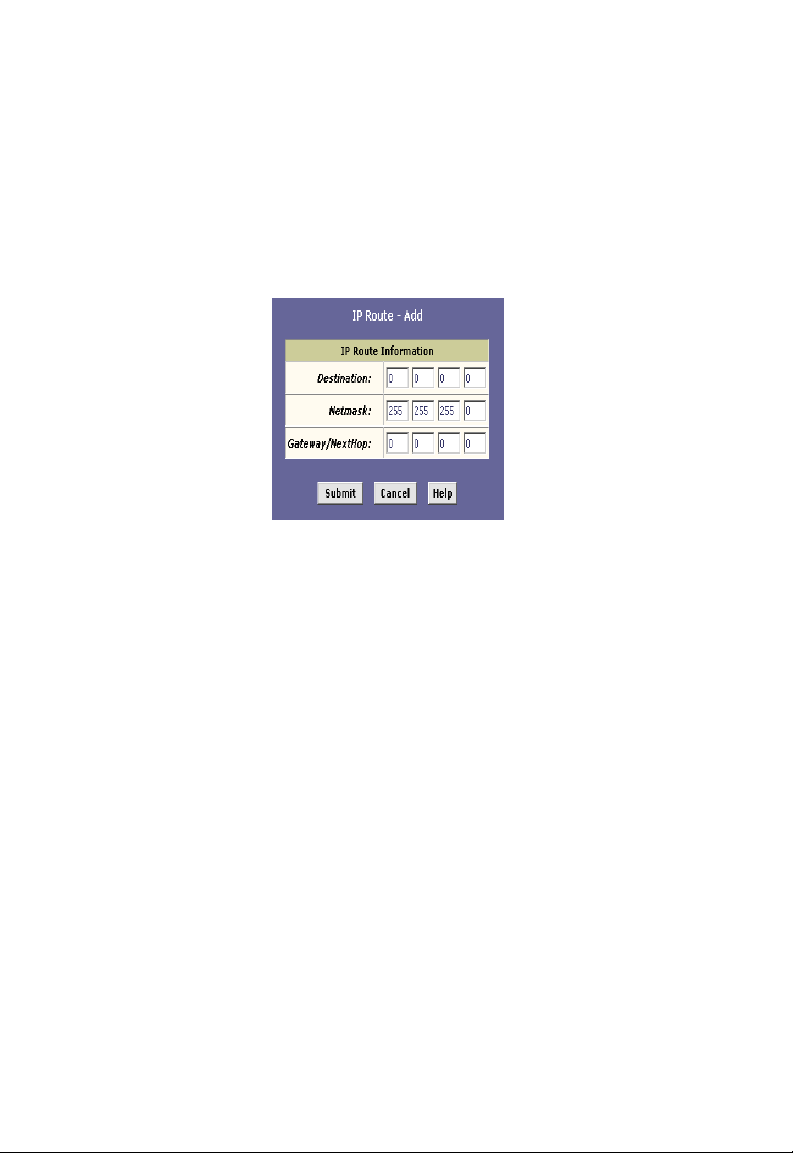

Adding IP Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Configuring the Routing Information Protocol . 93

RIP Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

When should you configure RIP? . . . . . . . . . . . . . . . . . .94

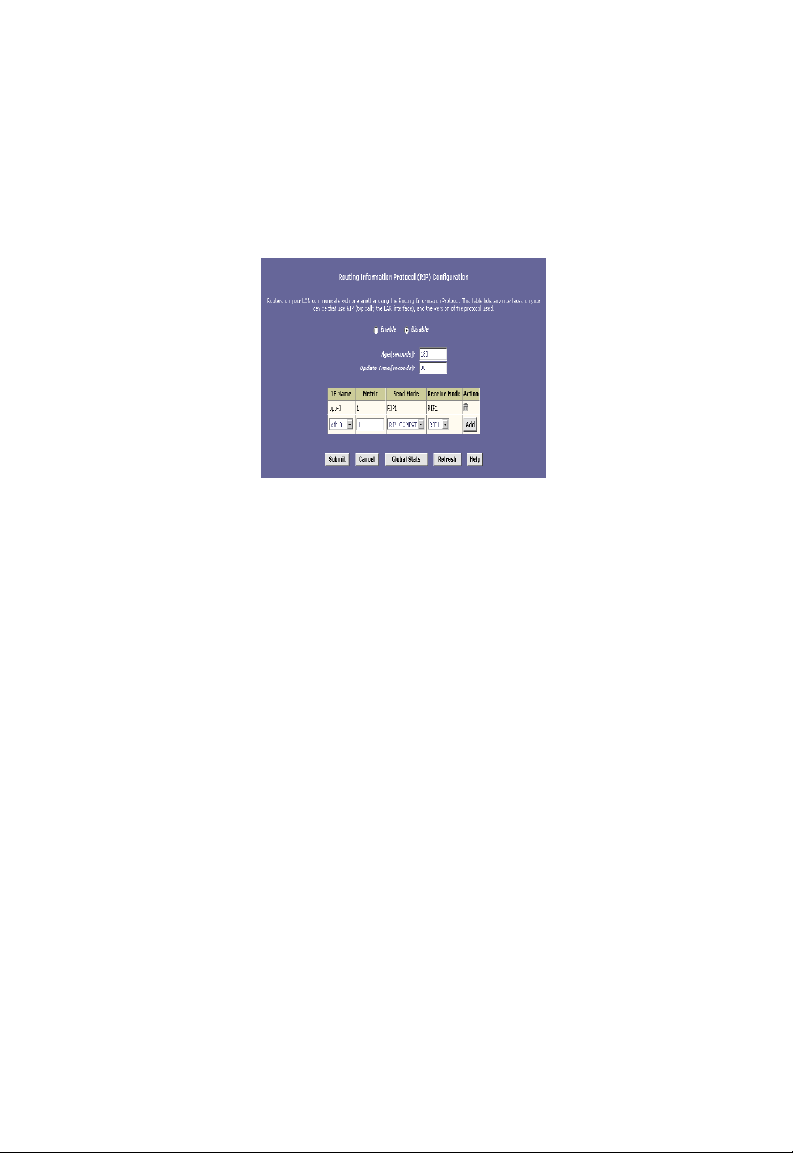

Configuring the ADSL Barricade's Interfaces with RIP . . . . . . .94

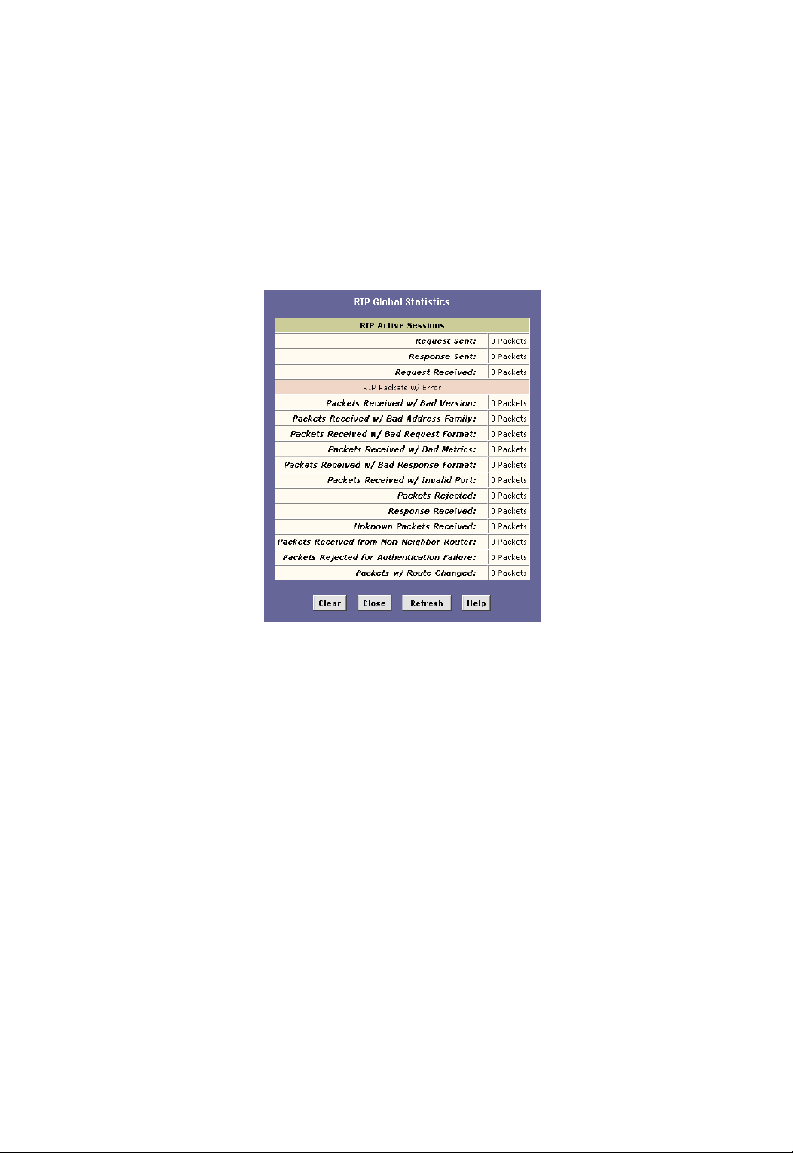

Viewing RIP Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Configuring the ATM Virtual Circuit . . . . . . . . . . 99

iii

Page 6

Table of Contents

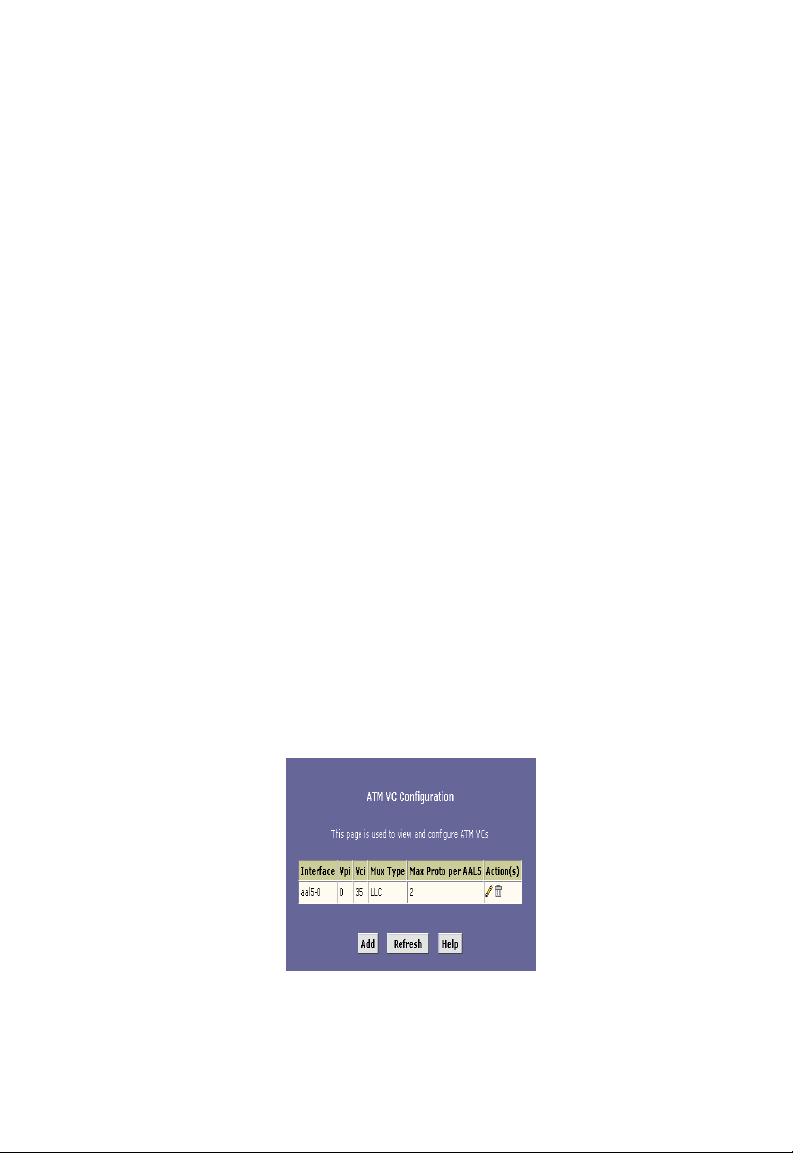

Viewing Your ATM VC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Adding ATM VCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Modifying ATM VCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Configuring PPP Interfaces . . . . . . . . . . . . . . . .105

Viewing Your Current PPP Configuration . . . . . . . . . . . . . . . 106

Viewing PPP Interface Details . . . . . . . . . . . . . . . . . . . . . . . . 109

Adding a PPP Interface Definition . . . . . . . . . . . . . . . . . . . . . 112

Modifying and Deleting PPP Interfaces . . . . . . . . . . . . . . . . . 113

Configuring EOA Interfaces . . . . . . . . . . . . . . . .115

Overview of EOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Viewing Your EOA Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Adding EOA Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Configuring IPoA Interfaces . . . . . . . . . . . . . . . .121

Viewing Your IPoA Interface Setup . . . . . . . . . . . . . . . . . . . . 121

Adding IPoA Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Configuring Bridging . . . . . . . . . . . . . . . . . . . . .125

Overview of Bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

When to Use the Bridging Feature . . . . . . . . . . . . . . . . . . . . 127

Defining Bridge Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Deleting a Bridge Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Configuring Firewall Settings . . . . . . . . . . . . . . .131

Configuring Global Firewall Settings . . . . . . . . . . . . . . . . . . . 131

Managing the Black List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Configuring IP Filters and Blocked Protocols .135

Configuring IP Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Viewing Your IP Filter Configuration . . . . . . . . . . . . . . 136

Configuring IP Filter Global Settings . . . . . . . . . . . . . . 137

Creating IP Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . 138

IP filter rule examples . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Viewing IP Filter Statistics . . . . . . . . . . . . . . . . . . . . . . 147

Managing Current IP Filter Sessions . . . . . . . . . . . . . . 148

Page 7

Table of Contents

Blocked Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Viewing DSL Line Information . . . . . . . . . . . . . . 153

Administrative Tasks . . . . . . . . . . . . . . . . . . . . . 157

Configuring User Names and Passwords . . . . . . . . . . . . . . . .157

Changing Login Passwords . . . . . . . . . . . . . . . . . . . . .157

Viewing System Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Viewing the Alarm Table . . . . . . . . . . . . . . . . . . . . . . . .159

Upgrading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Using Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Modifying Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

Overview of IP port numbers . . . . . . . . . . . . . . . . . . . .163

Modifying the ADSL Barricade’s port numbers . . . . . . .164

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Structure of an IP address . . . . . . . . . . . . . . . . . . . . . .167

Network classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Subnet masks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Binary Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Bits and bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 175

Technical Specifications . . . . . . . . . . . . . . . . . . 181

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Legal Information and Contacts . . . . . . . . . . . . . vii

Page 8

NTRODUCTION

Congratulations on becoming the owner of the ADSL Barricade, a 4-port ADSL Router with built-in ADSL Modem. Your LAN (Local Area Network) will now be able to access the Internet using your high-speed ADSL connection. This User Guide will show you how to set up the ADSL Barricade, and how to customize its configuration to get the most out of your new product.

Features

•

External ADSL modem for high-speed Internet access.

•

10/100Base-T Ethernet router to provide Internet connectivity to all computers on your LAN.

•

Network address translation (NAT), Firewall, and IP filtering functions to provide security for your LAN.

•

Network configuration through DHCP Server and DHCP Relay.

•

Services including IP route and DNS configuration, RIP, and IP and DSL performance monitoring.

•

Configuration program you access via an HTML browser.

Page 9

Introduction

System Requirements

In order to use the ADSL Barricade, you must have the following:

•

ADSL service up and running on your telephone line, with at least one public Internet address for your LAN.

•

One or more computers each containing an Ethernet 10/100 Base-T network interface card (NIC).

•

An Ethernet hub/switch, if you are connecting the device to more than one computer on an Ethernet network.

•

For system configuration using the supplied web-based program: a web browser such as Internet Explorer V5.0

or later, or Netscape V6.1 or later.

Using this Document

Notational conventions

•

Acronyms are defined the first time they appear in the text and in the Terminology.

•

For brevity, the ADSL Barricade is referred to as the device.

•

The terms LAN and network are used interchangeably to refer to a group of Ethernet-connected computers at one site.

Page 10

Using this Document

Typographical conventions

•

Italics are used to identify terms that are defined in the Terminology.

•

Square brackets are used for items you select from menus and drop-down lists.

Special messages

This document uses the following statement to call your attention to specific instructions or explanations.

Note:

Provides clarifying or non-essential information

on the current topic.

Definition:

to many readers. These terms are also included in the Terminology.

Warning:

messages relating to personal safety or system integrity.

Explains terms or acronyms that may be unfamiliar

Provides messages of high importance, including

Page 11

ETTING TO

NOW THE

ADSL B

Package Contents

•

One ADSL Barricade.

•

One Power adapter.

•

One RJ-45 Ethernet cable.

•

One RJ-11 Standard phone/DSL line cable.

•

Installation utility and Documentation CD.

•

Quick Installation Guide.

ARRICADE

Page 12

Getting to Know the ADSL Barricade

Hardware Description

Front Panel

LED Label Power Link TX/RX Ethernet

Color Status Green Green Green Green / 100 Mbps

Green Steady Power On ADSL line

Green Blink N/A Training TX/RX Transmitting/

Yellow Steady N/A N/A N/A Link Yellow Blink N/A N/A N/A Transmitting/

OFF Power Off

Rear Panel

Rear Panel Connector Description

Power Supply 12V, 1.2A Reset and Restore Factory Defaults Button If

DSL Port RJ-11 phone connector Ethernet Port Four 10/100M BASE-T RJ-45

1 2 3 4

Yellow / 10 Mbps

is trained.

No Connection

DSL Transmitting/ Receiving

No TX/RX No Connection

Link

Receiving

(*Alarm LED is optional, and for manufactory only*)

Table 1. Front Panel and LEDs

depressed for 1-2 seconds:

reset.

depressed for 5 seconds or

more: reset to factory default.

connectors

Table 2. Rear Panel Connections

Page 13

UICK

This Quick Start provides basic instructions for connecting the ADSL Barricade to a computer or LAN and to the Internet.

•

Connecting the Hardware describes how to set up the hardware.

•

Configuring Your Computers describes how to configure Internet properties on your computer(s).

•

Configuring the ADSL Barricade shows you how to configure basic settings on the ADSL Barricade to get your LAN

connected to the Internet.

This Quick Start assumes that you have already established an ADSL service with your Internet service provider (ISP). These instructions provide a basic configuration that should be compatible with your home or small office network setup. Refer to the subsequent chapters for additional configuration instructions.

Connecting the Hardware

TART

You connect the device to the wall phone jack, the power outlet, and your computer or network.

Warning:

Before you begin, turn the power off for all devices. These include your computer(s), your LAN hub/ switch (if applicable), and the ADSL Barricade.

Page 14

Quick Start

Wall Jack

To a hub: use crossover cable to uplink port or straight cable to standard port

Hub/switch (for local area network)

Networked Computers

ADSL Barricade

AC adapter

To a PC: use a cross-over cable

Stand-alone computer

Figure 1. Overview of Hardware Connections

Step 1. Connect the ADSL cable

Connect one end of the provided phone cable (RJ-11) to the port labeled ADSL on the Rear Panel of the device. Connect the other end to your wall phone jack.

You can attach a telephone line to the device. This is helpful when the ADSL line uses the only convenient wall phone jack. If desired, connect the telephone cable to the port labeled Phone

Warning:

Although you use the same type of cable, the ADSL and Phone ports are not interchangeable. Do not route the ADSL connection through the Phone port.

Note:

ADSL splitters/microfilters are included with some models.

Page 15

Configuring Your Computers

Step 2. Connect the Ethernet cable

If you are connecting a LAN to the ADSL Barricade, attach one end of a provided Ethernet cable to a regular hub port and the other to the Ethernet port on the ADSL Barricade. If you are using the ADSL Barricade with a single computer and no hub, you must use an Ethernet cable to attach the PC directly to the device. The cable is wired differently than the cable you would use to connect to a hub.

Step 3. Attach the power connector

Connect the AC power adapter to the Power connector on the back of the device and plug in the adapter to a wall outlet or power strip.

Step 4. Power up your systems

Turn on and boot up your computer(s) and any LAN devices such as hubs or switches.

Configuring Your Computers

This section provides instructions for configuring settings on your computers to work with the ADSL Barricade

Before you begin

By default, the ADSL Barricade automatically assigns all required Internet settings to your PCs. You need only to configure the PCs to accept the information when it is assigned.

Note:

In some cases, you may want to assign Internet information manually to some or all of your computers rather than allow the ADSL Barricade to do so. See Assigning static Internet Information to your PCs on page 16 for instructions.

the Internet

Page 16

Quick Start

If you have connected your PC of LAN via Ethernet to the Barricade system installed on your PC.

, follow the instructions that correspond to the operating

Windows®XP

In the Windows task bar, click the [Start] button, and then click [Control Panel].

Double-click the [Network Connections] icon.

In the [LAN or High-Speed Internet] window, right-click on the icon corresponding to your network interface card (NIC) and select [Properties]. (Often, this icon is labeled [Local Area Connection].) The [Local Area Connection] dialog box displays a list of currently installed network items.

Ensure that the check box to the left of the item labeled [Internet Protocol (TCP/IP)] is checked, and click [Properties].

In the [Internet Protocol (TCP/IP) Properties] dialog box, click the radio button labeled [Obtain an IP address automatically]. Also click the radio button labeled [Obtain DNS server address automatically].

ADSL

Click [OK] twice to confirm your changes, and close the Control Panel.

Page 17

Configuring Your Computers

Windows 2000

First, check for the IP protocol and, if necessary, install it.

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window , right-click the [Local Area Connection] icon, and then select [Properties]. The [Local Area Connection Properties] dialog box displays a list of currently installed network components. If the list includes [Internet Protocol (TCP/IP)], then the protocol has already been enabled. Skip to Step 10.

If [Internet Protocol (TCP/IP)] does not appear as an installed component, click [Install...].

In the [Select Network Component Type] dialog box, select [Protocol], and then click [Add…].

Select [Internet Protocol (TCP/IP)] in the [Network Protocols] list, and then click [OK]. You may be prompted to install files from your Windows 2000 installation CD or other media. Follow the instructions to install the files.

If prompted, click [OK] to restart your computer with the new settings. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

In the [Control Panel], double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window, right-click the [Local Area Connection] icon, and then select [Properties]

Page 18

Quick Start

10.

In the [Local Area Connection Properties] dialog box, select [Internet Protocol (TCP/IP)], and then click [Properties].

11.

12.

Click [OK] twice to confirm and save your changes, and then close the Control Panel.

Windows Me

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window, right-click the [Network] icon, and then select [Properties]. The [Network Properties] dialog box displays a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip to Step 11.

If [Internet Protocol (TCP/IP)] does not appear as an installed component, click [Add…].

In the [Select Network Component Type] dialog box, select [Protocol], and then click [Add…].

Select [Microsoft] in the [Manufacturers] box.

Select [Internet Protocol (TCP/IP)] in the [Network Protocols] list, and then click [OK]. You may be prompted to install files from your Windows Me installation CD or other media. Follow the instructions to install the files.

Page 19

If prompted, click [OK] to restart your computer with the new settings. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

In the Control Panel, double-click the [Network and Dial-up Connections] icon.

10.

In the [Network and Dial-up Connections] window, right-click the [Network] icon, and then select [Properties].

11.

In the [Network Properties] dialog box, select [TCP/IP], and then click [Properties].

12.

In the [TCP/IP Settings] dialog box, click the radio button labeled [Server assigned IP address]. Also click the radio button labeled [Server assigned name server address].

13.

Click [OK] twice to confirm and save your changes, and then close the Control Panel.

Windows 95, 98

Configuring Your Computers

First, check for the IP protocol and, if necessary, install it.

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network] icon. The [Network] dialog box displays a list of currently installed network components. If the list includes [TCP/IP], then the protocol has already been enabled. Skip to Step 9.

If [TCP/IP] does not appear as an installed component, click [Add…]. The [Select Network Component Type] dialog box appears.

Page 20

Quick Start

Select [Protocol], and then click [Add...]. The [Select Network Protocol] dialog box appears.

Click on [Microsoft] in the [Manufacturers] list bo x, and then clic k [TCP/IP] in the [Network Protocols] list box.

Click [OK] to return to the [Network] dialog box, and then click [OK] again. You may be prompted to install files from your Windows 95/98 installation CD. Follow the instructions to install the files.

Click [OK] to restart the PC and complete the TCP/IP installation. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

Open the [Control Panel] window, and then click the [Network] icon.

Select the network component labeled [TCP/IP], and then click [Properties]. If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.

10.

In the [TCP/IP Properties] dialog box, click the [IP Address] tab.

11.

Click the radio button labeled [Obtain an IP address automatically].

12.

Click the [DNS Configuration] tab, and then click the radio button labeled [Obtain an IP address automatically].

13.

Click [OK] twice to confirm and save your changes. You will be prompted to restart Windows.

14.

Click [Yes].

Page 21

Configuring Your Computers

Windows NT 4.0

First, check for the IP protocol and, if necessary, install it.

In the Windows NT task bar, click the [Start] button, point to [Settings], then click [Control Panel].

In the [Control Panel] window, double-click the [Network] icon.

In the [Network] dialog box, click the [Protocols] tab. The [Protocols] tab displays a list of currently installed network protocols. If the list includes [TCP/IP], then the protocol has already been enabled. Skip to Step 9.

If [TCP/IP] does not display as an installed component, click [Add...].

In the [Select Network Protocol] dialog box, select [TCP/IP], and then click [OK]. your Windows NT 4.0 the instructions to install a window appears to inform you that a TCP/IP service called DHCP can be set up to dynamically assign IP information.

You may be prompted to install files from

installation CD or other media. Follow

the files. After all files are installed,

Click [Yes] to continue, and then click [OK] if prompted to restart your computer . Next, configure the PCs to accept IP inf ormation assigned by the ADSL Barricade.

Open the [Control Panel] window, and then double-click the [Network] icon.

In the [Network] dialog box, click the [Protocols] tab.

In the [Protocols] tab, select [TCP/IP], then click [Properties].

10.

In the [Microsoft TCP/IP Properties] dialog box, click the radio

button labeled [Obtain an IP address from a DHCP server].

11.

Click [OK] twice to confirm and save your changes, and then

close the [Control Panel].

Page 22

Quick Start

Assigning static Internet Information to your PCs

In some cases, you may want to assign Internet information to some or all of your PCs directly (often called statically), rather than allowing the ADSL Barricade to assign it. This option may be desirable (but not required) if:

•

You have obtained one or more public IP addresses that you want to associate with specific computers (for example,

if you are using a computer as a public web server).

•

You maintain different subnets on your LAN (subnets are described in IP Addresses, Network Masks, and Subnets).

Before you begin, be sure to have the following information on hand (or contact your ISP if you do not know it):

•

The IP address and subnet mask you will assign to each PC which will be assigned static IP information.

•

The IP address of the default gateway for your LAN. In most cases, this is the address assigned to the LAN port on the ADSL

Barricade. By default, the LAN port is assigned this IP address: [192.168.1.1.] (You can change this number, or another number c

an be assigned by your ISP.) See Configuring the LAN Ports

on page 33

for more information.

•

The IP address of your ISP's Domain Name System (DNS) server.

On each PC you will assign static information, follow the instructions on pages 11 through 16 specific to the IP protocol. Once it is installed, continue to follow the instructions for displaying each of the Internet Protocol (TCP/IP) properties. Instead of enabling dynamic assignment of the IP addresses for the computer, the DNS server, and the default gateway, click the radio buttons that enable you to enter the information manually.

Page 23

Configuring the ADSL Barricade

Note:

Your PCs must have IP addresses that place them in the same subnet as the ADSL Barricade's LAN port. If you manually assign IP information to all your LAN PCs, you can follow the instructions in Configuring the

LAN Ports to change the LAN port IP address

accordingly.

Configuring the ADSL Barricade

This section provides you instructions on how to log into the program of the ADSL Barricade and how to configure basic settings for your Internet connection. Your ISP should provide you with the necessary information to complete this step.

Logging into the ADSL Barricade – Quick Configuration Page

The ADSL Barricade provides a preinstalled software program called Configuration Manager which enables you to configure operation of the device via your Web browser. The settings that you most likely need to change before using the device are grouped onto one single [Quick Configuration] page.

the

Follow these instructions to configure the device settings.

At any PC connected to the ADSL Barricade via Ethernet, open your Web browser, and type the following URL in the address/ location box: 192.168.1.1/setup. Username/Password: smc/smcadmin.

When you press [Enter], the page shown in Figure 2 should appear (see section Troubleshooting on page 175, if you receive an error message or if the page does not appear).

Page 24

Quick Start

Figure 2. Quick Configuration Page in Configuration

Manager

The fields are described in the following table. Work with your ISP

to determine which settings you need to change.

Field Description

General Settings

ATM Interface: This setting allows you to select the ATM interface you want to

use (usually [atm-0]). Your system may be configured with more than one ATM interface if you are using different types of services with your ISP.

Operation Mode: This setting enables or disables the ADSL Barricade.

Encapsulation: This setting determines the type of data link your ISP uses

VPI: VCI:

When set to [No], the device cannot be used to provide Internet connectivity for your network. Set it to [Enabled ], if necessary.

to communicate with your ADSL Barricade. Contact them to determine the appropriate setting.

These values are provided by your ISP and determine the unique path that your connection uses to communicate with your ISP.

Page 25

Configuring the ADSL Barricade

Bridge:

IGMP: You may select [Enabled] or [Disabled] to set the Internet Group

IP Address: Subnet Mask:

You may select [Enabled] or [Disabled] to set the bridging between the ADSL Barricade and your ISP. Your ISP may also refer to this as RFC 1483 or Ethernet over ATM.

Management Protocol, which some ISPs use to perform remote configuration of your device.

If your ISP has assigned a public IP address to your LAN, enter the address and the associated subnet mask in the provided boxes. (Note: In some configurations, the public IP address should be entered on your PC rather than on the ADSL Barricade; please check with your ISP.)

DNS

Primary DNS Server: Secondary DNS Server:

Enter the Primary and Secondary DNS server addresses provided by your ISP.

PPP

Username: Password:

When you have finished customizing these settings, click

Enter the Username and the Password you use to log in to your ISP. (Note: This is not the same as the user name and password you have used to log in to Configuration Manager.)

[Submit]. The settings are now effective. However, if you reboot or if the power is disconnected, your settings will be lost. In Step 4, you save the changes to the permanent memory.

Click the [Admin] tab that appears in the upper right corner of the page, and then click [Commit & Reboot] in the task bar.

Click [Commit]. A page will appear briefly to confirm your changes, and then you will be returned to the [Commit & Reboot] page.

You can click [Delete] to remove all existing [Quick Configuration] settings and return to the default values.

Page 26

Quick Start

You have now finished customizing the basic settings. Read the following

section in order to determine whether you need

to change additional settings.

Default Router Settings

In addition to handling the DSL connection to your ISP, the ADSL Barricade can provide a variety of services to your network. The device is preconfigured with default settings for use with a typical home or small office network.

Table 4 lists some of the most important default settings; these and other features are fully described in the subsequent sections. If you are familiar with network configuration, review the settings in Table 4 and check whether they meet the needs of your network. Follow instructions and change them if necessary. If you are unfamiliar with these settings, try to use the device without modification, or contact your ISP for assistance.

the

Before modifying any settings, review the Getting Started section with the Configuration Manager. We strongly recommend that you contact your ISP prior to changing the default configuration.

Option Default Setting Explanation/Instructions

DHCP DHCP server enabled

with the following pool of addresses: 192.168.1.3 through 192.168.1.34

The ADSL Barricade maintains a pool of private IP addresses for dynamic assignment to your LAN computers. To use this service, you must have set up your computers to accept IP information dynamically, as described in the Quick Start. See

Configuring Dynamic Host Configuration Protocol on page 43 for an explanation of the DHCP service.

Page 27

Configuring the ADSL Barricade

NAT (Network Address

Translation)

LAN Port IP Address Assigned static

NAT rule enabled Your computers’ private IP

IP address:

192.168.1.1 Subnet mask:

255.255.255.0

Table 3. Default Settings Summary

addresses (see DHCP above) will be translated to your public IP address whenever they access the Internet. See LAN Ports on page 33 for a description

This is the IP address of the LAN port on the device. The LAN port connects the device to your Ethernet network. Typically, you will not need to change this address. See Configuring the LAN Ports on page 33 for instructions.

Configuring the

of the NAT service.

Page 28

ETTING

TARTED WITH THE

ONFIGURATION

The ADSL Barricade includes a preinstalled program called Configuration Manager, which provides an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network. You access it through your web browser from any PC connected to the ADSL Barricade via the LAN ports.

This section describes how to use the Configuration Manager.

ANAGER

Accessing the Configuration Manager

The Configuration Manager program is preinstalled in the Barricade memory. To access the program, you need the following:

•

A PC or laptop connected to the LAN port on the device as described in the Quick Start section.

•

A web browser installed on the PC. The program is designed to work best with Microsoft Internet Explorer Netscape Navigator

version 6.1, or later versions.

version 5.0,

ADSL

You can access the program from any computer connected to the ADSL Barricade via the LAN ports.

From a LAN computer, open your web browser, type the following URL in the web address (or location) box, and press [Enter: http://192.168.1.1]. These are the predefined IP addresses for the LAN on the ADSL Barricade. A login screen appears, as shown in Figure 3.

Page 29

Getting Started with the Configuration Manager

Figure 3. Login Screen

Enter your [User Name] and [Password], and then click [OK]. The first time you log into the program, use these default values:

Default User Name : smc

Default Password : smcadmin

Note:

The [System View] page on the [Home] tab appears each time you log into the program (shown in Figure 4).

You can change the password at any time (See Configuring User Names and Passwords on page 157 for instructions).

Page 30

Functional Layout

Configuration Manager tasks are grouped into several categories, which can be accessed by clicking the tabs at the top of each page. Each tab displays the available tasks in a horizontal menu at the top of the page. You can click on these menu items and display the specific configuration options.

A separate page appears for each task in the task bar. The left-most task appears by default when you click on a new tab. The same task may appear in more than one tab, when appropriate. For example, the [Lan Config] task appears in both the [LAN] tab and the [Routing] tab.

Commonly used buttons

The following buttons are used throughout the application.

Button Function

Submit This button stores in the temporary system memory any changes

Refresh This button displays the current page with updated statistics

Clear On pages that display accumulated statistics, this button resets

Help

you have made on the current page. See on page 30 for instructions on how to store changes permanently.

or settings.

the statistics to their initial values. This button launches the online help for the current topic in a separate

browser window. Help is available from any main topic page.

Committing your changes

Page 31

Getting Started with the Configuration Manager

The Home Page and System View Table

The [Home] page appears when you first access the program. This page is one of the two options available in the [Home] tab; (the other is the [Quick Configuration] page, as described in Quick Start, Logging into the ADSL Barricade).

Figure 4. System View Table

The [System View] table provides a snapshot of your system configuration. Note that some of the settings are links to the software pages that enable you to configure those settings. The following table describes each section of the [System View] table.

Page 32

The Home Page and System View Table

Table

Description

Heading

Device This table displays basic information about the ADSL Barricade

DSL

WAN Interfaces

LAN Interface

hardware and software versions, the system uptime (since the last reboot), and the preconfigured operating mode.

This table displays the operational status, version, and performance statistics for the DSL line. You can check DSL in the table or display the [WAN] tab to view additional DSL settings, which are described in Configuring EOA Interfaces.

This table displays the software name(s) and various settings for the device interface(s) that communicates with your ISP via DSL. Even if you only have one physical DSL port, multiple softwaredefined interfaces can be configured to use it. See the ATM VC, PPP, EOA, and IPoA chapters for more information about the WAN interfaces defined on your system. For each interface, a [Lower Interface] name, such as [aal5-0], should appear. You can click on the [Lower Interface] name to view or change the ATM VC settings that this interface uses.

This table displays the software names and various settings for the device interfaces that communicate directly with your network. These typically include an [Ethernet Interface] named [eth-0], and may include a [USB Interface] named [usb-0]. For information on how to modify properties of these interfaces, see Configuring the LAN Ports on page 33.

Page 33

Getting Started with the Configuration Manager

Services Summary

This table displays the status of various services that the ADSL Barricade performs to help you manage your network. A green check mark indicates that the service is active and a red X indicates that it is inactive.

[NAT] : to translate private IP addresses to your public IP address (Configuring Network Address Translation).

[IP Filter] : to set up the filtering rules that accept or deny incoming or outgoing data (Configuring IP Filters and Blocking Protocols).

[RIP] : to enable router-to-router communication (Configuring the Routing Information Protocol).

[DHCP Relay] : to enable dynamic assignment of IP information from your ISP to your computers (Configuring Dynamic Host Configuration Protocol).

[DHCP Client] : to enable dynamic assignment of IP information from your ISP or another computer on your network to the device’s LAN port (Configuring the LAN Ports).

[DHCP Server]: to enable dynamic assignment of IP information from the device’s built-in DHCP server to your LAN computers (Configuring Dynamic Host Configuration).

[IGMP] : to enable message forwarding from external sources such as your ISP, based on Internet Group Management Protocol (not configurable).

Modifying Basic System Information

You can modify the basic system information, which includes the system date and time, the names assigned to the ADSL Barricade and the network domain in which it exists.

Note:

Changing the ADSL Barricade date and time does not affect the date and time on your PCs.

Follow these instructions to change the basic system information.

Page 34

Modifying Basic System Information

At the bottom of the [Home] page, click [Modify]. The [System – Modify] page appears in a separate browser window.

Figure 5. System - Modify Page

Modify the fields on this page as required. The following table describes each field:

Option Description

Date: Time:

Time Zone:

DST: (Daylight Savings Time)

These fields initially appear dimmed. To modify the date and time, click the respective check boxes and select the appropriate values from the drop-down lists. The time appears in military format.

You can select your time zone from the drop-down list, and then click the appropriate radio button to indicate whether Daylight Savings Time is currently in effect. After you initially set the time, turning DST On or Off will adjust the current displayed time by one hour in the appropriate direction. You must remember to change the DST option each spring and fall as it will not change automatically.

Page 35

Getting Started with the Configuration Manager

Host Name:

Domain Name:

When you hav e finished modifying the settings, click [Submit].

You can use this field to specify an easy-to-remember name for the

ADSL Barricade. The next time you want to access the Configuration Manager, you can type this name in the location box in your Web browser, instead of typing the digital IP address. For example, if you have entered myrouter in this field (and have left the Domain Name field blank), then you can type the following in your Web browser to access the Configuration Manager: http://myrouter.

Note: This will only work if you are using the ADSL Barricade’s DNS relay feature. This feature is automatically enabled when the DNS assigned DNS Server Addresses on page 81 for more information.

You can use this field to specify an Internet domain name ADSL Barricade. The next time you access Configuration you can type the domain name and the device name (see the Name field above) in your Web browser. For example, if you have entered myrouter in the [Name] field and mydomain.com in the [Domain Name] field, then you can type the following in your Web browser to access the Configuration Manager: http://myrouter.mydomain.com

server address configured on your PCs is also the address

to the LAN port on the ADSL Barricade. See Configuring

Then click [Close] to return to the [System View] page.

To save your changes to the permanent memory, click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit].

for the

Manager,

Committing Changes and Rebooting

Committing your changes

Whenever you use Configuration Manager to change system settings, the changes are initially placed in a temporary storage called random access memory or RAM. Your changes become effective when you submit them, but will be lost if the device is reset or turned off.

Page 36

Committing Changes and Rebooting

You can commit changes to save them permanently to a flash memory.

Note:

Follow these steps to commit changes.

Submitting changes activates them immediately, but saves them only until the device is reset or powered down. Committing changes saves them permanently.

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar. The [Commit & Reboot] page appears.

Figure 6. Commit & Reboot Page

Click [Commit]. Disregard the selection in the [Reboot Mode:] drop-down list; it does not affect the commit process. These changes are saved to a permanent storage. The previous settings are copied to a backup storage so that they can be recalled if your new settings do not work properly (see the below rebooting instructions).

Rebooting the device using Configuration Manager

To reboot the device, display the [Commit & Reboot] page, select the appropriate [Reboot Mode:] from the drop-down list, and then click [Reboot].

You have three options when rebooting.

Page 37

Getting Started with the Configuration Manager

Option Description

Reboot from Last Configuration

Reboot from Backup Configuration

Reboot from Default Configuration

This option is to reboot the device using the current settings in the permanent memory, including any changes you have just committed.

This option is to reboot the device using settings stored in the backup memory. These are the settings that were effective before you committed new settings in the current session.

This option is to reboot the device to the default settings provided by your ISP or the manufacturer. Choosing this option erases any custom settings.

Warning:

Do not reboot the device using the [Reset] button on the Rear Panel of the ADSL Barricade to activate new changes. This button resets the device settings to the factory default values. Any custom settings will

be lost.

Page 38

ONFIGURING THE

LAN P

This section describes how to configure IP properties for the interfaces on the ADSL Barricade that communicate with your LAN computers.

ORTS

Connecting via Ethernet

If you are using the ADSL Barricade with multiple PCs on your LAN, you must connect the LAN via an Ethernet hub to the device's LAN port, called [eth-0].

If you are using a single PC with the ADSL Barricade,

onnect the PC directly to the LAN port using an Ethernet cable.

c You must assign a unique IP address to each device port that

you use.

you can

Configuring the LAN Port IP Address

The LAN IP address identifies the LAN port ([eth-0]) as a node on your network; that is, its IP address must be in the same subnet as the PCs on your LAN.

Definition:

You can change the default to reflect the set of IP addresses that you want to use with your network.

A network node can be thought of as any interface where a device connects to the network, such as the ADSL Barricade's LAN port and the network interface cards on your PCs. See IP Addresses, Network Masks, and Subnets for an explanation of subnets.

Page 39

Configuring the LAN Ports

If your network uses a DHCP server (other than the ADSL Barricade) to assign IP addresses, you can configure the device to accept and use a LAN IP address assigned by that server. Similarly, if your ISP performs DHCP serving for your network, you can configure the device to accept an IP address assigned from the ISP's server. In this mode, the ADSL Barricade is considered as a DHCP client of your DHCP (or ISP's) server.

Note:

Follow the following steps to change the default LAN IP address or to configure the LAN port as a DHCP client:

The ADSL Barricade itself can function as a DHCP server for your LAN computers, as described in Configuring Dynamic Host Configuration Protocol, but not for its own LAN port.

Log into Configuration Manager and then click the [LAN] tab. The [LAN Configuration] page appears.

Figure 7. LAN Configuration Page

Page 40

Configuring the LAN Port IP Address

The LAN Configuration table displays the following settings:

Setting Description

System Mode: This setting is preconfigured for your device, such as [Routing

mode], [Bridging mode], or both modes simultaneously. This setting is not user-configurable.

Get LAN Address:

LAN IP Address: LAN Network Mask:

This setting provides options for how the device’s LAN port is assigned an IP address:

[Manual] indicates that you will be assigning a static IP address, which you can enter in the fields below.

[External DHCP Server] indicates that your ISP will be assigning an IP address from their own DHCP server to the port, dynamically each time you log on.

[Internal DHCP Server] indicates that you have a DHCP server device on your network that will assign an address to the port. If you choose either the internal or external server option, the LAN port is called a DHCP client of the server.

Note: The public IP address assigned to you by your ISP is not your LAN IP address. The public IP address identifies the WAN (ADSL) port on your ADSL Barricade to the Internet.

The IP address and Network Mask for the port. See IP Addresses, Network Masks, and Subnets for and overview of IP addresses and masks.

Enter an IP address and mask in the fields provided and choose [Disabled] in the [Use DHCP] field, or enable either a remote or local DHCP server. Keep these points in mind:

•

Manually specifying an address: If you are using routing services on your LAN such as DHCP

and NAT, you will want to assign a fixed LAN IP address and mask. This ensures that your LAN computers have a fixed address that they use to communicate with the device.

The IP address you assign must be in the same subnet as your LAN computers that connect to this port (that is, the network ID portion of their IP addresses and their subnet

Page 41

Configuring the LAN Ports

masks must be the same). See IP Addresses, Masks, and Subnets for an explanation of IP addresses and network masks.

If you change the LAN IP address, you may need to

the DHCP configuration so that the addresses

update that

the DHCP server dynamically assigns to your computers are on the same subnet as the new LAN IP address. See Configuring Dynamic Host Configuration Protocol on page 43 for instructions on changing the pool of dynamically assigned addresses.

•

Enabling DHCP: If you choose to have the LAN port be a DHCP client

of an internal or external server, the [LAN Network Mask] field will be dimmed and made unavailable for entry. The [LAN IP Address] field will remain editable, however. The address that you specify here will be used as a request to the DHCP server. This is referred to as a Configured IP Address in the program. If the configured IP address is not available from the DHCP server, then the system will accept another assigned address. Even after another number is assigned, the same configured IP address will continue to display in this field.

Network

Click [Submit].

•

If you changed the LAN IP address while working from a PC that is connected to the device via Ethernet, then your

connection will be terminated.

•

If you enabled the DHCP service, the ADSL Barricade will initiate a request for an IP address from your LAN's DHCP

server. If a different IP address is assigned than the one that

Page 42

Configuring the LAN Port IP Address

was previously configured, your current connection will be terminated.

Reconfigure your PCs, if necessary, so that their IP addresses place them in the same subnet as the new IP address of the LAN port. See Quick Start, Configuring Your Computers on page 9 for instructions.

Log into [Configuration Manager] by typing the new IP address in your Web browser's address/location box.

If the new settings work properly, click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

Page 43

IEWING

YSTEM

DDRESSES AND

ERFORMANCE

The interface on the ADSL Barricade that communicates with other network and Internet devices are identified by unique Internet protocol (IP) addresses. You can use the Configuration Manager to view the list of IP addresses that your device uses, and to view other

system and network performance data. See IP Addresses, Network Masks, and Subnets for a description of IP addresses and masks.

TATISTICS

Viewing the ADSL Barricade's IP Addresses

To view the ADSL Barricade's IP addresses, click the [Routing] tab, and then click [IP Address] in the task bar. The [IP Address Table] page appears:

Figure 8. IP Address Table Page

The table lists the [IP address], the network masks ([Netmask]), and the interface names ([IF Name]) for each of its IP-enabled interfaces.

Page 44

Viewing System IP Addresses and IP Performance Statistics

The listed IP addresses may include:

•

The IP address of the device's LAN (Ethernet) port, called [eth-0]. See Configuring the LAN Ports on page 33 for

instructions on configuring this address.

•

The IP address of the WAN (ADSL line) interface, which your ISP and other external devices use to identify your network. It may be identified in the [Configuration Manager] by the names [ppp-0], [eoa-0], or [ipoa-0], depending on the protocol your device uses to communicate with your ISP. Your ISP may assign the same address each time, or it may change

time you reconnect.

each

•

The loopback IP address, named [lo-0], of [127.0.0.1]. This special address enables the device to keep any data addressed directly to it, rather than route the data through the WAN or LAN ports.

If your device has additional IP-enabled interfaces, the IP addresses of these will also display.

Page 45

Viewing IP Performance Statistics

You can view statistics on the processing of Internet protocol packets (a packet is a collection of data that has been bundled for transmission). You will not typically need to view thi s data, but you may find it helpful when working with your ISP to diagnose network and Internet data transmission problems.

To view global IP statistics, click [Global Stats] on the [IP Address Table] page. Below shows the [IP Global Statistics] page:

Figure 9. IP Global Statistics Page

To display updated statistics showing any new data since you opened the page, click [Refresh].

Page 46

ONFIGURING

YNAMIC

OST

You can configure your network and ADSL Barricade to use the Dynamic Host Configuration Protocol (DHCP). This section provides an overview of DHCP and instructions for implementing it on your network.

ONFIGURATION

ROTOCOL

Overview of DHCP

What is DHCP?

DHCP is a protocol that enables network administrators to centrally manage the assignment and distribution of IP information to computers on a network.

When you enable DHCP on a network, you allow a device – as the ADSL Barricade or a router located with your ISP – to assign temporary IP addresses to your computers whenever they connect to your network. The assigning device is called a DHCP server, and

the receiving

device is a DHCP client.

such

Note:

If you used the Quick Start instructions, you configured each LAN PC with an IP address, or you specified that it will receive IP information dynamically (automatically). If you chose to have the information assigned dynamically, then you configured your PCs as DHCP clients that will accept IP addresses assigned from a DCHP server such as the ADSL Barricade.

Page 47

Configuring Dynamic Host Configuration Protocol

The DHCP server draws from a defined pool of IP addresses and leases them for a specified amount of time to your computers when they request an Internet session. It monitors, collects, and redistributes the addresses as needed.

On a DHCP-enabled network, the IP information is assigned dynamically rather than statically. A DHCP client can be assigned a different address from the pool each time it reconnects to the network.

Why use DHCP?

DHCP allows you to manage and distribute IP addresses throughout your network from a central computer. Without DHCP, you would have to configure each computer separately with IP addresses and related information. DHCP is commonly used with large networks and those that are frequently expanded or otherwise updated.

ADSL Barricade DHCP modes

The device can be configured as a DHCP server, relay agent or client.

•

If you configure the device as a DHCP server, it will maintain the pool of addresses and distribute them to your LAN computers.

If the pool of addresses includes private IP addresses, you must also configure the Network Address Translation service, so that the private addresses can be translated to your public IP address on the Internet.

•

If your ISP performs the DCHP server function for your network, then you can configure the device as a DHCP relay agent. When

the ADSL Barricade receives a request for Internet access from a computer on your network, it contacts your ISP for the necessary IP information, and then relays the assigned information back to the computer.

Page 48

Configuring DHCP Server

•

If you have another PC or device on your network that is already performing the DHCP server function, then you can configure

the device's LAN port to be a DHCP client of that server (as are your PCs). This configuration is described in Configuring the LAN Ports.

Note:

You can input settings for both DHCP server and DHCP relay mode, and then activate either mode at any time. Deactivated settings are retained for your future use.

Configuring DHCP Server

Note:

To set up DHCP server, you first define the ranges of IP addresses that you want to be distributed to your PCs, called DHCP server address pools.

Guidelines for creating DHCP server address pools

IP address pools can contain multiple public addresses that you have purchased from your ISP, but are typically private addresses that you create. LAN administrators often create private IP addresses for use only on their networks. See Overview of NAT on page 57 for an explanation of private IP addresses.

Before you begin, be sure to configure your PCs to accept DHCP information assigned by a DHCP server. For detailed instructions, see Quick Start, Configuring Your Computers on page 9.

Page 49

Configuring Dynamic Host Configuration Protocol

You can create up to two pools. The pools can maintain a combined total of 254 IP addresses. For example, you can configure only one pool with addresses in the range 192.168.1.2 through 192.168.1.255, or two pools with the following address ranges:

Pool 0: 192.168.1.2 through 192.168.1.128 Pool 1: 192.168.1.129 through 192.168.1.255

The same pool can be used for distributing IP addresses to your LAN PCs (connected via the Ethernet port), as long as these ports are in the same subnet. You may want to create a second pool if any of these circumstances apply:

•

Your LAN configuration includes two subnets.

•

You have only one subnet, but the addresses you want to distribute are not in a continuous range. (Alternatively,

you can exclude particular addresses from distribution from a single pool; see page 50.)

The DHCP server will distribute addresses to the computers connected to a given device interface only when that interface is in the same subnet as the pool addresses. For example, assume that the Ethernet interface is assigned IP addresses that place them in two different subnets, as shown:

Ethernet interface (eth-0): IP address 192.168.1.1

mask 255.255.255.0

With this configuration, you could create the following two pools:

Pool 0: 192.168.1.2 through 192.168.1.11 Pool 1: 192.168.2.2 through 192.168.2.2

The DHCP server would automatically distribute the Pool 0 addresses only to computers connected to the interface in the same subnet as these addresses-the LAN interface, eth-0.

Page 50

Configuring DHCP Server

Adding DHCP Server Address Pools

Follow these instructions to create an IP address pool:

Log into Configuration Manager, click the [LAN] tab, and then click [DHCP Server] in the task bar.

The [Dynamic Host Configuration Protocol (DHCP) Server Configuration] page appears:

Figure 10. Dynamic Host Configuration Protocol (DHCP)

Server Configuration Page

Depending on your preconfigured settings, the table ma y displa y one or more address pools, each in a row, or may be empty.

Page 51

Configuring Dynamic Host Configuration Protocol

Click [Add]. The [DHCP Server Pool – Add] page appears, as shown in Figure 11:

Figure 11. DHCP Server Pool – Add Page

Enter values for the [Start IP Address:], [End IP Address:], and [Netmask:] fields, which are required, and any others as needed:

Field Description

Start IP Address: End IP Address:

Mac Address A MAC address is a manufacturer-assigned hardware ID that

This field specifies the lowest and highest addresses in the pool, up to a maximum range of 254 addresses. For example, if the LAN port is assigned IP address 192.168.1.1, then you could create a pool with address range 192.168.1.2 – 192.168.1.254 for distribution to your LAN computers.

is unique for each device on a network. Use this field only if you want to assign a specific IP address to the computer that uses this MAC address. If you type a MAC address here, you must have specified the same IP address in both the [Start IP Address:] and [End IP Address:] fields.

Page 52

Configuring DHCP Server

Netmask: This field specifies which portion of each IP address in this

range refers to the network and which portion refers to the host (computer). For a description of network masks and LAN network masks, see IP Addresses, Network Masks,

Domain Name:

Gateway Address:

DNS Address: SDNS Address:

SMTP Address: POP3 Address: NNTP Address: WWW Address: IRC Address: WINS Address: SWINS Address:

(optional)

Subnets. You can use the network mask to distinguish pool of addresses should be distributed to a particular (as explained on page 45).

This is auser-friendly name that refers to the subnet that includes the addresses in this pool. This is used for reference only.

This is the address of the default gateway for computers that receive IP addresses from this pool. If no value is specified, then the appropriate LAN (eth-0) or USB (usb-0) port address on the device will be distributed to each PC as its gateway address, depending on how each is connected. See Hops and gateways on page 86

These fields indicate the IP address of the Domain Name System server and Secondary Domain Name System server to be used by computers that receive IP addresses from this pool. These DNS servers translate common Internet names that you type into your web browser into their equivalent numeric IP addresses. Typically, these servers are located with your ISP.

These fields indicate the IP addresses of devices that perform various services for computers that receive IP addresses from this pool (such as the SMTP, or Simple Mail Transfer Protocol, server which handles e-mail traffic). Contact your ISP for these addresses.

for an explanation of gateway addresses.

which

subnet

and

When you are done defining the pool, click [Submit]. A [Confirmation] page displays briefly to indicate that the pool has been added successfully . After a f e w seconds, the [DHCP Server Pool – Add] page appears with the newly added pool.

Follow the instructions in Setting the [DHCP Mode] to enable the DHCP Server.

Page 53

Configuring Dynamic Host Configuration Protocol

Viewing, modifying, and deleting address pools

To view, modify, or delete an existing address pool, display the DHCP Server Configuration page, and click the icons in the corresponding row in the address pool table.

•

To delete an IP address pool, click , then [Submit] and [Commit] your changes.

•

To view details on an IP address pool, click . A page appears with the same information that you entered when you added

the pool.

•

To modify the pool, click . The [DHCP Server Pool – Modify] page appears, as shown in Figure 12:

Figure 12. DHCP Server Pool - Modify Page

You can change the [Domain Name] associated with an IP address pool.

When you are done making modifications, click [Submit]. Use the [Commit] function to save your changes to the permanent memory (see Committing your changes on page 30).

Page 54

Configuring DHCP Server

Excluding IP addresses from a pool

If you have IP addresses that are designated for fixed use with specific devices, or if for some other reason you do not want to make them available to your network, you can exclude them from the pool. Display the [DHCP Server Pool – Modify] page, as shown in Figure 12. Type each address to be excluded in the [Excluded IP] field, and click [Add]. When you are done specifying excluded addresses, click [Submit], and then use the [Commit] function to save your changes to the permanent memory (see Committing your changes on page 30).

Viewing current DHCP address assignments

When the ADSL Barricade functions as a DHCP server for your LAN, it keeps a record of any addresses currently leased to your computers. To view a table of all current IP address assignments, display the [DHCP Server Address Table] page, and then click [Address Table].

Figure 13. DHCP Server Address Table Page

Page 55

Configuring Dynamic Host Configuration Protocol

The DHCP Server Address Table lists any IP addresses that are currently leased to LAN devices. For each leased address, the table lists the following information:

Field Description

IP Address This field indicates the address that has been leased from the pool. Netmask This is the network mask associated with the leased address. This

identifies the network ID and host ID portions of the address (see IP Addresses, Network Masks, and Subnets for an explanation of these terms).

Mac Address

Pool Start This is the lower boundary of the address pool (shown here to

Address Type

Time Remaining

This field indicates the unique hardware ID of the computer to which the IP address has been assigned.

identify the pool from which the leased address was assigned). The adress type can be [Static] or [Dynamic].

[Static] indicates that the IP number has been assigned permanently to the specific hardware device.

[Dynamic] indicates that the number has been leased emporarily for a specified length of time.

This field indicates the amount of time left for the device to use the assigned address. The default lease time is 30 days (31536000 seconds).

Configuring DHCP Relay

Some ISPs perform the DHCP server function for their customers' home/small office networks. In this case, you can configure the device as a DHCP relay agent. When a computer on your network requests Internet access, the ADSL Barricade contacts your ISP to obtain an IP address (and other information), and then forwards that information to the computer. Follow the following instructions to configure DHCP relay.

Page 56

Configuring DHCP Relay

First, you must configure your PCs to accept DHCP information assigned by a DHCP server:

Open the Windows [Control Panel] and display the computer's [Networking properties]. Configure the TCP/IP properties to [Obtain an IP address automatically] (the actual text may vary depending on your operating system). For detailed instructions, see Quick Start, Configuring Your Computers on page 9 Next, specify the IP address of the DHCP server and select the interfaces on your network that will be using the relay service.

Log into the Configuration Manager, click the [LAN] tab. Then click [DHCP Relay] in the task bar. The [Dynamic Host Configuration Protocol (DHCP) Relay Configuration] page appears:

Figure 14. Dynamic Host Configuration Protocol (DHCP)

Relay Configuration Page

In the [DHCP Server Address] fields, type the IP address of your ISP's DHCP server. If you do not have this number, it is not essential to enter it here. Requests for IP information from your LAN will be passed to the default gateway, which should route the request appropriately.

Page 57

Configuring Dynamic Host Configuration Protocol

Select your WAN interface from the drop-down list and click [Add]. Your WAN interface may be named [ppp-0], [eoa-0], or [ipoa-0]. Contact your ISP if you are unsure which type of WAN interface you use.

Note:

Click [Submit]. A page appears to confirm your changes, and then the program returns to the [Dynamic Host Configuration Protocol (DHCP) Relay Configuration] page.

Follow the instructions in Setting the DHCP Mode to set the DHCP mode to DHCP Relay.

You can also delete an interface from the table by clicking in the right column.

Setting the DHCP Mode

You must enable the appropriate DHCP mode to activate your DHCP relay or DHCP server settings.

Follow these instructions to set the DHCP mode:

Click the [LAN] tab, and then click [DHCP Mode] in the task bar. The [Dynamic Host Configuration Protocol (DHCP) Configuration] page appears.

Figure 15. Dynamic Host Configuration Protocol (DHCP)

Configuration Page

Page 58

Setting the DHCP Mode

From the [DHCP Mode:] drop-down list, choose [DHCP Server], [DHCP Relay], or [None]. If you choose [None], your LAN computers must be configured with static IP addresses.

Click [Submit].

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

Page 59

ONFIGURING

ETWORK

DDRESS

This section provides an overview of Network Address Translation (NAT) and instructions for modifying the default configuration on your device.

RANSLATION

Overview of NAT

Network Address Translation is a method for disguising the private IP addresses you use on your LAN as the public IP address you use on the Internet. You can define NAT rules that specify exactly how and when to translate between public and private IP addresses.

Definition:

A private IP address is created by a network administrator for use only on a LAN, whereas a public IP address is purchased from the Internet Corporation for Assigned Names and Numbers (ICANN) for use on the Internet. Typically, your ISP provides a public IP address for your entire LAN, and you define the private addresses for computers on your LAN.

In a typical NAT setup, your ISP provides you with a single public IP address to use for your entire network. Then, you assign each computer on your LAN a unique private IP address. (Or, you define a pool of private IP addresses for dynamic assignment to your computers, as described in Configuring Dynamic Host Configuration Protocol.) On the ADSL Barricade, you set up a NAT rule to specify that whenever one of your computers communicates with the Internet, (that is, it sends and receives IP data packets) its private IP address - which is referenced in each packet will be replaced by the LAN's public IP address.

Page 60

Configuring Network Address Translation

Definition:

When this type of NAT rule is applied, because the source IP address is swapped out, it appears to other Internet computers as if the data packets are actually originating from the computer assigned your public IP address (in this case, the ADSL Barricade).

The NAT rule could further be defined to disguise the source port in the data packet (i.e., change it to another number), so that outside computers will not be able to determine the actual port from which the packet originated. Data packets that arrive in response contain the public IP address as the destination IP address and the disguised source port number. The ADSL Barricade changes the IP address and source port number back to the original values (having kept track of the changes it made earlier), and then routes the packet to the originating computer.

An IP data packet contains bits of data bundled together in a specific format for efficient transmission over the Internet. Such packets are the building blocks of all Internet communication. Each packet contains header information that identifies the IP address of the computer that initiates the communication (the source IP address), the port number that the router associates with that computer (the source port number), the IP address of the targeted Internet computer (the destination IP address), and other information.

NAT rules such as these provide several benefits:

•

They eliminate the need for purchasing multiple public IP addresses for computers on your LAN. You can make up your own private IP addresses at no cost, and then have them translated to the public IP address when your computers access the Internet.

Page 61

Viewing NAT Global Settings and Statistics

•

They provide a measure of security for you LAN by enabling you to assign private IP addresses and then have these and

the source port numbers swapped out before your computers access the Internet.

The type of NAT function described above is called [Network Address Port Translation (NAPT)]. You can use other types, called flavors, of NAT for other purposes; for example, providing outside access to your LAN or translating multiple private addresses to multiple public addresses.

Viewing NAT Global Settings and Statistics

To view your NAT settings, log into the Configuration Manager, click the [Services] tab. The [NAT Configuration] page appears by default.

Figure 16. NAT Configuration Page

Page 62

Configuring Network Address Translation

The [NAT Configuration] page contains the following elements:

•

The [NAT Options] drop-down list will provide access to the [NAT Configuration] page and [NAT Global Information] table

(shown by default and in Figure 16), the [Network Address Translation (NAT) Rule and the [NAT Translations]

•

The [Enable] and [Disable] radio buttons will allow you to turn on or off the NAT feature.

•

The [NAT Global Information] table will display the following settings that apply to all NAT rule translations:

Field Description

TCP Idle Timeout (sec):

TCP Close Wait (sec):

TCP Def Timeout (sec):

UDP Timeout (sec):

ICMP Timeout (sec):

When two computers communicate via the Internet, a TCP-based communication session is created between them to control the exchange of data packets. The TCP session can be viewed as being in one of three states, depending on the types of packets being transferred.

The establishing state, where the connection is being set up.

- The active state, where the connection is being used to transfer data.

- The closing state, in which the connection is being shut down.

When a NAT rule is effective on a TCP session in the active state, the session will timeout if no packets are received for the time specified in [TCP Idle Timeout].

When in the closing state, the session will timeout if no packets are received for the time specified in [TCP Close Wait].

When in the establishing state, the session will timeout if no packets are received for the time specified in [TCP Def Timeout].

Same as TCP Idle Timeout, but for UDP-based communication sessions.

Same as TCP Idle Timeout, but for ICMP-based communication sessions.

Configuration] page (see Figure 18)

page (see Figure 20).

Page 63

Viewing NAT Global Settings and Statistics

GRE Timeout (sec):

Default Nat Age (sec):

NAPT Port Start: NAPT Port End:

Same as TCP Idle Timeout, but for GRE-based communication sessions.

For all other NAT translation sessions, the number of seconds after which a translation session will no longer be valid if no packets are received.

When an NAPT rule is defined, the source ports will be translated to sequential numbers in this range.

If you change any values, click [Submit], and click the [Admin] tab and [Commit] your changes to permanent system memory (see Committing your changes on page 30).

You can click [Global Stats] to view accumulated data on how many NAT rules have been invoked and how much data has been translated.

Figure 17. NAT Rule Global Statistics Page

The table provides basic information for each NAT rule you have set up. You can click [Clear] to restart the accumulation of the statistics at their initial values.

Page 64

Configuring Network Address Translation

Viewing NAT Rules and Rule Statistics

To view the NAT rules currently defined on your system, select [NAT Rule Entry] in the [NAT Options] drop-down list. The [Network Address Translation (NAT) Rule Configuration] page appears, as shown in Figure 18:

Figure 18. Network Address Translation (NAT) Rule

Configuration Page

The [Network Address Translation (NAT) Rule Configuration] table displays a row containing basic information for each rule. For a description of these fields, refer to the instructions for adding rules (pages 66 through 79).

From the [Network Address Translation (NAT) Rule Configuration] page, you can click [Add] to add a new rule, or use the icons in

the right column to delete ( ) or view details on ( ) a rule. To view click [Stats] the one shown in Figure 19.

data on how often a specific NAT rule has been used,

in the [Action] column. A page appears similar to

Page 65

Viewing Current NAT Translations

Figure 19. NAT Rule Statistics Page

The statistics show how many times this rule has been invoked and how many currently active sessions are using this rule. You can click [Clear] to reset the statistics to zeros and [Refresh] to display newly accumulated data.

Viewing Current NAT Translations

To view a list of [NAT Translations] that have recently been performed and which remain effective (for any of the defined rules), select [NAT Translations] from the [NAT Options] dropdown list.

Figure 20. NAT Translations Page

Page 66

Configuring Network Address Translation

For each current NAT Translations session, the table contains the following fields:

Field Description

Trans Index This is the sequential number assigned to the IP session used

Rule ID This field indicates the ID of the invoked NAT rule. Interface This field indicates the device interface on which the NAT rule

Protocol This field indicates the IP protocol used by the data packets that

Alg Type This is the Application Level Gateway (ALG), if any, that was

NAT Direction This field indicates the direction ([Inside] or [Outside]) of the

Entry Age This field indicates the elapsed time, in seconds, of the NAT

by this NAT translation session.

was invoked (from the rule definition).

are undergoing translations (from the rule definition) Example: [TCP], [UDP], [ICMP].

used to enable this NAT translation (ALGs are special settings that certain applications require in order to work while NAT is enabled).

translation. A NAT direction is assigned to each port; the Ethernet and USB ports are defined as [Inside] ports, and the WAN ports are defined as [Outside] ports. The NAT direction is determined by the interface on which the rule is invoked.

translation session.

You can click in the [Action] column to view additional details about a NAT translation session.

Page 67

Viewing Current NAT Translations

Figure 21. NAT TRANSLATION – Details Page

In addition to the information displayed in the [NAT TRANSLATION

- Details] table, this table displays the following for the selected current translation sessions:

Field Description

Translated In Address:

In Address: This field indicates the private IP address that was translated. Out Address: This field indicates the IP address of the outside destination

In Packets: Out Packets: In Ports: Out Ports: This is the port number associated with the destination address. Translated In

Ports:

This field indicates the public IP address to which the private IP address was translated.

(web, ftp site, etc.) These fields indicate the number of incoming and outgoing

IP packets that have been translated in this translation session. This is the actual port number corresponding to the LAN computer.

This is the port number to which the LAN computer’s actual port number was translated.

Page 68

Configuring Network Address Translation

Adding NAT Rules

This section explains how to create rules for each NAT flavor.

Note:

You cannot edit existing NAT rules. To change a rule setup, delete it and add a new rule with the modified settings.

The NAPT rule: Translating between private and public IP addresses

Follow these instructions to create a rule for translating the private IP addresses on your LAN to your public IP addresses. This type of rule uses the NAT flavor NAPT, which was used in your default configuration. The NAPT flavor translates private source IP addresses to a single public IP address. The NAPT rule also translates the source port numbers to port numbers that are defined on the [NAT Global Configuration] page (see Viewing NAT Global Settings and Statistics on page 59). The Introduction to NAT describes how the NAPT rule works.

Click the [NAT] tab, then select [NAT Rule Entry] from the [NAT Options] drop-down list. The [NAT Rule Entry] page displays a row for each currently configured NAT rule.

Click [Add] to display the [NAT Rule – Add] page.

From the [Rule Flavor:] drop-down list, select [NAPT]. The page reappears with only those fields that are appropriate for the NAPT rule flavor, as shown in Figure 22.

Page 69

Adding NAT Rules

Figure 22. NAT Rule-Add Page (NAPT Flavor)

Enter a [Rule ID:]. The Rule ID determines the order in which rules are invoked (the lowest numbered rule is invoked first, and so on). If you define two or more rules that act on the same set of IP addresses, be sure to assign the Rule ID so that the higher priority rules are invoked first. It is recommended that you specify Rule IDs as multiples of 5 or 10 so that, in the future, you can insert a rule between two existing rules.

Once a data packet matches a rule, the data is acted upon according to that rule and is not subjected to higher-numbered rules.

From the [IF Name:] drop-down list, select the interf ace on the device to which this rule applies. Typically, NA T rules are used for communication between your LAN and the Internet. Because the device uses the WAN interface (which may be named [ppp-0], [eoa-0], or [ipoa-0]) to connect your LAN to your ISP, it is the usual IF Name selection.

In the [Local Address From:] field and [Local Address To:] fields, type the starting and ending IP addresses, respectively ,

Page 70

Configuring Network Address Translation

of the range of private addresses you use on your network that you want to have translated.

You can specify that data from all LAN addresses should be translated by typing [0] (zero) in each [F rom] field and [255] in each [To] field. Or, type the same address in both fields if the rule only applies to one LAN computer.

In the [Global Address:] field, type the public IP address assigned to you by your ISP.

Click [Submit].

When a page appears to confirm your change, click [Close] to return to the [NAT Configuration] page. The new rule should display in the [NAT Rule Configuration] table.

10.

Ensure that the [Enable] radio button is selected, and then click [Submit]. A page appears to confirm your changes.

11.

Click the [Admin] tab, and then click [Commit and Reboot] in the task bar.

12.

Click [Commit] to save your changes to the permanent memory.

The RDR rule: Allowing external access to a LAN computer

You can create an RDR rule to make a computer on your LAN, such as a Web or FTP server, available to Internet users without requiring you to obtain a public IP address for that computer. The computer's private IP address is translated to your public IP address in all incoming and outgoing data packets.

Note:

Without an RDR rule (or Bimap rule described on page 76) the ADSL Barricade blocks attempts by external computers to access your LAN computers.

Page 71

Adding NAT Rules

The following example illustrates using the RDR rule to provide external access to your web server:

Your ADSL Barricade receives a packet containing a request for

access to your Web server. The packet header contains the

public

address for your LAN as the destination IP address, and a destination port number 80. Because you have set up an RDR rule for incoming packets with destination port 80, the device recognizes the data as a request for Web server access The device changes the packet's destination address to the private IP address of your Web server and forwards the data packet to it.

Your Web server sends data packets in response. Before the ADSL Barricade forwards them on to the Internet, it changes the source IP address in the data packets from the Web server's private address to your LAN's public address. To an external Internet user then, it appears as if your Web server uses your public IP address.

Figure 23. NAT Rule - Add Page (RDR Flavor)

Page 72

Configuring Network Address Translation

Follow the following instructions to add an RDR rule (see steps 1-4 under The NAPT Rule for specific instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add] Page, select [RDR] as the [Rule Flavor:], if necessary, and enter a [Rule ID].

Select the interface on which this rule will be effective.

Select a [Protocol:] to which this rule applies, or choose [ANY]. This selection specifies which type of Internet communication will be subject to this translation rule. You can select [ANY] if the rule applies to all data. Or, select [TCP], [UDP], [ICMP], or a number from [1-255] that represents the Internet Assigned Numbers Authority (IANA)-specified protocol number.

In the [Local Address From:] and [Local Address To:] fields, type the same private IP address, or the lowest and highest addresses in a range:

•

If you type the same IP address in both fields, incoming traffic that matches the criteria you specify in steps 5 and

6 will be redirected to that IP address.

•

If you type a range of addresses, incoming traffic will be redirected to any available computer in that range. This

option would typically be used for load balancing, whereby traffic is distributed among several redundant servers to help ensure efficient network performance.

These addresses should correspond to private addresses already in use on your network (either assigned statically to your PCs or assigned dynamically using DHCP, as discussed in the Quick Start, Configuring Your Computers).

Page 73

Adding NAT Rules

In the [Global Address From:] and [Global Address To:] fields, type the public IP address assigned to you by your ISP.

If you have multiple WAN (PPP) interfaces, this rule will not be enforced for data that arriv e s on other PPP interfaces. This rule will not be enforced for data that arrives on WAN interfaces not specified here.

If you have multiple WAN interfaces and want the rule to be enforced on more than one of them (or all), type the starting and ending IP addresses of the range.

In the [Destination Port From:] and [Destination Port To:] fields, type the port ID numbers of the computer you are making publicly available.

You can specify a range using the [From/To] fields if you want the rule to apply to a range of port types, or enter the same port number in both fields.

A port ID identifies the specific function of the computer connected to it, and therefore can limit the types of data that pass to and from the computer.

For example, Web (HTTP) servers are usually identified by port number 80; packets containing traffic destined for a Web server will contain this port ID. The Internet Assigned Numbers Authority (IANA) assigns port numbers for common types of servers and functions.

If the LAN computer that you are making publicly available is configured to use a non-standard port number for the type of traffic it receives, type the non-standard port number in the [Local Port:] field.

This option translates the standard port number in packets destined for your LAN computer to the non-standard number

Page 74

Configuring Network Address Translation

you specify. For example, if your Web server uses (nonstandard) port 2000, but you expect incoming data packets to refer to (standard) port 80, you should enter 2000 here (and select HTTP or type 80 in the Destination Port fields). The headers of incoming packets destined for port 80 will be modified to refer to port 2000. The packet will then be routed appropriately to the web server.

Follow steps 8-12 under The NAPT Rule on page 68 to submit your changes.

The Basic rule: Performing 1:1 translations

The Basic flavor translates the private (LAN-side) IP address to a public (WAN-side) address, like NAPT rules. However, unlike NAPT rules, Basic rules do not translate the port numbers in the packet header; they are passed through untranslated. Therefore, the Basic rule does not provide the same level of security as the NAPT rule.

Figure 24. NAT Rule - Add Page (BASIC Flavor)

Page 75

Adding NAT Rules

Follow the folowing instructions to add a BASIC rule (see steps 1-4 under The NAPT Rule for specific instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add] Page, select [BASIC] as the [Rule Flavor:], and enter a [Rule ID:].

Select the interface on which this rule will be effective.

Select a [Protocol:] to which this rule applies, or choose [ANY].

This selection specifies which type of Internet communication will be subject to this translation rule. You can select [ANY] if the rule applies to all data. Or, select [TCP], [UDP], [ICMP], or a number from [1-255] that represents the Internet Assigned Numbers Authority (IANA)-specified protocol number.

In the [Local Address From:] and [Local Address To:] fields, type the starting and ending IP addresses that identify the range of private address you want to be translated. Or, type the same address in both fields.

If you specify a range, each address will be translated in sequence to a corresponding address in a range of Global Addresses (which you specify in step 5).

You can create a BASIC rule for each specific address translation to occur. The range of addresses should correspond addresses already in use on your network, whether assigned statically to your PCs, or assigned dynamically using DHCP.

In the [Global Address From:] and [Global Address To:] fields, type the starting and ending address that identify the pool of public IP addresses that the private addresses should be translated to. Or, type the same address in both fields (if you also specified a single address in step 4).

to private

Page 76

Configuring Network Address Translation

Follow steps 8-12 under The NAPT Rule on page 68 to submit your changes.

The Filter rule: Configuring a BASIC rule with additional criteria

Like the BASIC flavor, the Filter flavor translates public and private IP addresses on a one-to-one basis. The Filter flavor extends the capability of the BASIC rule. Refer to The BASIC Rule on page 72 for a general description.

You can use the Filter rule if you want an address translation to occur only when your LAN computers initiate access to specific destinations. The destinations can be identified by their IP addresses, the port type (which identifies it as a FTP or Web server, for example), or both.

Figure 25. NAT Rule - Add Page (FILTER Flavor)

Page 77

Adding NAT Rules

Follow these instructions to add a Filter rule (see steps 1-4 under The NAPT Rule on page 66 for specific instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add] Page, select [FILTER] as the [Rule Flavor:], and enter a [Rule ID:].

Select the interface ([IF Name:]) on which this rule will be effective.

In the [Local Address From:] and [Local Address To:] fields, type the starting and ending IP addresses that identify the range of private addresses you want to have translated. Or, type the same address in both fields.

If you specify a range, each address will be translated in sequence to a corresponding address in a range of Global Addresses (which you specify in step 5).

The address (or range of addresses) should correspond to a private address (or addresses) already in use on your network. These may be assigned statically to your PCs or assigned dynamically using DHCP, as discussed in the Quick Start.

In the [Global Address From:] and [Global Address To:] fields, type the starting and ending address that identify the range of public IP addresses to translate your private addresses to. Or, type the same address in both fields (if you also specified a single address in step 4).

Page 78

Configuring Network Address Translation

In the [Destination Address From:] and [Destination Address To:] fields, specify a destination address (or range) if you want this rule to apply only to outbound traffic to the address (or range).

If you enter only the network ID portion of the destination address, then the rule will apply to outbound traffic to all computers on network.

In the [Destination Port From:] field, type a port ID number if you want the rule to apply only to outbound traffic to servers of this type.

You can specify a range using the From/To fields if you want the rule to apply to a range of port types, or enter the same port number in both fields. See step 6 for creating an RDR Rule on page 71 for an explanation of port IDs.

Follow steps 8-12 under The NAPT Rule on page 68 to submit your changes.

The Bimap rule: Performing two-way translations

Unlike the other NAT flavors, the Bimap flavor performs address translations in both the outgoing and incoming directions.

In the incoming direction, when the specified ADSL Barricade interface receives a packet with your public IP address as the destination address, this address is translated to the private IP address of a computer on your LAN. To the external computer, it appears as if the access is being made to the public IP address, when, in fact, it is communicating with a LAN computer.

In the outgoing direction, the private source IP address in a data packet is translated to the LAN's public IP address. To the rest of the Internet, it appears as if the data packet originated from the public IP address.

Page 79

Adding NAT Rules

Bimap rules can be used to provide external access to a LAN device. They do not provide the same level of security as RDR rules, because RDR rules also reroute incoming packets based on the port ID. Bimap rules do not account for the port number, and therefore allow external access regardless of the destination port type specified in the incoming packet.

Figure 26. NAT Rule - Add Page (BIMAP Flavor)

Follow these instructions to add a Bimap rule (see steps 1-4 under The NAPT Rule on page 66 for specific instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add] Page, select [BIMAP] as the [Rule Flavor:], and enter a [Rule ID:].

Select the interface on which this rule will be effective.

In the [Local Address:] field, type the private IP address of the computer to which you are granting external access.

In the [Global Address:] field, type the address that you want to serve as the publicly known address for the LAN computer.

Follow steps 8-12 under The NAPT Rule on page 68 to submit your changes.

Page 80

Configuring Network Address Translation

The Pass rule: Allowing specific addresses to pass through untranslated

You can create a Pass rule to allow a range of IP addresses to remain untranslated when another rule would otherwise do so.

Figure 27. NAT Rule - Add Page (PASS Flavor)

The Pass rule must be assigned a rule ID that is a lower number than the ID assigned to the rule it is intended to pass. If you want a specific IP address or range of addresses not to be subject to an existing rule, say rule ID #5, then you can create a Pass rule with ID #1 through #4.

Follow these instructions to add a Pass rule (see steps 1-4 under The NAPT Rule on page 66 for detailed instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add Page], select [PASS] as the [Rule Flavor:], and enter a [Rule ID:].

Select the interface on which this rule will be effective.

Page 81

Adding NAT Rules

In the [Local Address From:] and [Local Address To:] fields, type the lowest and highest IP addresses that define the range of private address you want to be passed without translation. If you want the Pass rule to act on only one address, type that address in both fields.

Follow steps 7-12 under The NAPT Rule on page 68 to submit your changes.

Page 82

ONFIGURING

DNS

ERVER

DDRESSES

About DNS

Domain Name System (DNS) servers map the user-friendly domain names that users type into their Web browsers (e.g. yahoo.com) to the equivalent numerical IP addresses that are used for Internet routing.

When a PC user types a domain name into a browser, the PC must first send a request to a DNS server to obtain the equivalent IP addresses. The DNS server will attempt to look up the domain name in its own database, and will communicate with higher-level DNS servers when the name cannot be found locally. When the address is found, it is sent back to the requesting PC and is referenced in IP packets for the remainder of the communication.

Assigning DNS Addresses

Multiple DNS addresses are useful to provide alternatives when one of the servers is down or is encountering heavy traffic. ISPs typically provide primary and secondary DNS addresses, and may provide additional addresses. Your LAN PCs learn these DNS addresses in one of the following ways:

•

Statically: If your ISP provides you with their DNS server addresses,

you can assign them to each PC by modifying the PCs' IP properties.

Page 83

Configuring DNS Server Addresses

•

Dynamically from a DHCP pool: You can configure the DHCP Server feature on the ADSL

Barricade and create an address pool that specifies the DNS addresses to be distributed to the PCs. Refer to Configuring DHCP Server for instructions on creating DHCP address pools.

In either case, you can specify the actual addresses of the ISP's DNS servers (on the PC or in the DHCP pool), or you can specify the address of the LAN port on the ADSL Barricade (e.g.

192.168.1.1). When you specify the LAN port IP addresses, the device performs DNS relay, as described in the following section.

Note:

If you specify the actual DNS addresses on the PCs or in the DHCP pool, the DNS relay feature is not used.

Configuring DNS Relay

When you specify the ADSL Barricade's LAN port IP addresses as the DNS addresses, then the device automatically performs DNS relay; i.e., because the device itself is not a DNS server, it forwards domain name lookup requests it receives from the LAN PCs to a DNS server at the ISP. It then relays the DNS server's response to the PC.

When performing DNS relay, the ADSL Barricade must maintain the IP addresses of the DNS servers it contacts. It can learn these addresses in either or both of the following ways:

•

Learned through PPP: If the device uses a PPP connection to the ISP, the primary

and secondary DNS addresses can be learned via the PPP protocol. To use this method, the [Use DNS] checkbox must be selected in the [PPP Interface Properties]. (See Configuring PPP Interfaces on page 105 for instructions

Page 84

Configuring DNS Relay

on configuring your PPP interface. Note that you cannot change this property by modifying an existing PPP interface; you must delete the interface and recreate it with the new setting.)

Using this option provides the advantage that you will not need to reconfigure the PCs or the ADSL Barricade if the ISP changes their DNS addresses.

•

Configured on the ADSL Barricade: You can use the device's DNS feature to specify the ISP's

DNS addresses. If the device also uses a PPP interface with the [Use DNS] property enabled, then these configured addresses will be used in addition to the two addresses learned through PPP. If [Use DNS] is not enabled, or if a protocol other than PPP is used (such as EoA), then these configured addresses will be used as the primary and secondary DNS addresses.

Follow these steps to configure DNS relay:

Configure the LAN PCs to use the ADSL Barricade's LAN IP addresses as their DNS server addresses by assigning the LAN IP address statically to each PC, or by inputting the LAN IP address or the address 0.0.0.0 as the DNS address in the DHCP server pool used by the PCs.

If you are using a PPP connection to the ISP, click the [Use DNS] check box so that the DNS server addresses it learns are used for DNS relay.

If you are not using a PPP connection (or if you want to specify DNS PPP), configure as follows.

addresses in addition to those learned through

the DNS addresses on the ADSL Barricade

Page 85

Configuring DNS Server Addresses

a. Click the [Services] tab, and then click [DNS]

in the task bar. The [Domain Name Service (DNS) Configuration] page appears.

Figure 28. Domain Name Service (DNS) Configuration Page

b. Type the IP address of the DNS server in an empty

row and click [Add]. You can enter only two addresses.

c. Click the [Enable] radio button, and then click [Submit].

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

Note:

DNS addresses that are assigned to LAN PCs prior to enabling DNS relay will remain in effect until the PC is rebooted. DNS relay will only take effect when a PC's DNS address is the LAN IP address. Similarly, if after enabling DNS relay, you specify a DNS address (other than the LAN IP address) in a DHCP pool or statically on a PC, then that address will be used instead of the DNS relay address.

Page 86

ONFIGURING

You can use the Configuration Manager to define specific routes for your Internet and network data. This section describes basic routing concepts and provides instructions for creating routes.

IP R

OUTES

Note:

Most users do not need to define IP routes.

Overview of IP Routes

The essential challenge of a router is: when it receives data intended for a particular destination, which device should it send that data to? When you define IP routes, you provide the rules that a computer uses to make these decisions.

IP routing versus telephone switching

IP routing decisions are similar to those made by switchboards that handle telephone calls.

When you dial a long distance telephone number, you are first connected to a switchboard operated by your local phone service carrier. All calls you initiate go first to this main switchboard.

If the phone number you dialed is outside your calling area, the switchboard opens a connection to a higher-level switchboard for long distance calls. That switchboard looks at the area code you dialed and connects you with another switchboard that serves that area. This new switchboard, in turn, may look at the prefix in the number you dialed (the middle set of three numbers) and connect to a more localized switchboard that handles numbers with that prefix. This final switchboard can then look at the last four digits of the phone number to open a connection with the person or company you dialed.

Page 87

Configuring IP Routes

In comparison, when your computer initiates communication over the Internet, such as viewing a web page connecting to a web server, the data it sends out includes the IP address of the destination computer (the phone number). All your outgoing requests first go to the same router at your ISP (the first switchboard). That router looks at the network ID portion of the destination address (the area code) and determines which next router to send the request to. After several such passes, the request arrives at a router for the destination network, which then uses the host ID portion of the destination IP address (the local phone number) to route the request to the appropriate computer. of IP addresses are explained in IP Addresses, Network Masks, and Subnets.)

With both the telephone and the computer, all transactions are initially sent to the same switchboard or router, which serves as a gateway to other higher- or lower-level devices. No single device knows at the outset the eventual path the data will take, but each uses a specific part of the destination address/phone number to make a decision about which device to connect to next.

(The network ID and host ID portions

Hops and gateways

Each time Internet data are passed from one Internet address to another, it is said to take a hop. A hop can be a handoff to a different port on the same device, to a different device on the same network, or to a device on an entirely different network.

When a hop passes data from one type of network to another, it uses a gateway. A gateway is an IP address that provides initial access to a network, just as a switchboard serves as a gateway to a specific set of phone numbers. For example, when a computer on your LAN requests access to a company's web site, your ISP serves as a gateway to the Internet. As your request reaches its destination, another gateway provides access to the company's web servers.

Page 88

Overview of IP Routes

Using IP routes to define default gateways

IP routes are defined on computers, routers, and other IP-enabled devices to instruct them which hop to take, or which gateway to use, to help forward data along to its specified destination.

If no IP route is defined for a destination, then IP data is passed to a predetermined default gateway. The default gateway serves like a higher-level telephone switchboard; it may not be able to connect directly to the destination, but it will know a set of other devices that can help pass the data intelligently. If it cannot determine which of these devices provides a good next hop (because no such route has been defined), then that device will forward the data to its default gateway. Eventually, a highlevel device, using a predefined IP route, will be able to forward the data along a path to its destination.

Do I need to define IP routes?

Most users do not need to define IP routes. On a typical small home or office LAN, the existing routes that set up the default gateways for your LAN computers and for the ADSL Barricade provide the most appropriate path for all your Internet traffic.

•

On your LAN computers, a default gateway directs all Internet traffic to the LAN port on the ADSL Barricade. Your LAN

computers know their default gateway either because you assigned it to them when you modified their TCP/IP properties, or because you configured them to receive the information dynamically from a server whenever they access the Internet. (Each of these processes is described in Quick Start, Configuring Your Computers.)

Page 89

Configuring IP Routes

•

On the ADSL Barricade itself, a default gateway is defined to direct all outbound Internet traffic to a router at your ISP.

This default gateway is assigned automatically by your ISP whenever the device negotiates an Internet connection. (The process for adding a default route is described on page 90.)

You may need to define routes if your home setup includes two or more networks or subnets, if you connect to two or more ISP services, or if you connect to a remote corporate LAN.

Viewing the IP Routing Table

All IP-enabled computers and routers maintain a table of IP addresses that are commonly accessed by their users. For each of these destination IP addresses, the table lists the IP address of the first hop the data should take. This table is known as the device's routing table.

To view the ADSL Barricade's routing table, click the [Routing] tab. The [IP Route Table] page appears by default, as shown in Figure 29:

Figure 29. IP Route Table Page

Page 90

Viewing the IP Routing Table

The [IP Route Table] displays a row for each existing route. These include routes that were predefined on the device, routes you may have added, and routes that the device has identified automatically through communication with other devices.

The following table defines the fields in the [IP Route Table].

Field Description

Destination This field specifies the IP address of the destination computer.

The destination can be specified as the IP address of a specific computer or an entire network. It can also be specified as all zeros to indicate that this route should be used for all destinations for which no other route is defined (this is the route that creates the default gateway).

NetMask This field indicates which parts of the destination address refer

to the network and which parts refer to a computer on the network. Refer to IP Addresses, Network Masks, and Subnets, for an explanation of network masks.

NextHop This field specifies the next IP address to send data to when its

IFName This field displays the name of the interface on the device

Route Type This field displays whether the route is [Direct] or [Indirect].

Route Origin This field displays how the route was defined.

Action

final destination is that shown in the [Destination] column.

through which data is forwarded to the specified next hop.

In a [Direct] route, the source and destination computers are on the same network, and the router attempts to directly deliver the data to the computer.

In an [Indirect] route, the source and destination computers are on different networks, and the router forwards data to a device on another network for further handling.

[Dynamic] indicates that the route was created automatically or predefined by your ISP or the manufacturer. Routes you create are labeled Local. Other routes can be created automatically (using RIP, as described in Configuring the Routing Information Protocol), or defined remotely through various network management protocols (LCL or ICMP).

This field displays an icon ( ) you can click on to delete a route.

Page 91

Configuring IP Routes

Adding IP Routes

Follow these instructions to add an IP route to the routing table.

From the [IP Route Table] page, click [Add]. The [IP Route Add] page appears, as shown in Figure 30.

Figure 30. IP Route-Add Page

Specify the Destination, Netmask, and Gateway or NextHop for this route. For a description of these fields, refer to the table on page 89. To create a route that defines the default gateway for your LAN, enter 0.0.0.0 in both the [Destination:] and [Netmask:] fields. Enter your ISP's IP address in the [Gateway/NextHop:] field.

Note:

You cannot specify the interface name, route type or route origin. These parameters are used only for routes that are identified automatically as the device communicates with other routing devices. For routes you created, the routing table displays system default values in these fields.

Page 92

Adding IP Routes

Click [Submit].

On the [Confirmation] page, click [Close] to return to the [IP Route Table] page.

The [IP Routing Table] will now display the new route.

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

Page 93

ONFIGURING THE

OUTING

NFORMATION

The ADSL Barricade can be configured to communicate with other routing devices to determine the best path for sending data to its intended destination. Routing devices communicate this information using a variety of IP protocols. This section describes how to configure the ADSL Barricade to use one of these, called the Routing Information Protocol (RIP).

ROTOCOL

RIP Overview

RIP is an Internet protocol you can set up to share routing table information with other routing devices on your LAN, at your ISP's location, or on remote networks connected to your network via the ADSL line. Generally, RIP is used to enable communication on autonomous networks. An autonomous network is one in which all of the computers are administered by the same entity. An autonomous network may be a single network, or a grouping of several networks under the same administration. An example of an autonomous network is a corporate LAN, including devices that can access it from remote locations, such as the computers telecommuters use.

Using RIP, each device sends its routing table to its closest neighbor every 30 seconds. The neighboring device in turn passes the information on to its next neighbor and so on until all devices in the autonomous network have the same set of routes.

Page 94

Configuring the Routing Information Protocol

When should you configure RIP?

Most small home or office networks do not need to use RIP; they have only one router, such as the ADSL Barricade, and one path to an ISP. In these cases, there is no need to share routes, because all Internet data from the network is sent to the same ISP gateway.

You may want to configure RIP if any of the following circumstances apply to your network:

•

Your home network setup includes an additional router or RIP-enabled PC (other than the ADSL Barricade).

Barricade and the router will need to communicate via RIP to share their routing tables.

•

Your network connects via the ADSL line to a remote network, such as a corporate network. In order for your LAN to learn the

routes used within your corporate network, they should both be configured with RIP.

•

Your ISP requests that you run RIP for communication with devices on their network.

The ADSL

Configuring the ADSL Barricade's Interfaces with RIP

The following instructions describe how to enable RIP on the ADSL Barricade.

Note:

In order for the ADSL Barricade to communicate with other devices using RIP, you must also enable the other devices to use the protocol. See the product documentation for those devices.

Page 95

Configuring the ADSL Barricade's Interfaces with RIP

Log into the Configuration Manager, click the [Services] tab, and then click [RIP] in the task bar. The [Routing Information Protocol (RIP) Configuration] page appears, as shown in Figure 31.

Figure 31. Routing Information Protocol (RIP)

Configuration Page

The page contains radio buttons for [Enable] or [Disable] the RIP feature and a table listing interfaces on which the protocol is currently running. The first time you open this page, the table may be empty.

If necessary, change the [Age (seconds):] and [Update Time (seconds):].

These are global settings for all interfaces that use RIP. [Age (seconds):] is the amount of time in seconds that the

device's RIP table will retain each route that it learns from adjacent computers.

[Update Time (seconds):] specifies how frequently the ADSL Barricade will send out its routing table to its neighbors.

Page 96

Configuring the Routing Information Protocol

In the [IF Name] column, select the name of the interface on which you want to enable RIP. For communication with RIP-enabled devices on your LAN, select [eth-0] or the name of the appropriate virtual Ethernet interface. For communication with your ISP or a remote LAN, select the corresponding [ppp], [eoa], or other WAN interface.

Select a [Metric] value for the interf ace. RIP uses a hop count as a way to determine the best path to a given destination in the network. The hop count is the sum of the metric values assigned to each port through which data is passed before reaching the destination. Among several alternative routes, the one with the lowest hop count is considered the fastest path.

For example, if you assign this port a metric of 1, then RIP will add 1 to the hop count when calculating a route that passes through this port. If you know that communication via this interface is slower than through other interfaces on your network, you can assign it a higher metric value than the others. You can select any integer from 1 to 15.

Select a [Send Mode] and a [Receive Mode]. The [Send Mode] setting indicates the RIP version this

interface will use when it sends its route information to other devices.

The [Receive Mode] setting indicates the RIP version(s) in which information must be passed to the ADSL Barricade in order for it to be accepted into its routing table.

RIP version 1 is the original RIP protocol. Select [RIP1] if you have devices that communicate with this interface that understand RIP version 1 only.

Page 97

Configuring the ADSL Barricade's Interfaces with RIP

RIP version 2 is the preferred selection because it supports classless IP addresses (which are used to create subnets) and other features. Select [RIP2] if all other routing de vices on the autonomous network support this version of the protocol.

Click [Add]. The new RIP entry will display in the table.

Click the [Enable] radio button to enable the RIP feature.

Note:

10.

Note:

If you disable the RIP feature, the interface settings you have configured will remain available for future activation.

When you are finished defining RIP interfaces, click [Submit]. A page appears to confirm your changes.

Click the [Admin] tab, and then clic k [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

You can delete an existing RIP entry by clicking in the [Action] column.

Page 98

Configuring the Routing Information Protocol

Viewing RIP Statistics

From the [RIP Configuration] page, you can click [Global Stats] to view statistics on attempts to send and receive route table data over RIP-enabled interfaces on the ADSL Barricade.

Figure 32. RIP Global Statistics Page

You can click [Clear] to reset all statistics to zero and [Refresh] to display any newly accumulated data.

Page 99

ONFIGURING THE

ATM

IRTUAL

As your LAN computers access the Internet via the ADSL Barricade, data is exchanged with your ISP through a complex network of telephone switches, Internet routers, servers, and other specialized hardware. These various devices communicate using a common language, or protocol, called Asynchronous Transfer Mode (ATM). On the Wide Area Network (WAN) that connects you to your ISP, the ATM protocol performs functions like those that the Ethernet protocol performs on your LAN.

This section describes how to configure the ATM virtual circuit (VC). The VC properties define the path the ADSL Barricade uses to communicate with your ISP over the ATM network.

IRCUIT

Viewing Your ATM VC

To view your current configuration, log into the Configuration Manager, click the [WAN] tab, and click [ATM VC] in the task bar. The [ATM VC Configuration] page appears, as shown in Figure 33.

Figure 33. ATM VC Configuration Page

Page 100

Configuring the ATM Virtual Circuit

The ATM VC Configuration table displays the following fields (contact your ISP to determine these settings):

Field Description

Interface This field indicates the name of the lower-level interface on which

this VC operates. The low-level interface names are preconfigured in the software and identify the type of traffic that can be supported, such as data or voice. Internet data services typically use an aal5-type interface.

Vpi Vci Mux Type

Max Proto per AAL5

Action (s)

These settings identify a unique ATM data path for communication between your ADSL Barricade and your ISP.

If you are using an AAL5-type of interface, this setting indicates the number of higher-level interfaces that the VC can support (the higher level interfaces can be PPP, EoA, or IPoA interfaces). Contact your ISP to determine which connection protocol(s) they require.

This field displays the icons you can click on to modify ( — see page 94) and delete ( ) the associated interface. You cannot delete an ATM interface if another protocol such as PPP, EoA, or IPoA has been defined to operate over the ATM interface. Delete the higher-level interface first, and then delete the ATM interface.

100

SMC Networks ADSL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features
