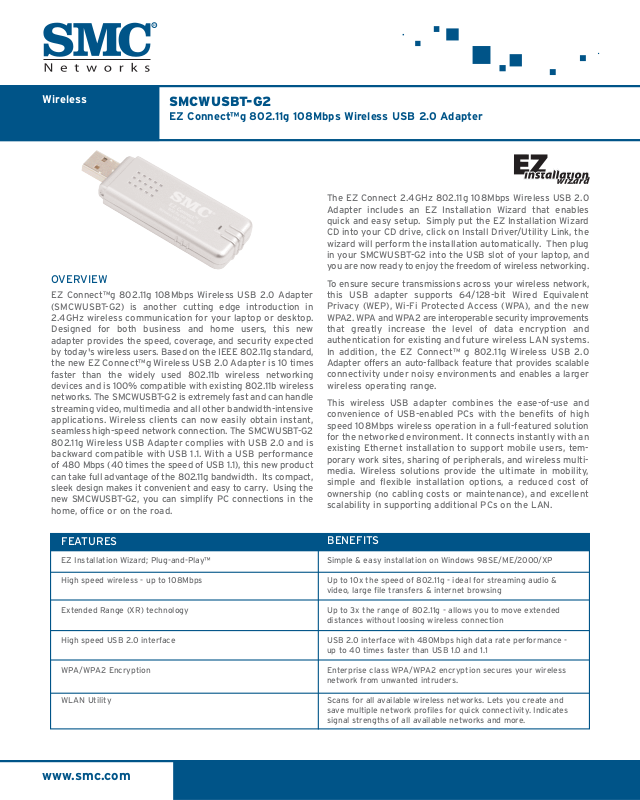

Smc WUSBT-G2 DATASHEET
Wireless
SMCWUSBT-G2
EZ Connect™g 802.11g 108Mbps Wireless USB 2.0 Adapter
www.smc.com
EZ Connect™g 802.11g 108Mbps Wireless USB 2.0 Adapter
(SMCWUSBT-G2) is another cutting edge introduction in
2.4GHz wireless communication for your laptop or desktop.
Designed for both business and home users, this new
adapter provides the speed, coverage, and security expected
by today's wireless users. Based on the IEEE 802.11g standard,
the new EZ Connect™g Wireless USB 2.0 Adapter is 10 times
faster than the widely used 802.11b wireless networking
devices and is 100% compatible with existing 802.11b wireless
networks. The SMCWUSBT-G2 is extremely fast and can handle
streaming video, multimedia and all other bandwidth-intensive
applications. Wireless clients can now easily obtain instant,
seamless high-speed network connection. The SMCWUSBT-G2
802.11g Wireless USB Adapter complies with USB 2.0 and is
backward compatible with USB 1.1. With a USB performance
of 480 Mbps (40 times the speed of USB 1.1), this new product
can take full advantage of the 802.11g bandwidth. Its compact,
sleek design makes it convenient and easy to carry. Using the
new SMCWUSBT-G2, you can simplify PC connections in the
home, office or on the road.
The EZ Connect 2.4GHz 802.11g 108Mbps Wireless USB 2.0
Adapter includes an EZ Installation Wizard that enables
quick and easy setup. Simply put the EZ Installation Wizard
CD into your CD drive, click on Install Driver/Utility Link, the
wizard will perform the installation automatically. Then plug
in your SMCWUSBT-G2 into the USB slot of your laptop, and
you are now ready to enjoy the freedom of wireless networking.
To ensure secure transmissions across your wireless network,
this USB adapter supports 64/128-bit Wired Equivalent
Privacy (WEP), Wi-Fi Protected Access (WPA), and the new
WPA2. WPA and WPA2 are interoperable security improvements
that greatly increase the level of data encryption and
authentication for existing and future wireless LAN systems.
In addition, the EZ Connect™ g 802.11g Wireless USB 2.0
Adapter offers an auto-fallback feature that provides scalable
connectivity under noisy environments and enables a larger
wireless operating range.
This wireless USB adapter combines the ease-of-use and
convenience of USB-enabled PCs with the benefits of high
speed 108Mbps wireless operation in a full-featured solution
for the networked environment. It connects instantly with an
existing Ethernet installation to support mobile users, temporary work sites, sharing of peripherals, and wireless multimedia. Wireless solutions provide the ultimate in mobility,
simple and flexible installation options, a reduced cost of
ownership (no cabling costs or maintenance), and excellent
scalability in supporting additional PCs on the LAN.
FEATURES
EZ Installation Wizard; Plug-and-Play™
High speed wireless - up to 108Mbps
Extended Range (XR) technology
High speed USB 2.0 interface
WPA/WPA2 Encryption
WLAN Utility
Simple & easy installation on Windows 98SE/ME/2000/XP
Up to 10x the speed of 802.11g - ideal for streaming audio &
video, large file transfers & internet browsing
Up to 3x the range of 802.11g - allows you to move extended
distances without loosing wireless connection
USB 2.0 interface with 480Mbps high data rate performance up to 40 times faster than USB 1.0 and 1.1
Enterprise class WPA/WPA2 encryption secures your wireless
network from unwanted intruders.
Scans for all available wireless networks. Lets you create and
save multiple network profiles for quick connectivity. Indicates
signal strengths of all available networks and more.
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMCWUSBT-G2
STANDARDS
• 802.11b
• 802.11g
• USB 1.0, 1.1, 2.0
DATA RATES
• 1 / 2 / 5.5 / 11 Mbps
• 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 / 108 Mbps
FREQUENCY BAND
• CSMA/CA
OPERATIONAL MODE
• 802.11g Radio : 2.4 GHz
• 802.11b Radio : 2.4 GHz
• USA - FCC: 2412~2462MHz (Channel 1~Channel 11)
• Canada - IC: 2412~2462MHz (Channel 1~Channel 11)
• Europe - ETSI: 2412~2472MHz (Channel 1~Channel 13)
MODULATION TYPE
• OFDM, CCK
OPERATIONAL CHANNELS
• IEEE 802.11b compliant:
• 11 channels (US, Canada)
• 13 channels (ETSI)
• 14 channels (Japan)
• IEEE 802.11g compliant:
• 11 channels (US, Canada)
• 13 channels (Europe, Japan)
SECURITY
• 64/128-bit WEP
•WPA
•WPA2
ANTENNA
• Internal
TRANSMITTED POWER
Modulation Rate Output Power 2.4-2.5GHz (dBm)
802.11b - 1Mbps 16
802.11b - 2Mbps 16
802.11b - 5.5Mbps 16
802.11b - 11Mbps 16
Modulation Rate Output Power 2.4-2.5GHz (dBm)
802.11g - 6Mbps 14
802.11g - 9Mbps 14
802.11g - 12Mbps 14
802.11g - 18Mbps 14
802.11g- 24Mbps 13
802.11g - 36Mbps 13
802.11g- 48Mbps 12
802.11g - 54Mbps 12
RATES/SENSITIVITY/ALLOWABLE PATH LOSS
Modulation Rate Receiver Sensitivity (dBm) 2.412 ~ 2.484 GHz
802.11b - 1Mbps -92
802.11b - 2Mbps -89
802.11b - 5.5Mbps -85
802.11b- 11Mbps -82
Modulation Rate Receiver Sensitivity (dBm)
802.11g - 6Mbps -82
802.11g - 9Mbps -81
802.11g - 12Mbps -79
802.11g - 18Mbps -77
802.11g- 24Mbps -74
802.11g - 36Mbps -70
802.11g- 48Mbps -66
802.11g - 54Mbps -65
REGULATORY COMPLIANCE
•FCC
•ETSI/CE
•C-Tick
CURRENT CONSUMPTION
•TX: 485mA Max
•RX: 330mA Max
HOST INTERFACE
•USB 2.0
TEMPERATURE
•Operating: 0 ~ 45°C / 32° ~ 113°F ambient
•Storage: -20 ~ 70°C / -4° ~ 158°F ambient
HUMIDITY
•5 ~ 90% non-condensing
DIMENSION
•3.25 x 1.125 in / 82.5 x 28.5mm
WEIGHT
•0.06 lbs / 27g
