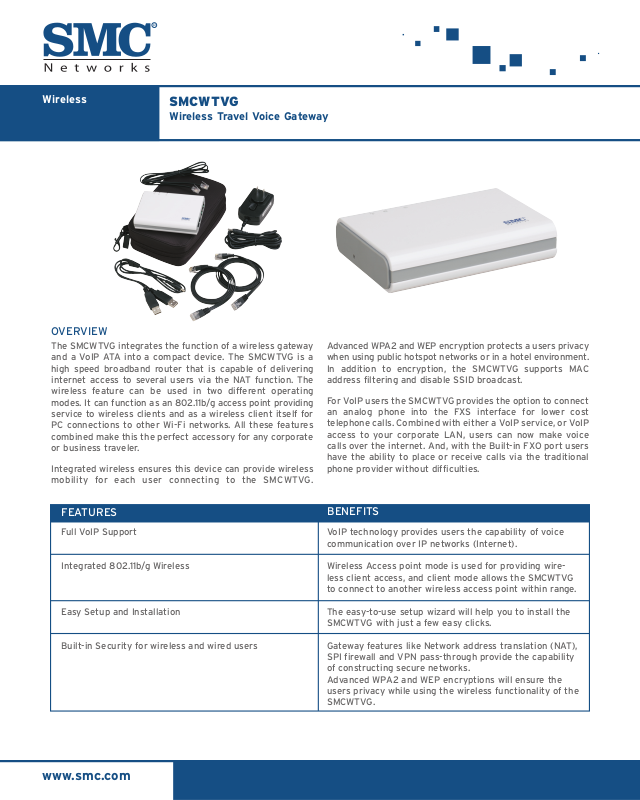

Smc WTVG DATASHEET
Wireless
SMCWTVG
Wireless Travel Voice Gateway
www.smc.com
The SMCWTVG integrates the function of a wireless gateway
and a VoIP ATA into a compact device. The SMCWTVG is a
high speed broadband router that is capable of delivering
internet access to several users via the NAT function. The
wireless feature can be used in two different operating
modes. It can function as an 802.11b/g access point providing
service to wireless clients and as a wireless client itself for
PC connections to other Wi-Fi networks. All these features
combined make this the perfect accessory for any corporate
or business traveler.
Integrated wireless ensures this device can provide wireless
mobility for each user connecting to the SMCWTVG.
Advanced WPA2 and WEP encryption protects a users privacy
when using public hotspot networks or in a hotel environment.
In addition to encryption, the SMCWTVG supports MAC
address filtering and disable SSID broadcast.
For VoIP users the SMCWTVG provides the option to connect
an analog phone into the FXS interface for lower cost
telephone calls. Combined with either a VoIP service, or VoIP
access to your corporate LAN, users can now make voice
calls over the internet. And, with the Built-in FXO port users
have the ability to place or receive calls via the traditional
phone provider without difficulties.
FEATURES
Full VoIP Support
Integrated 802.11b/g Wireless
Easy Setup and Installation
Built-in Security for wireless and wired users
VoIP technology provides users the capability of voice
communication over IP networks (Internet).
Wireless Access point mode is used for providing wireless client access, and client mode allows the SMCWTVG
to connect to another wireless access point within range.
The easy-to-use setup wizard will help you to install the
SMCWTVG with just a few easy clicks.
Gateway features like Network address translation (NAT),
SPI firewall and VPN pass-through provide the capability
of constructing secure networks.
Advanced WPA2 and WEP encryptions will ensure the
users privacy while using the wireless functionality of the
SMCWTVG.
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMCWTVG
PORT
• One Wan 10/100 BaseT Ethernet Connection to a ADSL/ Cable modem
• One LAN 10/100 BaseT Ethernet connection to connect to a PC
• RJ-11 voice interface, FXS for connecting to a standard analog telephone
• RJ-11 voice interface, FXO for receiving calls on your regular PSTN line
GATEWAY FEATURES
• NAT/NAPT
• DHCP
• PPPoE
• Static IP
NETWORKING
• DNS
• DNS Relay
• Dynamic DHC
• Syslog
• Virtual DMZ
• Virtual Server
• VPN pass-through
• L2TP
• PPTP
• IPSec
• UPnP
• SNTP
• QOS
• 2 Priority levels
• QOS supports DSCP
• 802.1x
• EAP:TLS
SECURITY
• SPI Firewall
• DoS attack Protection:
• IP Spoofing
• Land Attack
• Ping of Death
• Smurf Attack
• TCP null scan
• SYN flood
• ICMP defect
WIRELESS FEATURES
• Wireless: IEEE 802.11b/g
• 3 modes
• AP mode
• Client mode
• QOS: 802.11e(WMM)
VOIP FEATURES
• Voice signaling protocol: SIPv2
• Voice Codec
• G711a-law/u-law
• G.726
• G729A/B
• Voice quality
• VAD ( Voice Activity Detection)
• CNG( Comfortable Noise Generation)
• Echo Cancellation ( G.165/G.168 echo canceller)
• Adaptive Jitter Buffer
• DTMF tone detection and generation
• Call Progress Generation
• Custom tone Generation
• Call features
• Call transfer
• Call waiting/Hold/Retrieve
• Call-ID block
• Do not Disturb Setting
• Call Return
• Distinctive Ringing
PERFORMANCE
• RF output power
• 802.11b: 18dBm
• 802.11g: 14dBm
• RF data rate ( automatic fall back)
• 802.11b: 1/2/5.5/11Mbps
• 802.11g: 6/9/12/18/24/26/48/54 Mbps
DIMENSION
• 24.7 mm X 107.5 mm X 78.67 mm (HxWxD)
POWER SUPPLY
• Input AC :100~240V 0.3A 50-60Hz
ENVIRONMENT
• Temperature: IEC 68-2-14
• -10 C to 50 C ( standard Operating)
• -40 C to 70 C ( Non-operation)
• Humidity 5% to 95% (Non condensing)
• Vibration: IEC 68-2-36 , IEC 68-2-6
• Shock: IEC 68-2-29
• Drop: IEC 68-2-32
EMISSIONS/SAFETY
• Safety: UL/cUL (UL60950) CB EN60950
• EMC: FCC part 15B class B, FCC part 15C FCC part 68,
CE EN55022 Class B
• EMS: CE en55024, CE EN 300328, CE EN301489
MANGEMENT
• Web-based management
• Firmware Upgrade Via HTTP Web Interface
