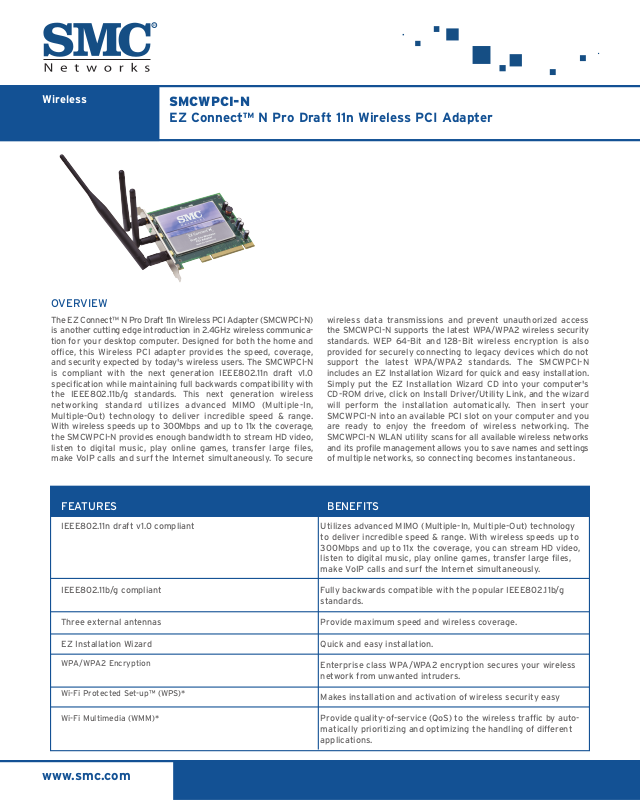

Smc WPCI-N Quick installation guide
Wireless
SMCWPCI-N
EZ Connect™ N Pro Draft 11n Wireless PCI Adapter
www.smc.com
The EZ Connect™ N Pro Draft 11n Wireless PCI Adapter (SMCWPCI-N)
is another cutting edge introduction in 2.4GHz wireless communication for your desktop computer. Designed for both the home and
office, this Wireless PCI adapter provides the speed, coverage,
and security expected by today's wireless users. The SMCWPCI-N
is compliant with the next generation IEEE802.11n draft v1.0
specification while maintaining full backwards compatibility with
the IEEE802.11b/g standards. This next generation wireless
networking standard utilizes advanced MIMO (Multiple-In,
Multiple-Out) technology to deliver incredible speed & range.
With wireless speeds up to 300Mbps and up to 11x the coverage,
the SMCWPCI-N provides enough bandwidth to stream HD video,
listen to digital music, play online games, transfer large files,
make VoIP calls and surf the Internet simultaneously. To secure
wireless data transmissions and prevent unauthorized access
the SMCWPCI-N supports the latest WPA/WPA2 wireless security
standards. WEP 64-Bit and 128-Bit wireless encryption is also
provided for securely connecting to legacy devices which do not
support the latest WPA/WPA2 standards. The SMCWPCI-N
includes an EZ Installation Wizard for quick and easy installation.
Simply put the EZ Installation Wizard CD into your computer's
CD-ROM drive, click on Install Driver/Utility Link, and the wizard
will perform the installation automatically. Then insert your
SMCWPCI-N into an available PCI slot on your computer and you
are ready to enjoy the freedom of wireless networking. The
SMCWPCI-N WLAN utility scans for all available wireless networks
and its profile management allows you to save names and settings
of multiple networks, so connecting becomes instantaneous.
FEATURES
IEEE802.11n draft v1.0 compliant
IEEE802.11b/g compliant
Three external antennas
EZ Installation Wizard
WPA/WPA2 Encryption
Wi-Fi Protected Set-up™ (WPS)*
Wi-Fi Multimedia (WMM)*
BENEFITS
OVERVIEW
Utilizes advanced MIMO (Multiple-In, Multiple-Out) technology
to deliver incredible speed & range. With wireless speeds up to
300Mbps and up to 11x the coverage, you can stream HD video,
listen to digital music, play online games, transfer large files,
make VoIP calls and surf the Internet simultaneously.
Fully backwards compatible with the popular IEEE802.11b/g
standards.
Provide maximum speed and wireless coverage.
Quick and easy installation.
Enterprise class WPA/WPA2 encryption secures your wireless
network from unwanted intruders.
Makes installation and activation of wireless security easy
Provide quality-of-service (QoS) to the wireless traffic by automatically prioritizing and optimizing the handling of different
applications.
TECHNICAL SPECIFICATIONS SMCWPCI-N
EASE OF USE
• EZ Installation Wizard
• Wi-Fi Protected Setup™*
SECURITY FEATURES
• WEP 64-/128-Bit Encryption
• WPA-/WPA2-PSK (Pre Shared Key)
• WPA/WPA2 Enterprise mode (802.1x)
QUALITY-OF-SERVICE (QOS)
• WMM (Wi-Fi Multimedia)*
ANTENNAS
• 2x 2dBi + 1x 5dBi detachable antennas with RP-SMA connector
LED INDICATOR
• Link status
• Activity
STANDARDS
• IEEE802.11b, IEEE802.11g, IEEE802.11n draft v1.0
OPERATING FREQUENCY
• FCC: 2412~2462MHz (Ch1~Ch11)
• ETSI: 2412~2472MHz (Ch1~Ch13)
TYPICAL RF OUTPUT POWER
• 11n Mode: 14dBm
• 11g Mode: 15dBm
• 11b Mode : 18dBm
TEMPERATURE
• Operating: 0
o
degrees C to 40odegrees C
• Storage: -25
o
degrees C to 70odegrees C
HUMIDITY
• Operating: 0% to 70% Non-condensing
• Storage: 10% to 90% Non-condensing
DIMENSIONS
• 120x133x18mm
• 4.7x5.2x0.7in
WEIGHT
•0.135Kg
• 0.30Ibs
CERTIFICATIONS
•FCC
•CE
SYSTEM REQUIREMENTS
• 2.4 GHz 802.11n draft wireless network or 2.4 GHz
802.11b/g wireless network
• Microsoft Windows 2000 or Windows XP
• A desktop PC with:
• 300MHz CPU or above
• Available PCI slot
• 20MB of available hard disk space
• CD-ROM drive
• We recommend using this product with the SMCWBR14-N
Barricade™ N Broadband Router or the SMC7904WBRA-N
Barricade™ N ADSL2/2+ Modem Router
PACKAGE CONTENTS
• EZ Connect™ N Wireless PCI Adapter (SMCWPCI-N)
• Installation CD containing:
• EZ Installation Wizard
• Manual
• Quick Installation Guide
• Warranty registration card
WARRANTY
• SMC Limited Lifetime
*Support for these features will be added through future
driver/utility upgrade
