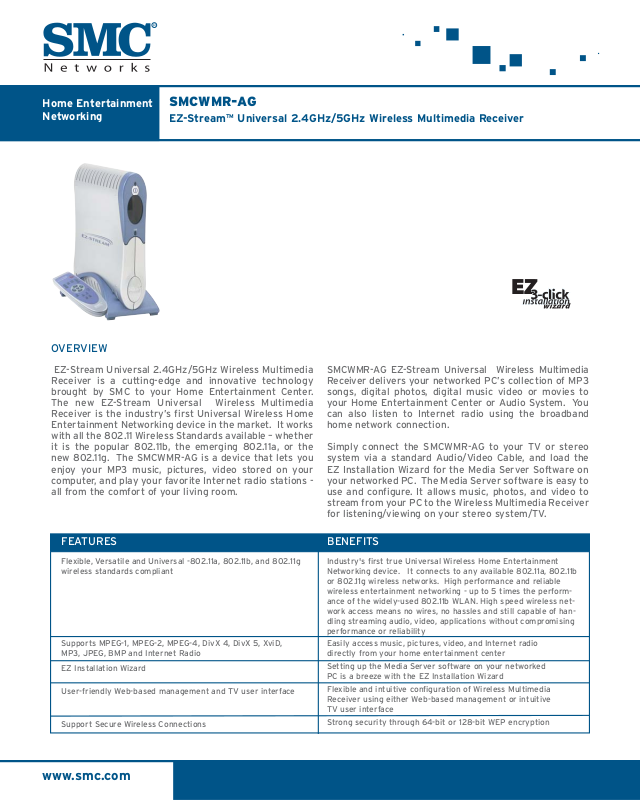

Smc WMR-AG DATASHEET
Home Entertainment
Networking
SMCWMR-AG
EZ-StreamTMUniversal 2.4GHz/5GHz Wireless Multimedia Receiver
www.smc.com
EZ-Stream Universal 2.4GHz/5GHz Wireless Multimedia
Receiver is a cutting-edge and innovative technology
brought by SMC to your Home Entertainment Center.
The new EZ-Stream Universal Wireless Multimedia
Receiver is the industry’s first Universal Wireless Home
Entertainment Networking device in the market. It works
with all the 802.11 Wireless Standards available – whether
it is the popular 802.11b, the emerging 802.11a, or the
new 802.11g. The SMCWMR-AG is a device that lets you
enjoy your MP3 music, pictures, video stored on your
computer, and play your favorite Internet radio stations all from the comfort of your living room.
SMCWMR-AG EZ-Stream Universal Wireless Multimedia
Receiver delivers your networked PC’s collection of MP3
songs, digital photos, digital music video or movies to
your Home Entertainment Center or Audio System. You
can also listen to Internet radio using the broadband
home network connection.
Simply connect the SMCWMR-AG to your TV or stereo
system via a standard Audio/Video Cable, and load the
EZ Installation Wizard for the Media Server Software on
your networked PC. The Media Server software is easy to
use and configure. It allows music, photos, and video to
stream from your PC to the Wireless Multimedia Receiver
for listening/viewing on your stereo system/TV.
FEATURES
Flexible, Versatile and Universal -802.11a, 802.11b, and 802.11g
wireless standards compliant
Supports MPEG-1, MPEG-2, MPEG-4, DivX 4, DivX 5, XviD,
MP3, JPEG, BMP and Internet Radio
EZ Installation Wizard
User-friendly Web-based management and TV user interface
Support Secure Wireless Connections
Industry's first true Universal Wireless Home Entertainment
Networking device. It connects to any available 802.11a, 802.11b
or 802.11g wireless networks. High performance and reliable
wireless entertainment networking - up to 5 times the performance of the widely-used 802.11b WLAN. High speed wireless network access means no wires, no hassles and still capable of handling streaming audio, video, applications without compromising
performance or reliability
Easily access music, pictures, video, and Internet radio
directly from your home entertainment center
Setting up the Media Server software on your networked
PC is a breeze with the EZ Installation Wizard
Flexible and intuitive configuration of Wireless Multimedia
Receiver using either Web-based management or intuitive
TV user interface
Strong security through 64-bit or 128-bit WEP encryption
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMCWMR-AG
STANDARDS
•802.3
•802.3u
• 802.11b
• 802.11a
• 802.11g
• UPnP
DATE RATE
• 10/100 Mbps standard Ethernet
interface
• 802.11b – 1, 2, 5.5, 11 Mbps
• 802.11a/g – 6, 9, 12, 18, 24, 36,48, 54
TRANSFER DATA RATE
802.11a/g
• 54, 48, 36, 24, 18, 12, 9, 6 Mbps,
auto-fallback
802.11b
• 11, 5.5, 2, 1 Mbps, auto-fallback
SECURITY
• 64-bit, 128-bit WEP Encryption
FREQUENCY RANGE
• 2.412 ~ 2.462GHz, 5.15 ~ 5.35GHz,
5.47 ~ 5.725GHz, 5.725 ~ 5.825GHz
• 2.400 – 2.483GHz
MODULATION TECHNIQUE
802.11b/g
• DSSS (DBPSK, DQPSK, CCK)
• OFDM
802.11a
• OFDM (BPSK, QPSK, 16-QAM,
64-QAM) Channels
802.11b/g
• US/Canada: 11 (1 ~ 11)
• Major European countries:13 (1 ~ 13)
• France: 4 (10 ~ 13)
• Japan: 14 (1~13 or 14)
• China: 13 (1 ~ 13)
802.11a
• US/Canada: 12 non-overlapping
channels (5.15 ~ 5.35GHz,
5.725 ~ 5.825GHz)
• Europe: 19 non-overlapping channel
(5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz)
MEDIA ACCESS PROTOCOL
• CSMA/CA
ANTENNA
• Built-in Antenna
INTERFACE NETWORK
• RJ-45 Connector
• 802.11a/b/g
CVBS
• Composite Video Blanking Signal
• PAL/NTSC/SECAM
• RCA connector (yellow)
• Impedance 75
•1.0 Vpp
AUDIO
• Analog Audio left and right
• RCA red (right), RCA white (left)
• Impedance <1k
• 0.5 Vrms
REMOTE CONTROL
• Consumer IR input
• RC6 compatible
• Carrier frequency 36 kHz
• Range 7m minimum
• Elevation angle 30°
• Angle from centerline better than 35°
FRONT PANEL BUTTON
• Power/Standby
• System in power on state or
stand-by state
LED
• LED for link status (green)
• LED for power status (red, integrated
in power button) Configuration and
Management
• Wireless Multimedia Receiver - Web
Configuration and TV UI
• PC Media Server Program –
Windows 98SE, ME,2000, XP
FIRMWARE UPGRADE
• Auto-search for firmware update
upon power up
OPERATION MODE
• Infrastructure & Ad-hoc mode
FILE FORMATS
• Audio support: MP3 (16-320 Kbps)
• Internet Radio: MP3
• Video support: MPEG - 1 (352x288,
max 2 Mbps), MPEG - 2 (352x480,
max 4 Mbps), MPEG - 4 (720 x 576,
max 4 Mbps), DivX 4 and DivX 5, XviD
• Still Image support: JPEG, BMP
OPERATING SYSTEMS
• Windows 98SE, ME, 2000, XP
COMPLIANCE
• Wi-Fi Compliant
• FCC Class B
• Industry Canada
• ETSI, EN301 893, EN60950
NON-PRERATIONAL CONDITIONS
• Ambient temperature: -25°C to +70°C
• Relative humidity: 5-95%
OPERATIONAL CONDITIONS
• Supply voltage of external power
supply: input 110 VAC, 50/60 Hz;
output 5VDC, 3A
• Ambient temperature: -10°C to +45°C
• Relative humidity: 95% max
WARRANTY
• Limited Lifetime
DIMENSIONS
• 6.45 x 6.38 x 2.75 in
• 16.38 x 16.21 x 6.99 cm
WEIGHT
• 0.70 lbs
• 320 Grams
