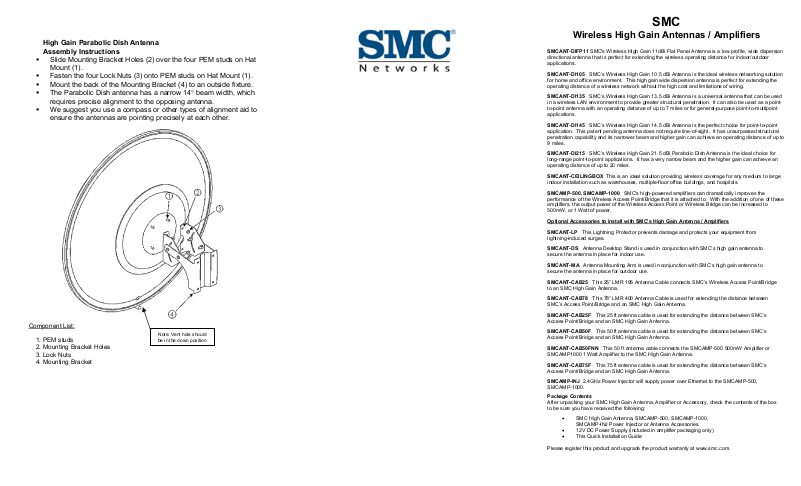

High Gain Parabolic Dish Antenna Assembly Instructions

 Slide Mounting Bracket Holes (2) over the four PEM studs on Hat

Mount (1).

 Fasten the four Lock Nuts (3) onto PEM studs on Hat Mount (1).  Mount the back of the Mounting Bracket (4) to an outside fixture.  The Parabolic Dish antenna has a narrow 14° beam width, which

requires precise alignment to the opposing antenna.

 We suggest you use a compass or other types of alignment aid to

ensure the antennas are pointing precisely at each other.

Component List:

1. PEM studs

2. Mounting Bracket Holes

3. Lock Nuts

4. Mounting Bracket

Note: Vent hole should be in the down position

SMC

Wireless High Gain Antennas / Amplifiers

SMCANT-DIFP11 SMC's Wireless High Gain 11dBi Flat Panel Antenna is a low profile, wide dispersion

directional antenna that is perfect for extending the wireless operating distance for indoor/outdoor applications.

SMCANT-DI105 SMC’s Wireless High Gain 10.5 dBi Antenna is the ideal wireless networking solution for home and office environment. This high gain wide dispersion antenna is perfect for extending the operating distance of a wireless network without the high cost and limitations of wiring.

SMCANT-DI135 SMC’s Wireless High Gain 13.5 dBi Antenna is a universal antenna that can be used in a wireless LAN environment to provide greater structural penetration. It can also be used as a pointto-point antenna with an operating distance of up to 7 miles or for general-purpose point-to-multipoint applications.

SMCANT-DI145 SMC’s Wireless High Gain 14.5 dBi Antenna is the perfect choice for point-to-point application. This patent pending antenna does not require line-of-sight. It has unsurpassed structural penetration capability and its narrower beam and higher gain can achieve an operating distance of up to 9 miles.

SMCANT-DI215 SMC’s Wireless High Gain 21.5 dBi Parabolic Dish Antenna is the ideal choice for long-range point-to-point applications. It has a very narrow beam and the higher gain can achieve an operating distance of up to 20 miles.

SMCANT-CEILINGBOX This is an ideal solution providing wireless coverage for any medium to large indoor installation such as warehouses, multiple-floor office buildings, and hospitals.

SMCAMP-500, SMCAMP-1000 SMC’s high-powered amplifiers can dramatically improves the performance of the Wireless Access Point/Bridge that it is attached to. With the addition of one of these amplifiers, the output power of the Wireless Access Point or Wireless Bridge can be increased to 500mW, or 1 Watt of power.

Optional Accessories to install with SMC’s High Gain Antenna / Amplifiers

SMCANT-LP This Lightning Protector prevents damage and protects your equipment from

lightning-induced surges.

SMCANT-DS Antenna Desktop Stand is used in conjunction with SMC’s high gain antenna to secure the antenna in place for indoor use.

SMCANT-MA Antenna Mounting Arm is used in conjunction with SMC’s high gain antenna to secure the antenna in place for outdoor use.

SMCANT-CAB25 This 25” LMR 195 Antenna Cable connects SMC’s Wireless Access Point/Bridge to an SMC High Gain Antenna.

SMCANT-CAB78 This 78” LMR 400 Antenna Cable is used for extending the distance between SMC’s Access Point/Bridge and an SMC High Gain Antenna.

SMCANT-CAB25F This 25 ft antenna cable is used for extending the distance between SMC’s Access Point/Bridge and an SMC High Gain Antenna.

SMCANT-CAB50F This 50 ft antenna cable is used for extending the distance between SMC’s Access Point/Bridge and an SMC High Gain Antenna.

SMCANT-CAB50FNN This 50 ft antenna cable connects the SMCAMP-500 500mW Amplifier or SMCAMP1000 1 Watt Amplifier to the SMC High Gain Antenna.

SMCANT-CAB75F This 75 ft antenna cable is used for extending the distance between SMC’s Access Point/Bridge and an SMC High Gain Antenna.

SMCAMP-INJ 2.4GHz Power Injector will supply power over Ethernet to the SMCAMP-500, SMCAMP-1000.

Package Contents

After unpacking your SMC High Gain Antenna, Amplifier or Accessory, check the contents of the box to be sure you have received the following:

• SMC High Gain Antenna, SMCAMP-500, SMCAMP-1000, SMCAMP-INJ Power Injector or Antenna Accessories.

• 12V DC Power Supply (included in amplifier packaging only)

• This Quick Installation Guide

Please register this product and upgrade the product warranty at www.smc.com.

Desktop Stand Assembly Instructions

 Place antenna Mounting Screw (2) through Hole (5).  Screw on Lock Nut (3) and tighten.  Attach the Cable to the Connector (1) on the back of antenna.  Attach the other end of the Cable to Wireless Device.  For optimal results, place the antenna tip (4) in the direction of

desired coverage area.

Component List:

1. Cable Connector

2. Antenna Mounting Screw

3. Lock Nut

4. Front of Antenna

5. Desktop stand hole

Mounting Arm Assembly Instructions

 Place antenna Mounting Screw (2) through the Arm Bracket Hole (3) on

Arm Bracket.

 Screw on Lock Nut (4) and tighten  Attach the Cable to the Connector (5) on the back of antenna.  Attach the other end of the Cable to Wireless Device.  For optimal results, place the antenna tip (1) in the direction of desired

coverage area.

Component List:

1. Front of Antenna

2. Mounting Screw

3. Mounting Hole

4. Lock Nut

5. Cable Connector

SMCAMP-500, SMCAMP-1000 Amplifier

Installation Instructions

AC Power Option:

• Attach antenna cable from radio to Amplifier (1).

• Attach antenna cable from Amplifier to Antenna (2).

• Attach supplied power supply to the power input port (3).

From Radio To Antenna

Power over Ethernet Option:

From Radio

• Attach antenna cable from radio to Amplifier (1).

• Attach antenna cable from Amplifier to Antenna (2).

• Connect Category 5 cable input (4).

• Connect Category 5 cable output to AP/Bridge (5).

Component List:

1. Type N Connector to Radio

2. Type N Connector to Antenna

3. Power Supply Input

4. Category 5 cable input

Category 5 cable output

To Antenna

SMCAMP-INJ 2.4GHz Power Injector Installation Instructions

• Install AC power adaptor (1)

• Connect Category 5 cable input (3).

• Connect Category 5 cable output (2).

Component List:

1. Power Input

2. Category 5 cable output

3. Category 5 cable input

• NOTE: Disconnect TNV circuit connector before removing cover.

SMCANT-LP Lightning Protector Installation Instructions

• Attach antenna cable to Lightning Protector (1).

• Attach Lightning Protector to Amplifier or Antenna (2)

• Connect grounding wire to Lightning Protector (3)

Component List:

1. Type N Connector to Cable

Type N Connector to

Amplifier/Antenna

3. Connection to Earth Ground
