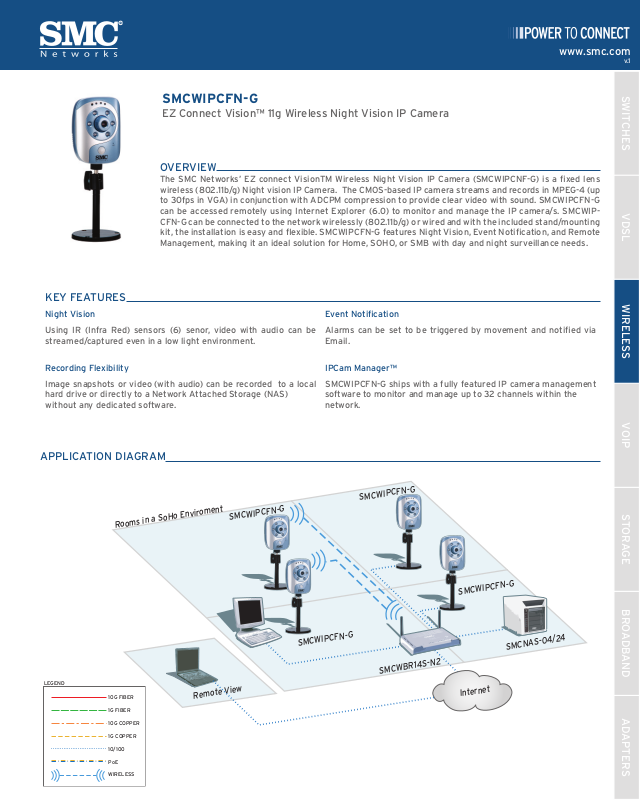

Smc WIPCFN-G DATASHEET

www.smc.com

v.1

SMCWIPCFN-G

EZ Connect Vision™ 11g Wireless Night Vision IP Camera

OVERVIEW

The SMC Networks’ EZ connect VisionTM Wireless Night Vision IP Camera (SMCWIPCNF-G) is a ﬁ xed lens wireless (802.11b/g) Night vision IP Camera. The CMOS-based IP camera streams and records in MPEG-4 (up to 30fps in VGA) in conjunction with ADCPM compression to provide clear video with sound. SMCWIPCFN-G can be accessed remotely using Internet Explorer (6.0) to monitor and manage the IP camera/s. SMCWIPCFN-G can be connected to the network wirelessly (802.11b/g) or wired and with the included stand/mounting kit, the installation is easy and ﬂ exible. SMCWIPCFN-G features Night Vision, Event Notiﬁ cation, and Remote Management, making it an ideal solution for Home, SOHO, or SMB with day and night surveillance needs.

KEY FEATURES

Night Vision Event Notiﬁ cation

Using IR (Infra Red) sensors (6) senor, video with audio can be streamed/captured even in a low light environment.

Recording Flexibility IPCam Manager™

Image snapshots or video (with audio) can be recorded to a local hard drive or directly to a Network Attached Storage (NAS) without any dedicated software.

Alarms can be set to be triggered by movement and notiﬁ ed via Email.

SMCWIPCFN-G ships with a fully featured IP camera management software to monitor and manage up to 32 channels within the network.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

APPLICATION DIAGRAM

Iffdj`eXJf?f<em`ifd\ek

LEGEND

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

JD:N@G:=E$>

I\dfk\M`\n

JD:N@G:=E$>

JD:E8J$'+&)+

JD:N9I(+J$E)

@ek\ie\k

www.smc.com

v.1

TECH SPECS - SMCWIPCFN-G

CMOS CAMERA

• Size: 1/4” CMOS

• Pixels: 307,200 effective

LENS

• TYPE: Board Lens

• Focal Length: f = 3.6 mm

• F-number: F2.0

• Angle of View: 72°I

INTERFACE

• Wired (RJ45 x 1)

• 10Base-T/100Base-TX

• Wireless (11g)

• 802.11b/g

• 1~13 channels (Europe)

• 1~11 channels (US)

• Security: WEP 64/128bit, WPA-PSK

• Audio: Built-in microphone

• Night Vision: IR LEDs x 6 (auto)

SYSTEM

• CPU: ARM9

• Memory: 16MB DDR/8MB SDRAM/ 2MB Flash

• Video Compression: MPEG4

• Audio Compression: ADPCM 4 -~16 kbit

• Resolution (Image Size): 640 x 480 (VGA), 320 x 240 (QVA)

• Frame Rate: up to 30 fps @ VGA

• Protocol: TCP/IP, ICMO, Http, SMTP. FTP, DHCP, DNS, SNTP, PPPoE, DDNS

SOFTWARE

• System Setting: Status, Log, Time, Firmware update

• Network Setting: Ethernet, Wireless, PPPoE, DDNS

• Video Setting: Frame rate (1~30)/ Resolution/ Compression Low/ Medium/ High)

• Email/FTP Setting: Trigger, manual

• Motion Detection: Enable/ Disable

• Snapshot: Manual

• Motion Detection: Enable/ Disable

• Record: Manual

• Number of Clients: 10

CERTIFICATIONS

• FCC Class B

• CE Mark

• RoHS Compliant

SYSTEM REQUIREMENTS

• Windows® XP, 2000, Vista

• DirectX 9.0 or later

• Internet Explorer 6x or later

CERTIFICATIONS

• FCC Class B-

• CE Mark

• RoHS Compliant

OPERATING TEMPERATURES

• 0° C ~ 50° C

• 32° F ~ 120° F

HUMIDITY

• 20% ~ 80% Non-condensing

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

DIMENSIONS (W X H X D)

• 100 x 75 x 28 mm

• 3.94 x 2.95 x 1.1 in

WEIGHT

• 125 g

• .28 lb

PACKAGING CONTENTS

• EZ Connect Vision™ 11g Wireless Night Vision IP Camera (SMCWIPCFN-G)

• Power Adapter

• Wall Mount Kit

• Ethernet Cable

• Quick Install Guide

• Software and Documentation CD

• SMC Warranty Registration Card

WARRANTY

• Limited Lifetime
