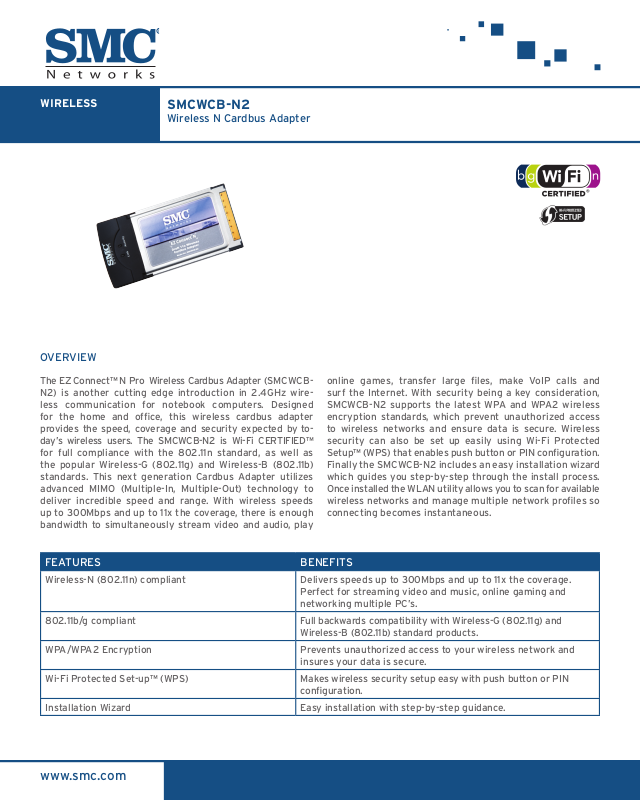

Smc WCB-N2 DATASHEET

WIRELESS

OVERVIEW

SMCWCB-N2

Wireless N Cardbus Adapter

The EZ Connect™ N Pro Wireless Cardbus Adapter (SMCWCBN2) is another cutting edge introduction in 2.4GHz wire less communication for notebook computers. Designed for the home and ofﬁce, this wireless cardbus adapter provides the speed, coverage and security expected by to day’s wireless users. The SMCWCB-N2 is Wi-Fi CERTIFIED™ for full compliance with the 802.11n standard, as well as the popular Wireless-G (802.11g) and Wireless-B (802.11b) standards. This next generation Cardbus Adapter utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and range. With wireless speeds up to 300Mbps and up to 11x the coverage, there is enough bandwidth to simultaneously stream video and audio, play

online games, transfer large ﬁles, make VoIP calls and

surf the Internet. With security being a key consideration, SMCWCB-N2 supports the latest WPA and WPA2 wireless encryption standards, which prevent unauthorized access to wireless networks and ensure data is secure. Wireless

security can also be set up easily using Wi-Fi Protected Setup™ (WPS) that enables push button or PIN conﬁguration. Finally the SMCWCB-N2 includes an easy installation wizard which guides you step-by-step through the install process. Once installed the WLAN utility allows you to scan for available wireless networks and manage multiple network proﬁles so connecting becomes instantaneous.

FEATURES BENEFITS

Wireless-N (802.11n) compliant Delivers speeds up to 300Mbps and up to 11x the coverage.

Perfect for streaming video and music, online gaming and networking multiple PC’s.

802.11b/g compliant Full backwards compatibility with Wireless-G (802.11g) and Wireless-B (802.11b) standard products.

WPA/WPA2 Encryption Prevents unauthorized access to your wireless network and

insures your data is secure.

Wi-Fi Protected Set-up™ (WPS) Makes wireless security setup easy with push button or PIN

conﬁguration.

Installation Wizard Easy installation with step-by-step guidance.

www.smc.com

TECHNICAL SPECIFICATIONS

SMCWCB-N2

PHYSICAL

• Link/Activity status LED

WIRELESS OPERATING MODES

• Ad-hoc

• Infrastructure

EASE OF USE

• EZ Installation Wizard

• Wi-Fi Protected Setup™ - PBC and PIN

• Site survey utility

• Proﬁle manager

SECURITY FEATURES

• WEP 64-/128-Bit Encryption

• WPA-/WPA2-PSK (Pre Shared Key)

• WPA/WPA2 Enterprise mode (802.1x)

QUALITY-OF-SERVICE (QoS)

• WMM (Wi-Fi Multimedia)

STANDARDS

• IEEE802.11b, IEEE802.11g, IEEE802.11n

OPERATING FREQUENCY

• USA - FCC: 2412~2462MHz (Ch1~Ch11)

• Canada – IC: 2412~2462MHz (Ch1~Ch11)

• Europe - ETSI: 2412~2472MHz (Ch1~Ch13)

TYPICAL RF OUTPUT POWER

• 11n Mode: 7dBm @ 130Mbps/HT20, 7dBm @ 300Mbps/HT40

• 11g Mode: 15dBm @ 54Mbps

• 11b Mode: 18dBm @ 11Mbps

TEMPERATURE

• Operating: 0 degrees C to 40 degrees C

• Storage: -25 degrees C to 70 degrees C

HUMIDITY

• Storage: 10% to 90% Non-condensing

• Operating: 0% to 70% Non-condensing

DIMENSIONS

• 115 x 54 x 6 mm

• 4.5 x 2.1 x 0.24 in

WEIGHT

• 0.04Kg

• 0.09Ibs

CERTIFICATIONS

• FCC

• CE

SYSTEM REQUIREMENTS

• 2.4 GHz 802.11n wireless network or 2.4 GHz 802.11b/g wireless network

• Microsoft Windows 2000 , XP or Vista

• A Notebook computer with:

• 300MHz CPU or above

• Available PC Card slot

• 20MB of available hard disk space

• CD-ROM drive

• We recommend using this product with SMC’s Barricade™ N Routers

PACKAGE CONTENTS

• EZ Connect™ N Wireless Cardbus Adapter (SMCWCB-N2)

• EZ Installation Wizard & Documentation CD

• Quick Installation Guide

• Warranty Information Card

WARRANTY

• Limited Lifetime

* The Wi-Fi CERTIFIED Logo is a certiﬁcation mark of the Wi-Fi Alliance

* The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance
