Smc SMC2662W User Manual

EZ Connect
Wireless USB Adapter
11 Mbps data rate – provides alternative to wired LANs
that can dramatically cut costs
Working range up to 160 m (528 ft) at 11 Mbps,
350 m (1,155 ft) at 1 Mbps
Seamless connectivity to wired Ethernet LANs
DSSS technology provides robust,
interference-resistant, and secure wireless connections
Supports a wide range of operating systems
(Windows 98/Me/2000/XP)
Easy installationDual dipole antenna
User Guide
SMC2662W
EZ Connect
June 2002
Part Number: 01-111393-009
Wireless USB Adapter User Guide
The easy way to make all your network connections
38 Tesla Irvine, CA 92618 Phone: (949) 679-8000
Copyright
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may r esu lt from its use. No license is granted by implicatio n or otherwise u nder any patent or pa tent rights of SMC. SMC reserves the right to change specifications at any time without notice.
Copyright © 2002 by
SMC Networks, Inc. 38 Tesla, Irvine, CA.
All rights reserved. Printed in Taiwan
Trademarks:
SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.
LIMITED WARRANTY
Limited Warranty Statement: SMC Netw or ks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product.
The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A prod uc t is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newe r technologies. At that point, the obsole te product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at
http://www.smc.com/index.cfm?action=customer_service_warranty
All products that are replaced become the property of SMC. Re placement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warran ty or the rem aind er of the in it ial war ranty , whi cheve r is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product.
Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968. Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer.
i
L
IMITED WARRANTY
WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPE RATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUES TION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, ST ATUTORY OR OTHER W ISE, I NCLUD ING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A P ARTICULA R PUR POSE. SMC N EITHE R ASSUM ES NOR A UTHORIZE S ANY OTHE R PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIA L, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, I NSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS , SO THE AB OVE LIMI TATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.
* SMC will provide warranty service for one year following discontinuance from the active SMC price list. Un.der the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
SMC Networks, Inc.
38 Tesla
Irvine, CA 92618
ii
C
OMPLIANCES
FCC - Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may caus e har m ful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outl et on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Note:
In order to maintain compliance with the limits of a Class B digital device, SMC requires that you use a quality interface cable when connecting to this device. Changes or modifications not expressly approved by SMC could void the user’s authority to operate this equipment.
Attach unshielded twisted-pair cable (UTP) to the RJ-45 port and shielded USB cable to the USB port.
Industry Canada - Class B
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the inte rference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie.
iii
C
OMPLIANCES
EC Conformance Declaration - Class B
SMC contact for these products in Europe is:
SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.
This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the following standards were applied:
RFI Emission:
Immunity:
LVD:
• Limit class B accor din g to EN 55022:1998
• Limit class B for harmonic current emission according to EN 61000-3-2/1995
• Limitation of voltage fluctuation and flicker in low-voltage supply system accordin g to EN 6100 0-3 -3/ 199 5
• Product family standard according to EN 55024:1998
• Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV)
• Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)
• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV)
• Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)
• Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m)
• Power frequency magnetic field immunity test according to EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)
• Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms)
• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)
o
, 4a,
iv
T
ABLE OF
EZ Connect™ Wireless USB Adapter . . . . . . . . . . . . . . .1
Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Windows 98/Me Driver Installation . . . . . . . . . . . . . . . . . 6
Setting Wireless Properties . . . . . . . . . . . . . . . . . . . . . . . 8
Windows 2000 Driver Installation . . . . . . . . . . . . . . . . . 21
Windows XP Driver Installation . . . . . . . . . . . . . . . . . . 24
Configuration and Diagnostics . . . . . . . . . . . . . . . . . .27
Utility Installation in Windows 98, Me, and 2000 . . . . . . . . . . . 27
Using the EZ Connect Wireless USB Utility
in Windows 98, Me, and 2000 . . . . . . . . . . . . . . . . . . . . . 28
Quick-Launch Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Advanced Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the Windows XP Configuration Tool . . . . . . . . . . . . . . . 37
Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
C
ONTENTS
v
T
ABLE OF CONTENTS
Network Configuration and Planning . . . . . . . . . . . . 41
Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Setting the Communication Domain . . . . . . . . . . . . . . . . . . . . .44
Stationary Wireless PCs . . . . . . . . . . . . . . . . . . . . . . . . . 44
Roaming Wireless PCs . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Network Connection Problems . . . . . . . . . . . . . . . . . . . . . . . . 47
SMC Networks 802.11b SMC2662W Wireless USB Adapter
Maximum Distance Table . . . . . . . . . . . . . . . . . . . . . . . . .48
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
vi
EZ C
W
IRELESS
SMC’s EZ Connect Wireless USB Adapter, SMC2662W, is an 11 Mbps wireless network adap ter that seamlessly integrates with existing Ethernet net w or ks to s up port applications such as m obile users or temporary conferences.
This solution offers fast and r el iable wireless connectivity wit h considerable cost savings over wired LANs, which include long-term maintenance overhead for cabling. Just plug wireless adapters into your desktop PCs and start networking.
Using this adapter in conjunction with an SMC EZ Connect Wireless Access Point or Wireless Access Point/Bridge, you can create an instant network that integrates seamlessly with 10 Mbps Ethernet LANs. More over , mo ving or e xpanding y our network is as easy as moving or installing additional Wireless APs/Bridges – no wires!
USB A
ONNECT
DAPTER
1
EZ C
PWR On
Power is being supplied to the adapter.
Link On
Adapter is receiving or transmitting data via a wireless
connection.
ONNECT
™ W
IRELESS
USB A
DAPTER

Hardware Description

SMC’s EZ Connect Wireless USB Adapter supports an 11 Mbps half-duplex co nnection to Ethernet networks. This adapter is fully compliant with 2.4 GHz DSSS CSMA/CA wireless networking as defined in IEEE 802.1 1b. It ca n be installed in a ny notebook or desktop with a USB port. Support is currently provid ed for Windows 98/Me/2000/XP.

LED Indicator

The EZ Connect Wireless USB Adapter includes two LED indicators, as described in the following figure and table.
Status Description
2

Applications

EZ Connect wireless products offer fast, reliable, cost-effective network access for wireless clients in applications such as:
Remote access to corporate network information
E-mail, file transfer, and terminal emulation
Difficult-to-wire environments
Historic or old buildings, asbestos installations, and open areas where wiring i s difficult to employ
Frequently changing environments
Retailers, manufacturers, an d ba nks who frequently rearrange the workplace and change location
Temporary LANs for special projects or peak time
Trade shows, exhibitions, and construction sites that need to setup for a short time period. Retailers, airline, and sh ipping companies who need additional workstations for peak periods. Auditors who require work groups at customer sites
A
PPLICATIONS
Access to databases for mobile workers
Doctors, nurses, retailers, white-collar workers who need access to databases while being mobile in a hospital, retail store, office, campus etc.
•SOHO users
SOHO (Small Office Home Office) users who need quick and easy installation of a small computer network
3
I
NSTALLATION

Package Checklist

The EZ Connect Wireless USB Adapter package includes:
• 1 EZ Connect Wireless USB Adapter with one dipole antenna (SMC2662W)
1 CD-ROM containing drivers, utility and documentation
•1 USB cable
•This User Guide
Please register this product and upgrade the product warranty at www.smc.com.
Please inform your dealer if there are any incorrect, missing, or damaged parts. If p ossib le, reta in the ca rton, includin g the or iginal packing materials. Use them again to repack the pr oduc t if th ere is a need to return it for repair.

System Requirements

Before you install the E Z Co nn ect Wireless USB Adapter, check your system meets the following requirements:
An available USB port.
Windows 98/Me/2000/XP (have the Windows installation CD-ROM ready for use during driver installation).
A minimum of 1 MB of free disk space for installing the driver and utility program.
4
H
ARDWARE INSTALLATION
Another IEEE 802.1 1b compliant device install ed in your network, such as the SMC2655W Wireless Access Point, or another PC with a wireless adapter.

Hardware Installation

1. Select an available USB port on the PC.
2. Carefully insert the USB cable’s Type-A plug (i.e., the flat pl ug)
into the USB port and press until it is firmly seated in the port.
3. Insert the other end of the cab le into the SMC26 62W.

Driver Installation

Warning: Backup your driver CD and use the copy as the workin g
disk to protect the original from accid ental damage.
The CD-ROM that comes with the package contains all the software/drivers available for the EZ Connect Wireless USB adapter. New or updated drivers can be downloaded from SMC’s web site at:
http://www.smc.com
For installation in Win do ws 98/Me see the follow i ng pages. For Windows 2000 go to “Windows 2000 Driver Installation” on page 21, and for Windows XP see “Windows XP Driver Installation” on page 24.
5
I
NSTALLATION

Windows 98/Me Driver Installation

1. Windows 98/Me wil l au tomatically detect the new hardware and prompt you to install the driver. Click Next.
2. Check “Specify a location,” and type E:\Drivers\win982k (assuming E: is the location of your CD drive). Insert the CD into the CD drive and click Next.
6
D
RIVER INSTALLATION
3. Click Next to copy files from the CD. Windows may ask you for the Windows 98 CD. If so, re move the EZ Con nect Wir eless USB adapter CD, insert the Windows 98 CD and click OK.
4. Click Finish to complete the driver inst allat ion. Y ou may be asked to restart the computer. Click Yes.
7
I
NSTALLATION

Setting Wireless Properties

1. Click Start/Settings/Control Panel. Double-click the Network icon.
2. Click on the “Iden tificati on” tab i n the Net work dialo g box and specify your computer nam e and net wor k workg r oup .
8
D
RIVER INSTALLATION
3. If you want to add more protocols after installation, go to the “Configuration” tab and click Add.
4. Double-click Protocol and add the network pr otocols y ou wish to use. If you install TCP/IP, be sure to set the appropriate Gateway, DNS Server, and Domain for your network. If you install an IPX/SPX compatible protocol, then you also need to install the Client fo r Ne tWare Networks.
5. Click File and Print Sharing and check the boxes as required.
6. On the Configuration tab, double-click the SMC2662W adapter.
9
I
NSTALLATION
7. On the Advanced tab you will find a list of properties. To communicate with SMC 11 Mbps Wireless devices, set the “Authentic a t ion Type” to “Shared Key.”
Note: Pro duc ts from some other vendors may use the setting
“Open System.” Use the same setting as the other devices in your netwo rk.
10
D
RIVER INSTALLATION
8. Set the “Channel” to the same radio channel as that used by the other wireless clients in your group. However, if you are connecting to a network via an access point, the adapter will automatically set the channel to the same as that used by the access point.
11
I
NSTALLATION
9. Wired Equival ent Pri vacy (WEP) is implemen ted in t he adapt er to prevent unauthorized access. For more secure data transmissions, set encryption to “128-bit” or “64-bit.” The 128-bit setting gives a higher level o f secur ity. The sett ing mu st
same for all clients in your wireless network. (Default:
be the Disabled) Configuration Utility. See “Encryption” on page 34.
To completely configure WEP you must use the
12
D
RIVER INSTALLATION
10. Set the “Fragmentation Threshold.” (The default 2,346 means “Disabled”) See “Terminology” on page 49 for a description of “Fragmenta tion Threshold.”
13
I
NSTALLATION
11. Set the “Operating Mode” to “Ad Hoc” or “I nfrastructure” depending on the type of network to wh ich you want to connect.
14
D
RIVER INSTALLATION
12. “Preamble Type” offers a dropdown list with three opti ons: Auto, Long, or Short. (see “Terminology” on page 49 for an explanation of “Preambl e Type”) If yo u aren't sure whethe r all the Clients and Access Point radios in your wireless network support the Short RF preamble, then leave this setting on “Long.” (Default)
15
I
NSTALLATION

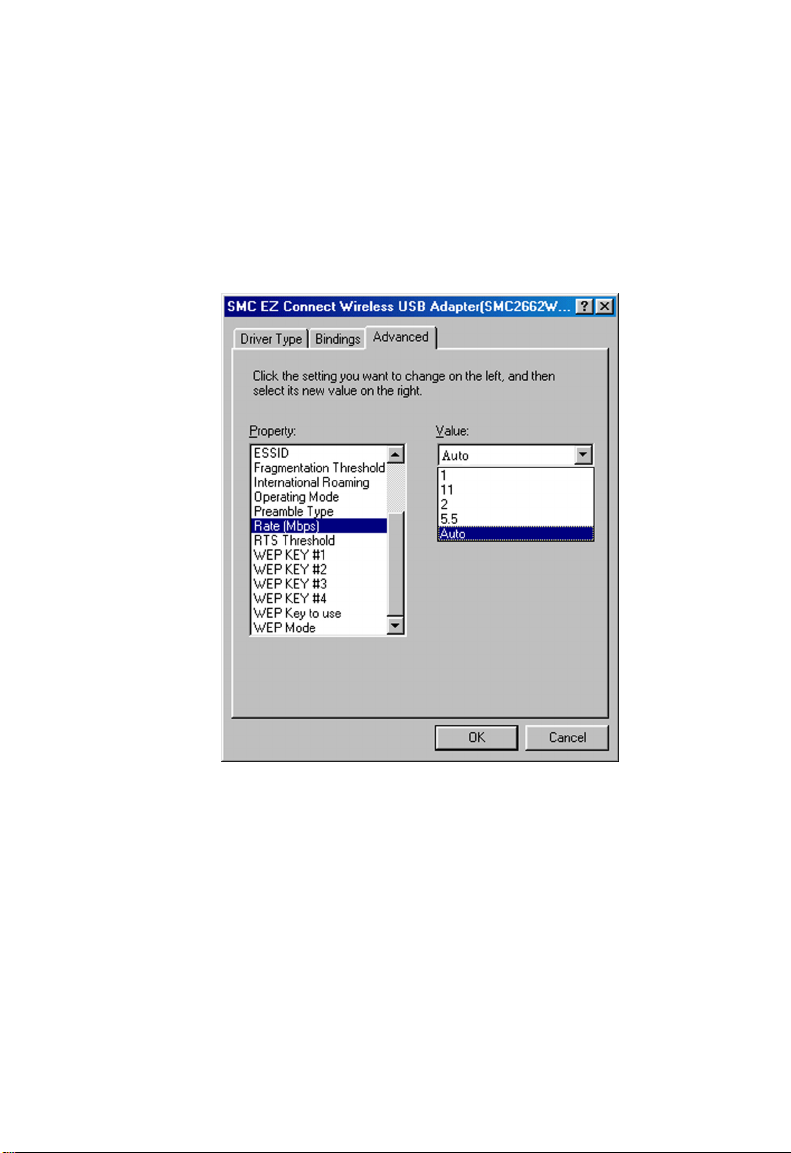

13. “Rate (Mbps)” is the data transmission/reception rate setting. It can be set to Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, or 11 Mb ps. Usually this should be set to Aut o. In a radio f requency host ile environment, a lower rate can provide more stable transmission quality.
16
D
RIVER INSTALLATION
14. Set the “RTS Threshold” to the same as that used by other devices in your network. (T he def ault 2,34 7 means “ Disabled ”) See “Terminology” on page 49 for a description of “R TS Threshold.”
17
I
NSTALLATION
15. Set the “SSID” identifier to the same as that used by the ad hoc workgroup or access point to which yo u want to connec t. (The SMC2655W Access Point default is WLAN) If you will be roaming amon g m ultiple access p oints with different BSS IDs, leave this field blank to allow connection to any SSID.
18
D
RIVER INSTALLATION

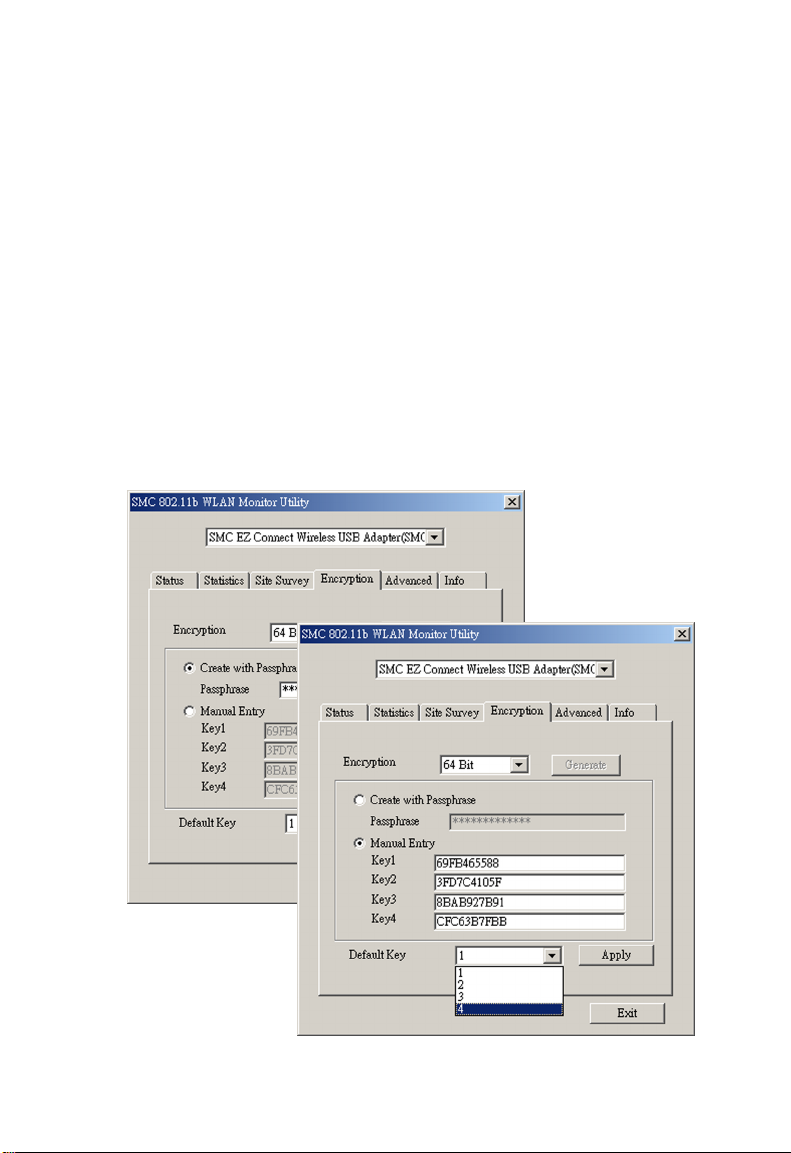

16. The WEP encryption implemented in SMC’s Wireless USB adapter is based on the R C4 encrypti on algori thm. The sec urity keys are four 10 digit keys for the 64-bit WEP setting, and one 26-digit key for the 128-bit WEP setting. WEP must be set in the configuration utility and all changes can be made there. See “Using the EZ Connect Wireless USB Utility in Windows 98, Me, and 2000” on page 28, or “Using the Windows XP Configuration Tool” on page 37, for details).
19
I
NSTALLATION
17. “WEP Key to use” shows the key that will be us ed (1~4) for encryption.
18. Click OK to exit the open screens and click Yes to restart the computer if asked to do so. Go to “Utility Installation in Windows 98, Me, and 2000” on page 27.
20
D
RIVER INSTALLATION

Windows 2000 Driver Installation

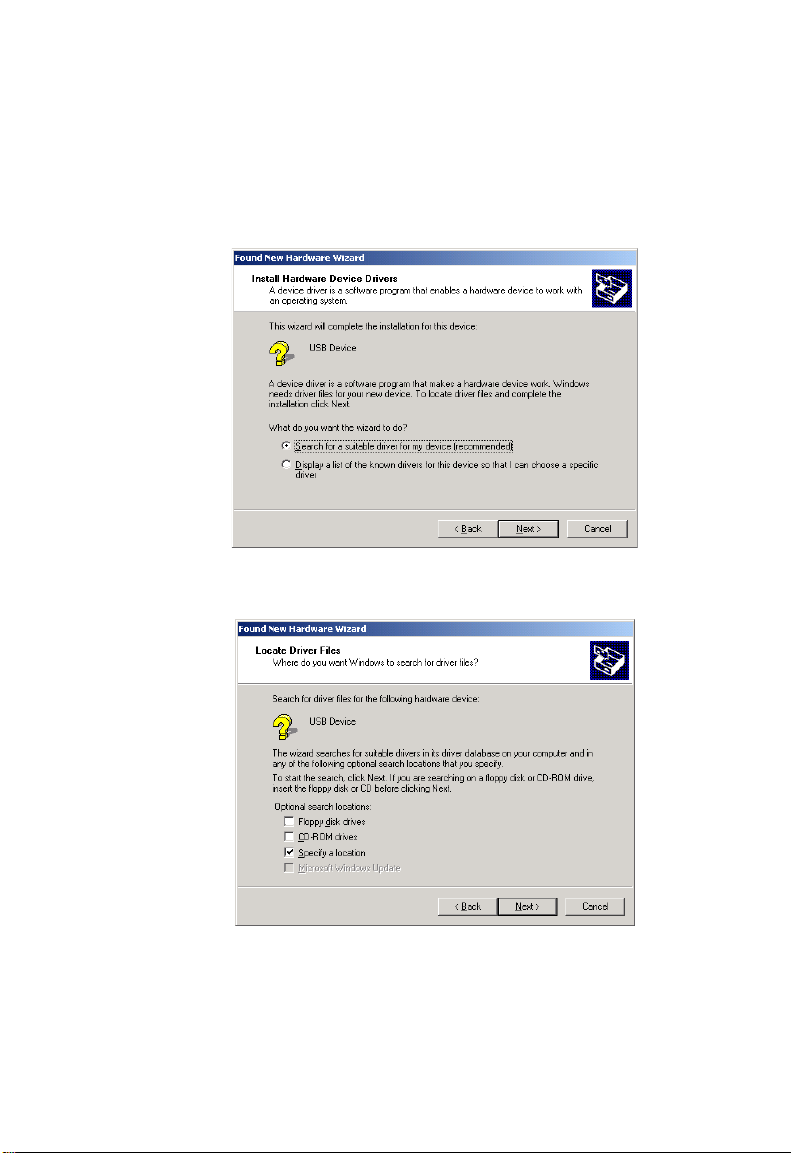

1. Windows 2000 w ill au tomatica lly det ect th e new har dware and prompt you to install the driver.
2. Click Next.
21
I
NSTALLATION
3. Type E:\Drivers\win982k (assuming E: is the location of your CD drive.) Insert the CD into the CD drive and click Next.
4. Click Next to copy files from the CD.
5. The “Digital Signature Not Found” screen will open. Click Yes to continue the installation
22
D
RIVER INSTALLATION
6. On the “Completi ng the Fo und New Hard ware Wizar d” screen , click Finish to complete the driver installation. The “System Settings Change” box may ask you to restart the computer. If so, click Yes.
7. Driver installatio n is now co mplete. Go to “Utility Installation in Windows 98, M e, and 2000” o n page 27 i f you wish t o install the optional configuration utility.
23
I
NSTALLATION

Windows XP Driver Installation

1. Windows XP will automati cally detect the new hardw are and prompt you to install the driver. Check “Install from a list or specific location (Advanced)” and click Next.
24
D
RIVER INSTALLATION
2. Check “Don’t search. I will choose the driver to install.” The Select Network Adapter screen will open.
3. Click Have Disk and the “Install From Disk” screen will open. Type E:\Drivers\xp and click OK.
25
I
NSTALLATION
4. Windows XP wil l f ind the SMC2662 W EZ Connect Wireless USB Adapter. Click Next.
5. Though the software is fully compatible with Windows XP, it has not yet been Logo tested by Microsoft. On the Hardware Installation screen click Continue Anywa y.
6. After the software has been installed, click Finish to complete the driver installation.
26
C
ONFIGURATION AND
D
IAGNOSTICS
For Windows 98, Me, and 2000, SMC’s EZ Connect Wireless USB Adapter provides optional management software for quick network configurati on and eas y diag nostics.
For Windows XP, use the built-in wirelesss configuration tool. Go to “Using the Windows XP Configuration Tool” on page 37.

Utility Installation in Windows 98, Me, and 2000

To install the utility software:
1. Insert the CD-ROM into your PC’s CD drive.
2. Click Start/Run.
3. Type E:\Utility\Setup.exe and click OK. (assuming E:\ is your CD drive)
4. Follow the on-screen instructions to finish the installation.
27
C
ONFIGURATION AND DIAGNOSTICS

Using the EZ Connect Wireless USB Utility in Windows 98, Me, and 2000

Once the installation is complete, the configuration utility can be accessed by clicking St art/Programs/EZ Connect Wireless USB/EZ Connect Wireless USB Utility.
28
U
SING THE
EZ C
ONNECT WIRELESS
USB U
TILITY IN WINDOWS

Quick-Launch Icon

When the utility program is running, there will be a “Quick Launch” icon in the lower right-hand corner of the task bar. If the icon is GREEN, you hav e a good c onnec tion . If it shows RE D, y ou may need to place the devic e in a higher position, or move clo se r to the device you wish to co nnect to.
Double-clicking the Quick Launch icon will open the EZ Connect Wireless USB Utility program, providing quick access to the adapter settings.
The configurati on ut ility includes the following tools: Monitor – Allows you to monitor network status and configure
wireless adapter parameters.
Statistics – Shows wireless adapter statistics. Site Survey – Scans/Shows all the access points in r a ng e. Encryption – Provides WEP secu rity control. Advanced – Allows you to configure the advanced settings. Version – Shows the version information.
98, ME,
AND
2000
29
C
ONFIGURATION AND DIAGNOSTICS

Monitor

When you start the wireless USB utility, the information window for the SMC2662W is shown as in the figure below. Click on the “Monitor” tab to view the network status of the wireless adapter.
Click Modify to configure the “Operati ng Mode,” “Channel ,” “SSID” and “Tx Rate.” After making a configuration change, the Apply button will become enabled. Click Apply to save the changes.
Operating Mode – Set the station operation mode to “802.11 Ad Hoc” for network configurations that do not h ave an access point, or to “Infrastruc t ure” for configurations with an acc es s point. (“Infrastructure” is the default setting)
30
U
SING THE
Channel – If you are setting up an ad hoc wireless LAN (See “Network Top ologies ” on page 41.), set the channel numbe r to the same radio chan nel as that used by t he other wireless clients in your group. However, if you are connecting to a network via an access point, then the channel is automatically set to the channel of the access point to which the adapter connects .
Note: The Channel can only be set when the Operating Mode is
SSID – Input an SSID strin g for the w irele ss networ k to whic h you
want to connect (this setting is blank by default). If you will be roaming among multiple ac cess points with different BSSIDs, leave this field blank to allow connection to any SSID.
Tx Rate – Indicates the data transmission rate. Select an appropriate transmissio n speed. Lower speeds will give bet te r range. See “SMC2662W 802.11b Wireless USB Adapter” on page
46. (Default: Auto)
EZ C
ONNECT WIRELESS
“802.11 Ad-Hoc.”
USB U
TILITY IN WINDOWS
98, ME,
AND
2000
31
C
ONFIGURATION AND DIAGNOSTICS

Statistics

The Statistics screen displays “Data Frames” and “Management Frames.” See “Terminology” on page 49 for a description of these terms.
32
U
SING THE
EZ C
ONNECT WIRELESS
USB U
TILITY IN WINDOWS

Site Survey

The Site Survey screen di splays all access points in the wireless LAN. You can choose one of them to conn ect to by double-clicking on an ent ry .
SMCAP SMCAP SMCAP SMCAP
98, ME,
AND
2000
33
C
ONFIGURATION AND DIAGNOSTICS

Encryption

Encryption – Wired Equivalent Privac y (WE P) is im plemented in
the adapter to prevent u nau th orized access. For more secure data transmissions, set encryption to “128-bit” or “64-bit”. The 128-bit setting gives a higher level of security. Th e setting must be the same for all clients in your wireless netwo rk (Def ault: Disabled).
The WEP (Wired Equivalent Privacy) implemented in SMC’s EZ Connect Wireless USB adapter is based on the RC4 encryption algorithm. The security keys are four 10 digit keys for the 64-bit WEP setting and one 26 -digit key for the 12 8-bit WE P sett ing. WEP security protects your wireless LAN against eavesdropping and unauthorized access by hackers or intruders.
34
U
SING THE
Create with Passphrase – Security ke ys for WEP encryptio n are generated from your Passphrase string, so you must use the same passphrase on all the other stations in your network.
Manual Entry – “Manual Entry ” allows you to m anual ly ent er ke y elements (two hexadecimal digits in each block).
Default Key ID – Choose the Key ID that has the encryption string you prefer. If you are using a key generated from the passphrase, you must use the same pa ssphrase and key on each station.
To use the WEP function, take the following steps:
1. Select “128-bit” or “64-bit” in the “Encryption” field.
2. Choose “Creat e w ith Passphrase,” type a stri ng in the
3. Select the key, and click Apply.
EZ C
ONNECT WIRELESS
Passphrase field, and click Generate.
Note: A passphrase string can consist of up to 32
alphanumeric characters.
USB U
TILITY IN WINDOWS
98, ME,
AND
2000
Or
1. Check “Manual Entry” and enter hexadecimal numbers into one of the key fields. The bit key must be in hexadecimal numerals (0~9, A~F, e.g., D7 0A 9C 7F E5).
2. Click Apply.
35
C
ONFIGURATION AND DIAGNOSTICS

Advanced Screen

You can use this screen to set values for “Fragmentation Threshold” (Default: 2346 means Disabled), and “RTS/CTS Threshold” (Defaul t: 2347 means Disabled). See “Terminology ” on page 49 for a description of these terms.
36
U
SING THE WINDOWS
XP C
ONFIGURATION TOOL

Using the Windows XP Configuration Tool

Basic Settings

1. Right-clic k t he network connecti on icon on the too lb a r.
2. On the popup me nu, click “Status.” The Wireless Network Connection Status box will op en.
37
C
ONFIGURATION AND DIAGNOSTICS
3. Click Properties. The Wireless Network Connection Properties box will open. Click the “Wireless Networks” tab.
4. In the lower secti on of the scree n, click “Learn about set ting up wireless network conf ig ur ation” and complete the wirele ss configuration according to the Help and Support Cente r instructions.
38
U
SING THE WINDOWS
XP C
ONFIGURATION TOOL

Advanced Settings

Click the “General” tab (see the previous screen). In the “Connect using” field, make sure that the adapter shown is the SMC2662W EZ Connect Wireless USB Adapter.
1. Click Configure. Click the “Advanced” tab.
2. Set the “Fragmentation Threshold.” (The default 2,346 means “Disabled”) See “Terminology” on page 49 for a description of “Fragmenta tion Threshold.”
3. “Preamble Type” offers a dropdown lis t wit h three options: Auto, Long, or Short. If you aren't sure whether all the Clients and Access points in your wireless network support the Short RF preamble, then leave this setting on “Auto.” (Default) See “Terminology” on page 49 for a description of “Preamble Type.”
39
C
ONFIGURATION AND DIAGNOSTICS
4. “ Rate (M bps)” is th e data tran smiss ion/r ecep tion rate s ett ing. I t can be set to Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, or 11 Mb ps. Usually this should be set to Aut o. In a radio f requency host ile environment, a lower rate can provide more stable transmission quality.
5. Set the “RTS Threshold” to the same as that used by other devices in your network. (T he def ault 2,34 7 means “ Disabled ”) See “Terminology” on page 49 for a description of “R TS Threshold.”
40
N
ETWORK
SMC’s EZ Connect Wireless Solution supports a stand-alone wireless network config ur at ion, as well as an integrated configuration with 10 Mbp s Ethe rnet LANs . Fo r a list of the maximum distances between the AP/Bridge and wireless clients, refer to page 46.
The SMC2662W USB adapter can be configured as:
Ad hoc – for small departmental or SOHO LANs
Infrastructure – for en terprise LANs
C
ONFIGURATION
P
AND
LANNING

Network Topologies

Ad Hoc Wireless LAN
An ad hoc wireless LAN consists of a group of computers, each equipped with a wireless adapter, connected via radio signals as an independent wire less LAN. Computers in a sp ecific ad hoc wireless LAN must be configured to the same radio channel. An ad hoc wireless LAN can be used for a small branch office or SOHO operation.
PC with Wireless PCI Adapter
Ad-hoc Wireless LAN
Notebook with Wireless USB Adapter
Notebook with Wireless PC Card
41
N
ETWORK CONFIGURATION AND PLANNING
Infrastructure Wireless LAN
The SMC2662W can also provide access to a wired LAN for wireless workstations . An integrated wired and wireless LAN is called an Infrastructure configuration. A Basic Service Set (BSS) consists of a group of wireless PC users, and an access point that is directly connect ed to the wired LAN. Each wireless PC in this BSS can talk to any computer in its wireless group via a radio link, or access other computers or network resources in the wired LAN infrastructure via the access point.
The infrastructure configuration not only extends the accessibility of wireless PCs to the w ir ed LAN, but also increases the effective wireless transmission range for wireless PCs by passing their signal through one or m ore access points.
A wireless infrastructure can be used for access to a central database, or for connect ion betwee n mo bile wor kers , as sho wn in the following figure.
Wired LAN Extension to Wireless Adapters
File Server
Desktop PC
Switch
42
Access Point
PC with Wireless PC I Adapter
Notebook with Wireless USB Adapter
S
ETTING THE COMMUNICATION DOMAIN

Setting the Communication Domain

Stationary Wireless PCs

The Basic Service Set (BSS) is the communication do main for e ach access point (such as the SMC2655W ). For wireles s PCs that do not need to support roaming, set the domain identifier (SSID) for the wireless adapter to the BSS I D of the access point to which yo u want to connect. Check with your administrator for the BSS ID of the access point to which he wants you to connect.

Roaming Wireless PCs

A wireless infrastructure can also support roaming for mobile workers. More
Desktop PC
than one access point may be configured with the same SSID to
Switch
Notebook with Wireless USB Adapter
create an Extended Service Set (ESS). By
Access Point
placing the access points so that a
PC with Wireless PC I Adapter
continuous coverage area is created, wireless users within this ESS can roam freely. All SMC EZ Con nect Wireles s adapters and EZ Connect Wireless Access Points within a spe cific ESS must be configured with the same SSID.
File Server
<BSS1>
Switch
Access Point
<ESS>
SeamlessRoaming
Notebook with Wireless PC Card Adapter
<BSS2>
Before setting up an ESS for roaming, choose a location for the access points that maximizes performance (Refer to “Using the EZ Connect Wireless USB Utility in Windows 98, Me, and 2000” on page 28 for information on using the “Monitor” and “Site S urvey” tools.)
43
T
ROUBLESHOOTING
USB Adapter Installation Problems
If your computer cannot find the EZ Connect Wireless USB Adapter or the ne twork driver does not ins t all correctly, check the following items:
Make sure the adapter is connect ed to the USB p ort. Check fo r
any hardware problems, such as physical damage to the adapter’s connector.
Try the adapter in another USB port. If this also fail s, t ry using
another SMC2662W wireless adapter that is known to operate correctly.
Make sure your computer is using the latest BIOS.
If there are other ne tw ork adap ters in th e com pute r, th ey may
cause conflicts. Disable or remove all othe r adapters from the computer and test the wire less adapter separately.
Check for a defective computer or USB port by trying the
adapter in another computer that is known to operate correctly.
If there are still difficulties, re move the wireless ad apter. Delete
the file “Vnetusb r.sys” from: c:\windows\system (for Windows 98/Me)
c:\winnt\system32\drivers (for Windows 2000) c:\windows\system32\drivers (for Windows XP)
Then go to the Control Panel and delete the adapter from the network configuration menu. Restart the PC and reinstall the adapter.
44
N
ETWORK CONNECTION PROBLEMS

Network Connection Problems

If the LED on the USB adapter is not lit , or if you cannot access network resources from the computer, check the following:
Make sure the correct software driver is installed. Try reinstalling the driver.
Make sure the computer and other network devices are receiving power.
The access point you want to connect to may not be functioning correctly. Try using another acc es s point.
If you cannot access a Windows or NetWare service on the network, check that you have enabled and configured the service correctly. If you cannot connect to a particular server, be sure that you have access rights and a valid ID and password.
If you cannot access the I nterne t, be sur e yo u have c onfigur ed your system for TCP/IP.
If your wireless station cannot communicate with a computer on the Ethernet LAN when configured for Infrastructure mode, check the following:
Make sure the access point that the station is associated with is powered on.
Check that the wireless settings (i.e., WEP, SSID, Channel) match the access point or other stations to which you are attempting to connect.
If you still cannot connect , change t he access poi nt and all t he stations within the BSS to another radio channel.
45
T
ROUBLESHOOTING
SMC Networks 802.11b SMC2662W Wireless USB Adapter Maximum Distance Table
Important Notice – Maximum distances posted be low are act ual
tested distance thresholds. However, there are many variables such as barrier compo si tion and construction, as well as loc al environmental interference that may impact your actual distances and cause you to experience distance thresholds far lower than those posted below. If you have any questions or comments regarding the fea tures or perfo rmance of this product, or if you would like information r egarding our full line of wireless pro ducts, you can visit us on the Web at www.smc.com, or you can call us toll-free at 800.SMC.4YOU. SMC Networks stands behind every product sold limited-lifetime warranty.
Environmental Condition
Outdoors: A line-of-sight
environment with no interference or obstruction between the Access Point and users.
Indoors: A typical office or home environment with floor to ceiling obstructions between the Access Point and users.
with a 30-day satisfaction guarantee and a
SMC2662W 802.11b Wireless USB Adapter
Maximum Distance Table
Speed and Distance Ranges
11 Mbps 5.5 Mbps 2 Mbps 1 Mbps
160 m
(528 ft)
72 m
(236 ft)
195 m
(640 ft)
73 m
(240 ft)
255 m
(837 ft)
73 m
(240 ft)
350 m
(1,155 ft)
75 m
(246 ft)
46
S
One Built-in Dielectric antenna
One External Dipole antenna
LED Indicator Host Interface
Power, Link Mini USB/USB v1.1
PECIFICATIONS
Functional Criteria
Data Rate 1, 2, 5.5, 11 Mbps, Auto Transmission Mode Half-duplex Network Connection IEEE 802.11b wireless Operating Range Max distance at 11 Mbps: 160 m (528 ft)
Max distance at 5.5 Mbps: 195 m (640 ft) Max distance at 2 Mbps: 255 m (837 ft) Max distance at 1 Mbps: 350 m (1,155 ft)
Radio Signal
Signal Type Direct Sequence Spread-Spectrum (DSSS) Operating Frequency USA, Canada: 2.412~2.462 GHz
Europe (ETSI): 2.412~2.472 GHz
Japan: 2.412~2.484 GHz Sensitivity Modulation Output Power 14 dBm
Physical Characteristics
Current Consumption TX: 460 mA max.
Size 95 x 65 x 13 mm (3.74 x 2.56 x 0.51 in) Weight 37 g (1.31 oz) Temper atu re Operating: 0 to 55 °C (32 to 131 °F)
Humidity 95% non-condensing Antenna
1/2/5.5/11 Mbps: -90/-88/-83/-80 dBm min.
1/2/5.5/11 Mbps
RX: 260 mA max.
20 mA Standby
Storage: -20 to 70 °C (-4 to 158 °F)
: BPSK/QPSK/CCK/CCK
47
S
PECIFICATIONS
Standards Conformance IEEE 802.1 1b
USB specification revision 1.1
Compliances FCC Class B, C
CISPR 22 Class B
Software
NDIS Driver Windows 98
Windows Me Windows 2000 Windows XP
NDIS Utility Windows 98
Windows Me Windows 2000 Windows XP use s built-in wirel ess configuration utility
48
T
ERMINOLOGY
The following is a list of terminology used in this document. Access Point – An internetw orking device th at seamlessly
connects wired and wireless networks. Ad Hoc – An ad hoc wireless LAN is a group of computers each
with LAN adapters, connected as an independent wireless LAN. BSS – BSS stands for “Basic Service Set.” It is an access point and
all the LAN PCs that are associated with it. CSMA/CA – Carrier Sense Multiple Access with Collision
Avoidance. Data Frame – Packets tr ansmitted/receive d by th e device that
carry data (see Management Frame on th e n ext page). ESS – ESS (ESS-ID, SSID) stands for “Extended Service Set.” More
than one BSS is configured to become an Extended Service Set. LAN mobile users can roam between different BSSs in an ESS (ESS-ID, SSID).
Ethernet – A popular local area data communications network, which accepts transmissions from computers and terminals. Ethernet operates on a 10 Mbps baseband transmission rate, using shielded coaxial cable or twisted-pair cable.
Fragmentation Threshold – In the 802.11 Standard, the MAC Layer may fragment and reassemble directed MSDUs or MMPDUs. The fragmentation and defrag mentation mechanisms allow for fragment re-transmission.
49
T
ERMINOLOGY
Preamble Type – Some Ac cess Points and Client card dr ivers have a radio setting for “Shor t” RF Preamble. If all the Clients and Access Points in your wireless network have thi s f eature, then enabling it can boost your throughput. However, if a radio does not support this featu re, then it will not be able to communicate with any other radios th at have this set to “Short.”
Infrastructure – An integrated wireless and wired LAN is called an Infrastructure configuration.
Management Frame – Control frame for establishing a link between an access point and a client station. It includes Beacon, Probe, Authent ication, and Asso ci a tion frames.
MSDUs – MAC Service Data Units. MMPDUs – MAC Management Protocol Data Units. Roaming – A wireless LAN mobile user moves around an E SS and
maintains a continuous connection to the Infras tructure networ k . RTS Threshold – Transmitters contending for the medium may
not be aware of each other. RTS/CTS mechanism can solve this “Hidden Node Problem.” If the packet size is smaller than the preset RTS Threshold size, the RTS/CTS mechanism will NOT be enabled.
USB – The Universal Serial Bus allows complete Plug and Play connection of peripheral dev i c es to a compute r.
WEP – “Wired Equivalent Pr ivacy” is based on the us e of 64-bit or 128-bit keys and the popular RC4 encryption algorithm. Wireless devices without a valid WEP key are ex cluded from network traffic.
50
FOR TECHNICAL SUPPORT, CALL:
Model Number: SMC2662W Part Number: 01-111393-009
From U.S.A. and Canada (24 hours a day, 7 days a week)
(800) SMC-4-YOU; (949) 679-8000; Fax: (949 ) 679-1481
From Europe (8:00 AM - 5:30 PM UK Time)
44 (0) 118 974 8700; Fax: 44 (0) 118 974 8701
INTERNET
E-mail addresses:
techsupport@smc.com european.techsupport@smc-europe.com
Driver updates:
http://www.smc.com/index.cfm?action=tech_support_drivers_downloads
World Wide Web:
http://www.smc.com/ http://www.smc-europe.com/
FOR LITERATURE OR ADVERTISING RESPONSE, CALL:
U.S.A. and Canada: (800) SMC-4-YOU; Fax (949) 679-1481 Spain: 34-93-477-4935; Fax 34-93-477-3774 UK: 44 (0) 118 974 8700; Fax 44 (0) 118 974 8701 France: 33 (0) 41 38 32 32; Fax 33 (0) 41 38 01 58 Italy: 39 02 739 12 33; Fax 39 02 739 14 17 Benelux: 31 33 455 72 88; Fax 31 33 455 73 30 Central Europe: 49 (0) 89 92861-0; Fax 49 (0) 89 92861-230 Switzerland: 41 (0) 1 9409971; Fax 41 (0) 1 9409972 Nordic: 46 (0) 868 70700; Fax 46 (0) 887 62 62 Northern Europe: 44 (0) 118 974 8700; Fax 44 (0) 118 974 8701 Eastern Europe: 34 -93-477-4920; Fax 34 93 477 3774 Sub Saharian Africa: 27-11 31 4 1133; Fax 27-11 314 9133 North Africa: 34 93 477 4920; Fax 34 93 477 3774 Russia: 7 (095) 290 29 96; Fax 7 (095) 290 29 96 PRC: 86-10-6235-4958; F a x 86-10-6235-4962 Taiwan: 886-2-2659-9669; Fa x 886-2-2659-9666 Asia Pacific: (65) 238 6556; Fax (65) 238 6466 Korea: 82-2-553-0860; Fax 82-2-553-7202 Japan: 81-45-224-2332; Fax 81-45-224-2331 Australia: 61-2-9416-0437; Fax 61-2-9416-0474 India: 91-22-8204437; Fax 91-22-8204443
If you are looking for further co ntact information, please visit www.smc.com or www.smc-europe.com.
38 Tesla Irvine, CA 92618 Phone: (949) 679-8000
Loading...
