TigerStore™ 2 Bay Network Attached Storage

SMCNAS02

User’s Guide

Revision 1.8 January 2008

TRADEMARKS All brand and product names are trademarks or registered tradem arks of their respective companies.

NOTE The information in this manual is subject to change without notice.

SMC Networks, Inc. Warranty Statement

This SMC Networks, Inc. product comes with a 2-year limited warranty from the date of purchase. SMC Networks, Inc. warrants in good operating condition for the warranty period. This warranty does not include non-SMC Networks, Inc. installed components. If th e SMC Networks, Inc. product malfunctions during the warranty period, SMC Networks, Inc. will, at its discretion, repair or replace the product at no charge, provided the product has not been subjected to misuse, abuse or non-SMC Networks, Inc. authorized alterations, modifications or repairs. When returning a product, include your original proof of purchase. Return requests canno t be processed without proof of purchase. Shipment of returned product to SMC Networks, Inc. is the responsibility of the purchaser. All expressed and implied warranties for the SMC Networks, Inc. product line including, but not limited to, the warranties of merchantability and fitness for a particular purpose, are limited in duration to the above period.

Under no circumstances shall SMC Networks, Inc. Be liable in any way to the user for damages, including any lost profits, lost savings or other incidental or cons equential damages arising out of the use of, or inability to use, the SMC Networks, Inc. products. SMC Networks, Inc. Reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity.

Please have your proof of purchase receipt to get warranty support. All defective products shall be returned with a copy of proof of purchase. In no event shall SMC Networks, Inc. 's liabilit y exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. SMC Networks, Inc. does not offer refunds for any product.

All rights reserved. SMC Networks, Inc. devices are designed for home or office use. SMC Networks, Inc. cannot be made liable for any damages, loss of data or damage following thereof (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use this SMC Networks, Inc. product, even if SMC Networks, Inc. has been advised of the possibility of such damages.

We reserve the right to upgrade our products in keeping with technological advances.

SMC Networks, Inc. warrants your product against any defect in material and workmanship, under normal use, for the designated warranty period. The warranty becomes effective from the date of shipment. In the event this product is found to be defective within the warranty period, SMC Networks, Inc. will, at its discretion, repair or replace the defective product.

This warranty is void if:

• The product was operated/stored in abnormal use or maintenance conditions;

• The product is repaired, modified or altered

• The product was subjected to abuse, neglect, electrical fault, improper packaging,

accident or acts of nature;

• The product was installed improperly;

• The serial number of the product is defaced or missing;

For storage products: Under various circumstances, such as damage from extreme conditions like floods, power fluctuations, damage caused during the installation of the drive, damage caused by improper or improperly used packaging, or physical misuse or abuse, the data on a disk driv e may be inaccessible through normal operations. However, the data may be recoverable through extraordinary means offered through a specialized data recovery service.

SMC Networks, Inc. does not perform any data recovery services. If you are unable to ac cess data on your drive due to damage such as that mentioned above, you may wish to consider contacting an independent data recovery service. The disk drives used in this product are covered under the original manufacturer’s warranty,

SMC Networks, Inc. cannot be made liable for any damages or loss of data as a result of improper use or damage to the disk drives. The disk drives used in this product are covered under the original manufacturer’s warranty.

Important Notes

z When ejecting the USB device from your NAS system, make sure to

disconnect from the Samba connection first.

z Your SMCNAS02 does not support any USB hub connected to the

USB ports.

z When installing hard disk drive to your SMCNAS02, SMC suggest

using the same vendor and the same size hard disk.

Important Notes ................................................................. v

Table of Contents ................................................................................ vi

Chapter 1 Introduction ................................................................... 1

1.1 Package Contents ............................................................................... 2

1.2 Specifications ...................................................................................... 3

Hardware ....................................................................................... 3

Software ........................................................................................ 3

1.3 System View ....................................................................................... 4

Front Components ......................................................................... 4

Rear Components ......................................................................... 6

Chapter 2 Setting Up

Step 1. Install the Hard Disks ..................................................................... 7

Step 2. Connect to the Network ............................................................... 10

Step 3. Connect to Power ........................................................................ 11

Step 4. Configure Your Storage System .................................................. 11

Chapter 3 Configurin

3.1 Installing and Starting the Storage System Management ................ 14

For Windows PC .......................................................................... 14

For Apple Mac OS X (10.4.11 or above) ..................................... 24

System Power-on Without Hard Disk Drive ................................ 32

System Power-on With Full New Hard Disk Drives ..................... 47

3.2 Starting Storage System Management ............................................. 57

3.3 My NAS Page ................................................................................... 61

System Setting ............................................................................ 62

Network Setting ........................................................................... 64

3.4 Users & Groups Page ....................................................................... 75

Users ........................................................................................... 75

Groups ......................................................................................... 86

Quota Management ..................................................................... 88

3.5 Shared Folders Page ........................................................................ 90

Add Shared Folder ...................................................................... 91

Assign Access ............................................................................. 92

Delete Shared Folder .................................................................. 93

...................................................................... 7

g Your Storage System ............................ 13

3.6 Disk Page........................................................................................... 94

3.7 Advanced Page ................................................................................. 95

Alerts ............................................................................................ 95

Firmware ...................................................................................... 98

iTunes Server ............................................................................. 101

Media Server .............................................................................. 104

Printer Server ............................................................................. 106

UPS ............................................................................................ 109

USB Backup ............................................................................... 111

Download Station ....................................................................... 117

System Log ................................................................................ 123

Shut Down .................................................................................. 124

Reboot ........................................................................................ 126

3.8 Logging Out of Storage System Management ................................ 128

3.9 How to reinstall your SMCNAS02 ..................................................... 130

Chapter 4 Map Share

Windows PC ............................................................................... 131

For Apple Mac OS X .................................................................. 134

Chapter 5 Using One-Touch Backup

5.1 Connecting a USB Device ............................................................... 135

5.2 Using the Card Reader .................................................................... 136

Chapter 6 ActiveDirec

Environment Setup ..................................................................... 139

s ............................................................... 131

....................................... 135

tory Support .......................................... 139

Chapter 1 Introduction

Your SMCNAS02 is a great storage solution for small business and home network environments. With this high-speed networked storage, network users can easily access and share music, pictures, and video files. Also, it has a program for discovering the storage system automatic assigned IP address.

Your SMCNAS02 can accommodate up to 2 hard disks with standard single (if you only have one disk), RAID 0 or 1 and JBOD in BIG configurations, providing up to 2 TB (terabytes) of shared network storage. Supporting industry-standard protocols, you can easily add your storage device to your existing network. In addition, network management and security are greatly simplified through the Web-based User Interface (UI).

Additional features include:

z RAID Mode z RAID Degrade z Quota Management z HW (hardware) Health Monitor z UPS (uninterruptible power supply) z Reset to Factory Default Setting z One-touch Backup z Event Log z Software shutdown by using Web Management z Can function as a FTP server and printer server z DHCP client support z Active Directory support z UPnP-AV media and iTunes Server

1.1 Package Contents

Includes the following:

z SMCNAS02 Storage System z HDD Rail × 2 z Power Adapter z Power Cord z RJ-45 Ethernet Cable z Set of Screws z Utility Disc z Quick Start Guide

1.2 Specifications

NOTE: Specifications are subject to change without notice.

Hardware

Processor

LSI NAS201

System Memory

128 MB of DDR2 SDRAM

Flash Memory

8 MB

Hard Disk Drive Bay/Type

Up to two 3.5-inch SATA (Serial ATA)

Storage Capacity

Provides up to greater than 2 TB

One Touch Button

Backup files from digital camera, mass storage, and Card Reader

USB-UPS Support

HID power device standard

Software

Network Client Support

• Microsoft Windows

• Mac (10.4.x or above)

• Linux/Unix

Network Protocol

• TCP/IP

• HTTP

• FTP

• SMB/CIFS

NFS

Application for NAS Management

• Data Sharing, Protection

• Data Backup and Recovery software (for

Windows only)

• Web User Interface

Disk Configuration

Single, RAID 0/1, and JBOD (in BIG) Browser

• Internet Explorer 5.5 or above

• Firefox 1.1 or above

• Safari Browser

Network

Automatic MDIX Ethernt Port (10/100/1000 Mbps)

Others

• USB port for still images, mass storage, printer

• Card Reader (MMC, SD, MS card)

Power Supply

DC output 12 V / 5 A

Dimension

(H)140 x (W)120 x (D)240 mm

Weight

1.8 kg

Environment

• Operating temperature:

C (32 0F) to 40 0C (104 0F)

• Storage relative humidity: 5 % to 90 % non-condensing

Others

• English language support

• Real Time Clock (RTC)

• Programmable system clock

• Network time protocol support

• DHCP Client support

• Hardware/Software power off

• Reset button to return to factory default

setting

• Firmware upgradeable

• FTP server and printer server support

• Media Server (DLNA v.1.0) support

• iTunes Server

• Event logs and email alerts

• Hot swap and automatic rebuild

• Hardware monitor / temperature sensor

• BitTorrent P2P protocol support

• Daylight saving

1.3 System View

Front Components

Ref Component Description

Hard Disk Drive

Compartment Compartment

Cover Opening Slot

Device Indicators

Power

Network

Contains two hard disk drive slots.

Allows you to pull open the hard disk dri ve compartment cover.

Glows blue to indicate the power is on. Glows green to indicate system is connected to network. Blinks green to indicate system is trying to establish a

network connection.

Ref Component Description

Device Indicators (continued)

One-Touch

Backup Button

RAID

HDD1 (right slot)

HDD2 (left slot)

OTB

Glows blue to indicate RAID function is implemented. Blinks blue to indicate RAID function is rebuilding the

hard disk drive. Glows red to indicate RAID function is inactive/

malfunction. Glows blue to indicate hard disk drive 1 is on standby . Blinks blue to indicate read/write functions o f har d disk

drive 1. Glows blue to indicate hard disk drive 2 is on standby . Blinks blue to indicate read/write functions o f har d disk

drive 2. Glows blue to indicate system is connected with USB

storage device(s), or SD/MMC/MS card through Card Reader slot.

Blinks blue upon pressing the One-Touch Backup button to indicate read/write function.

Allows you to backup files from digital camera, mass storage device, or Card Reader.

Card Reader

USB Port

Accepts a MMC (MultiMediaCard), SD (Secure Digital), or MS (Memory Stick) card for rem ovable s torage m edia.

Connects to a USB device, such as a USB mass storage device.

Rear Components

Ref Component Description

Power Switch

Power Connector

DC IN Reset Switch

RESET RJ-45 Connector

LAN

USB Ports

Ventilation

Opening

Turns the power on (I) and off (O). Connects to the power adapter.

Allows you to reset the system to the factory default username, password, DHCP, and IP.

Connects the LAN cable. Green LED (upper) – glows green when the system has an available connection to LAN. Yellow LED (lower) – blinks yellow when the system is accessing the LAN.

Connect USB devices, such as USB mass storage device or digital camera, print server and UPS power systems.

Maintain proper operating temperature. Do not cover or block the openings.

Chapter 2 Setting Up

Step 1. Install the Hard Disks

WARNING: This section is only applicable for installing new hard disk(s) that has never installed NAS middleware before. If the hard disk has already installed NAS middleware, then proceed to chapter 3 – DO NOT insert hard disk at this point.

1. Pull off the hard disk drive compartment cover from the device by pulling

on the indented portion.

CAUTION: Be gentle when pulling off the cover. Pulling it vigorously could damage the cover hinges and device. The compartment cover was designed as a flat surface for the protection and safety of data and hard disks. It is not encouraged to open the compartment cover frequently.

2. Fasten two screws on "1" position to secure the HDD rail on the hard disk

drive. Fasten three screws on the opposite side of the hard disk drive (without HDD rail).

NOTE: When installing a particular hard disk drive for the first time on your NAS, make sure to first turn on the storage device before inserting the hard disk drive.

3. Slide the hard disk drive all the way into the right slot.

NOTE: Install the first hard disk drive on the right slot, the second hard disk drive on the left slot. This is important when implementing RAID.

4. Repeat step 2 and 3 to install the second hard disk drive.

5. Slide the second hard disk drive all the way into the left slot.

6. Place the hard disk drive compartment cover back on the storage device.

CAUTION: Be gentle when replacing the cover to avoid damaging the cover hinges and device. Replacing it vigorously could damage the cover hinges and device. The compartment cover was designed as a flat surface for the protection and safety of data and hard disks. It is not encouraged to open the compartment cover frequently.

In the event that you would need to remove a hard disk drive, pull on the plastic handle and slide the disk off the compartment.

NOTE: If you have two hard disk drive installed, remove the hard disk drive on the left slot first, then remove the hard disk drive on the right slot.

Step 2. Connect to the Network

1. Make sure that the computer is connected to a router.

2. Connect one end of the Ethernet cable to the network connector (LAN) on

the back of your storage system (NAS) and the other end to a router.

Or you can connect both your computer and storage system (NAS) to one switch, and this switch is connected to the network which has a DHCP server.

Step 3. Connect to Power

1. Make sure that your storage system is turned off (Power switch on the “O”

position).

2. Plug the DC cord of the AC adapter to the power connector (DC IN) on the

rear of the storage system (n).

3. Plug the female end of the AC power cord to the AC adapter and the male

end to an electrical outlet (o).

CAUTION:

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the storage device. A reverse procedure may damage the AC adapter or the storage device.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

Step 4. Configure Your Storage System

See the next chapter for the software configuration instructions.

Chapter 3 Configuring Your Storage System

SMCNAS02

An SMCNAS02 network consists of a SMCNAS02 server and several clients connected via network links.

3.1 Installing and Starting the Storage System Management

You need to install Storage System Management before you can perform any system configurations.

IMPORTANT:

z If you are using the hard disk drive that has been installed with NAS middleware

before, then follow the steps on the section “System Power-on Without Hard Disk Drive.”

z If you are using full new hard disk drives that have never installed NAS middleware

before, then follow the steps on the section “System Power-on With Full New Hard

For Windows PC

1. Insert the included utility disc into your computer and the following screen

Disk Drives.”

appears (if not, click on the file AutoRun.exe on the utility disc).

2. Click Install Java to install JAVA script on your computer and the f ollowing

screen appears. (Please make sure your computer has internet connection to be able to access the online installation of JAVA.)

NOTE: You can also click Install Non-JAVA based discovery tool to install non-JAVA based discovery tool.

3. After reading the license agreement, click Accept and the following screen

appears showing the progress of installation (this may take a couple of minutes).

4. Click Finish when the following screen appears to exit installation.

5. Click Setup NAS Discovery Utility.

6. The following screen appears. Click Next.

7. Select the destination to install the NAS Discovery Utility and click Next.

8. The Select Start Menu Folder screen appears, click Next.

9. Click the Create a desktop icon checkbox to enable it and click Next.

10. When the Ready to Install screen appear s, click Install.

11. The progress of installation will be shown onscreen.

12. When the following screen appears, click Finish to exit the installation

process.

JAVA-based

13. Click the NAS Discovery Utility shortcut icon on your desktop

or you can launch the NAS Discovery Utility by clicking Start Æ Programs Æ NAS Discovery Utility Æ NAS Discovery Utility. Click Yes when the following screen appears to allow ActiveX controls.

NOTE: If the following screen appears, click Run to allow the digital signature verification.

14. The following screen appears.

Non-JAVA based

13. Click the NAS Discovery Utility shortcut icon on your desktop

or you can launch the NAS Discovery Utility by clicking Start Æ Programs Æ NAS Discovery Utility Æ NAS Discovery Utility.

14. The following screen appears.

For Apple Mac OS X (10.4.11 or above)

1. Insert the included utility disc into your computer and open the MAC

AutoRun folder, and then click the AutoRun.app program.

2. The following screen appears. Click Setup NAS Discovery Utility.

3. The Welcome to the NAS Discovery Utility Installer screen appears. Click Continue.

4. Select the destination to install the NAS Discovery Utility and click Continue.

5. The Easy Install on “iDisk HD” screen appears, click Install.

6. The installer requires that you type the password of your Mac OS X

Administrator account.

7. The Installing NAS Discovery Utility screen appears and progress of installation will be shown.

8. When the following screen appears, click Close to exit the installation process.

9. To get the latest font library, click MAC Æ Software Update to

update to the latest MAC Operation System version.

10. The system would start to check for software update.

11. To set the Safari Cookies, click Safari Æ Preferences.

Then Security to accept Cookies “Only from sites you navigate to”.

12. Click the NAS Discovery Utility icon

installation directory or launch NAS Discovery Utility by clicking Applications Æ NAS Discovery Utility.

13. Click Trust to allow digital signature verification if the following screen

appears.

in the hard drive

14. The following screen appears.

NOTE:

z The NAS Discovery Utility must use the Safari web browser when system is using

the Mac OS X (10.4.11 or above).

z Use Mozilla Firefox to install SMCNAS and type in the SMCNAS IP in the Firefox

address field.

z When using the Safari web browser to log in to web management, make sure to

have the correct setting: Safari Æ Preferences Æ Security Æ Accept Cookies Æ Only from sites you navigate to.

When using Mozilla Firefox to log in to web management type in the NASIP at the Firefox web browser.

System Power-on Without Hard Disk Drive

IMPORTANT: If you are using the hard disk drive that has been installed with NAS middleware before, then follow the steps on this section. You can also Reset your System to default by following this section. But be aware, that all data will be lost, as hard disks will be formatted during this process!

15. When the discovery tool has discovered the SMCNAS02, it will show

“Zero-Disk Mode” on the Firmware Version column. Click “Configure RAID Profile” on the Configuration URL column.

16. The following screen appears. Log in by root and no password is required.

17. After logging in the following screen appears. Insert the hard disk drive all the way into the right slot (see chapter 2 portion on proper hard disk installation) and after around 30 seconds, click REFRESH (if no hard disk drive appears, click REFRESH again).

18. When the hard disk drive appears on screen, click CONFIGURE.

19. The following screen appears. Click OK.

20. The following screen appears. Insert another hard disk drive all the way into the left slot and after around 30 seconds, click REFRESH (if no hard disk drive appears, click REFRESH again).

21. The following screen appears, then click Configure.

22. The following screen appears.

NOTE:

z Whenever you insert a hard disk drive, you can use the default RAID mode (if one

hard disk drive only default is Single, if two hard disk drives it will be JBOD). Or change the RAID mode by clicking CHANGE to use Raid 0 or Raid 1.

z If you did not click REFRESH and CONFIGURE each time you insert a hard disk

drive, it will have the wrong RAID mode and the inserted disk might be invalid.

23. If you use the default mode (JBOD or Single) without changing the RAID

mode, click Upgrade and the following screen appears. Click OK to jump to step 29.

24. If you change the RAID mode, the following screen appears. Click OK.

25. The system will reboot and the following screen appears, wait for approximately 3 ~ 5 minutes.

26. After rebooting, log in by root again and no password is required.

27. The following screen appears, click Upgrade.

28. When the confirmation message appears, click OK.

29. System will start to format the hard disk drive. After formatting, the

confirmation message will appear. Click OK.

30. The following screen appears.

31. Click Browse to select and install the Full Install Image (around 46MB) “AG_NAS_Vx.x.x-SMC.cpio.bz2” file. This file is stored under the default C:\Program Files\NAS Discovery Utility\Firmware directory, otherwise it can be found under the firmware folder of the directory where you previously installed the NAS Discovery utility.

Important: Please do not use the smaller (around 34MB) Firmware Upgrade file here that is also available on the SMC website.

32. Then click Upgrade. The following screen appears. The system will start to

install into the NAS hard disk drive.

33. If the NAS Discovery Utility screen is not on your computer anymore, again click the NAS Discovery Utility shortcut icon on your desktop or you can launch the NAS Discovery Utility by clicking Start Æ Programs Æ NAS Discovery Utility Æ NAS Discovery Utility.

34. The Status column will show various stages of the upgrade process: (total 45 minutes or more depending on the size of the hard disk)

z Upload % Done z Verifying Checksum z Extracting Firmware z Installing OS z Installing Kernel z Installing Media Server z Installing KHTTPD z Installing Samba z Installing Configurator z Installing NASUtils

35. When the following screen appears, click the Click to Configure NAS under

the Configuration URL column to log in to Storage System Management. Proceed to the next section for details on Storage System Management.

System Power-on With Full New Hard Disk Drives

IMPORTANT: If you are using full new hard disk drives that have never installed NAS middleware before, then follow the steps on this section.

1. When the discovery tool has discovered the SMCNAS02, it will show “Zero-Disk Mode” on the Firmware Version column. Click “Configure RAID Profile” on the Configuration URL column.

2. The following screen appears. Log in by root and no password is required.

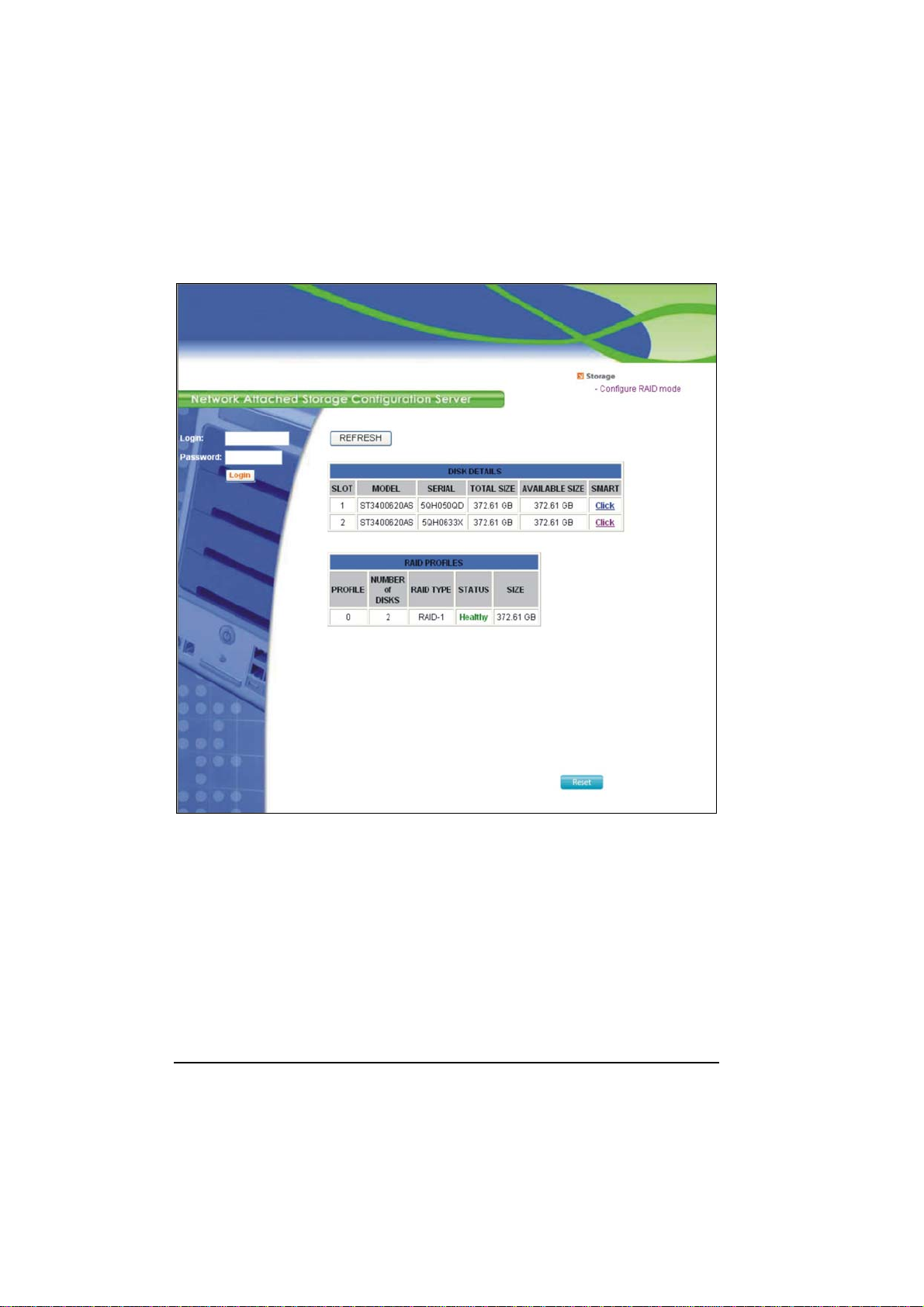

3. After logging in the following screen will show two hard disk drives. The

default RAID mode is RAID 1.

4. If you use the default RAID mode, click Upgrade and the following screen

appears. Click OK to jump to step 10.

5. If you change the RAID mode, the following screen appears. Click OK.

6. The system will reboot and the following screen appears, wait for approximately 3 ~ 5 minutes.

7. After rebooting it will display your new RAID mode, log in again.

8. The following screen appears, click Upgrade.

9. When the confirmation message appears, click OK.

10. System will start to format the hard disk drive. After formatting, the

confirmation message will appear. Click OK.

11. The following screen appears.

12. Click Browse to select and install the Full Install Image (around 46MB) “AG_NAS_Vx.x.x-SMC.cpio.bz2” file. This file is stored under the

default C:\Program Files\NAS Discovery Utility\Firmware directory, otherwise it can be found under the firmware folder of the directory where you previously installed the NAS Discovery utility.

Important: Please do not use the smaller (around 34MB) Firmware Upgrade file here that is also available on the SMC website.

13. Then click Upgrade. The following screen appears. The system will start to

install into the NAS hard disk drive.

14. If the NAS Discovery Utility screen is not on your computer anymore, again click the NAS Discovery Utility shortcut icon on your desktop or you can launch the NAS Discovery Utility by clicking Start Æ Programs Æ NAS Discovery Utility Æ NAS Discovery Utility.

15. The Status column will show various stages of the upgrade process: (total 45 minutes or more depending on the size of the hard disk)

16. When the following screen appears, click the Click to Configure NAS under

the Configuration URL column to log in to Storage System Management. Proceed to the next section for details on Storage System Management.

3.2 Starting Storage System Management

JAVA-based

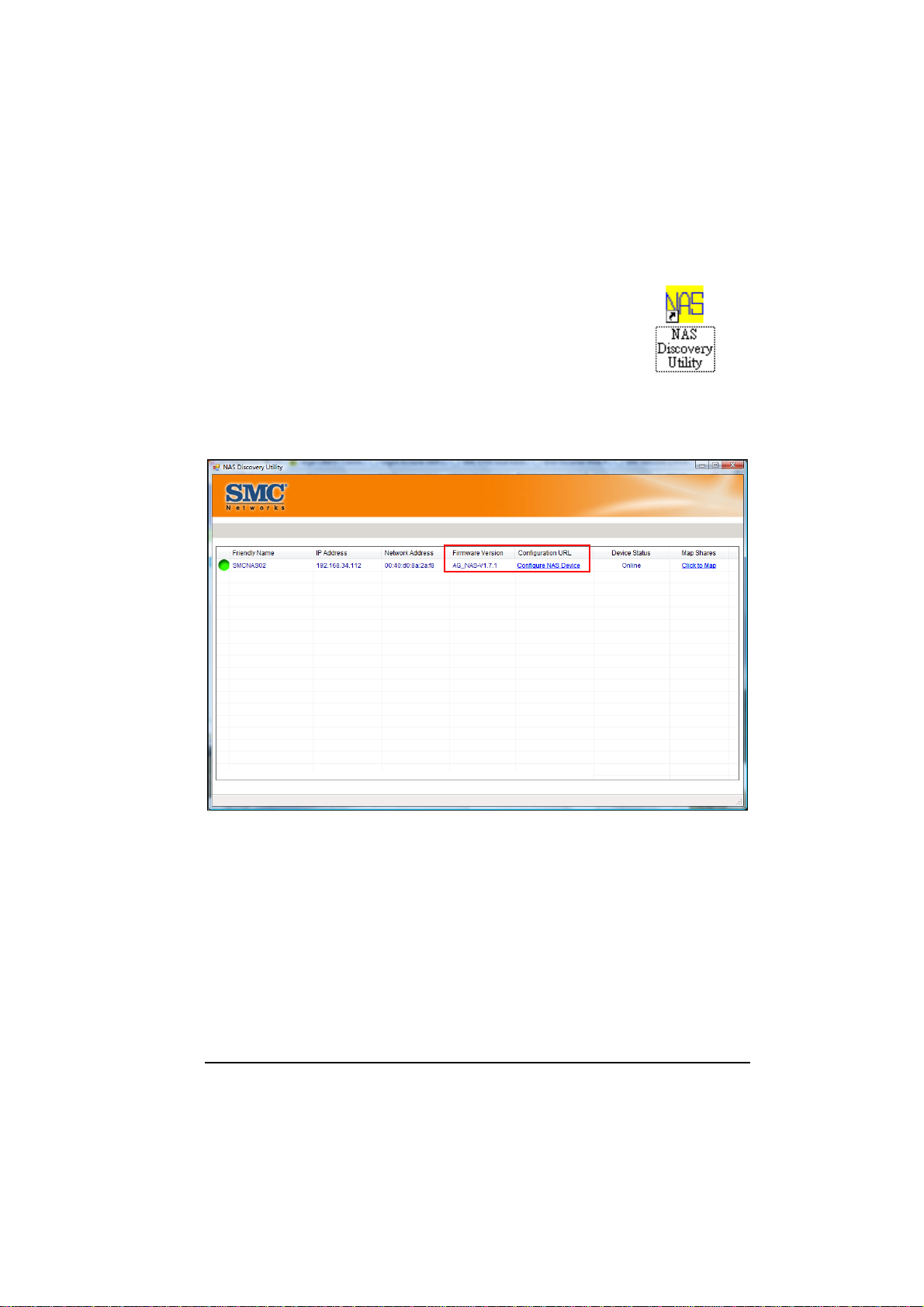

1. Click the NAS Discovery Utility shortcut icon on your desktop or you can launch the JAVA-based NAS Discovery Utility by clicking Start Æ

Programs Æ NAS Discovery Utility Æ NAS Discovery Utility.

NOTE: If the following screen appears, click Yes to allow ActiveX controls.

NOTE: If the following screen appears, click Run to allow the digital signature verification.

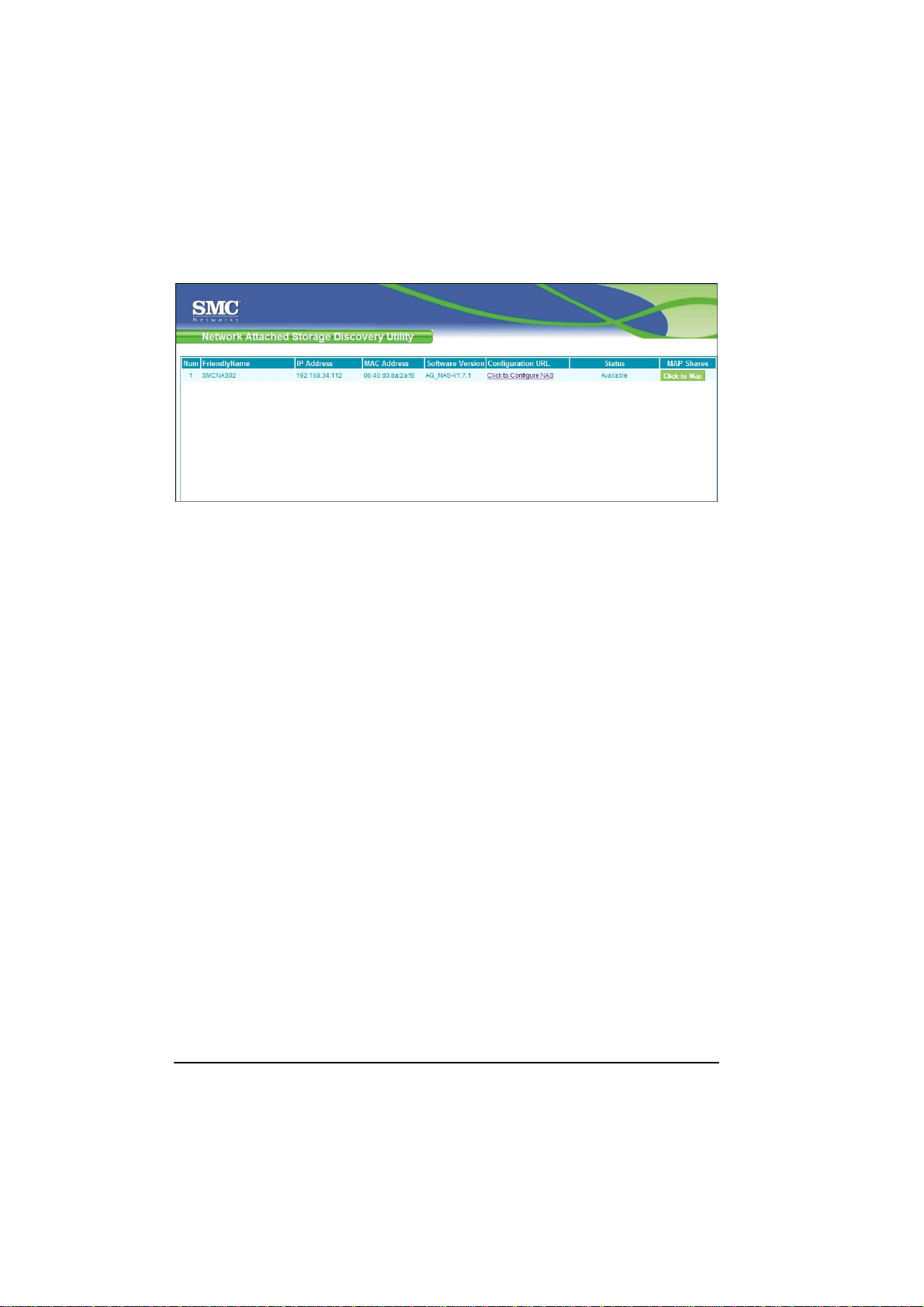

2. When the following screen appears, click the Click to Configure NAS on the

Configuration URL column to log in the Storage System Management.

Non-JAVA based

1. Click the NAS Discovery Utility shortcut icon on your desktop or you can launch the non-JAVA based NAS Discovery Utility by clicking Start Æ Programs Æ NAS Discovery Utility Æ NAS Discovery Utility.

2. When the following screen appears, click the Configure NAS Device on the Configuration URL column to log in the Storage System Management.

3. The system automatically scans the network for storage systems. This might

take a few minutes. The following screen appears.

4. Enter the default User name “admin” and the default Password

“smcadmin” then select the desired language.

5. Click Log In. The Storage System Management homepage contains six tabs

namely, My NAS, Users & Groups, Shared Folders, Disk, Advanced, and Logout appears.

3.3 My NAS Page

Displays a list of your storage system information (NAS name, Middleware and Flash version, MAC and IP address, Subnet mask, Gateway IP address, Disk Mode, System and Data utilization) and Current Connections (Shared folders, Users, and Login Time).

System utilization: shows the current system data partition usage. Data utilization: shows the current data partition usage.

System Setting

Allow you to specify the storage system name, date, time, time zone, NTP server name or IP address, administrator name, and password.

1. On the My NAS page, click System setting and the following screen appear.

NOTE: Be careful when changing the Storage System Name. Inform your clients of any change of this column for providing available function, including shared folders or backups.

To change this . . . Do this . . .

Storage system name

Date, Time, Time zone

NTP server name or IP address

Administrator name Password Confirm password

Enter the new name to use for the specific storage system. The name can be up to 15 characters long and can include letters, numbers, and hyphens.

In the Date fields, enter or select the month, day, and year.

In the Time fields, enter or select the hour, minute, and second.

In the Time zone list, select the time zone. Enter the name or IP address of the Network

Time Protocol server from which the storage system could adjust its time automatically. You can use an NTP server name only if it is resolvable/recognizable.

NOTE: The NTP server name’s maximum number of characters is 64. Can include only letters (uppercase and lowercase A~Z), numbers (0~9), hyphens (–), underl ines (_), and dots (.). The IP address’ maximum number of character is 15 (including the three “.”). The format is xxx.xxx.xxx.xxx and the value of xxx is between 0 and 255.

In the Administrator name field, enter the administrator name for logging in to the Storage System Management.

NOTE: Maximum number of characters is 15. In the Password and Confirm password fields,

enter the password for logging in to the Storage System Management. The administrator name and password are case-sensitive.

NOTE: Maximum number of characters is 8. Can include any printable ASCII characters but not ( ' ).

2. After making the necessary changes, click Apply.

3. When the confirmation message appears, click OK for the changes to take effect.

Network Setting

Allow you to configure the network settings that include the workgroup name, MAC address, and FTP server settings.

NOTE:

z The time between ADS's and the Samba server must be in sync (use NTP). z You only can choose the “workgroup” of NAS or “AD full domain” z If AD domain is selected, user cannot use the local user account to connect to NAS

via Samba.

z “~”, “!”, “#”, “$”, “%”, “^”, “&”, “(“, “)”, “-“, “{“, “}”, “.”, “'”, and space can be included in AD

account.

1. Click Network setting and the following screen appear.

To change this . . . o this . . .

Workgroup name

Enter the new name for the specific workgroup. NOTE: Maximum number of characters is 15.

Can include only letters (uppercase and lowercase A~Z), numbers (0~9), hyphens (–) and underlines (_). The first character must be a letter (uppercase and lowercase A~Z).

Get an IP address automatically

If you have a DHCP server on your network, the server can get its IP address from that DHCP server automatically.

Use this IP address IP address Subnet mask Gateway IP address DNS server settings

If you do not have a DHCP server, you must specify an IP address, subnet mask, gateway IP address, and DNS server.

NOTE: Maximum number of characters is 15 (including the three “.”). The format is xxx.xxx.xxx.xxx and the value of xxx is between 0 and 255.

FTP server settings

Allows your storage device to perform as an FTP server, and it is highly recommended to download the data transfer tool from http://filezilla.sourceforge. net/.

If you select AD full domain you have to fill in the AD full domain name, AD server’s full domain controller name, AD administrator name, and the AD administrator password.

Smc NAS02 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Notes

Table of Contents

Chapter 1 Introduction

1.1 Package Contents

1.2 Specifications

Hardware

Software

1.3 System View

Front Components

Rear Components

Chapter 2 Setting Up

Step 1. Install the Hard Disks

Step 2. Connect to the Network

Step 3. Connect to Power

Step 4. Configure Your Storage System

Chapter 3 Configuring Your Storage System

3.1 Installing and Starting the Storage System Management

For Windows PC

JAVA-based

Non-JAVA based

For Apple Mac OS X (10.4.11 or above)

System Power-on Without Hard Disk Drive

System Power-on With Full New Hard Disk Drives

3.2 Starting Storage System Management

JAVA-based

Non-JAVA based

3.3 My NAS Page

System Setting

Network Setting
